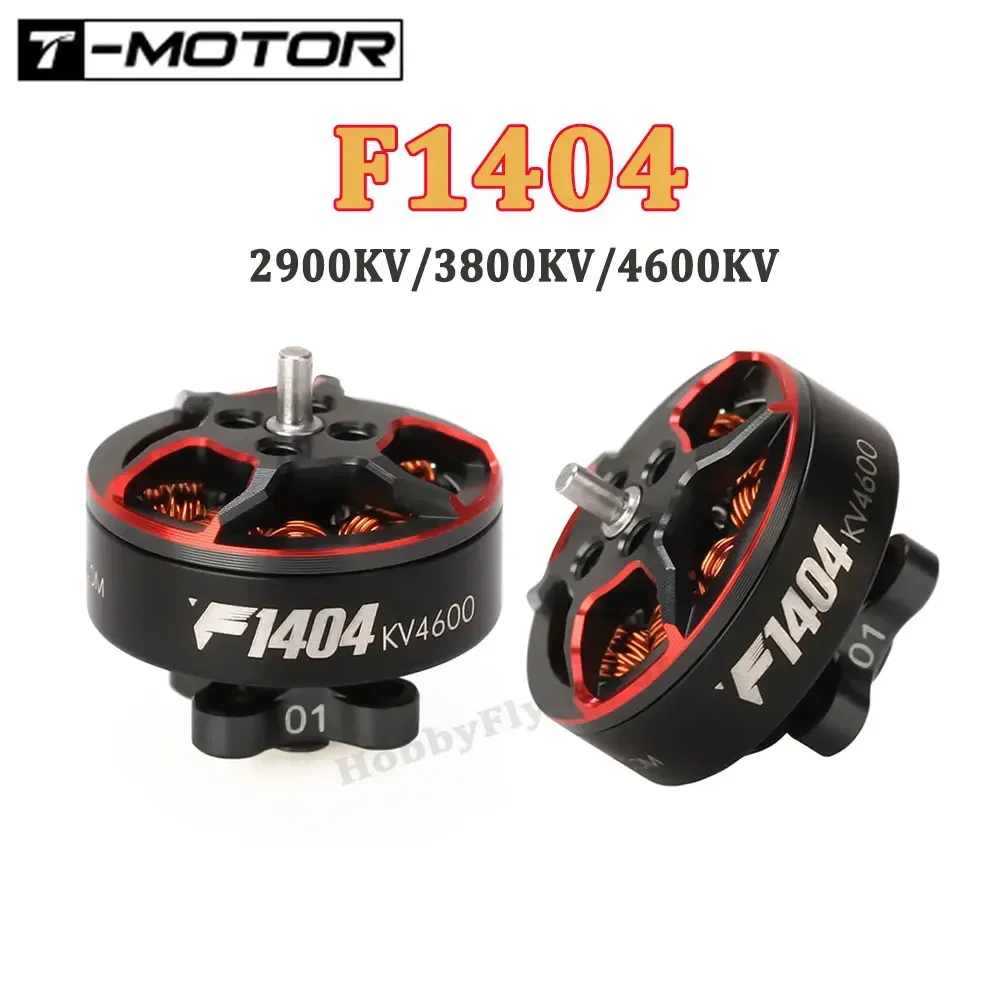

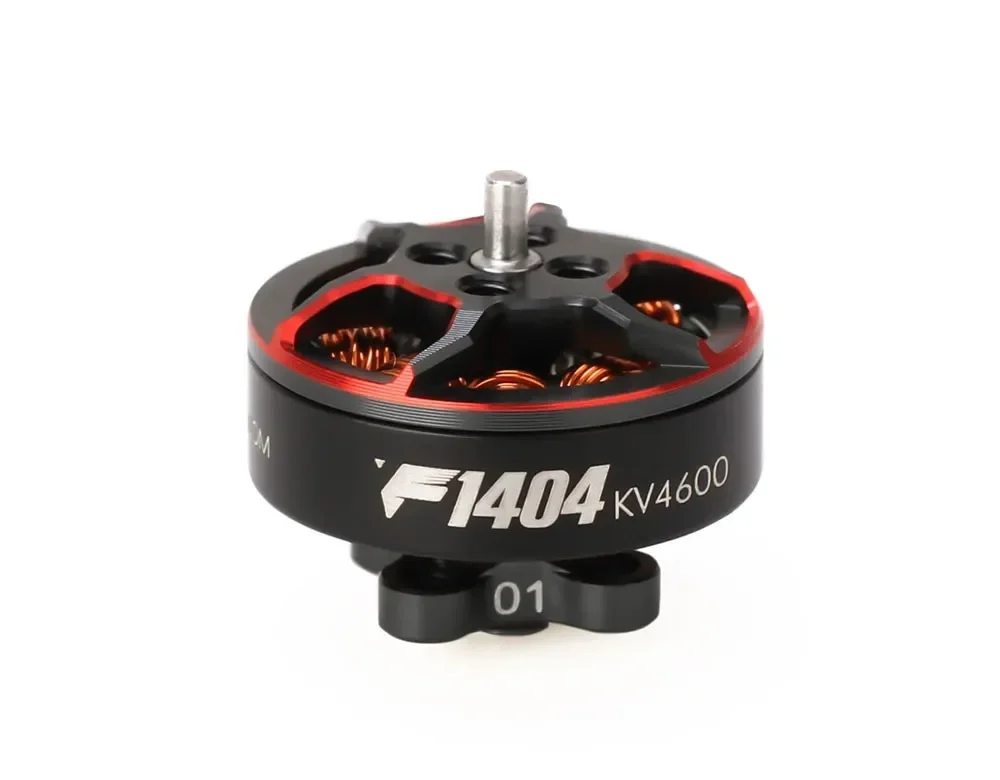

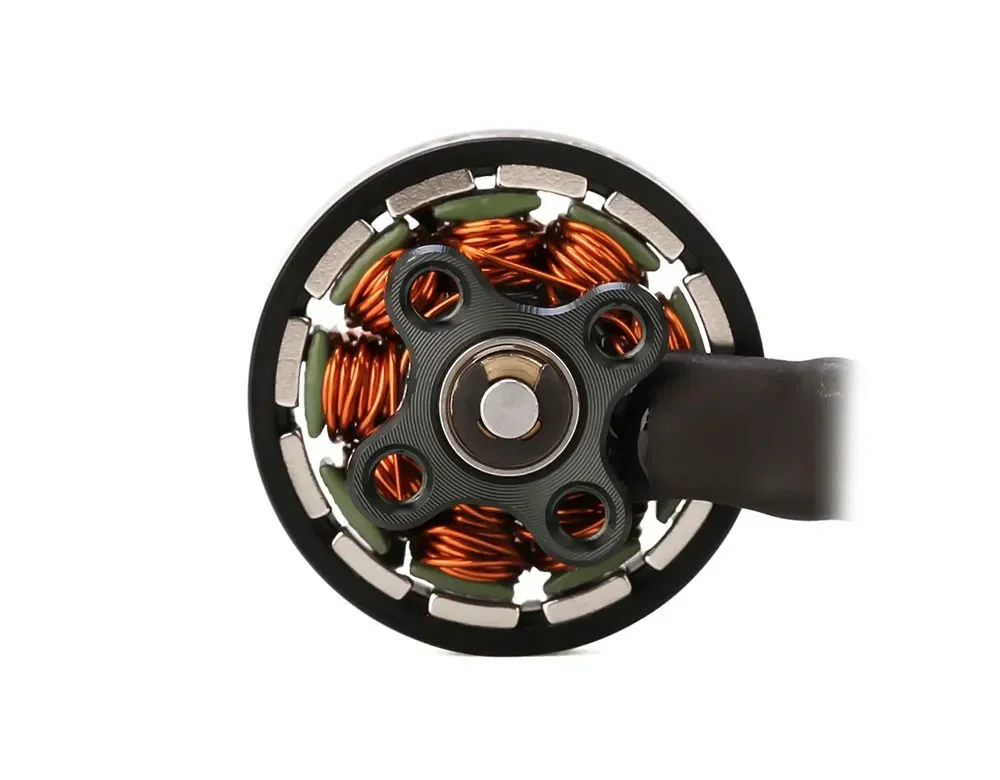

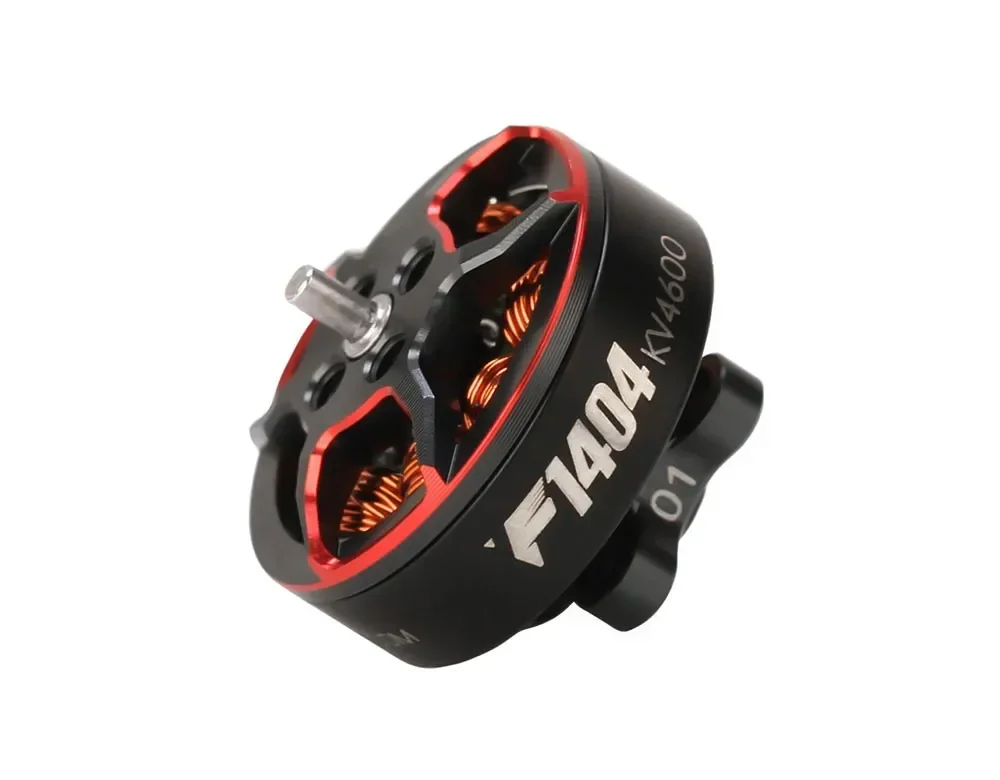

T-MOTOR F1404 2900KV 4-6S 3800KV 4600KV 3-4S Brushless Motor 1.5mm Shaft for RC FPV 2.5-4inch Cinewhoop Racing Drones Parts
From USD 17.16 - USD 60.62
Est. USD 17.16 - USD 60.62 / unit (1-9 pcs)
$16 @ 10+ pcs$15 @ 100+ pcs
529 orders (reference)
Description
Item: T-motor F1404 3800KV 4600KV 3-4S Lipo Brushless Motor

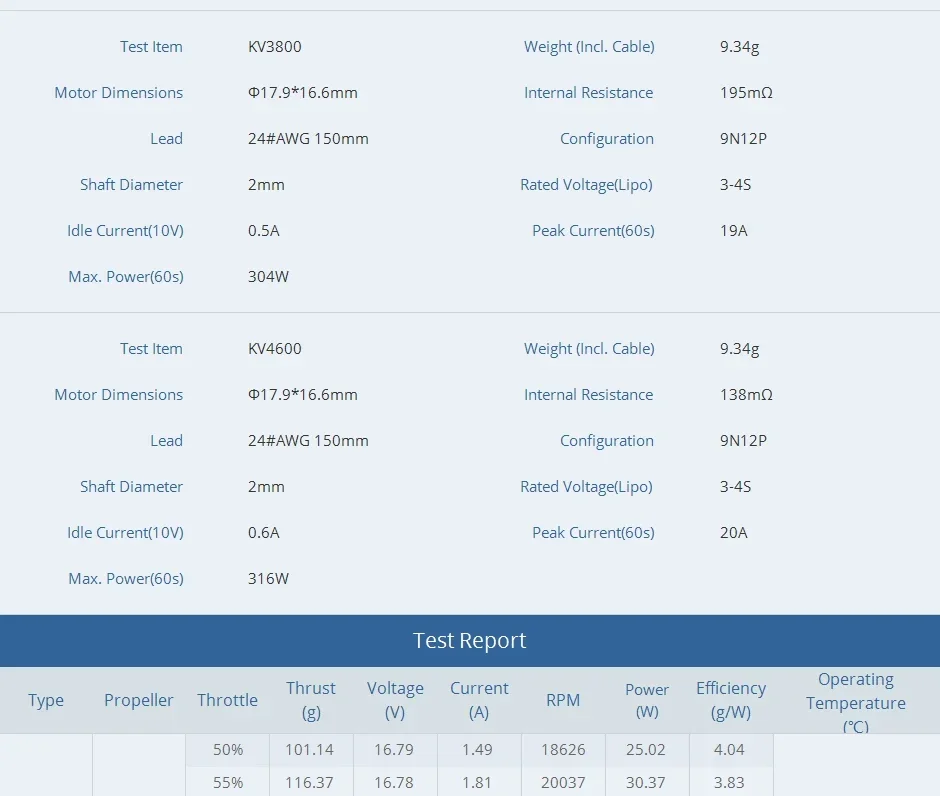

Parameters:
Brand: T-motor
Item Name: F1404
KV: 3800/4600KV optional

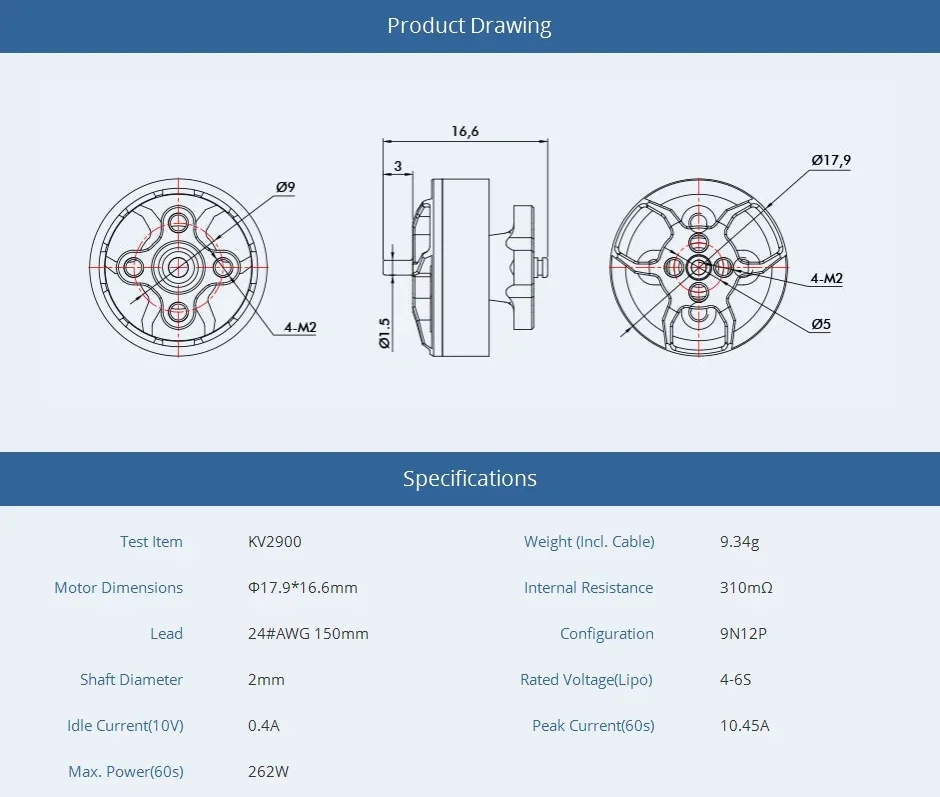

Motor Dimensions: Φ17.9x16.6mm
Lead: 24#AWG 150mm
Shaft Diameter: 1.5mm
Idle Current(10V): 0.5A (3800kv), 0.6A (4600kv)
Peak current(60S): 19A(3800kv), 20A(4600kv)
Weight (Inc. Cable): 9.34g
Internal Resistance: 195mΩ (3800kv), 138mΩ (4600kv)
Rated Voltage (Lipo): 3-4S
Mounting: 9x9mm/M2
Variant
Selected priceUSD 17.16
Specifications
| Option | Values |
|---|---|
| Motor KV |
|
| Battery Cell Count |
|
| Size |
|
Product Details
T-Motor F1404 2900KV 4-6S 3800KV 4600KV 3-4S Brushless Motor 1.5mm Shaft for RC FPV 2.5-4inch Cinewhoop Racing Drones Parts
Item: T-motor F1404 3800KV 4600KV 3-4S Lipo Brushless Motor
Parameters:
Brand: T-motor
Item Name: F1404
KV: 3800/4600KV optional
Motor Dimensions: Φ17.9x16.6mm
Lead: 24#AWG 150mm
Shaft Diameter: 1.5mm
Idle Current(10V): 0.5A (3800kv), 0.6A (4600kv)
Peak current(60S): 19A(3800kv), 20A(4600kv)
Weight (Inc. Cable): 9.34g
Internal Resistance: 195mΩ (3800kv), 138mΩ (4600kv)
Rated Voltage (Lipo): 3-4S
Mounting: 9x9mm/M2

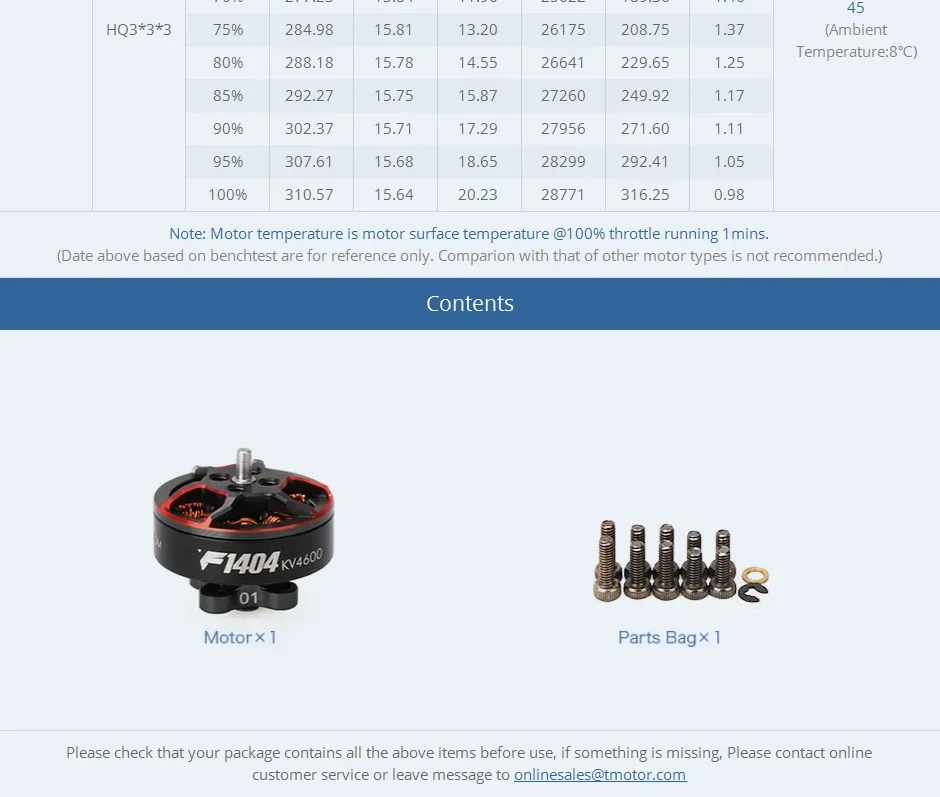

Package Included:
F1404 Motor (KV as your choice)
Item: T-motor F1404 3800KV 4600KV 3-4S Lipo Brushless Motor
Parameters:
Brand: T-motor
Item Name: F1404
KV: 3800/4600KV optional
Motor Dimensions: Φ17.9x16.6mm
Lead: 24#AWG 150mm
Shaft Diameter: 1.5mm
Idle Current(10V): 0.5A (3800kv), 0.6A (4600kv)
Peak current(60S): 19A(3800kv), 20A(4600kv)
Weight (Inc. Cable): 9.34g
Internal Resistance: 195mΩ (3800kv), 138mΩ (4600kv)
Rated Voltage (Lipo): 3-4S
Mounting: 9x9mm/M2
Package Included:
F1404 Motor (KV as your choice)
