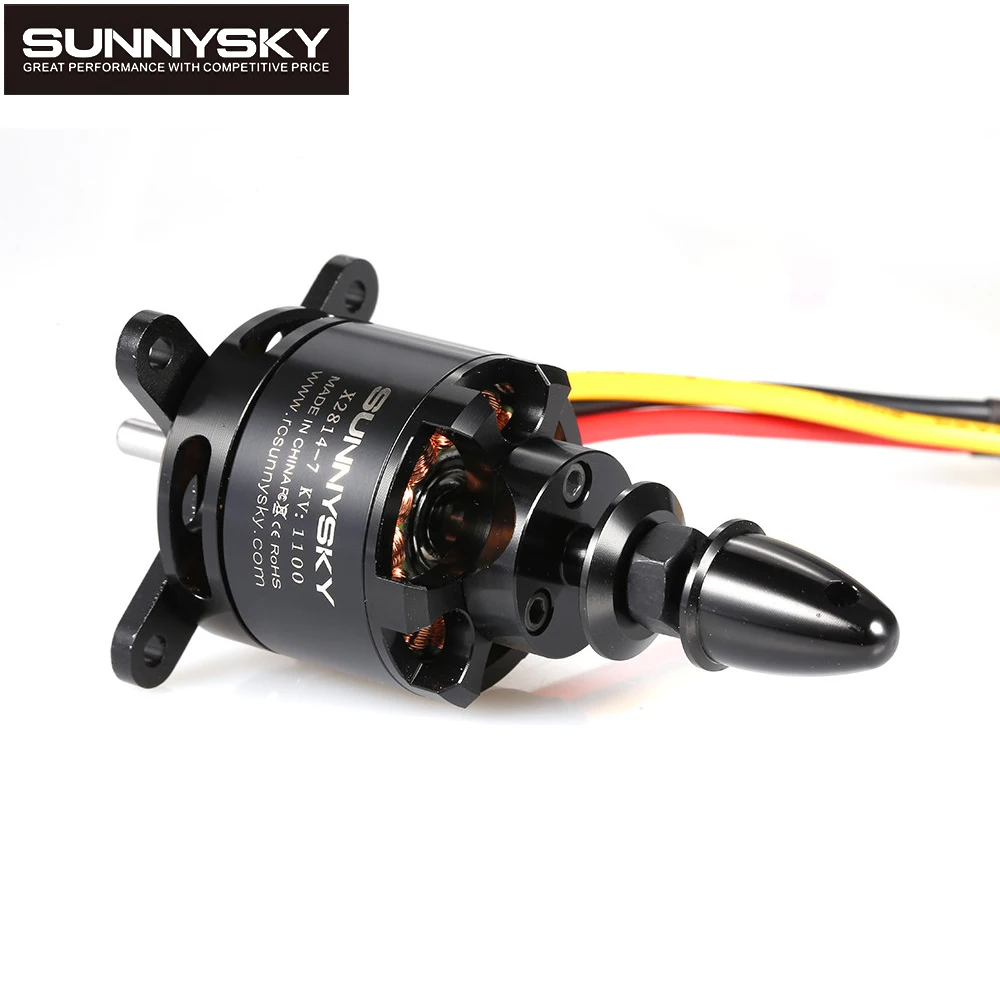

SunnySky X2814 900KV/1000KV/1100KV/1250KV/1450KV 3-4S Outrunner External Rotor Brushless Motor For RC 3D Airplane Aerobatic Toys

SunnySky X2814 Series 900KV/1000KV/1100KV/1250KV/1450KV Outrunner External Rotor Brushless Motor

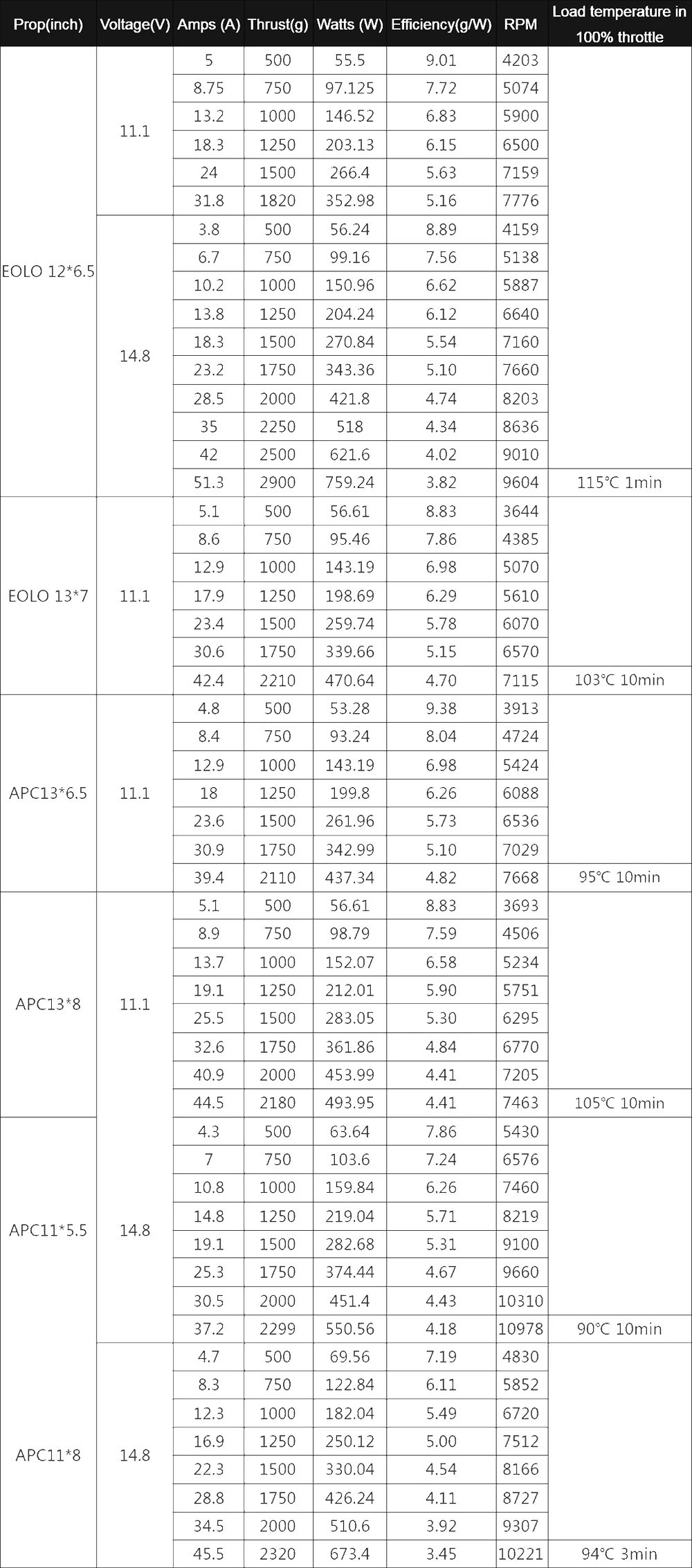

Sunnysky X2814 KV900:
Motor KV: 900KV;
Stator Diameter: 28mm;
Stator Thickness: 14mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current: 1.2A
Motor Resistance: 33.6mΩ;
Max Continuous Current: 50A/30S;
Max Continuous Power: 680W;
Weight: 108g;
Rotor Diameter: 35mm;
Max Lipo Cell: 3-4S;
ESC: 40-60A;
Recommended Prop(inch): EOLO12*6.5/EOLO13*7/APC11*5.5/APC13*6.5 APC11*8/APC13*8;
AEROBATIC:1200g—1400g (3S EOLO12x6.5\EOLO13x7\APC13x6.5\13x8);(4S APC11x5.5\APC11x7\APC11x8);
3D Plane:800g-1200g(3S EOLO12x6.5\EOLO13*7\APC13x6.5\13x8);

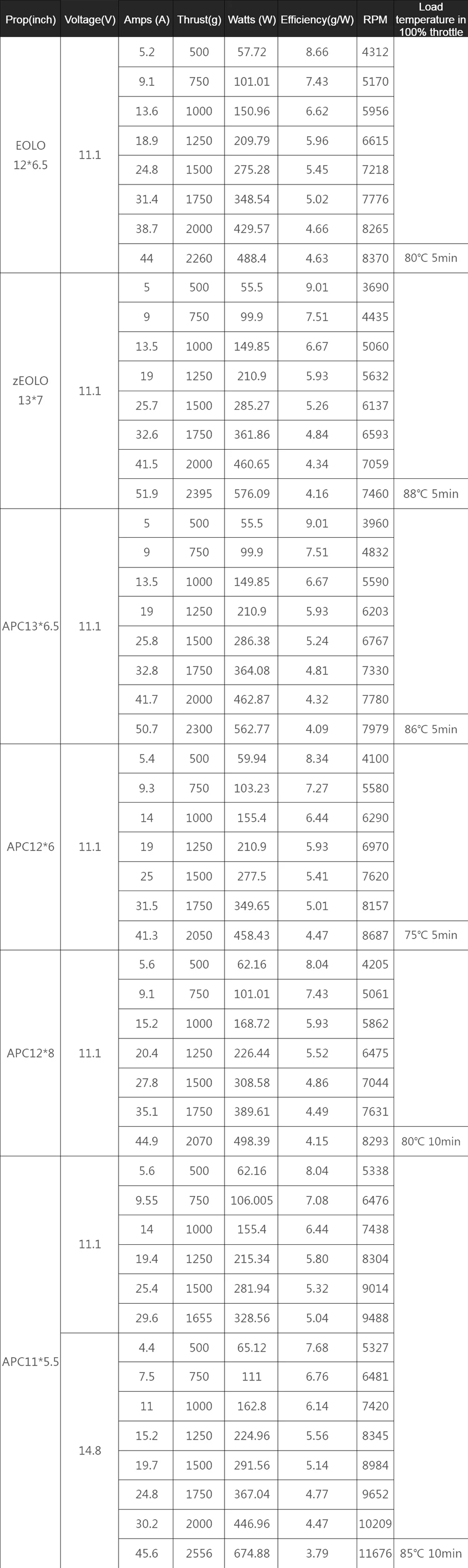

Sunnysky X2814 KV1000:
Motor KV: 1000KV;
Stator Diameter: 28mm;
Stator Thickness: 14mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current: 1.3A
Motor Resistance: 35.5mΩ;
Max Continuous Current: 55A/30S;
Max Continuous Power: 750W;
Weight: 113g;
Rotor Diameter: 35mm;
Max Lipo Cell: 3-4S;
ESC: 40-60A;
Recommended Prop(inch): EOLO12*6.5\EOLO13*7\APC11*5.5\APC13*6.5\APC12*6\APC12*8;
AEROBATIC: 1200g-1400g (3S EOLO12x6.5\EOLO13x7\APC12x6\12x8)(4S APC11x5.5);
3D Plane: 800g-1200g(3S EOLO12x6.5\EOLO13x7\APC13x6.5\12x6\12x8);

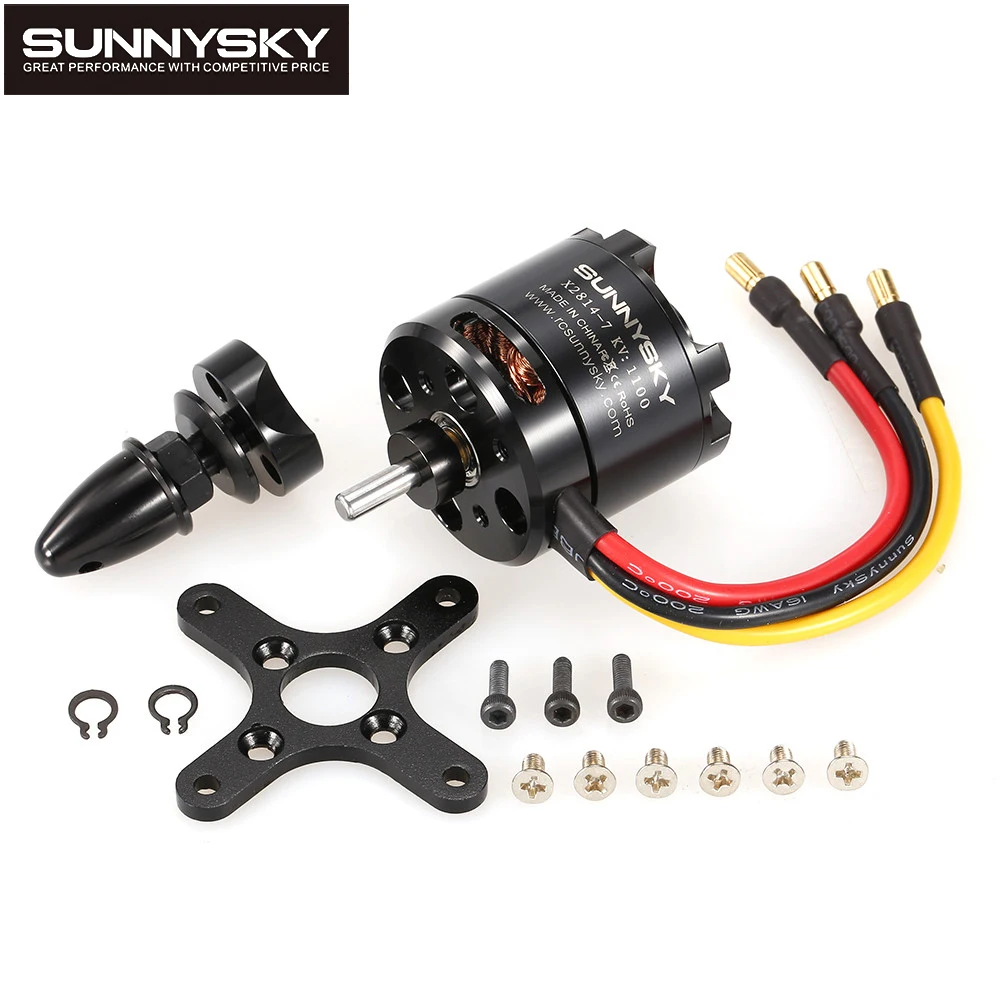

Sunnysky X2814 KV1100:
Motor KV: 1100KV;
Stator Diameter: 28mm;
Stator Thickness: 14mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current: 1.5A/10V;
Motor Resistance: 32mΩ;
Max Continuous Current: 40A/30S;
Max Continuous Power: 600W;
Weight: 108g;
Max Lipo Cell: 3-4S;
ESC: 50A;
Recommended Prop(inch): APC11*5.5/APC11*7/APC10*5/APC9*6;
AEROBATIC: 1200g-1400g (3S APC11*5.5\11*7) (4S APC9060);
3D Plane: 800g-1000g (3S APC11*5.5\11*7\11*8);
Glider: 1500g (3S APC11*5.5);

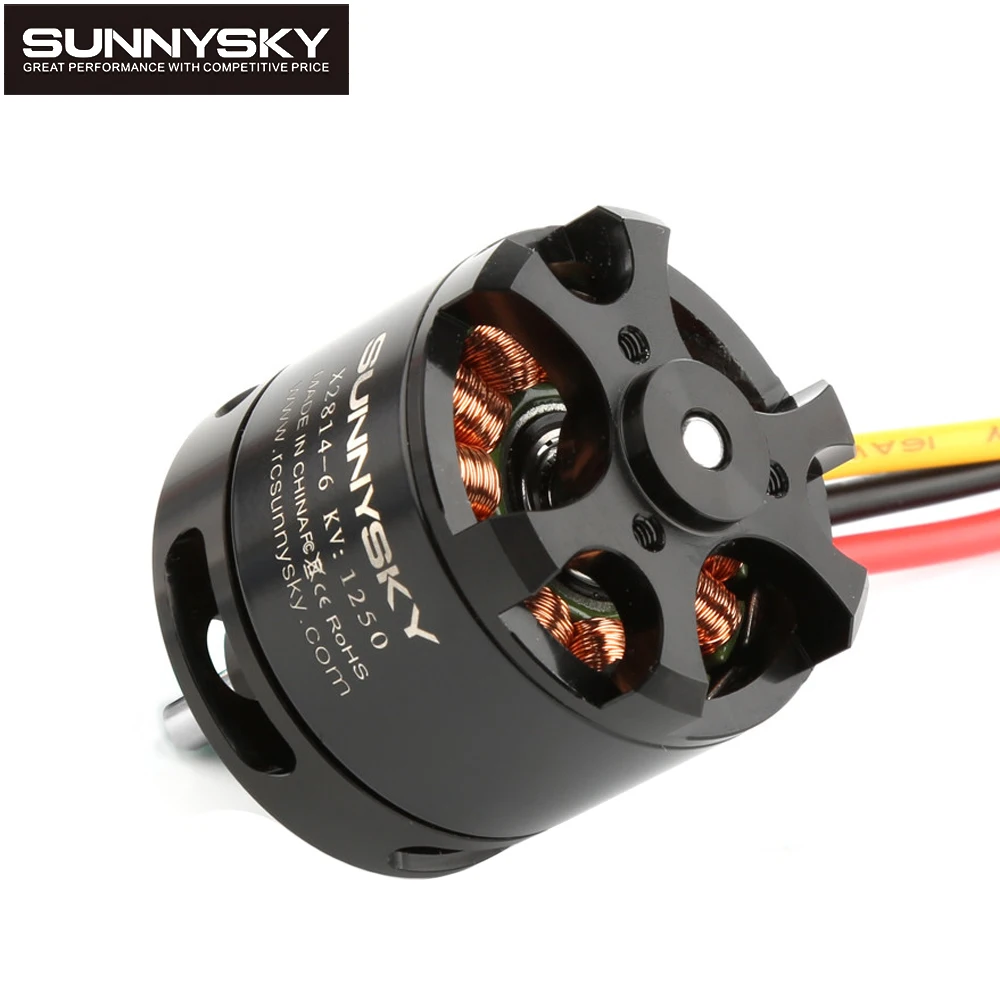

Sunnysky X2814 KV1250:
Motor KV: 1250KV;
Stator Diameter: 28mm;
Stator Thickness: 14mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current: 1.7A
Motor Resistance: 21.3mΩ;
Max Continuous Current: 64A/30S;
Max Continuous Power: 950W;
Weight: 110g;
Max Lipo Cell: 3-4S;
ESC: 50A-60A;
Recommended Prop(inch): APC11*5.5 APC1050 APC9060;
AEROBATIC: 1000g-1300g(4S APC1060\APC9060\APC8060)(3S APC11*5.5);

Sunnysky X2814 KV1400:
Motor KV: 1400KV;
Stator Diameter: 28mm;
Stator Thickness: 14mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current: 2.3A;
Motor Resistance: 15.9mΩ;
Max Continuous Current:80A/30S;
Max Continuous Power: 1180W;
Weight: 109g;
Max Lipo Cell: 3-4S;
ESC: 80A;
Recommended Prop(inch): APC8060 APC9060;
AEROBATIC: 1000g-1400g (4S APC9060\APC8060);
