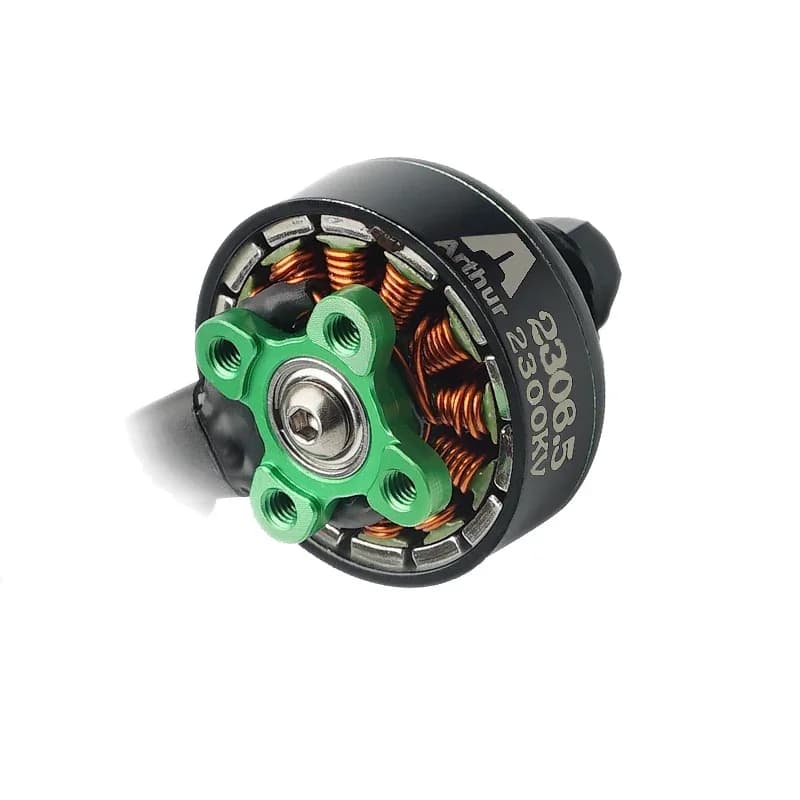

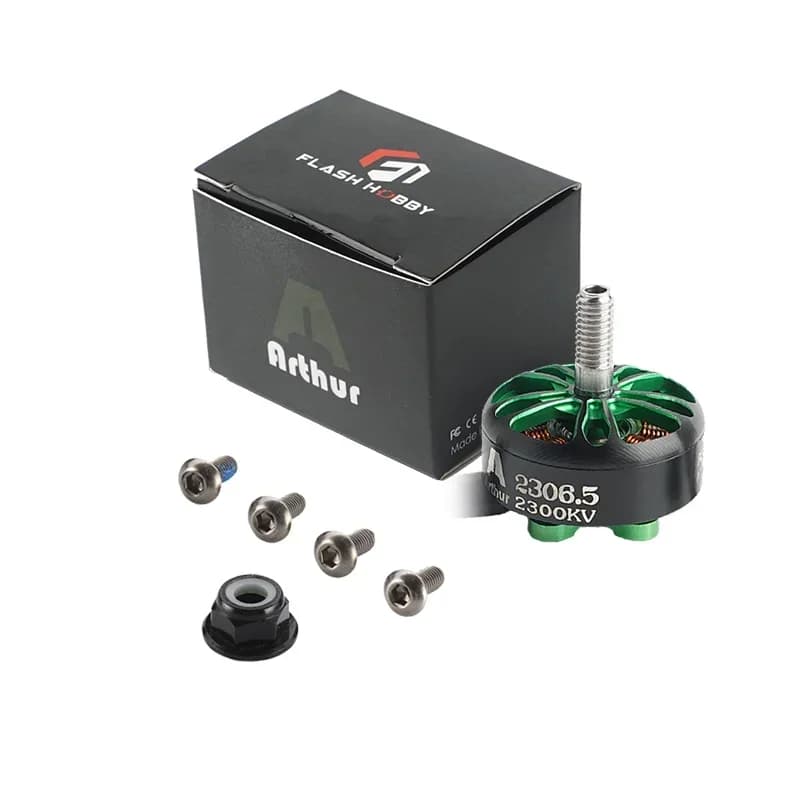

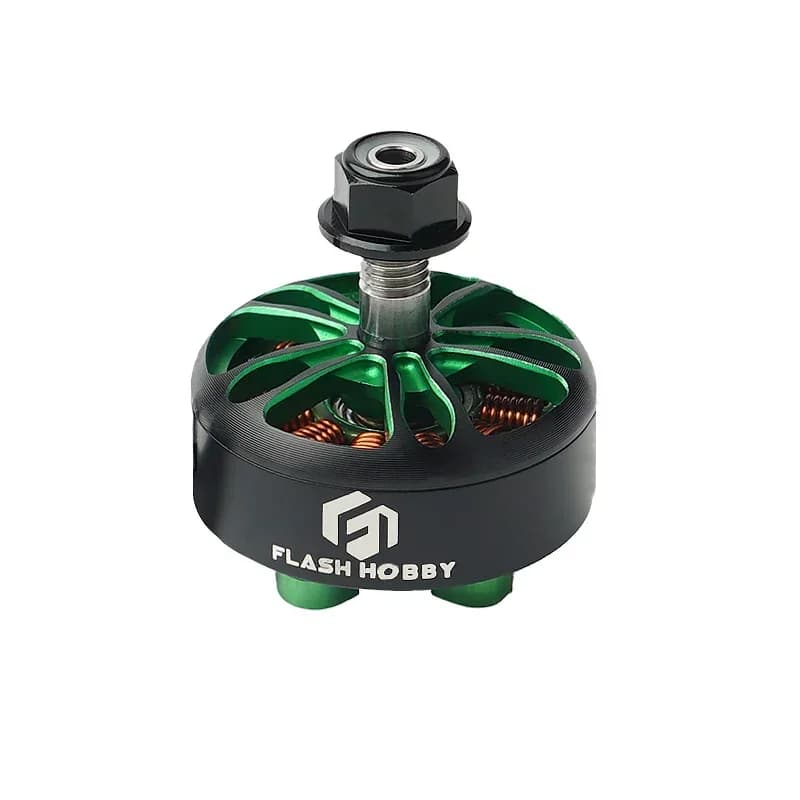

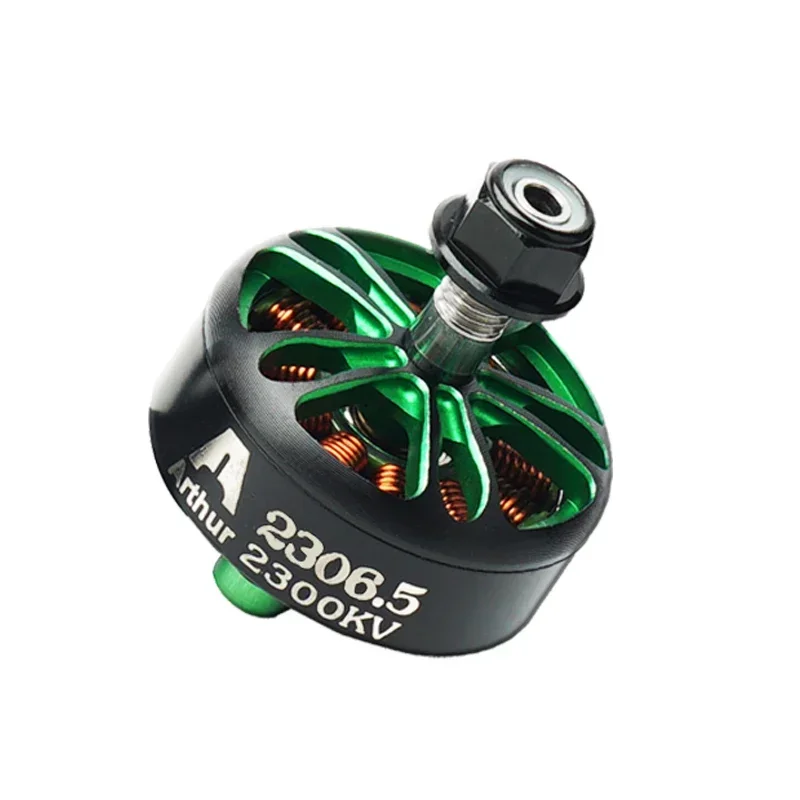

1PC/4Pcs Flashhobby A2306.5 2306 1400KV 1900KV 2300KV 2550KV High Torque Outrunner Brushless Motor for FPV Racing Drones
9 orders (reference)
Description
Item Name:A2306.5

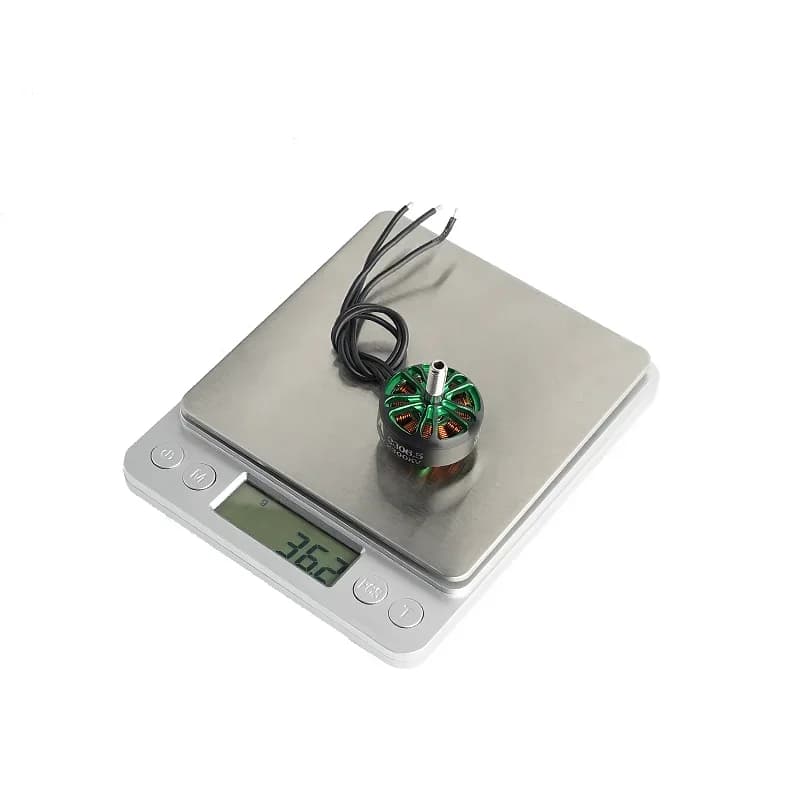

Weight: 36.5g (including the cables)
Motor Size:28.8 x 17.5mm
Stator Diameter: 23mm
Stator Height: 6.5mm
Shaft Diameter: 4mm
Propeller Shaft Size: M5
Mounting Screw Pattern: 16x16mm(M3*4)
Configuration: 12N14P
Motor Cable: 20AWG 145mm
KV Value: 1400KV, 1900KV, 2300KV, 2550KV or customed KV
Recommend: 5~7 inch prop application
Feature:
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
A2306.5-1400KV Motor Specification
Max pull:1741g(6S/GF7056 3R)
Input Voltage:DC7.4-24V(2-6S)
Current: 35.16A
Suggested ESC: 30A~50A
Maximum Power:843W
Suggested Prop: 6~7 inch prop
A2306.5-1900KV Motor Specification
Max pull:1961g(6S/GF6042 2R)
Current: 51.32A
Suggested ESC: 30A~60A
Maximum Power:1231W
Suggested Prop: 5~6 inch prop
A2306.5-2300KV Motor Specification
Max pull:1472g(4S/GF6042 2R)
Input Voltage:DC7.4-16V(2-4S)
Current: 42.96A
Maximum Power:687W
A2306.5-2550KV Motor Specification
Max pull:1718g(4S/HQ6045)
Current: 47.34A
Maximum Power:757W
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Brand Name |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | A2306.5 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | ESC |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | engines |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
Product Details
4Pcs/Lot FLASHHOBBY A2306.5 1400KV 1900KV 2300KV 2550KV High Torque Outrunner Brushless Motor for FPV Racing Drones
Item Name:A2306.5
Weight: 36.5g (including the cables)
Motor Size:28.8 x 17.5mm
Stator Diameter: 23mm
Stator Height: 6.5mm
Shaft Diameter: 4mm
Propeller Shaft Size: M5
Mounting Screw Pattern: 16x16mm(M3*4)
Configuration: 12N14P
Motor Cable: 20AWG 145mm
KV Value: 1400KV, 1900KV, 2300KV, 2550KV or customed KV
Recommend: 5~7 inch prop application
Feature:
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
A2306.5-1400KV Motor Specification
Max pull:1741g(6S/GF7056 3R)
Input Voltage:DC7.4-24V(2-6S)
Current: 35.16A
Suggested ESC: 30A~50A
Maximum Power:843W
Suggested Prop: 6~7 inch prop
A2306.5-1900KV Motor Specification
Max pull:1961g(6S/GF6042 2R)
Input Voltage:DC7.4-24V(2-6S)
Current: 51.32A
Suggested ESC: 30A~60A
Maximum Power:1231W
Suggested Prop: 5~6 inch prop
A2306.5-2300KV Motor Specification
Max pull:1472g(4S/GF6042 2R)
Input Voltage:DC7.4-16V(2-4S)
Current: 42.96A
Suggested ESC: 30A~60A
Maximum Power:687W
Suggested Prop: 5~6 inch prop
A2306.5-2550KV Motor Specification
Max pull:1718g(4S/HQ6045)
Input Voltage:DC7.4-16V(2-4S)
Current: 47.34A
Suggested ESC: 30A~60A
Maximum Power:757W
Suggested Prop: 5~6 inch prop
