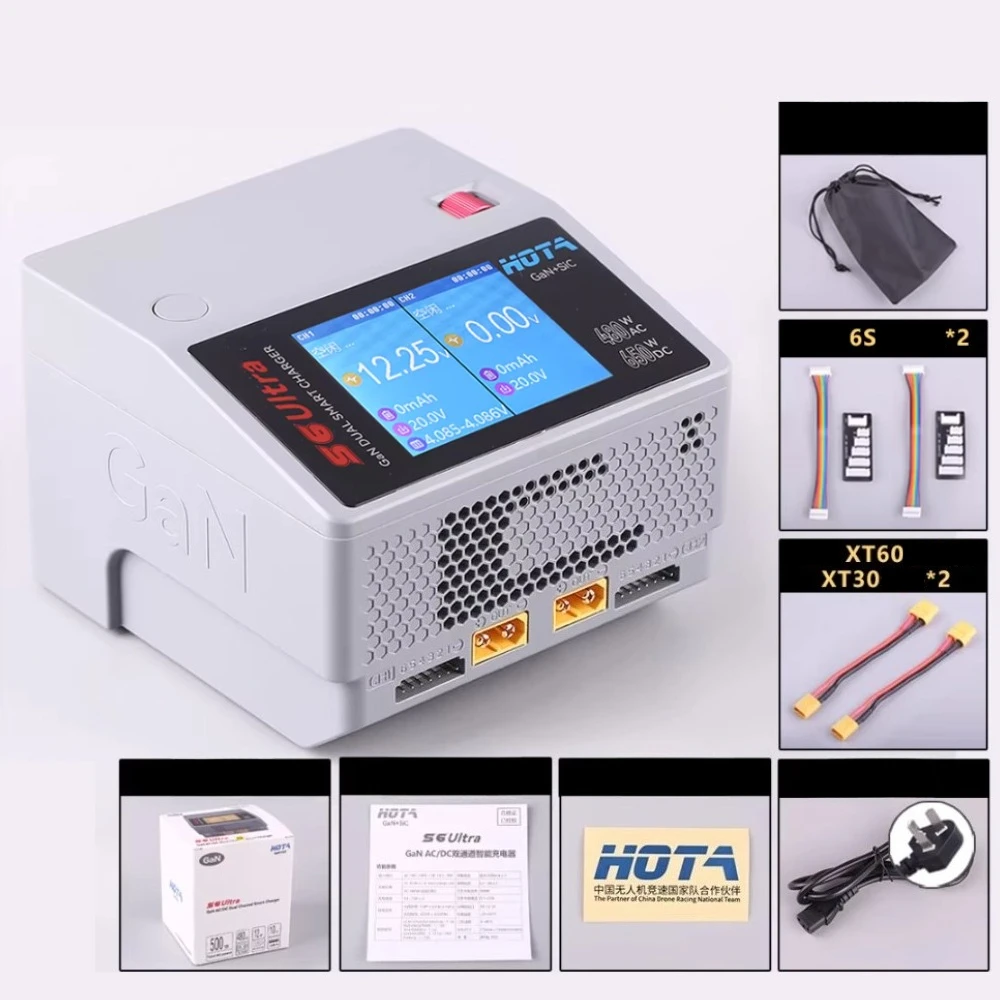

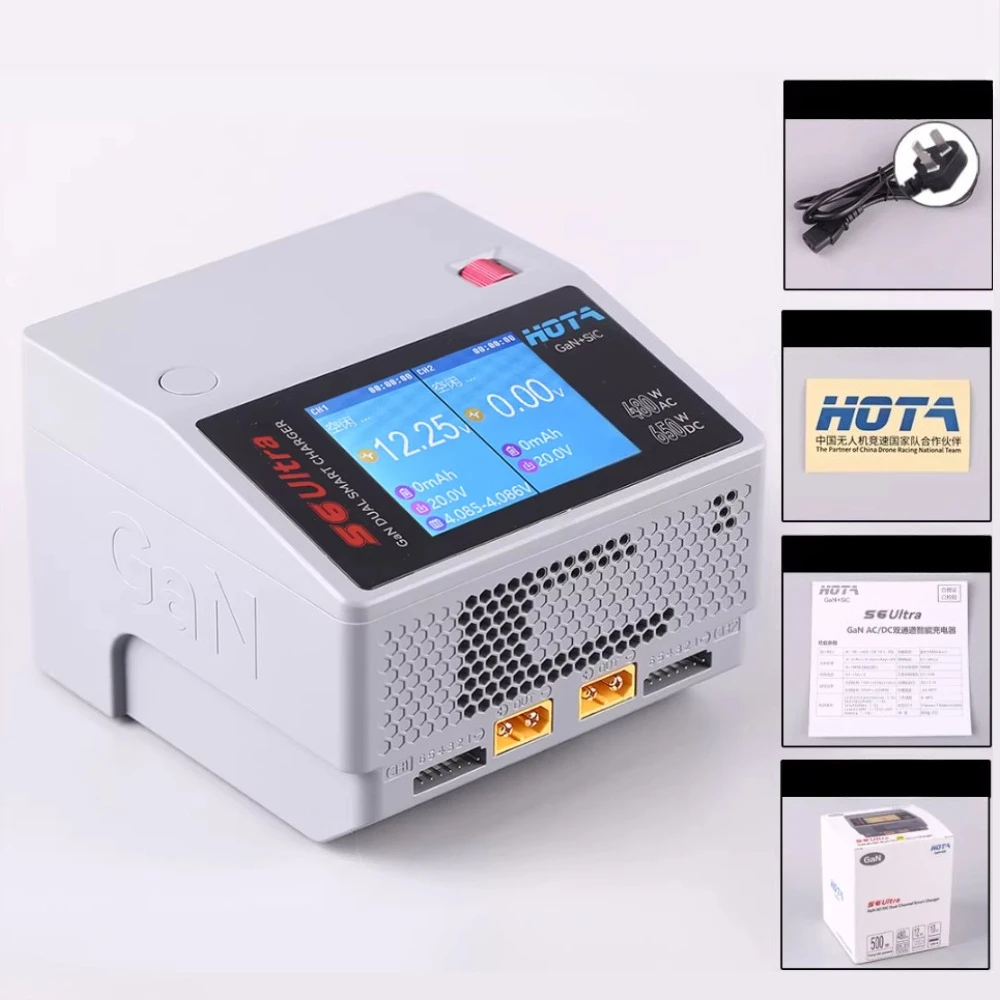

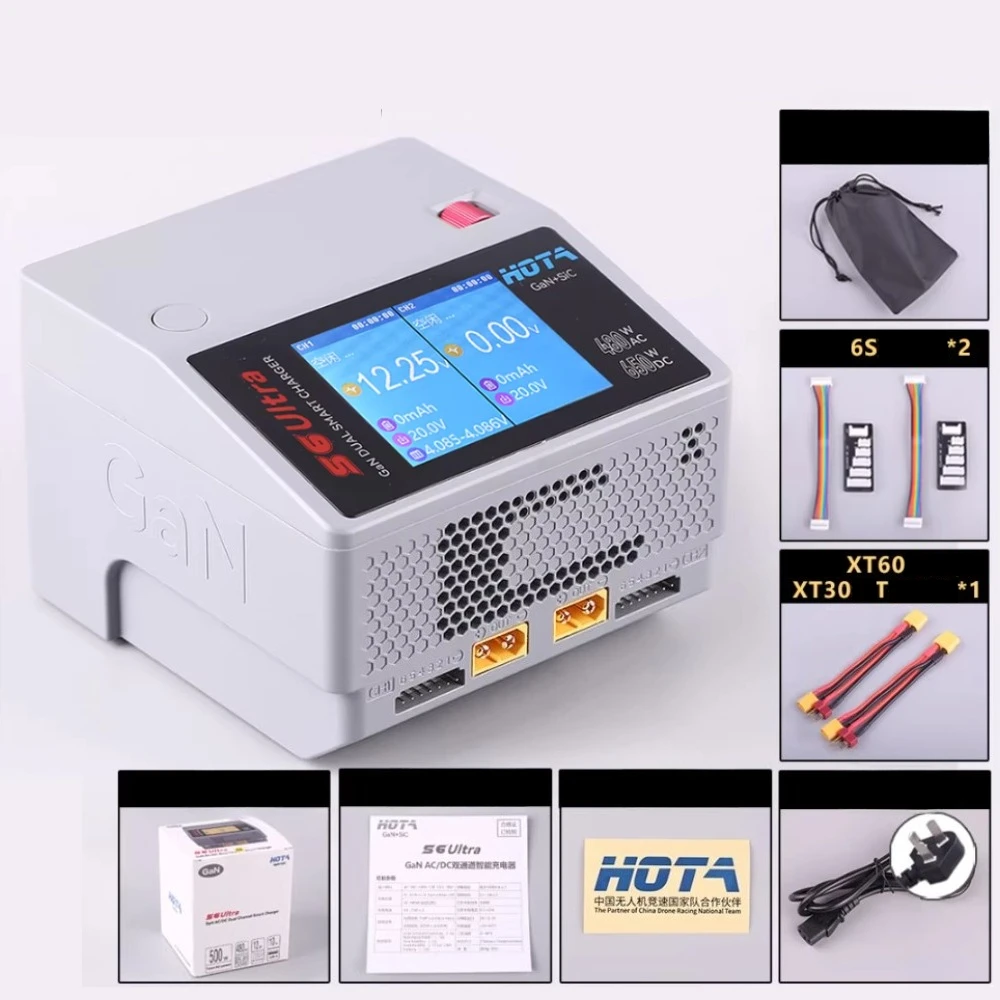

Chargeur double canal HOTA S6 Ultra 650W, AC 480W DC 650W pour batterie Lipo de drone FPV, chargeur rapide intelligent indépendant à 2 ports
Description

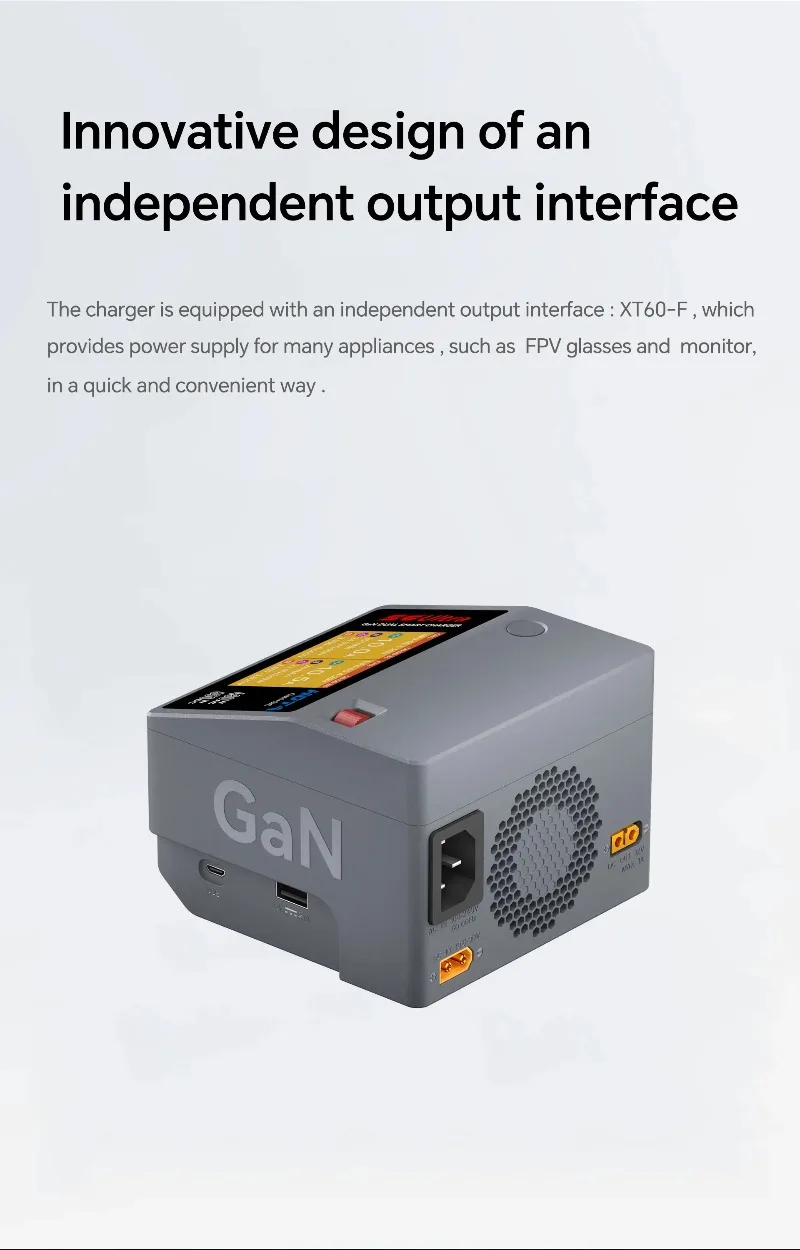

Innovative 12V Independent Output Port (XT60-F):
DC OUT 12V (MAX 1A), supports power supply for devices like FPV goggles and monitors, making it more convenient to use.
Power Compatibility: Can directly connect to 110V-220V mains power; also compatible with external power packs (power pack sold separately).
Battery Support: Supports up to 6S lithium batteries (compatible with different brands/models).
Additional Function: Supports wireless phone charging.
Lithium Battery/Charger Usage Precautions
Charge away from flammable materials, in an open and ventilated area.
Do not charge in excessively high/low temperatures.
Dispose of batteries that crack during charging properly; do not reuse them.
Do not connect positive and negative poles directly (risk of battery short circuit, fire or explosion).
The user is responsible for any battery damage or injury caused by non-compliance with instructions.
Do not overcharge/discharge; no replacement for battery damage caused by manual overcharge/discharge.
When using a balance charger, connect correctly as required. Improper charging may damage the battery or cause safety accidents (user assumes responsibility for consequences).
Battery Usage Warning
Do not let the lithium battery voltage drop below 3.6V per cell, otherwise it may cause permanent damage or scrapping of the battery.
Specifications
| Option | Values |
|---|---|
| Produit chimique à haute préoccupation |
|
| Type |
|
| Origine |
|
| État |
|
Product Details

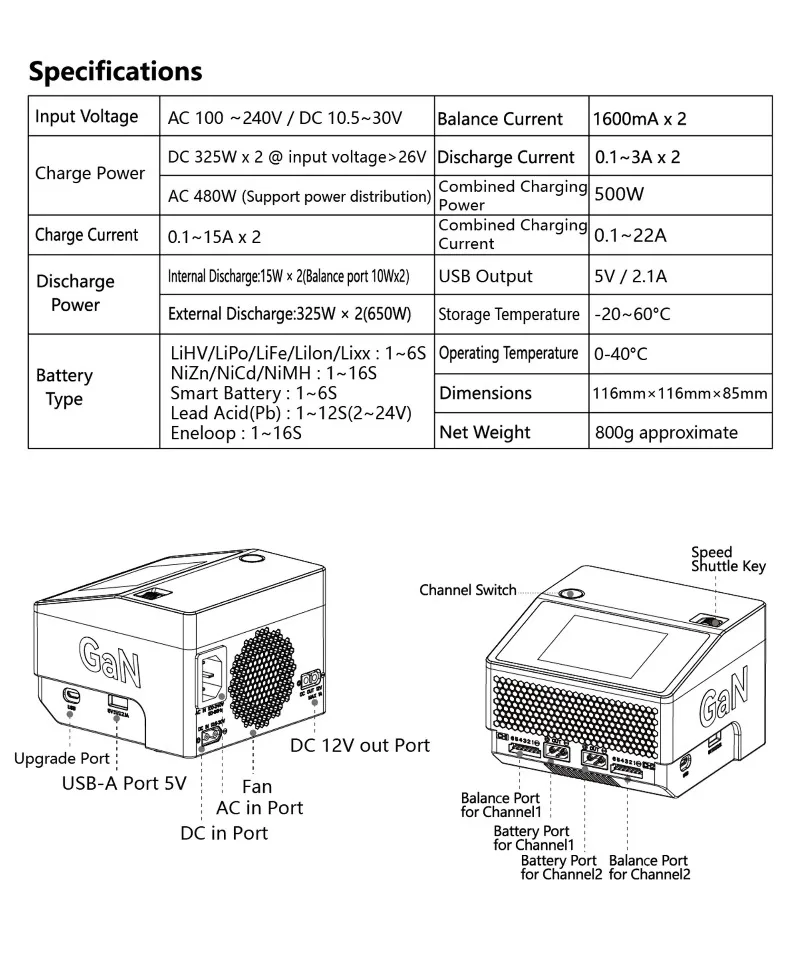

Specifications

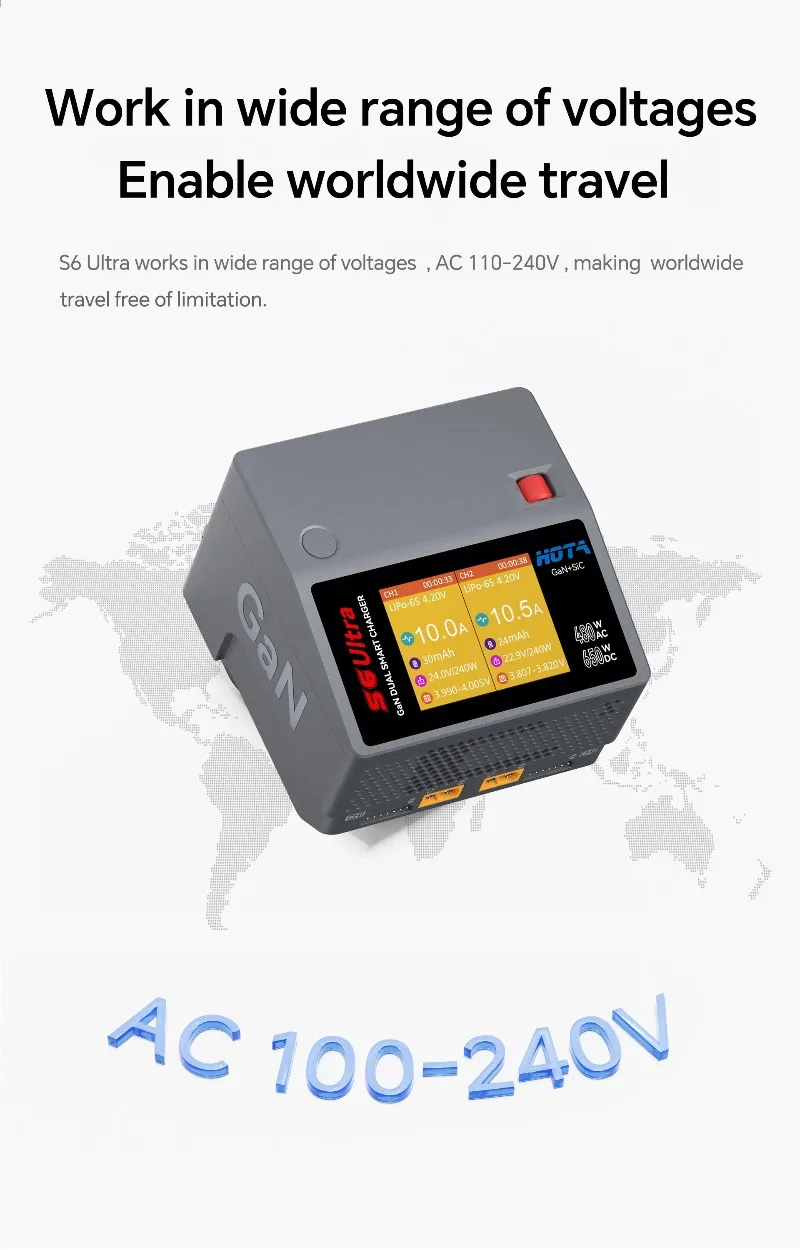

Inpust Voltage：AC 100~240V/ DC 10.5-30V
Charge Power：DC 325W x2 @ input voltage>25V
AC 480W (Support power distribution)
Chage Current：0.1~15Ax2
DischargePbwer：Internal Discharje:15W x2[Balance port 10V/x2)
External Discharge:325W x 2(650W)
BatteryType：LiHV/LiPo/LiFe/Lilon/Lixx:1~6SNiZn/NiCd/NiMH:1~16S
Smart Battery:1~6SLeadAcid(Pb):1~12S(2~24V)Eneloop:1~16S

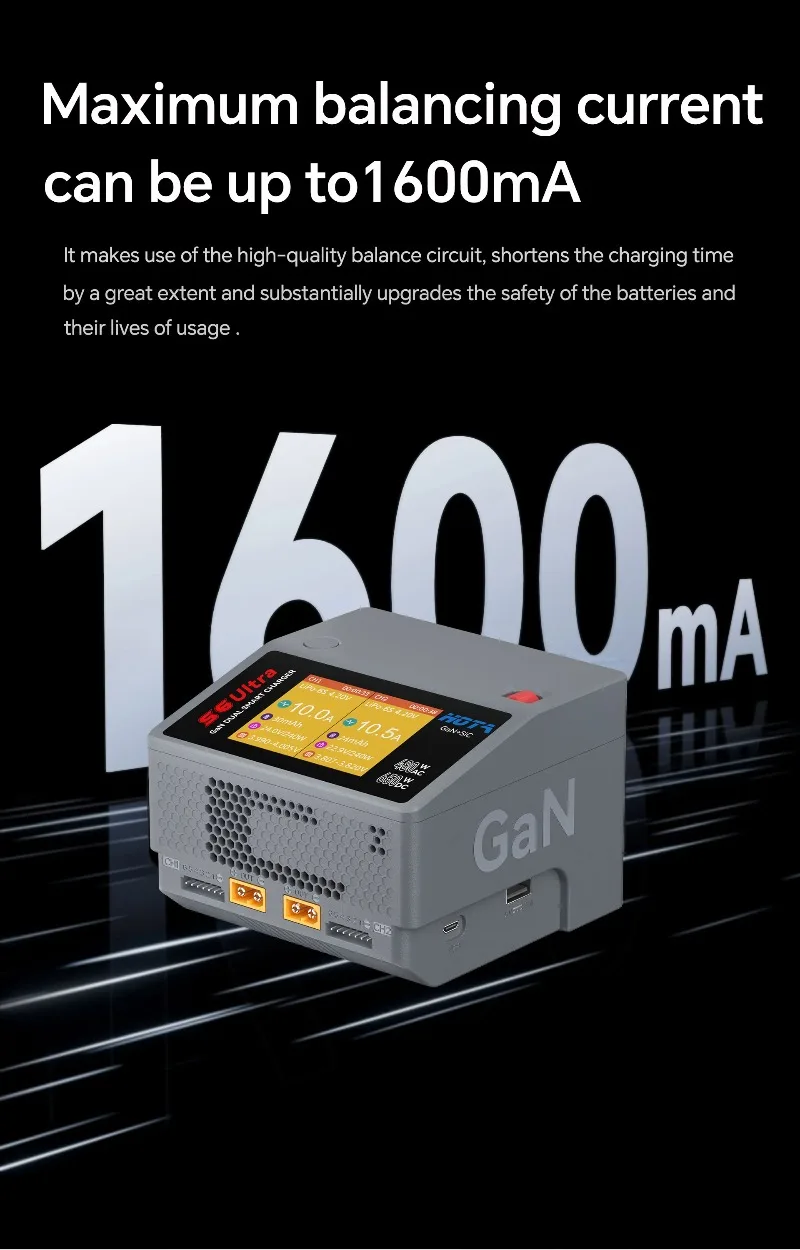

Balance Current：1600mA x2
Discharge Current：0.1~3Ax2
Combined Charging Power：500W
Combined Charging Current：0.1~22A
USB Output：5V/ 2.1A
Storage Temperature：-20~60C
Operating Temperature：0-40℃
Dimensions：116mmx116mmx85mm
Net Weight：800g approximate

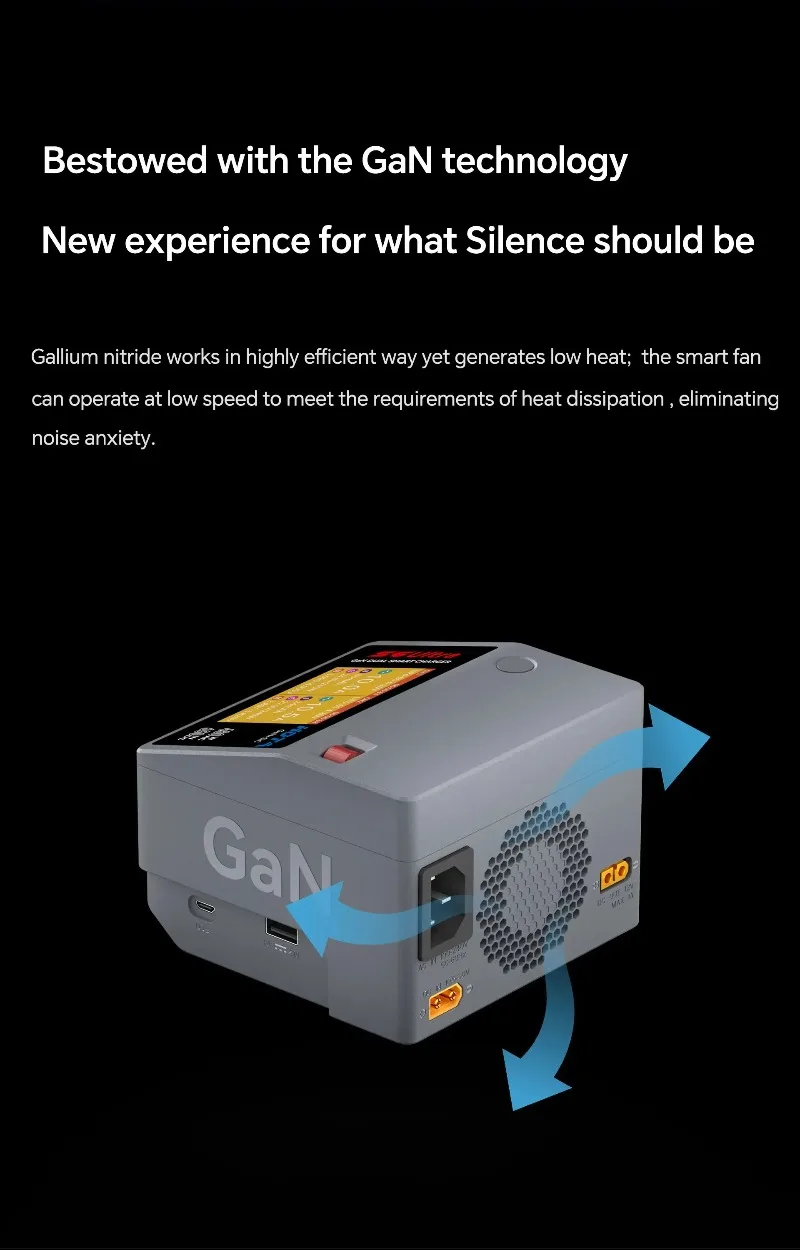

- Core Upgrade: Equipped with a GaN (Gallium Nitride) power supply (upgraded from S6’s GaN AC/DC dual-channel smart charger).
- Innovative 12V Independent Output Port (XT60-F):
- DC OUT 12V (MAX 1A), supports power supply for devices like FPV goggles and monitors, making it more convenient to use.
- Power Compatibility: Can directly connect to 110V-220V mains power; also compatible with external power packs (power pack sold separately).
- Battery Support: Supports up to 6S lithium batteries (compatible with different brands/models).
- Additional Function: Supports wireless phone charging.
- Charge away from flammable materials, in an open and ventilated area.
- Do not charge in excessively high/low temperatures.
- Dispose of batteries that crack during charging properly; do not reuse them.
- Do not connect positive and negative poles directly (risk of battery short circuit, fire or explosion).
- The user is responsible for any battery damage or injury caused by non-compliance with instructions.
- Do not overcharge/discharge; no replacement for battery damage caused by manual overcharge/discharge.
- When using a balance charger, connect correctly as required. Improper charging may damage the battery or cause safety accidents (user assumes responsibility for consequences).
