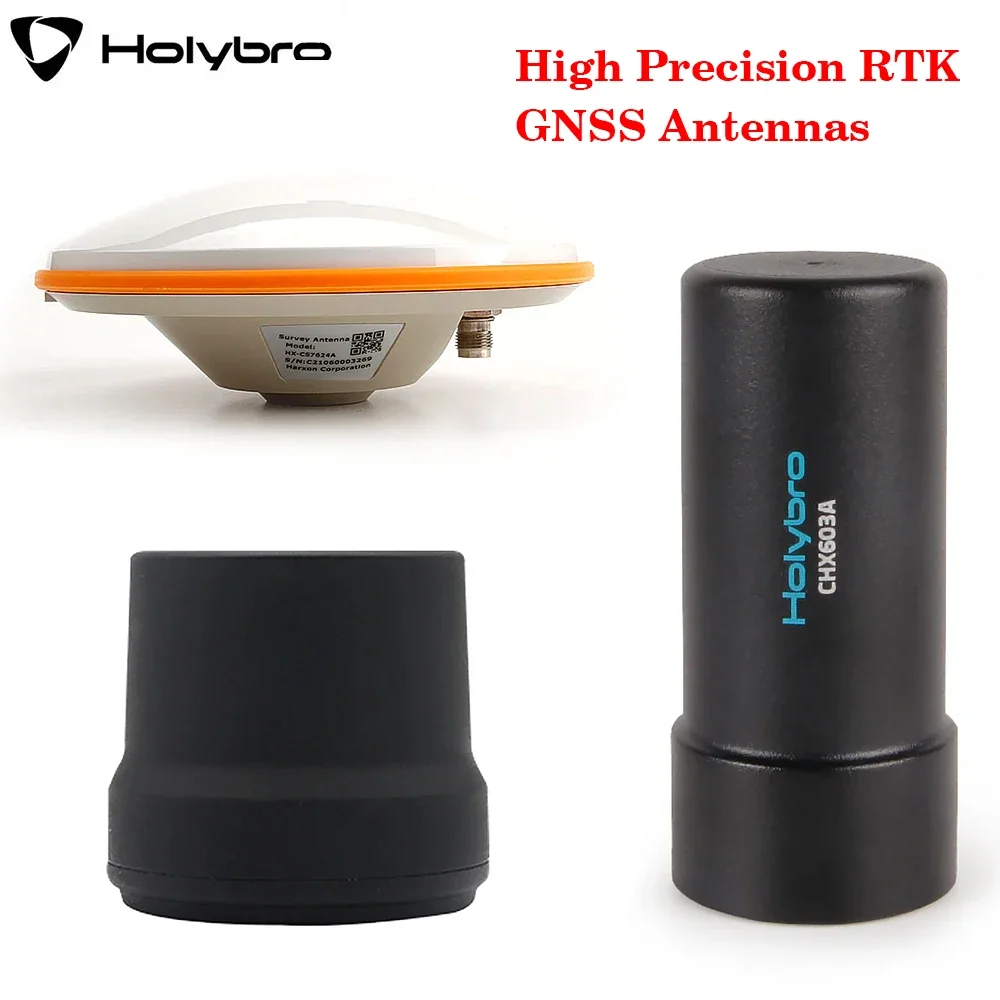

Holybro High Precision RTK GNSS Antennas Supports 3 / 4 Frequency Bands CH7604A/ CHX603A/ CUX623A/ CSX627A for FPV Drone parts

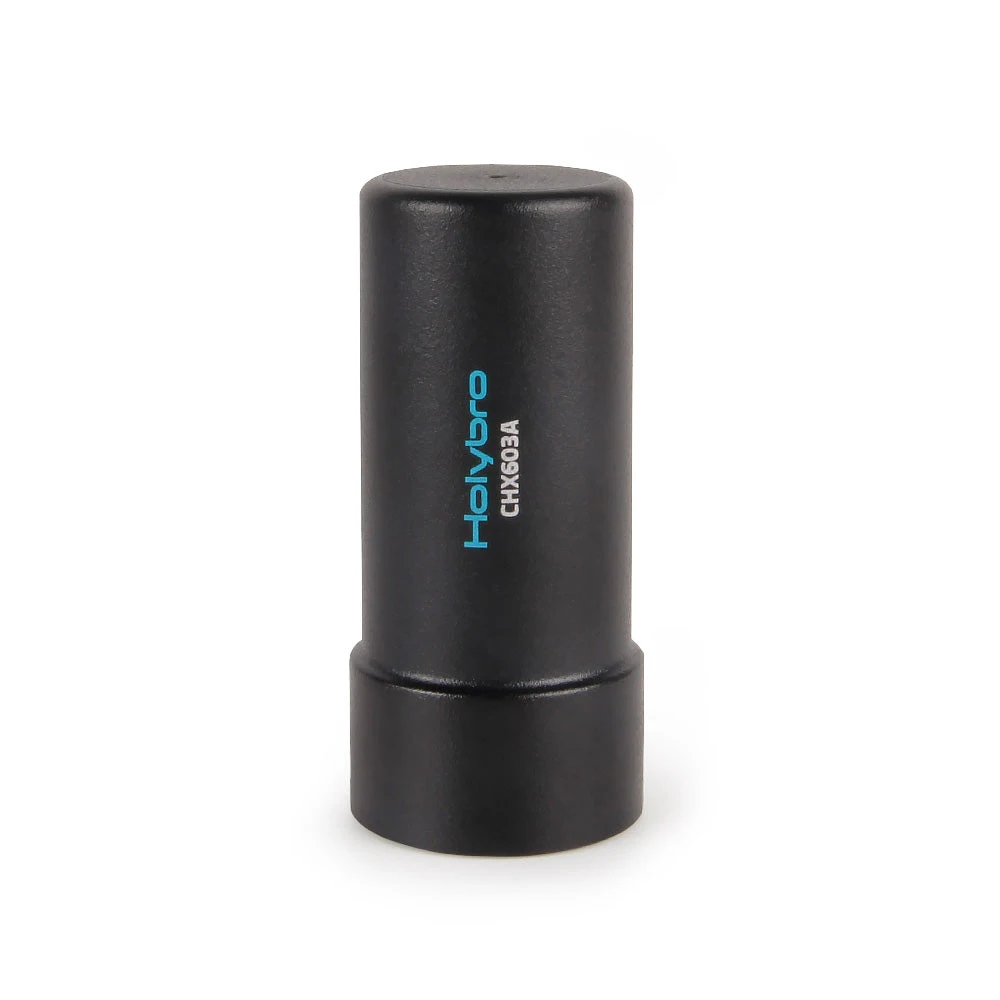

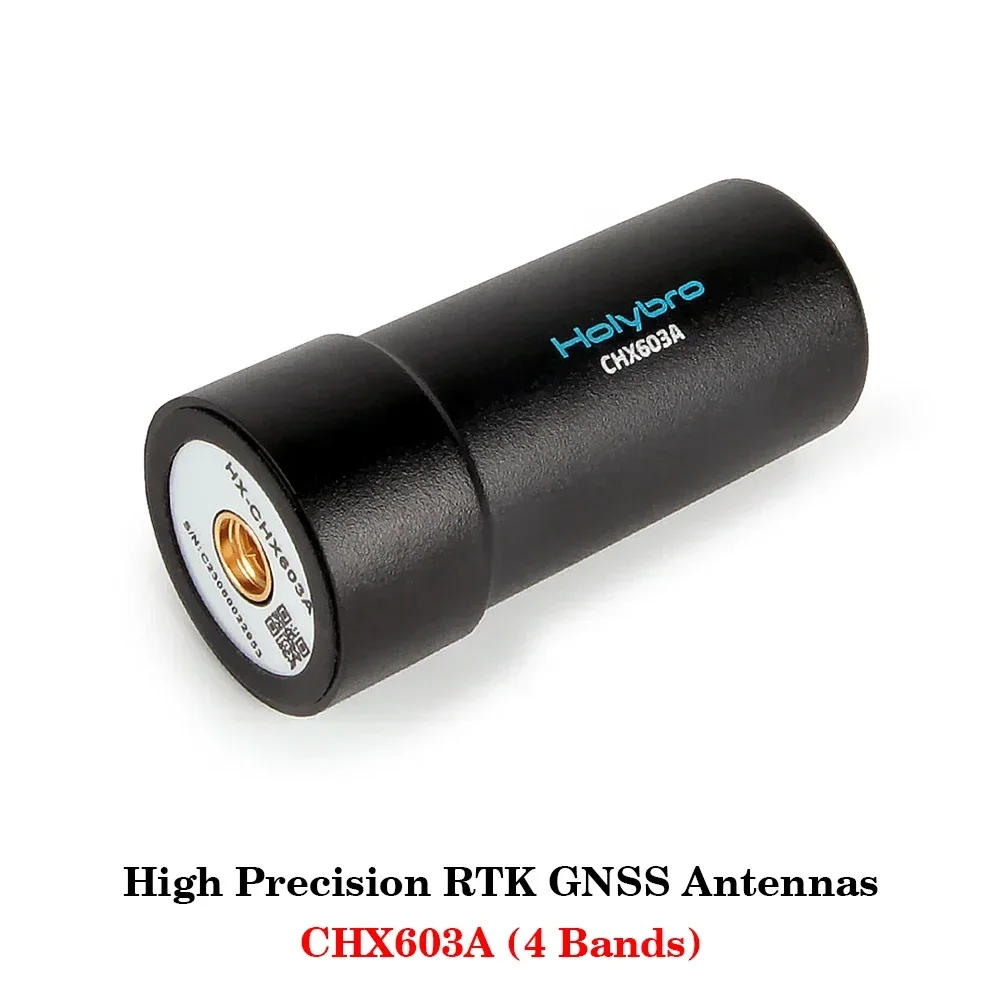

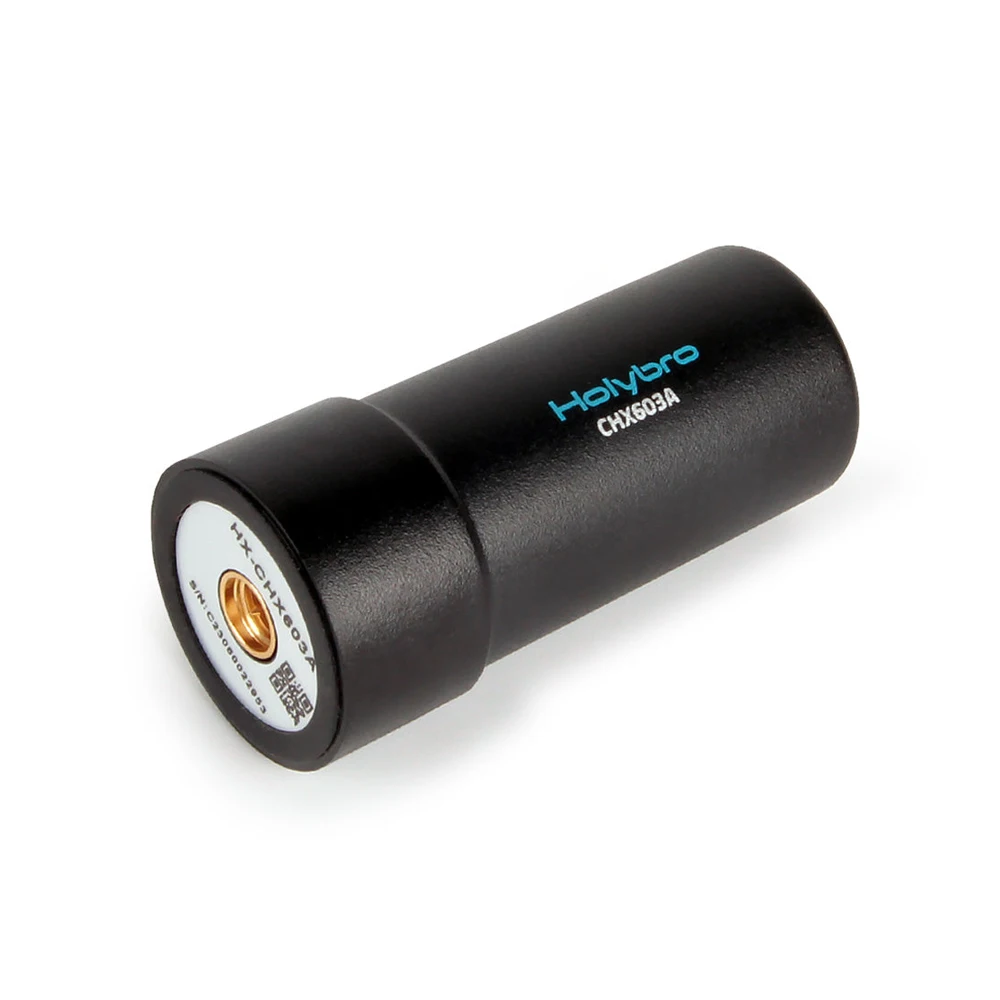

GNSS Antenna-CHX603A

KEY FEATURES:

Supports 4 frequency bands

Support GPS L1/L2/L5 ,BDS

B1/B2/B3 ,GLONASS L1/L2/L3, Galileo E1/E5a/E5b

Stable phase center guarantees the accuracy of positioning within millimeter level

D-QHA technology ensures multi-system satellite tracking

25g weight, low power consumption ,55 mA@3.3VDC only

IP67 ruggedized protection

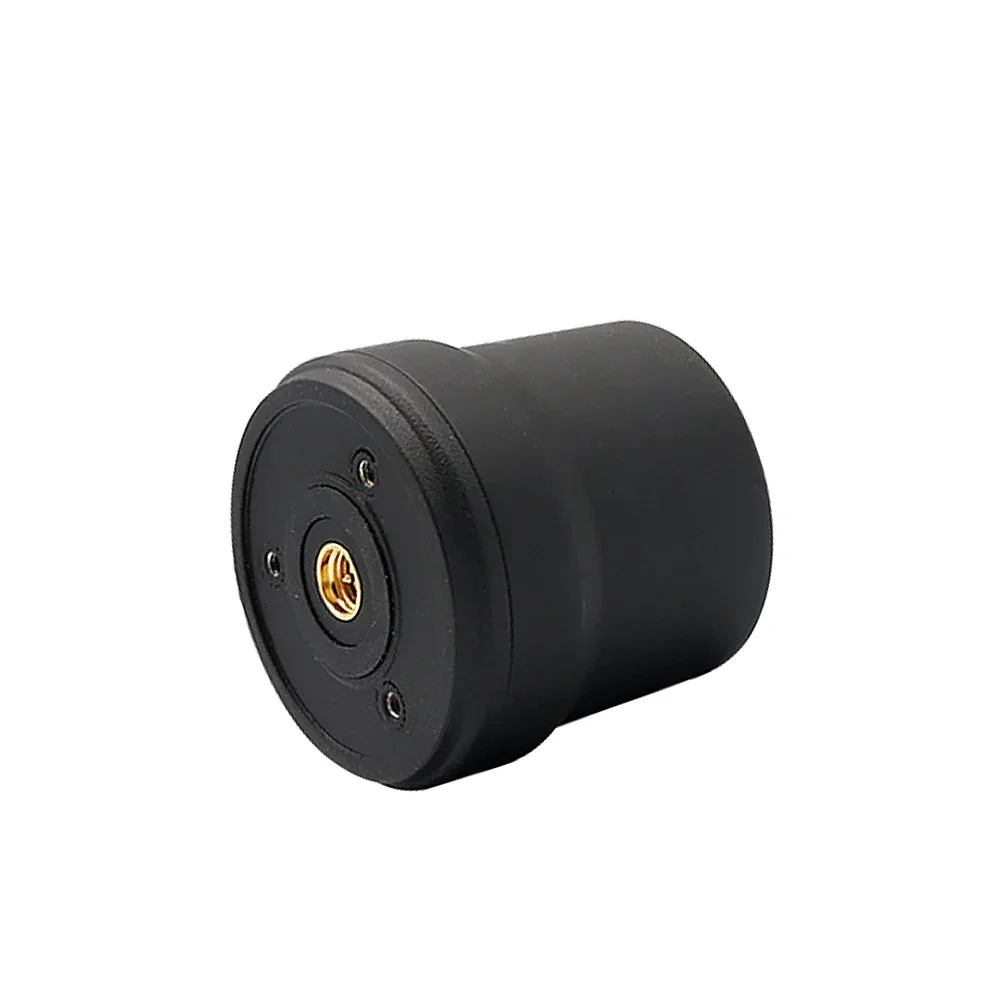

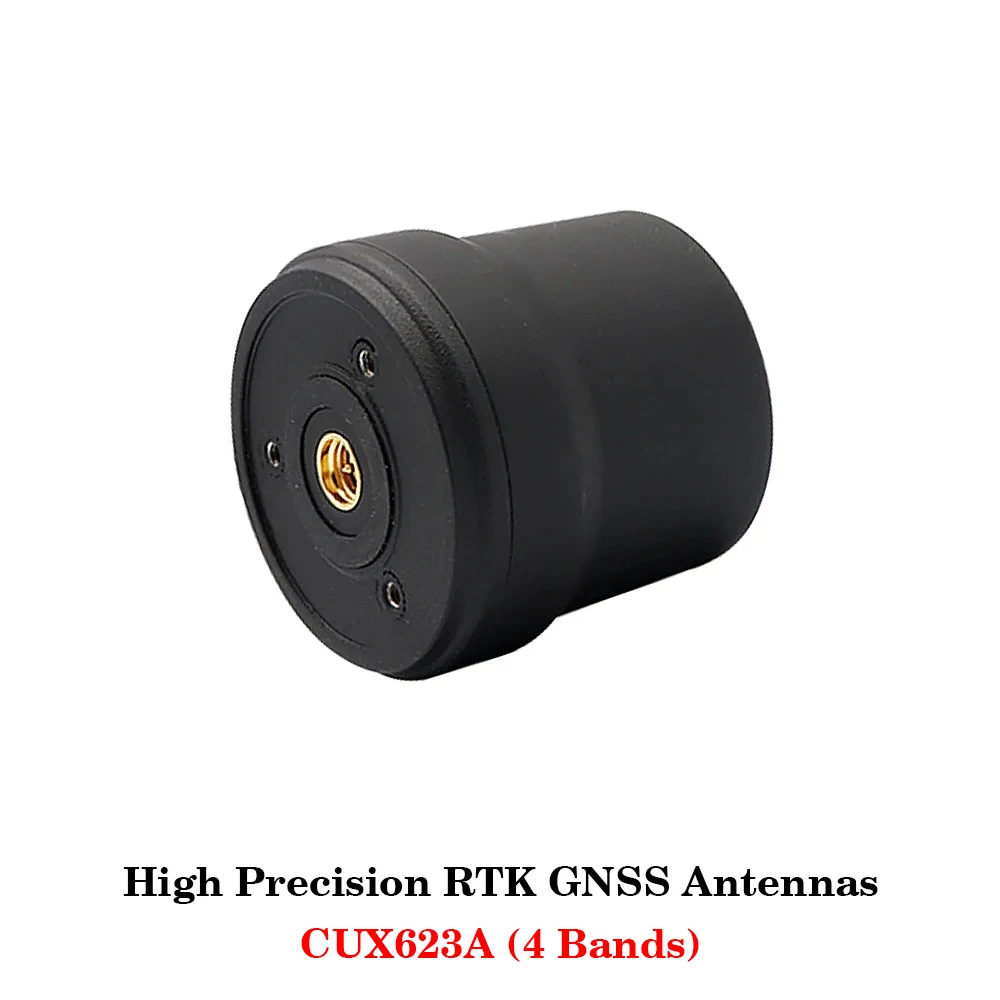

GNSS Antenna-CUX623A

Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, as well as L-Band correction service

Centimeter phase center repeatability, high gain at low elevation

Improved signal filtering and excellent multipath rejection

lightweight, low profile facilitates easier integration

Dimensions ¢43.6*40.8mm ≤30.5g

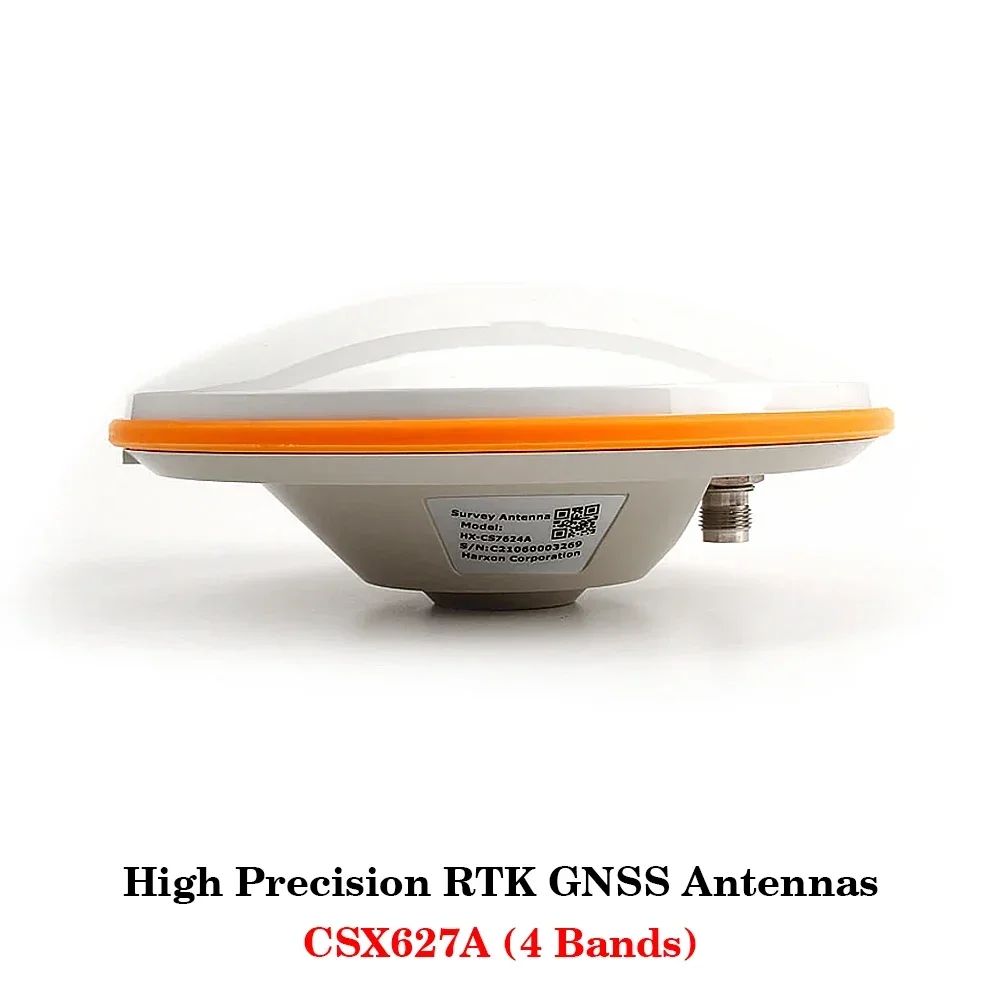

GNSS Antenna-CSX627A

Support GPS, Glonass, Galileo, Beidou, QZSS and SBAS signal reception

Stable phase center guarantees the accuracy of positioning within millimeter-level

Strong anti-interference ability to endure the harshest operating environments

Connector: TNC female

Mounting: BSW5/8''-11 screw,Depth:12-14mm

Weight : 440g

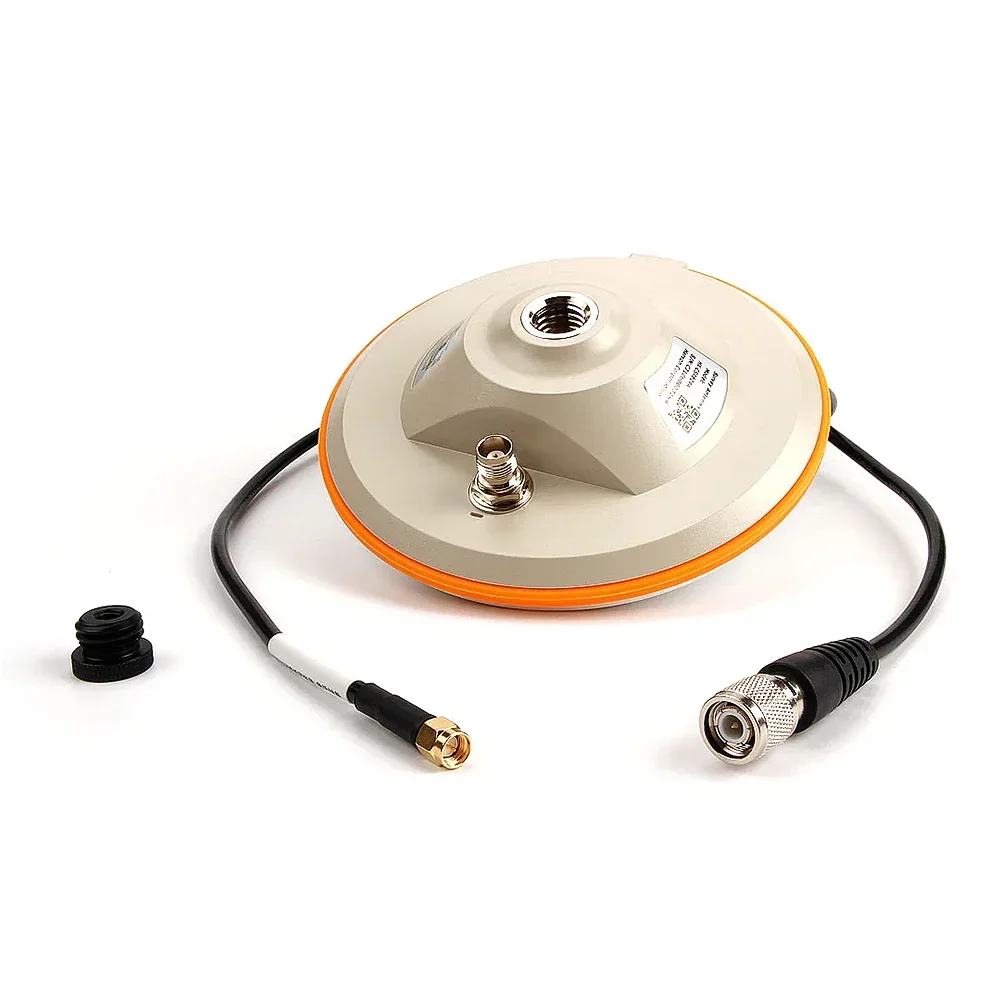

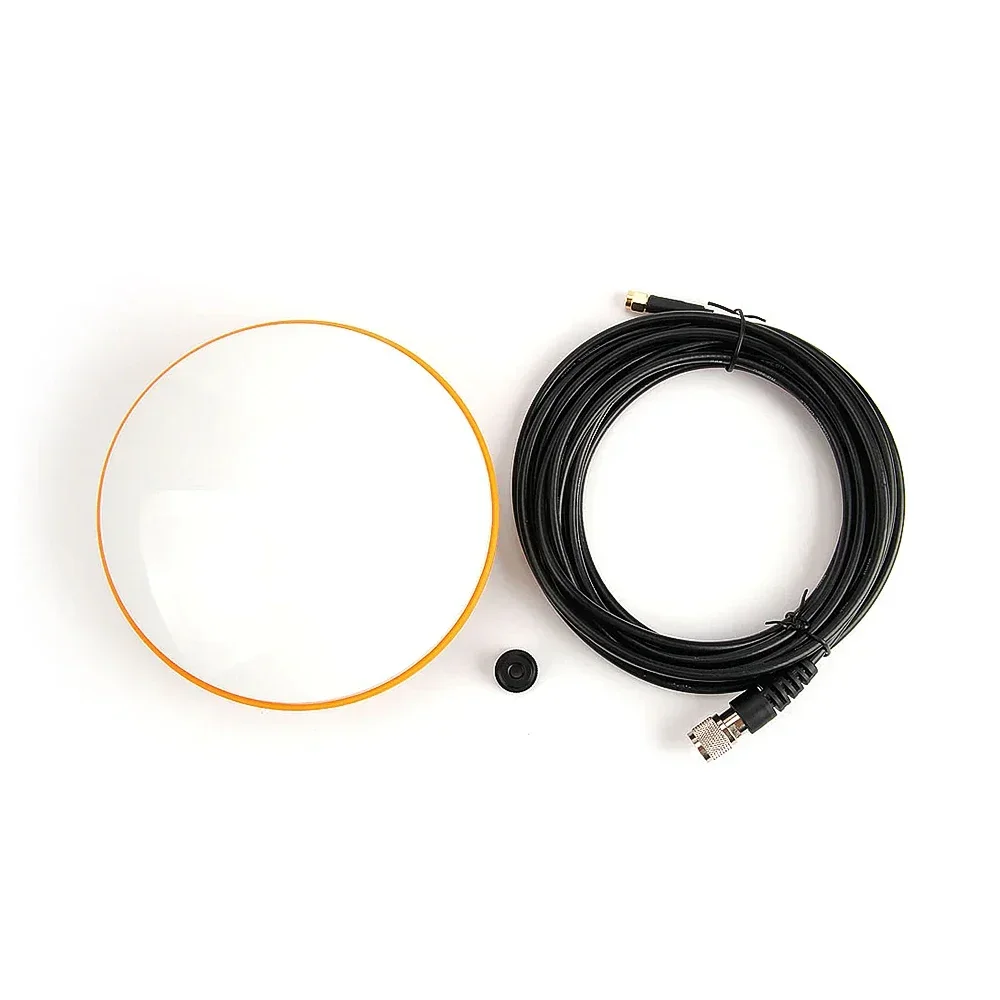

Includes:

High Precision GNSS Antenna(CSX627A) *1

Male-male SMA-TNC cable(length: 5m) *1

1/4'' Female to 5/8'' -11 Male Adapter *1

Download

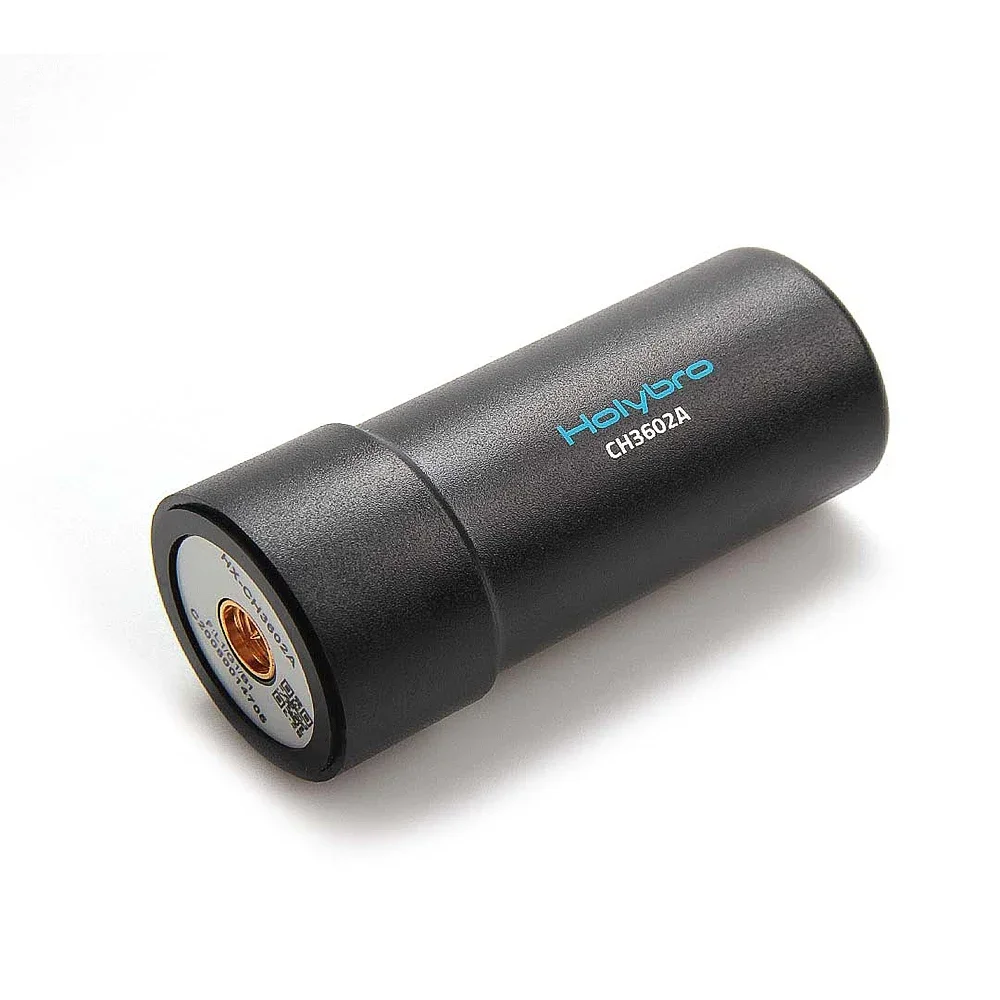

GNSS Antenna CH3602A_Spec

GNSS Antenna CSX627A_Spec

GNSS Antenna CHX603A_Spec

GNSS Antenna CUX623A_Spec
