HolyBro Power Distribution Board (PDB) 300A with Top Entry and Side Entry for RC Drone Builds and Power Management
Description
Description:

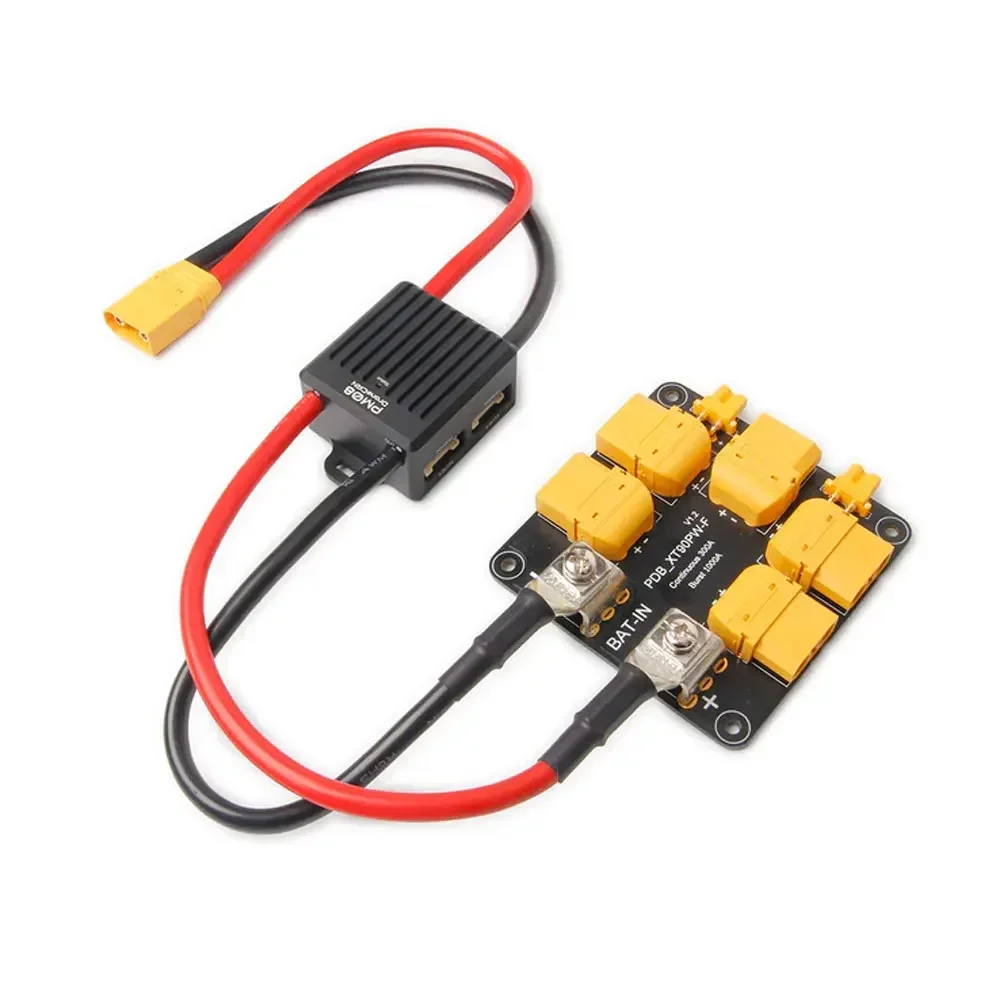

This Power Distribution Board (PDB) 300A is designed to handle high-current applications, making it ideal for demanding power setups. It is compatible with PM08 series power modules and supports various high-current, multi-output configurations. The board utilizes 10 oz copper, ensuring superior thermal management and conductivity under heavy current loads.
Two connector configurations are available, You choose the orientation that best suits your project needs.

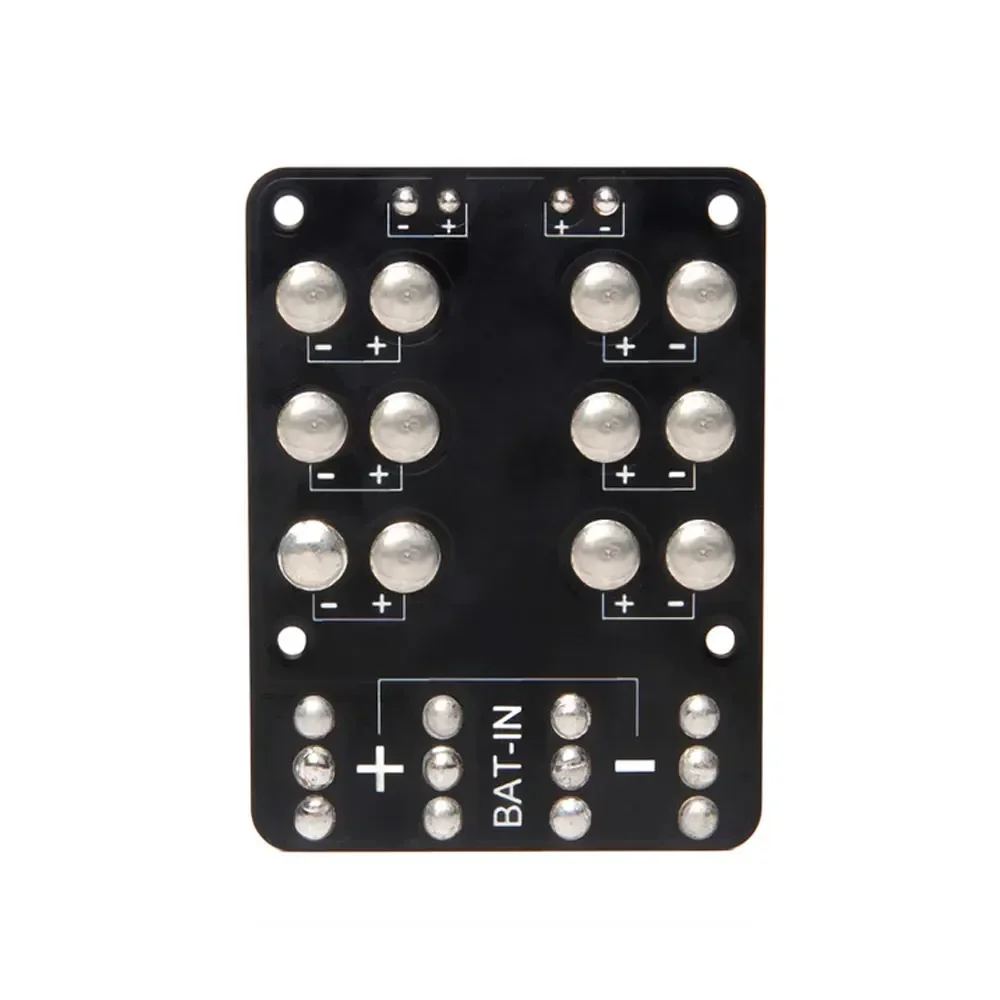

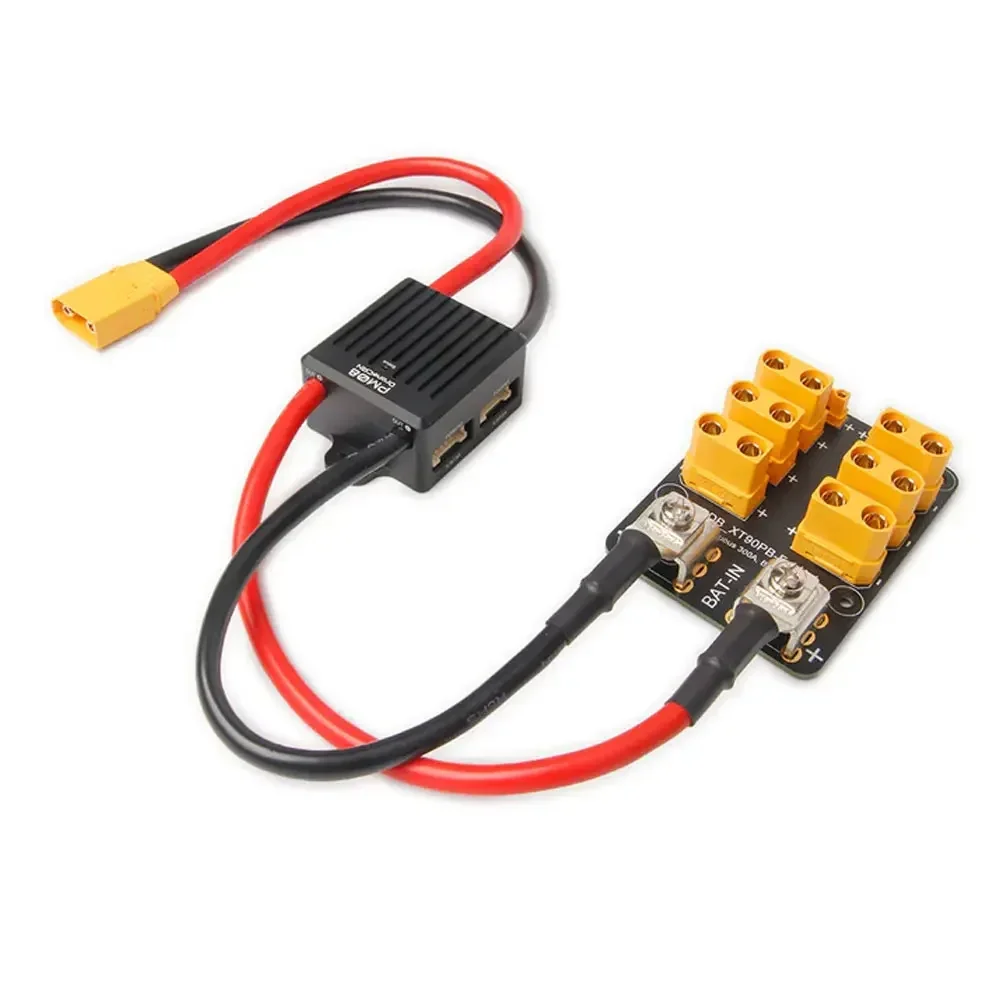

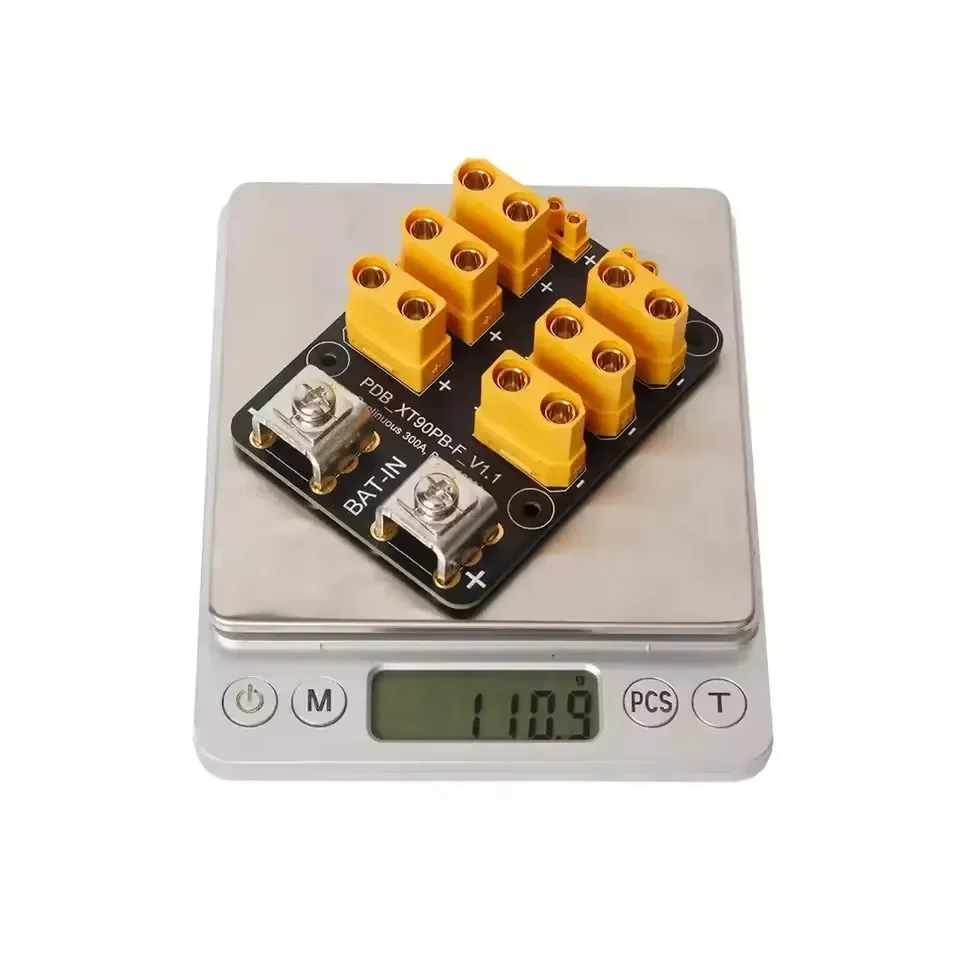

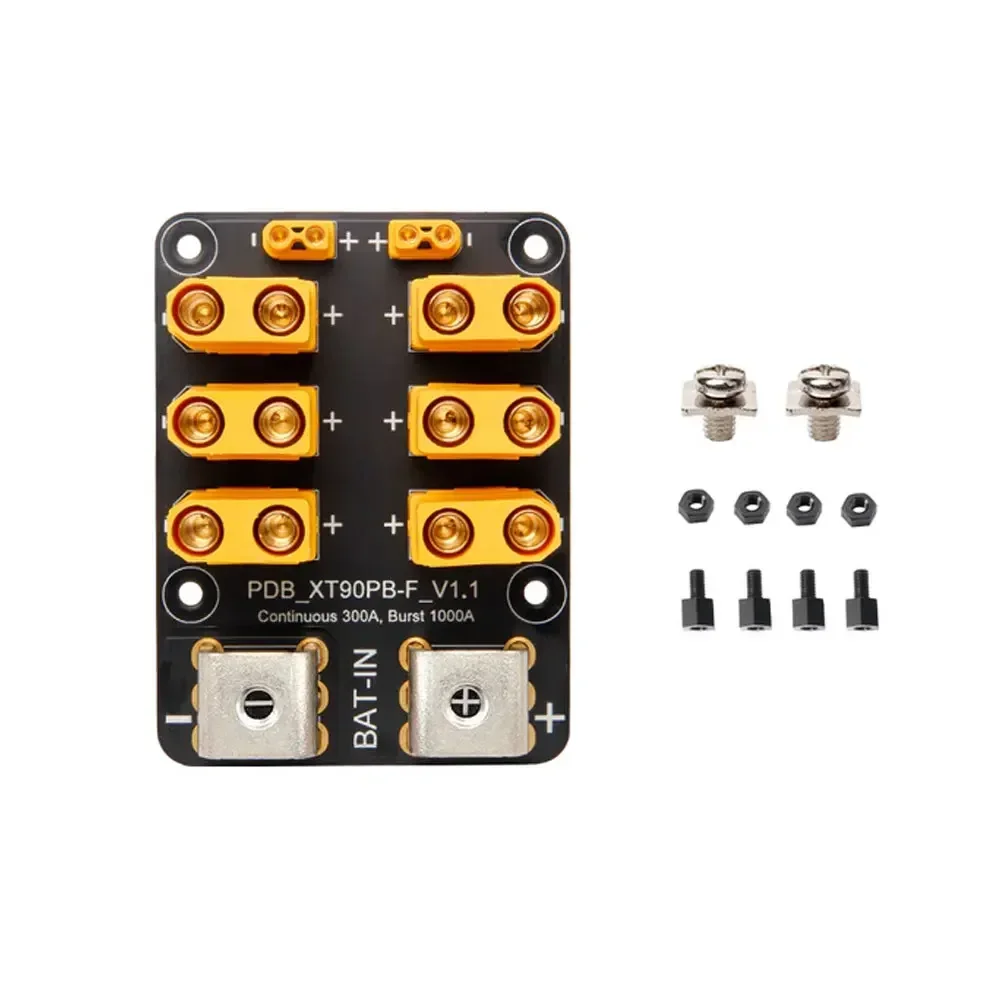

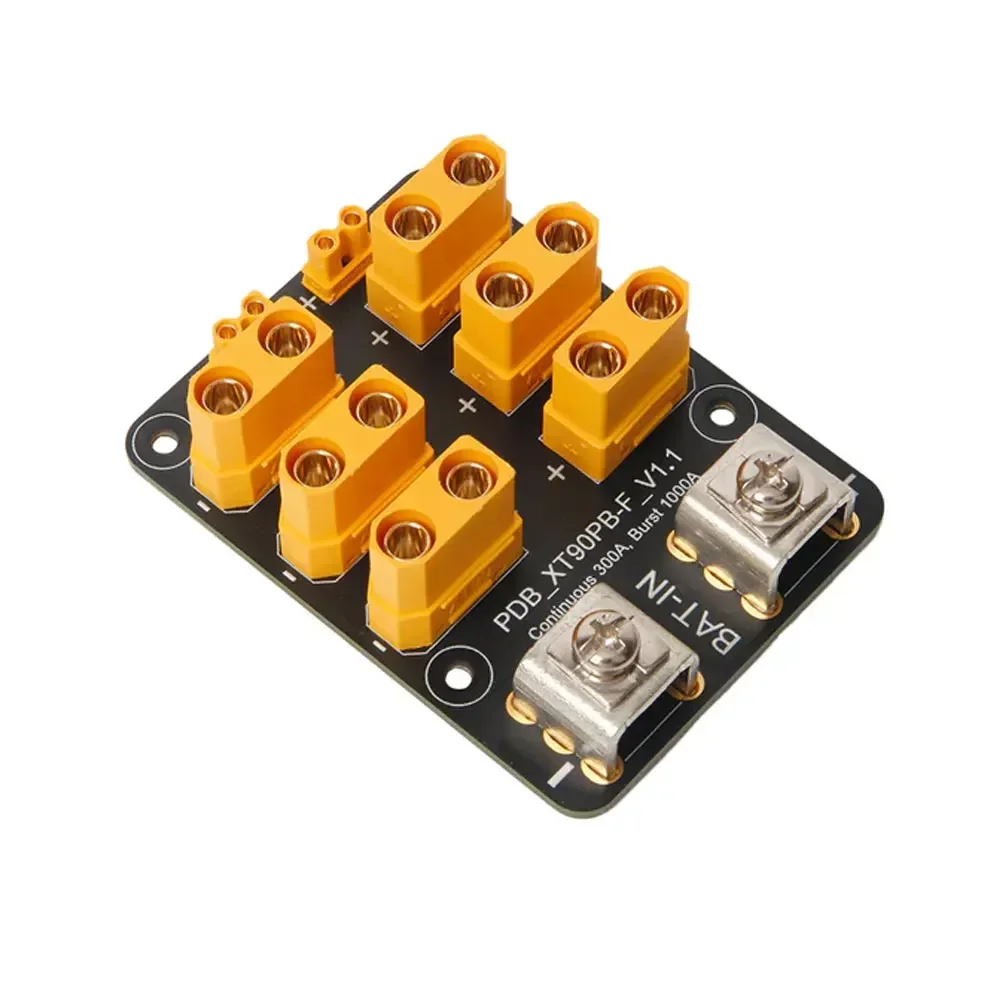

Power Distribution Board (PDB) 300A - Top Entry

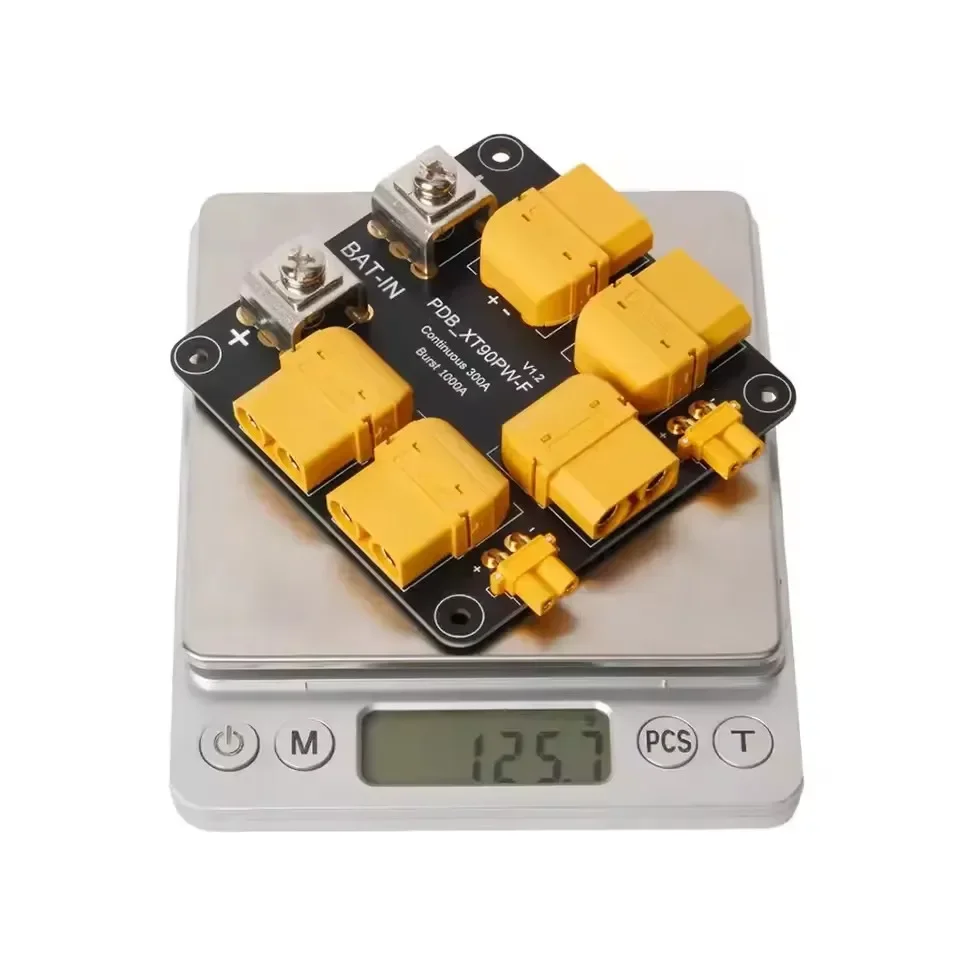

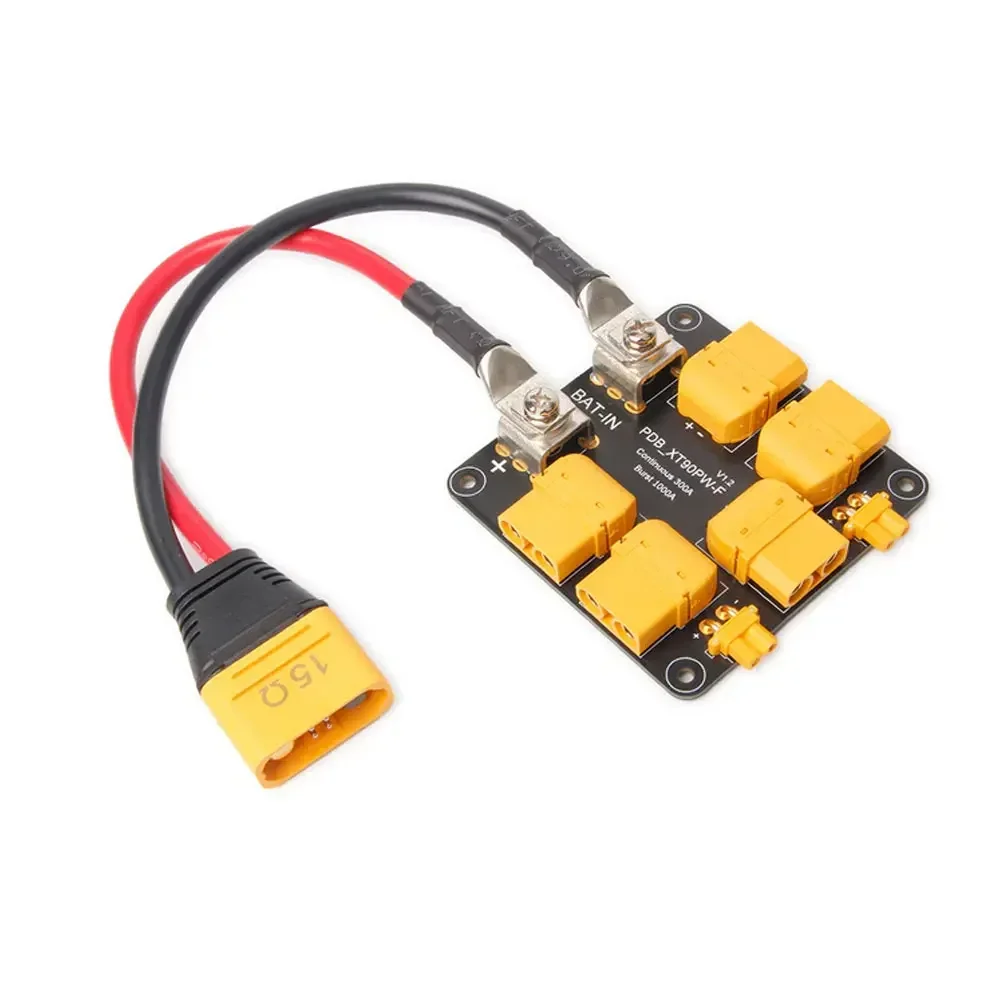

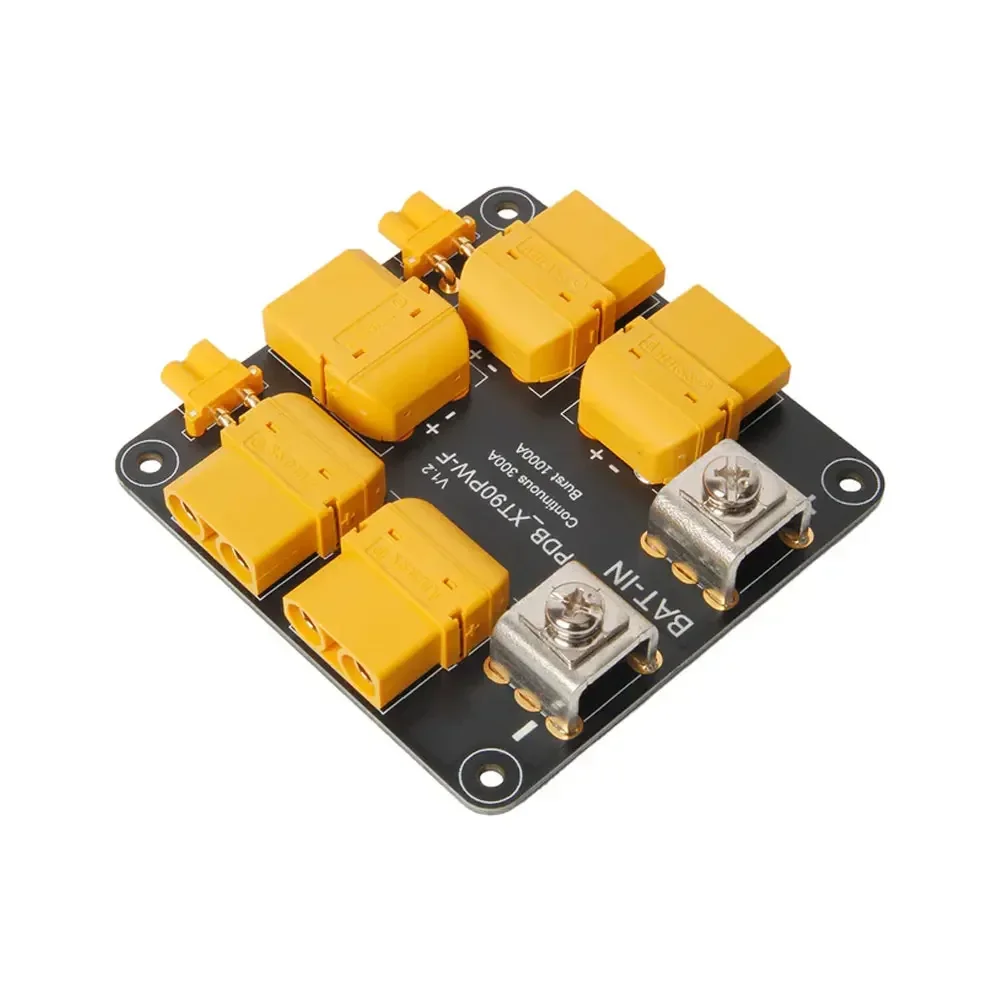

Power Distribution Board (PDB) 300A - Side Entry
SKU:18138
SKU:18139
Pre-soldered with

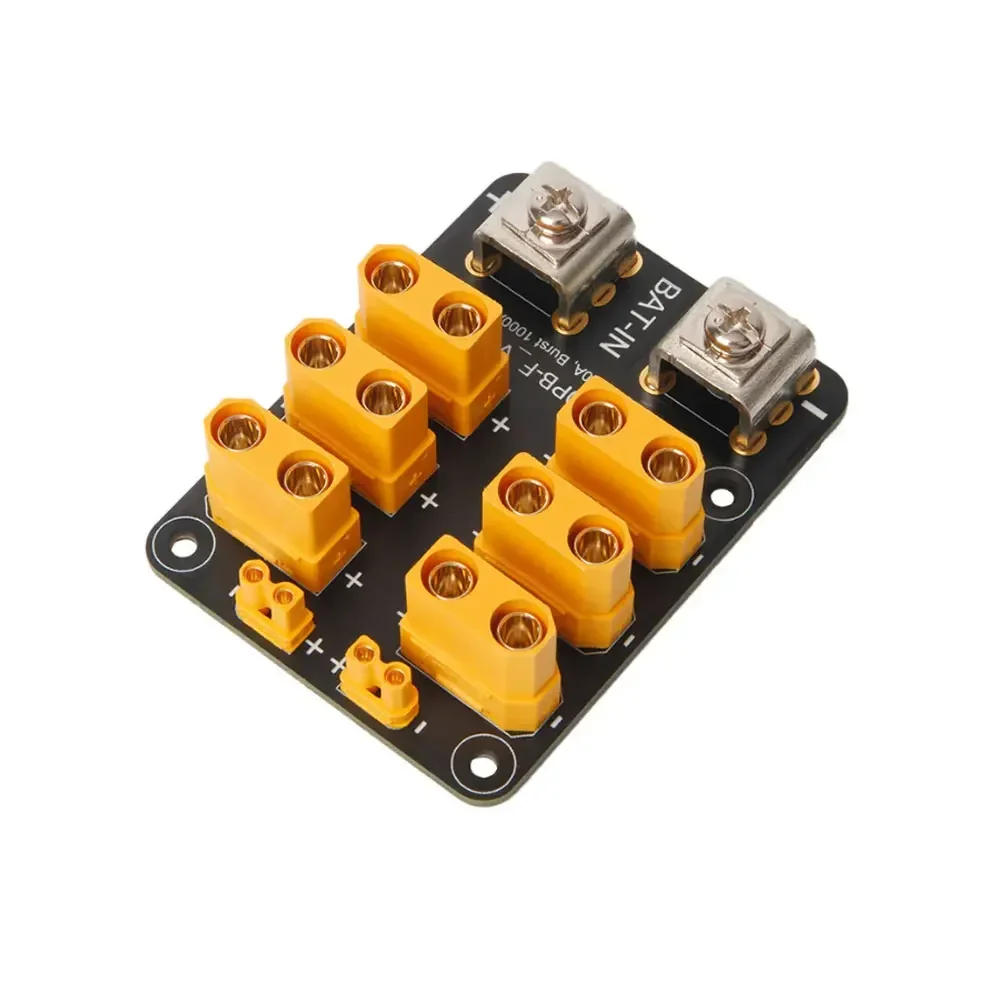

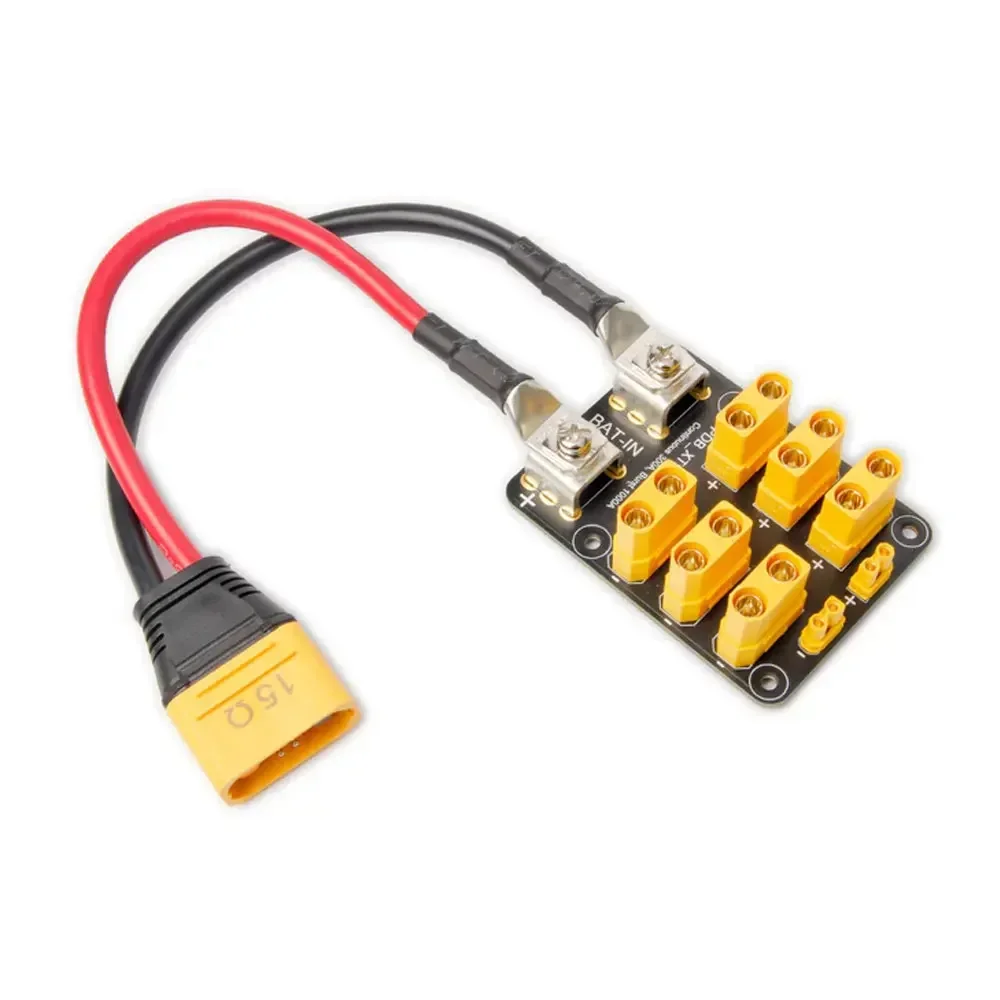

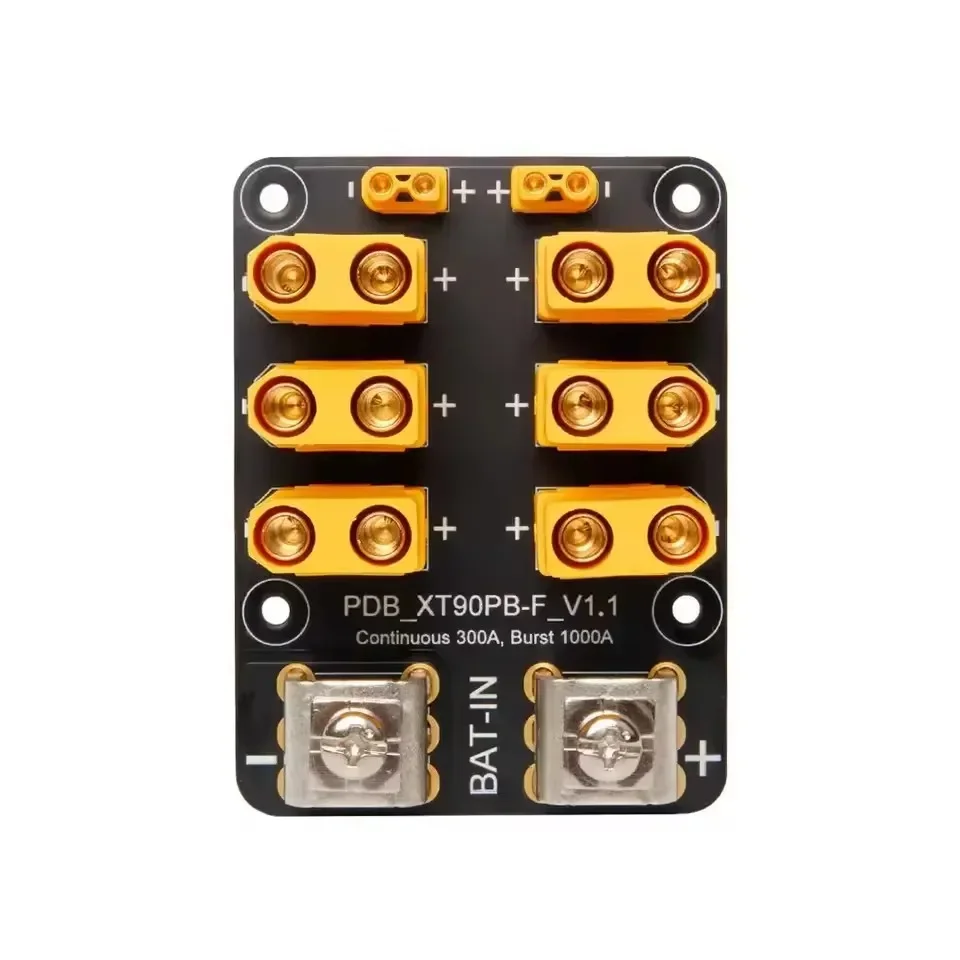

6 upward-facing XT90
2 upward-facing XT30 connectors.
High current screw terminals

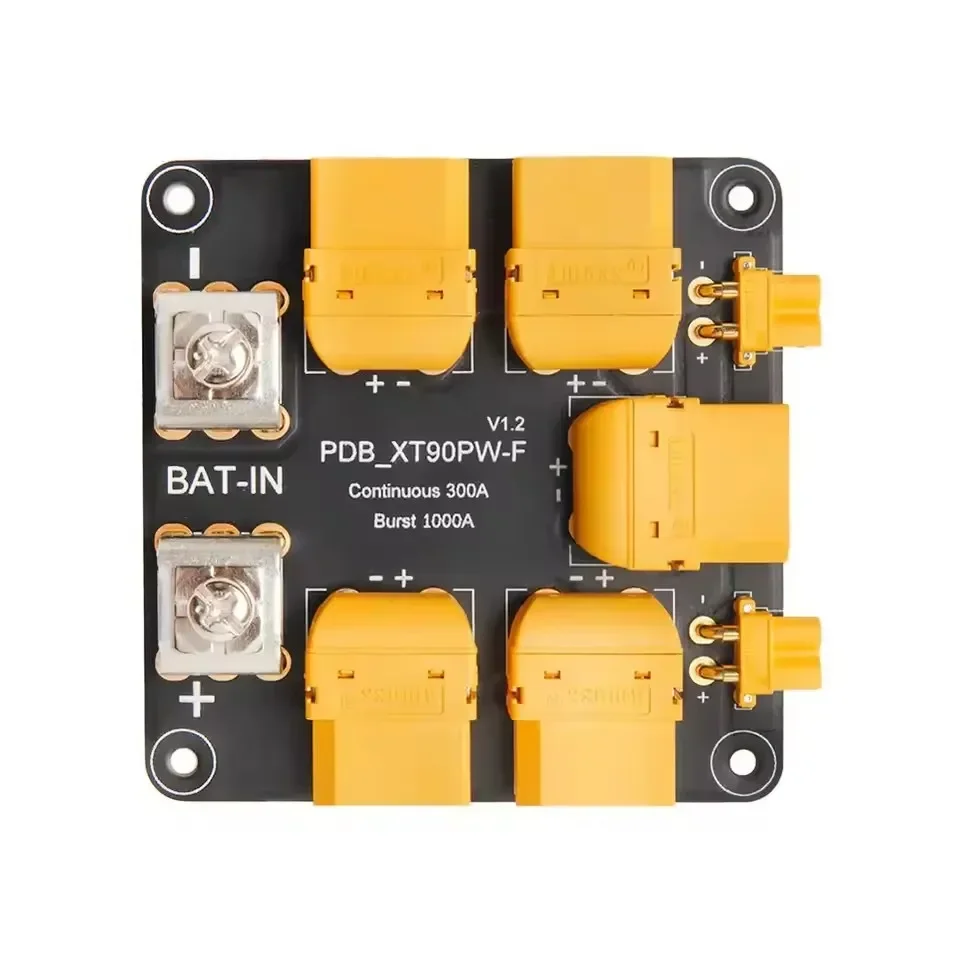

5 side-facing XT90
2 side-facing XT30 connectors.
Feature
Pre-soldered with XT90 & XT30
Continuous Current: 300A
Burst Current: 1000A
10 Oz Copper PCB Design
M3 Mounting holes
Download:
3D CAD file

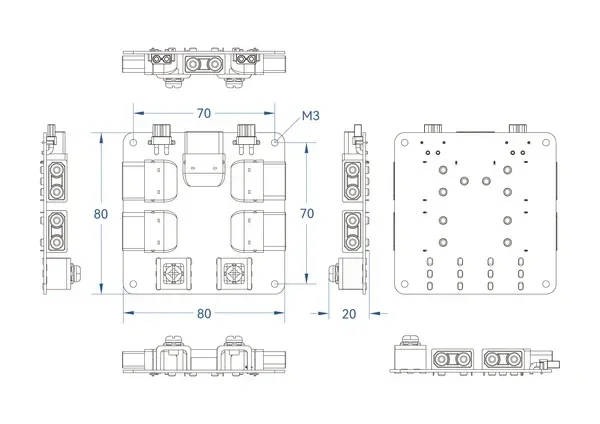

Dimensions:
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Description:
This Power Distribution Board (PDB) 300A is designed to handle high-current applications, making it ideal for demanding power setups. It is compatible with PM08 series power modules and supports various high-current, multi-output configurations. The board utilizes 10 oz copper, ensuring superior thermal management and conductivity under heavy current loads.
Two connector configurations are available, You choose the orientation that best suits your project needs.
| Power Distribution Board (PDB) 300A - Top Entry |
Power Distribution Board (PDB) 300A - Side Entry
|
 |
 |
|
|
Feature
- Pre-soldered with XT90 & XT30
- Continuous Current: 300A
- Burst Current: 1000A
- 10 Oz Copper PCB Design
- M3 Mounting holes
Download:
Dimensions:
