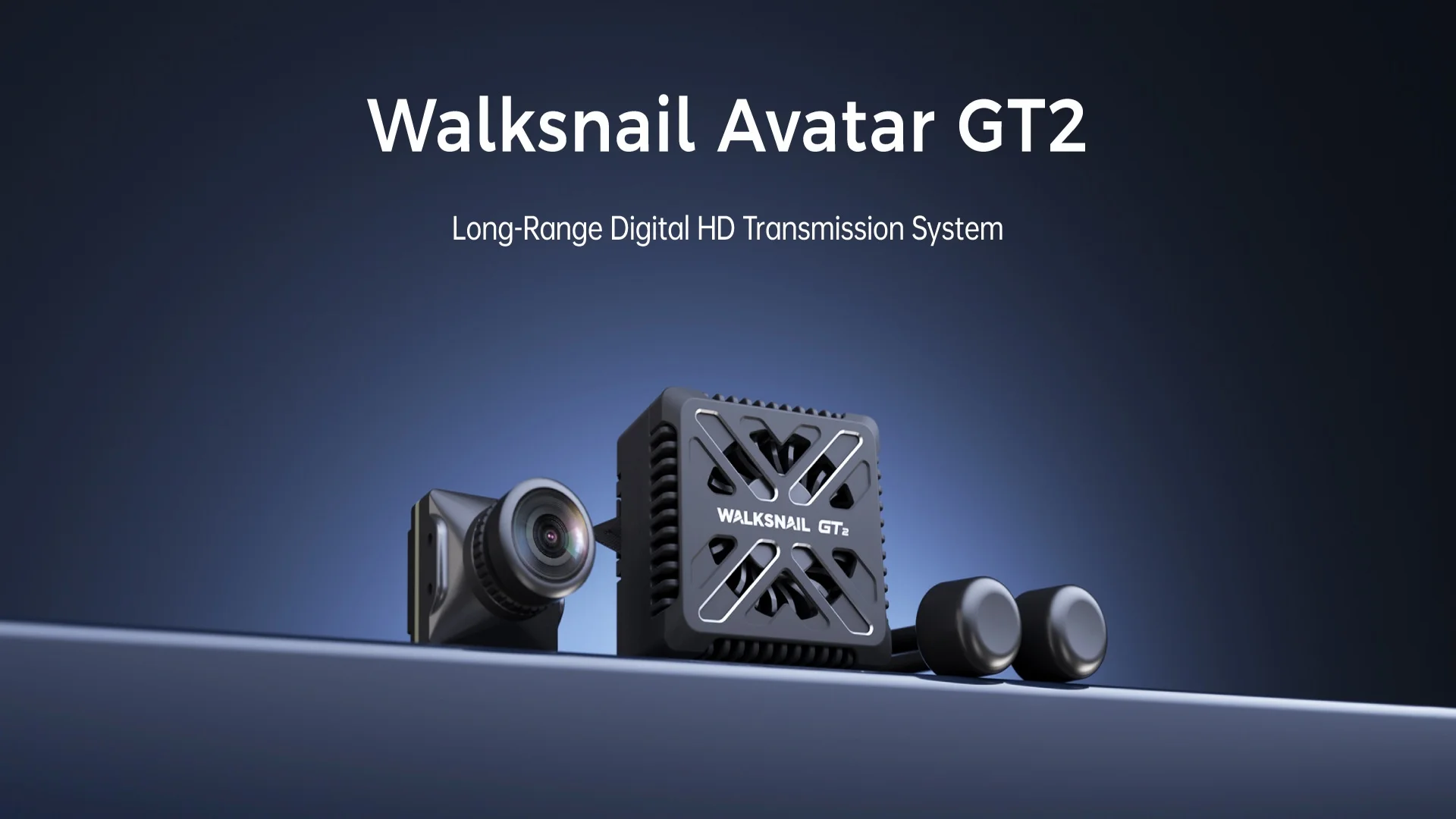

Caddx Walksnail Avatar GT Kit Max 2W VTX Gyroflow 1080P 100fps Dual Antennas Night Vision Starvis II Sensor Long Range Fpv Drone

Reference price:

US $214.45 - $328.76

1-10 pcs$208(-3%)

10-100 pcs$199(-7%)

100+ pcs$188(-12%)

Description

Caddx Walksnail Avatar GT Kit Max 2W VTX Gyroflow 1080P 100fps Dual Antennas Night Vision Starvis II Sensor Long Range Fpv Drone High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 155*67*25mm Model Number: Walksnail Avatar GT For Vehicle Type: Airplanes

Select options

Variant

Quantity

View cart Get a Quote

Specifications

Attribute	Value
High-concerned chemical	None
Is Electric	No Battery
Is it battery/power supply	N
Is it charger/adapter	N
Is Batteries Included	No
Size	1556725mm
Model Number	Walksnail Avatar GT
For Vehicle Type	Airplanes
Remote Control Peripherals/Devices	RECEIVERS
Upgrade Parts/Accessories	VTX
RC Parts & Accs	Transmitters
Material	EVA
Brand Name	CADDXFPV
Origin	Mainland China
Recommend Age	14+y
Use	Vehicles & Remote Control Toys
Certification	CE,FCC,RoHS
Caddx	Walksnail Avatar GT KIT
Walksnail Avatar	Walksnail Avatar GT VTX
FPV Camera	Avatar HD Pro Camera
avatar kit	fpv camera kit
Caddx Walksnail	Walksnail Avatar GT
CADDX GT KIT	GT KIT
caddx walksnail avatar	avatar gt kit
Walksnail GT kit	Max 2W VTX
Walksnail FPV KIT	FPV drone kit
Digital image transmission system	1080P 100fps

Product Details

Please remember that the order value does not include tax and VAT fees. we do not bear any tax and vat. you should pay tax and vat by yourself! if you mind import tax and VAT. Please do not place a order! Thank you.

2W (Max)	6km Long Range
11.1V-25.2V	1080P 100fps
Dual Antennas	High Frame Starlight
Micro SD Card Slot	Compatible Moonlight Camera（DVR 4K）

Bullet Points:

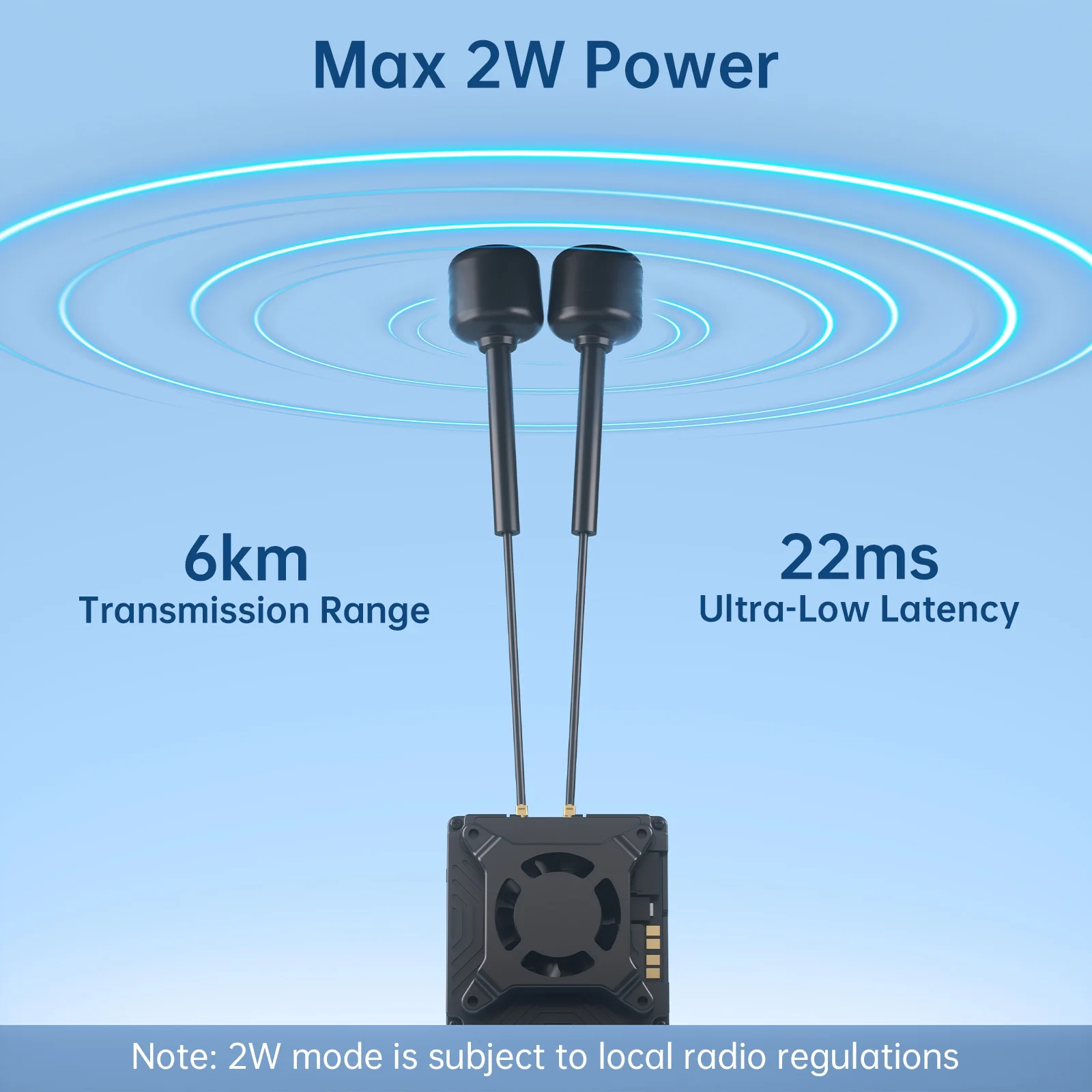

Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

The Avatar GT features a top-mounted heatsink design, effectively dissipating heat to maintain optimal performance even during extended operation.

The Avatar GT is equipped with a Micro SD card slot, supporting up to 256GB of storage capacity, enabling uninterrupted recording of HD flight videos in either 1080p or 720p resolution.

The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.

The Walksnail Avatar GT KIT now features improved resistance to GPS interference, ensuring a more stable and reliable flight experience even in challenging environments.

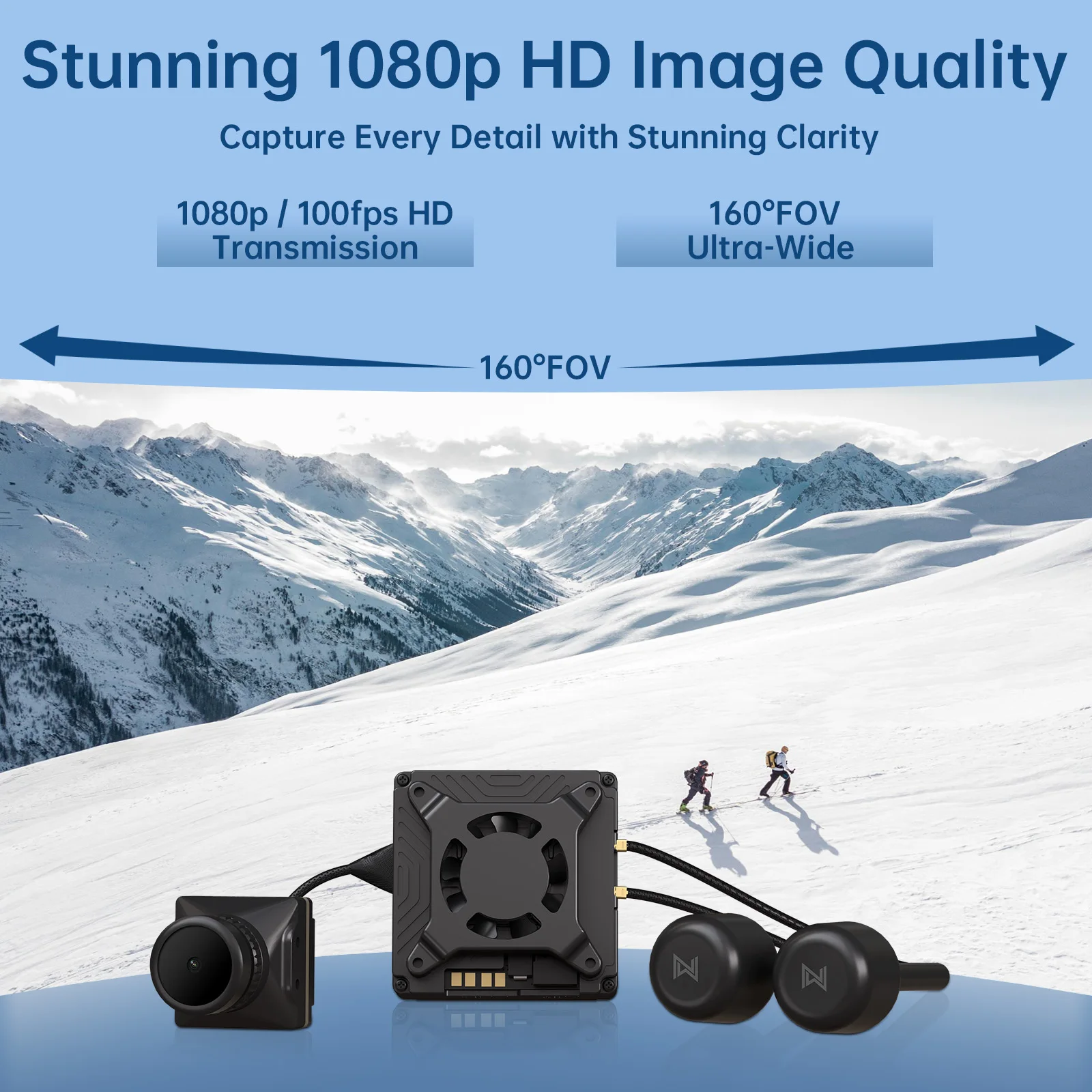

Avatar GT comes with a Pro camera, equipped with a 1/1.8-inch Sony Starvis II sensor, providing excellent night vision capabilities with clarity comparable to daytime.

The camera supports Gyroflow, take you smooth and stable video quality.

It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

Specification
Camera
Model	Avatar HD Pro Camera
Image Sensor	1/1.8-Inch Sony Starvis Ⅱsensor
Resolution	1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps;
Ratio	16/9; 4/3
Lens	8Mp
FOV	160°
Aperture	F1.6
Shutter	Rolling shutter
Min.Illumination	0.00001Lux
Weight	9.5g
Dimensions	191924mm
Coaxial Cable	140mm
Gyroflow	supported
VTX
Model	Avatar GT
Communication Frequency	5.725-5.850 GHz
Transmitter Power (EIRP)	FCC: <30dBm, MAX:33dBm ; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O Interface	Micro SD card slot; JST1.0*4(power cable)
Supported SD Cards	Micro SD (up to 256 GB)
Mounting Holes	25.525.5mm; 2020mm
Dimensions	343423mm
Recording	1080p/720p
Weight	41.6g (Antenna included)
Operating Temperature	-10-40℃
Channels	8
Wide Power Input	11.1V-25.2V
Supported FC System	Betaflight; Inav; Fettec; Kiss; ArduPilot
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	2(IPEX)

Note: Check area for risk of use before use.

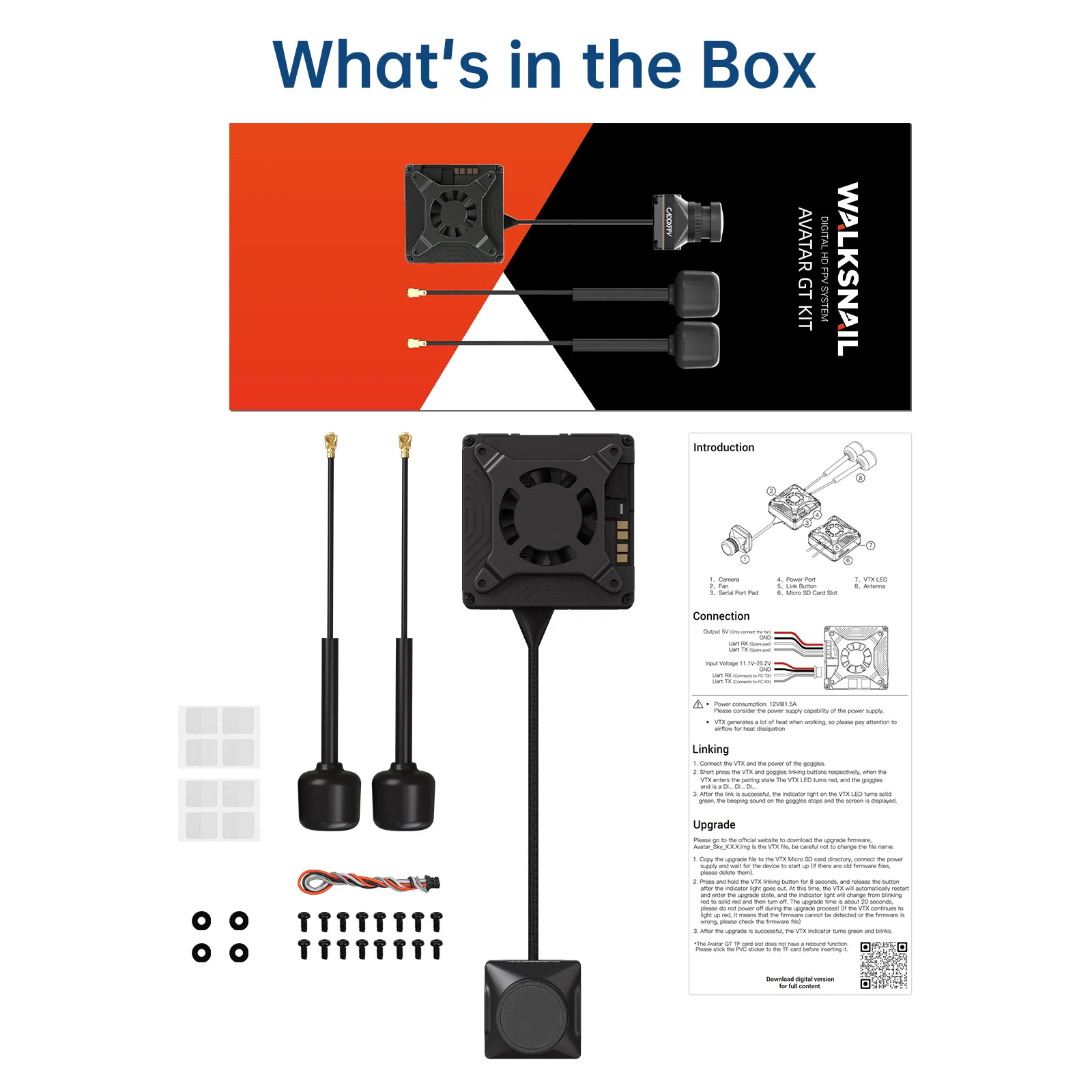

Packing List：

1 x Walksnail Avatar GT KIT
1 x Quick Guide
2 x M2*4mm screws
2 x M2*5mm screws
2 x M2*6mm screws
2 x M2*5*0.5mm spacer
2 x SD card stickers
1 x 4pin power cord
