Caddx Ratel 2 V2 / PRO FPV Camera Ratel2 Flight model aircraft FPV camera ratel2 drone night vision lens
Description
Caddx Ratel 2 V2 / PRO FPV Camera Ratel2 Flight model aircraft FPV camera ratel2 drone night vision lens High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: Caddx Ratel 2 Material: Composite Material
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | Caddx Ratel 2 |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Specifications:
Brand Name: Caddx
Item Name: Ratel 2
Sensor: 1/1.8'' Inch Starlight
Resolution: 1200TVL
FOV: 165°
Lens: 2.1mm
TV System: NTSC & PAL (switchable)
Image: 4:3 & 16:9 (switchable)
WDR: Super WDR
DNR: 3DNR
Min. Illumination: 0.0001LUX
Video Output: CVBS
Day/Night: Auto/Color/B&W/EXT
Shutter Speed: PAL:1/50~100,000; NTSC: 1/60~100,000
Wide Power Input: 5-40V
Working Temperature: -20℃ ~ +60 ℃
Weight: 5.9g
Dimension: 19*19*20mm

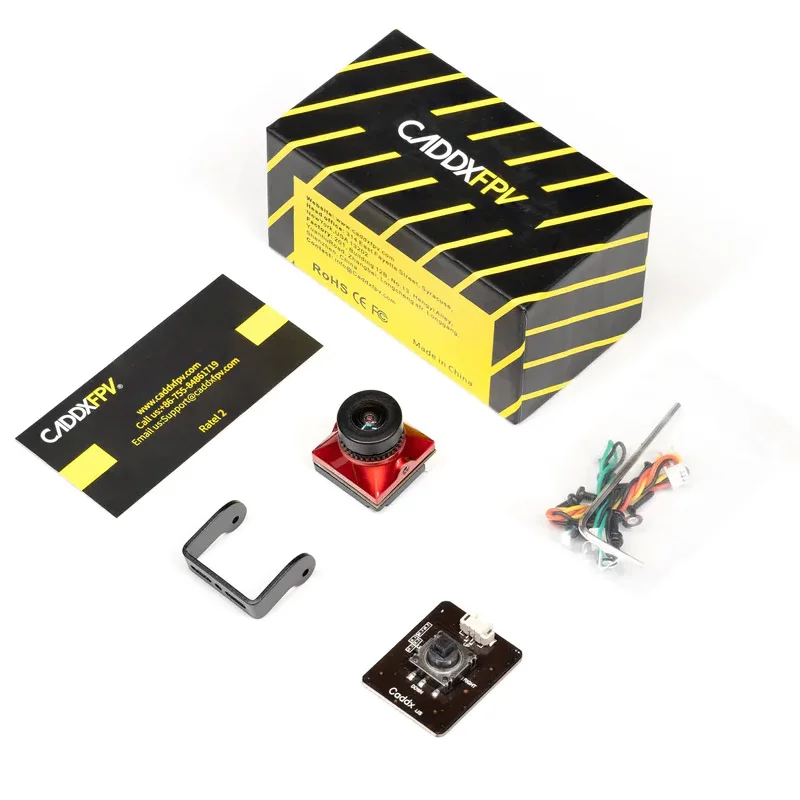

Package Included:
1x Caddx Ratel 2 Camera
1x Menu Board
1x 2Pin Silicon Cable
1x 3Pin Silicon Cable
1x 1.5mm Allen Wrench
1x Warranty Card
Specifications:

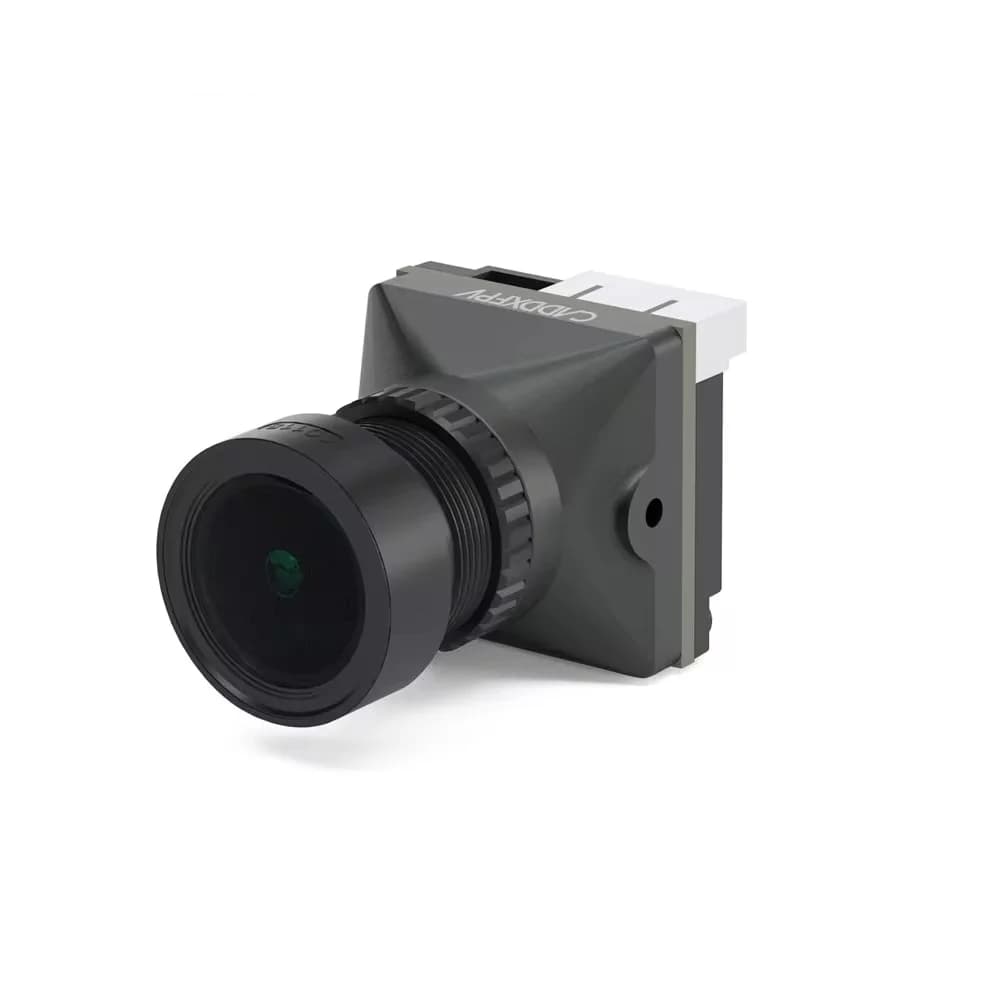

Model: Ratel PRO
Image Sensor: 1/1.8" Inch sensor
Horizontal Resolution: 1500TVL
TV System: NTSC & PAL (changeable)
IMAGE: 16:9 & 4:3 (changeable)
WDR: Super WDR （HDR)
Min. Illumination: 0.00001 lux
Lens: 5Mega
Color: Black
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
OSD manual: Support
DNR: 3-DNR
FOV: 125°
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm
Wide Power Input : DC 4.5-27V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 9.5g
Package Included:
1x Caddx Ratel Pro Camera
1x Menu Board
1x 2Pin Silicon Cable
1x 3Pin Silicon Cable
1x 1.5mm Allen Wrench
1x Warranty Card
