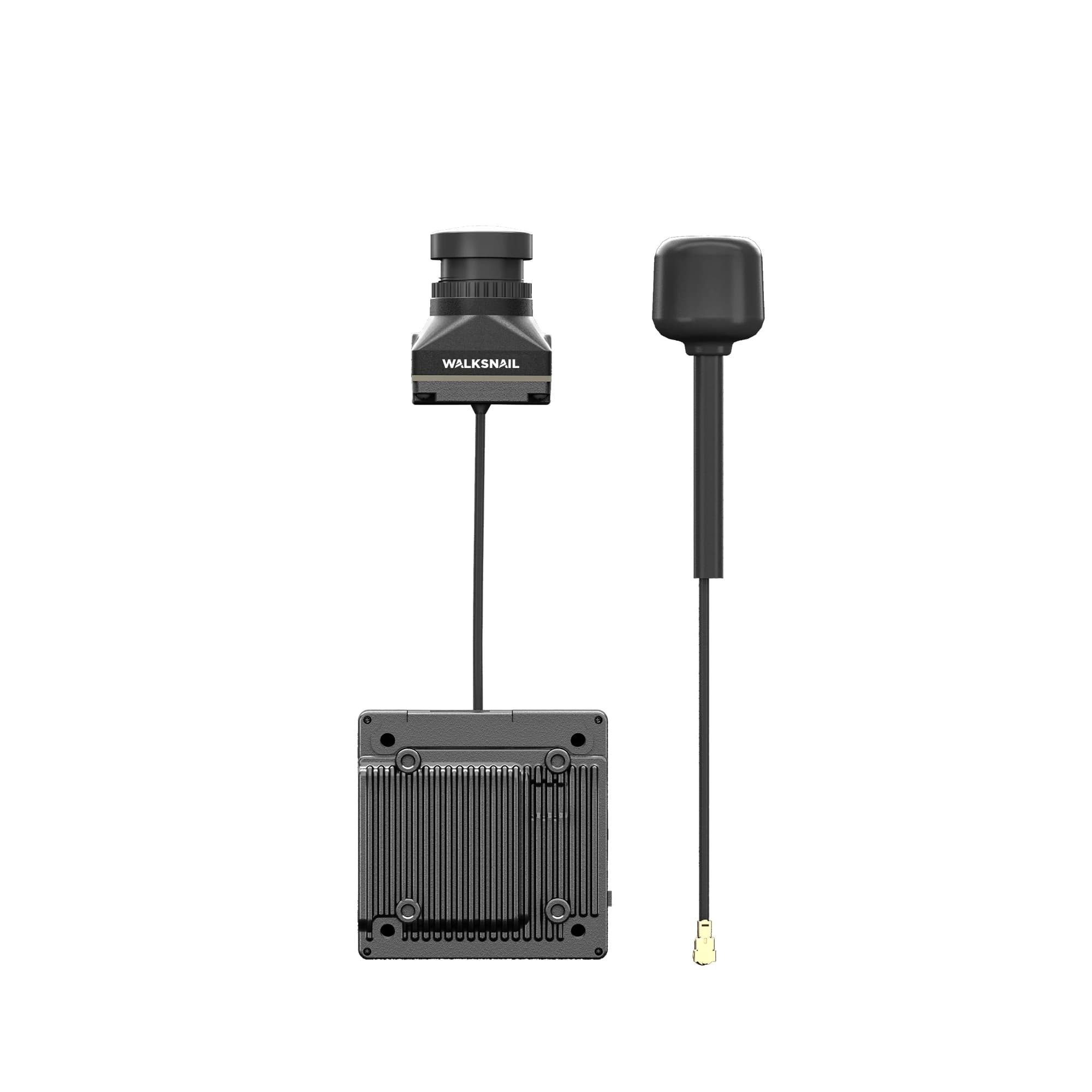

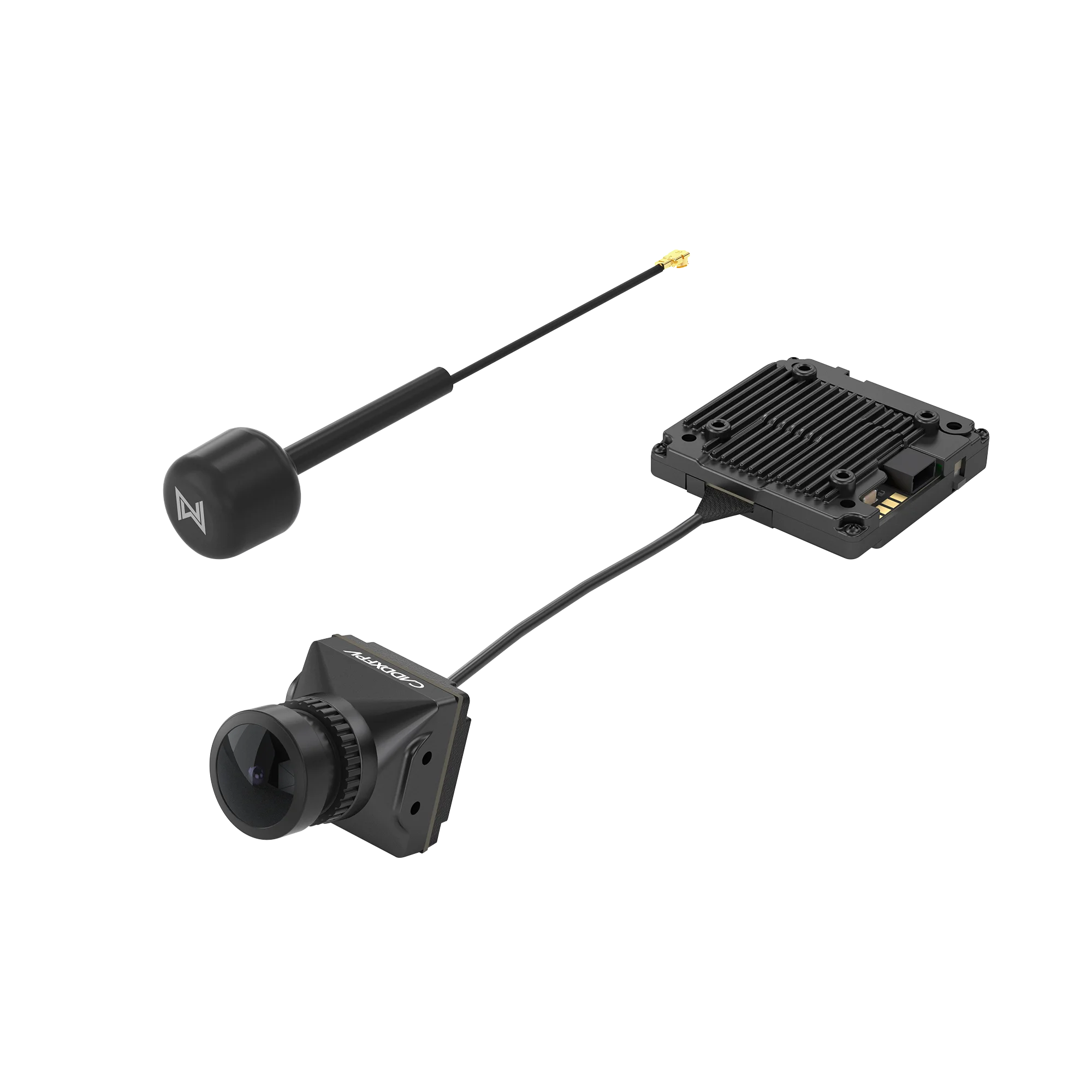

CADDX Walksnail Avatar HD Pro Kit V2/Avatar HD Kit V2 With Gyroflow 8G 1080P HD Camera for FPV Freestyle Drones DIY Parts
29 orders (reference)
Description
CADDX Walksnail Avatar HD Pro Kit V2/Avatar HD Kit V2 With Gyroflow 8G 1080P HD Camera for FPV Freestyle Drones DIY Parts High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 155mm*25mm*66mm Model Number: CADDX Walksnail Avatar HD For Vehicle Type: Airplanes
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 155mm*25mm*66mm |
| Model Number | CADDX Walksnail Avatar HD |
| For Vehicle Type | Airplanes |
| Remote Control Peripherals/Devices | RECEIVERS |
| RC Parts & Accs | Transmitters |
| Material | EVA |
| Brand Name | CADDXFPV |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
Product Details
Bullet Point for Camera
2K pixel, 120fps, 4:3 native sensor
Support Gyroflow
1080P HD FPV
F/2.0 Large Aperture
160° wide-angle FOV
Bullet Point for VTX Add another 20*20mm mounting holes
Add 8g built-in storage option
Updated the design of PCB board and outer shell
A spare pad is added to provide two power connection modes
Optimized antenna base design and frequency button position for greater convenience
Features
1080P 120fps compatibility
22ms low latency
Ranging Mode
4KM range
Light weight design
FOV160°
Built-in 8G storage,
Support Gyroflow
GPS anti-jamming
6V-25.2V
The only native 4:3 high-definition sensor in the FPV industry
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency.
Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.
The camera ( 8G VTX KIT) supports Gyroflow, take you a smooth and stable video quality.
In addition to the original 25mm x 25mm mounting holes, the kit now added 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, so as to better protect the VTX.
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
A spare pad is added to provide two power connection modes.
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
The Avatar VTX comes with 8g built-in storage it can record 1080p or 720p HD flight videos without interference.8G built-in storage, recording video time increased by 4 times.
Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.
The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
HD 1080p OLED Dual Micro Displays
The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.
The goggles have the feature of adjusting the focus without the need to install, corrective lenses.
HDMI Output
Turn on the ranging mode to display the distance between the drone and goggles in real time,in case the drone is lost due to long distance flight.
Q:Do we support 1080P 120FPS?
A:Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.
Specification | |
Camera | |
Model | Avatar V2 camera |
Image Sensor | 1/3.2-Inch 4Mp 4:3sensor |
Resolution | 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility; |
Ratio | 4:3 native /16:9 |
Lens | 2.1mm |
FOV | 160° |
Aperture | F2.0 |
Shutter | Rolling shutter |
Min.Illumination | 0.001Lux |
Weight | 7.2g |
Dimensions | 19*19*22mm |
Coaxial Cable | 140mm |
Gyroflow | Only 32G VTX Supported |
VTX | |
Model | Avatar V2 module |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; |
1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
Mounting Holes | 25.5*25.5mm; 20*20mm |
Dimensions | 33.5*33.5*10.5mm |
Storage | 8G |
Recording | 1080p/720p |
Weight | 17.6g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 6V-25.2V |
Supported FC System | Betaflight; Inav; Fettec; ArduPilot; Kiss |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 1(IPEX) |
Avatar V2 antenna | |
Polarization | LHCP |
Bandwidth | 5600MHz-6000MHz |
Gain | 1.9dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Size | R15 X 45mm （without cable） |
Weight | 2g |
Packing List | |
USB transfer extension cable | X1 |
4 Pin silicone cable | X1 |
M2*4mm screws | X8 |
M2*5mm screws | X4 |
M2*6mm screws | X4 |
M2*14mm screws | X4 |
M2*5*0.5mm gasket | X4 |
Bullet Point for Avatar HD Pro Kit:

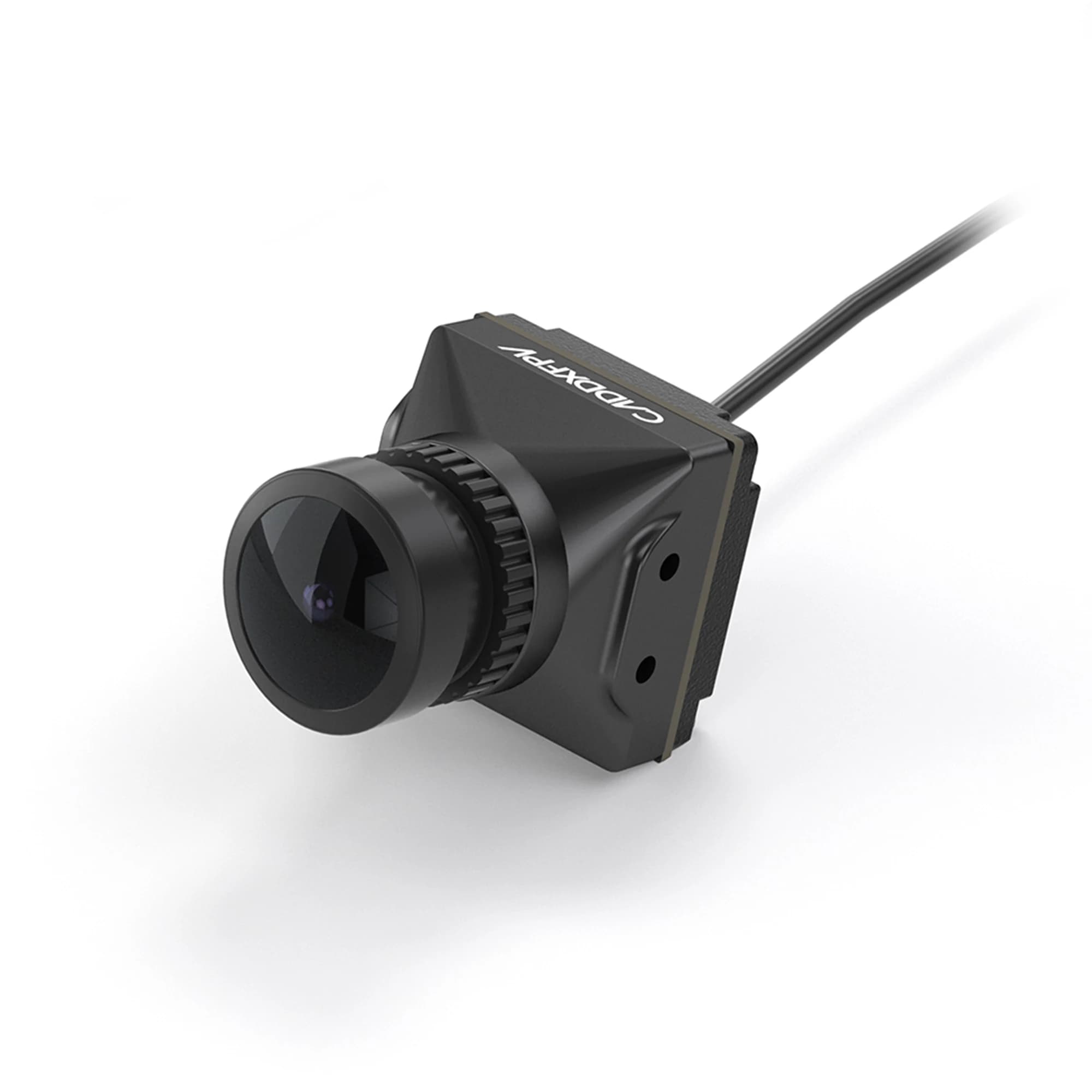

Bullet Point for Camera:
1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
Supporting Gyroflow for more stable and smoother footage.
Bullet Point for VTX:
Add 20*20mm mounting holes for easy installation.
Add 8g built-in storage option.
Updated the design of PCB board and outer shell, more durable.
A spare pad is added to provide two power connection modes.
Optimized antenna base design and frequency button position for greater convenience.
Features：
1080P 120fps compatibility
High frame starlight
22ms low latency
Ranging Mode
4km range
Light weight design
FOV160°
Built-in 8G storage
6V-25.2V
Sony Starvis Ⅱ Technology
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS. Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.
The camera ( 8G VTX KIT) supports Gyroflow, take you smooth and stable video quality.

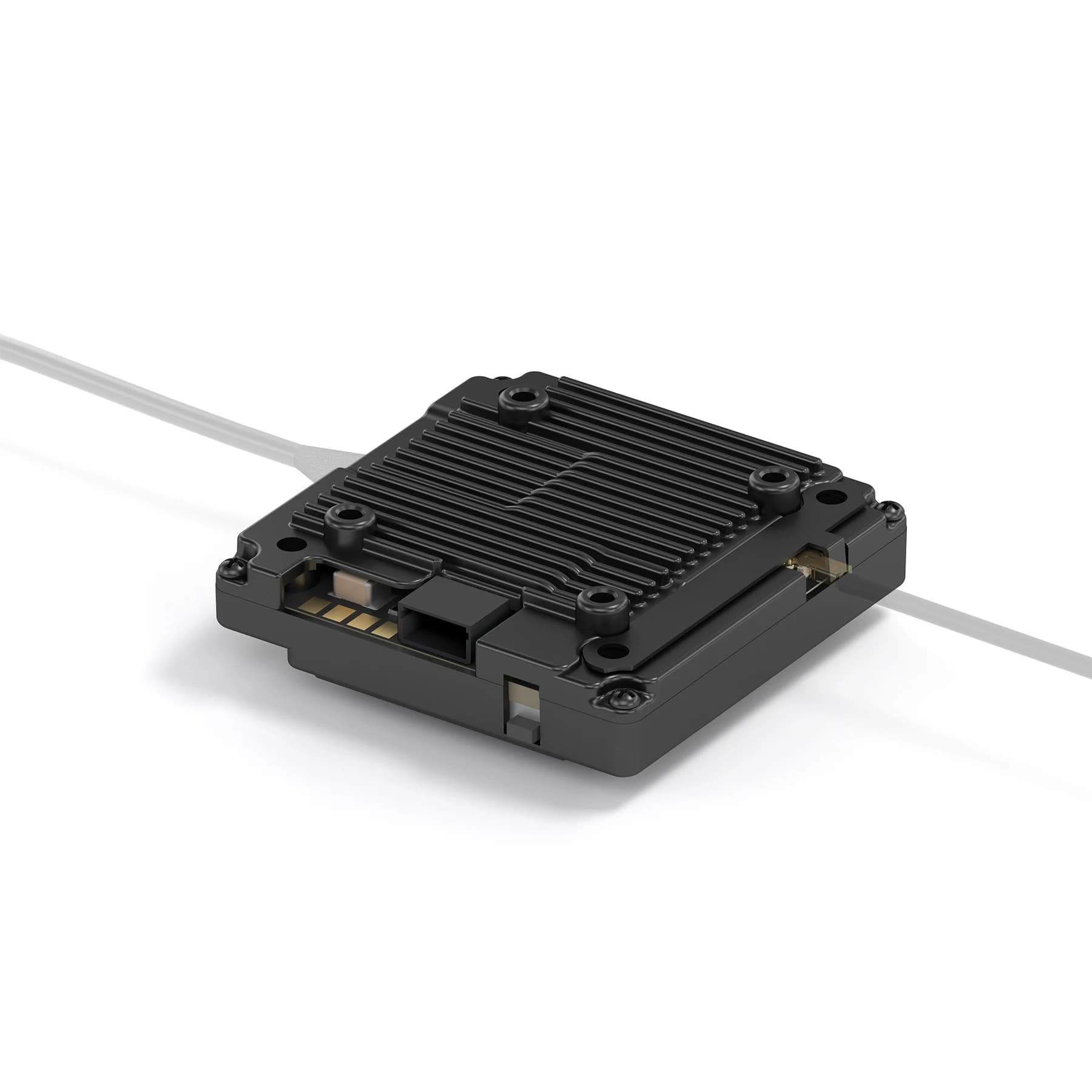

VTX Features：
In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, so as to better protect the VTX.
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
A spare pad is added to provide two power connection modes.
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
The Avatar VTX comes with 8G built-in storage it can record 1080p or 720p HD flight videos without interference.8G built-in storage, recording video time increased by 4 times.
It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
HD 1080p OLED Dual Micro Displays
The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.
The goggles have the feature of adjusting the focus without the need to install,corrective lenses.
HDMI Output
Turn on the ranging mode to display the distance between the drone and goggles in real time, in case the drone is lost due to long distance flight.
Q:Do we support 1080P 120FPS?
A:Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.
Specification | |
Camera | |
Model | Avatar HD Pro Camera |
Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
Ratio | 16/9; 4/3 |
Lens | 8Mp |
FOV | 160° |
Aperture | F1.6 |
Shutter | Rolling shutter |
Min.Illumination | 0.00001Lux |
Weight | 9.5g |
Dimensions | 19*19*24mm |
Coaxial Cable | 140mm |
VTX | |
Model | Avatar V2 Module |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; |
1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
Mounting Holes | 25.5*25.5mm; 20*20mm |
Dimensions | 33.5*33.5*10.5mm |
Storage | 8G |
Recording | 1080p/720p |
Weight | 17.6g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 6V-25.2V |
Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 1(IPEX) |

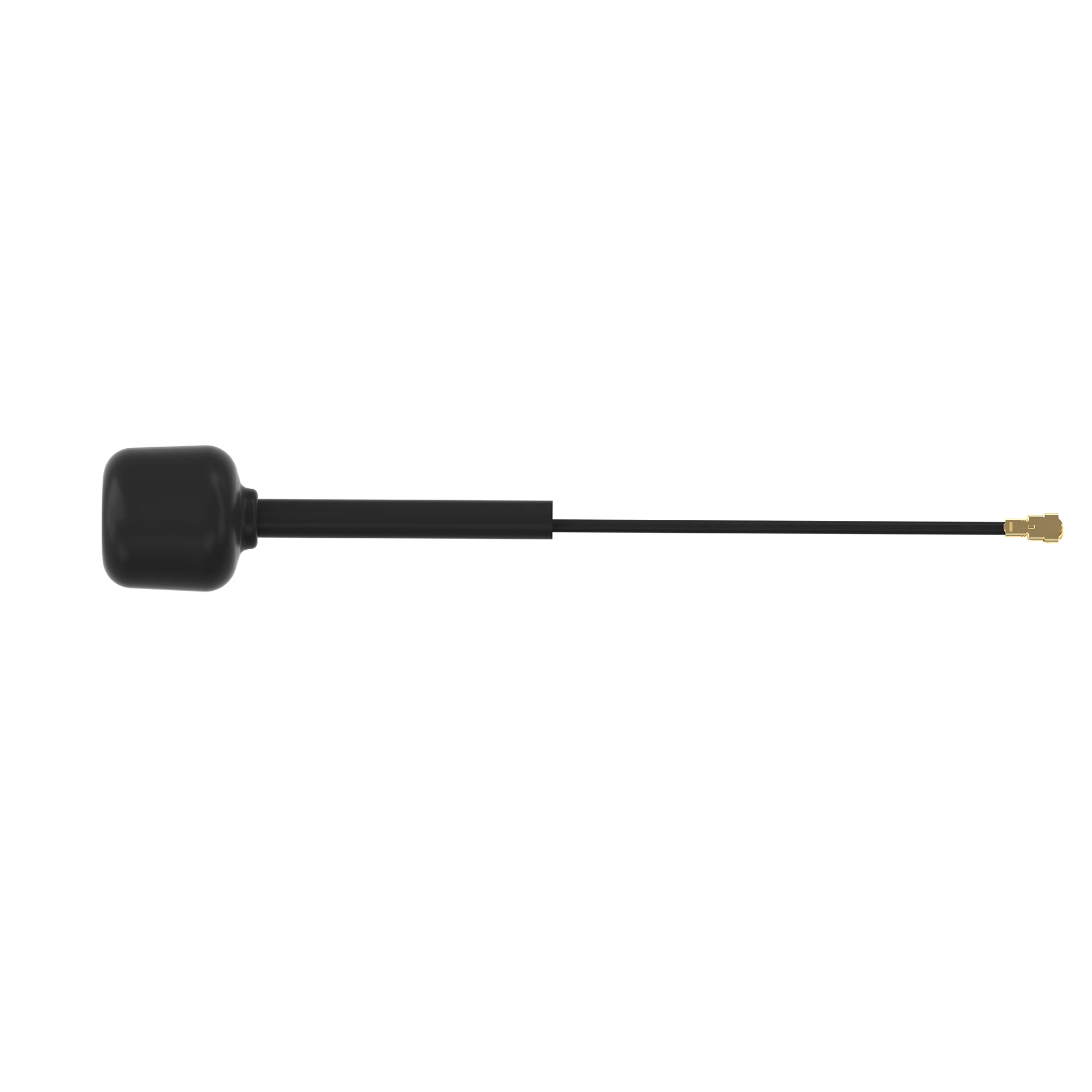

Avatar V2 Antenna | |
Polarization | LHCP |
Frequency range | 5600MHz-6000MHz |
Gain | 1.9dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Size | R15 X 45mm(without cable) |
Weight | 2g |

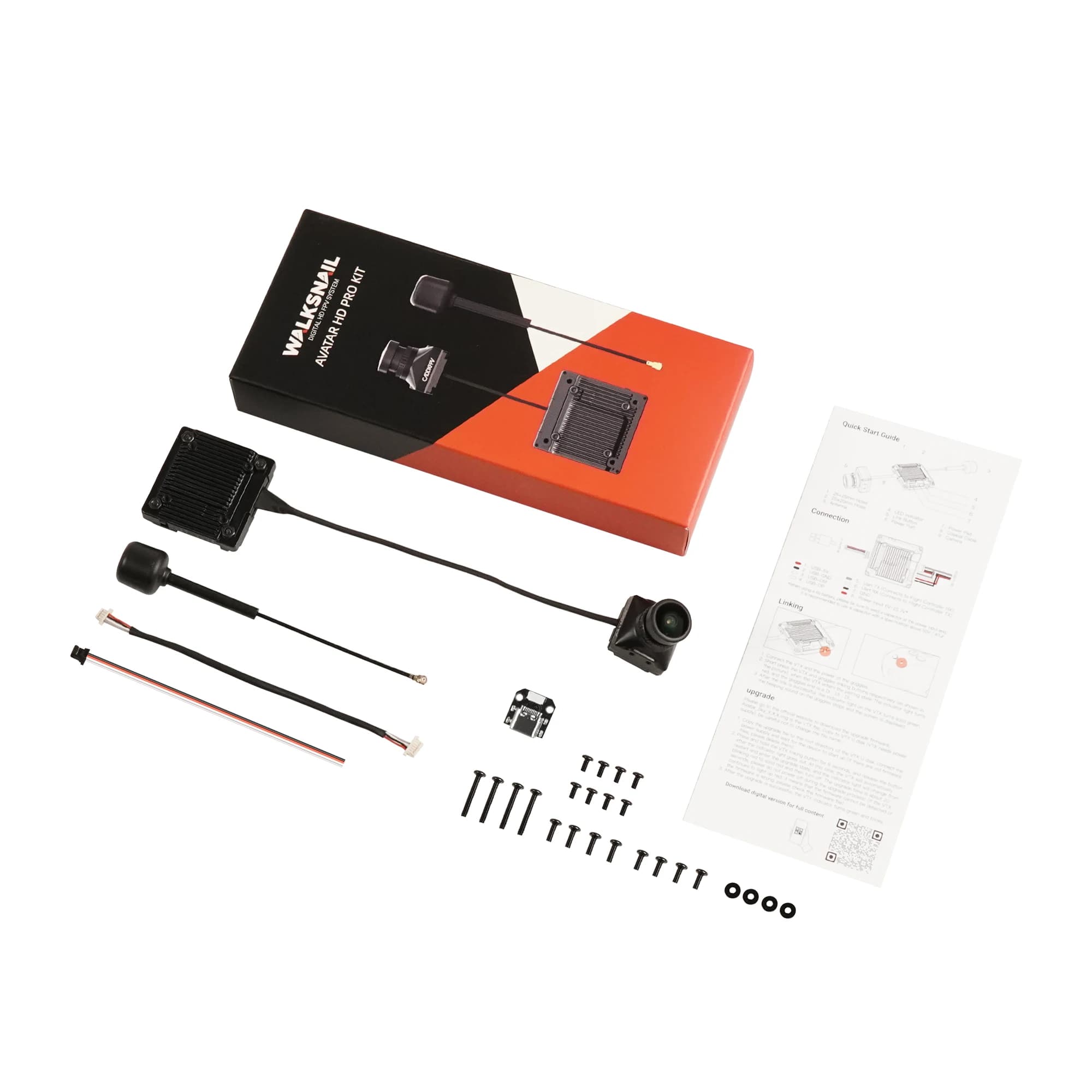

Packing List | |
USB transfer extension cable | X1 |
4 Pin silicone cable | X1 |
M2*4mm screws | X8 |
M2*5mm screws | X4 |
M2*6mm screws | X4 |
M2*14mm screws | X4 |
M2*5*0.5mm gasket | X4 |
