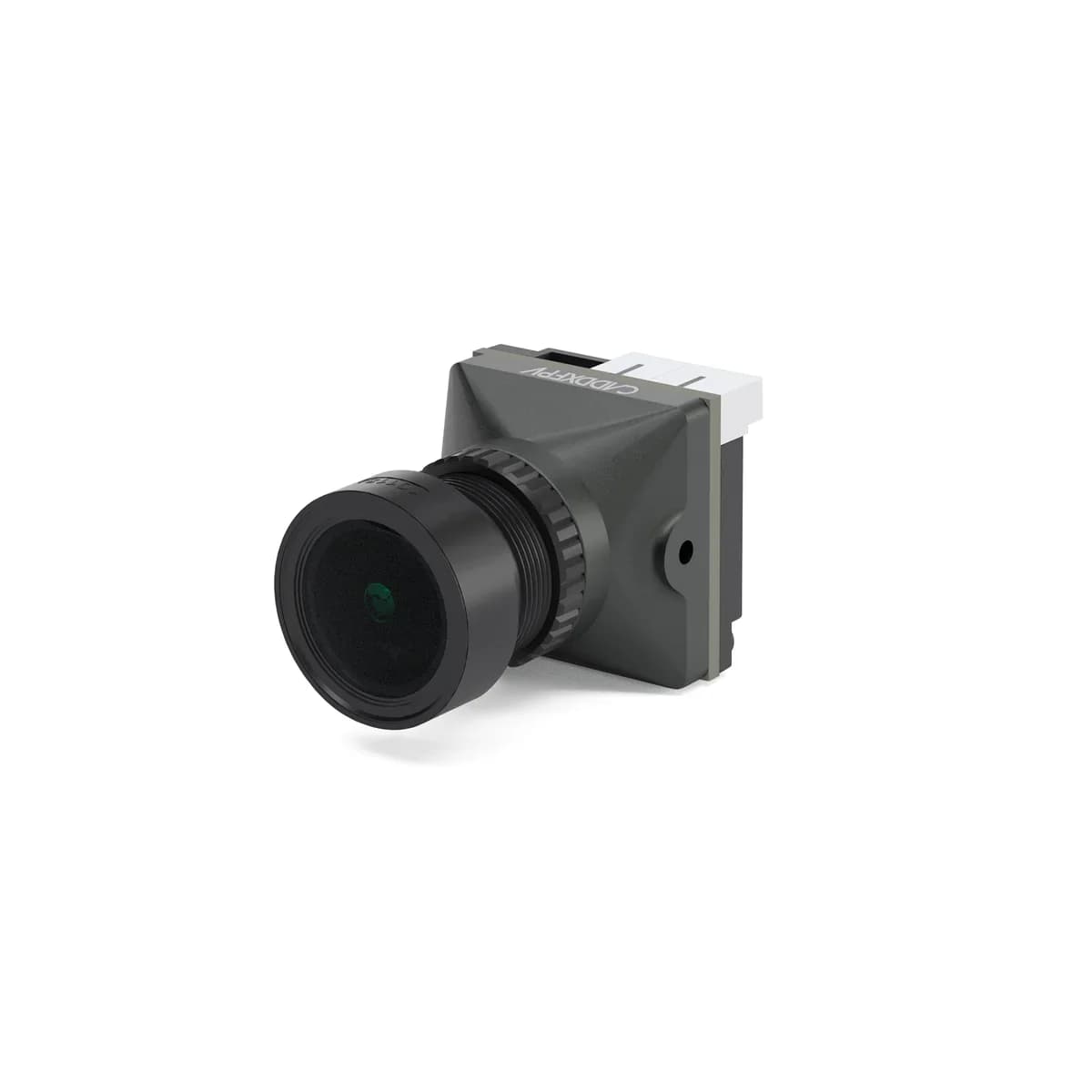

CADDXFPV Ratel Pro Analog Camera 2.1mm Lens 16:9/4:3 NTSC/PAL Switchable Micro FPV Camera Drone Quadcopter
4000 orders (reference)
Description
CADDXFPV Ratel Pro Analog Camera 2.1mm Lens 16:9/4:3 NTSC/PAL Switchable Micro FPV Camera Drone Quadcopter High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Technical parameters: value 2 Model Number: CADDX RATEL PRO For Vehicle Type: Airplanes
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Technical parameters | value 2 |
| Model Number | CADDX RATEL PRO |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | FPV Camera |
| Upgrade Parts/Accessories | Analog Camera |
| RC Parts & Accs | CADDX FPV Camera |
| Material | Metal |
| Brand Name | CADDXFPV |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

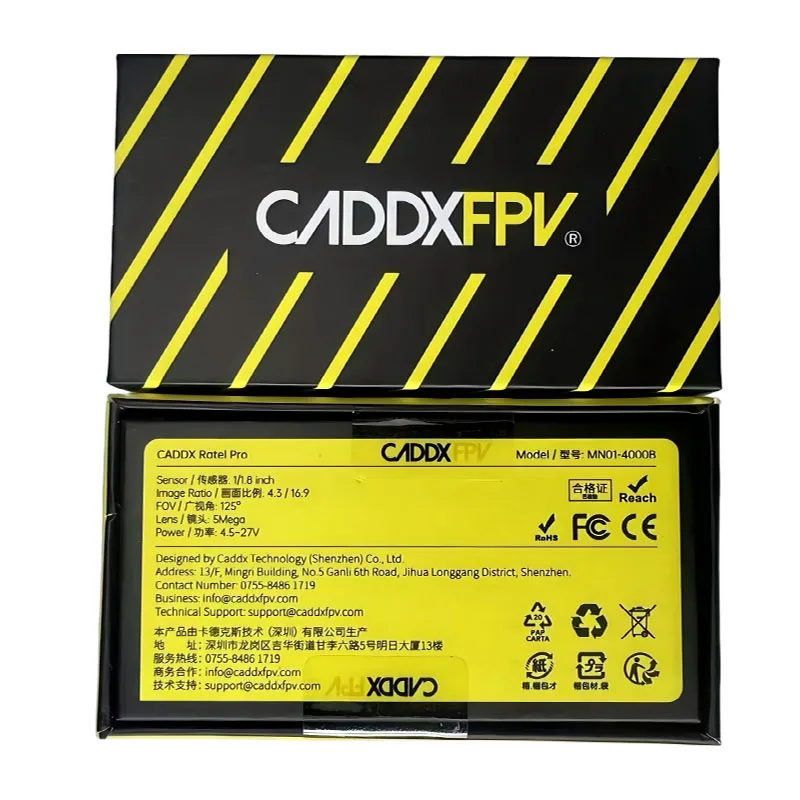

NEW Packaging
features
●Day and night | ●Blacklight |
●1500TVL | ●Super WDR |
●4.5V-27V | ●FOV125° |
Bullet Points:

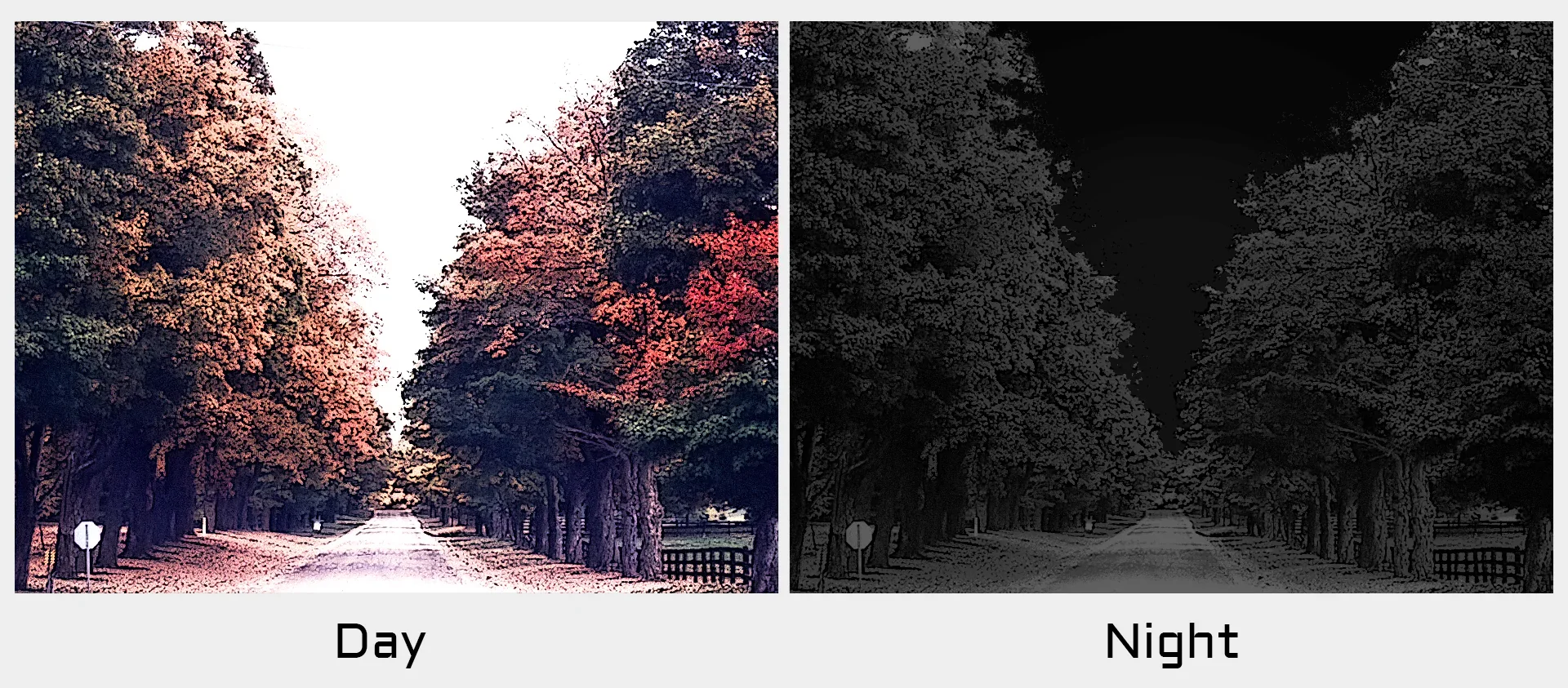

Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.

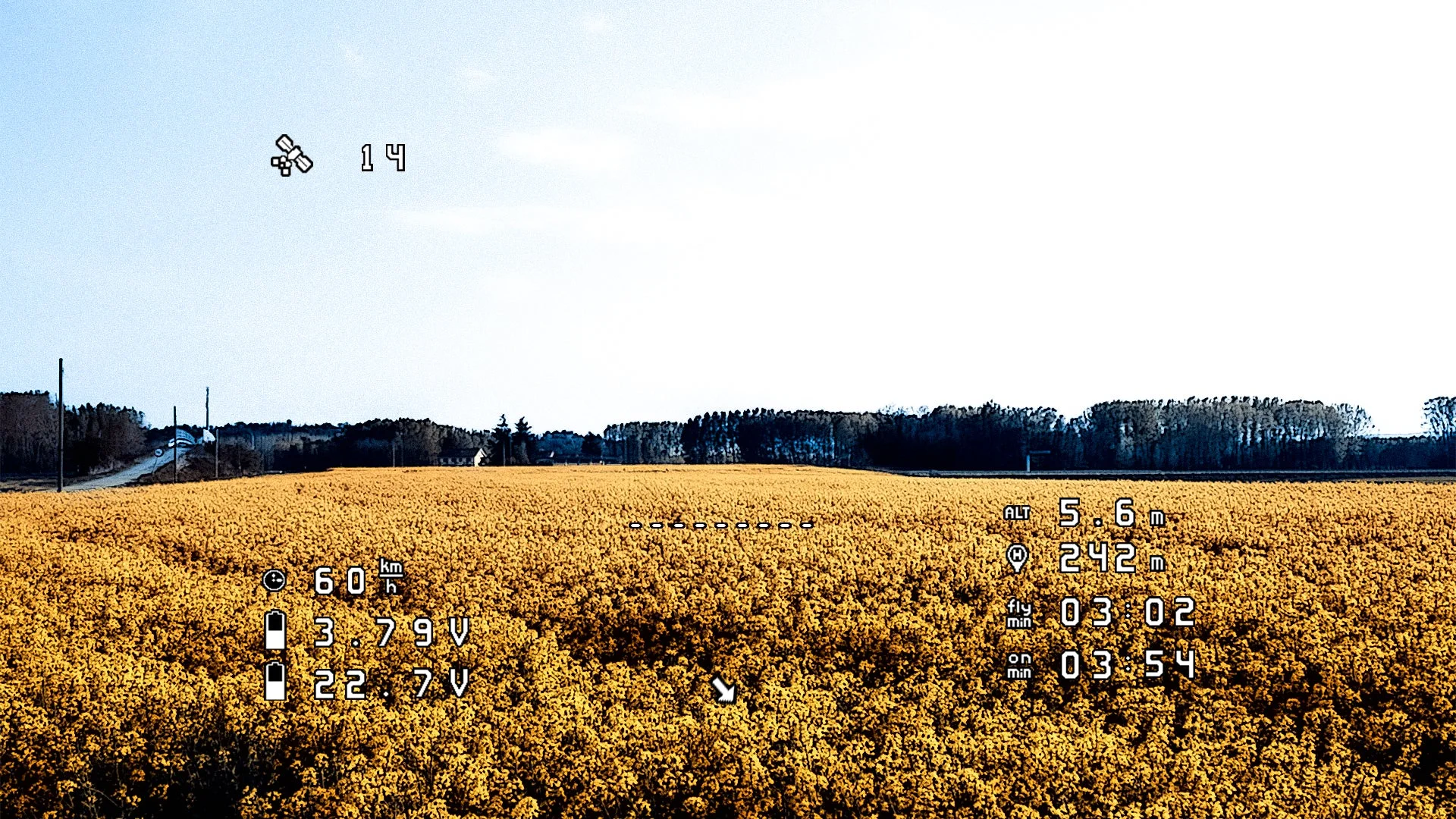

Ratel Pro delivers excellent daytime clarity,setting new standards in visual excellence within the analog camera domain.

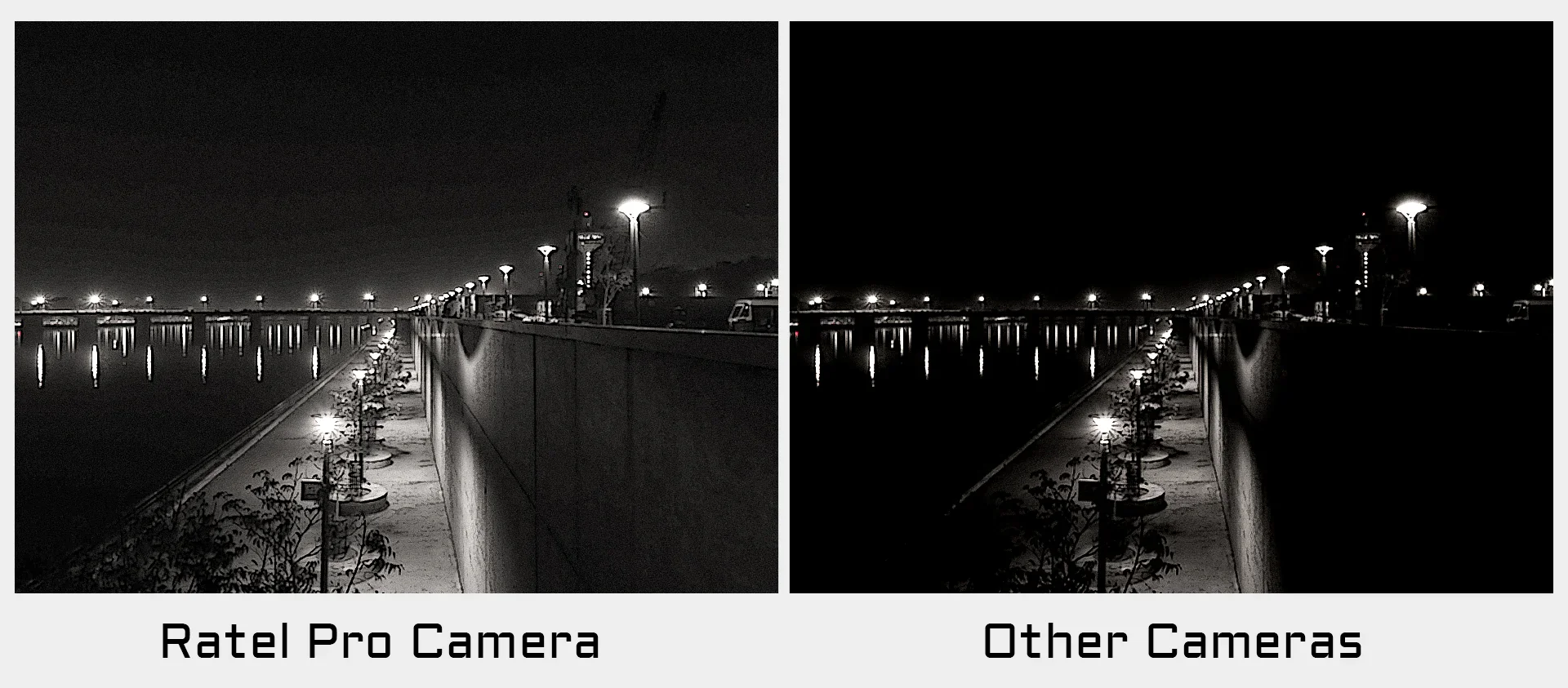

Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility

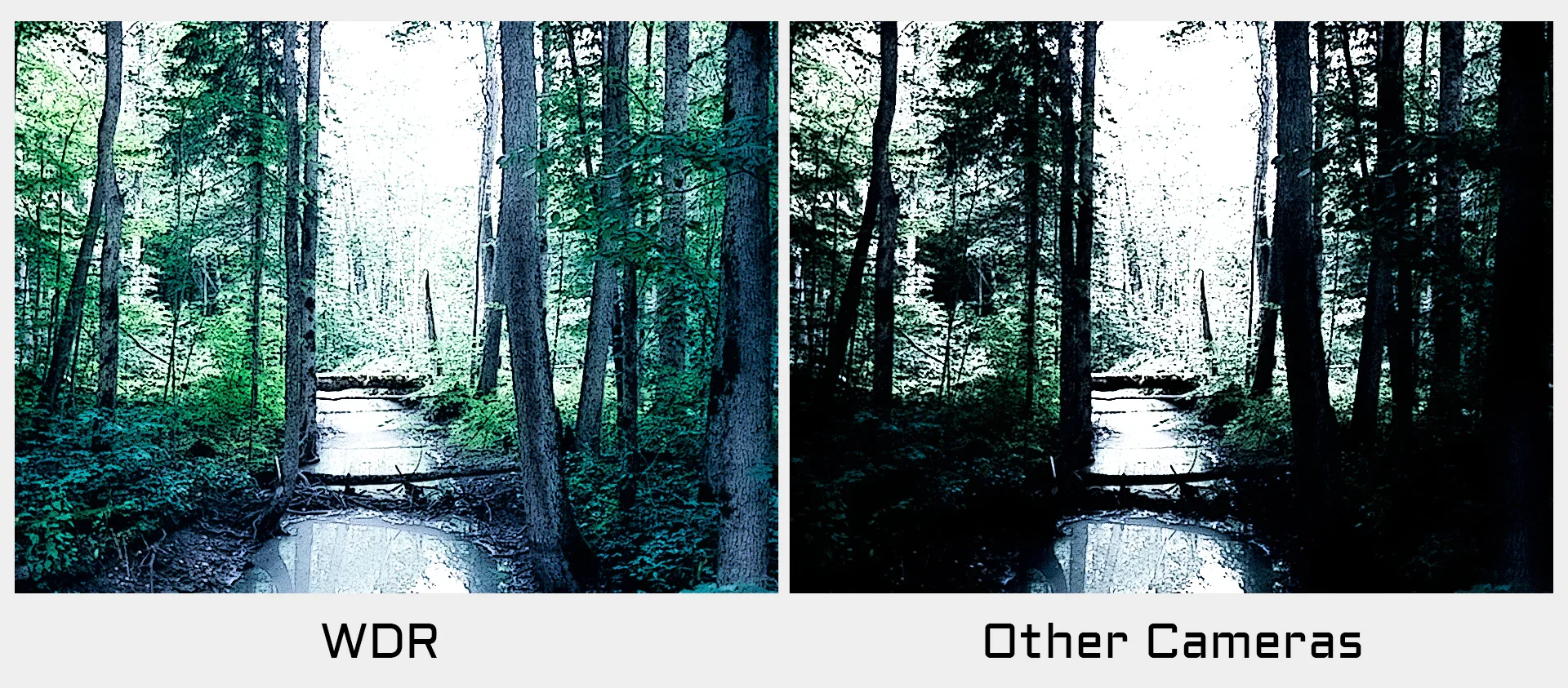

Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.
Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.

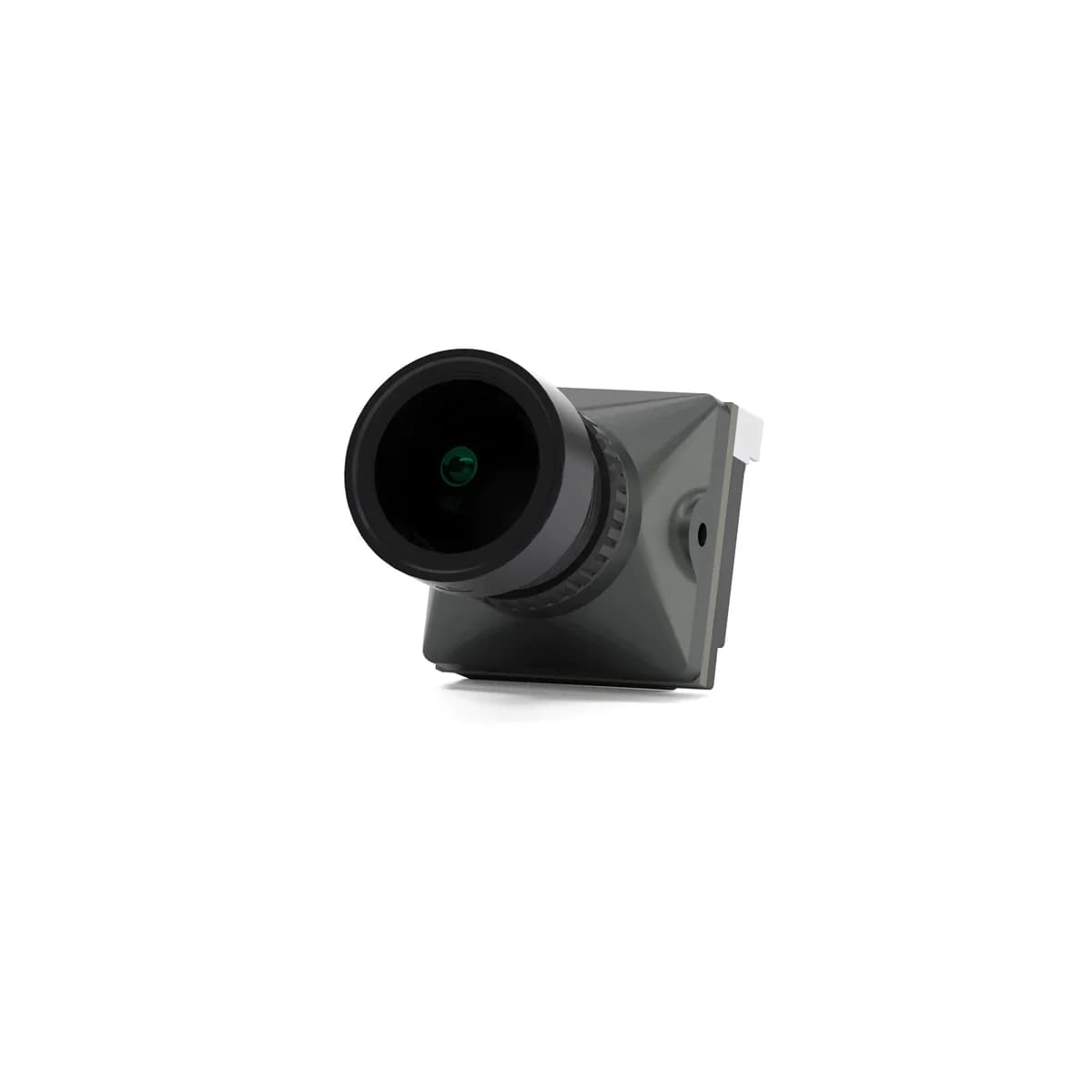

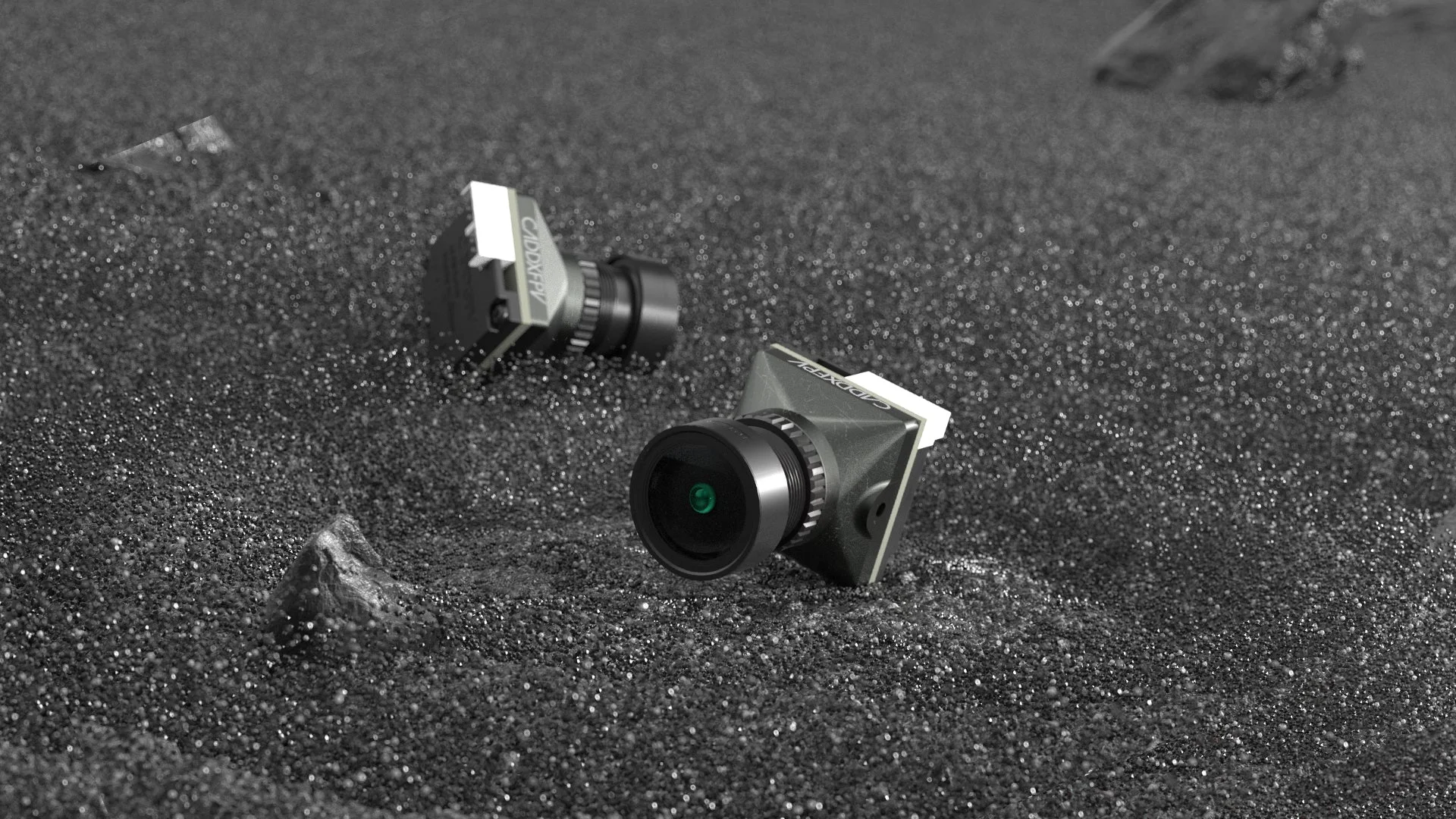

Featuring a metal case, the lightweight design improves durability and heat dissipation.
Model | Ratel PRO |
Image Sensor | 1/1.8" Inch sensor |
Horizontal Resolution | 1500TVL |
TV System | NTSC & PAL (changeable) |

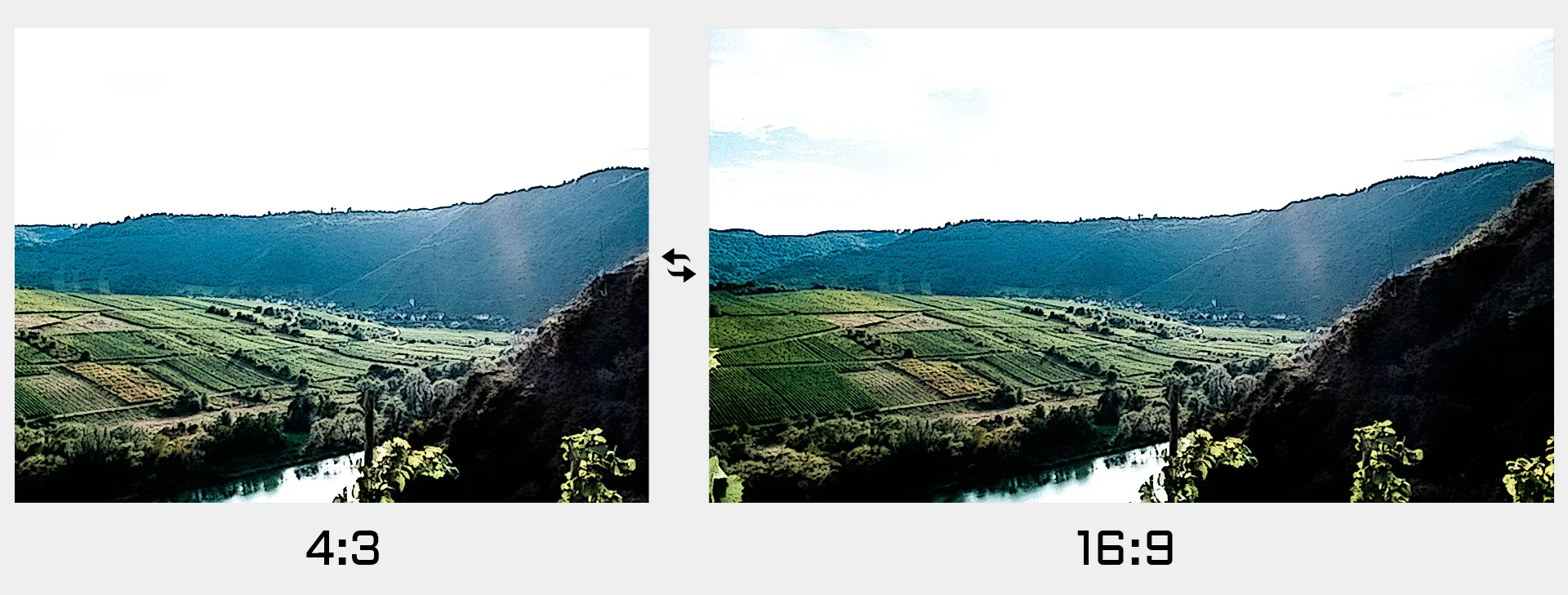

IMAGE | 16:9 & 4:3 (changeable) |
WDR | Super WDR HDR) |
Min. Illumination | 0.00001 lux |
Lens | 5Mega |
Color | Black |
Synchronization | Internal |
Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
S/N Ratio | >60dB (AGC OFF) |
Video Output | CVBS |
OSD manual | Support |
DNR | 3-DNR |
FOV | 125° |
Language | ENGLISH///Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/ |
Day/Night | Auto/Color/B&W/EXT |
Dimensions | 19mm*19mm |
Wide Power Input | DC 4.5-27V |
Work Temperature | -20℃~+60℃ |
Work Humidity | 20%~80% |

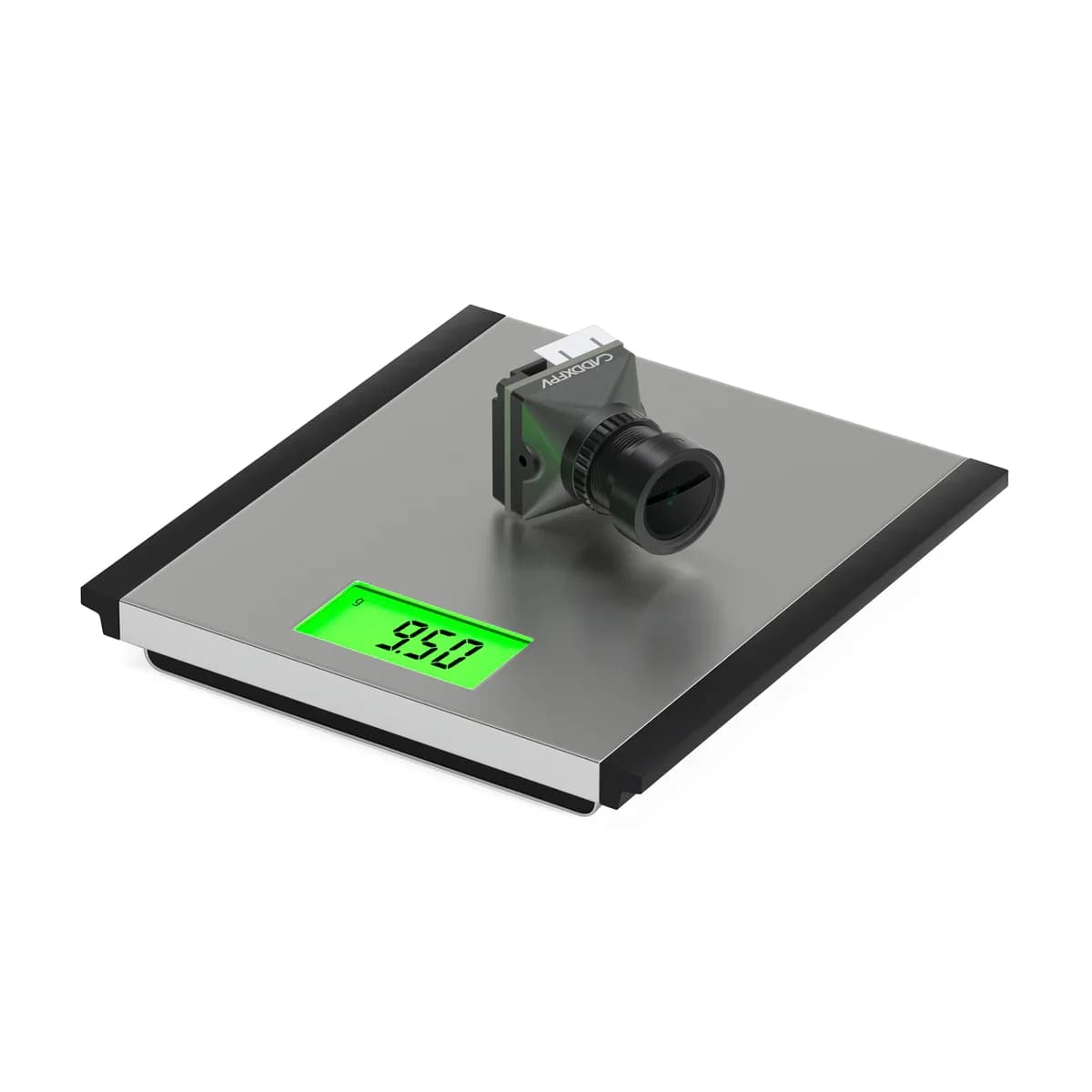

Weight | 9.5g |

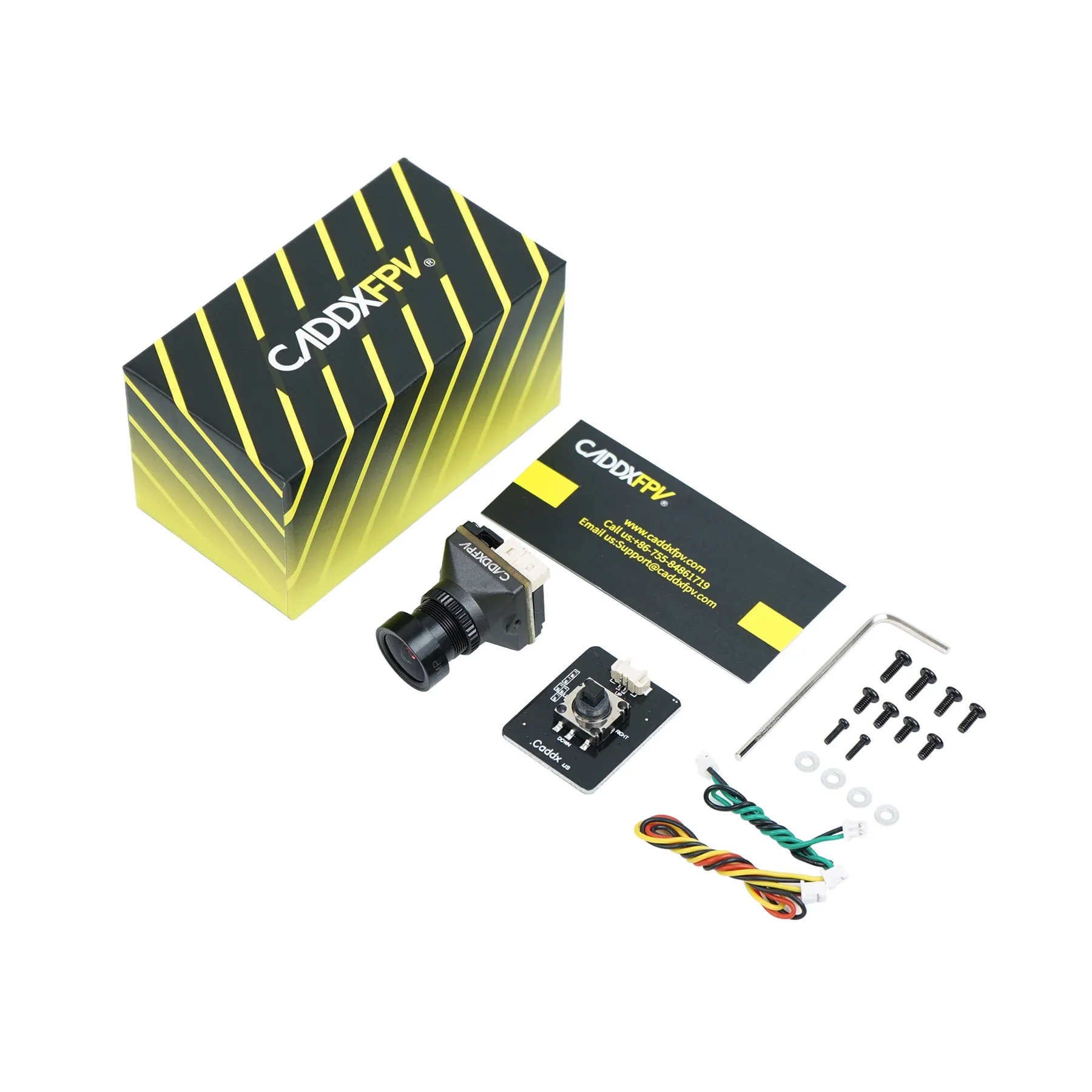

Packing List
