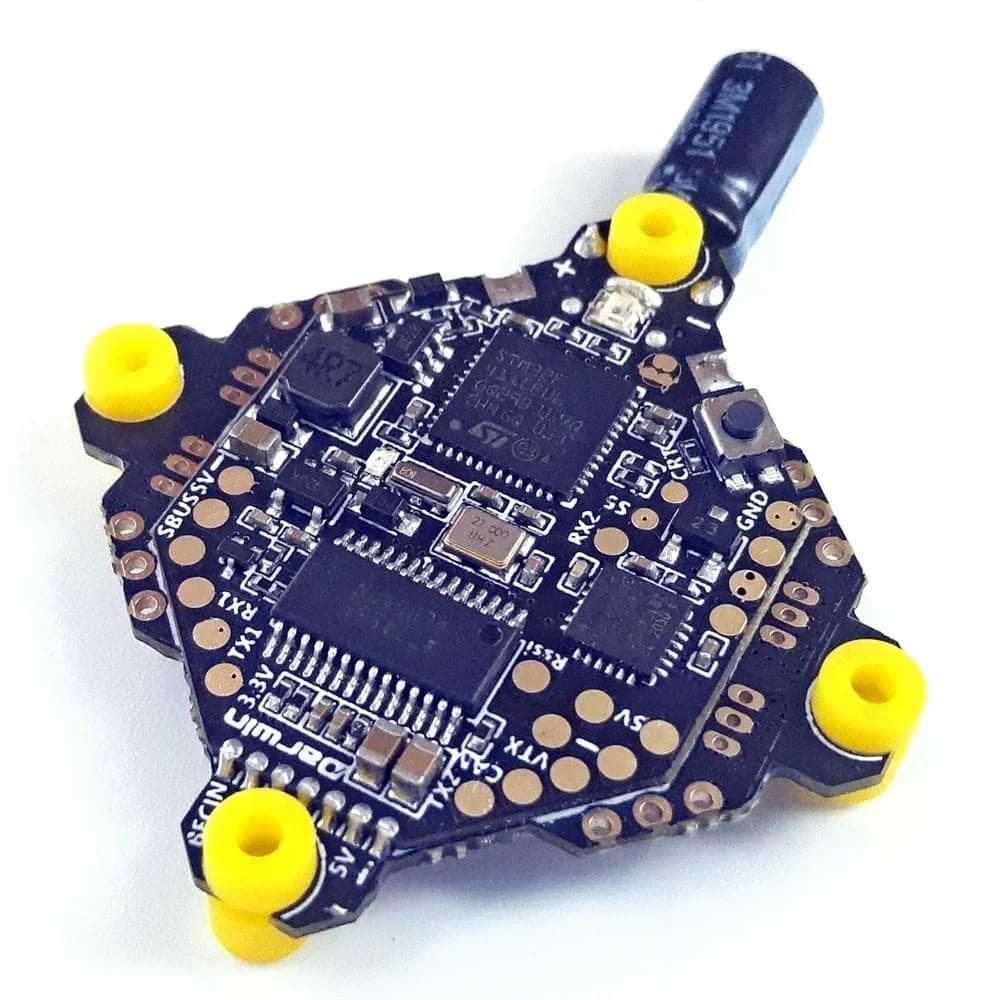

DarwinFPV F411 BL_S AIO Flight Controller Whoop Blheli_S Betaflight F4 15A OSD BEC BL_S 1-3S 4In1 ESC for RC Drone FPV Racing
2 orders (reference)
Description
DarwinFPV F411 BL_S AIO Flight Controller Whoop Blheli_S Betaflight F4 15A OSD BEC BL_S 1-3S 4In1 ESC for RC Drone FPV Racing High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Remote Control Peripherals/Devices: ESC RC Parts & Accs: Speed Controllers
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Remote Control Peripherals/Devices | ESC |
| RC Parts & Accs | Speed Controllers |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Welcome to DarwinFPV shop.We are the design team from China with rich design experience in the field of FPV racing drone. We aim to provide low-cost and high-performance products for every friend in the world who loves flying. Thank you for choosing our products and wish you a happy and safe flight.
F411-15A AIO
ESC Specifications
Input Voltage: 3.7~13V DCIN(1~3SLiPo)
Constant Current: 15A
Peak Current: 17A
BEC Ouput: No
MCU: 48MHz EFM8BB21F16G Protocol:DSHOT/Oneshot/MultiShot
BLHeli_S Firmware target: S-H-50
Telemetery:No
Current Sensor:No
FC Specifications
MCU: 100MHz STM32F411CEU6
IMU: MPU6000 or ICM20689
Baro: No
Blackbox: No
OSD:AT7456E
2xUarts(1,2)
Built in inverter for SBUS input (UART1-RX) 1xSoftserial supported(S5)
3.7~13V DCIN(1~3SLiPo)
BEC:5V 2A cont.(Max 2.5A)
LDO3.3V:Max 200mA
Battery Voltage Sensor: 1:10(Scale110)
BetaFlight target:MATEKF411
