DARWINFPV F411 AIO ELRS Flight Controller Whoop Blheli_S Betaflight F4 15A OSD BEC BL_S 1-3S 4In1 ESC for RC Drone FPV Racing
26 orders (reference)
Description
DARWINFPV F411 AIO ELRS Flight Controller Whoop Blheli_S Betaflight F4 15A OSD BEC BL_S 1-3S 4In1 ESC for RC Drone FPV Racing High-concerned chemical: None Compatible Drone Model: 4DRC Size: 9*6 Package: Yes Weight: 50 Model Number: Product Title Compatible Drone Brand: EHANG Origin: Mainland China
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Compatible Drone Model | 4DRC |
| Size | 9*6 |
| Package | Yes |
| Weight | 50 |
| Model Number | Product Title |
| Compatible Drone Brand | EHANG |
| Origin | Mainland China |
| Bulk buying | Contact me foraquote |
| Can't find what you need | Contact customer service |
| Service | Bill Of Materials Quotation |
Product Details
Welcome to DarwinFPV shop.We are the design team from China with rich design experience in the field of FPV racing drone. We aim to provide low-cost and high-performance products for every friend in the world who loves flying. Thank you for choosing our products and wish you a happy and safe flight.
F411-15A AIO

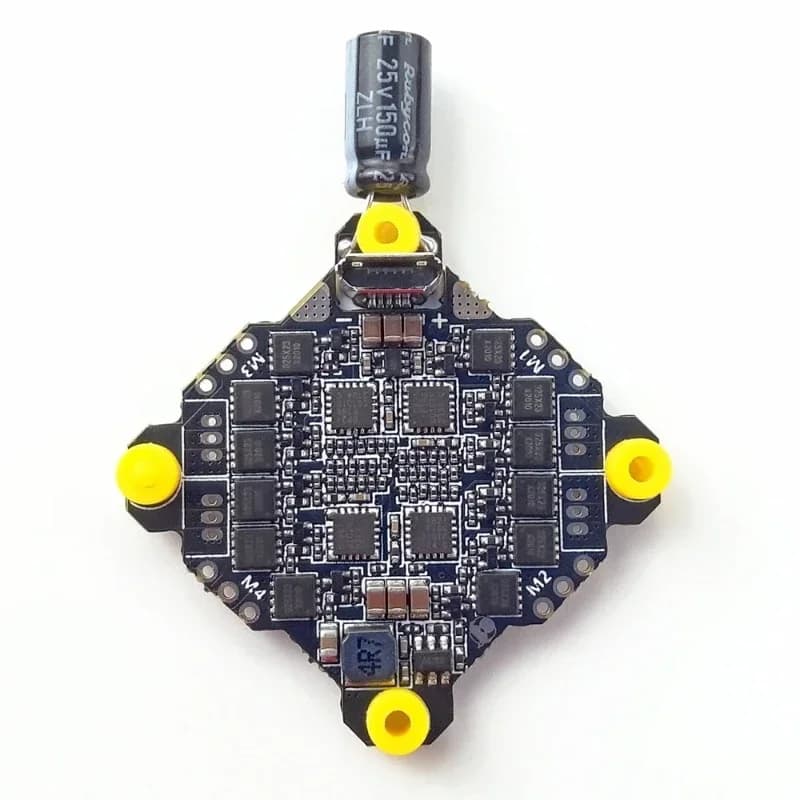

ESC Specifications
Input Voltage: 3.7~13V DCIN(1~3SLiPo)
Constant Current: 15A
Peak Current: 17A
BEC Ouput: No
MCU: 48MHz EFM8BB21F16G Protocol:DSHOT/Oneshot/MultiShot
BLHeli_S Firmware target: S-H-50
Telemetery:No
Current Sensor:No

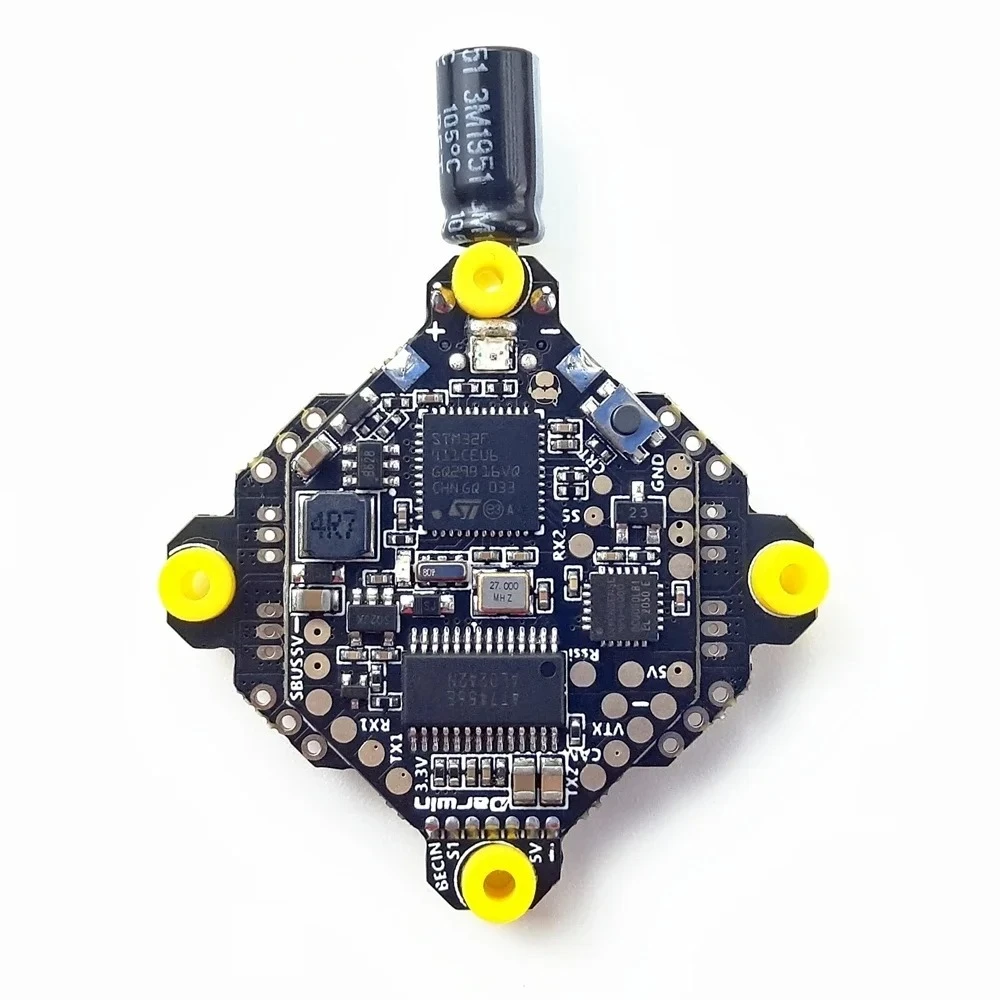

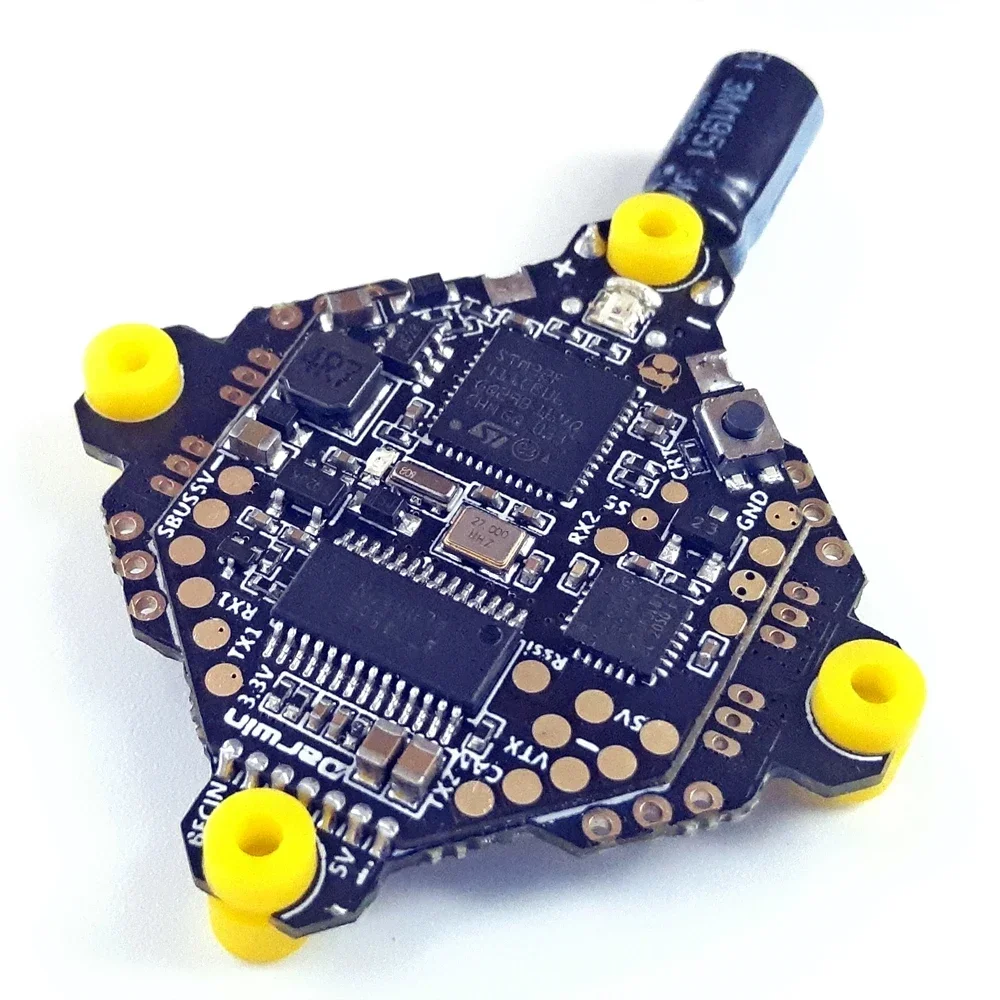

FC Specifications
MCU: 100MHz STM32F411CEU6
IMU: MPU6000 or ICM20689
Baro: No
Blackbox: No
OSD:AT7456E
2xUarts(1,2)
Built in inverter for SBUS input (UART1-RX) 1xSoftserial supported(S5)
3.7~13V DCIN(1~3SLiPo)
BEC:5V 2A cont.(Max 2.5A)
LDO3.3V:Max 200mA
Battery Voltage Sensor: 1:10(Scale110)
BetaFlight target:MATEKF411
