Diatone MAMBA TOKA 1606 3750KV 2700KV 3-6s Lipo Brushless Motor 12x12mm/M2 For RC FPV Racing Freestyle Taycan MXC Drones
9 orders (reference)
Description
Diatone MAMBA TOKA 1606 3750KV 2700KV 3-6s Lipo Brushless Motor 12x12mm/M2 For RC FPV Racing Freestyle Taycan MXC Drones High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 22.2X15mm Model Number: TOKA 1606 3100KV 4300KV
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 22.2X15mm |
| Model Number | TOKA 1606 3100KV 4300KV |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y,6-12Y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | ALPSRC |
Product Details

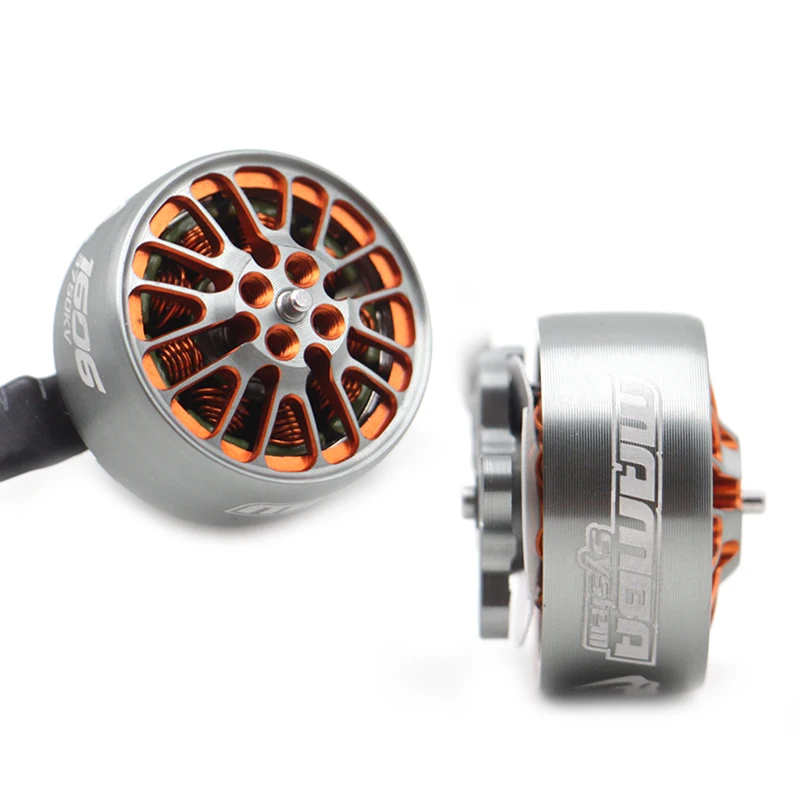

Item: Diatone MAMBA TOKA 1606 Brushless Motor
Parameters:

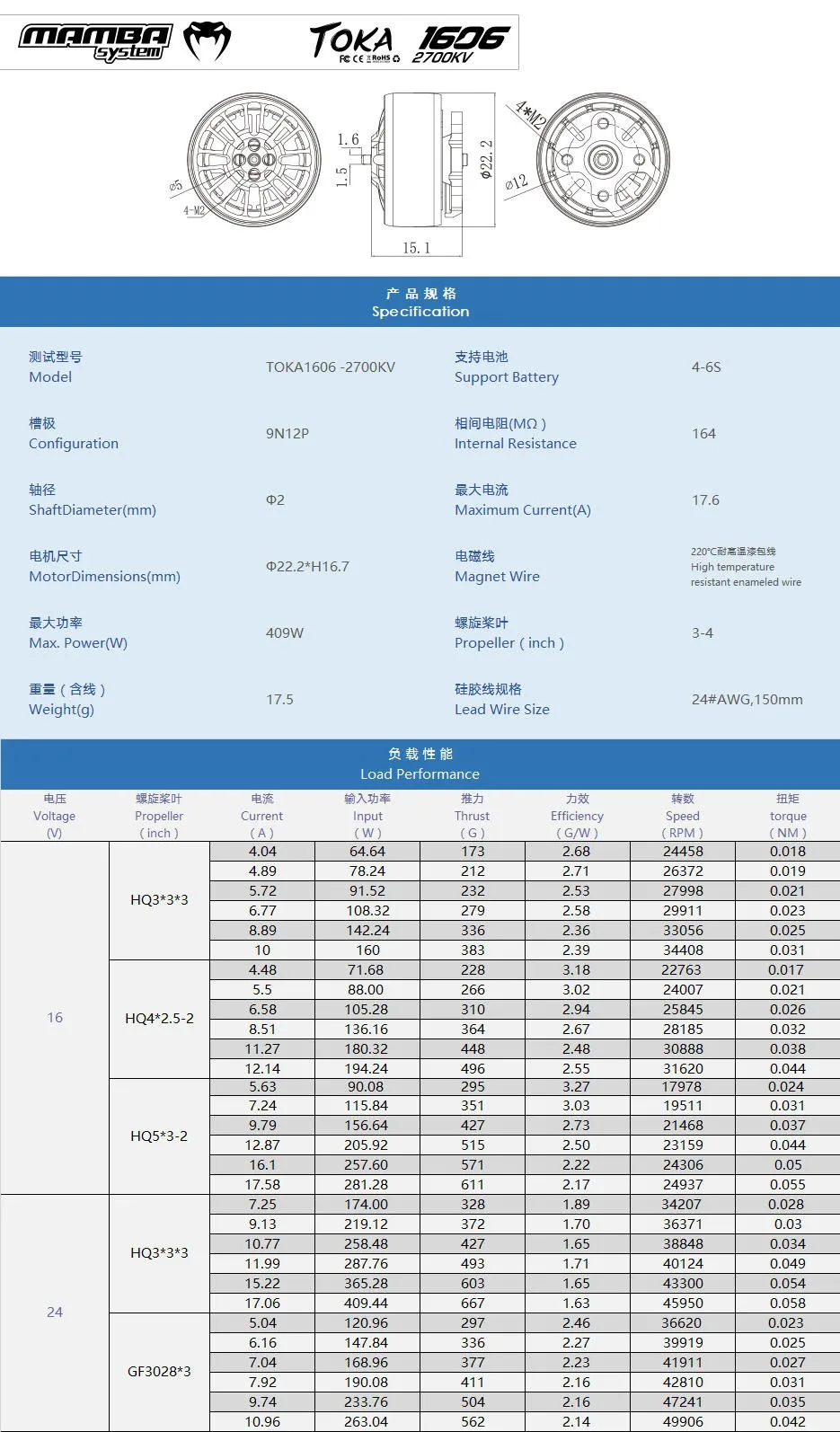

MAMBA TOKA 1606 2700KV MOTOR
Overall Dimension:Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position :12×12mm,M2
Prop: 3inch~4inch
Bearing: 5*2*2.5
Diameter:2mm

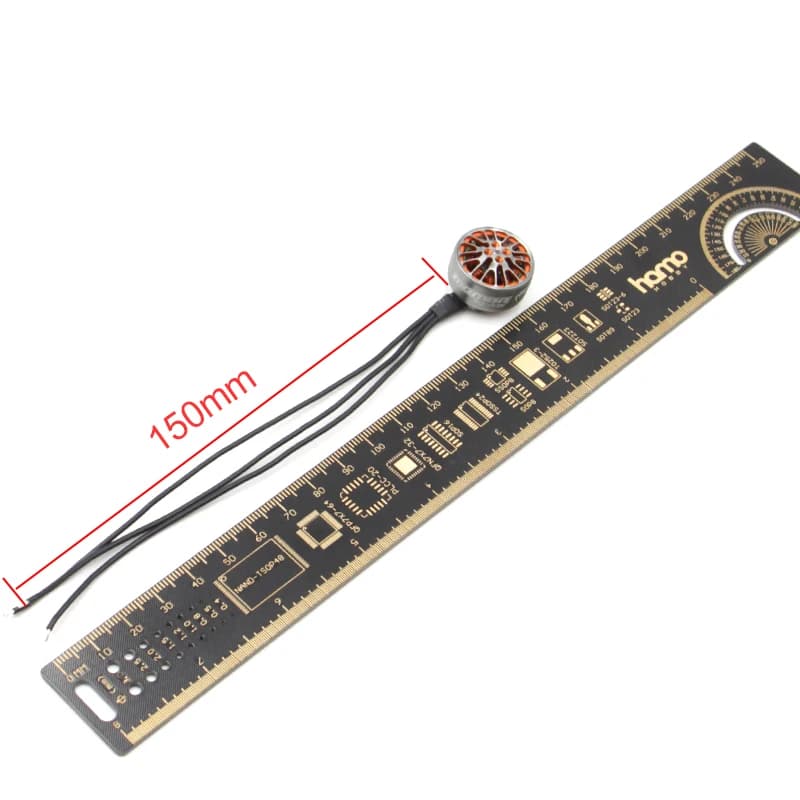

Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage: 3~6S (12.6V~25.2V)
Peak Current: 17.6A
ldle Current:10V/0.5A
Maximum Power: 409W
Internal Resistance:164Ω
------------------------------------------------------------------------

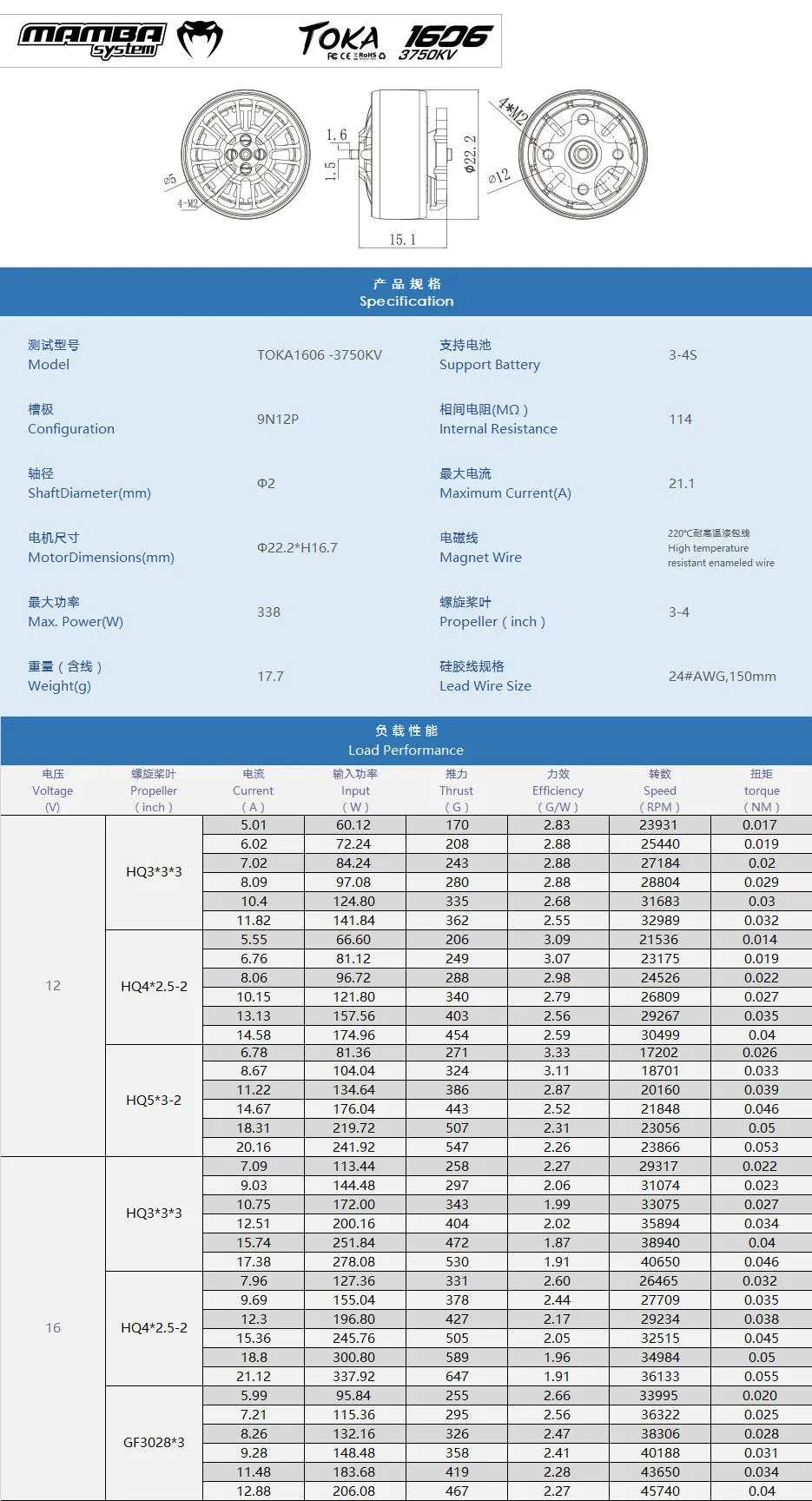

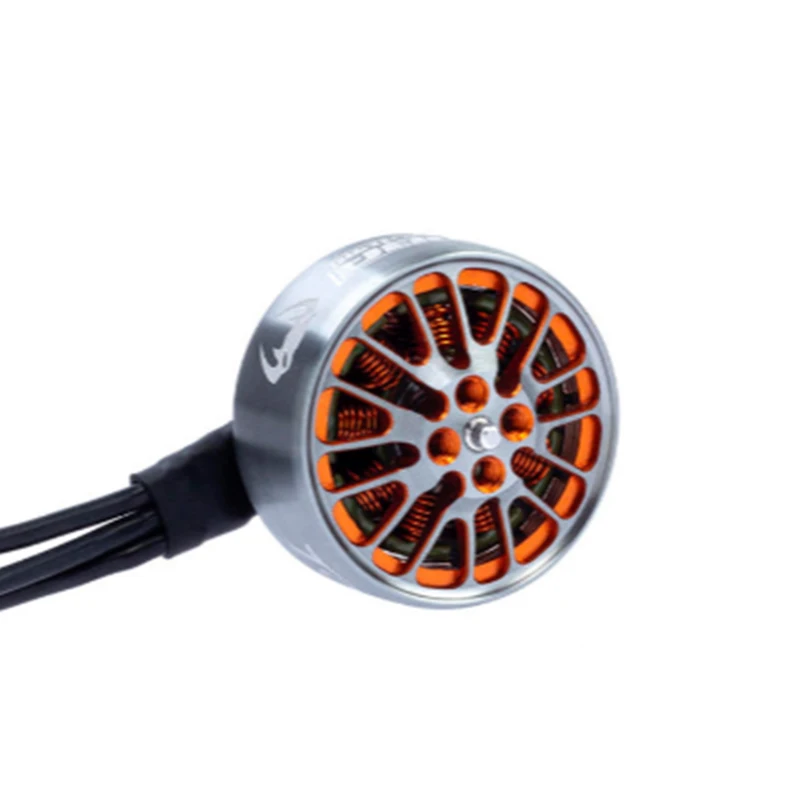

MAMBA TOKA 1606 3750KV MOTOR
Overall Dimension: Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 3inch~4inch
Bearing: 5*2*2.5
Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 21.1A
ldle Current:9v/0.8A
Maximum Power: 338W
Internal Resistance:114Ω
Package Included:
Diatone MAMBA TOKA 1606 2700KV Brushless Motor x1
or Diatone MAMBA TOKA 1606 3750KV Brushless Motor x1

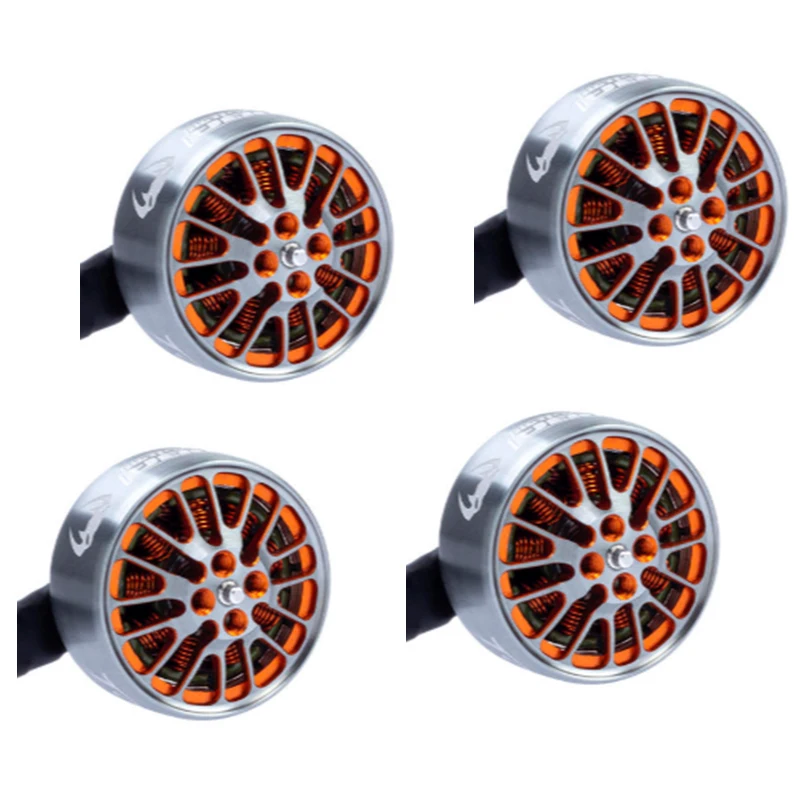

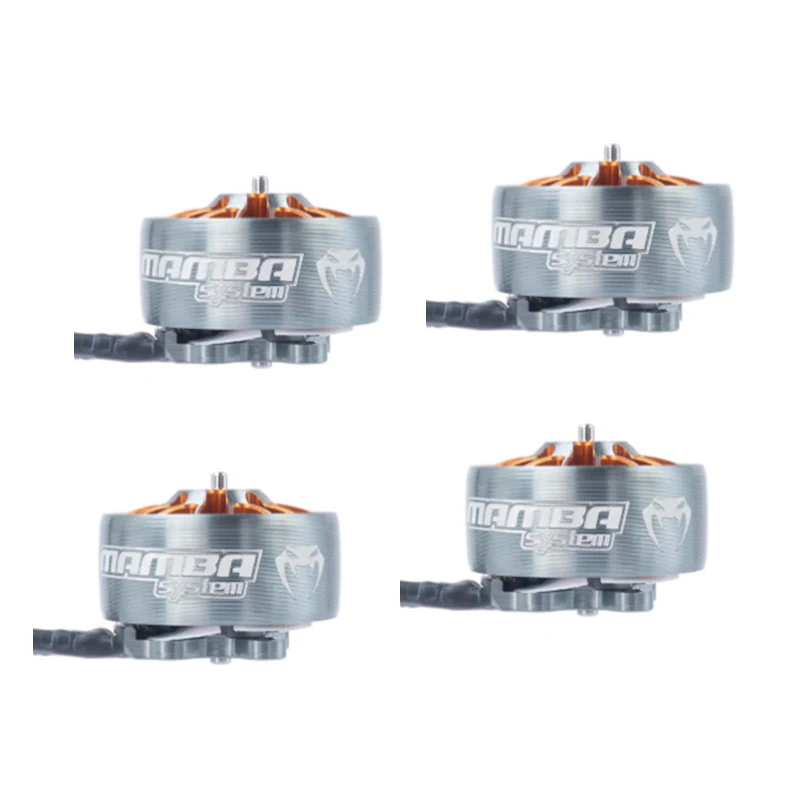

or Diatone MAMBA TOKA 1606 2700KV Brushless Motor x4
or Diatone MAMBA TOKA 1606 3750KV Brushless Motor x4
