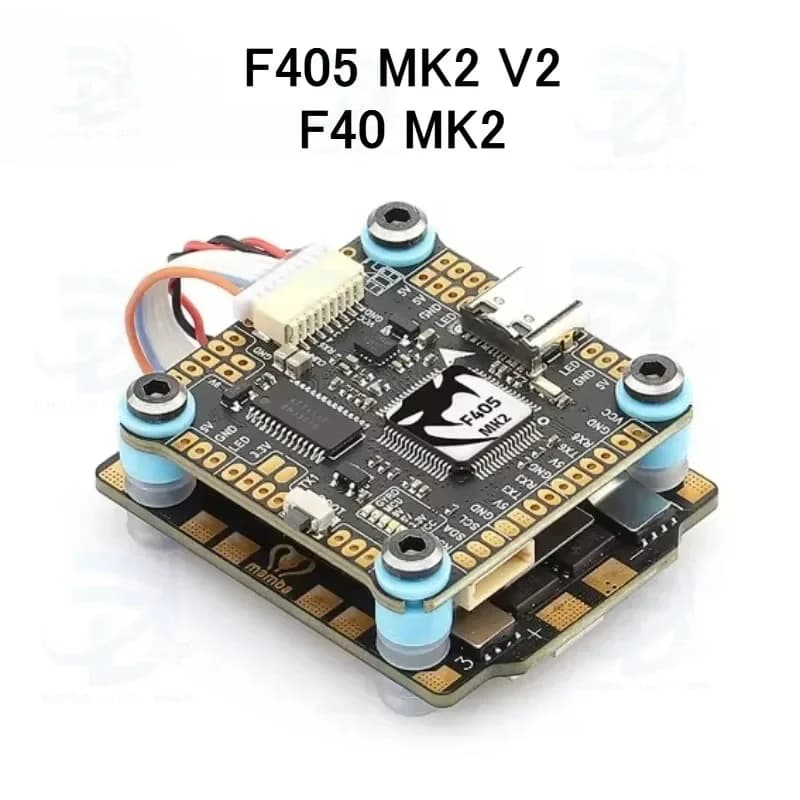

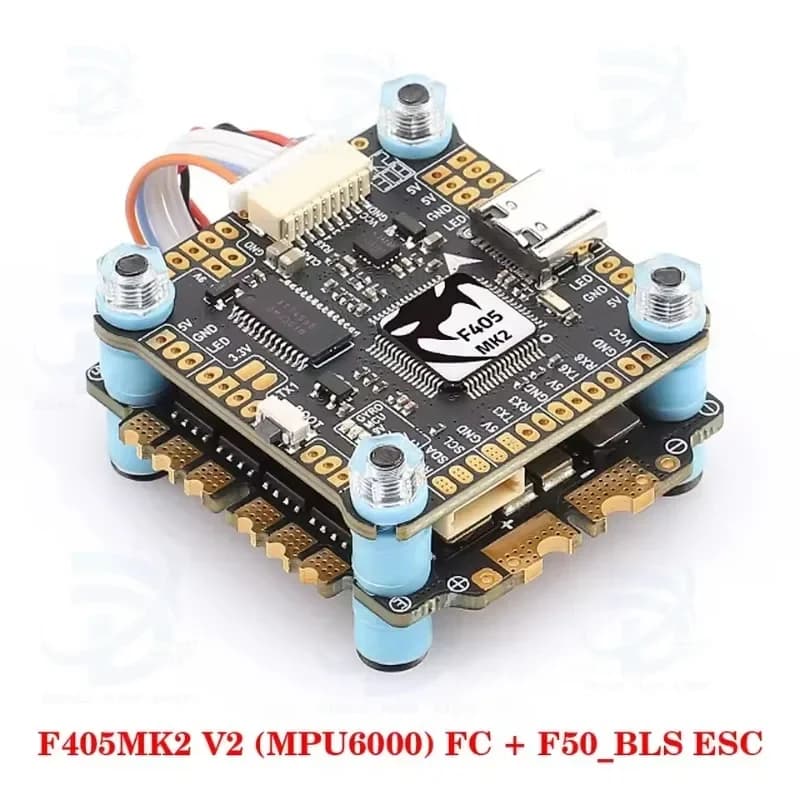

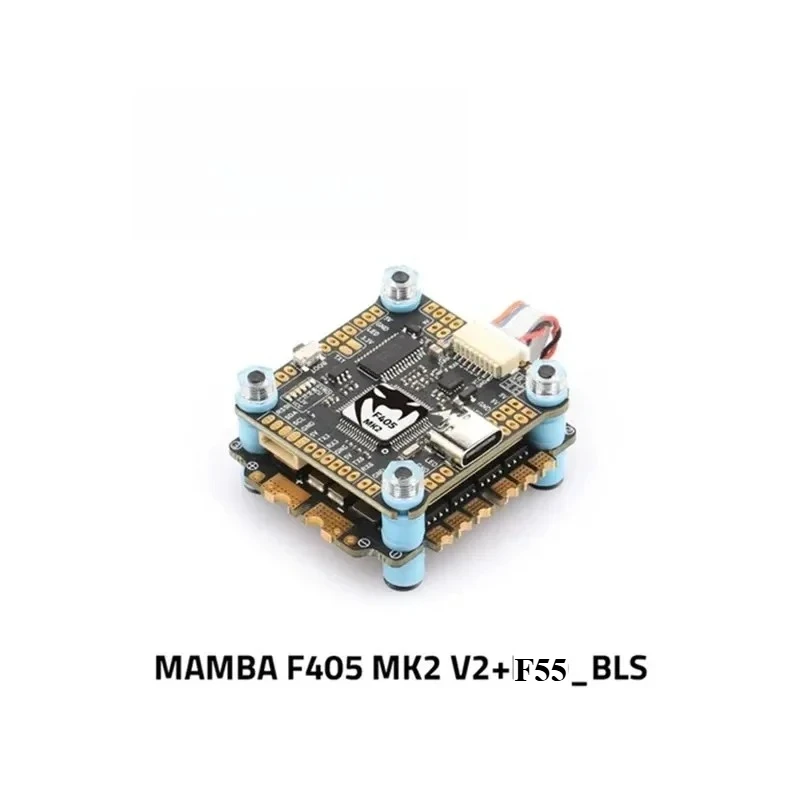

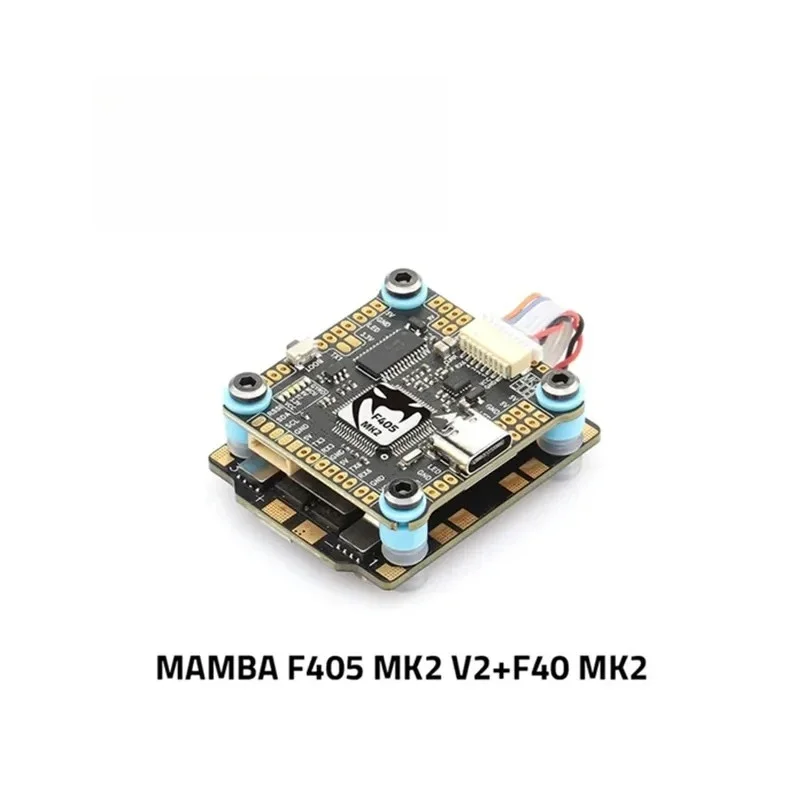

Original DIATONE MAMBA F405 MK2 V2 ICM42688-P Flight Controller W/ BLHeli_S F40/F55_BLS 4in1 ESC Dshot 300-1200 for RC FPV Drone
2 orders (reference)
Description
Original DIATONE MAMBA F405 MK2 V2 ICM42688-P Flight Controller W/ BLHeli_S F40/F55_BLS 4in1 ESC Dshot 300-1200 for RC FPV Drone High-concerned chemical: None Compatible Drone Model: 4DRC Size: 9*6 Package: Yes Weight: 50 Model Number: Product Title Compatible Drone Brand: EHANG Origin: Mainland China
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Compatible Drone Model | 4DRC |
| Size | 9*6 |
| Package | Yes |
| Weight | 50 |
| Model Number | Product Title |
| Compatible Drone Brand | EHANG |
| Origin | Mainland China |
| Bulk buying | Contact me foraquote |
| Can't find what you need | Contact customer service |
| Service | Bill Of Materials Quotation |
Product Details
Description

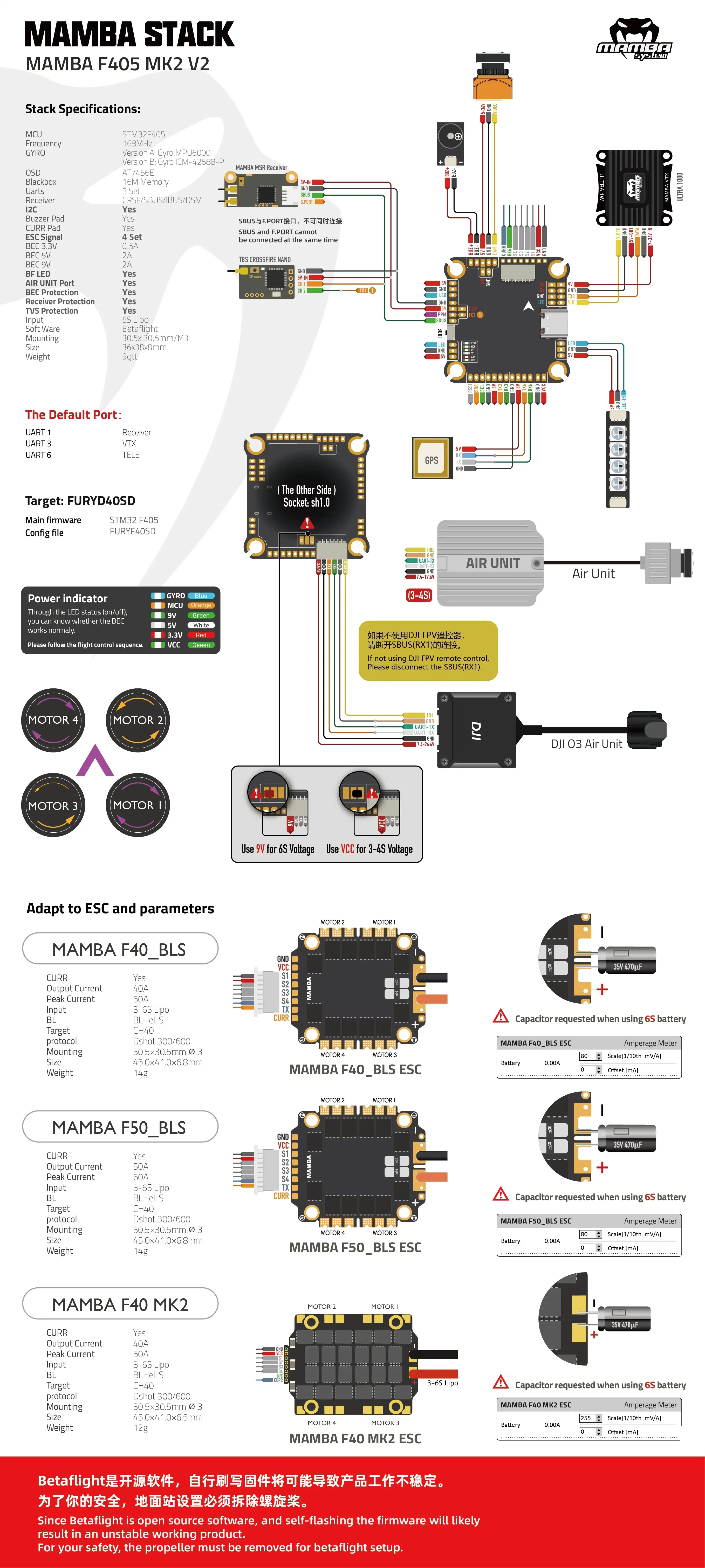

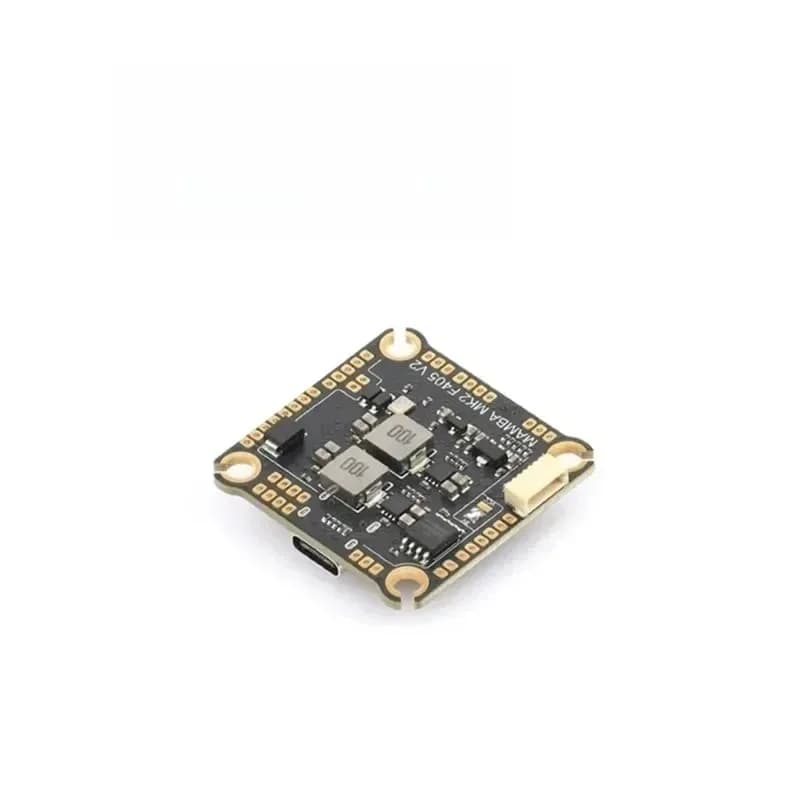

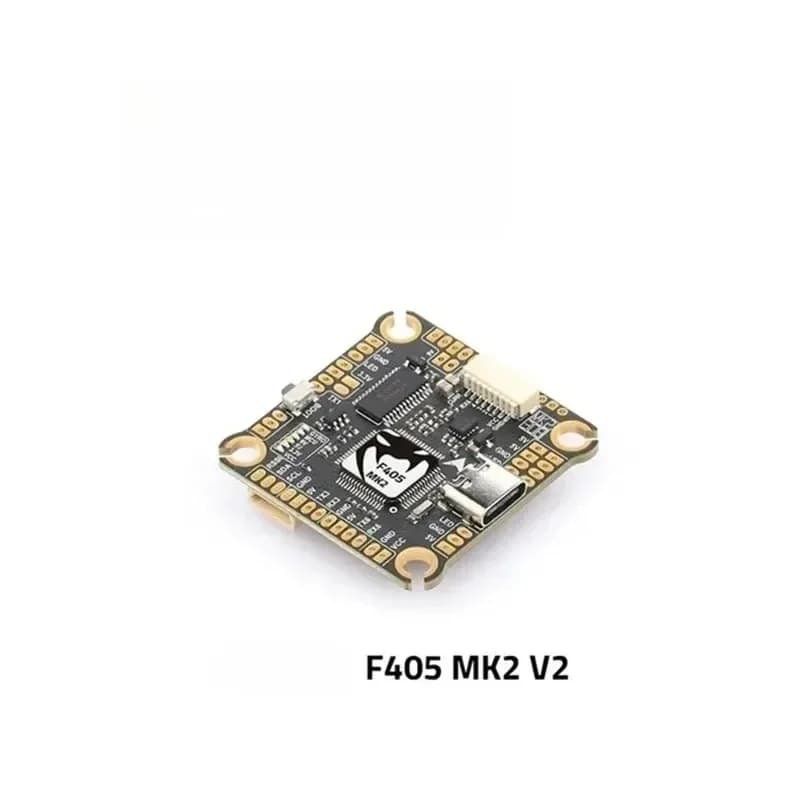

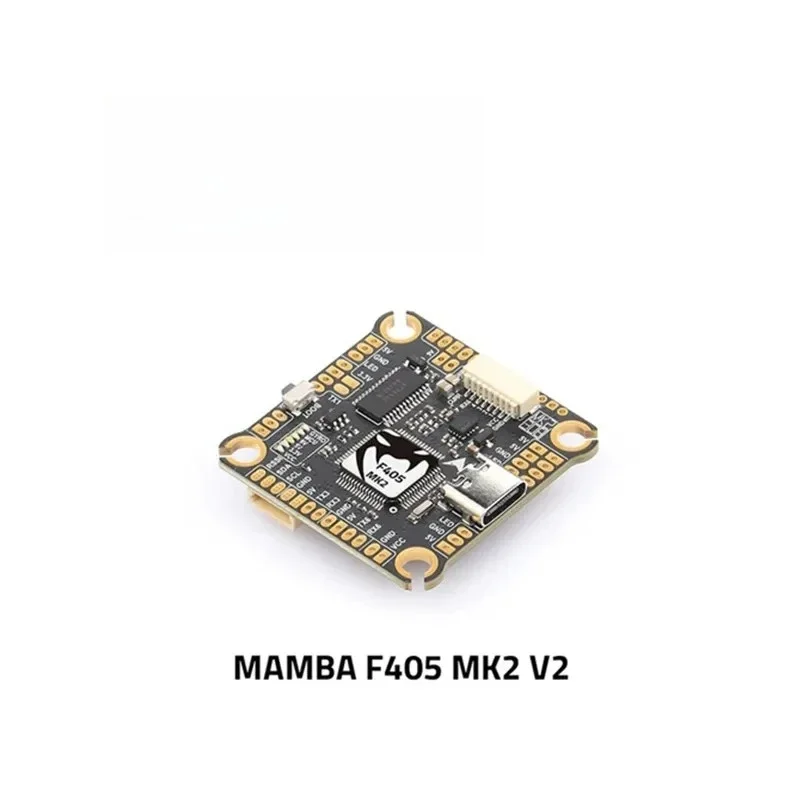

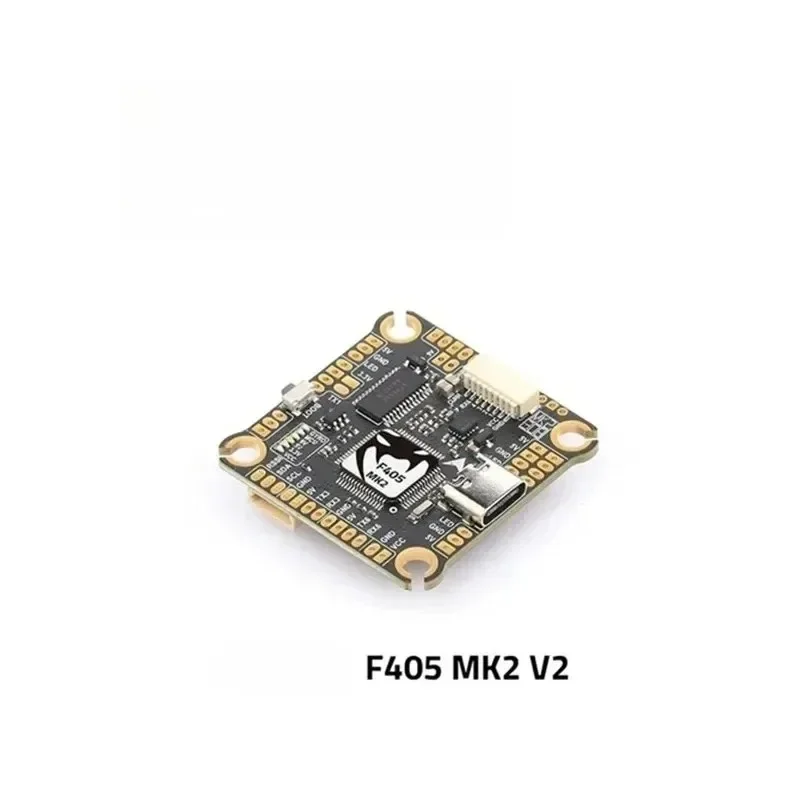

MAMBA F405MK2 V2 Flight Controller ICM42688P
MCU: 168MHz STM32F405
GYRO: ICM-42688-P
Target：FURYF4OSD
OSD: Yes
Blacbox: 16M Flash Memory
Barometer: No
Uarts: 3 Set
I2C: Yes
F.Port: No
RSSI: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 4 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: No
Receiver Protection: Yes
BEC Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A& 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 30.5mm/M3
ESC Specifications
MAMBA F40MK2
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current:40A×4
Burst current 50A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: No
MOUNTING: 30.5mm/M3

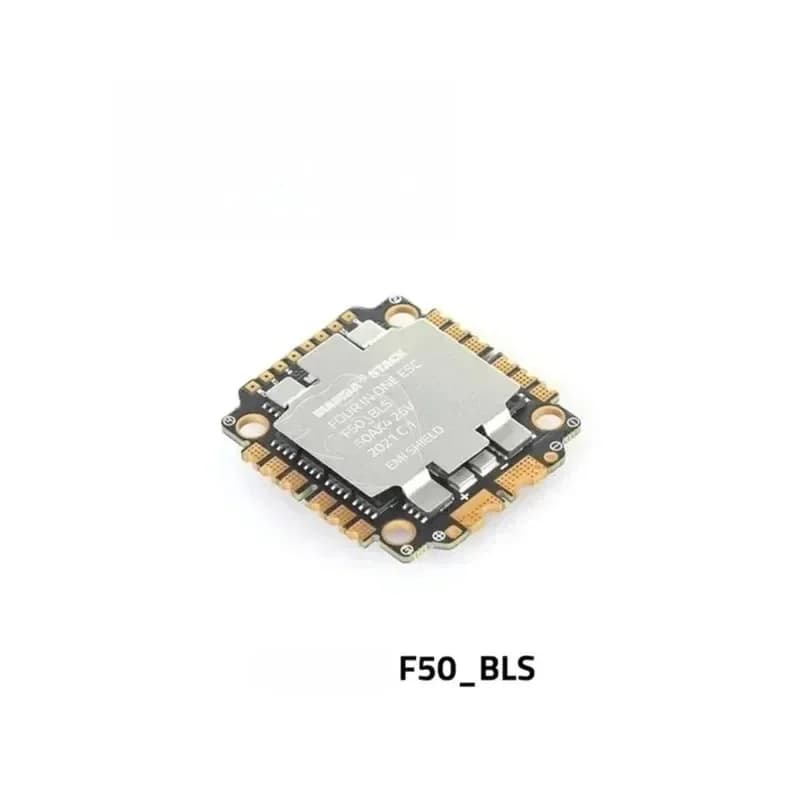

MAMBA F50_BLS
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current:50A×4
Burst current 50A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: No
MOUNTING: 30.5mm/M3
