Foxeer Antenna Lollipop 4 Plus 4+ FPV Antenna 5.8G 2.6Dbi LHCP SMA RPSMA UFL MMCX FPV Omni LDS Antenna For FPV Racing Drone
35 orders (reference)
Description
Foxeer Antenna Lollipop 4 Plus 4+ FPV Antenna 5.8G 2.6Dbi LHCP SMA RPSMA UFL MMCX FPV Omni LDS Antenna For FPV Racing Drone High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: Foxeer Lollipop 4 Plus For Vehicle Type: Airplanes Tool Supplies: Assembly Category
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | Foxeer Lollipop 4 Plus |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Antennas |
| Material | Composite Material |
| Brand Name | Foxeer |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Origin | Mainland China |
Product Details
If you buy more than 2PCS and there is an additional discount price,
You can add it to the shopping cart to get an additional discount.
This link is the LHCP interface, if you need RHCP, you can click the store link:
https://www.aliexpress.com/item/1005003612733899.html
The product ID is: 1005003612733899(can be searched)
Center Frequency | 5.75GHz |
Gain | 2.6dBi |
Axial Ratio | Close to 1 |
Band Width | 5.5G~6GHz |
Radiation Efficiency | 98% |
SWR | 1.07 at Center Frequency |
Polarization | LHCP |
Case Material | PC+ABS |
Weight | SMA/RPSMA: 7.8g |
Straight MMCX: 4.4g | |
Angle MMCX: 4.7g | |
SMA-10CM: 9.7g | |
Angle SMA-15CM: 13.9g | |
UFL : 2.8g | |
UFL Tube: 2.9g | |
UFL Tube Long: 3.8g | |
Angle MMCX Tube: 4.8g | |
Angle MMCX Tube Long: 6.8g | |

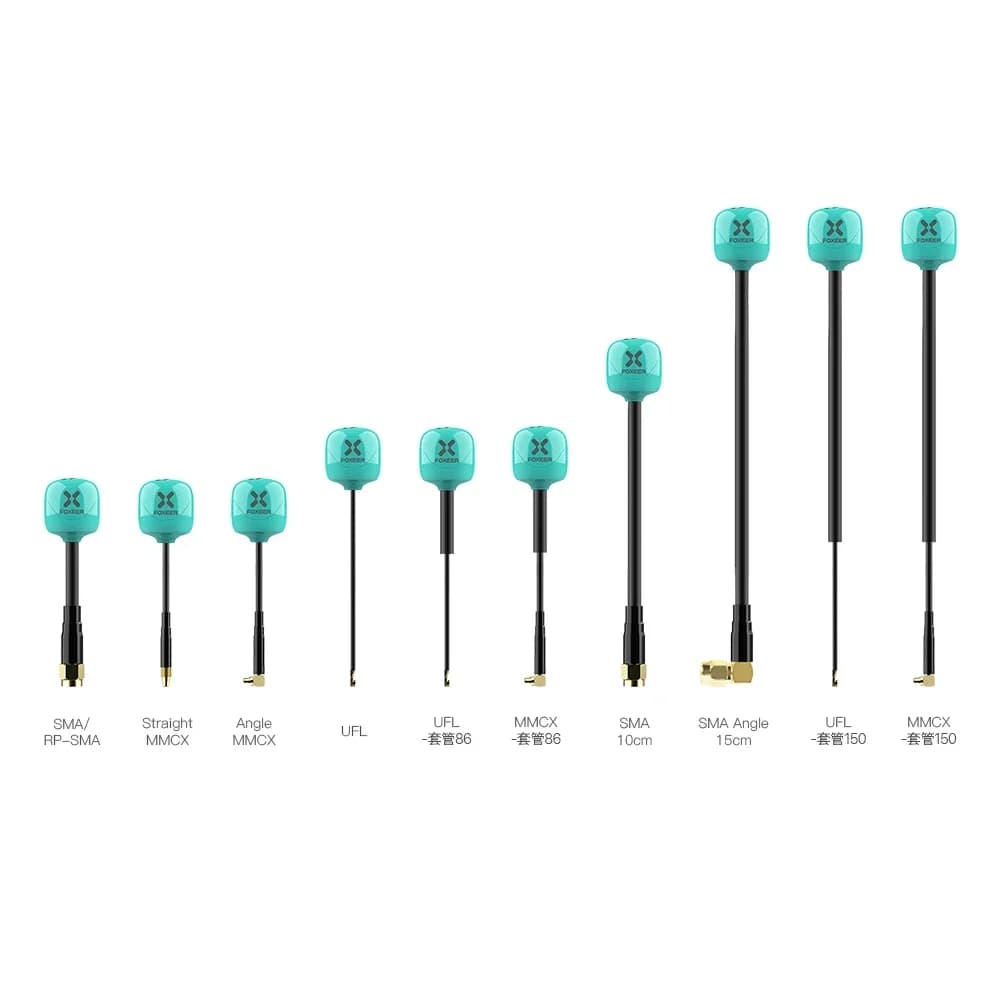

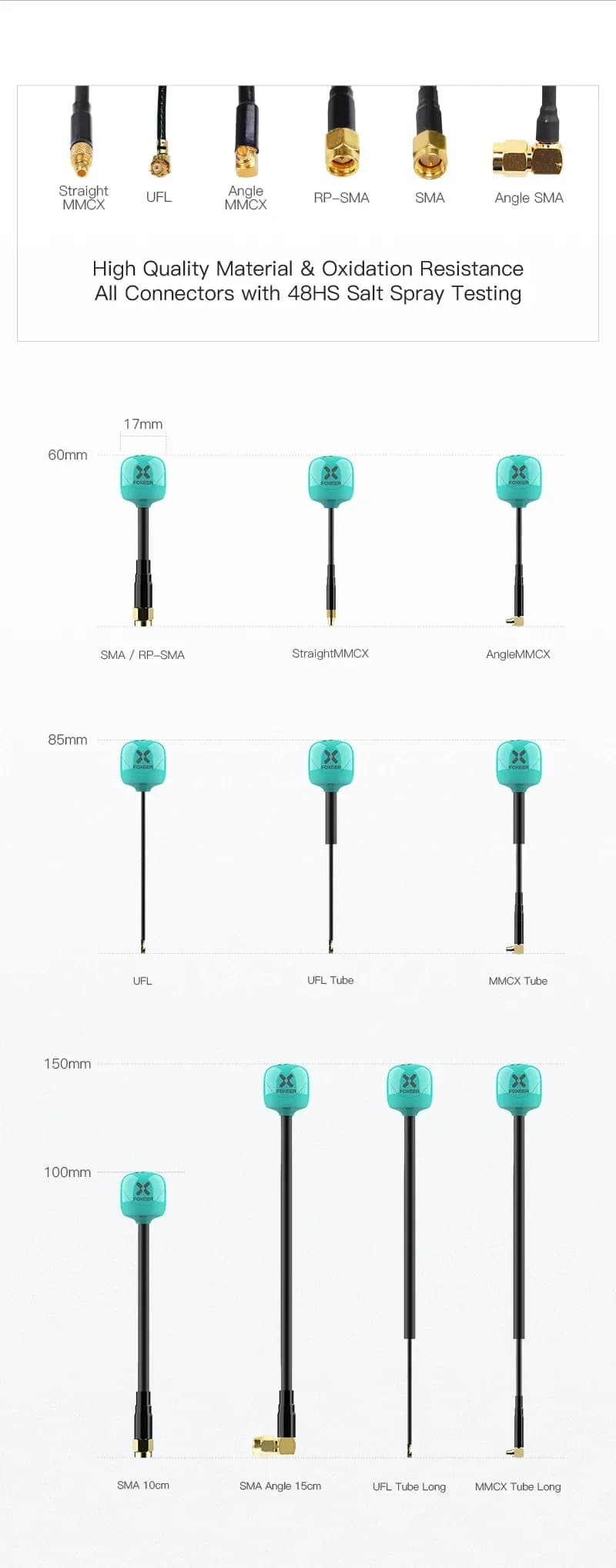

Connector & Length | SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm |
UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm | |
SMA-10CM: Φ11*100mm | |
SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm | |
Quantity | 4+ Antennas |
Because foxeer is 2 pcs in a box, if you buy only 1pcs, may not receive the box
If you need to buy 2PCS, please buy two
This link sells the LHCP version, if you want RHCP please follow this
linkhttps://www.aliexpress.us/item/3256803426419147.html
Or search the product number:
3256803426419147
