GEPRC GEP-M10 Series GPS Module Built-in Flash Chip QMC5883L MagnetomePS310 Barometer Accurate and Faerad Capacitor for FPV Dron

Reference price:

US $23.92

1-10 pcs$22(-3%)

10-100 pcs$21(-7%)

100+ pcs$20(-12%)

Description

GEPRC GEP-M10 Series GPS Module Built-in Flash Chip QMC5883L MagnetomePS310 Barometer Accurate and Faerad Capacitor for FPV Dron High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Wheelbase: Screws Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: GEP-M10 GPS Module

Select options

Variant

Quantity

View cart Get a Quote

Specifications

Attribute	Value
High-concerned chemical	None
Is Electric	No Battery
Quantity	1 pcs
Wheelbase	Screws
Is it battery/power supply	N
Is it charger/adapter	N
Is Batteries Included	No
Model Number	GEP-M10 GPS Module
For Vehicle Type	Helicopters
Tool Supplies	Assembly Category
Four-wheel Drive Attributes	Assemblage
Material	Composite Material
Brand Name	GEPRC
Origin	Mainland China
Recommend Age	14+y
Use	Vehicles & Remote Control Toys
Upgrade Parts/Accessories	GPS
RC Parts & Accs	GPS

Product Details

[xlmodel]-[custom]-[8888]

GEPRC GEP-M10 Series GPS Module Built-in Flash Chip QMC5883L Magnetometer DPS310 Barometer Farad Capacitor for FPV Drone

Summary

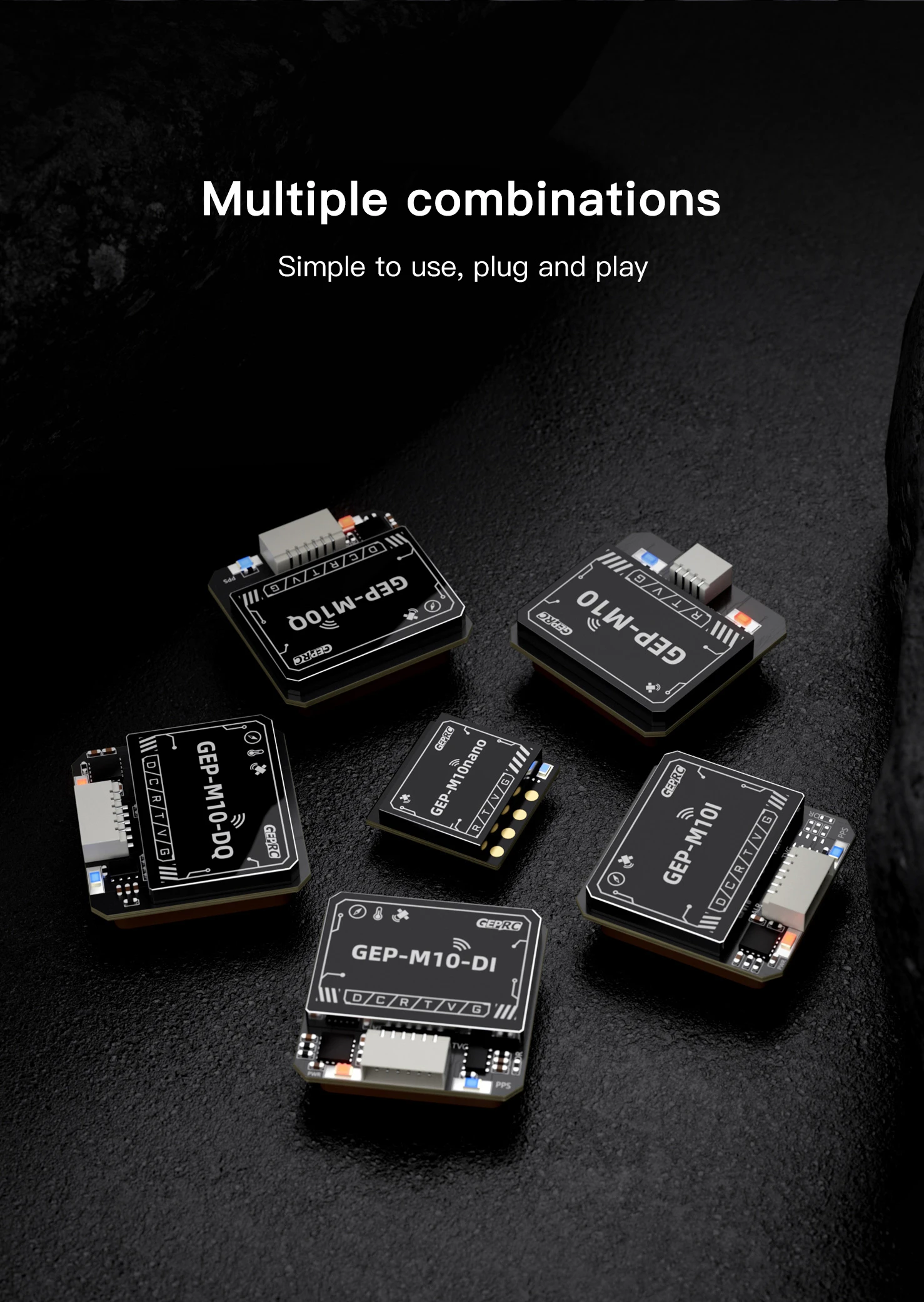

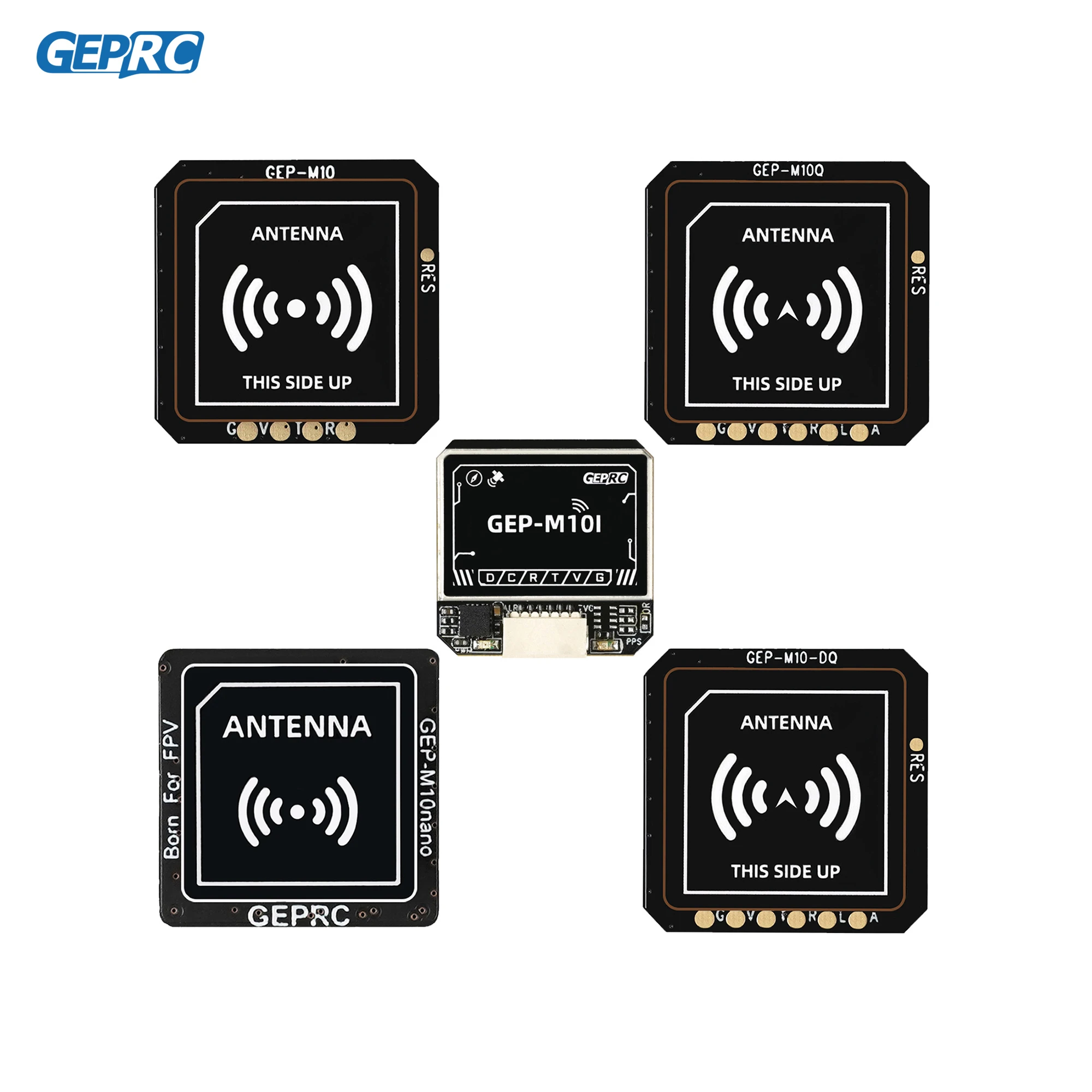

Hello all FPV enthusiasts, in order to improve customer experience, the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based onM10 chip: GEP-M10nano, GEP-M10, GEP-M10Q, GEP-M10-DQ.

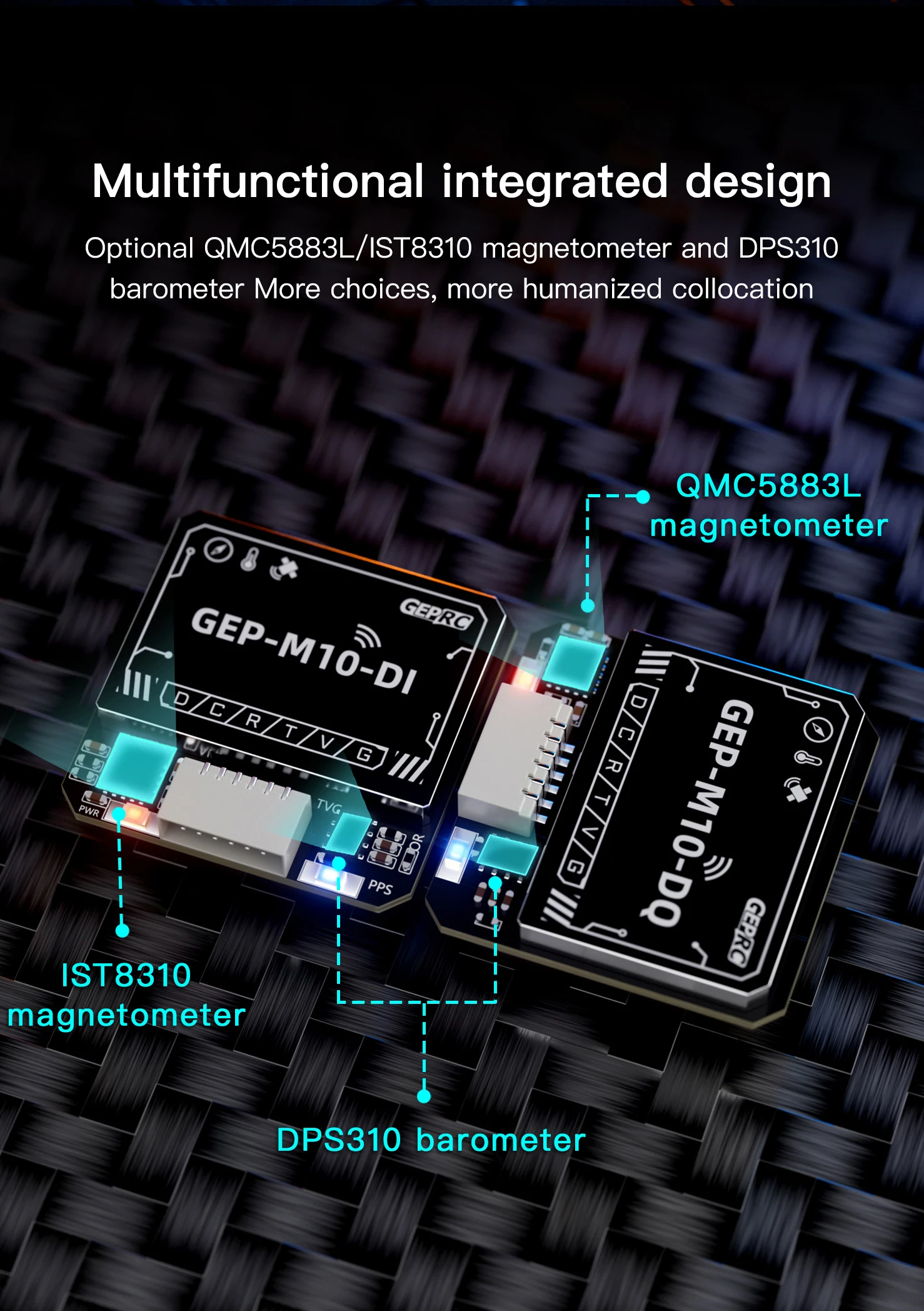

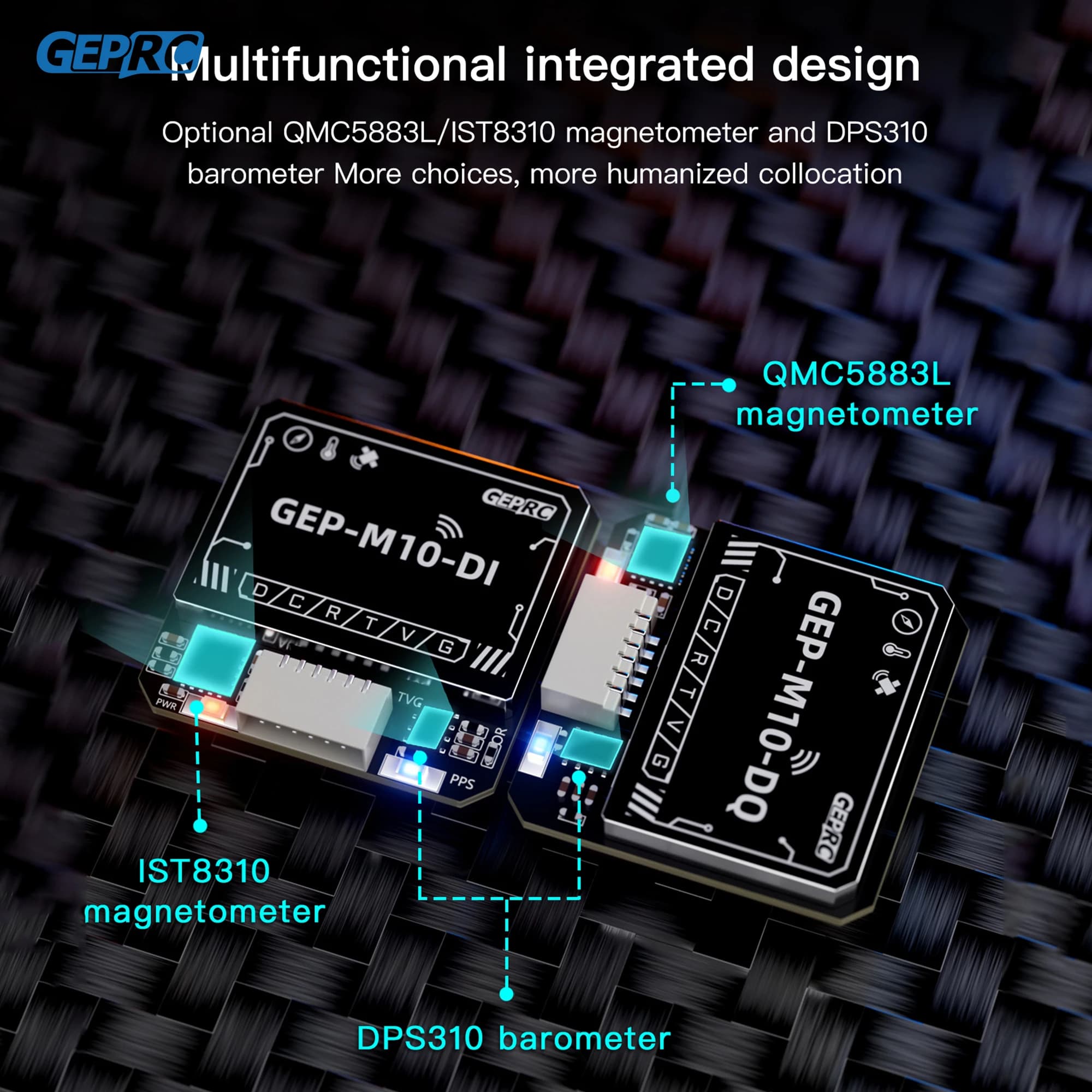

GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. Using the M10 chip solution of company, it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.

Note

Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.

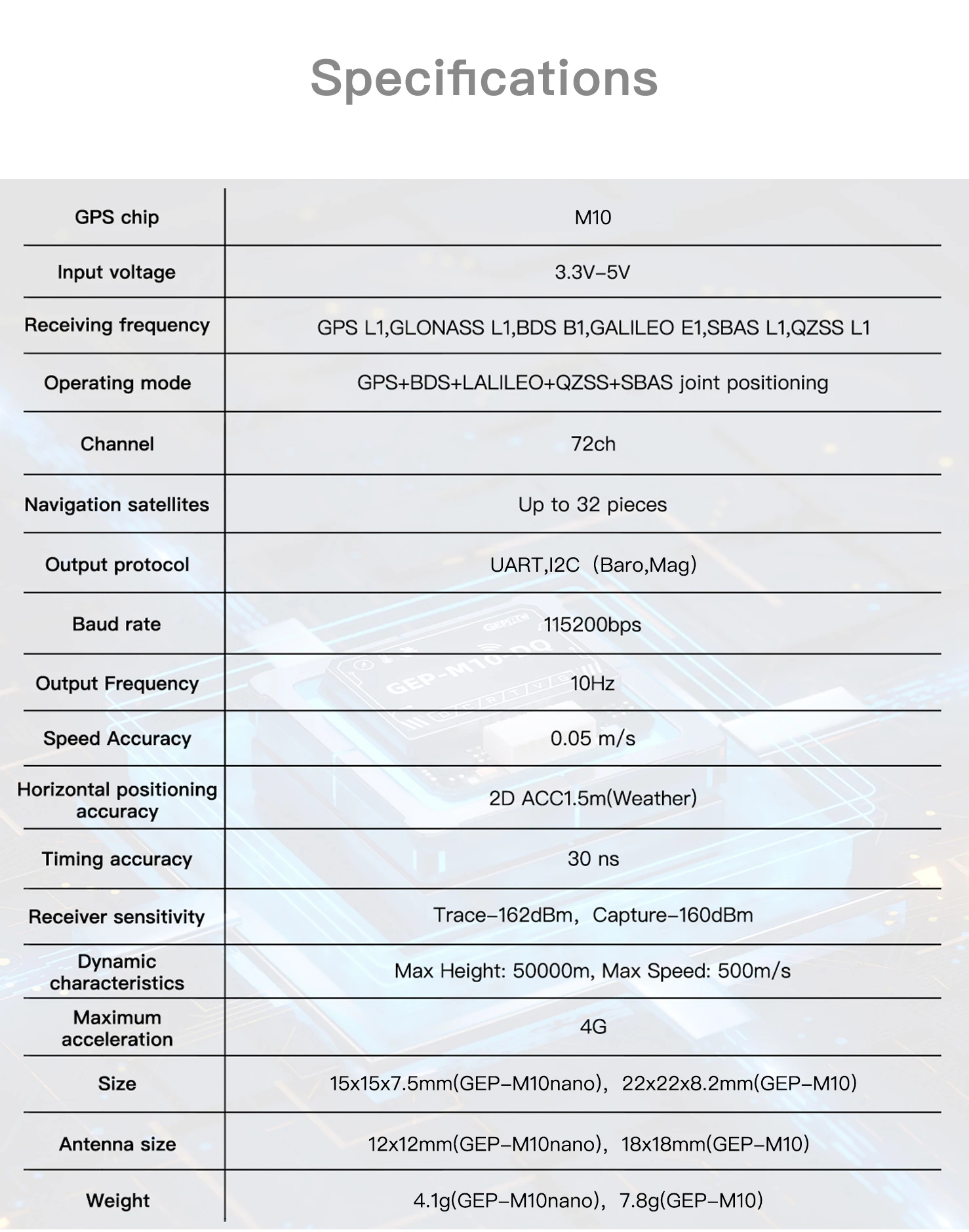

Specifications

Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ
GPS chip: M10

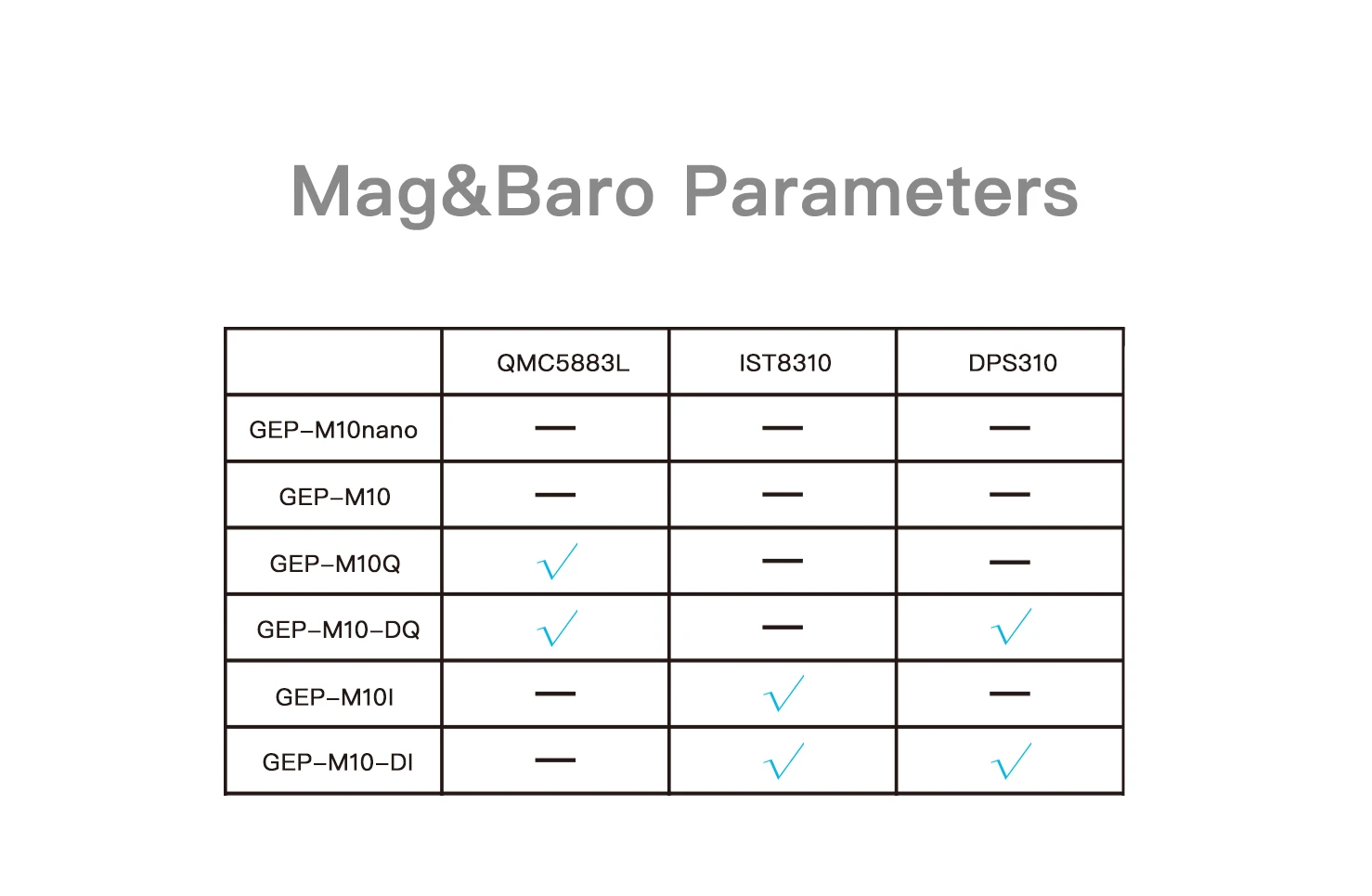

Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: QMC5883L / GEP-M10-DQ: QMC5883L
Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: No / GEP-M10-DQ:DPS310
Input voltage: 3.3V-5V
Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
Channel: 72ch
Navigation satellites: Up to 32 pieces
Output protocol: GEP-M10nano: UART() / GEP-M10: UART() / GEP-M10Q: UART(),I2C / GEP-M10-DQ: UART(),I2C
Baud rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC1.5m(Weather)
Timing accuracy: 30 ns
Receiver sensitivity: Trace-162dBm, Capture-160dBm
Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
Maximum acceleration: 4G

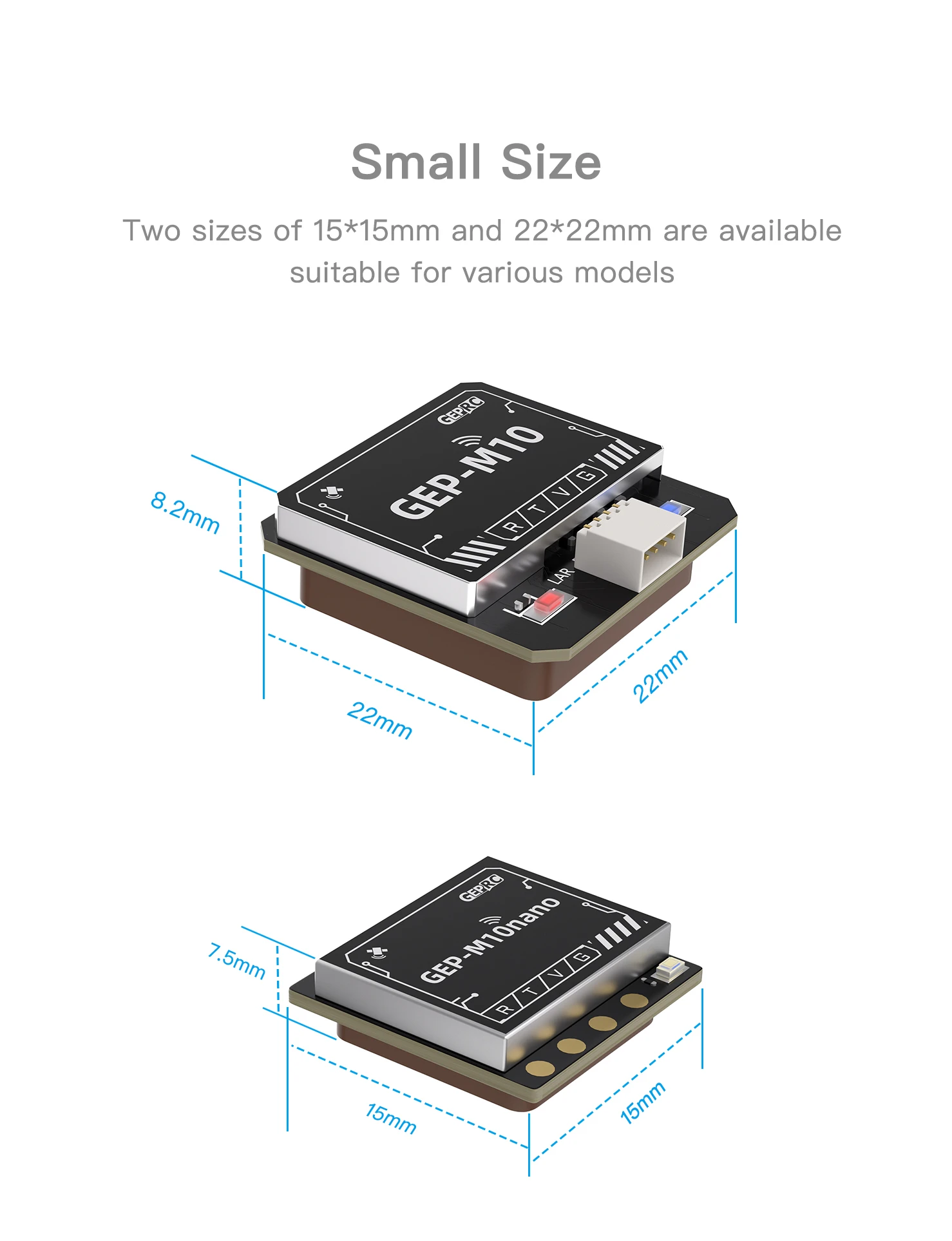

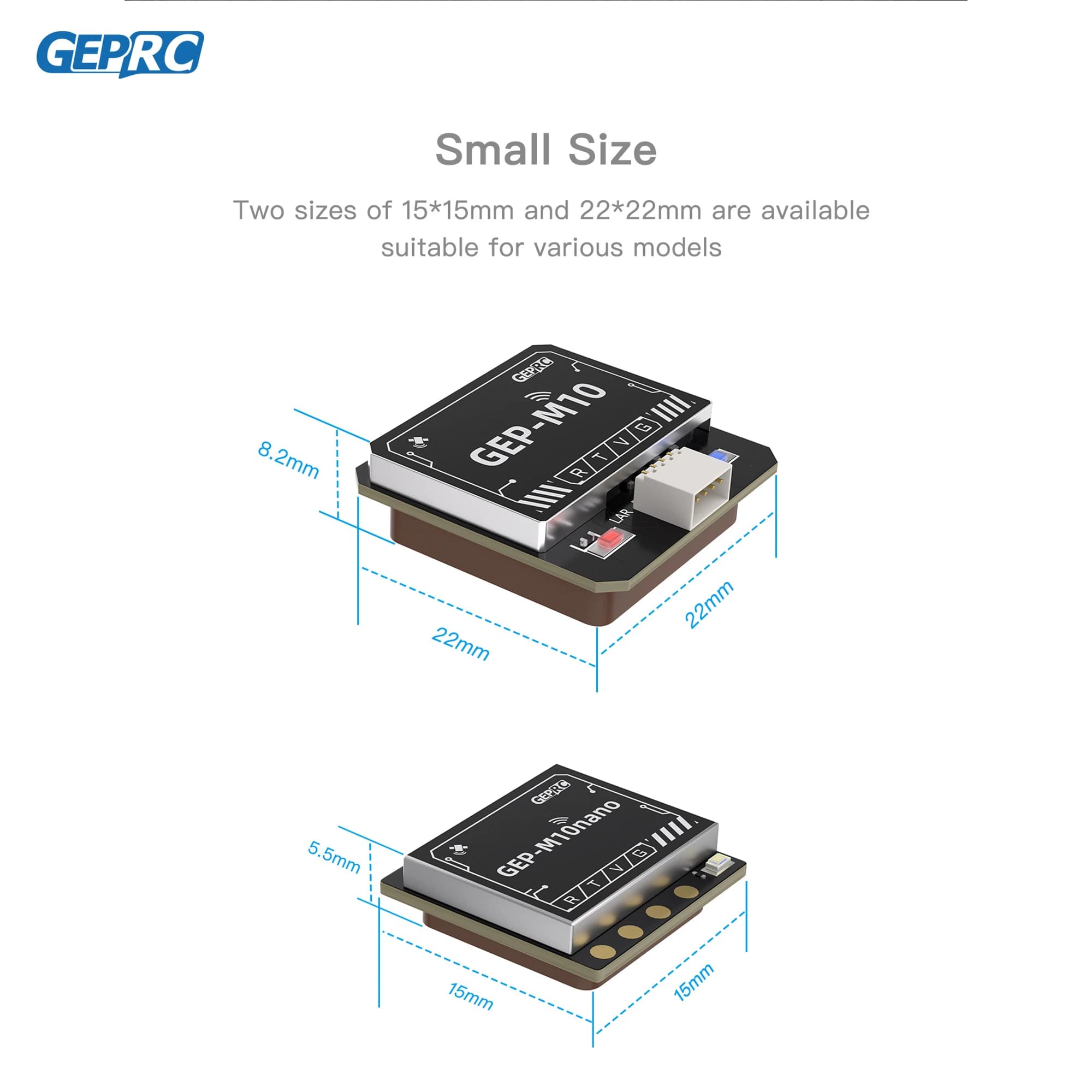

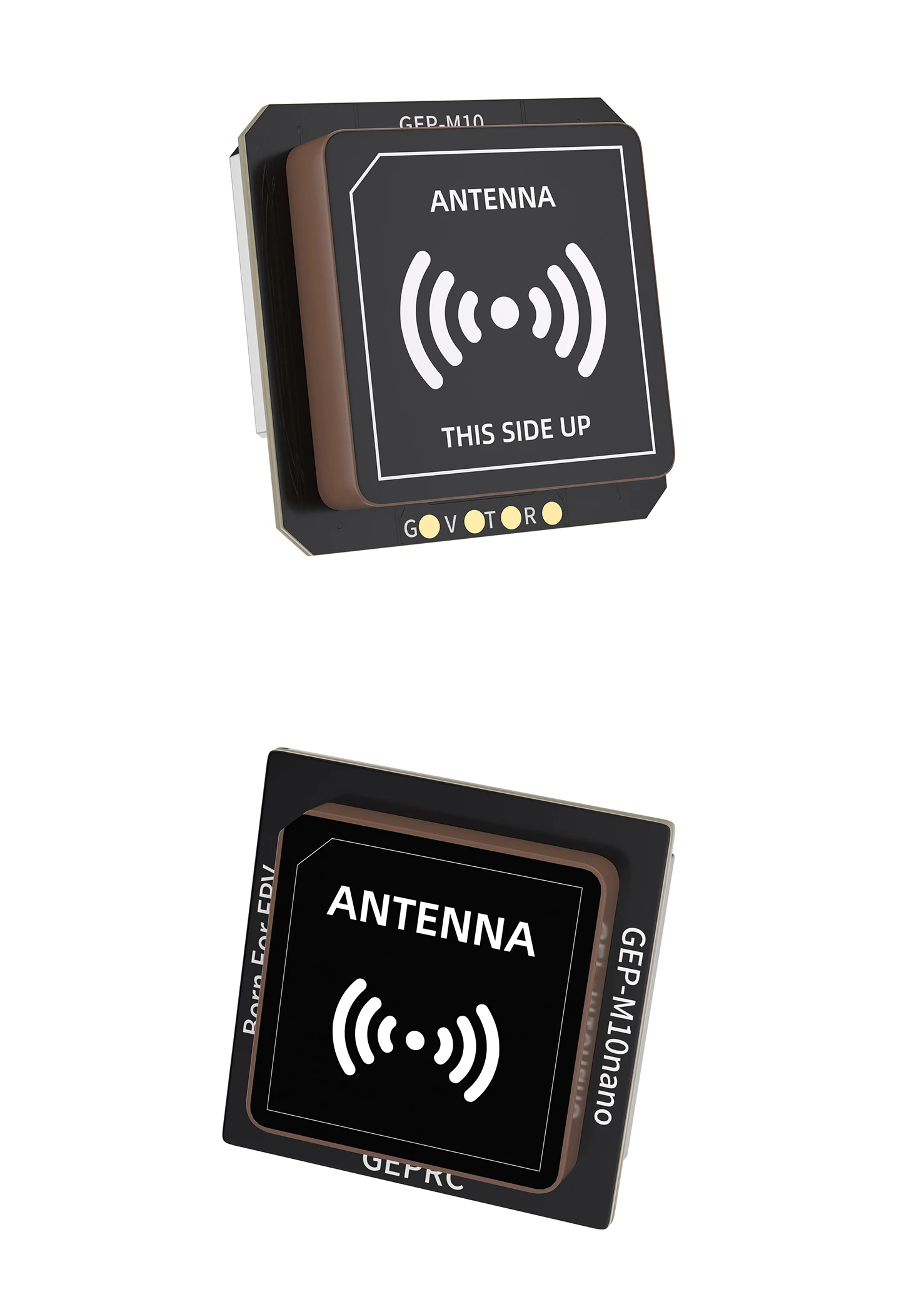

Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10Q: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm

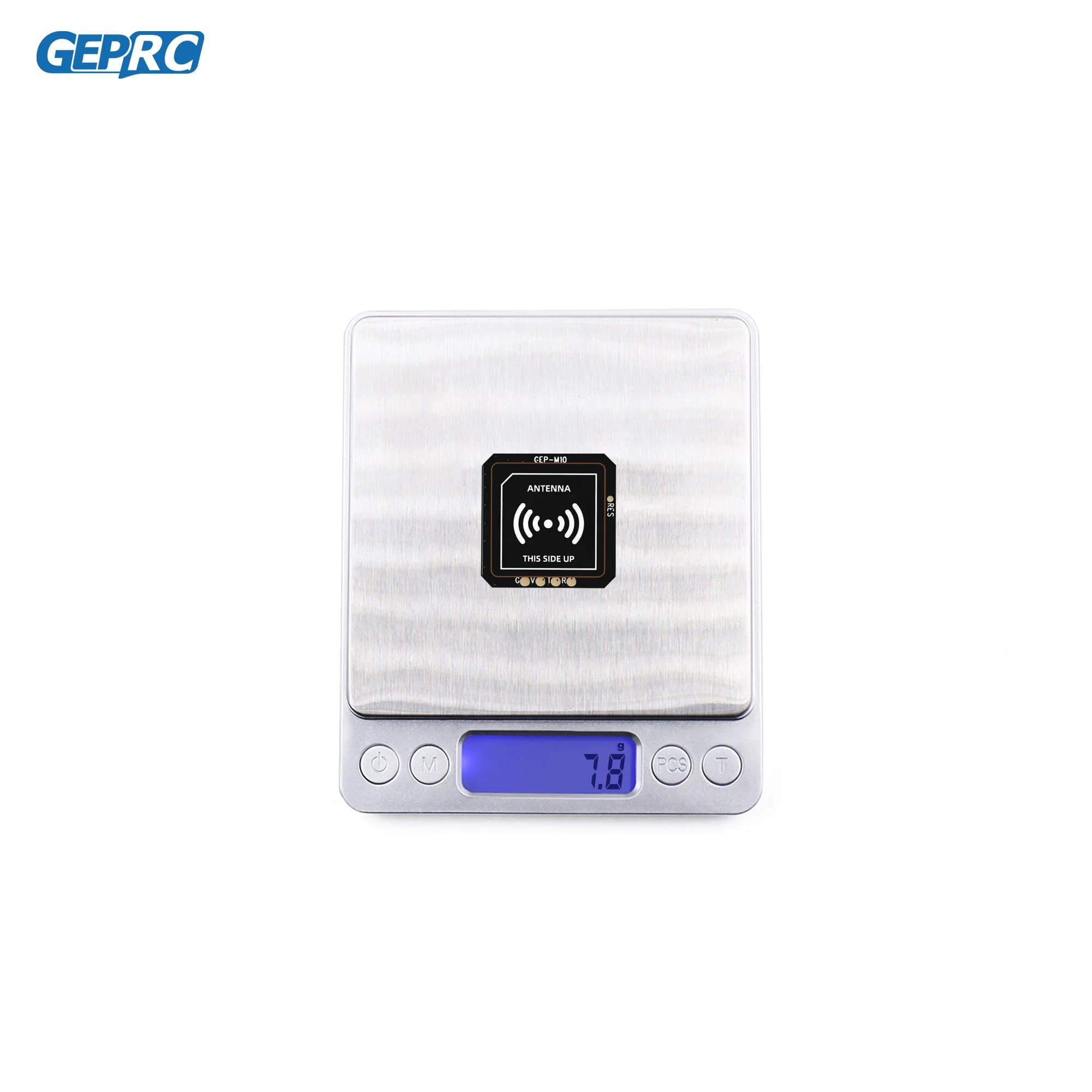

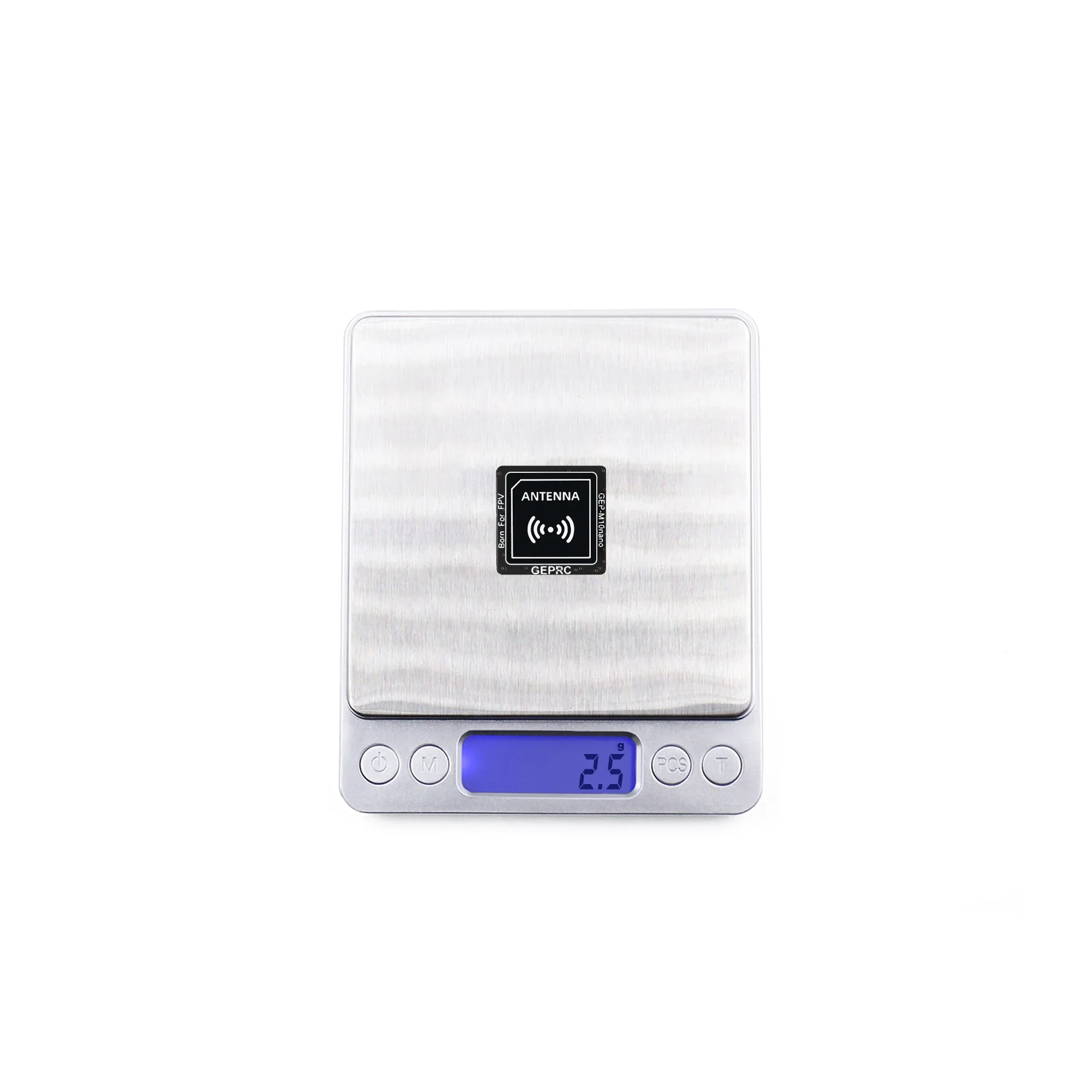

Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g / GEP-M10Q: 7.9g / GEP-M10-DQ: 8.0g

Features

M10 series chip
Fast positioning speed
GPS+BDS+Galileo+QZSS+SBAS joint positioning
Up to 32 satellites
Stable connection quality
Unique appearance design
Small size and light weight
Built-in Flash chip and Farad capacitor
Onboard indicator light, easy to use
Integrated magnetometer+barometer,integrated module (GEP-M10-DQ)

Includes

1 x GPS module

1 x Terminal wire

1 x Instruction manual

1 x GEPRC sticker

1 x Heat shrink tubing
