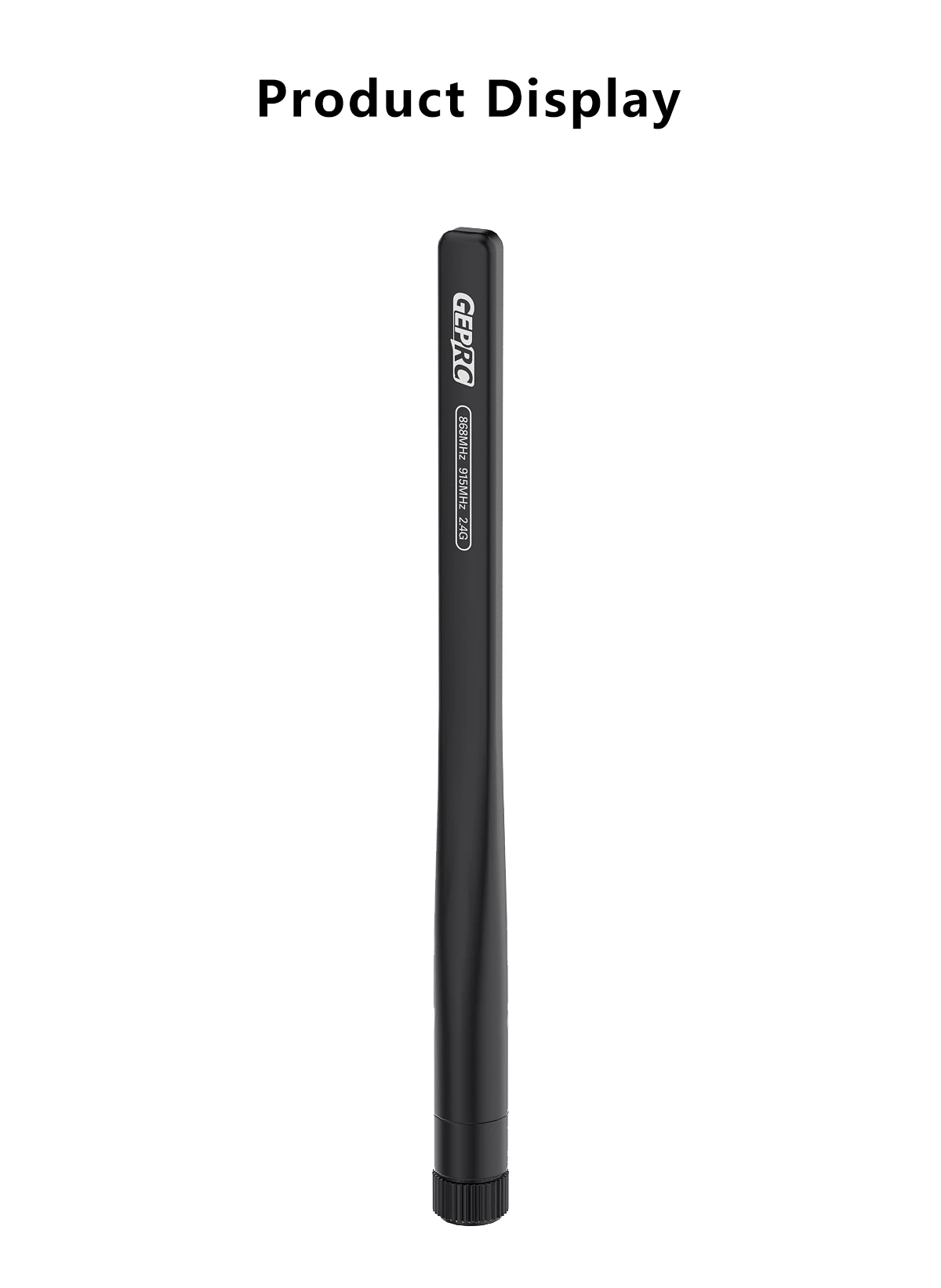

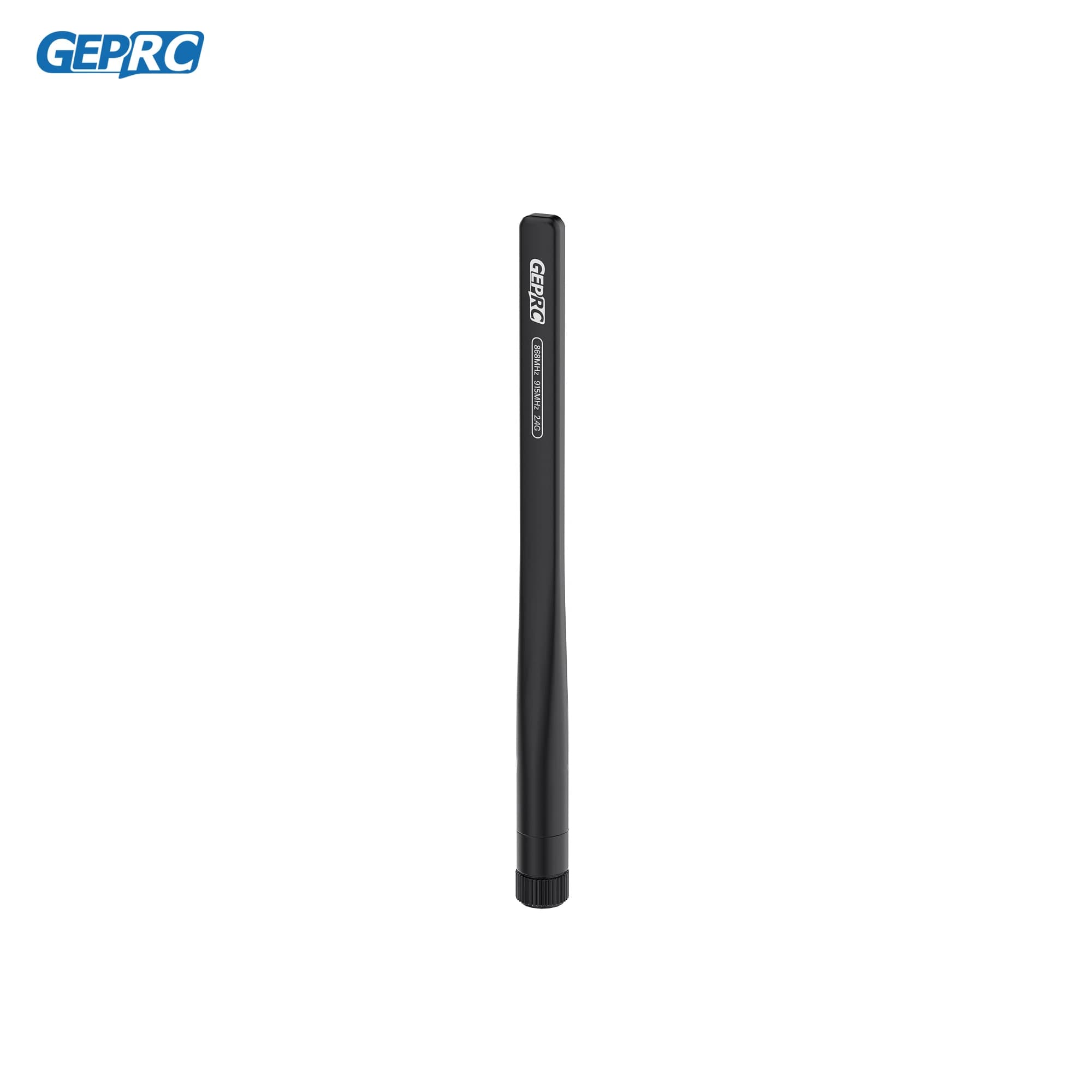

GEPRC 868MHz 915MHz 2.4G Tri-Band Stick Antenna High Frequency Long Range FPV RC Quadcopter Freestyle Drone DIY Parts
Description
GEPRC 868MHz 915MHz 2.4G Tri-Band Stick Antenna High Frequency Long Range FPV RC Quadcopter Freestyle Drone DIY Parts High-concerned chemical: None Is Electric: No Battery Wheelbase: Screws Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: GEPRC 868MHz 915MHz 2.4G Tri-Band Stick Antenna For Vehicle Type: Helicopters
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | GEPRC 868MHz 915MHz 2.4G Tri-Band Stick Antenna |
| For Vehicle Type | Helicopters |
| RC Parts & Accs | Antennas |
| Material | Composite Material |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Tool Supplies | Antennas |
| Four-wheel Drive Attributes | Antennas |
| Remote Control Peripherals/Devices | Antennas |
| Upgrade Parts/Accessories | Antennas |
Product Details
Summary:

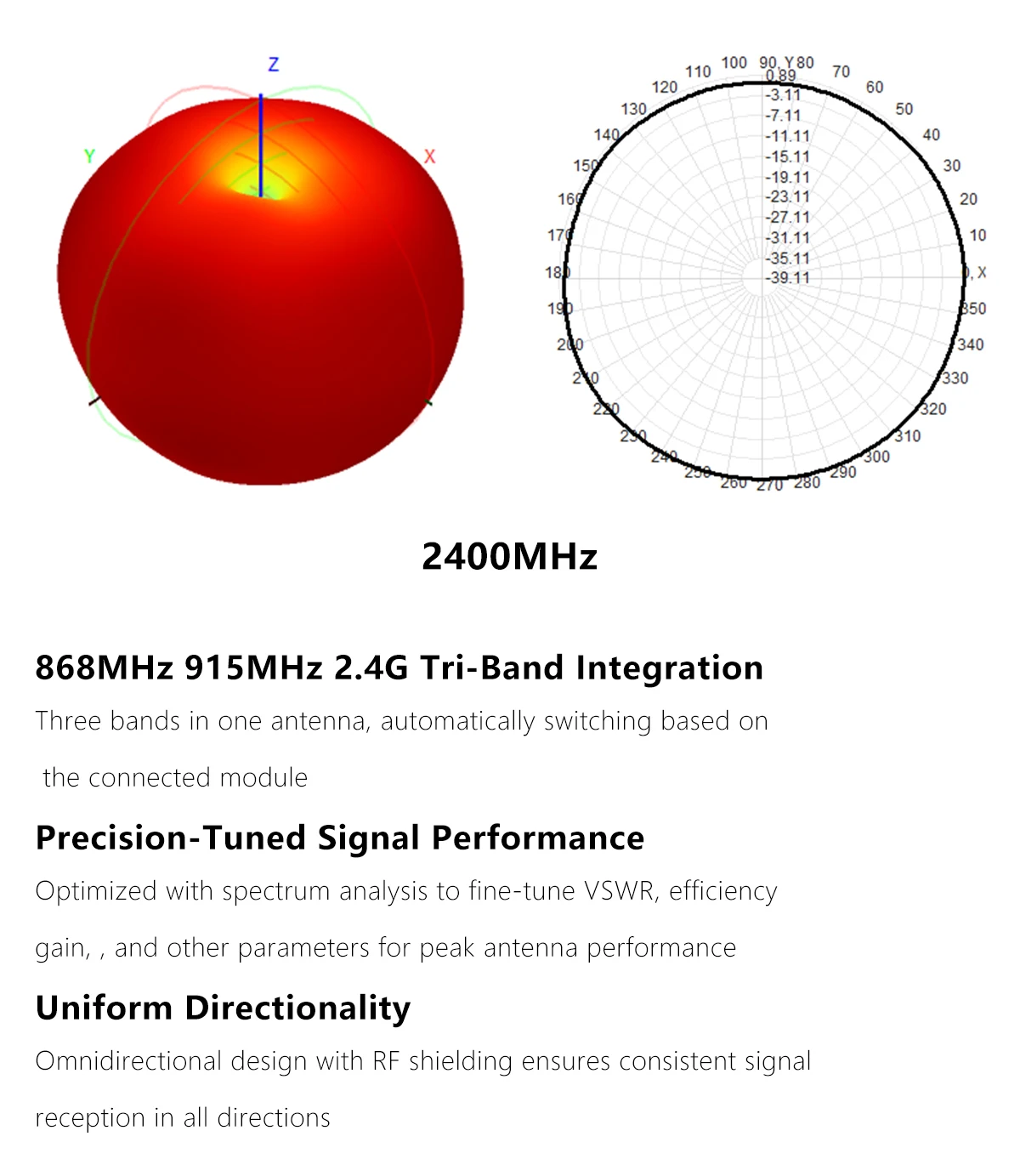

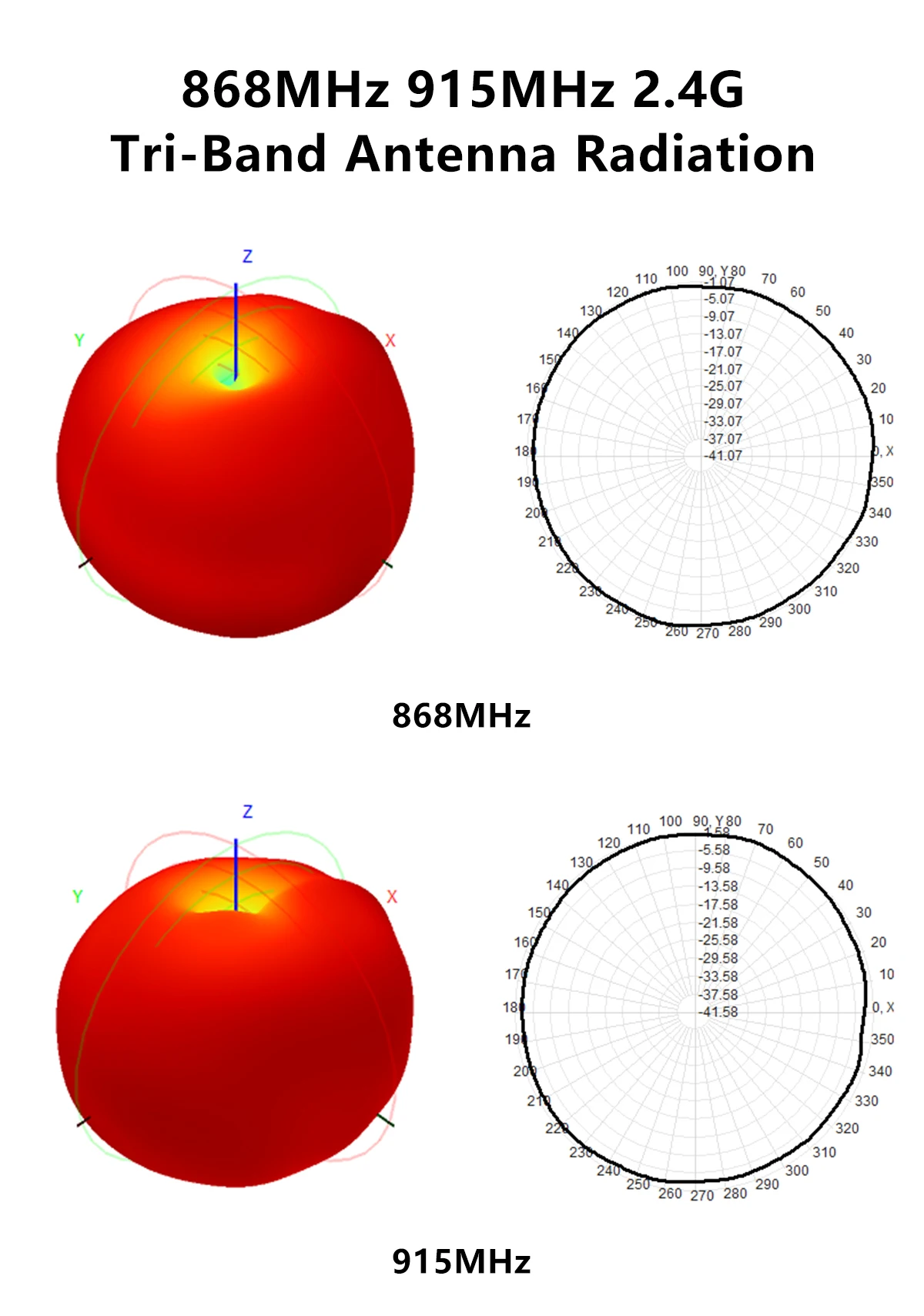

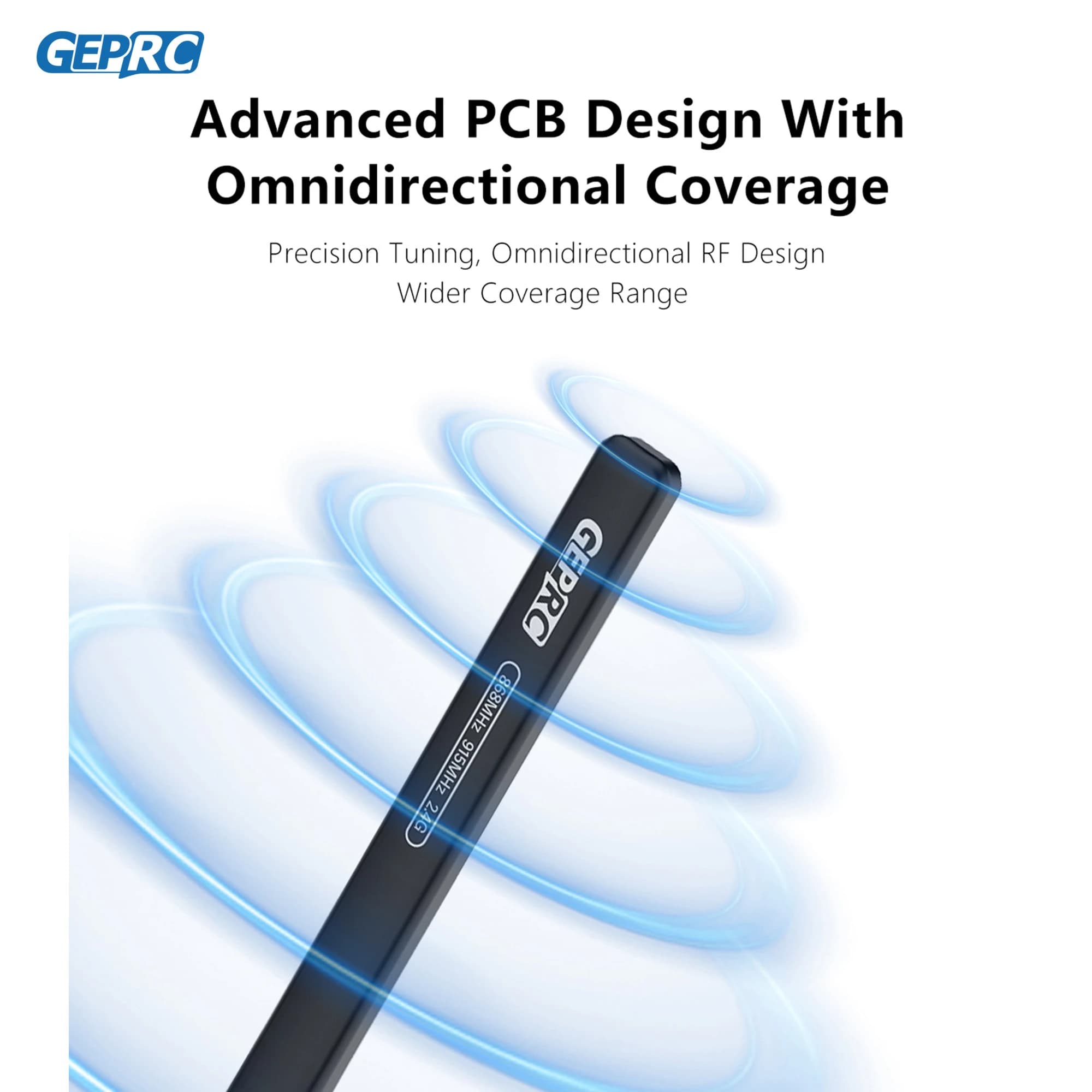

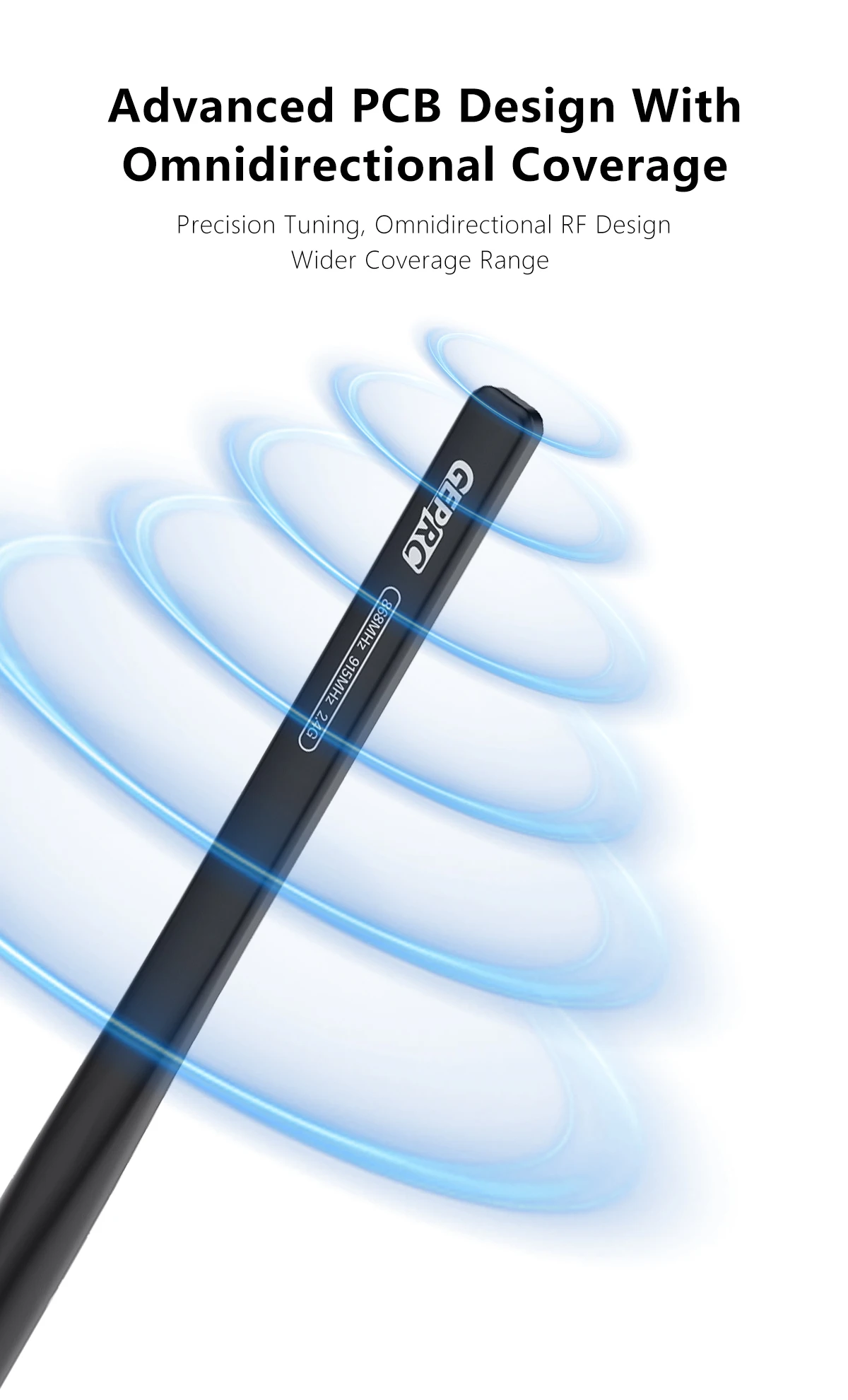

The GEPRC 868MHz/915MHz/2.4GHz tri-band stick antenna features a PCB design with linear polarization for omnidirectional signal reception. It maintains strong connectivity during dynamic flight maneuvers. With excellent cross-polarization suppression, it performs well in high-interference environments, minimizing signal disruption.
Feature:
1.Triple-band design, 868MHz covers 860-870MHz, 915MHz covers 900-930MHz, 2.4Gz covers 2400-2500MHz

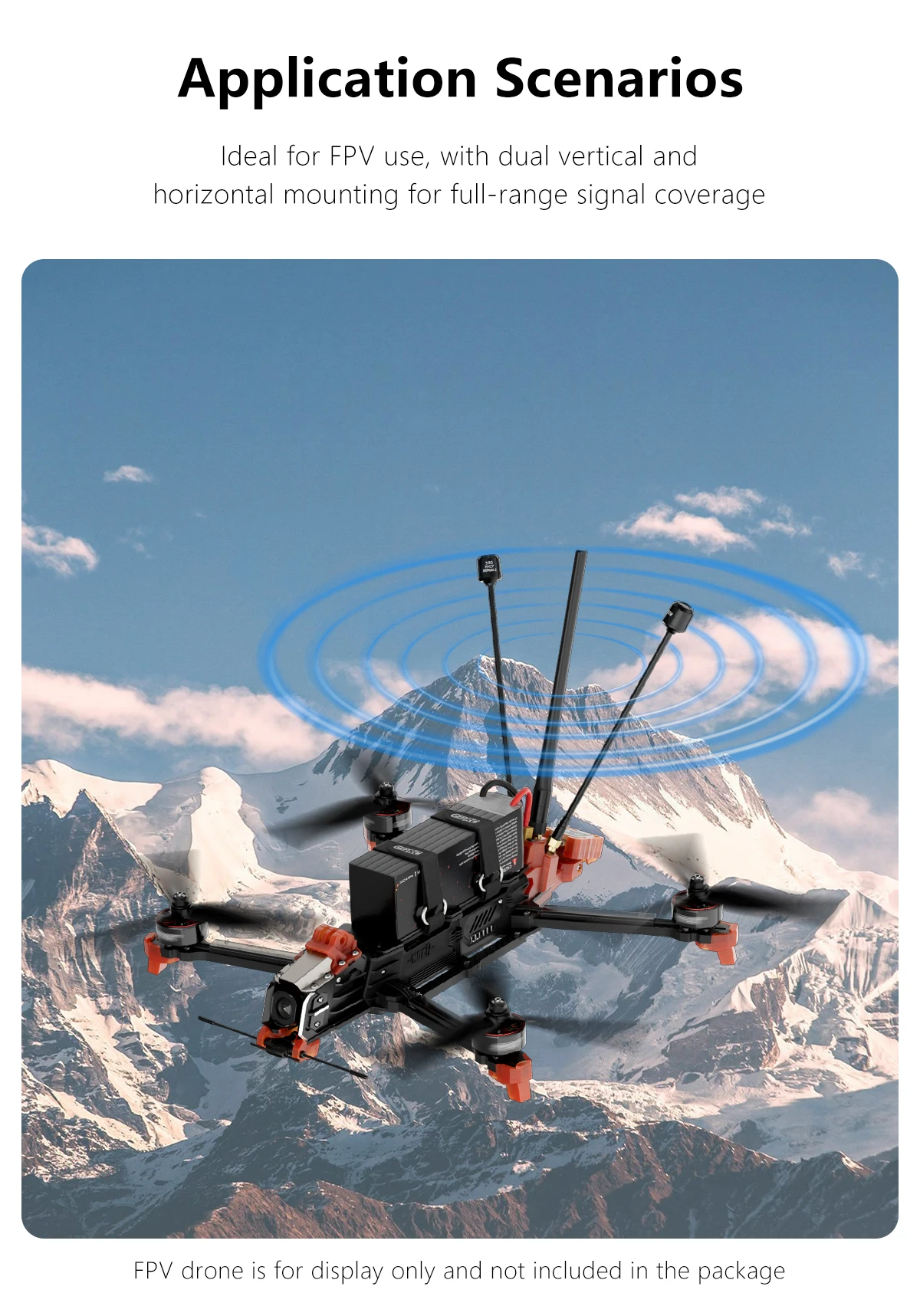

2. Optimized for stronger signal reception at a vertical angle

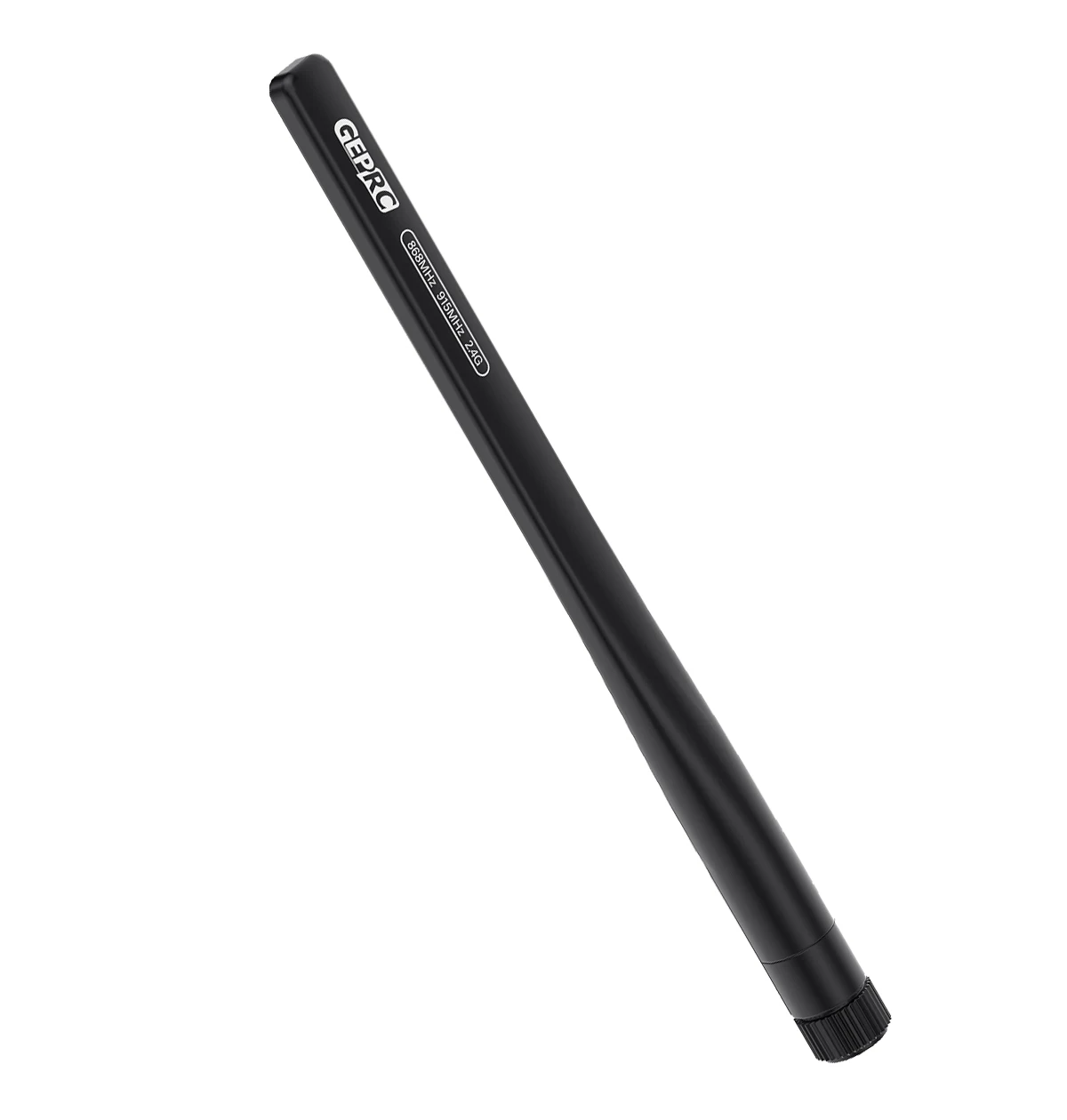

3. Durable, low-drag oval shape with an injection-molded ABS shell
4. High-quality SMA connector minimizes signal loss

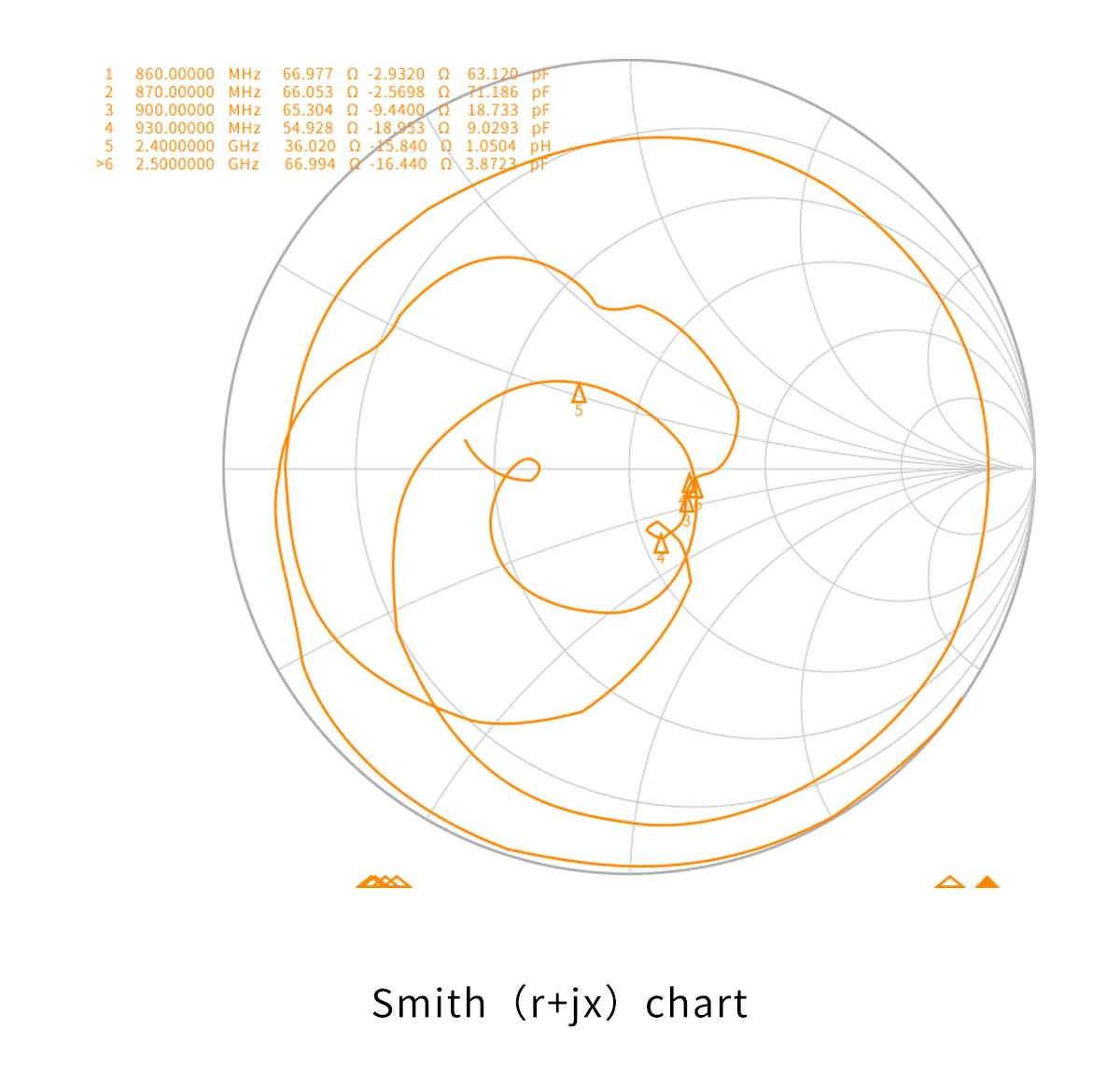

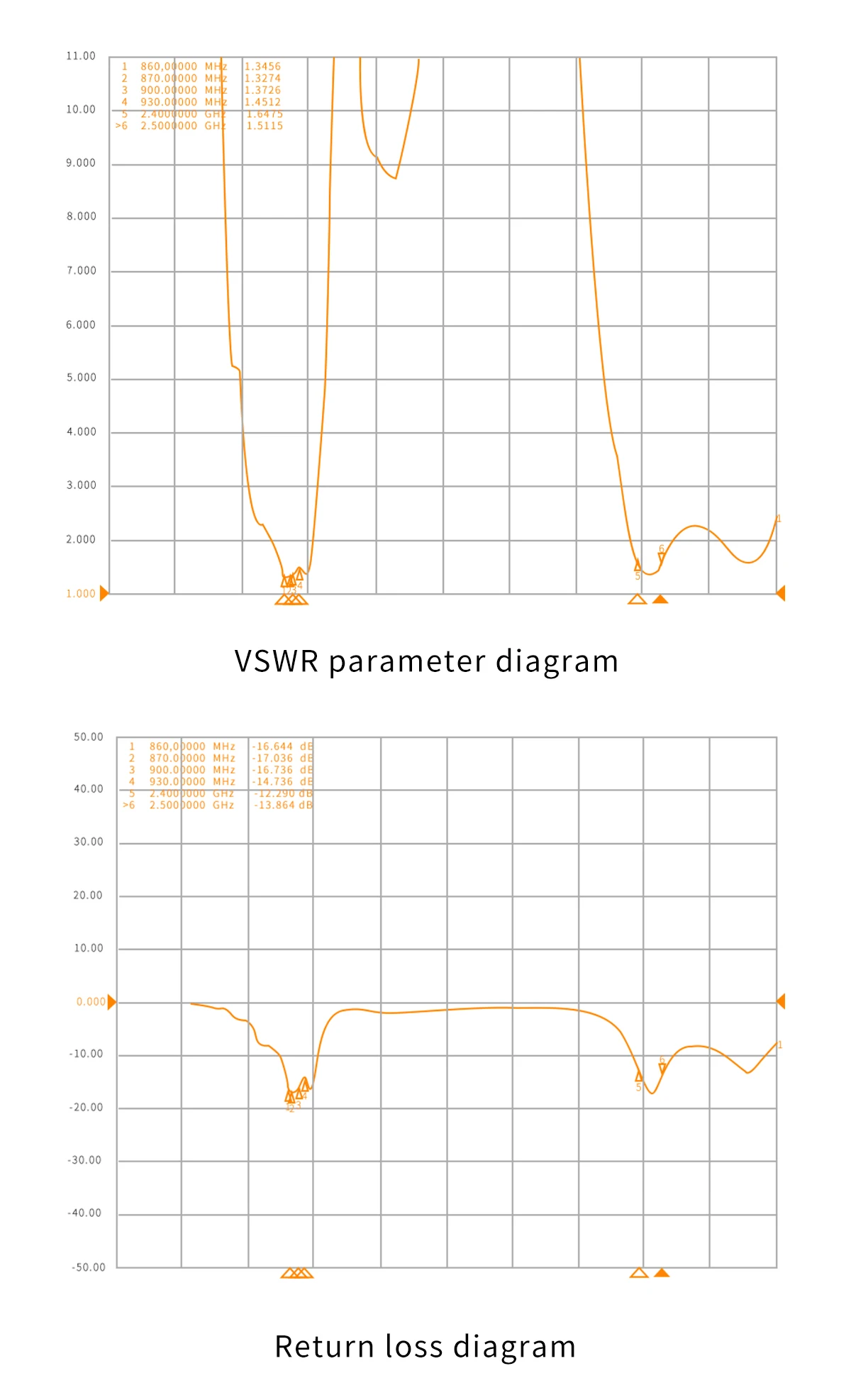

5. Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards

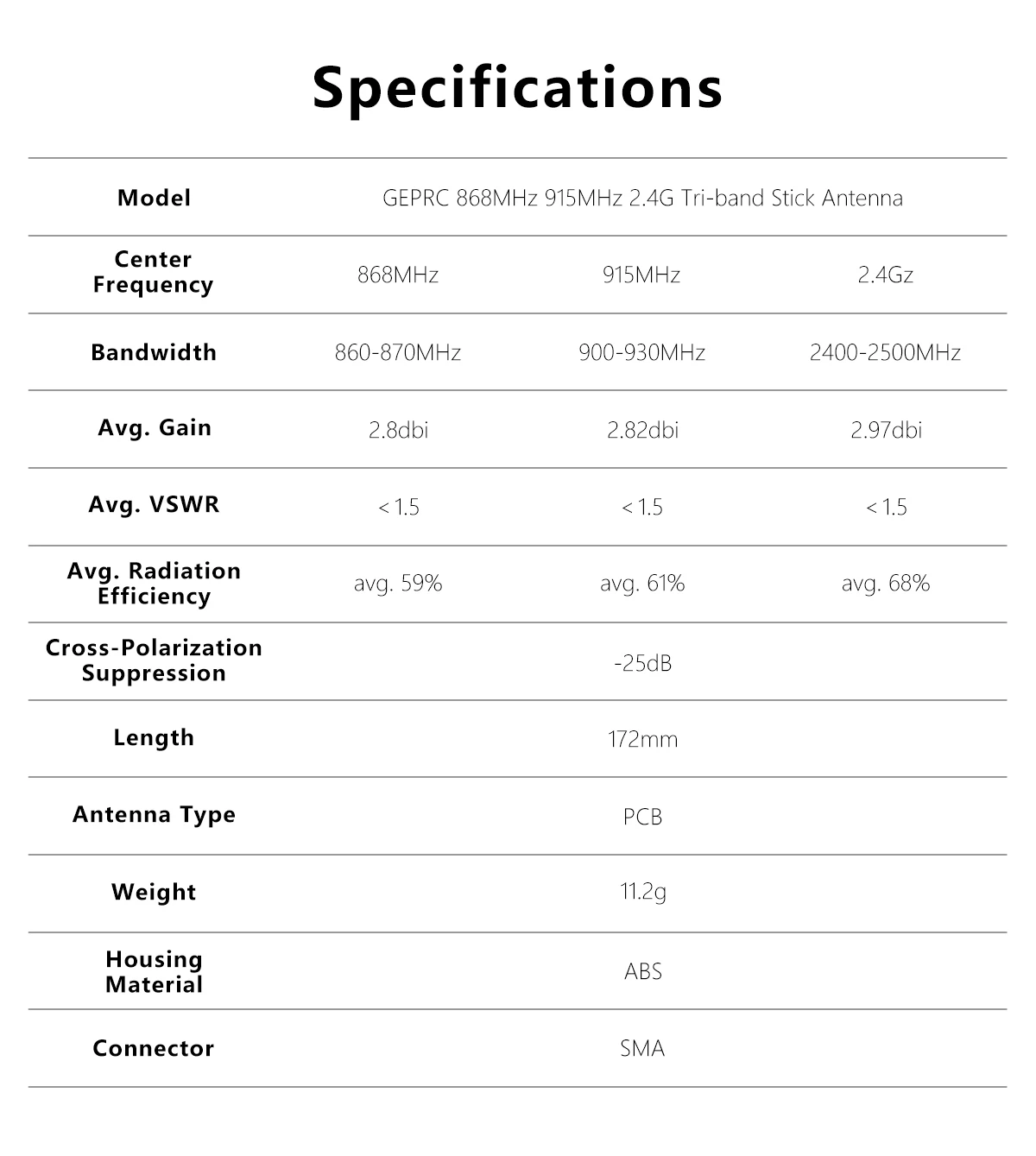

Specification:
Model: GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna
868MHz Center Frequency: 865MHz
915MHz Center Frequency: 915MHz
2.4Gz Center Frequency: 2450MHz
Frequency Range: 868MHz / 915MHz / 2.4Gz
Polarization: Linear
868MHz Gain: 2.8dBi
915MHz Gain: 2.82dBi
2.4Gz Gain: 2.97dBi
VSWR: 1.5
868MHz Radiation Efficiency: 49%
915MHz Radiation Efficiency: 51%
2.4Gz Radiation Efficiency: 68%
Cross-Polarization Suppression: -25dB

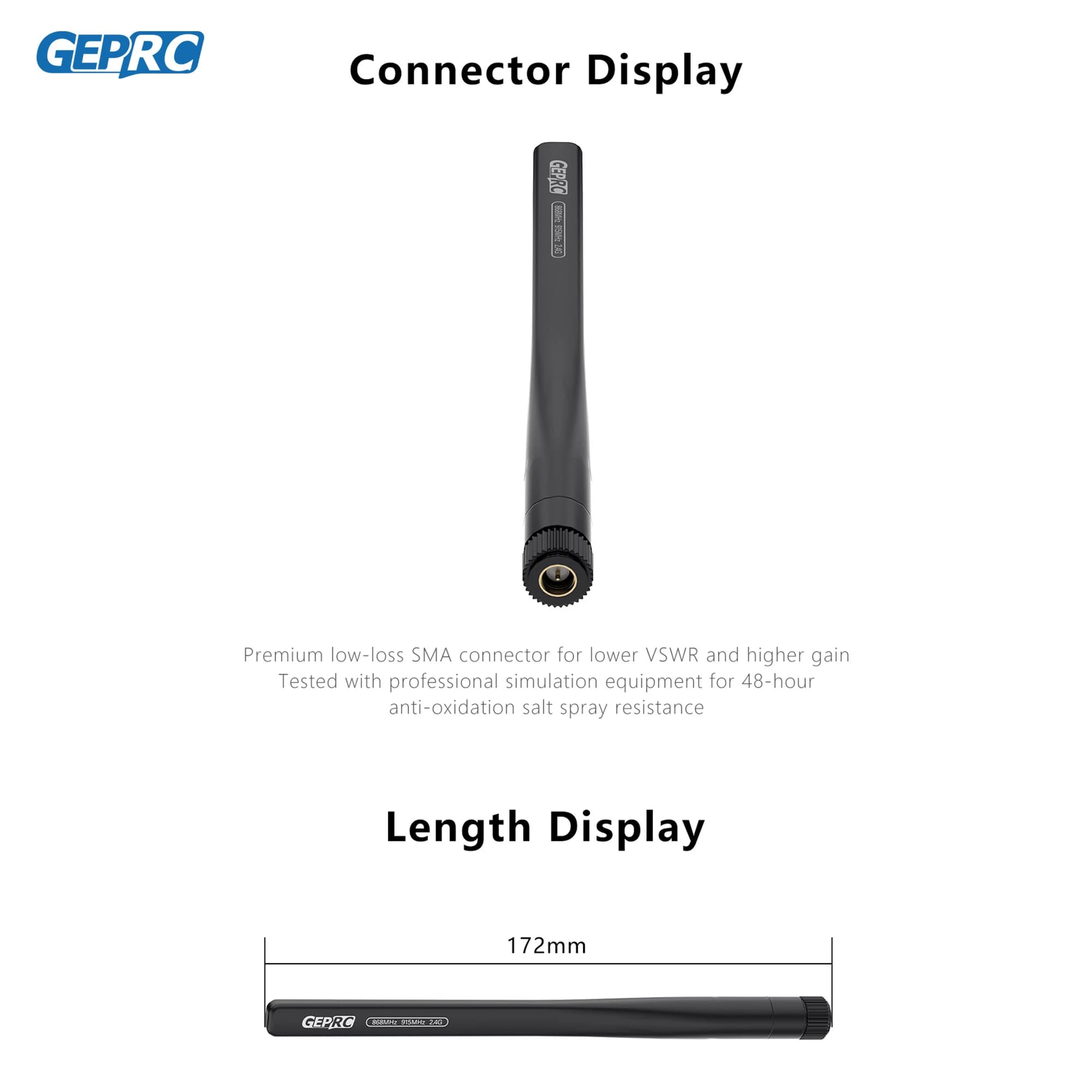

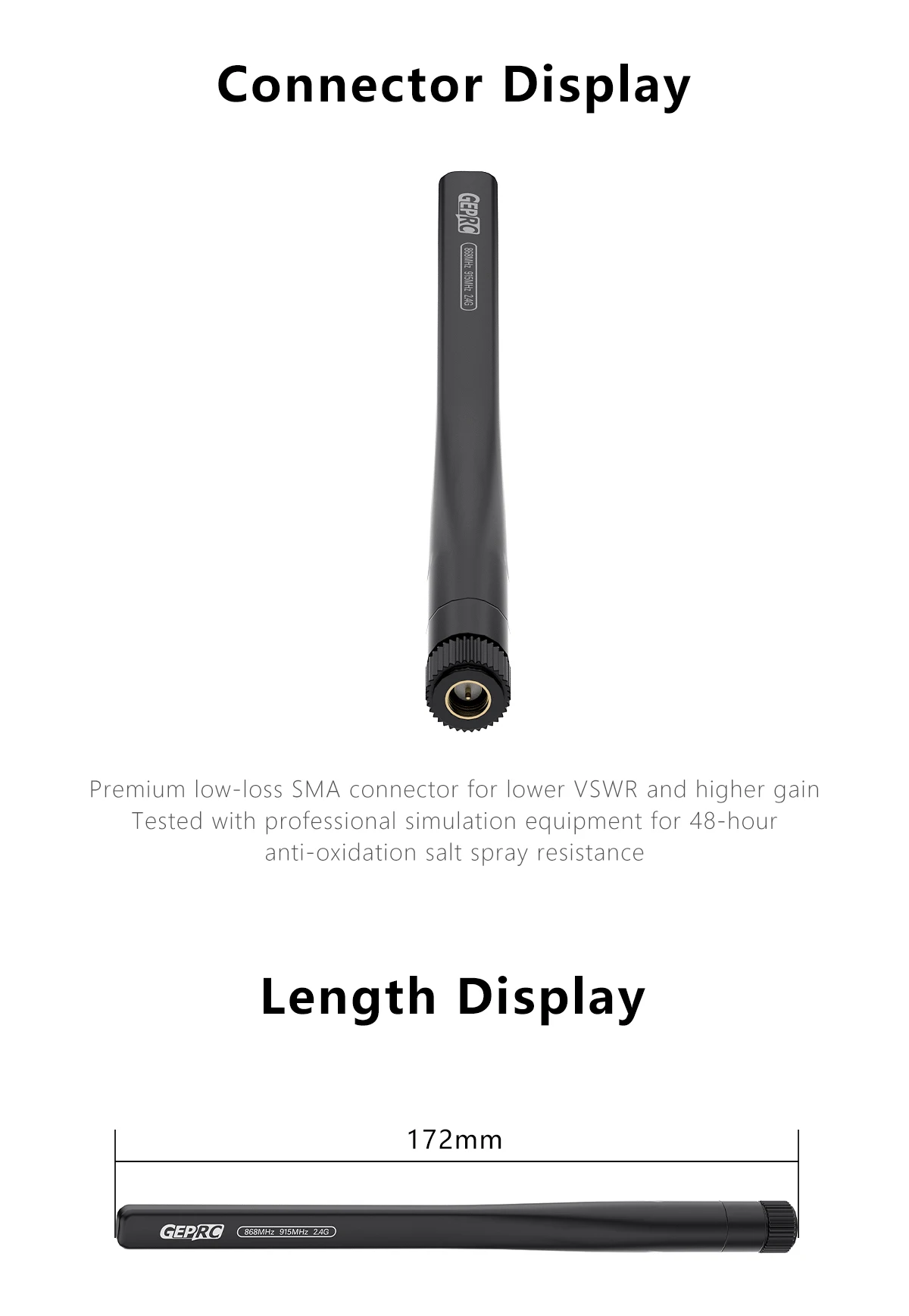

Length: 172mm
Antenna Type: PCB
Weight: 11.2g
Housing Material: ABS
Connector: SMA
Product List
GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna x1
