GEPRC TAKER F722 BT 32Bit 50A Stack GEP-BL32 50A 96K 4IN1 ESC Data Analyze Record Flight Barometer Racing FPV Drone

Specifications--GEP-BL32 50A 96K 4IN1 ESC

• Model：GEP-BL32 50A 96K 4IN1 ESC

• Input Voltage：3-6S Lipo

• Continue Current：50A

• Burst Current：55A（5 second）

• Galvanometer：Support

• Telemetry: Support

• Support Protocol：Dshot 150/300/600

• Size：42.5x42.1mm，hole30.5x30.5mm

• Weight：14g

• Target: ST_G0_05 - 31.92

• Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 also supported; customer flashing required.)

Includes

1 x GEP-BL32 50A 96K 4IN1ESC
1 x electrolytic capacitor(50V 1000uF)
1 x FC adapter cable(SH1.0 8pin 30mm)
1 x XT60 Power cable(12AWG 110mm)
8 x Silicone anti-shake pads(M3)

Feature

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight

8. Directly plugs into the D JI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC

Specifications

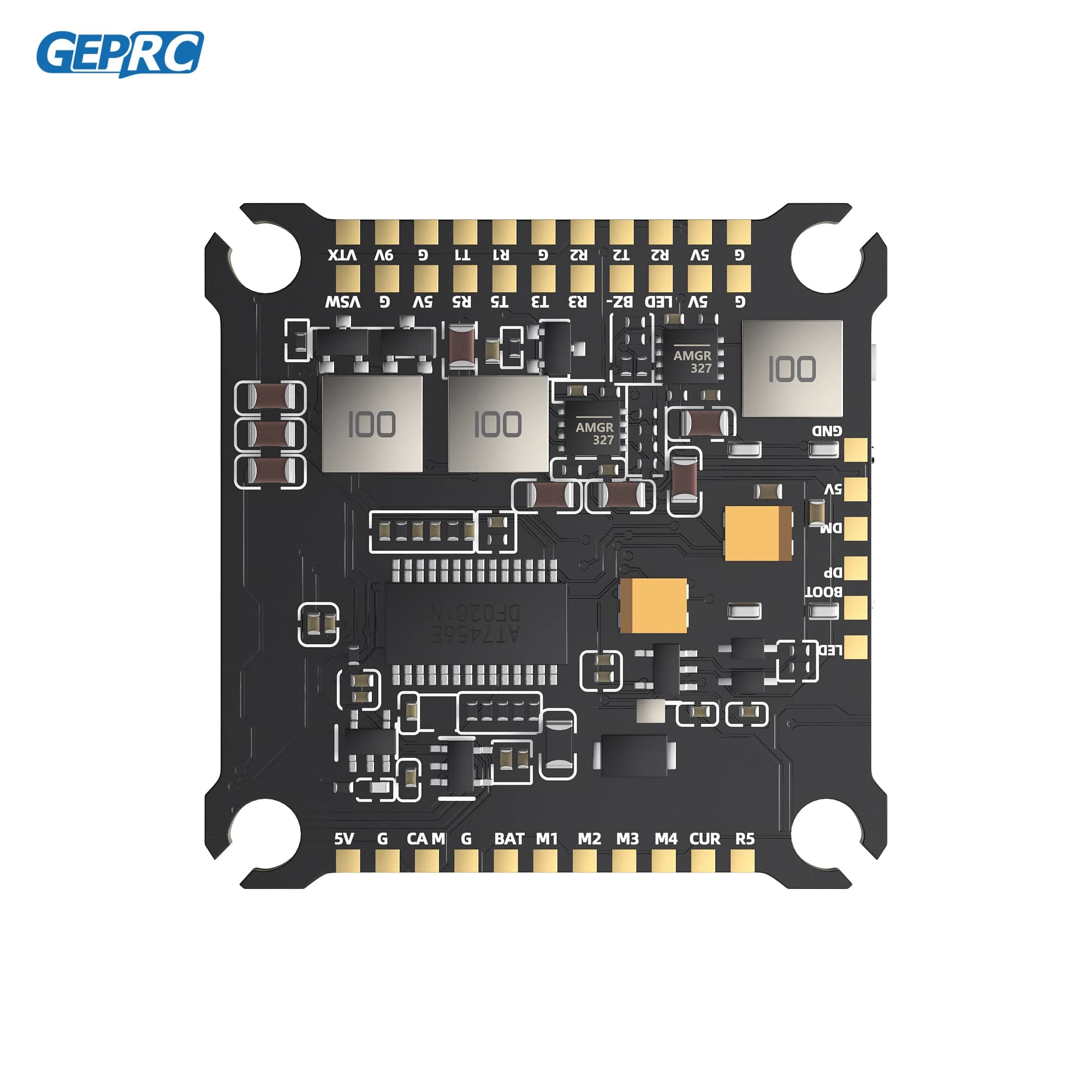

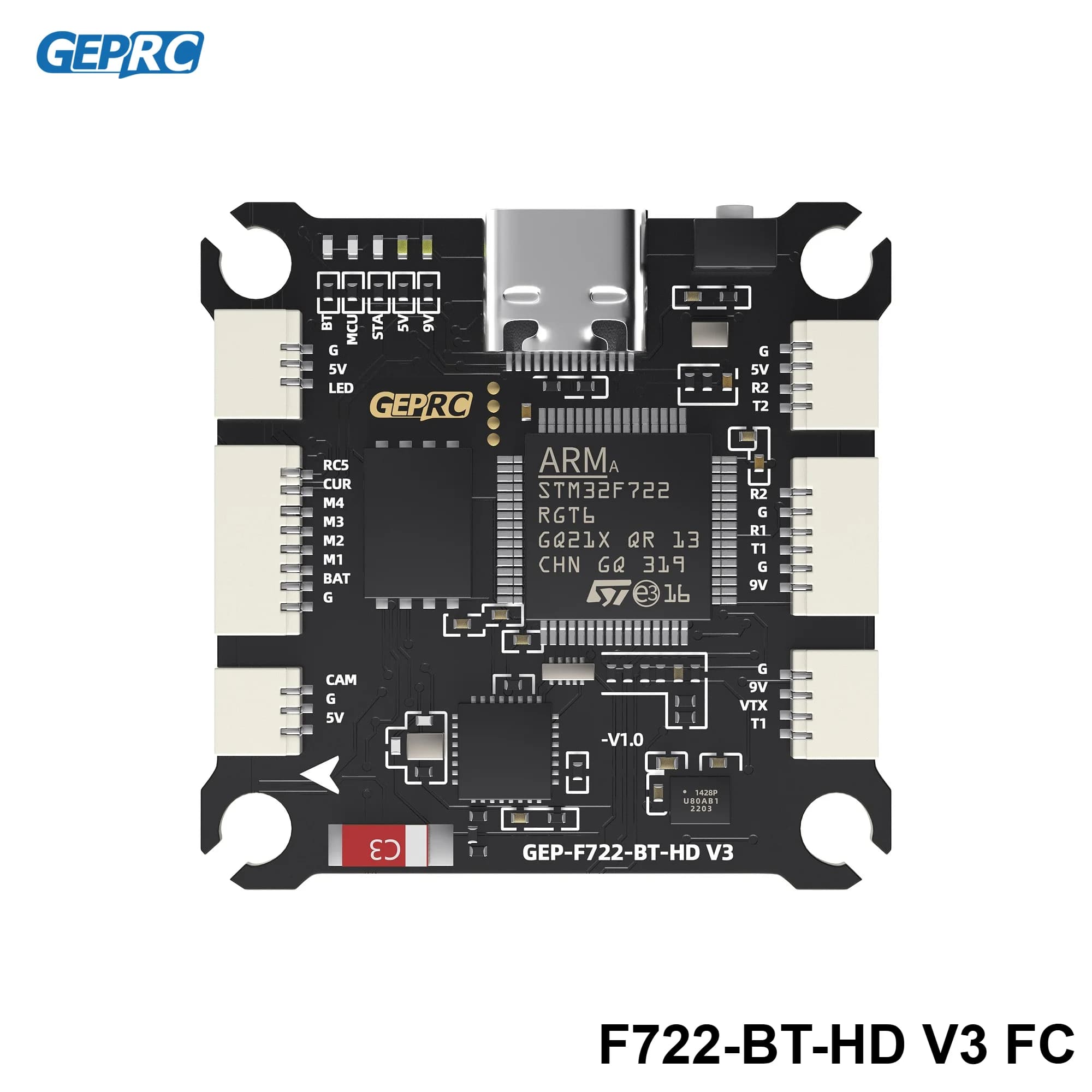

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722

• IMU：ICM42688-P(SPI)

• Air Unit Connection: Directly plugs into the D JI Air Unit

• Black Box: 512M onboard

• Bluetooth: Supported

• Barometer: Supported

• USB Interface: Type-C

• OSD: BetaFlight OSD w/ AT7456E chip

• BEC: 5V@3A, 9V@2.5A dual BEC

• Firmware Target: GEPRCF722_BT_HD_V3

• Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring

• Input Voltage: 3-6S LiPo

• UART: 5 groups (UART4 fixed for Bluetooth)

• Power Filter: Integrated LC filter

• Weight: 8.2g

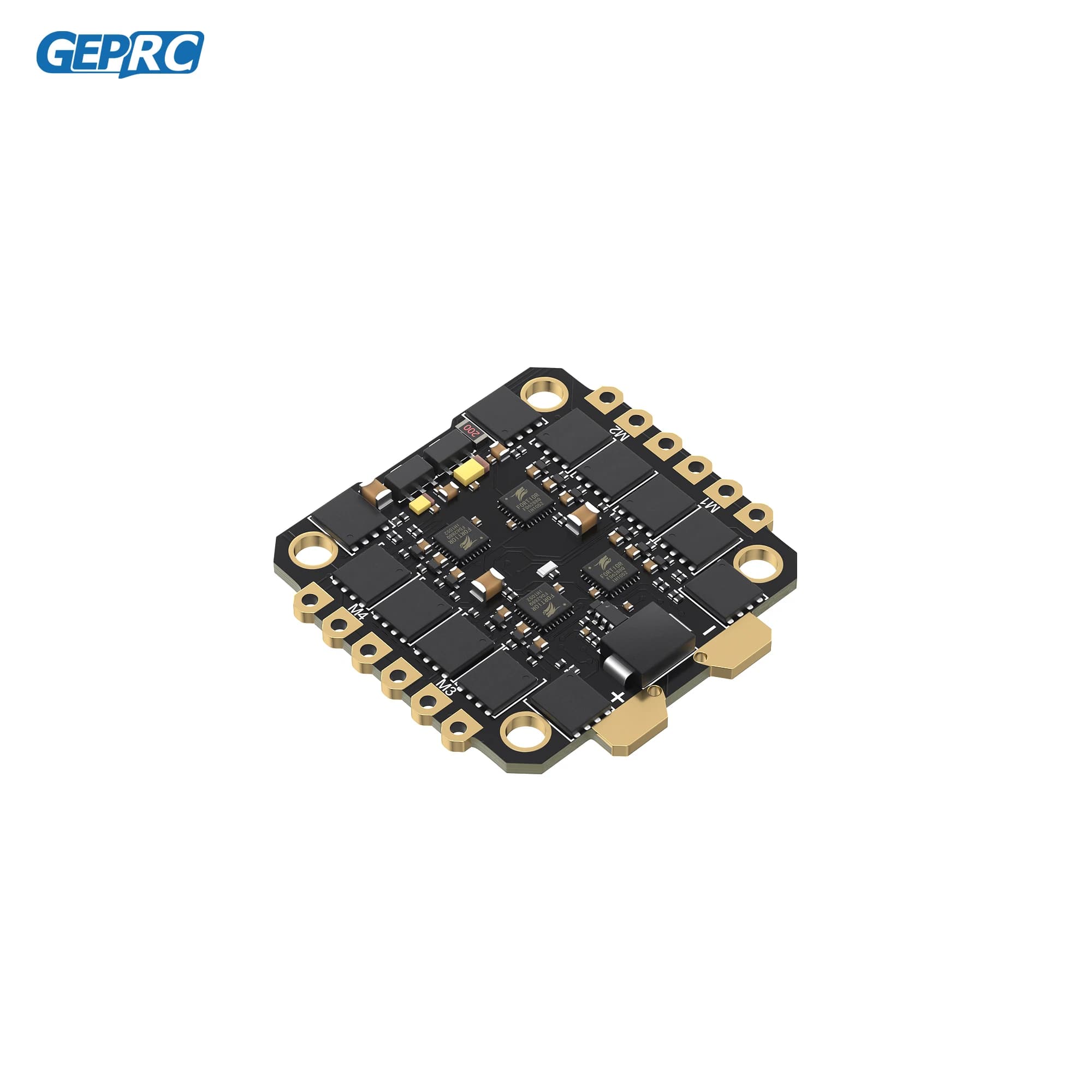

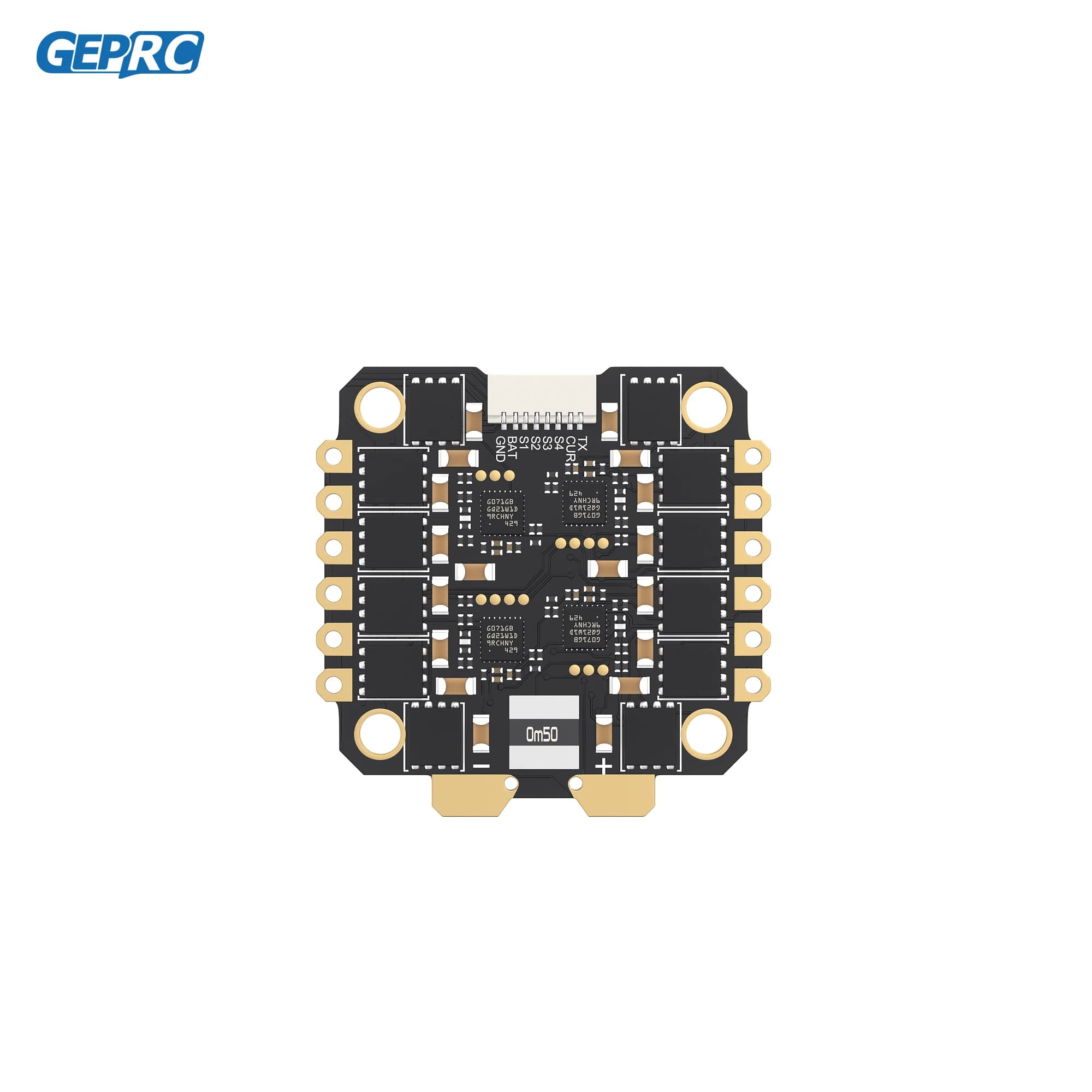

GEP-BL32 50A 96K 4IN1 ESC

• Model: GEP-BL32 50A 96K 4IN1 ESC

• Input Voltage: 3-6S Lipo

• Continue Current：50A

• Burst Current: 55A (5 second)

• Galvanometer：Support

• Telemetry: Support

• Support Protocol: Dshot 150/300/600

• Size：42.5×42.1mm，hole30.5×30.5mm

• Weight：14g

• Target: ST_G0_05 – 31.92

• Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
  (AM32 also supported; customer flashing required.)

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
