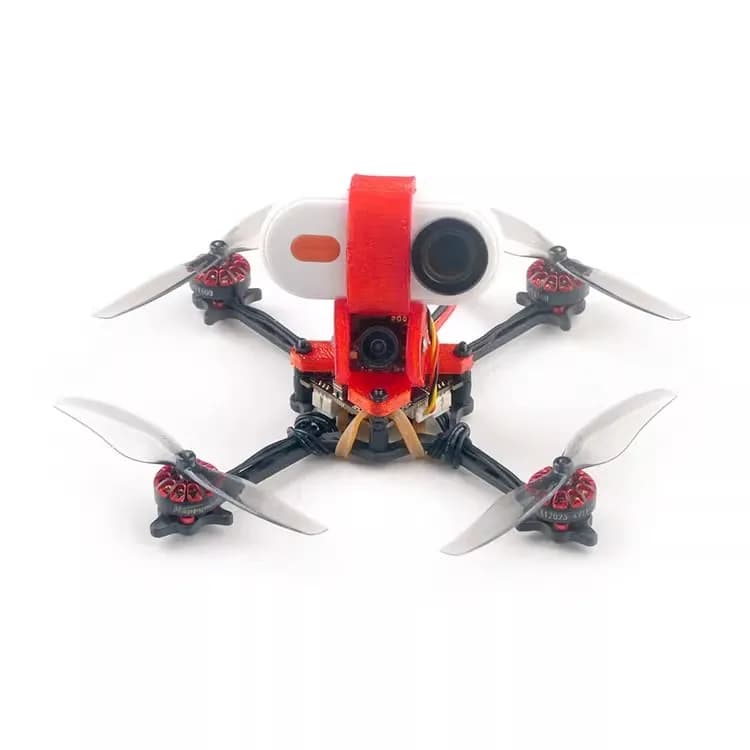

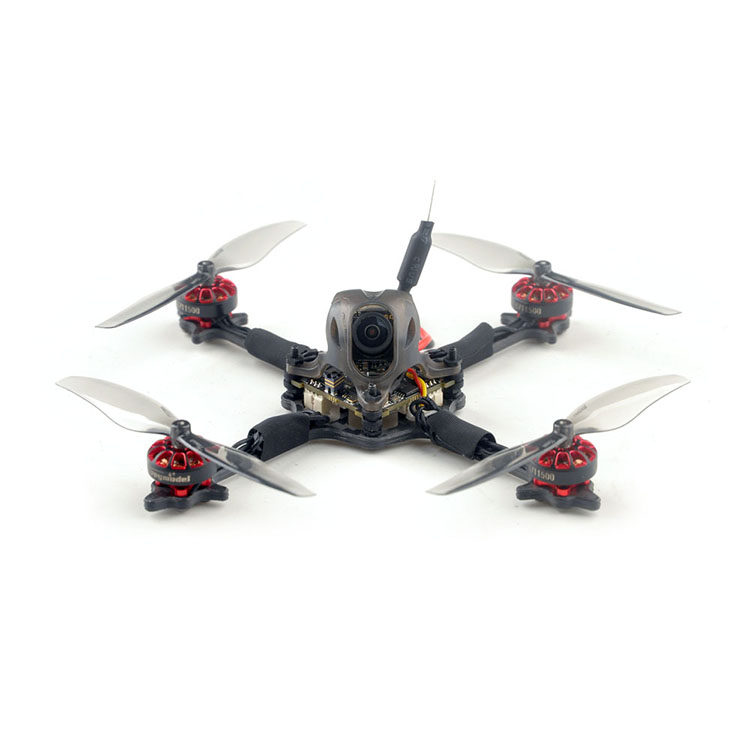

HappyModel Crux3 1S ELRS 3inch Toothpick Built-in F4 FC SPI ELRS Caddx Ant EX1202.5 Motor FPV RC Racing Toothpick Drone Insta360
25 orders (reference)
Description
HappyModel Crux3 1S ELRS 3inch Toothpick Built-in F4 FC SPI ELRS Caddx Ant EX1202.5 Motor FPV RC Racing Toothpick Drone Insta360 High-concerned chemical: None Is Electric: No Battery Anti-wind Ability: NONE Drone Weight: NONE Takeoff Weight: NONE Transit Time (Days): NONE Video Capture Resolution: Other Indoor/Outdoor Use: Indoor-Outdoor
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | NONE |
| Drone Weight | NONE |
| Takeoff Weight | NONE |
| Transit Time (Days) | NONE |
| Video Capture Resolution | Other |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | Other |
| Controller Mode | MODE1,MODE2 |
| Flight Time | 5~10 |
| Controller Battery | NONE |
| Control Channels | 6 channels |
| Is Batteries Included | No |
| Remote Distance | NONE |
| Remote Control | No |
| Type | HELICOPTER |
| Aerial Photography | Yes |
| Package Includes | Original Box |
| Material | Carbon Fiber |
| Features | App-Controlled |
| Origin | Mainland China |
| Recommend Age | 14+y |
Product Details
Noticed: Not include the Insta360 go2 or CaddxFPV peanut camera.
Features:

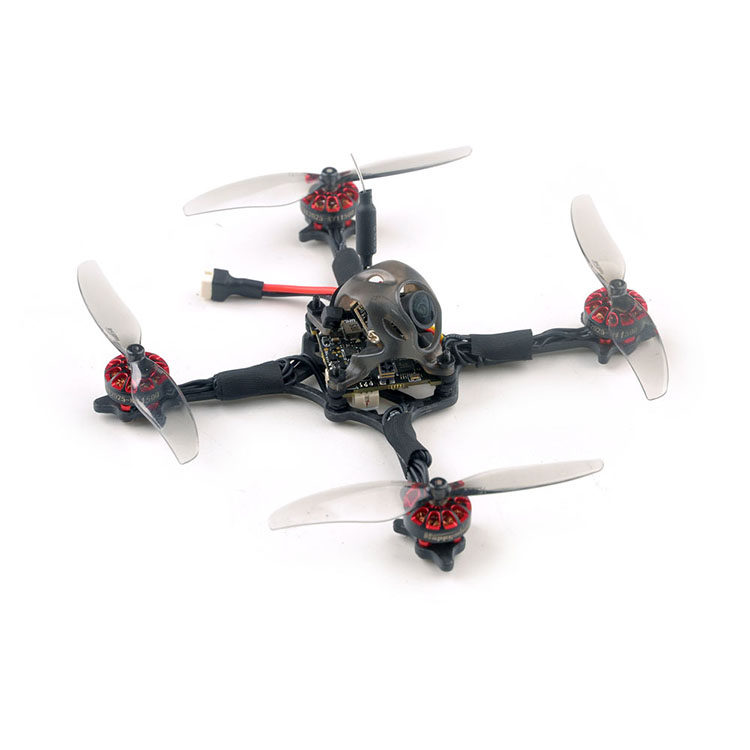

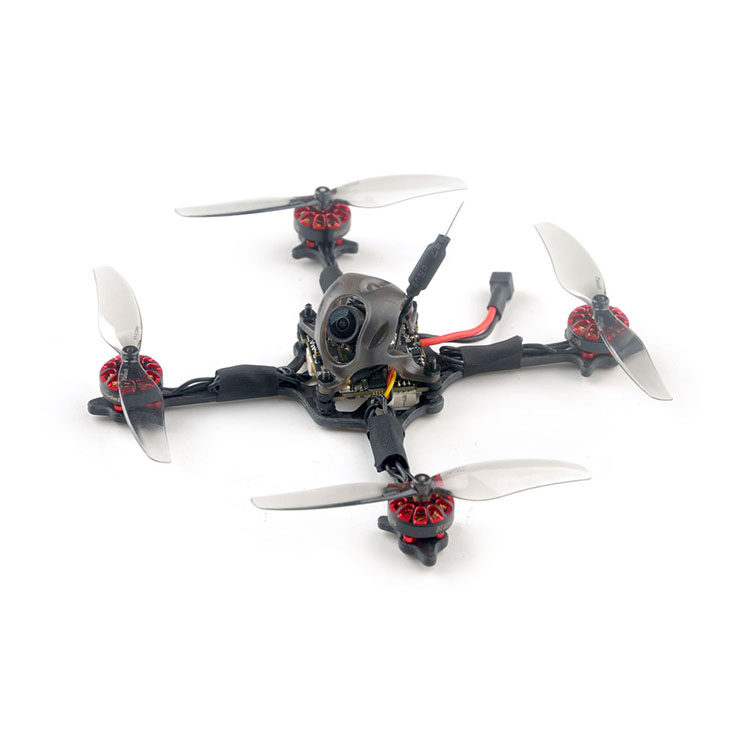

40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT Camera
New 1202.5 KV11500 brushless motor
Recommend to use 1s 450mah/650mah/660mah/720mah battery

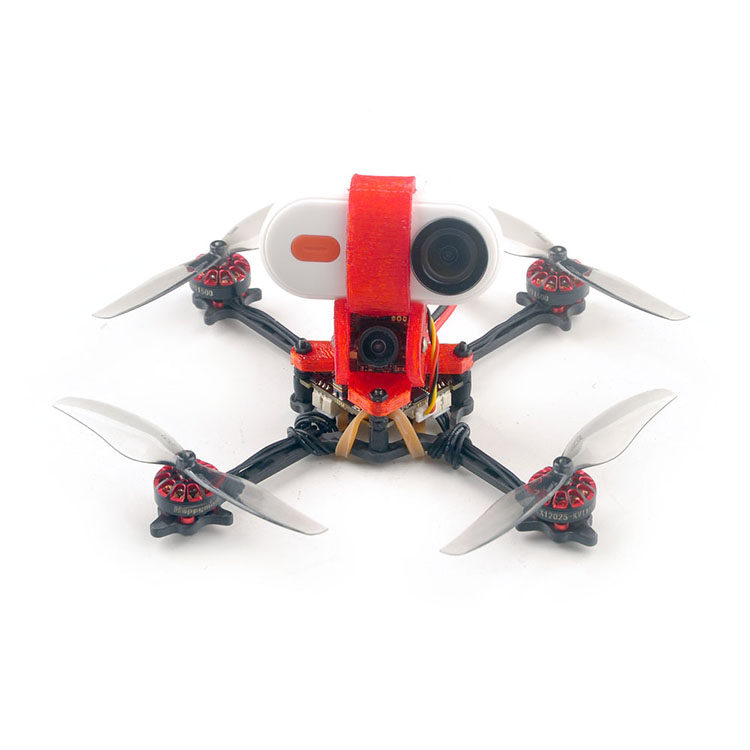

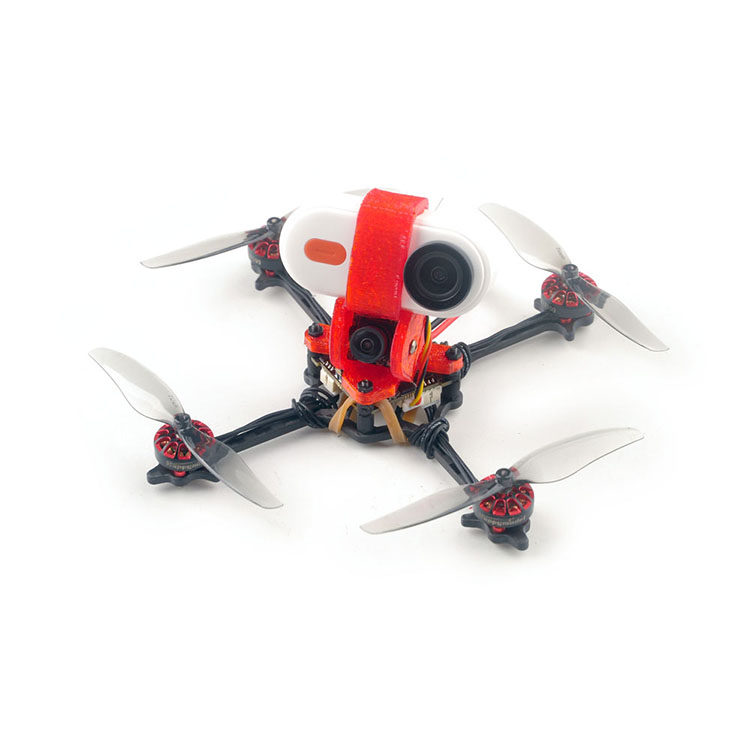

Compatible with CaddxFPV Peanut and Insta360 GO2
Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery
Specifications:
Brand Name: Happymodel
Item Name: Crux3 1S ELRS
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

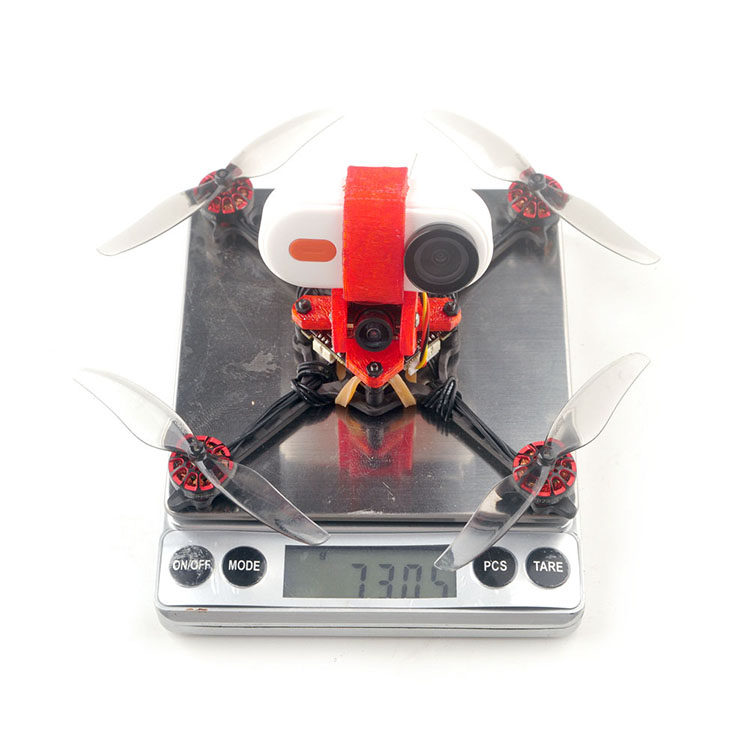

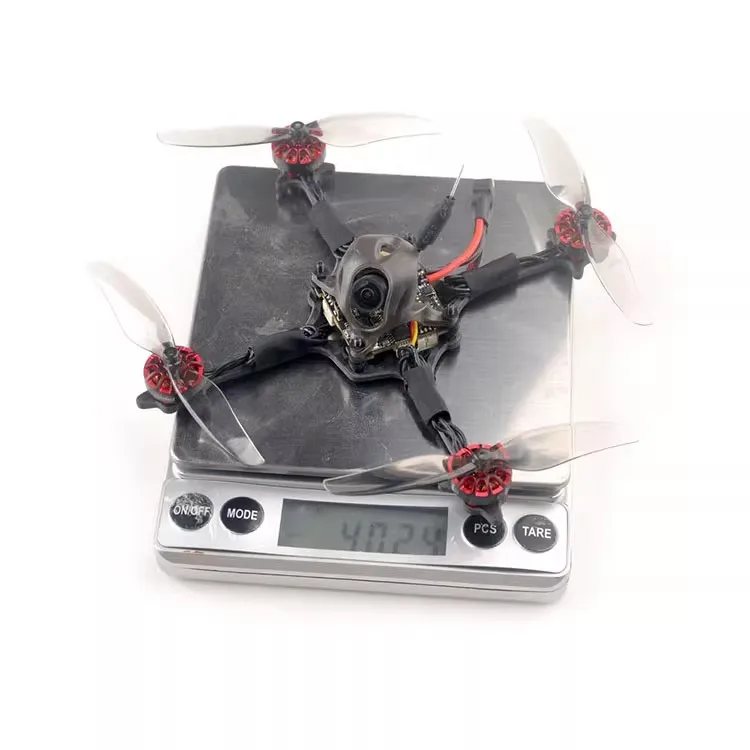

Weight: 40g(without battery)

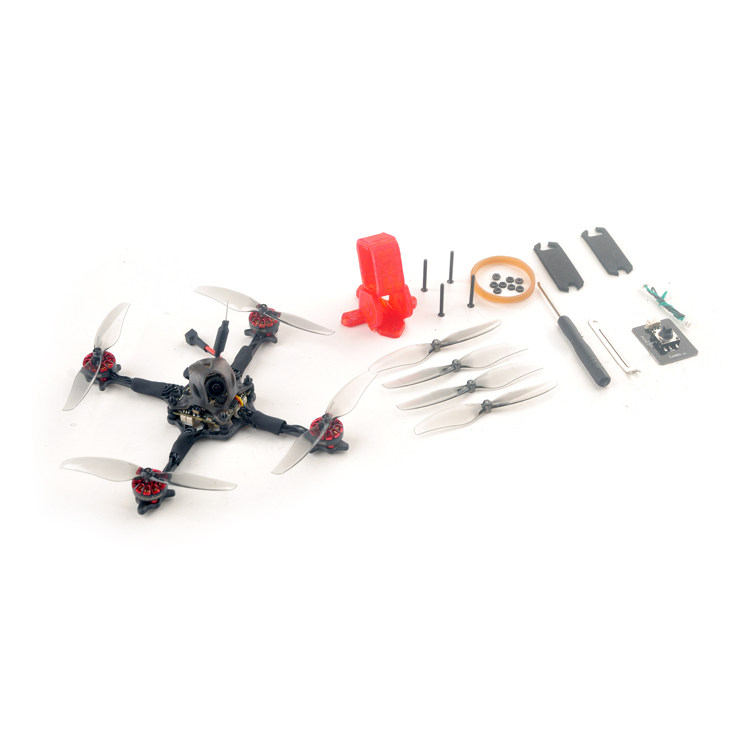

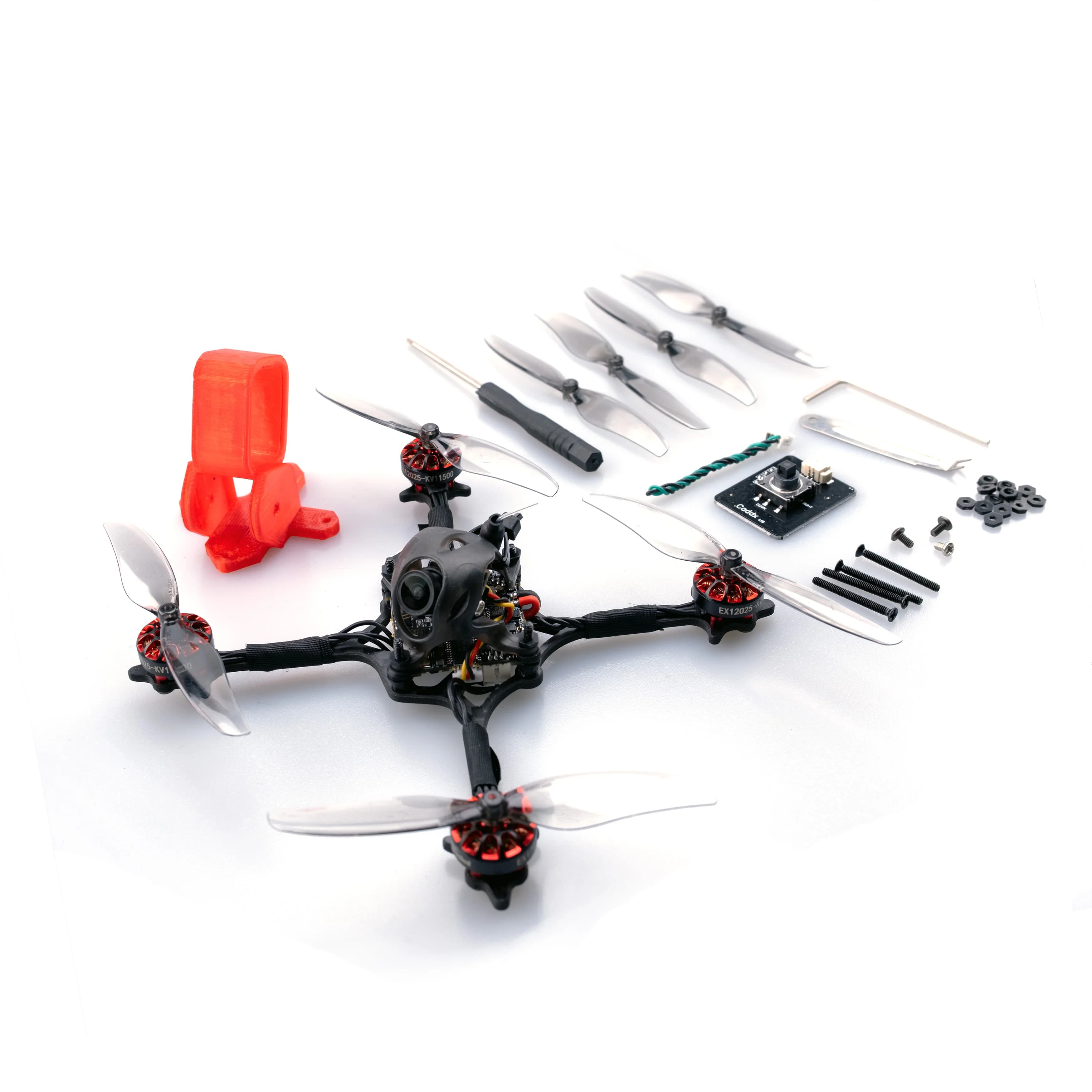

Package includes:
Item Name | Qty |
Crux3 Frame and canopy | 1 |
ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver | 1 |
Happymodel EX1202.5 KV11500 brushless motor | 4 |
Gemfan 75mm bi-blade Propellers(4cw+4ccw) | 1 |
Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera | 1 |
5.8G 25mw~200mw 40ch vtx (Flight controller built-in) | 1 |
Screw Driver | 1 |
Propeller disassemble tool | 1 |
3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut | |

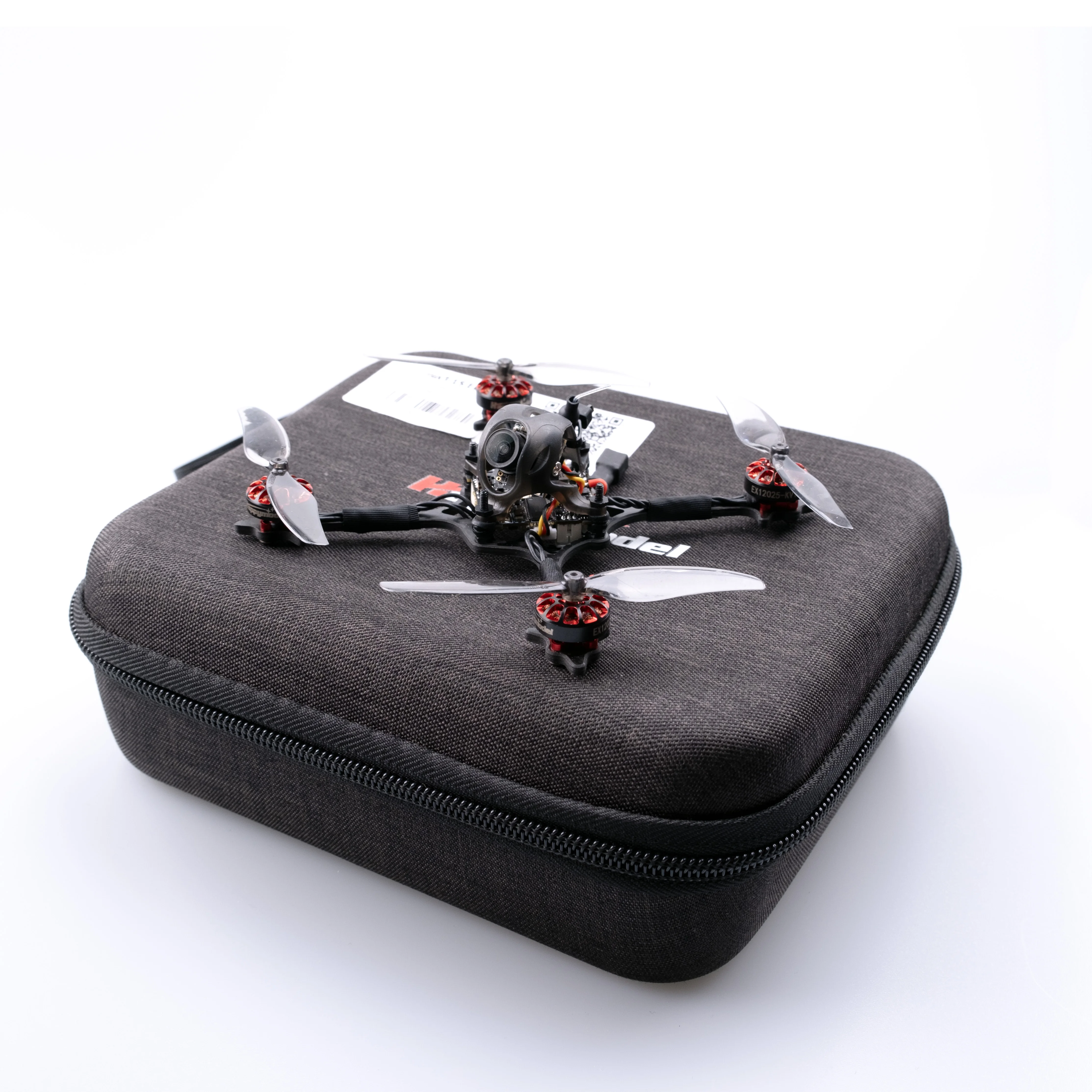

Happymodel Handbag | 1 |
Motor | Mode: EX1202.5 KV11500 |
Propellers | Gemfan 75mm |
Flight controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) |
Onboard 4in1 ESC | MCU upgraded to EFM8BB21 |
Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
Onboard 5.8g VTX | Output power: 25mw~200mw switchable |
Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor |
