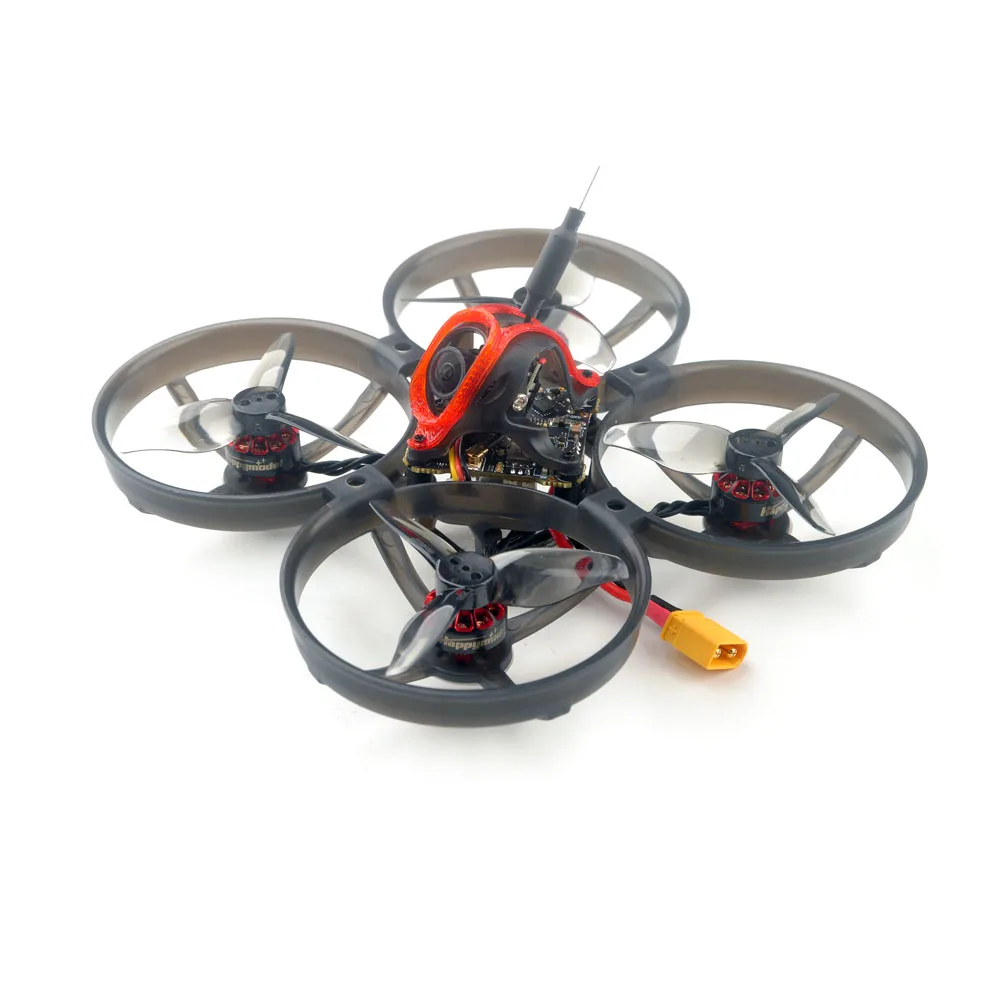

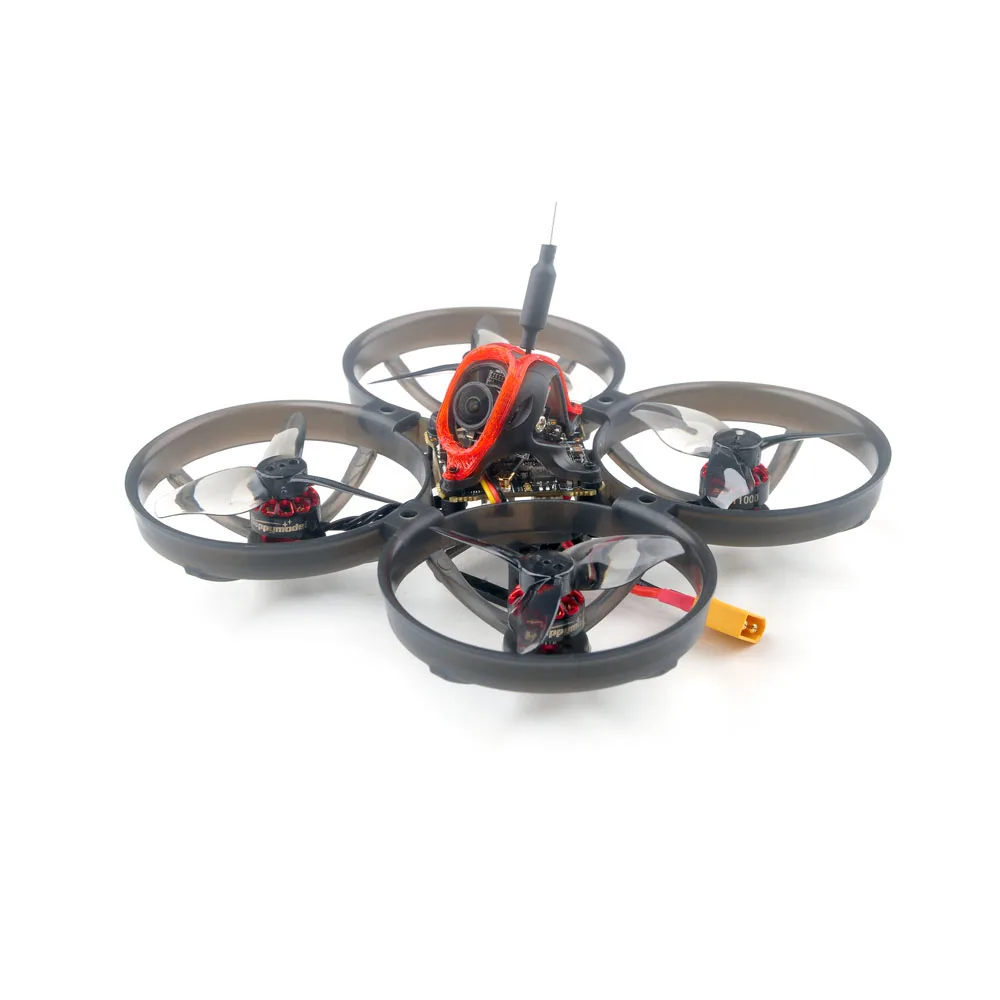

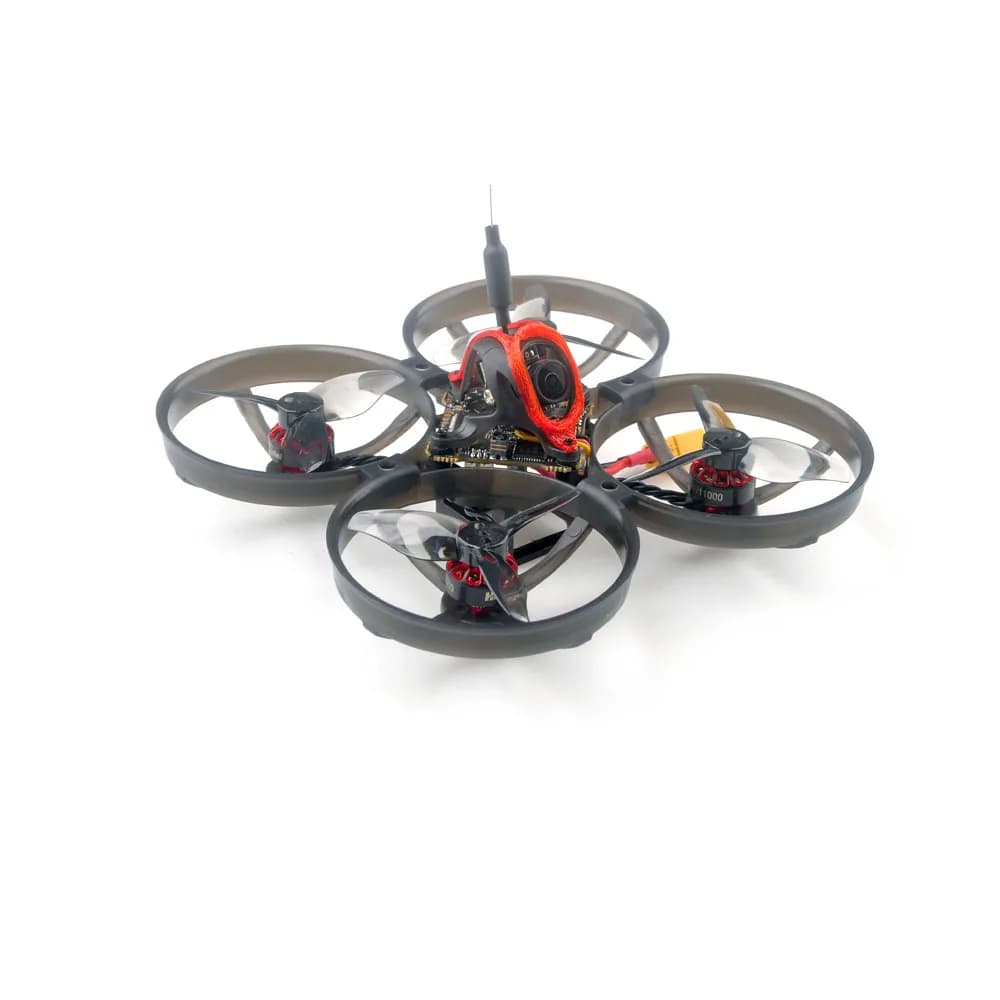

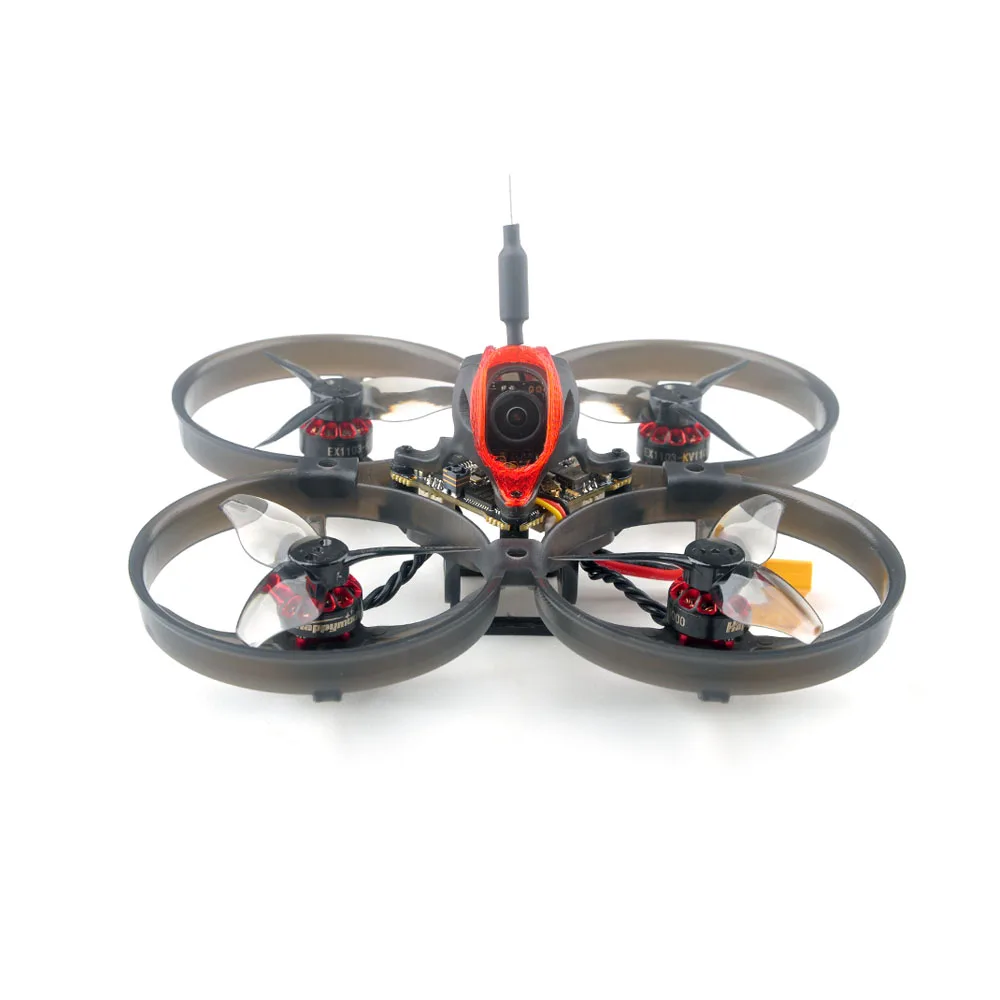

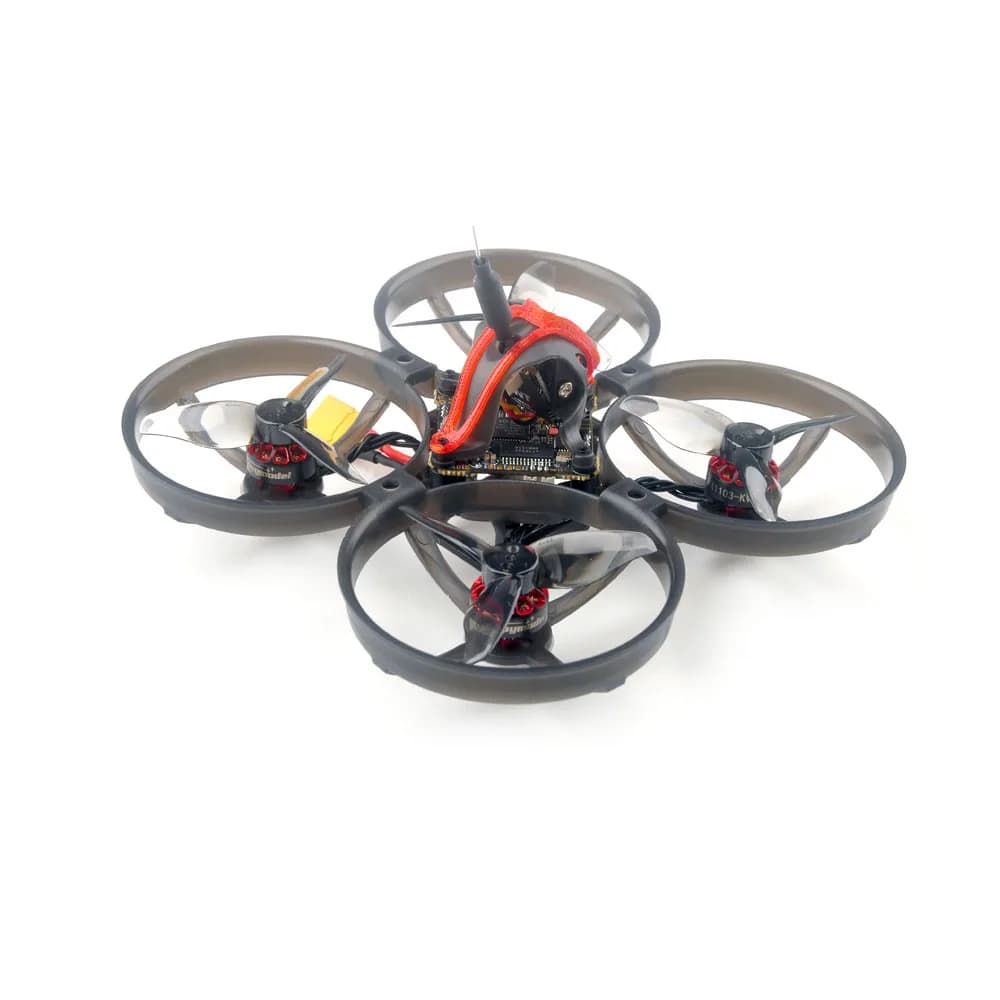

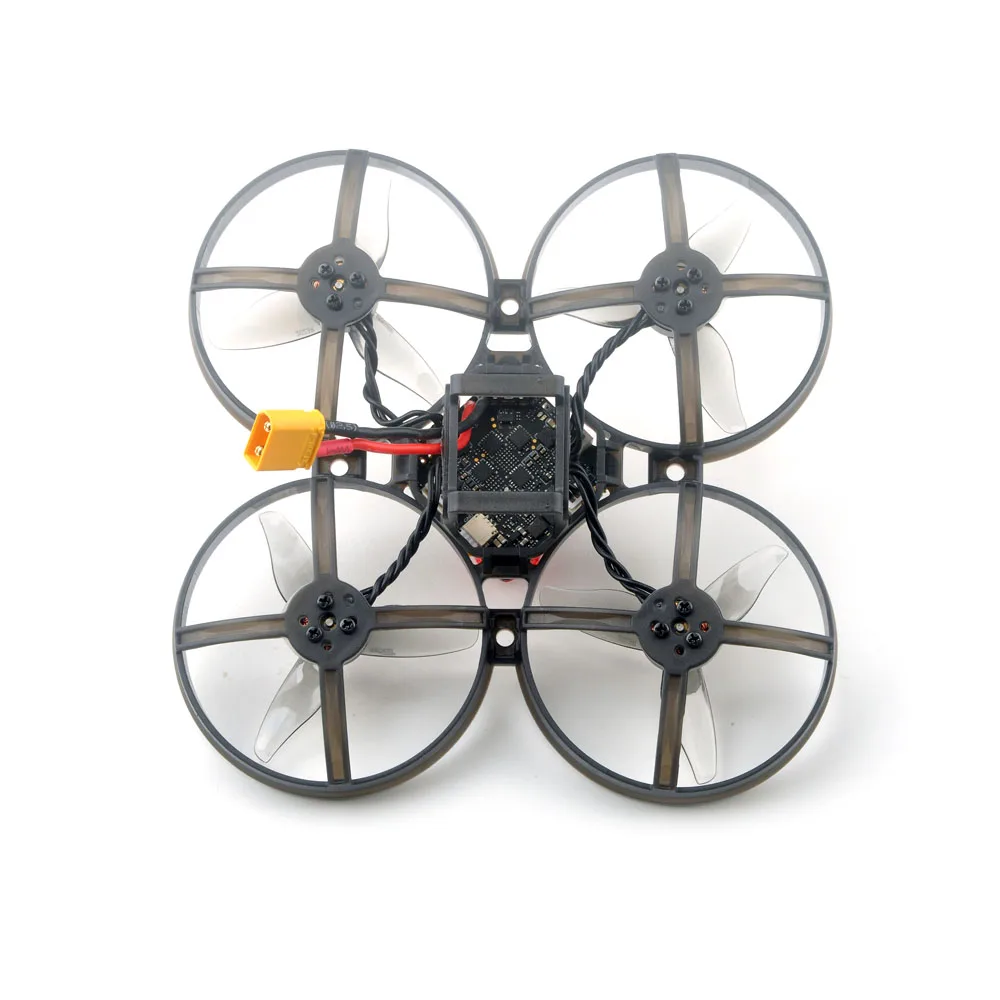

HappyModel Mobula 8 1-2S 85mm Micro FPV Whoop Drone X12 AIO FC 400mW OPENVTX Caddx Ant 1200TVL EX1103 KV110000
90 orders (reference)
Description
HappyModel Mobula 8 1-2S 85mm Micro FPV Whoop Drone X12 AIO FC 400mW OPENVTX Caddx Ant 1200TVL EX1103 KV110000 High-concerned chemical: None Is Electric: No Battery Anti-wind Ability: none Drone Weight: none Takeoff Weight: none Transit Time (Days): none Video Capture Resolution: Other Operator Skill Level: Beginner,Intermediate,expert
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | none |
| Drone Weight | none |
| Takeoff Weight | none |
| Transit Time (Days) | none |
| Video Capture Resolution | Other |
| Operator Skill Level | Beginner,Intermediate,expert |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | Other |
| Controller Mode | MODE1,MODE2 |
| Is Batteries Included | No |
| Flight Time | 10~20 |
| Control Channels | 12 Channels & Up |
| Controller Battery | none |
| Remote Distance | none |
| Remote Control | No |
| Package Includes | Original Box |
| Material | Plastic |
| Brand Name | GEMFAN |
| Features | Other |
| Recommend Age | 14+y |
| Origin | Mainland China |
| Aerial Photography | No |
| Type | Airplane |
Product Details
The current version is divided into Mobula8 SPI ELRS version and Mobula8 UART ELRS version.
Mobula8 released uart elrs version recently. It comes with a new X12 ELRS Pro v1.1 flight controller, onboard vtx and onboard uart elrs receiver are controlled by ESP32 chip , now you have a free set of UART and you can flash single ExpressLRS firmware for the Mobula8 ELRS .
Features:
X12 ELRS Pro v1.1 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and OPENVTX
VTX Power up to 400mw
ELRS V3.0 (Default), could flash elrs firmware for the receiver by wifi
EX1103 KV110000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 1S-2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)
Specifications:
Brand Name: Happymodel
Item Name: Mobula8 ELRS 2S 85mm Micro FPV whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm

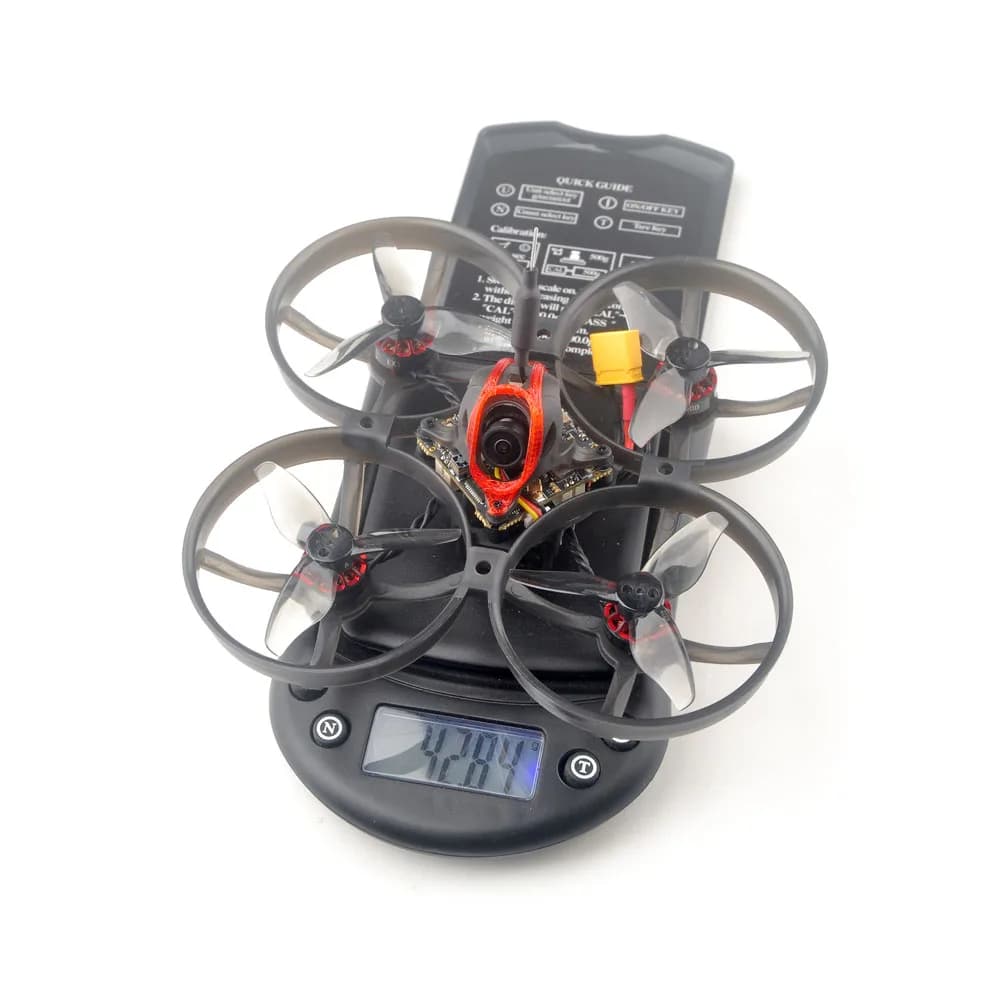

Weight: 43g
Receiver option:
2.4GHz EXPRESLRS
Package includes:
Item Name | Qty |
Mobula8 Frame | 1 |
X12 ELRS pro V1.1 AIO flight controller | 1 |
EX1103 KV11000 brushless motor | 4 |
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) | 1 |
Caddx ANT 1200TVL Camera | 1 |
Onboard 5.8G Openvtx 0mw~400mw VTX | 1 |
Canopy for 14mmx14mm camera | 1 |
Screw driver | 1 |
Spare parts specifications:
Motor | Mode: EX1103 KV11000 |
Propellers | Weight:0.88g |
Flight controller | X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 |
Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV |
Onboard uart ExpressLRS 2.4GHz Receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 |
Onboard 5.8g OPENVTX | Firmware version: OPENVTX |
Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor |

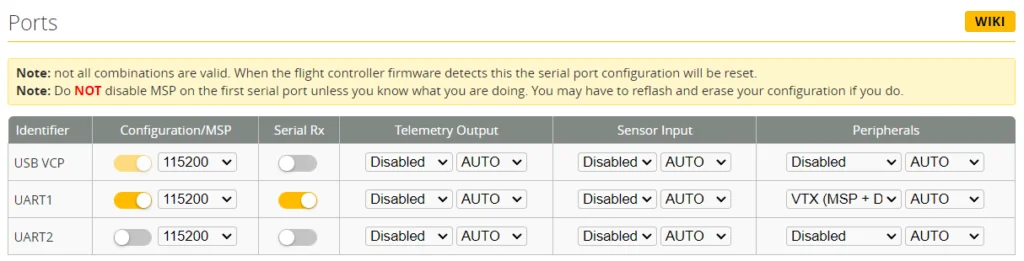

Refer to the parameters that can be modified:

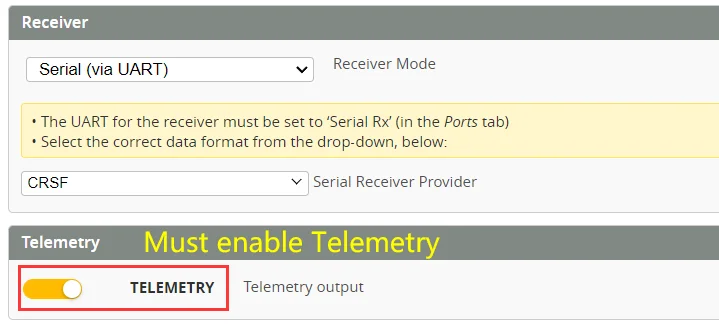

Some settings for the Mobula8 ELRS:
We recommend buyer to re-flash the elrs rx firmware after received Mobula8 UART to fix vtx power level changed incorrect by betaflight msp control. You can dowload the firmware and flash by wifi.
Firmware download link:
Or you can build latest firmware and flash to the ELRS receiver by expresslrs configurator . Firmware target :Generic ESP32 2.4Ghz Rx and VTx
