Holybro SiK Telemetry Radio - Long Range 1W 915MHz Open Source SIK Firmware Compatible Pixhawk Standard FC for RC FPV Drone
1 orders (reference)
Description
Holybro SiK Telemetry Radio - Long Range 1W 915MHz Open Source SIK Firmware Compatible Pixhawk Standard FC for RC FPV Drone High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Wheelbase: Bottom Plate Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: NA
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | Holybro SiK Telemetry Radio - Long Range |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | SiK Telemetry Radio - Long Range |
| RC Parts & Accs | 1W 915MHz |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
Overview
-

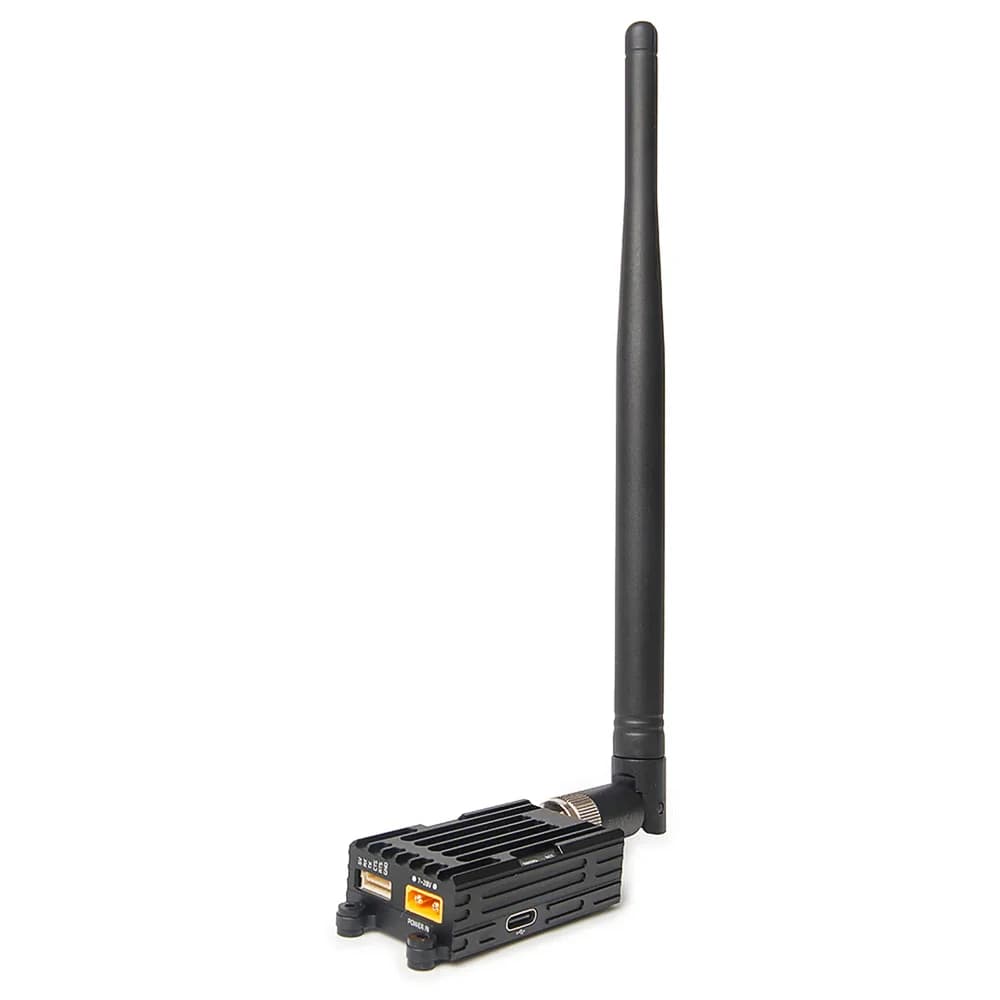

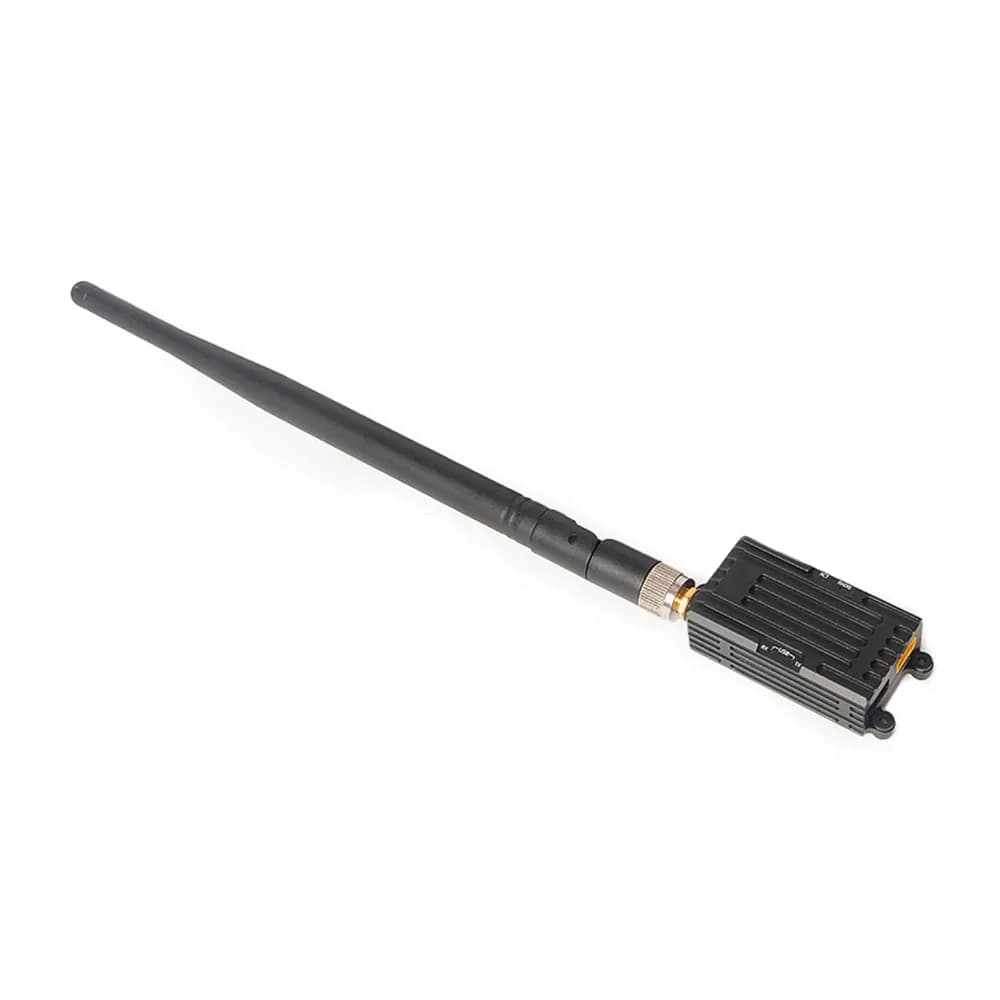

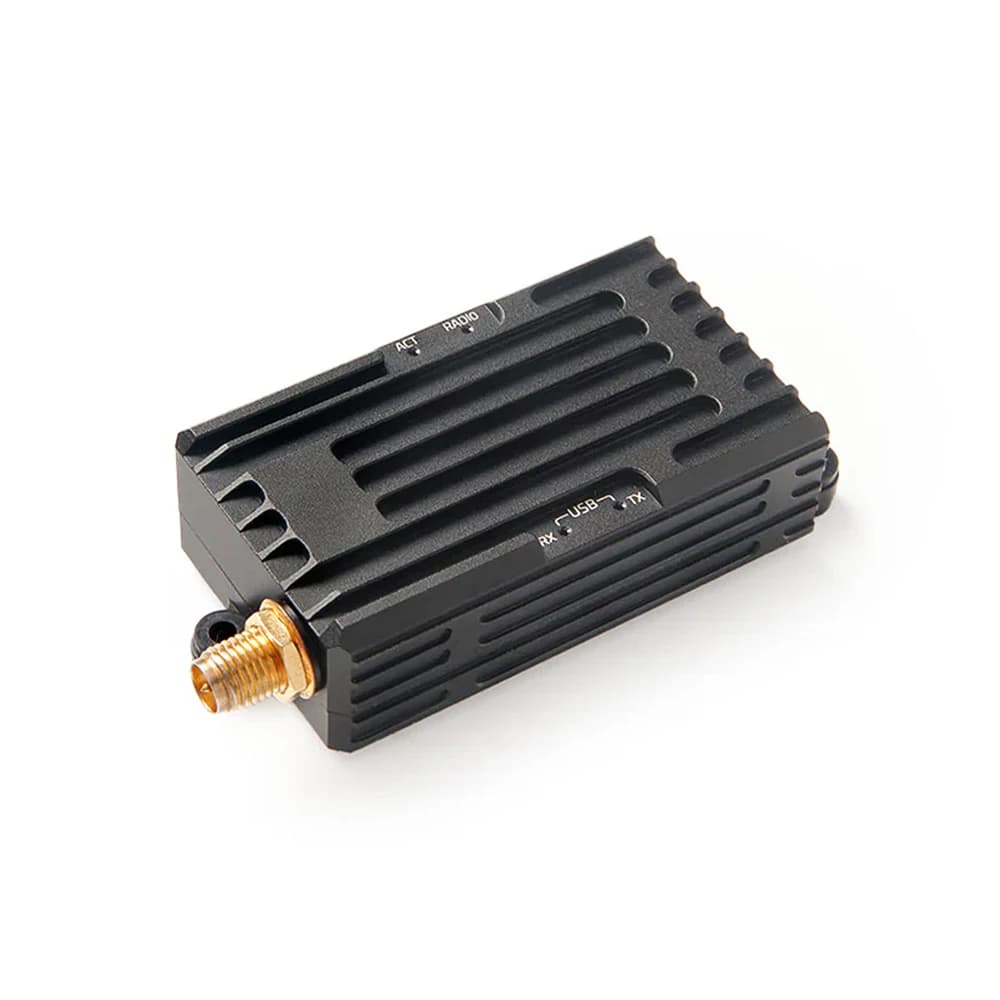

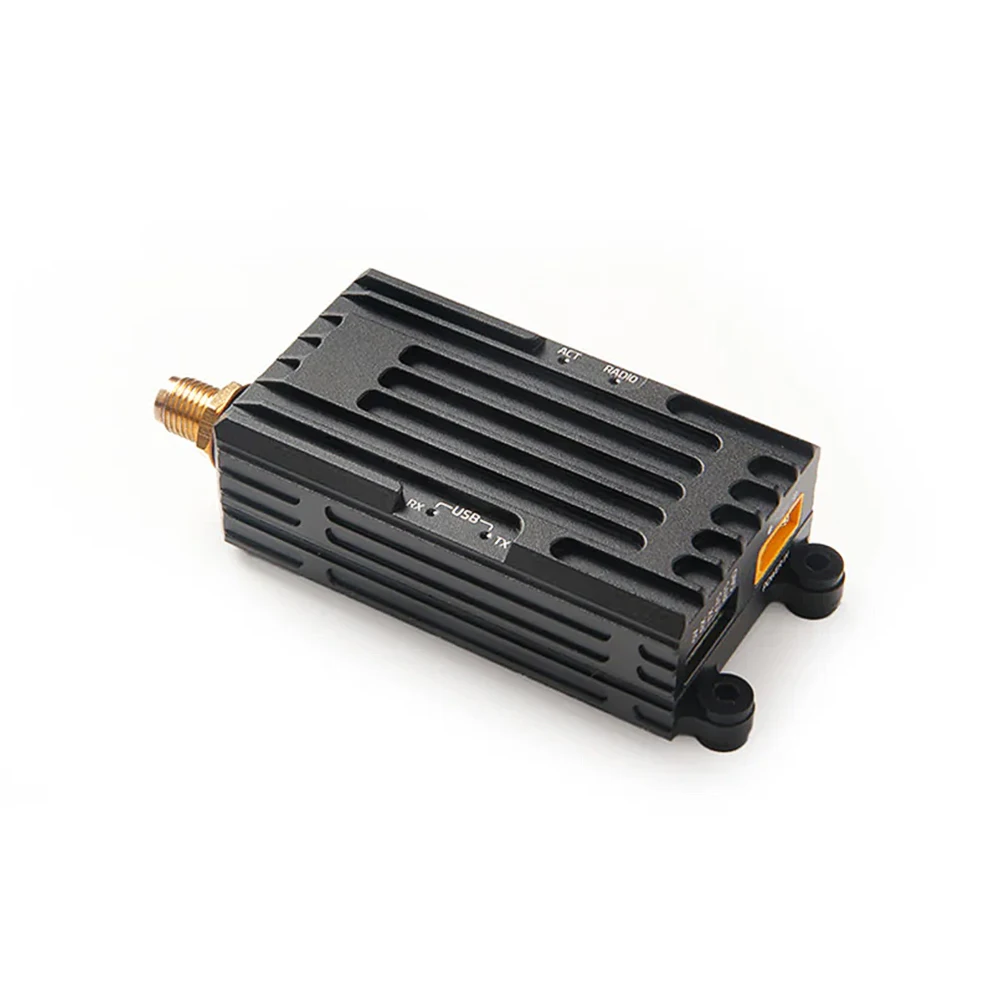

This Holybro SiK Long Range Telemetry Radio is a small, light, and inexpensive open-source radio platform with a maximum 50 kilometres range (outdoors, line-of-sight range).
-
This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your controller and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4.
-

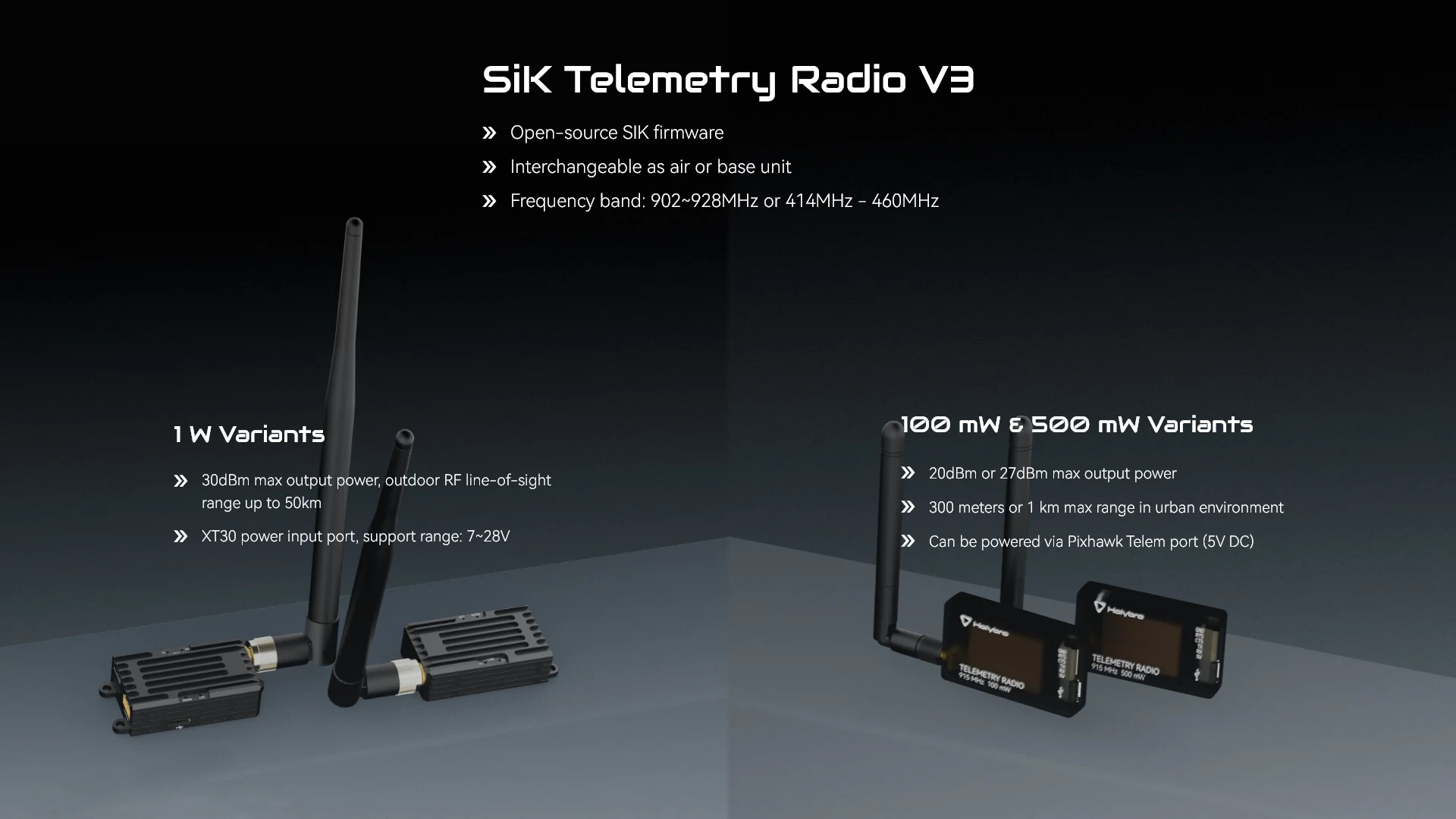

The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region.
-

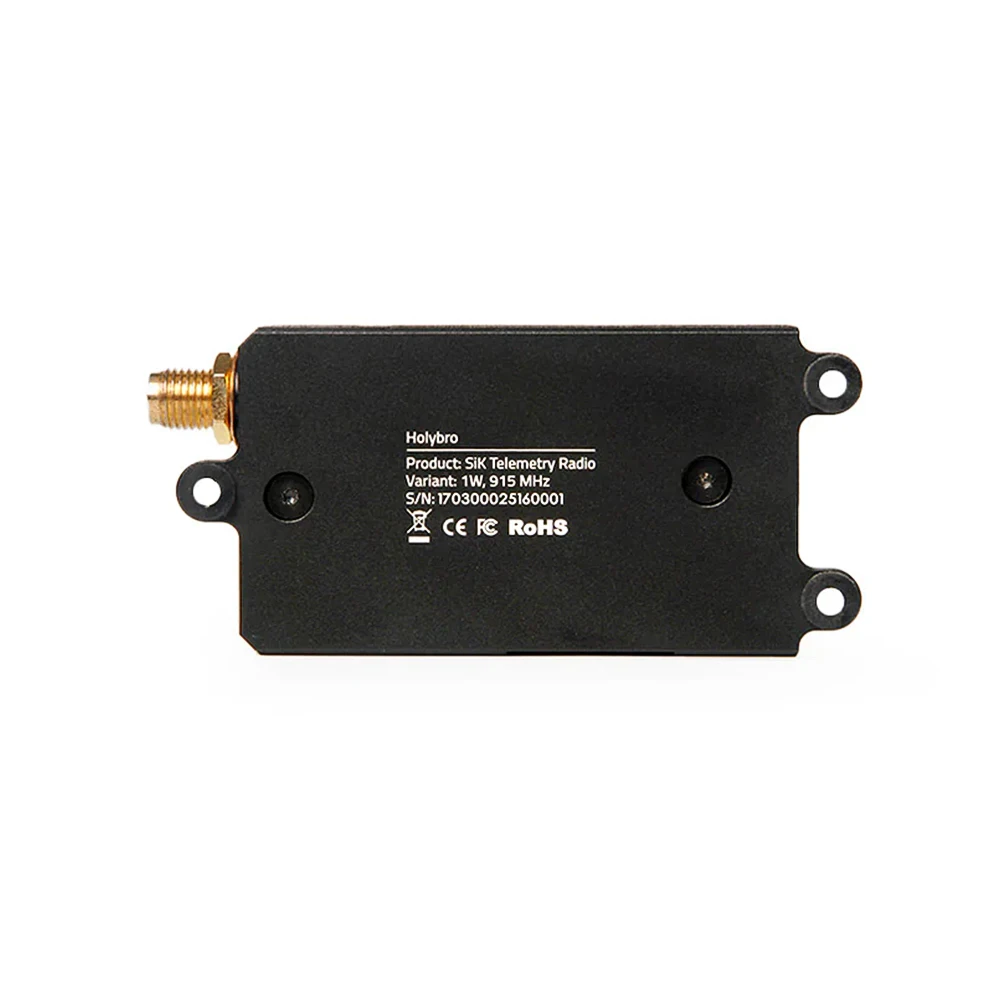

FCC ID: 2BNF8-HT051WRF915 (100mW, 915.06~927.04MHz)
-
Plug-n-play for Pixhawk Standard Flight Controllers
-
1W maximum RF output
-
The Easiest way to connect your controller and Ground Station
-

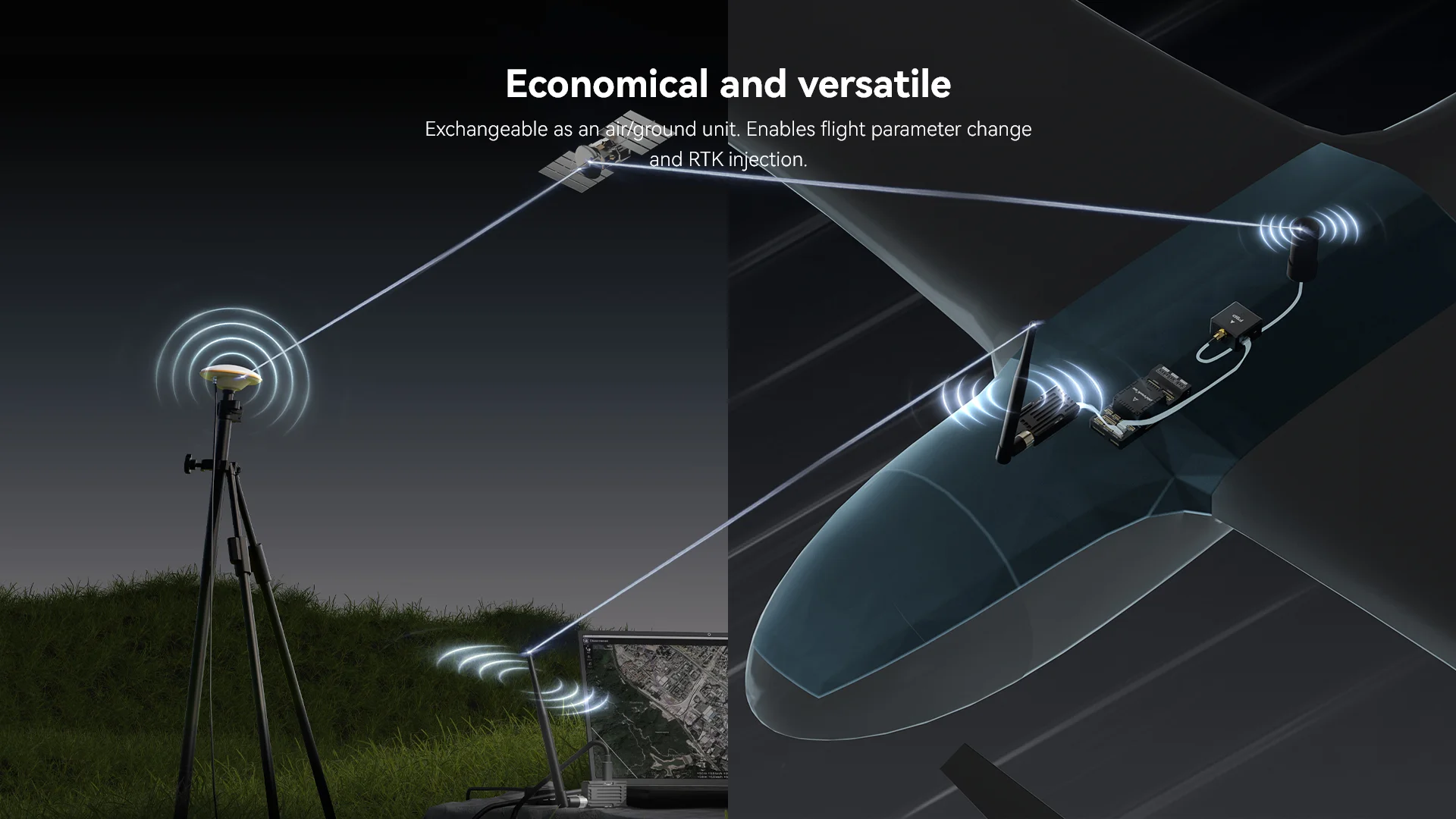

Interchangeable air and ground radio
-
6-position JST-GH connector
Specifications
|
Max RF Power |
20 dBm |
27 dBm |
30 dBm |
|
Receive sensitivity |
-121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate |
||
|
Antenna Gain |
2dBi |
5dBi |
|
|
RF Data Rates |
2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps |
||
|
Serial Interface Data Rate |
1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps |
||
|
Frequency Band |
902MHz - 928MHz or 414MHz - 460MHz |
||
|
Interference Immunity |
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle |
||
|
Address Options |
Network ID: 0 –255 |
||
|
Channels |
Up to 50 Frequency Hopping Channels |
||
|
Supported Network Topologies |
Point-to-point |
||
|
Configuration Method |
MissionPlanner or AT Commands |
||
|
Data Framing |
Standard or MAVLink protocol framing |
||
|
Error correction |
Corrects up to 25% of bit errors with open-source SIK firmware |
||
|
Serial Data Connector & Interface |
6-pin JST-GH connector, 3.3V-TTL |
||
|
USB |
Micro-USB |
Type-C |
|
|

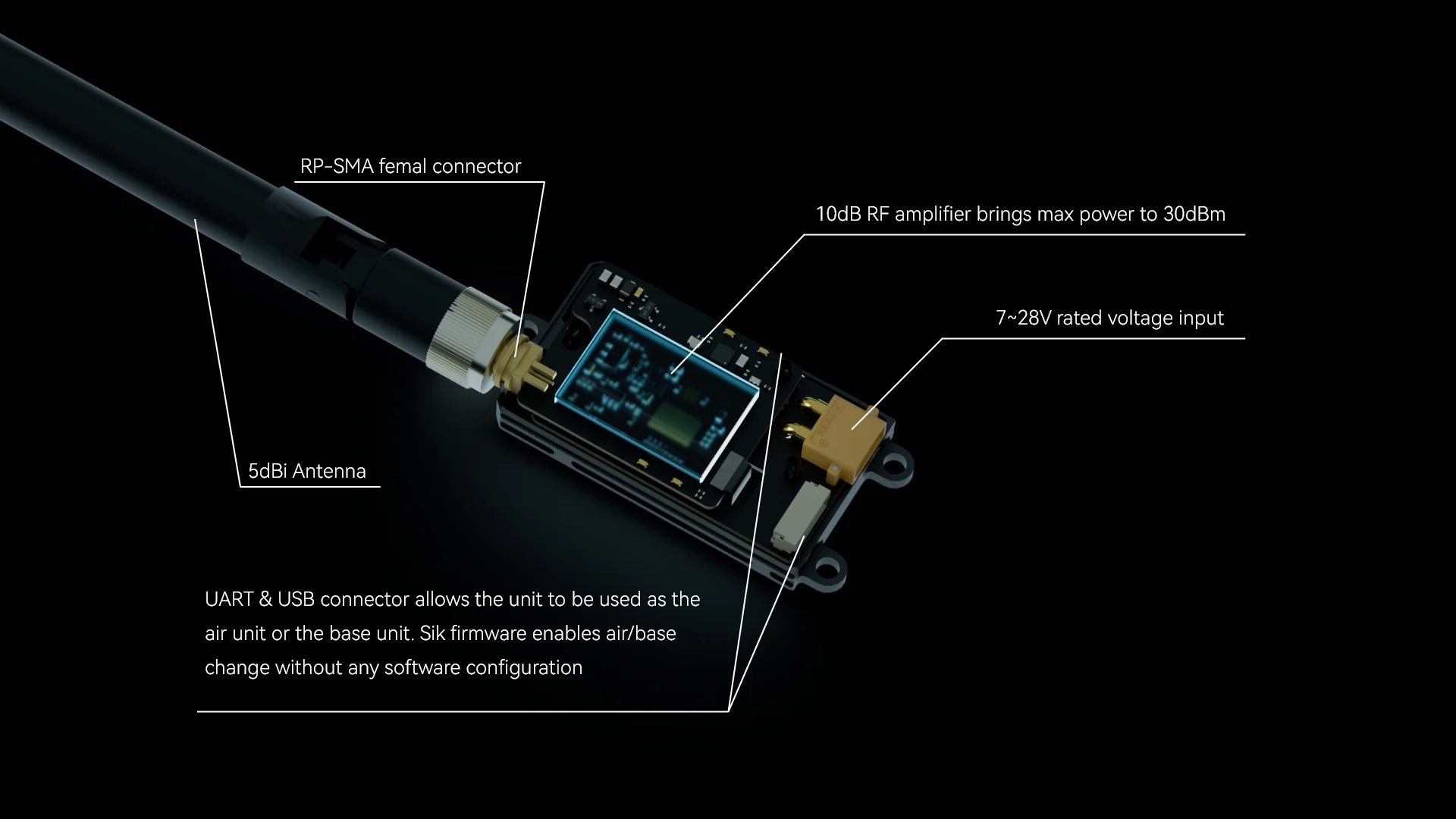

SMA Connector |
RP-SMA female |
||
|
Power Connector |
NA |
XT30 |
|
|
Operating Temperature |
-40~85°C |
||
|
Dimension |
28 x 53 x 10.7mm (without antenna) |
66.5 x 32 x 16.5mm (without antenna) |
|
|
Weight |
23.5g w/ antenna |
67g w/ antenna |
|
|
Input Voltage (DC) |
5V |
7~28V |
|
-
2-way full-duplex communication through adaptive TDM UART interface
-
Transparent serial link
-
MAVLink protocol framing
-
Built in FT230X/FT231 USB to BASIC UART conversion IC
-
Supply voltage: 7~28V DC via XT30
-
Transmit current: 12V/400mA at 30 dBm
-
Receive current: 12V/30mA
-
Serial interface: 3.3 V UART
-
Single 1W
-
1W Radio modules with antennas *1
-
High-gain omnidirectional antenna *1
-
Male Type-C to male Type-C USB cable *1
-
Male XT30 to female XT30 adapter cable *1
-
Male XT30 to female XT60 adapter cable *1
-
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
-
Rubber damping grommet *3
-
-
Pair 1W
-
1W Radio modules with antennas *2
-
High-gain omnidirectional antenna *2
-
Male Type-C to male Type-C USB cable *1
-
Male XT30 to female XT30 adapter cable *1
-
Male XT30 to female XT60 adapter cable *1
-
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
-
Rubber damping grommet *3
-
Telemetry-Radio-V3-Quick-Start-Guide
Some Tips:
https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html
