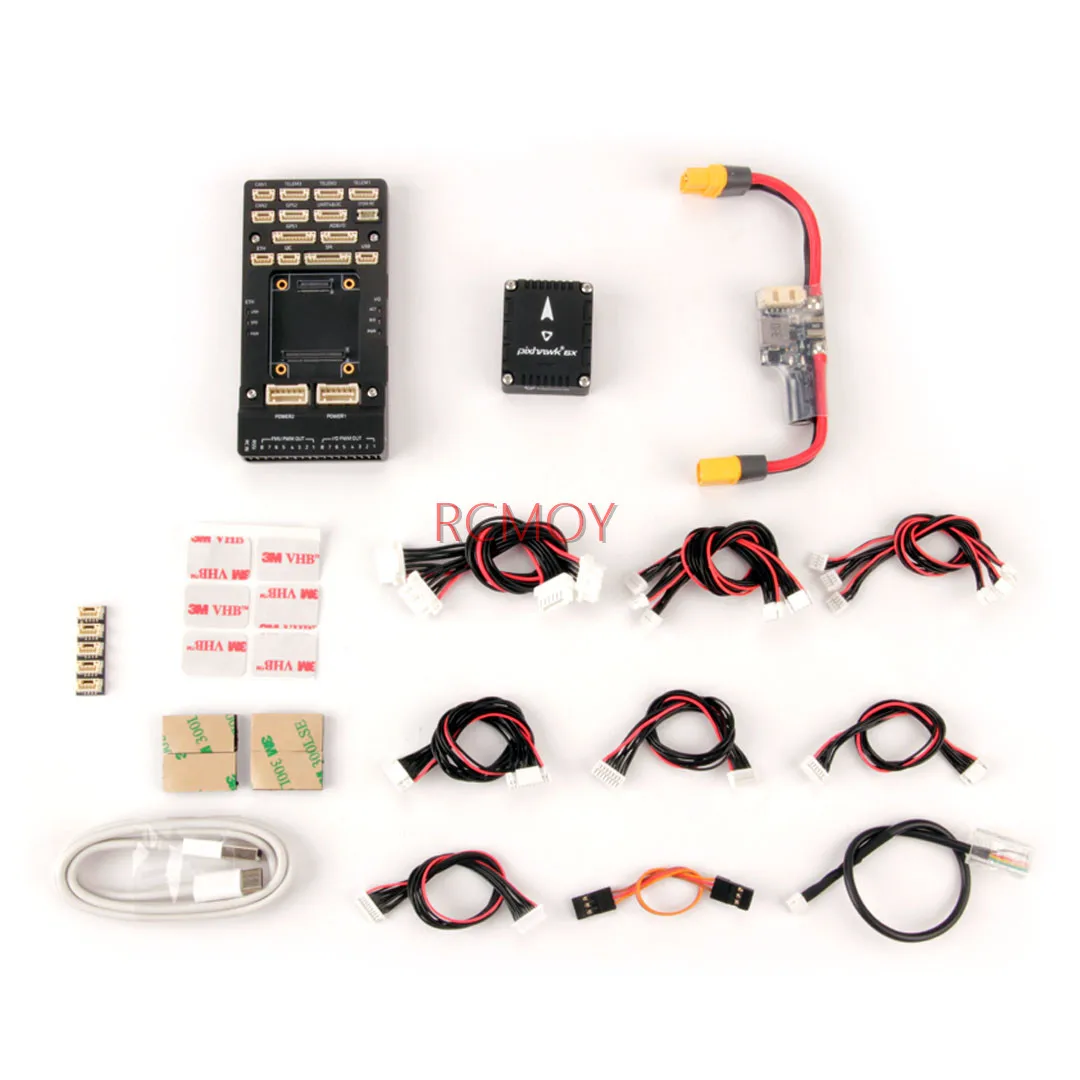

APNewest Holybro Pixhawk 6X Flight Controller Standard / MINI Version Barometer / Gary 32 Bit Arm For Airplane Quadcopter

Newest version:

Note: Currently shipping REV 8, it has 3x ICM-45686 IMU with BalancedGyro™ Technology

Key Design Points

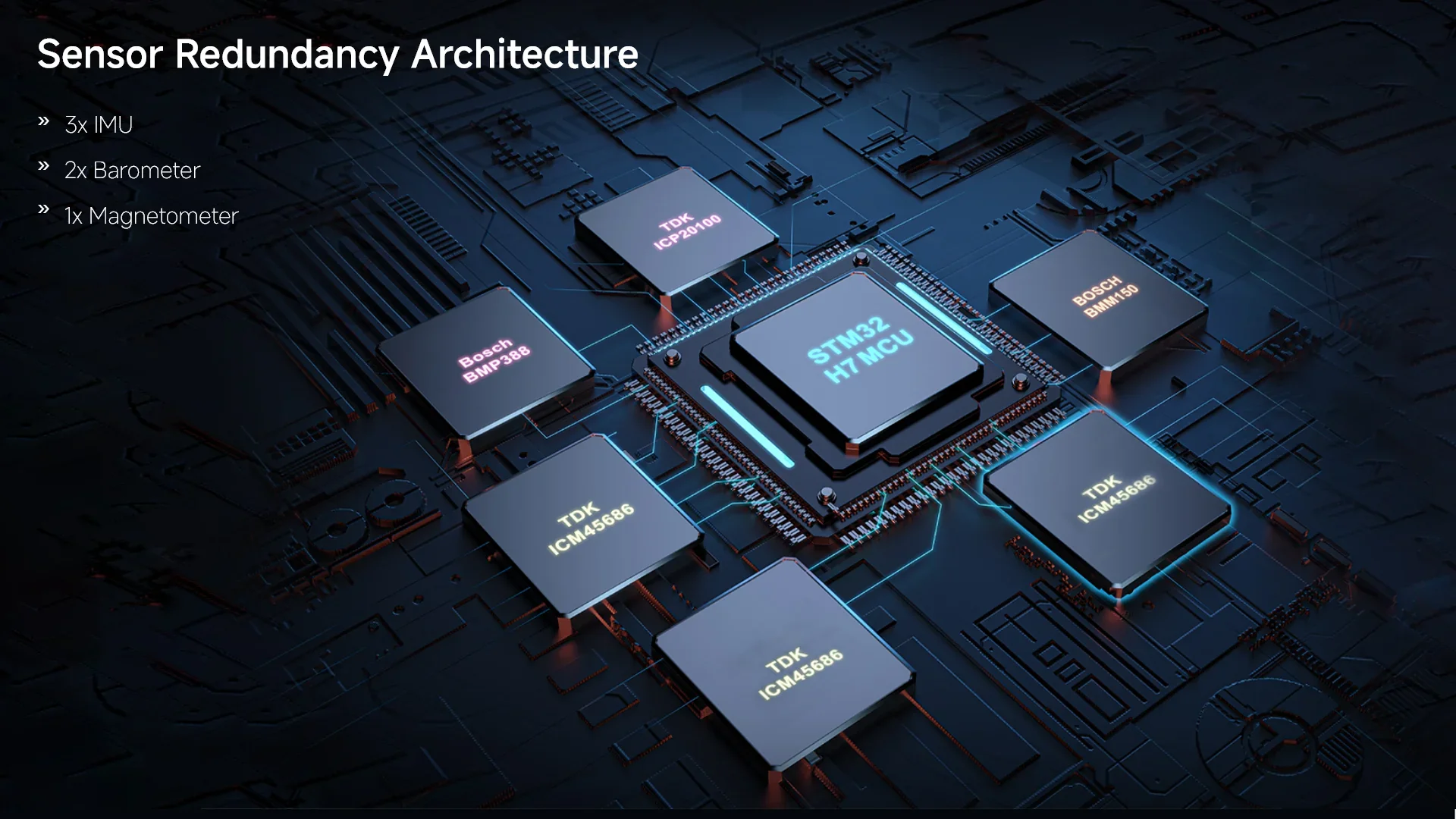

Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors

High performance STM32H753 Processor with clock speed up to 480 MHz

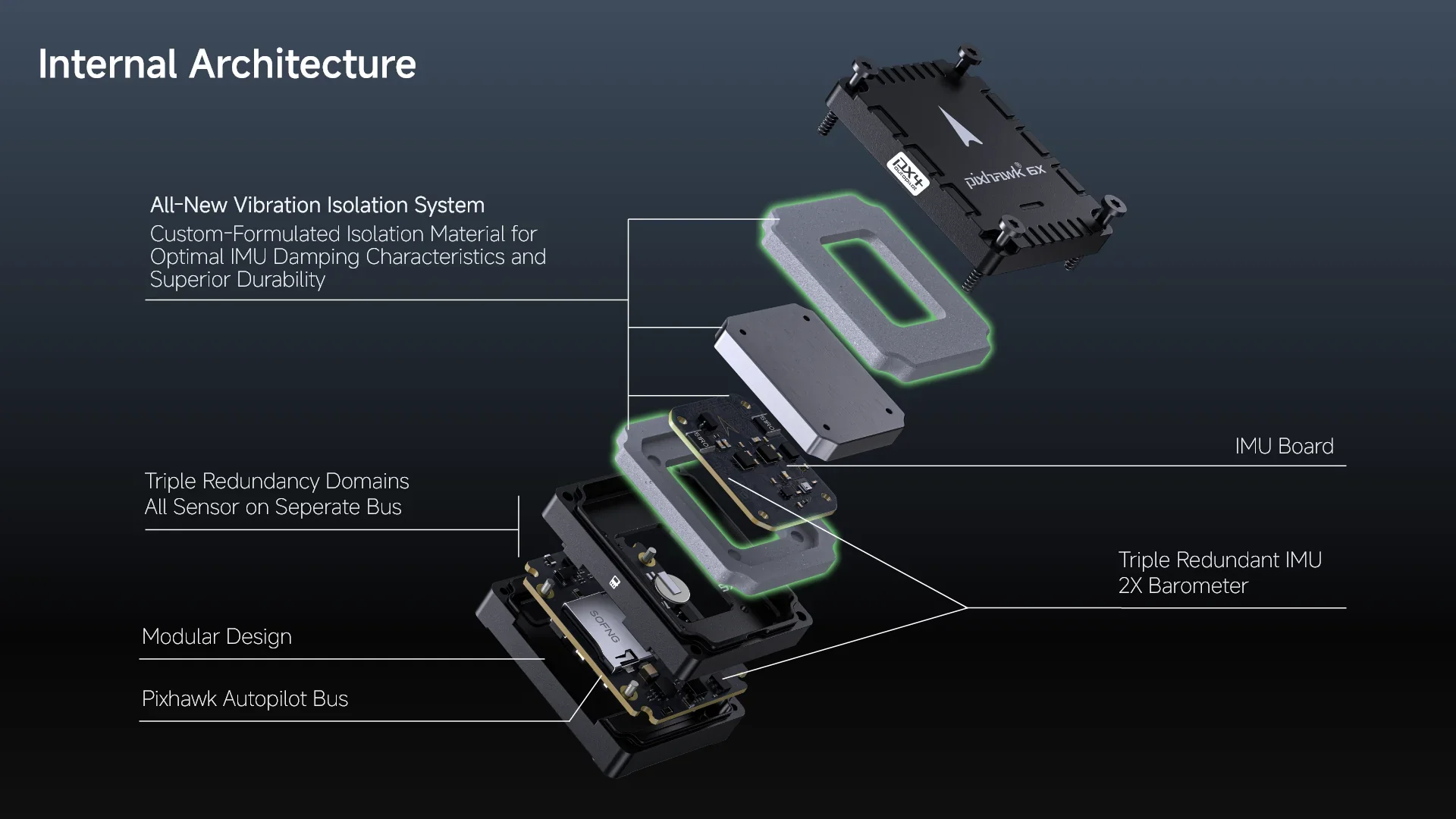

Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.

Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control

All New advanced durable vibration isolation material with resonance frequency in the higher spectrum

Ethernet interface for high-speed mission computer integration

Temperature-controlled IMU board, allowing optimum working temperature of IMUs

Note:

The Rev 8 Version is support in PX4 1.14.3 release and later. Ardupilot 4.5.0 stable release and later. Ardupilot firmware can be flash via Mission Planner or QGroundControl.

Power module comparison chart

Specification

Processors & Sensors

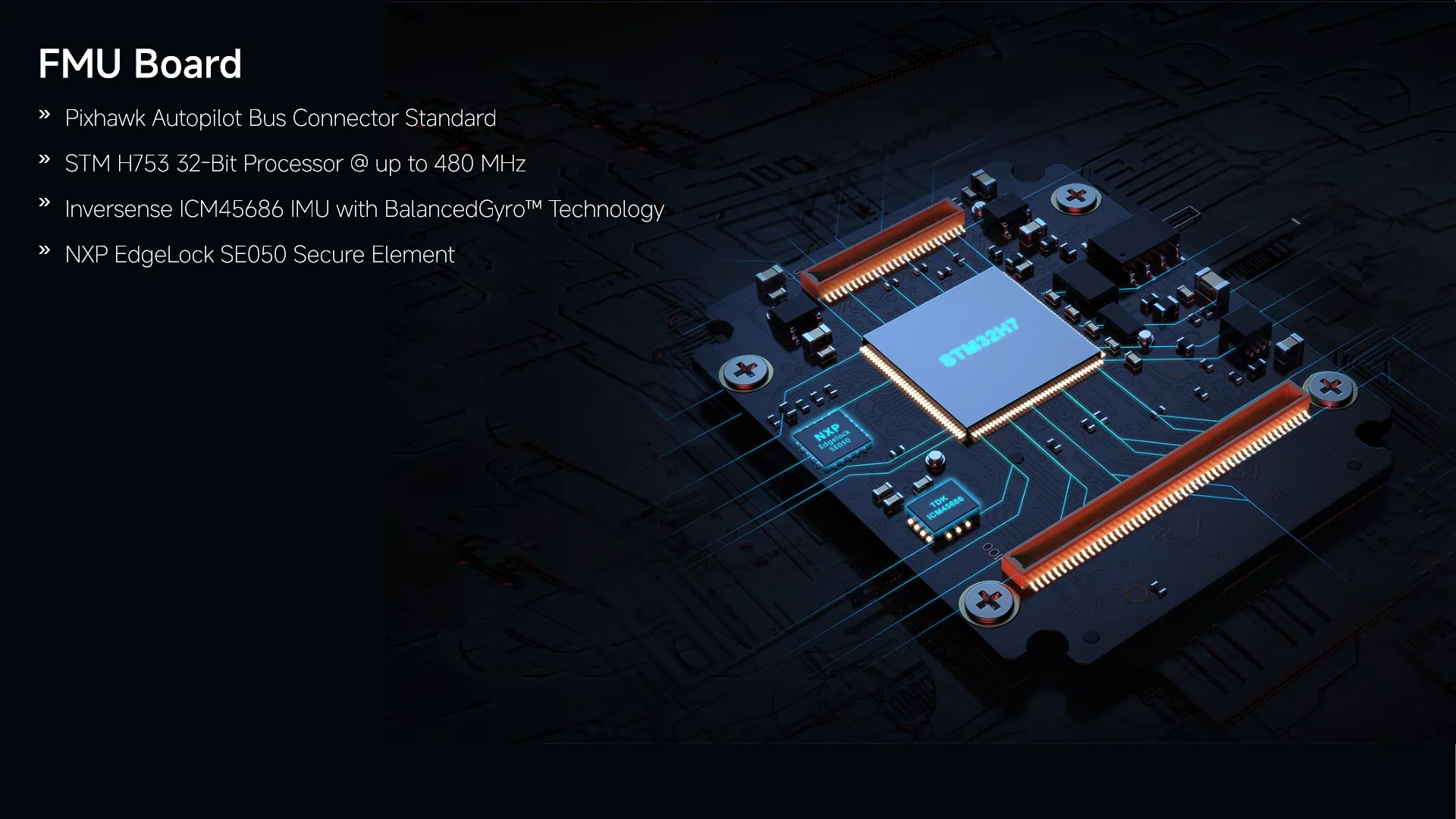

FMU Processor: STM32H753

32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

IO Processor: STM32F103

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors (Shipping Currently, Rev8)

Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)

Barometer: ICP20100 & BMP388

Mag: BMM150

On-board sensors (Previous Revision, Rev 3/4)

Accel/Gyro: BMI088/ICM-20649

Accel/Gyro: ICM-42688-P

Accel/Gyro: ICM-42670-P

Mag: BMM150

Barometer: 2x BMP388

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

Telem1 output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions

Flight Controller Module: 38.8 x 31.8 x 16.8mm

Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)

Mini Baseboard: 43.4 x 72.8 x 14.2 mm

Weight

Flight Controller Module: 31.3g

Standard Baseboard: 72.5g (Aluminum)

Mini Baseboard: 26.5g

Reference Links

Full Specification

Pixhawk Baseboards Ports

Power Module Setup Guide

Dimensions

Downloads

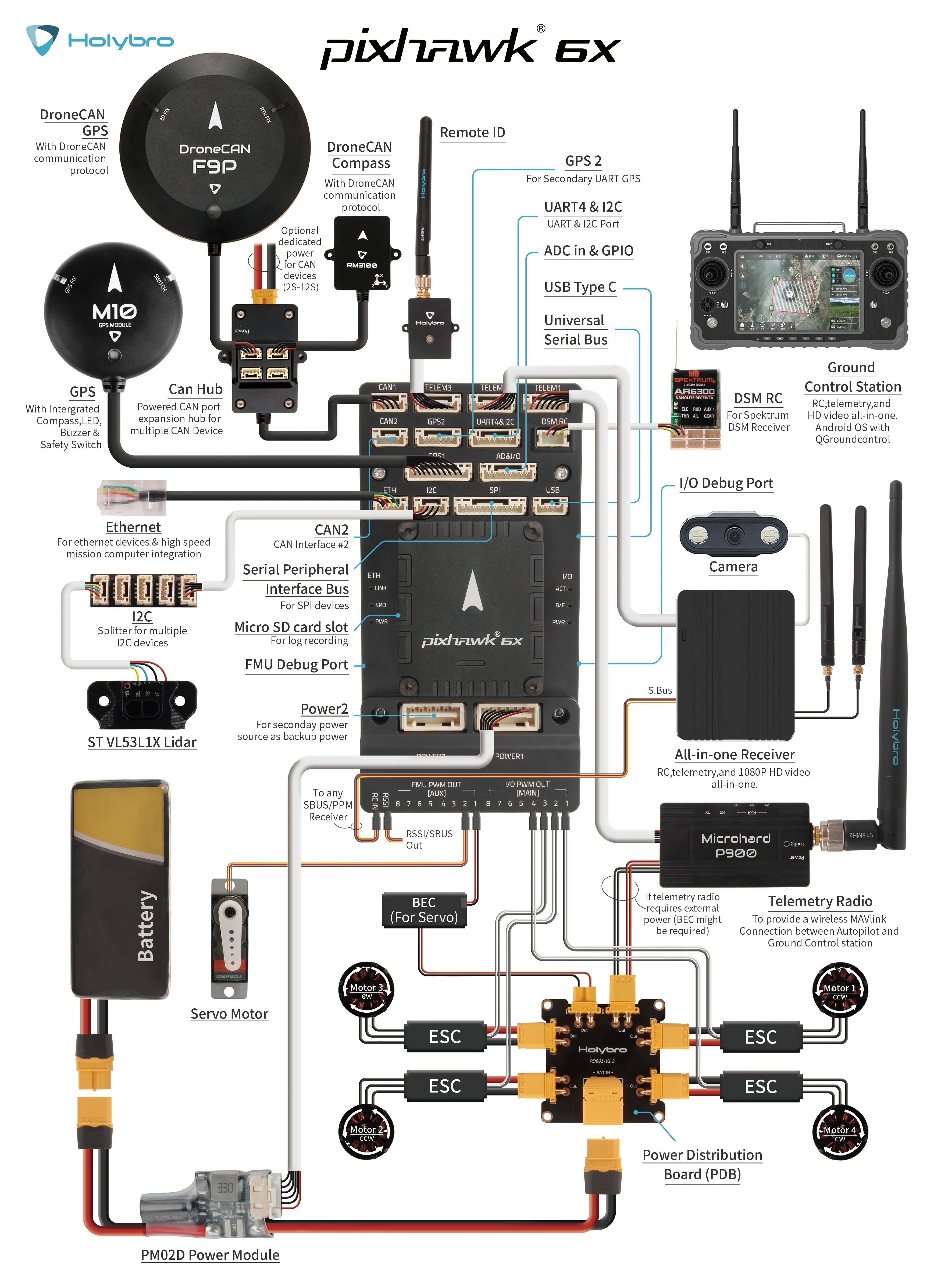

Sample Wiring Diagram

Latest info on Supported Firmware.

For other technical Information, please visit https://docs.holybro.com/.

SKU 11073 includes:

Pixhawk 6X Flight Controller Module

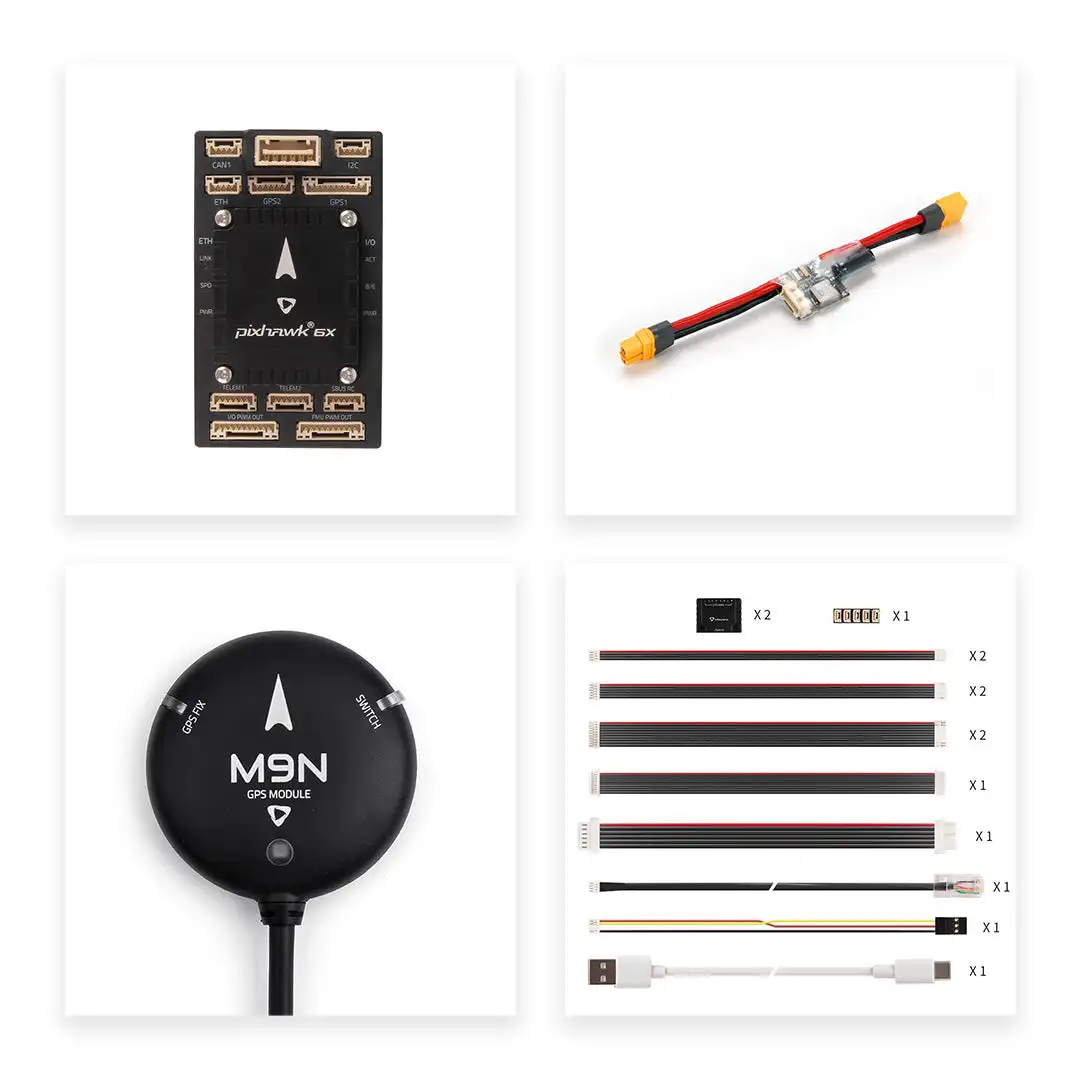

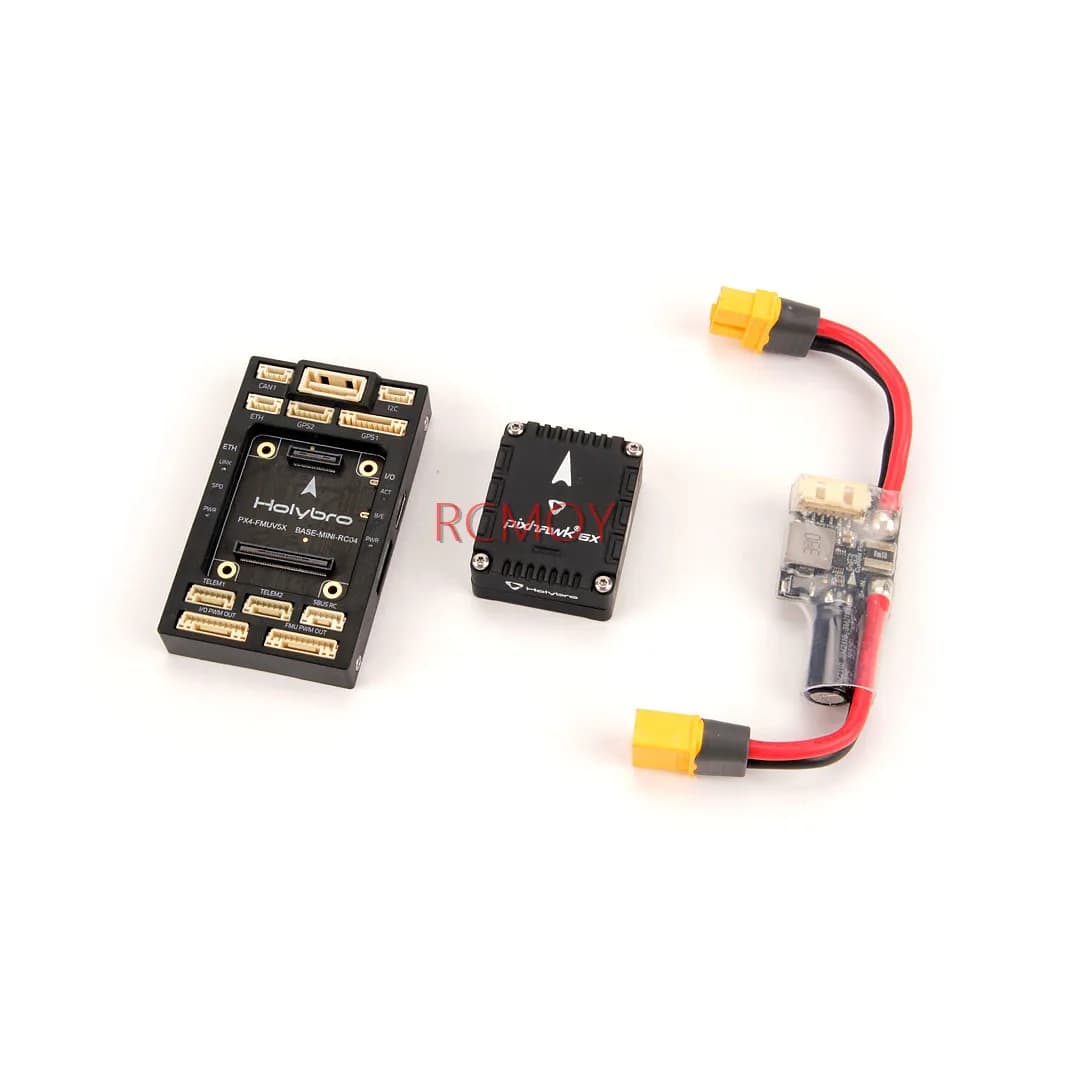

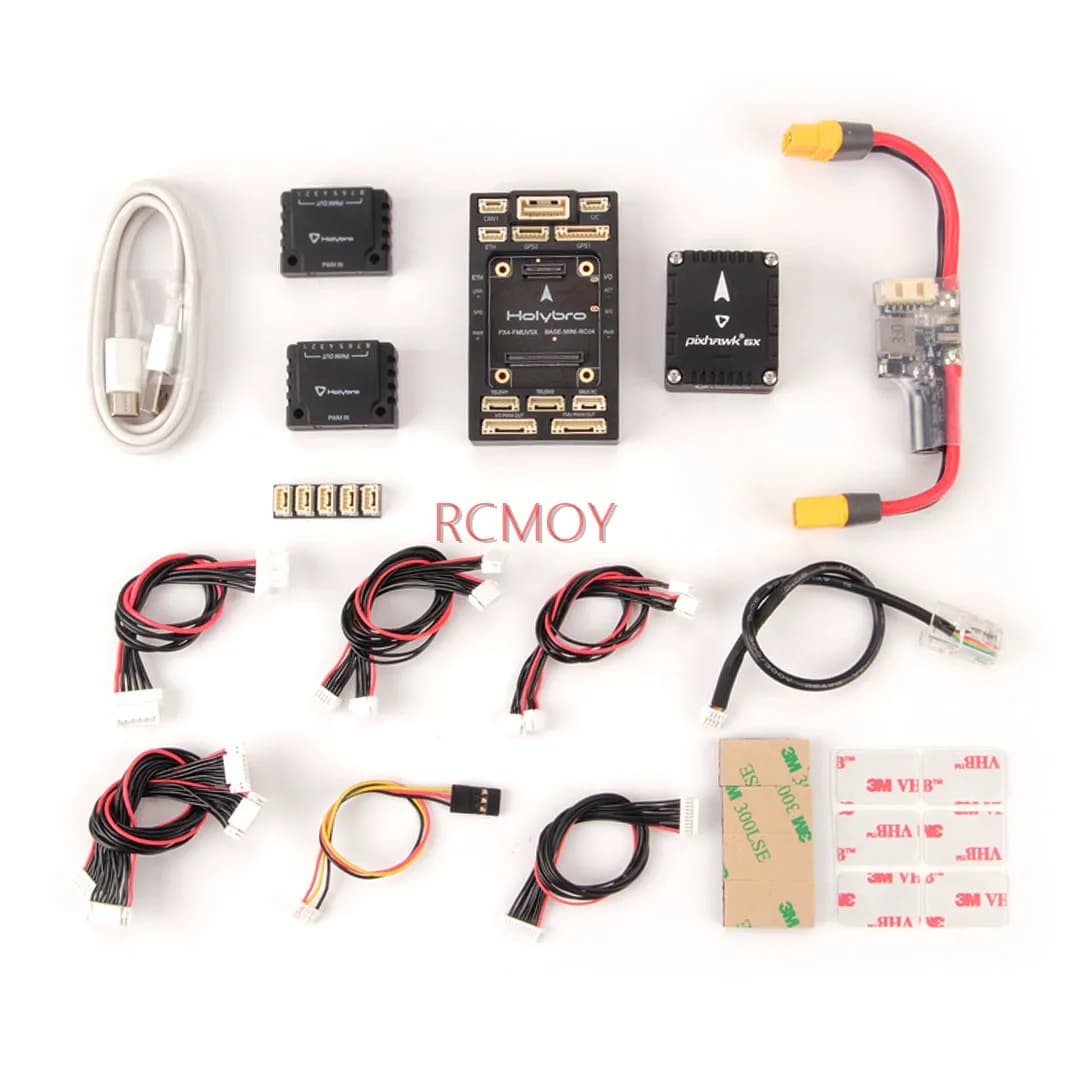

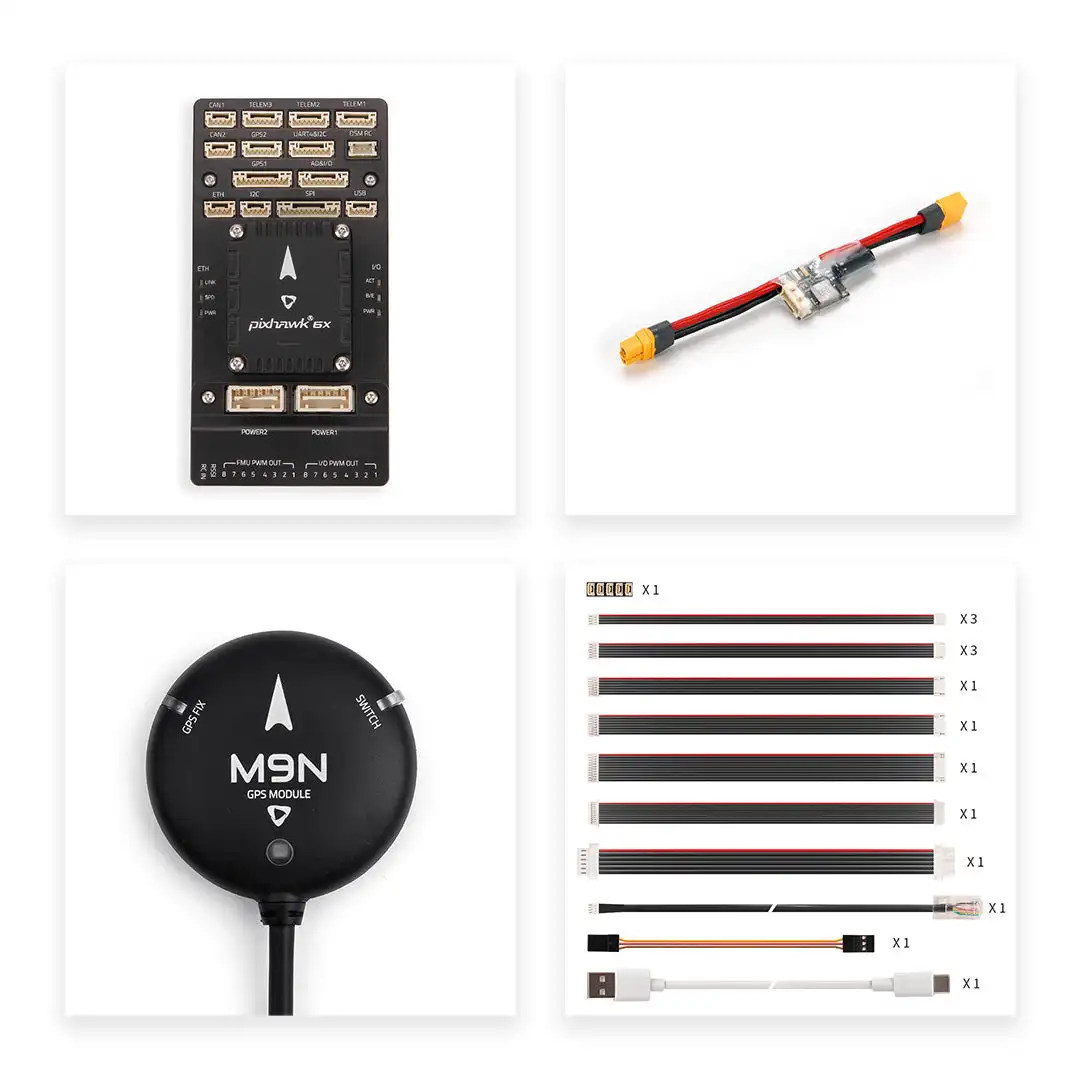

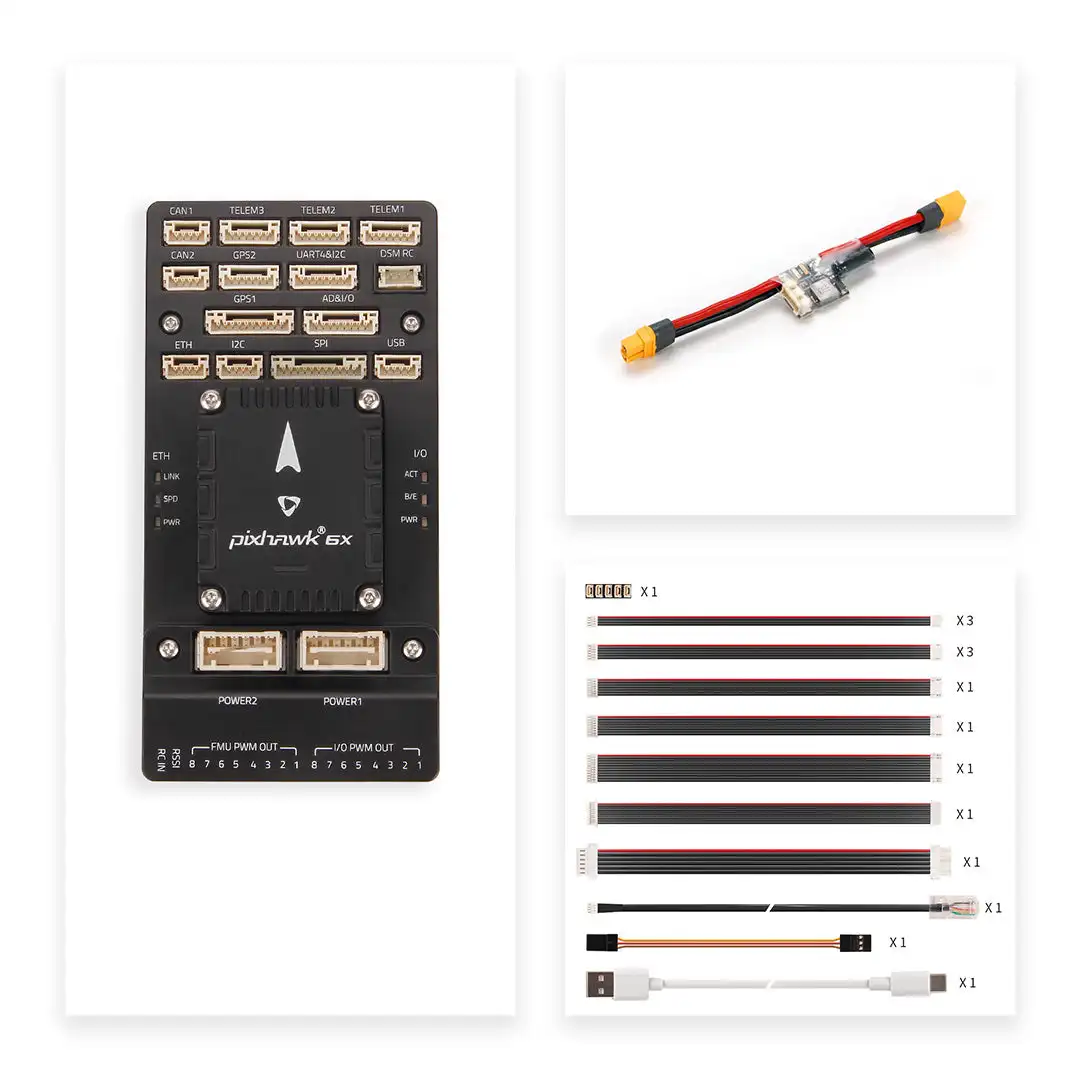

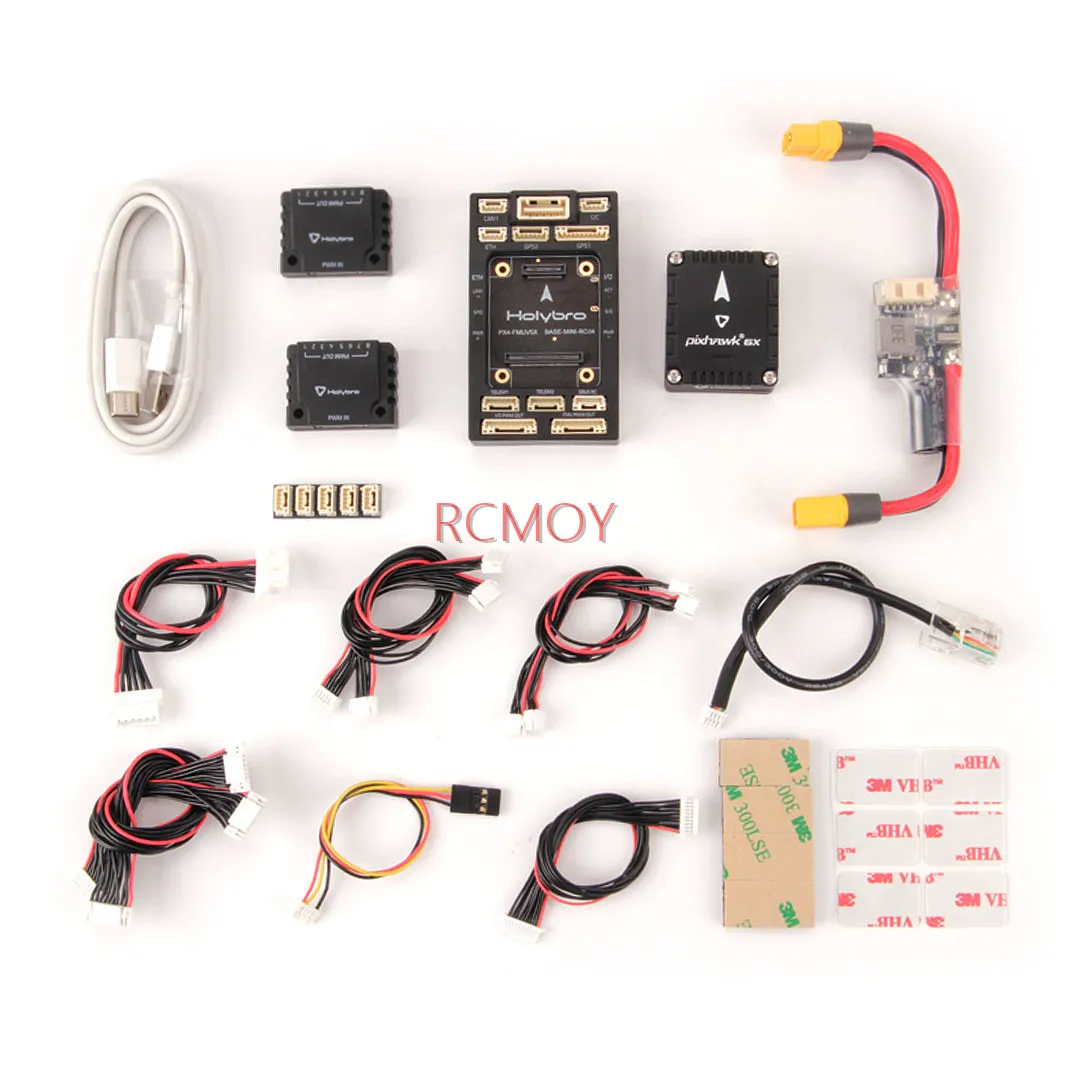

SKU 20292/SKU 20293 includes:

Pixhawk 6X Flight Controller Module

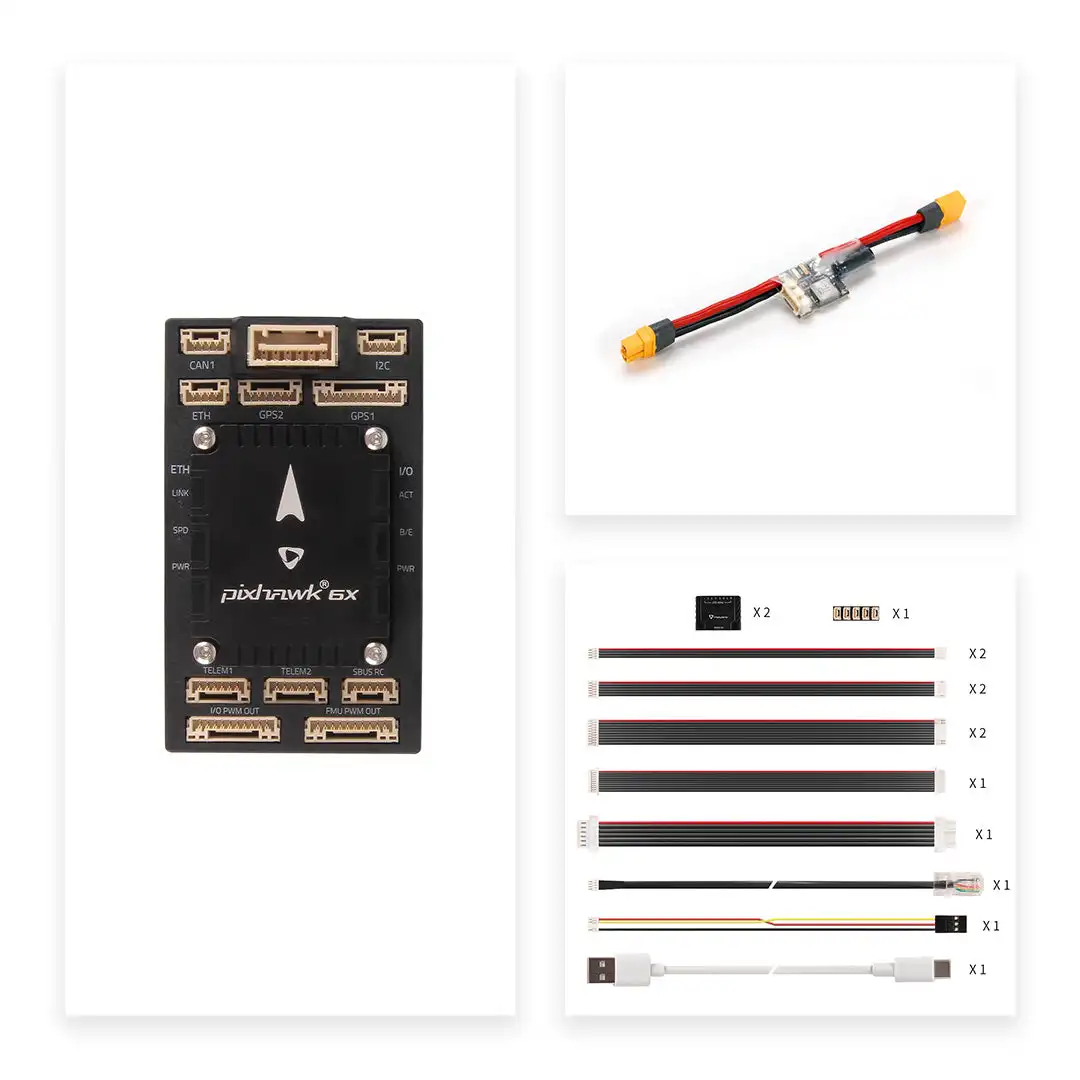

Pixhawk Standard Base / Pixhawk Mini Base

PM02D HV Power Module

Cable Set

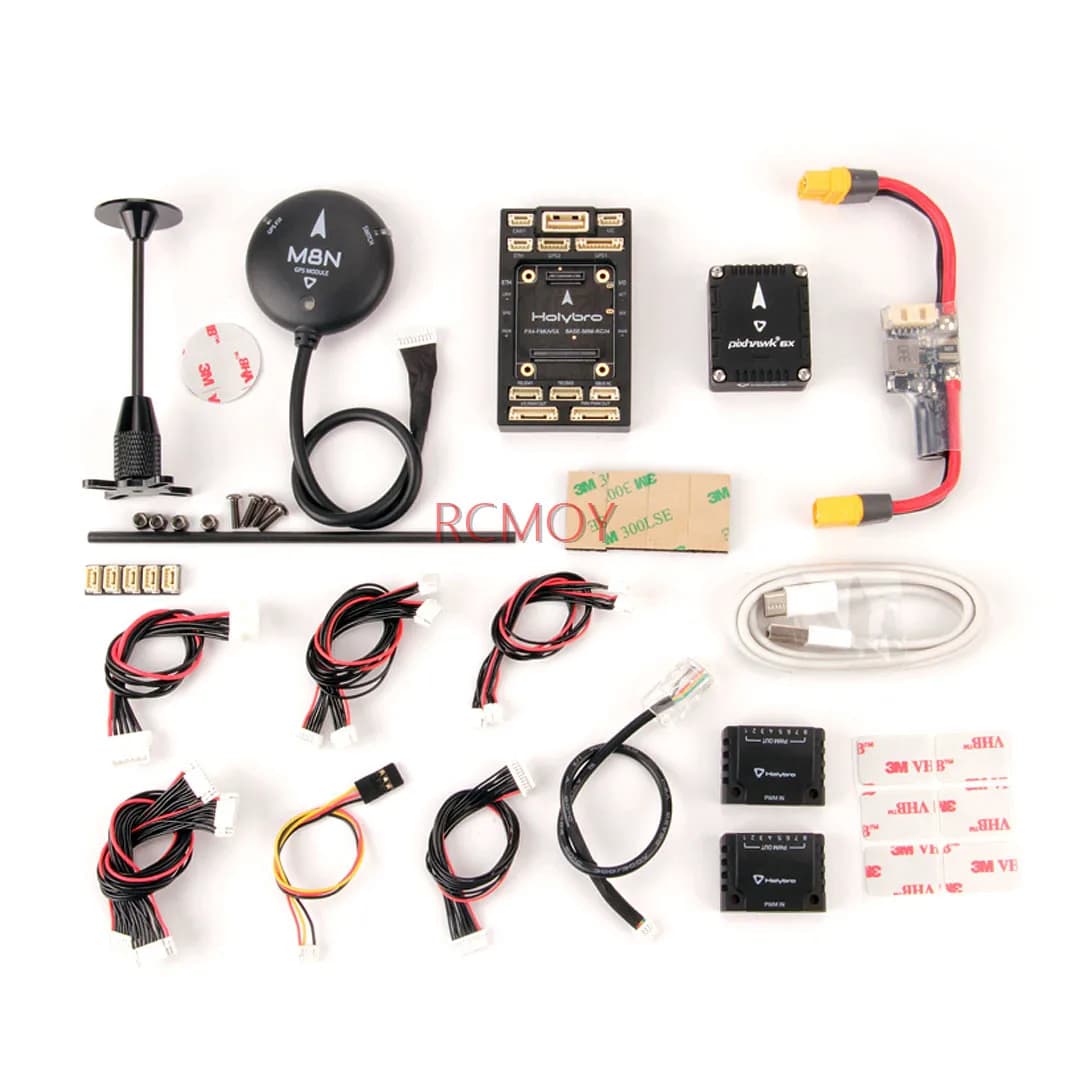

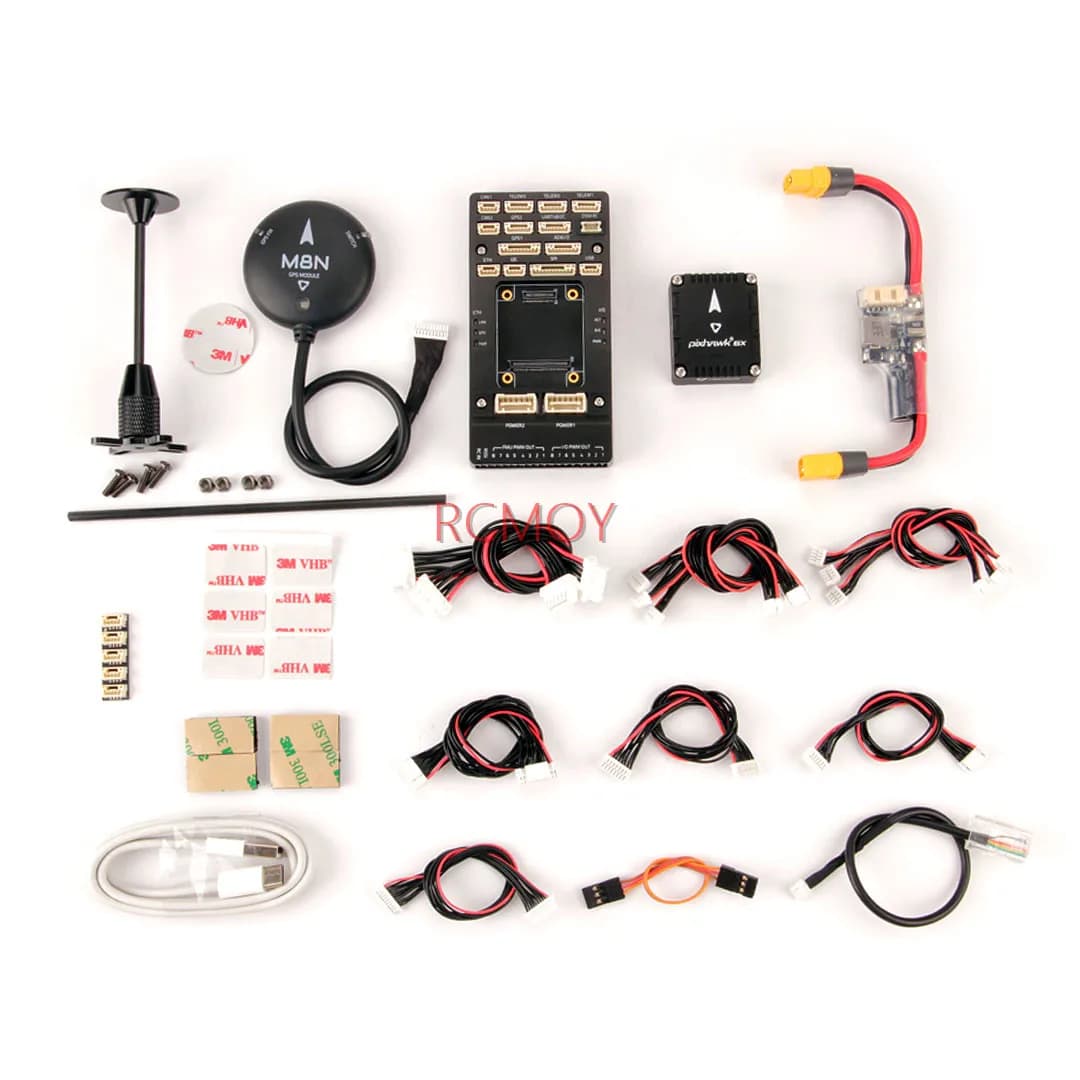

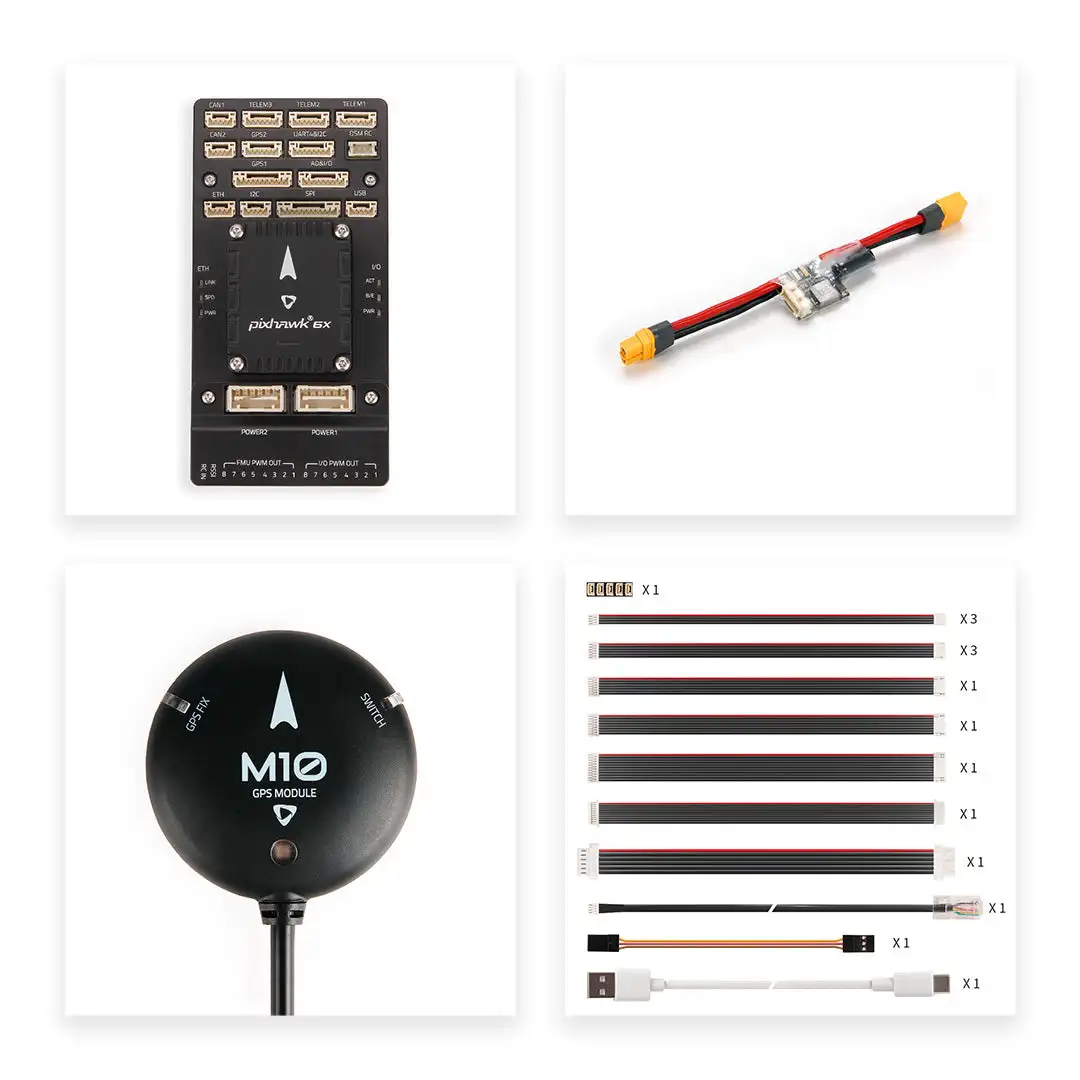

SKU 20294/20295/20296/20297

Pixhawk 6X Flight Controller Module

Pixhawk Standard Base / Pixhawk Mini Base

PM02D HV Power Module

Cable Set

M9N/M10 GPS

Overview

The Pixhawk® 6X is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6X Open Standard and the Pixhawk® Autopilot Bus Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6X, you can find an STMicroelectronics® based STM32H753, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6X’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability. An independent LDO powers every sensor set with independent power control. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via ethernet is now possible.

The Pixhawk® 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application. Holybro offers the Pixhawk Baseboard and the Pixhawk Mini-Baseboard, each with different form factor and interfaces.

Key Design Points

High performance STM32H753 Processor with clock speed up to 480 MHz

Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.

Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses

Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control

Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

Ethernet interface for high-speed mission computer integration

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Note:

M10 GPS Requires PX4 1.14 & ArduPilot 4.3 or newer.

FC Module + a baseboard is require for this product to function. A FC Module or a Baseboard by itself will not function.

Starting from Nov 21, 2023, pixhawk 6x combo set will come with PM02D-HV instead of PM02D-LV

Power module comparison chart

Specification

Processors & Sensors

FMU Processor: STM32H753

32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

IO Processor: STM32F103

32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

Accel/Gyro: ICM-45686 with BalancedGyro™ Technology x3

Barometer: ICP20100

Barometer: BMP388

Mag: BMM150

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

Telem1 output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions

Flight Controller Module: 38.8 x 31.8 x 16.8mm

Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)

Mini Baseboard: 43.4 x 72.8 x 14.2 mm

Weight

Flight Controller Module: 31.3g

Standard Baseboard: 72.5g (Aluminum)

Mini Baseboard: 26.5g

SKU 11073 includes:

Pixhawk 6X Flight Controller Module

SKU 20292/SKU 20293 includes:

Pixhawk 6X Flight Controller Module

Pixhawk Standard Base / Pixhawk Mini Base

PM02D HV Power Module(Previously shipped with PM02D-LV)

Cable Set

SKU 20294/20295/20296/20297

Pixhawk 6X Flight Controller Module

Pixhawk Standard Base / Pixhawk Mini Base

PM02D HV Power Module (Previously shipped with PM02D-LV)

Cable Set

M9N/M10 GPS

For other technical Information, please visit https://docs.holybro.com/.

Full Specification

Pixhawk Baseboards Ports

Power Module Setup Guide

Dimensions

Downloads

Sample Fixed Wing VTOL Wiring Diagram

Latest info on Supported Firmware.

If you need manual, please contact seller

11073:

20292:

20293:

20294:

20295:

20296:

20297:

Note:

M10 GPS Requires PX4 1.14 & ArduPilot 4.3 or newer.

FC Module + a baseboard is require for this product to function. A FC Module or a Baseboard by itself will not function.

PM02 High Voltage (2S-12S) Power Module can be purchased here

Power module comparison chart

SKU 20172/SKU 20173 includes:

Pixhawk 6X Flight Controller Module

Pixhawk Standard Base / Pixhawk Mini Base

PM02D LV Power Module

Cable Set

SKU 20243/20242/20245/20244

Pixhawk 6X Flight Controller Module

Pixhawk Standard Base / Pixhawk Mini Base

PM02D LV Power Module

Cable Set

M9N/M10 GPS

Inside the Pixhawk® 6X, you can find an STMicroelectronics® based STM32H753, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6X’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. The PX4 Autopilot takes advantage of the increased power and RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability.

An independent LDO powers every sensor set with independent power control. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via ethernet is now possible.

The Pixhawk® 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

High performance STM32H753 Processor

Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.

Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses

Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control

Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

Ethernet interface for high-speed mission computer integration

IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

FMU Processor: STM32H753

32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM

IO Processor: STM32F100

32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM

On-board sensors

Accel/Gyro: ICM-20649

Accel/Gyro: ICM-42688-P

Accel/Gyro: ICM-42670-P

Mag: BMM150

Barometer: 2x BMP388

Electrical data

Voltage Ratings:

Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Current Ratings:

Telem1 output current limiter: 1.5A

All other port combined output current limiter: 1.5A

Mechanical data

Dimensions

Flight Controller Module: 38.8 x 31.8 x 14.6mm

Standard Baseboard: 52.4 x 103.4 x 16.7mm

Mini Baseboard: 43.4 x 72.8 x 14.2 mm

Weight

Flight Controller Module: 23g

Standard Baseboard: 51g

Mini Baseboard: 26.5g

Interfaces

16- PWM servo outputs

R/C input for Spektrum / DSM

Dedicated R/C input for PPM and S.Bus input

Dedicated analog / PWM RSSI input and S.Bus output

4 general purpose serial ports

3 with full flow control

1 with separate 1.5A current limit (Telem1)

1 with I2C and additional GPIO line for external NFC reader

2 GPS ports

1 full GPS plus Safety Switch Port

1 basic GPS port

1 I2C port

1 Ethernet port

Transformerless Applications

100Mbps

1 SPI bus

2 chip select lines

2 data-ready lines

1 SPI SYNC line

1 SPI reset line

2 CAN Buses for CAN peripheral

CAN Bus has individual silent controls or ESC RX-MUX control

2 Power input ports with SMBus

1 AD & IO port

2 additional analog input

1 PWM/Capture input

2 Dedicated debug and GPIO lines

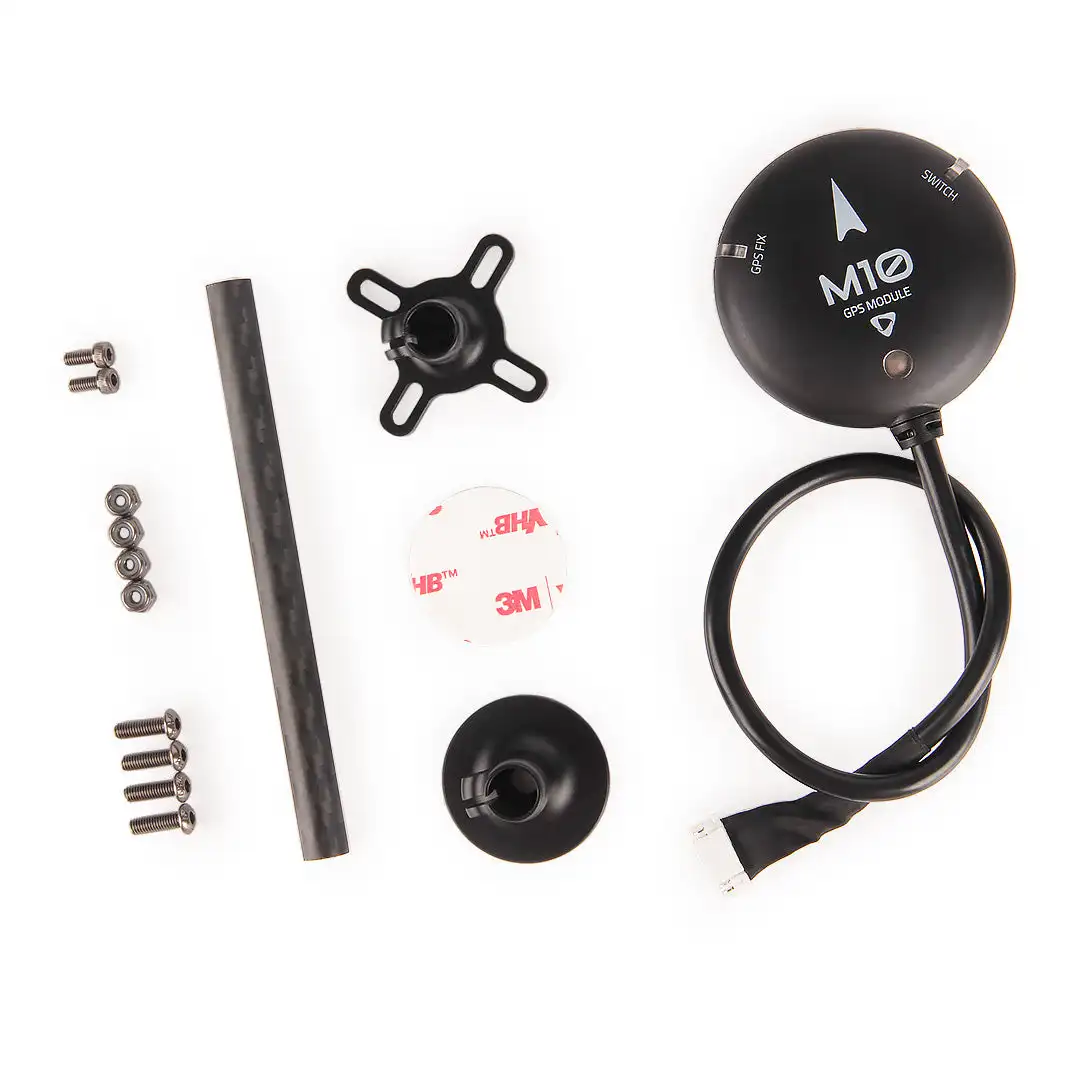

M10 GPS

Overview

The M10 GPS uses multi-constellation GNSS powered by u-bl0x M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features

Newest Ubl0x 10th Gen GNSS

Fast & Accurate Positioning

High-gain 25*25*4mm antenna

IST8310 Compass

Internal Buzzer, Safety switch

Ultra Bright UI RGB LED

Specification

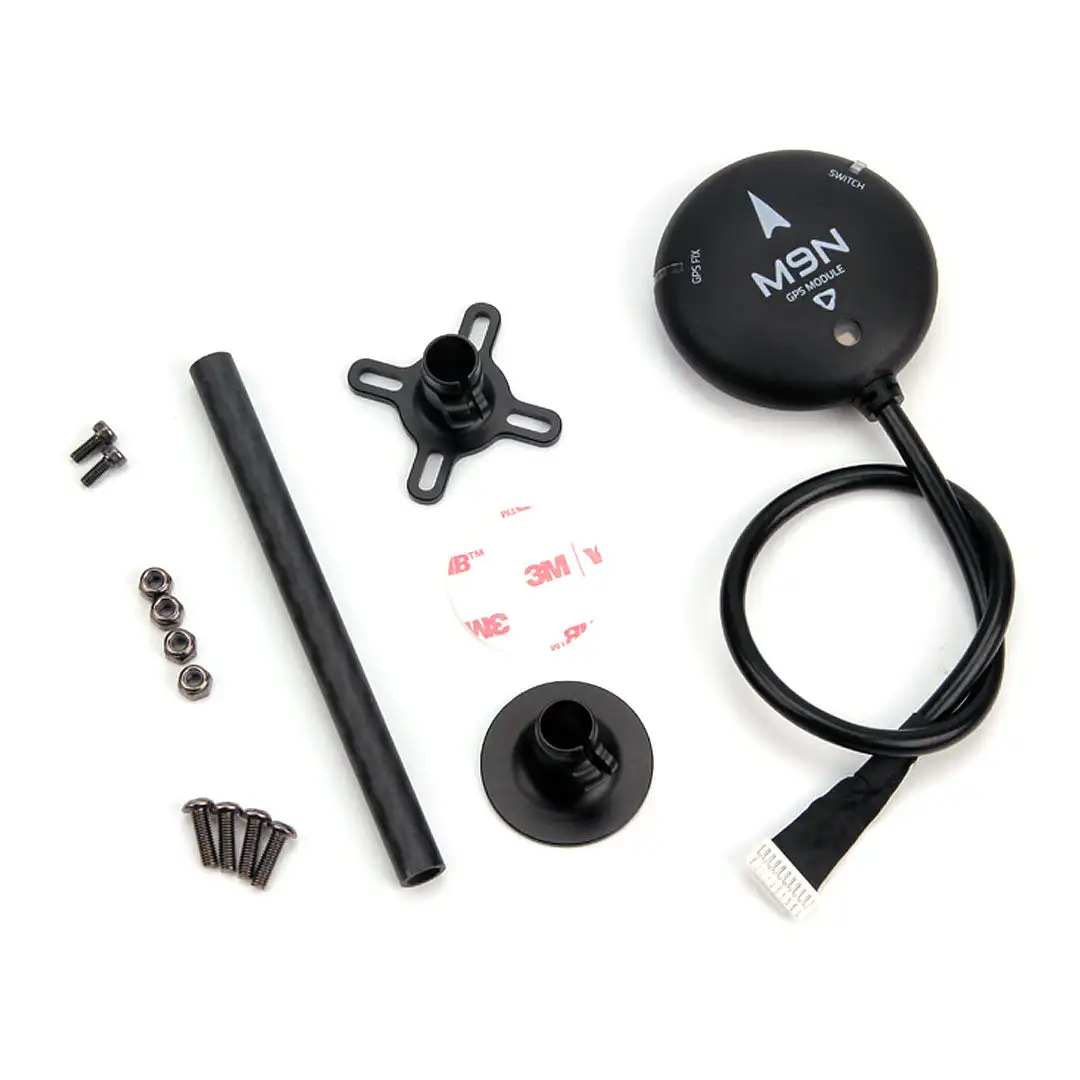

M9N GPS
