APNewest Holybro Kakute H7 v1.5 Flight Control ICM-42688-P SPA06 Barometer /Bluetooth BetaFlight/INAV/ArduPilot For FPV Racing
Reference price:
US $146.05
1-10 pcs$142(-3%)
10-100 pcs$136(-7%)
100+ pcs$128(-12%)
2 orders (reference)
Description
APNewest Holybro Kakute H7 v1.5 Flight Control ICM-42688-P SPA06 Barometer /Bluetooth BetaFlight/INAV/ArduPilot For FPV Racing High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: H7 V1.5 For Vehicle Type: Airplanes
Select options
Variant
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | H7 V1.5 |
| For Vehicle Type | Airplanes |
| RC Parts & Accs | Connectors/Wiring |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
The version that is being shipped at the moment is Kakute H7 V1.5. For details on the difference between versions, please see this chart.
Due to the end of production of MPU6000 IMU, ICM-42688-P will be used for the new version of Kakute H7, which is supported by Betaflight version 4.5.2 and later.
Description:

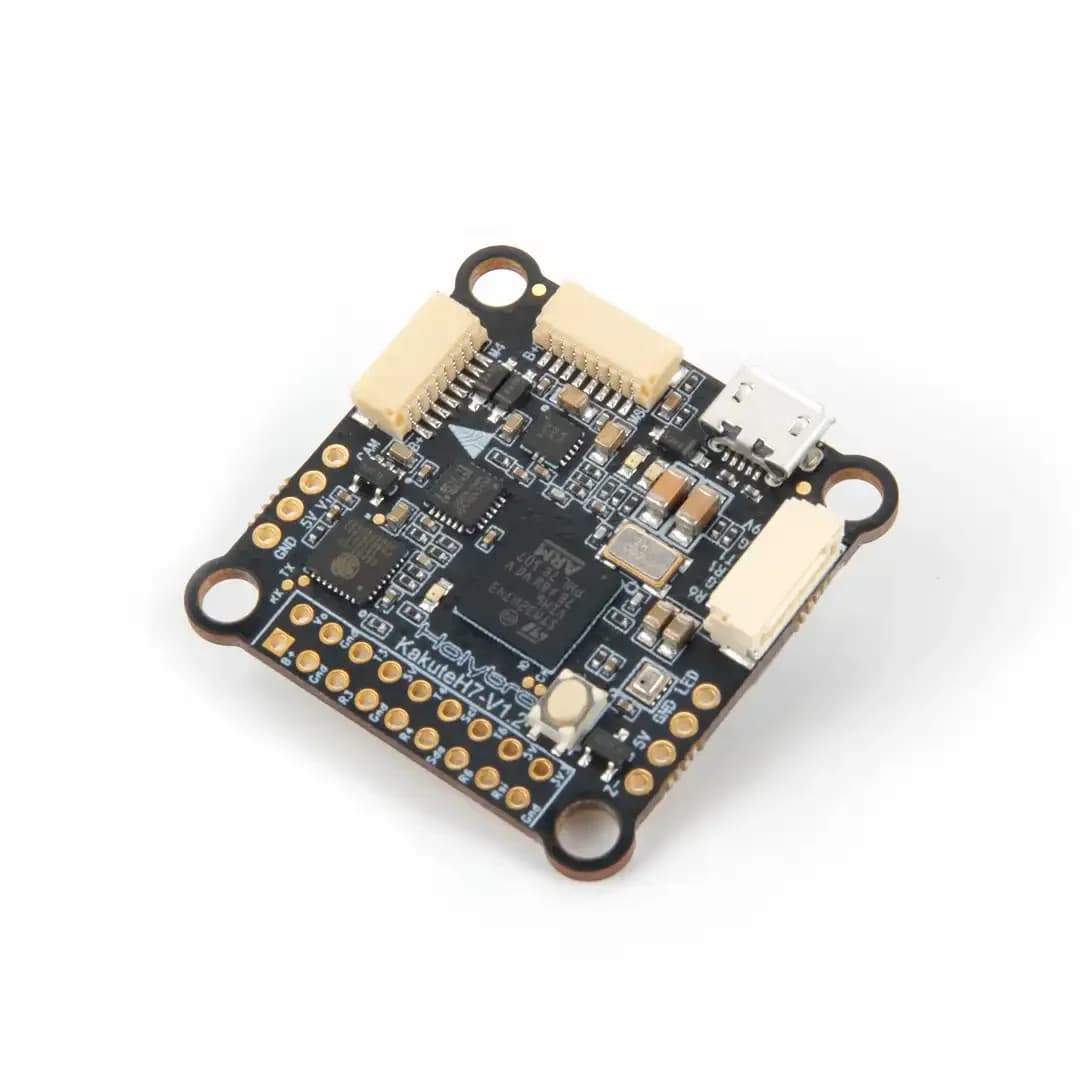

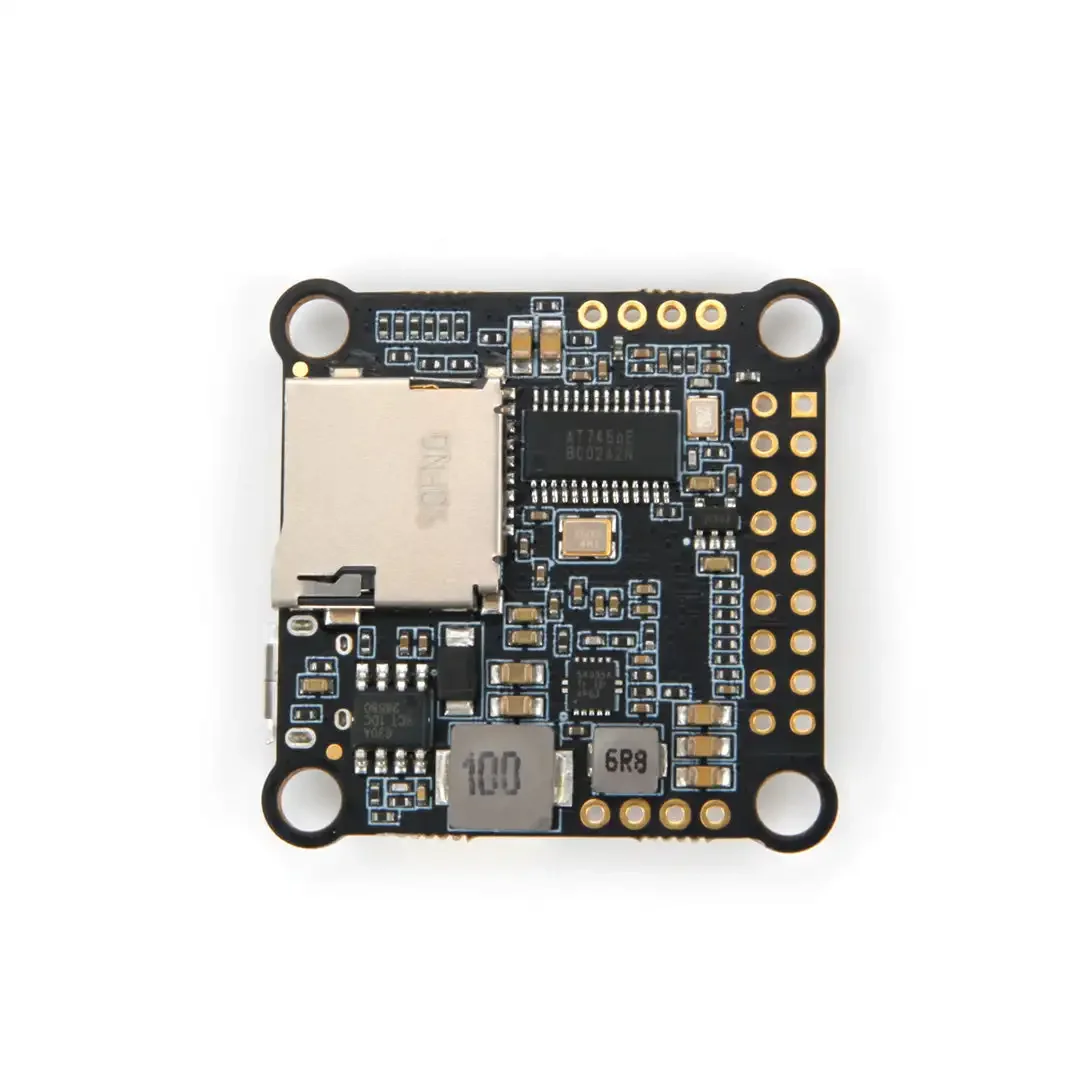

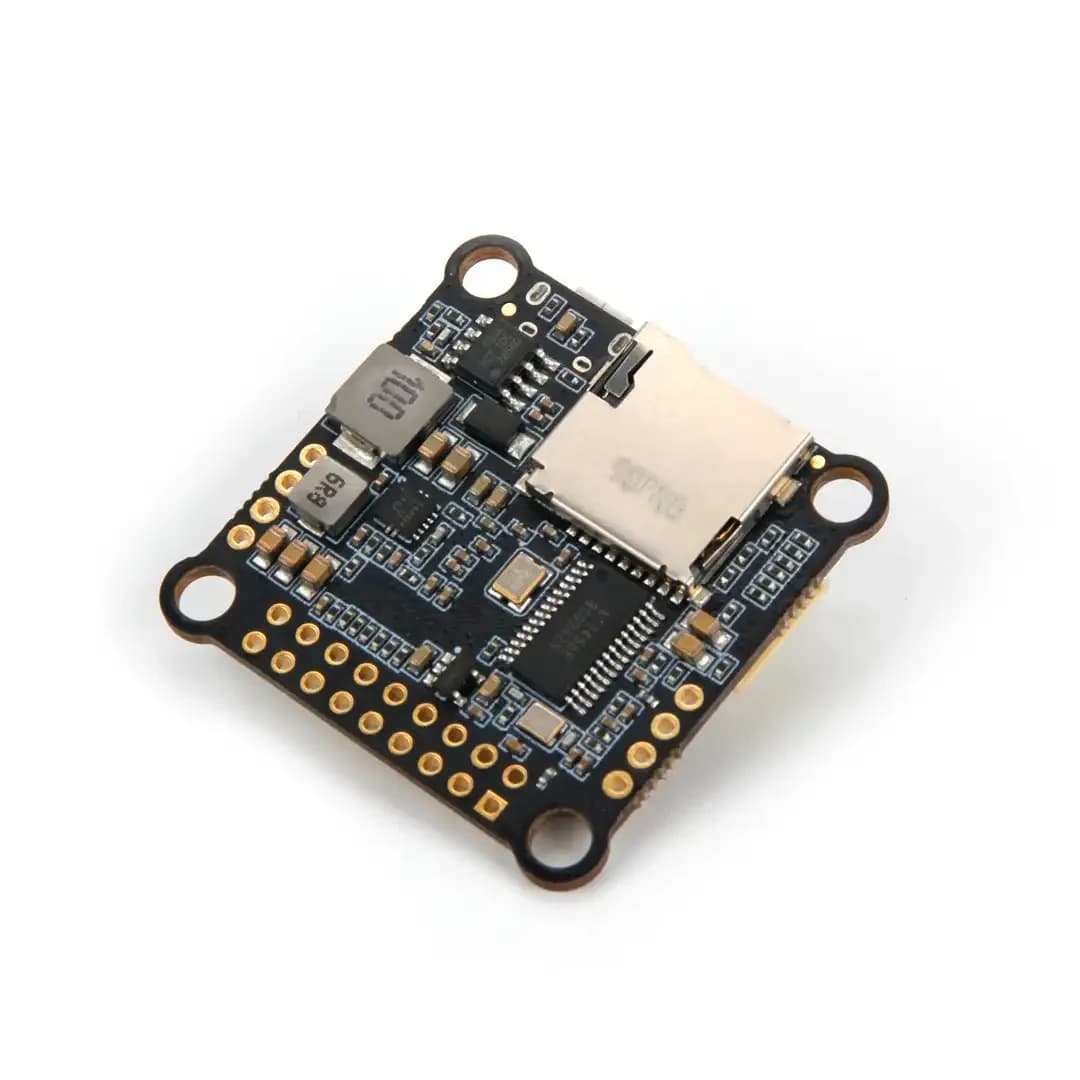

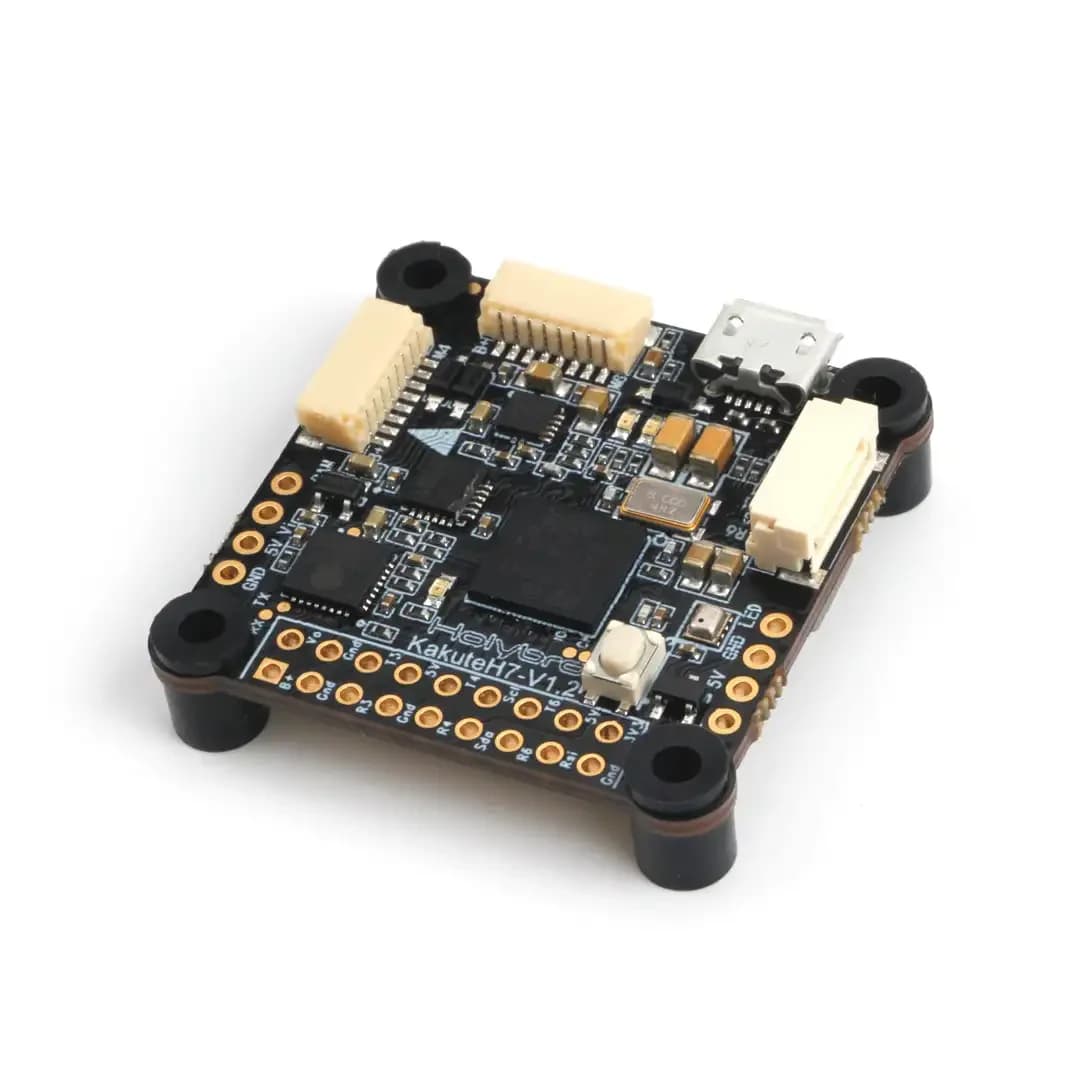

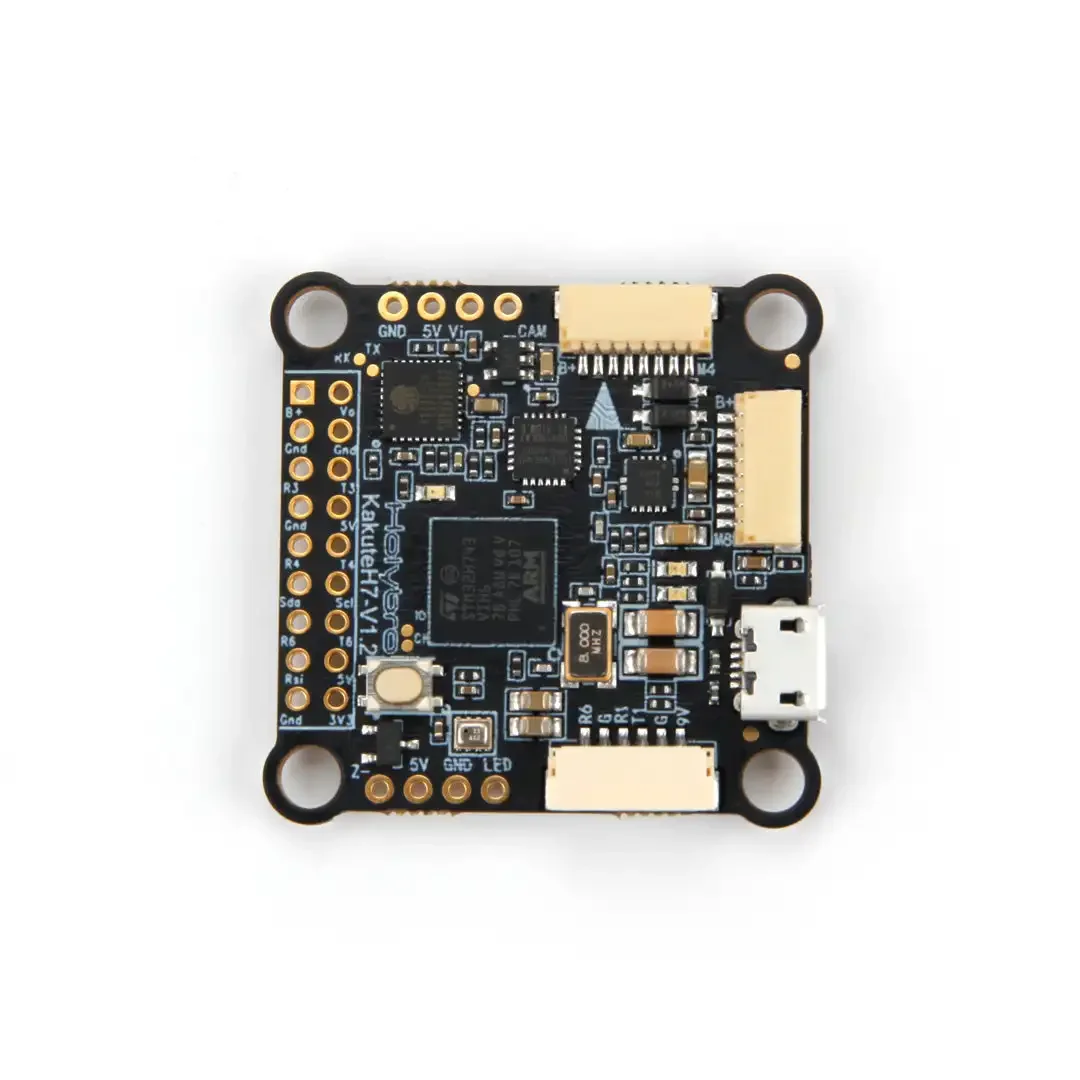

The Holybro Kakute H7 Flight Controller is full of features, including integrated Bluetooth, dual plug-and-play 4in1 ESC ports, HD camera plug, barometer, OSD, 6x UARTs, full Blackbox MicroSD card slot, 5V and 9V/3A BEC, easy soldering layout, and much more.
The Kakute H7 builds upon the best features of its F7 predecessor and further improves on hardware components and layout. With the onboard Bluetooth chip (optional), you can perform Betaflight configuration and tune wirelessly on your phone with the SpeedyBee Android & IOS App. The Kakute H7 is DJI HD ready. It has an easy plug-and-play port with an onboard 9V regulator designed to power your HD video transmitter like DJI/Caddx FPV Air Unit & Caddx Vista while supporting analog VTX systems.
It has 6x dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry), along with a full MicroSD Card slot for virtually unlimited Blackbox data logging. Dual plug-and-play 4in1 ESC connectors, allowing easy plug-and-play support for x8 Octocopter configuration and keeping it simple and clean. The integrated BetaFlight OSD makes it easy to display important information on your FPV display like battery voltage, flight time, warnings, RSSI, smart audio features, and more. It also has an onboard barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers

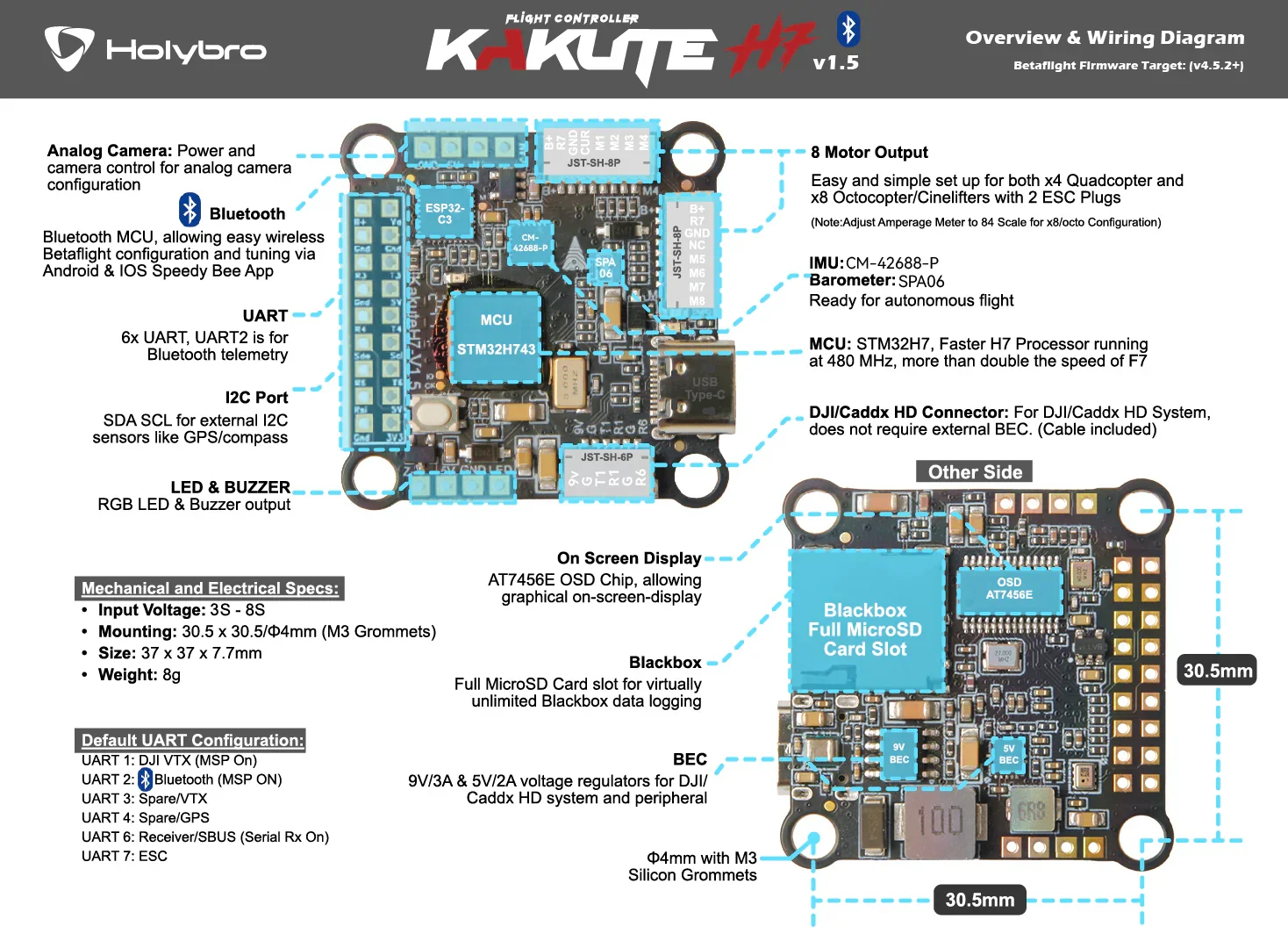

Kakute H7 Specification :
MCU - STM32H743 32-bit processor running at 480 MHz
Professional underfill epoxy for mechanical reinforcement
IMU , ICM-42688-P (V1.5)
Barometer - SPA06 (BMP280 for previouse version)
OSD - AT7456E
Onboard Bluetooth chip - ESP32-C3
SpeedyBee IOS & Android App Compatible
Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (armed) and turn on automatically when the flight controller is locked (disarmed) in Betaflight
6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
9x PWM Outputs (8 Motor Output, 1 LED)
2x JST-SH1.0 8-pin ESC port (4in1 ESCs, x8/Octocopter compatible)
1x JST-SH1.0 6-pin VTX port (For HD Systems like Caddx Vista & Air Unit)
Battery input voltage: 3S - 8S
BEC 5V 2A Cont.
BEC 9V 3A Cont
USB Type-C
Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
Dimension - 35x35mm
Weight - 8g
