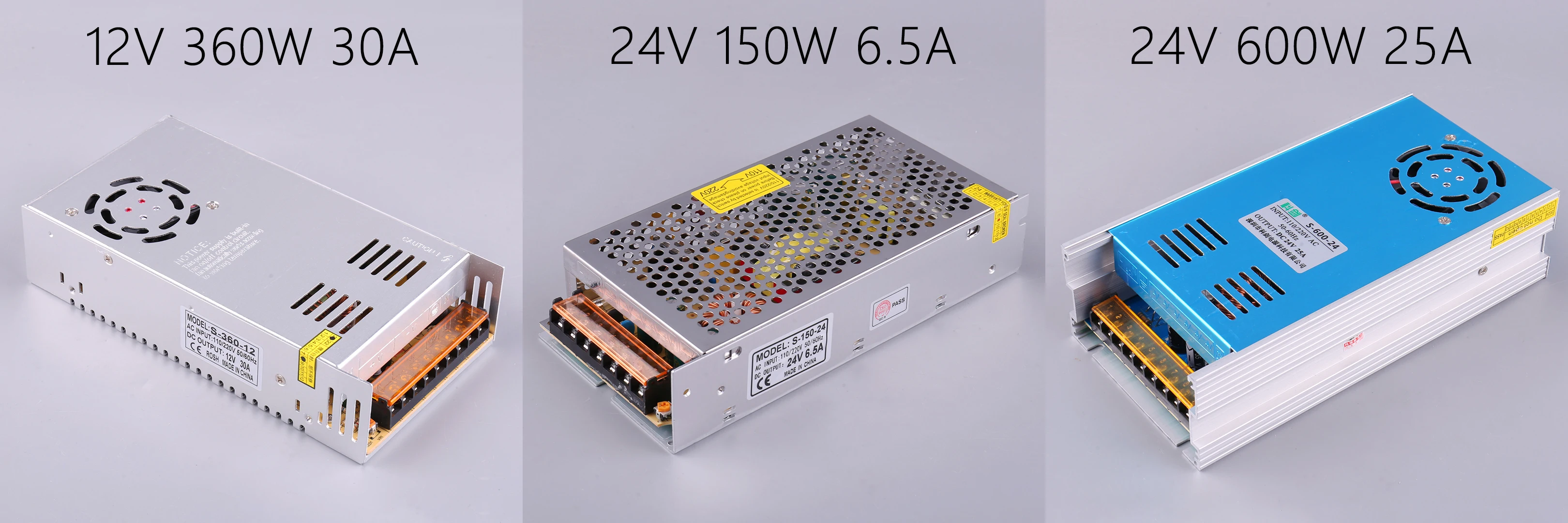

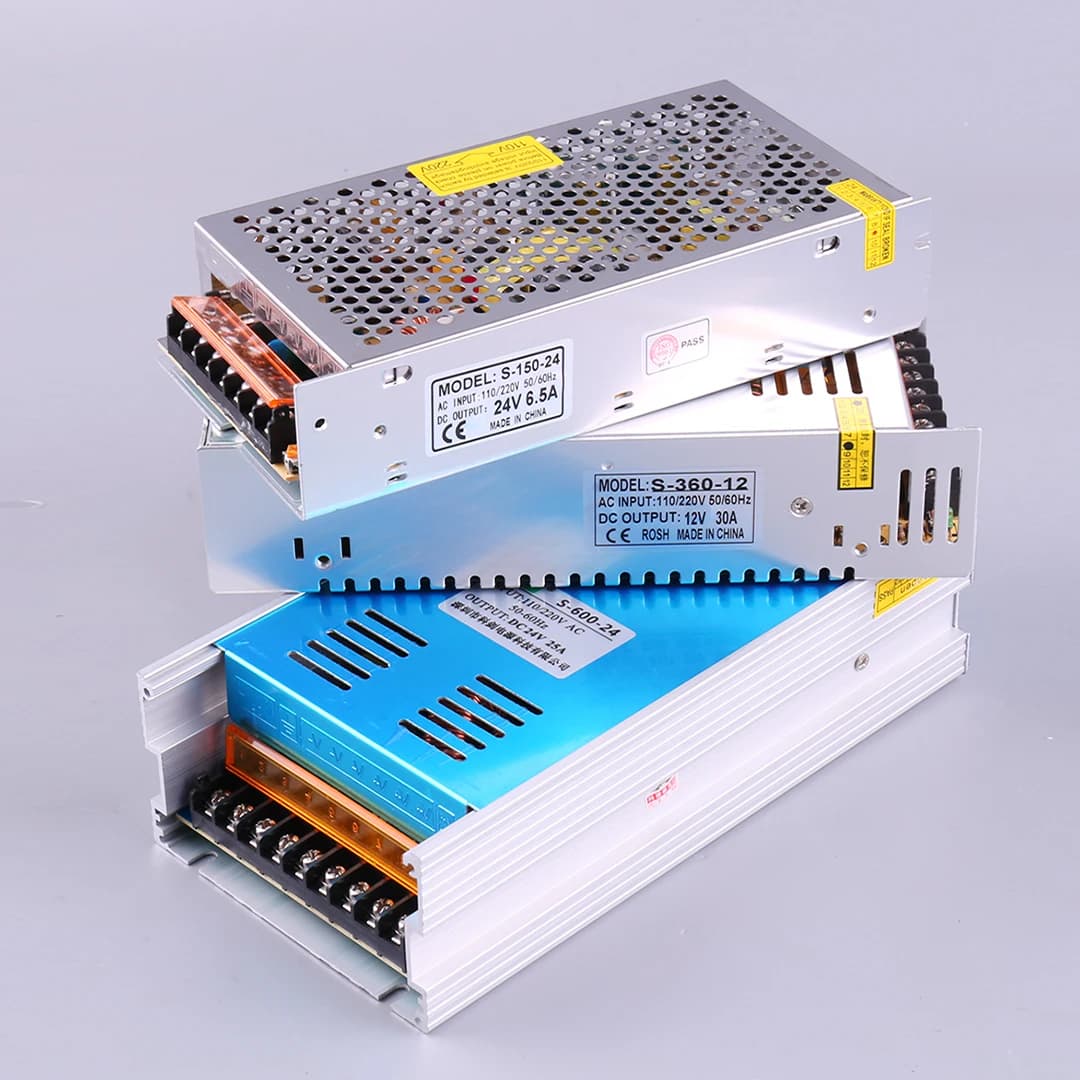

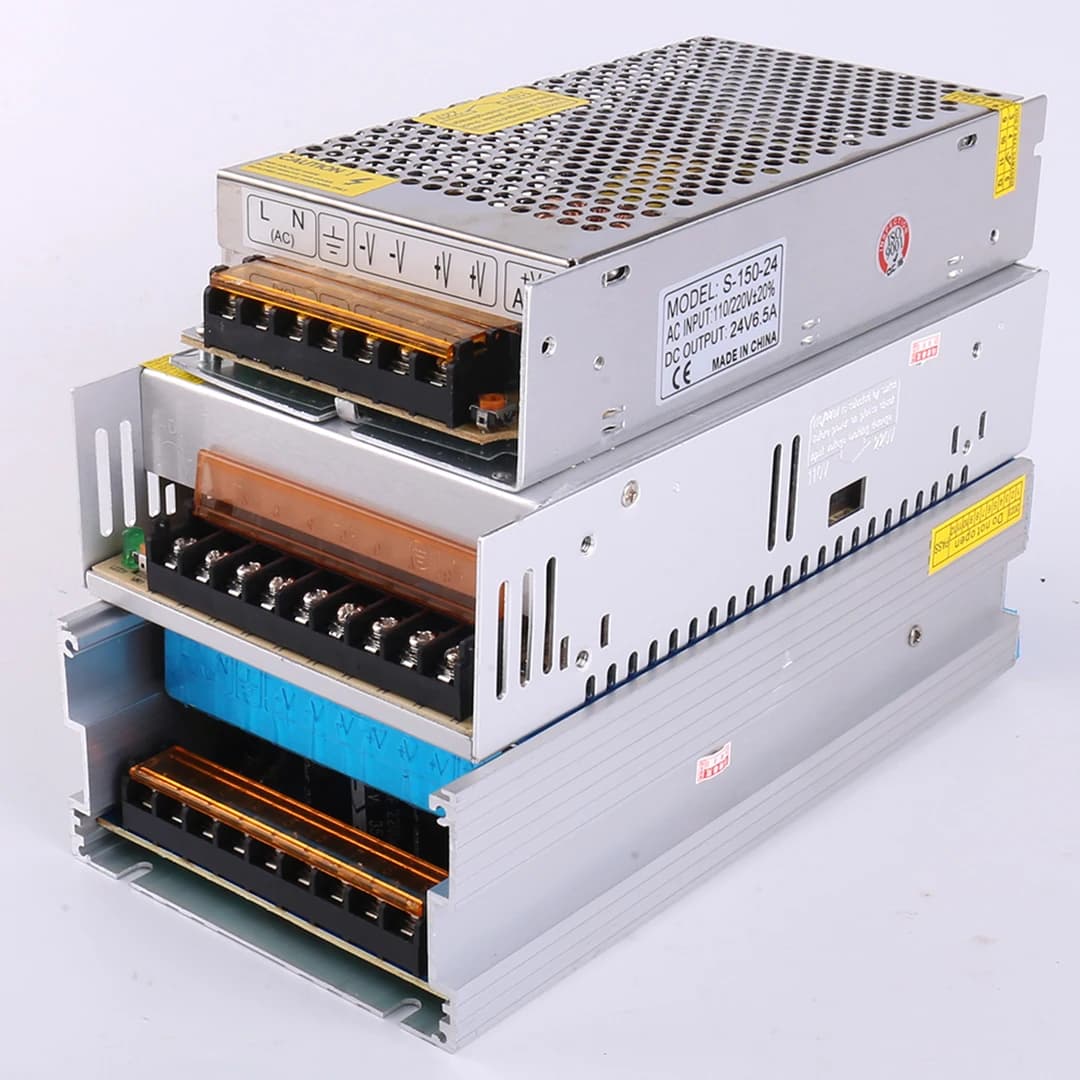

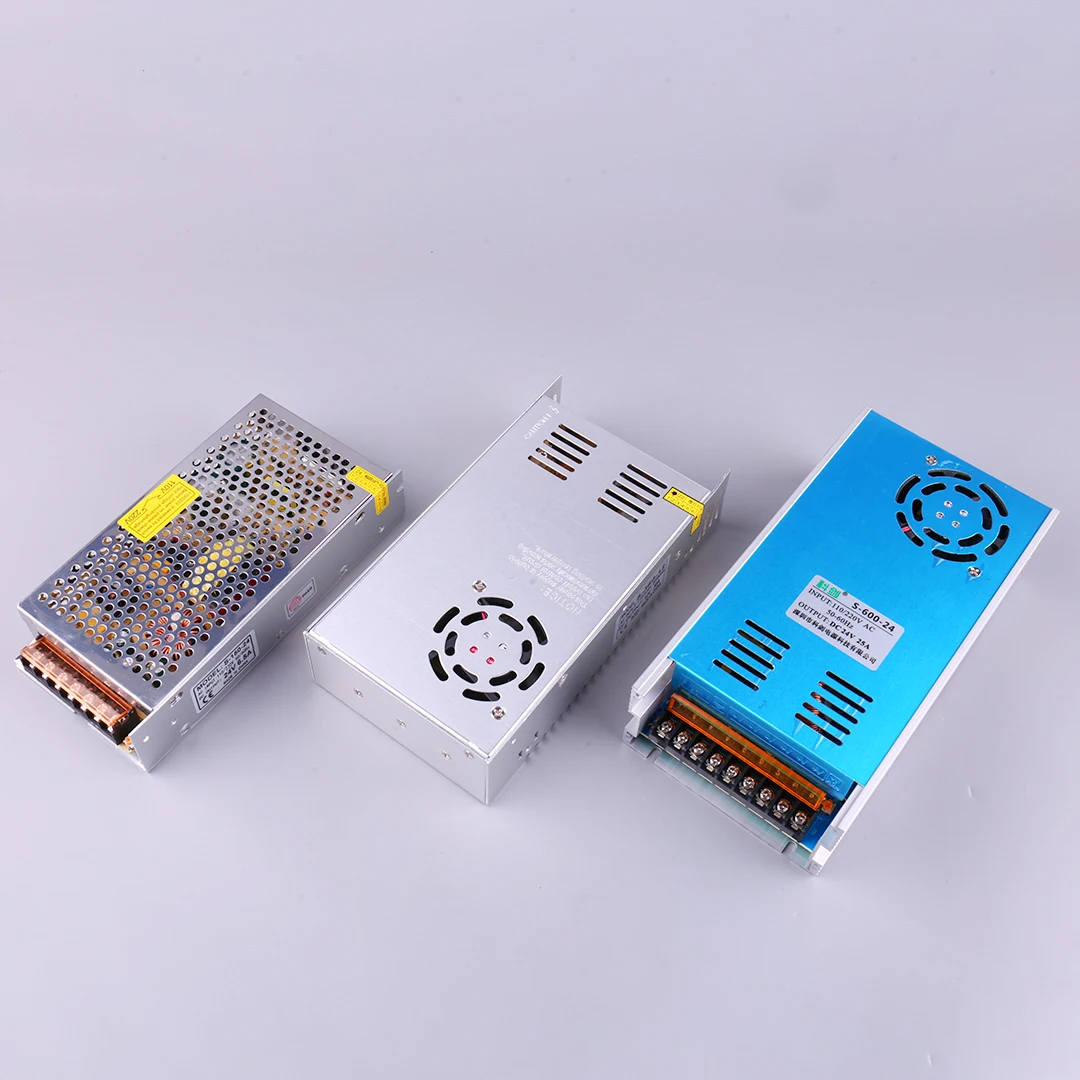

Aircraft Model Charger Switching Power Supply 12v30A 360W 24v6.5A 150W Ledi CB86/ISDT Series

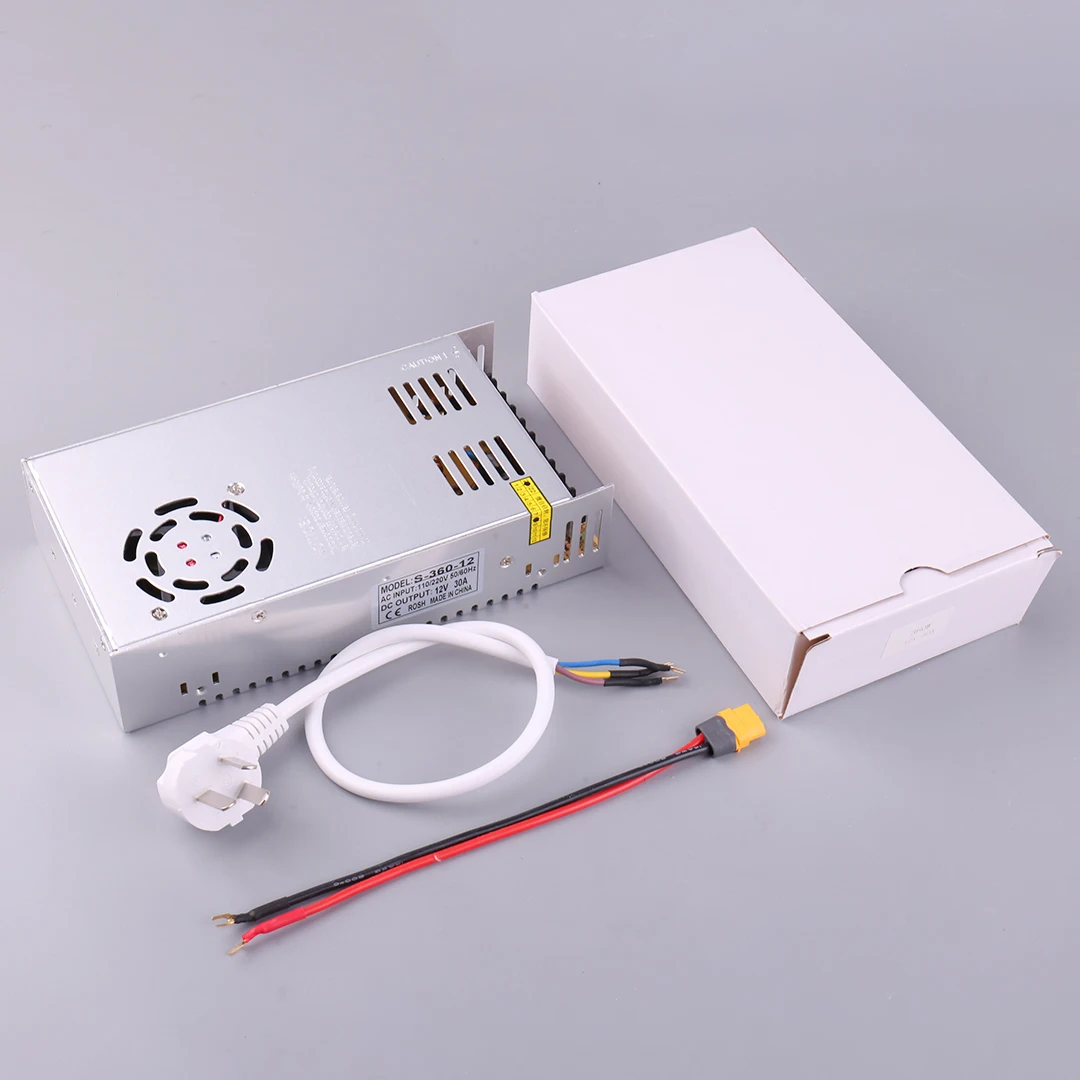

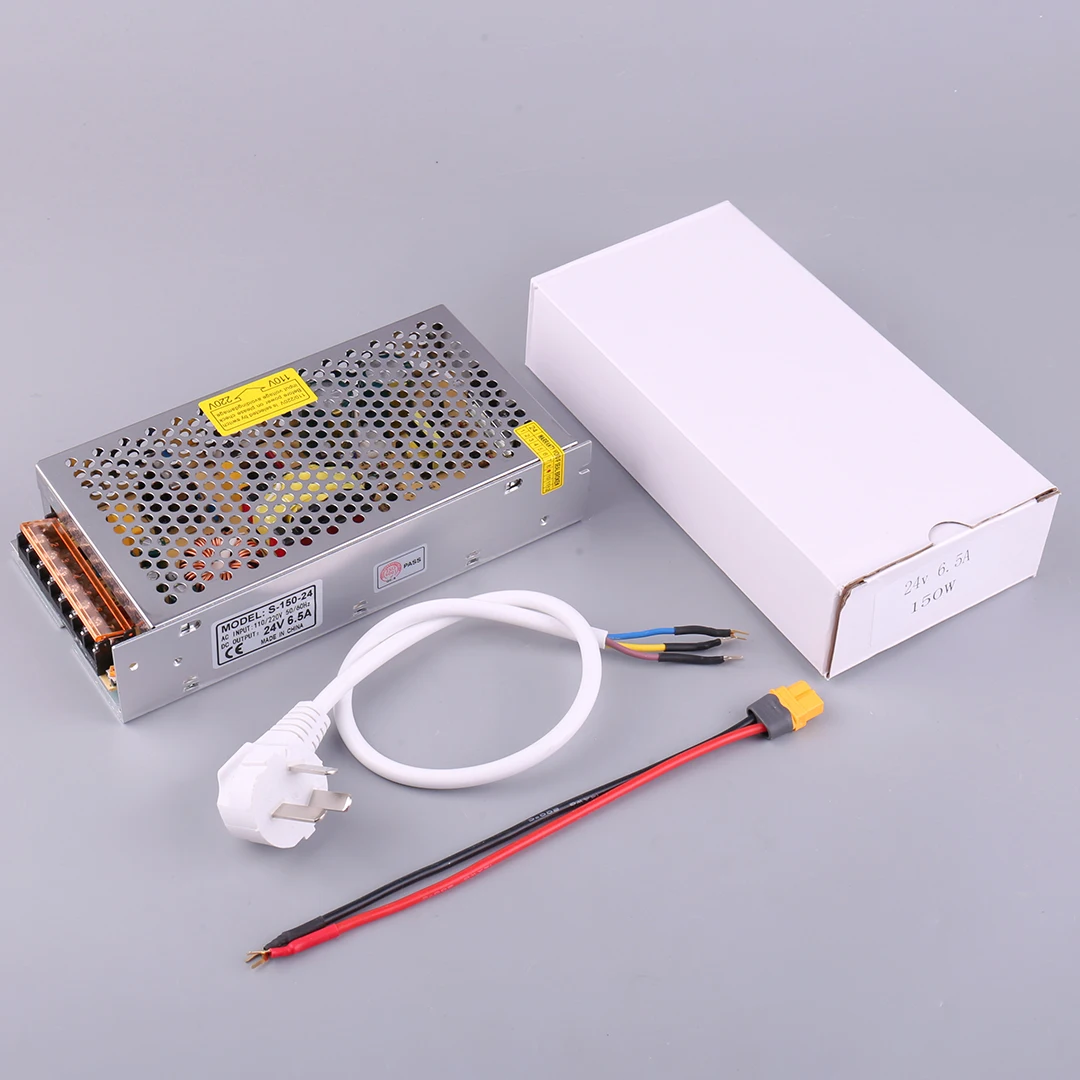

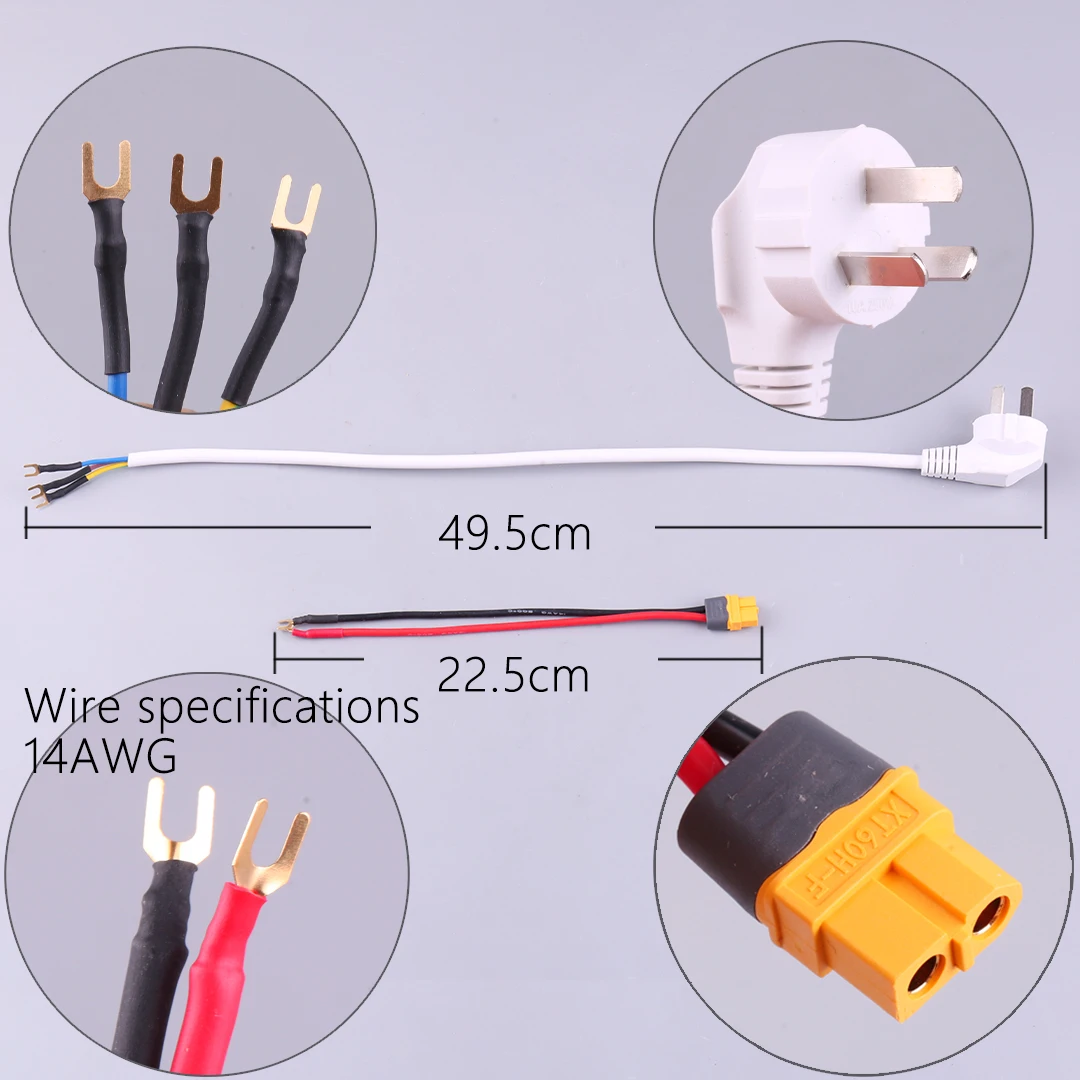

Purchase a power supply now and receive a three plug power cord (mains end) and an XT60 (charger end) adapter cable

Compatible (the charger can be purchased separately, and the switching power supply can be selected according to the power and voltage range of the charger and one's own needs)

ToolkitRC series: M6D, M7, M9, M8P, M8D chargers

HOTA series: D6, T6, P6, F6, T8 chargers

ISDT series: 608PD, Q6Retro, Q6nano, Q8, P10, P20, P30

24V power supply 150W is suitable for small power chargers such as ISDT, such as ISDTQ6NANO/ToolkitRC M6 charger, etc

A 12V power supply of 360W is suitable for medium power chargers such as CB86, such as Ledi CB86PLUS

24V power supply 600W suitable for medium to high power chargers such as ToolkitRc, such as ToolkitR

Common sense of purchasing and using switching power supply:

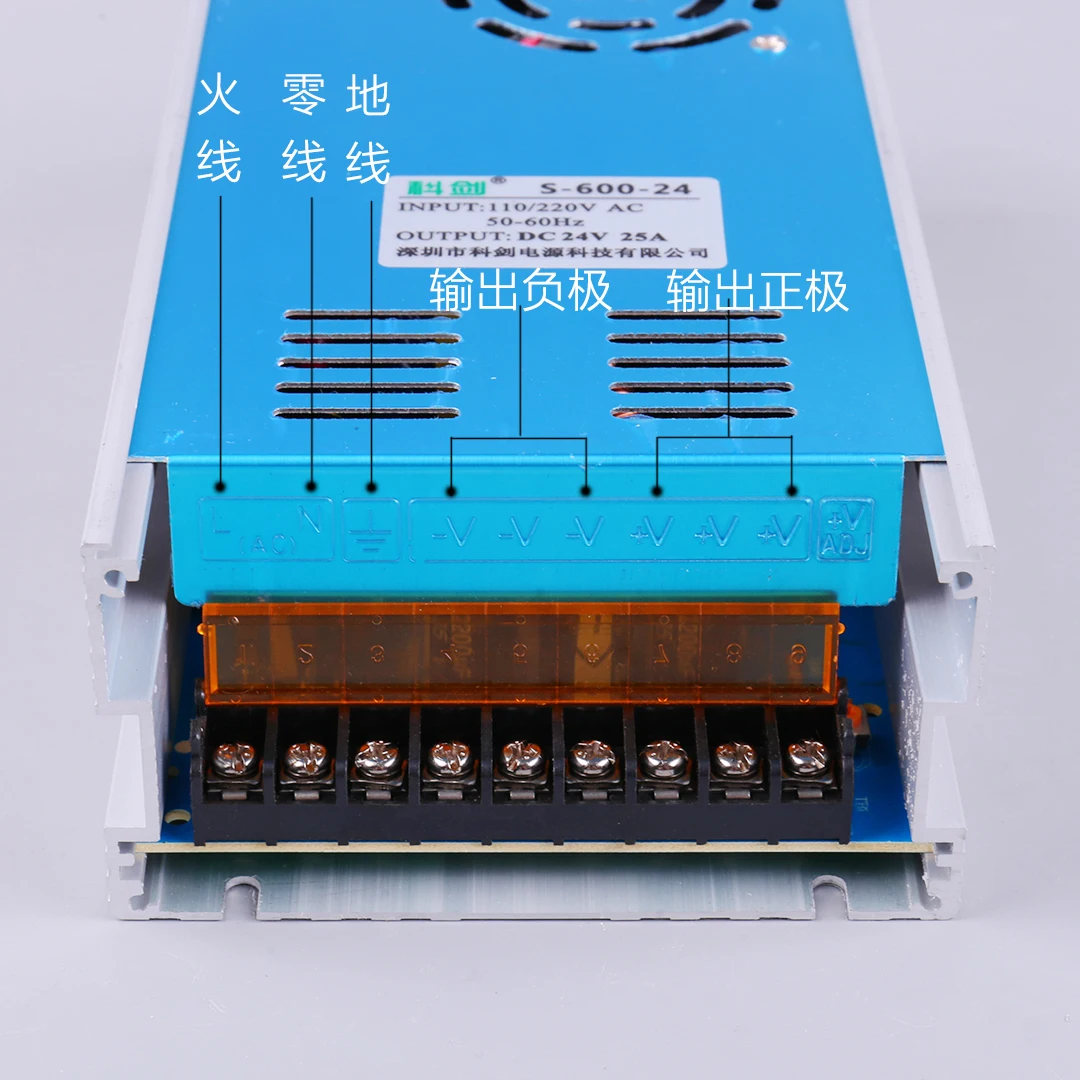

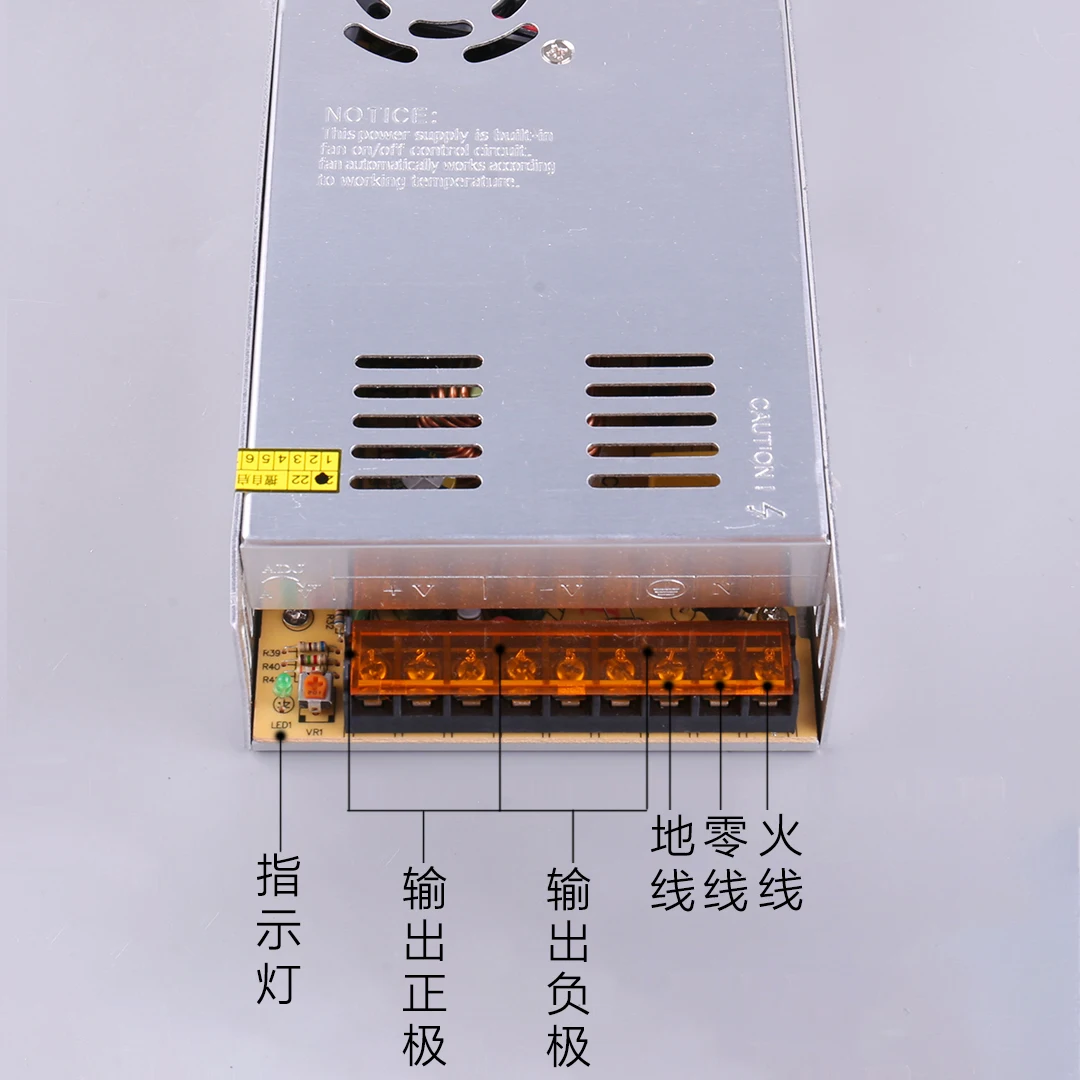

• The wiring of normal switching power supply is basically the same. AC 220V input, regardless of the zero line, put the terminal of the switching power supply face to yourself,220V input is from left to right, and the third interface is generally 220V grounding port. Under normal circumstances, it is not necessary to connect.

• Output part: it needs to be divided into positive and negative poles. Generally, v+ is the positive pole and COM port is the negative pole. Some switching power supplies v- are negative.

• The power size of switching power supply needs to be carefully selected. Under normal circumstances, the switching power supply will load the actual power affected by the indoor temperature. We Generally, it is reasonable to choose 1.2 times the power of the equipment.

• During the use of switching power supply, users are not recommended to disassemble and modify the switching power supply without permission. This is extremely dangerous, with 220V AC voltage inside (power cord purchased separately)

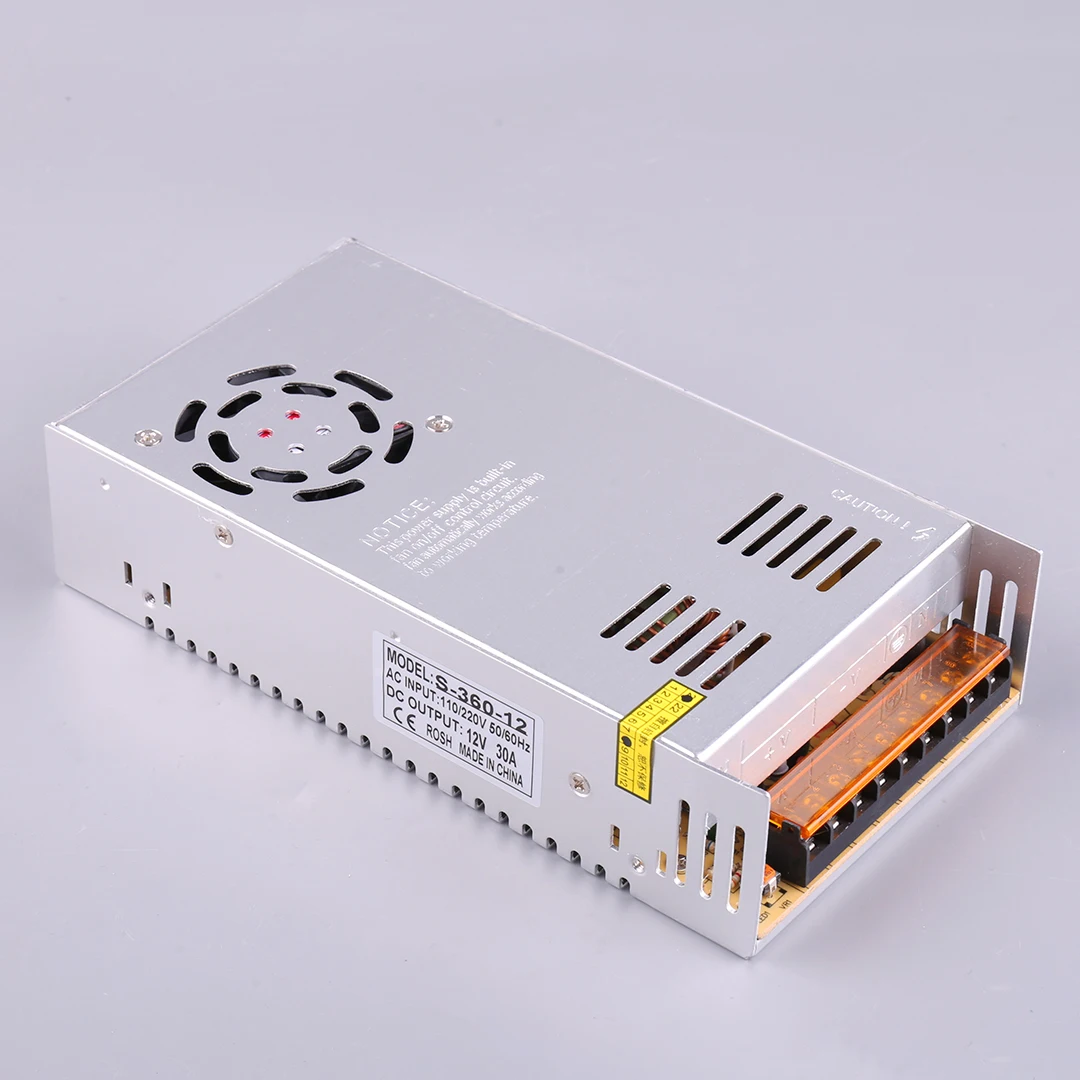

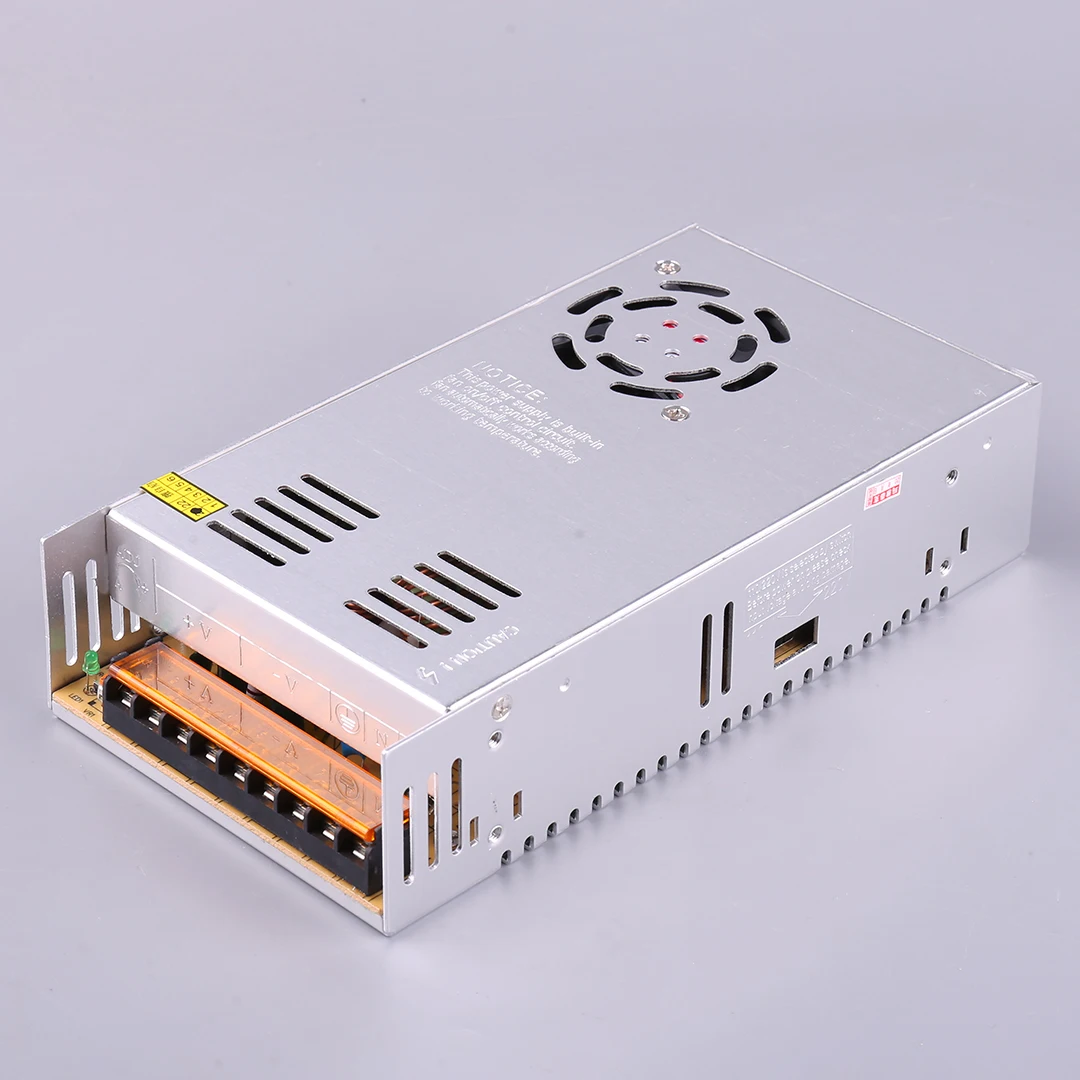

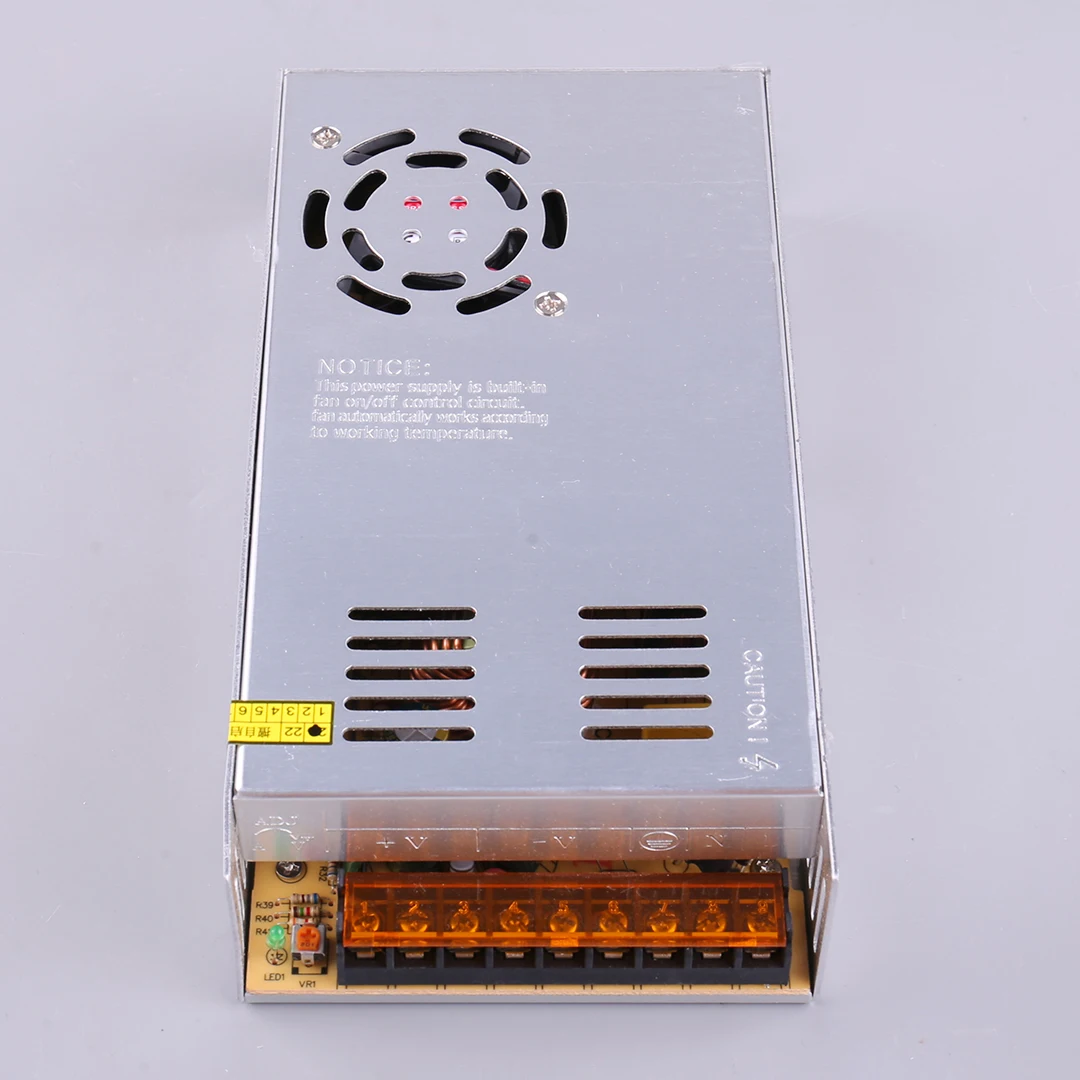

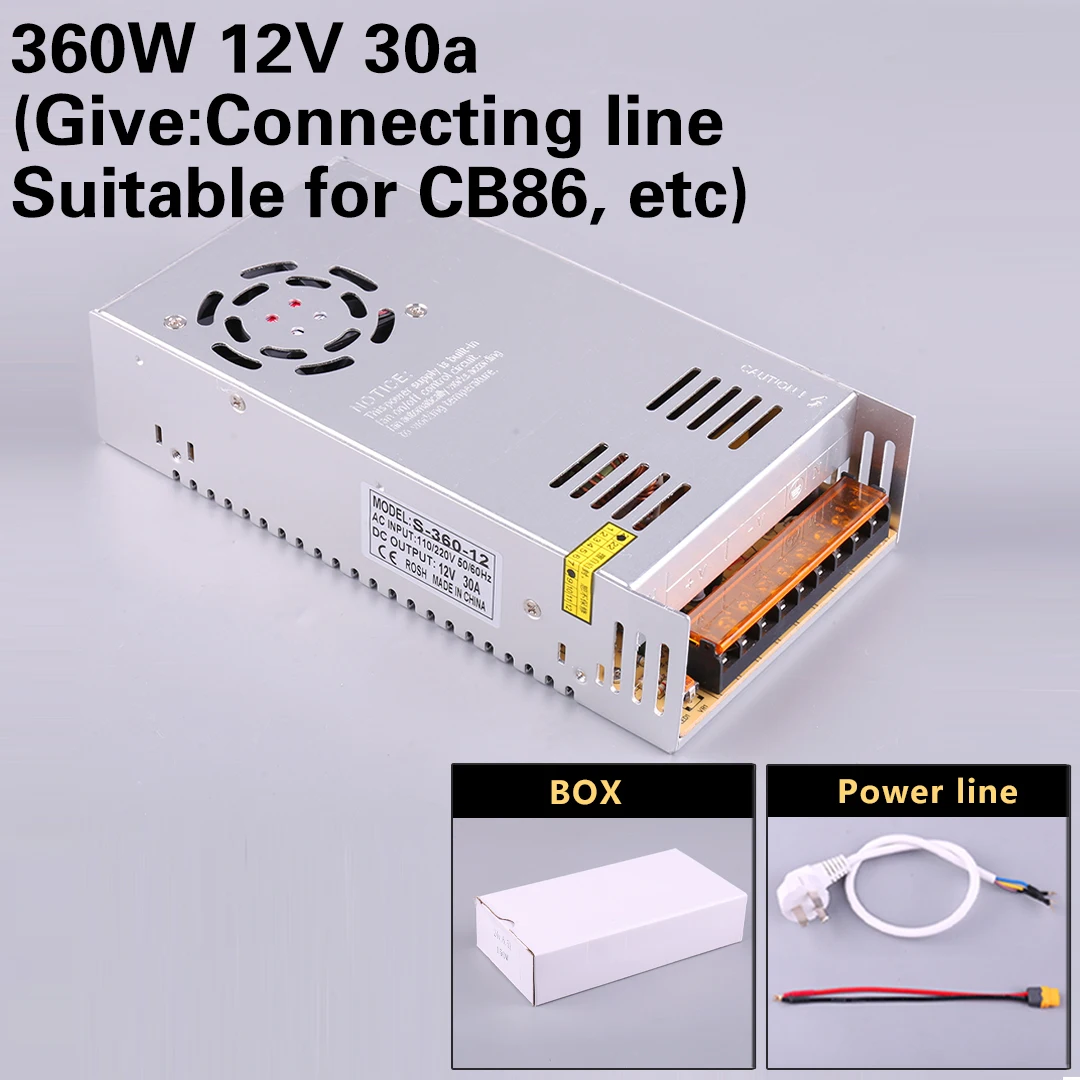

12v30A 360w Switching Power Supply:

This product has a full power of 360W high-power switching power supply, 220v/110v to 12V (voltage 10-14v adjustable, non adjustable current), which is packed in white box, and the material is very good! quality! The built-in radiator fan can drive about 30A model aircraft charger, on-board metal inflatable pump, On-board transmitter, on-board audio, subwoofer, monitoring equipment, etc. all electrical appliances below 12v/30a/360w can be driven. Please consult us for other power consumers. The product does not include wiring

DC output voltage: 12V

Output voltage tolerance (Note 2): ± 1%

Rated output current: 30A

Output current range: 0-30a

Ripple and noise (Note 3): 150mV

Incoming line stability (Note 4): ± 0.5%

Load stability (Note 5): ± 0.5%

DC output power: 360W

Efficiency: 74%

DC voltage adjustable range: 10-13.2v

Input voltage range: 90-132vac/180-264vac by switch 47-63Hz; 248-370VDC

Input current: 6.5a/115v 4a/230v

Impulse current: 25a/115v, 50a/230v

Leakage current: <3.5ma/240vac

Overload protection: none, AC switch restored

Overvoltage protection: 13.8-16.2v

High temperature protection: rth3>=65 ℃ fan on< =55 ℃ fan off>=80 ℃ cut off output (5-15v)

Rthb>=7o ℃ fan on< =60 ℃ fan off>=85 ℃ cut off output (24-48v)

Temperature coefficient: ± 0.03% ℃ (0-50 ℃)

Start rise holding time: 200ms, 50ms, 20ms

Seismic resistance: 10-500hz, 2G 10min/ 1 cycle, duration 60 minutes, each axes

Withstand voltage: input and output: 1-5kvac, input housing: 1.5kVac, output housing: 0.5kvac

Impulse current: cold start current 35a/115v 60a/230v

Leakage current: <1ma/24ovac

Overload protection: 105-135%, AC switch recovery

Temperature coefficient: ± 0.03% ℃ (0-50 ℃)

Start, rise and hold time: 200ms 100ms, 30ms

Seismic resistance: 10~500hz 2G 10min./ 1 cycle, duration 60 minutes, each axis

Withstand voltage: input and output: 1.5kVac, input housing: 1.5kVac, output housing: 0.5kvac

Isolation resistance: between input and output, between input and housing, between output and housing: 500vac/100m ohms

Operating temperature and humidity: -10 ℃ - +60 ℃, 20%-90% RH

Storage temperature, temperature: -20 ℃ - +85 ℃, 10%-95rh

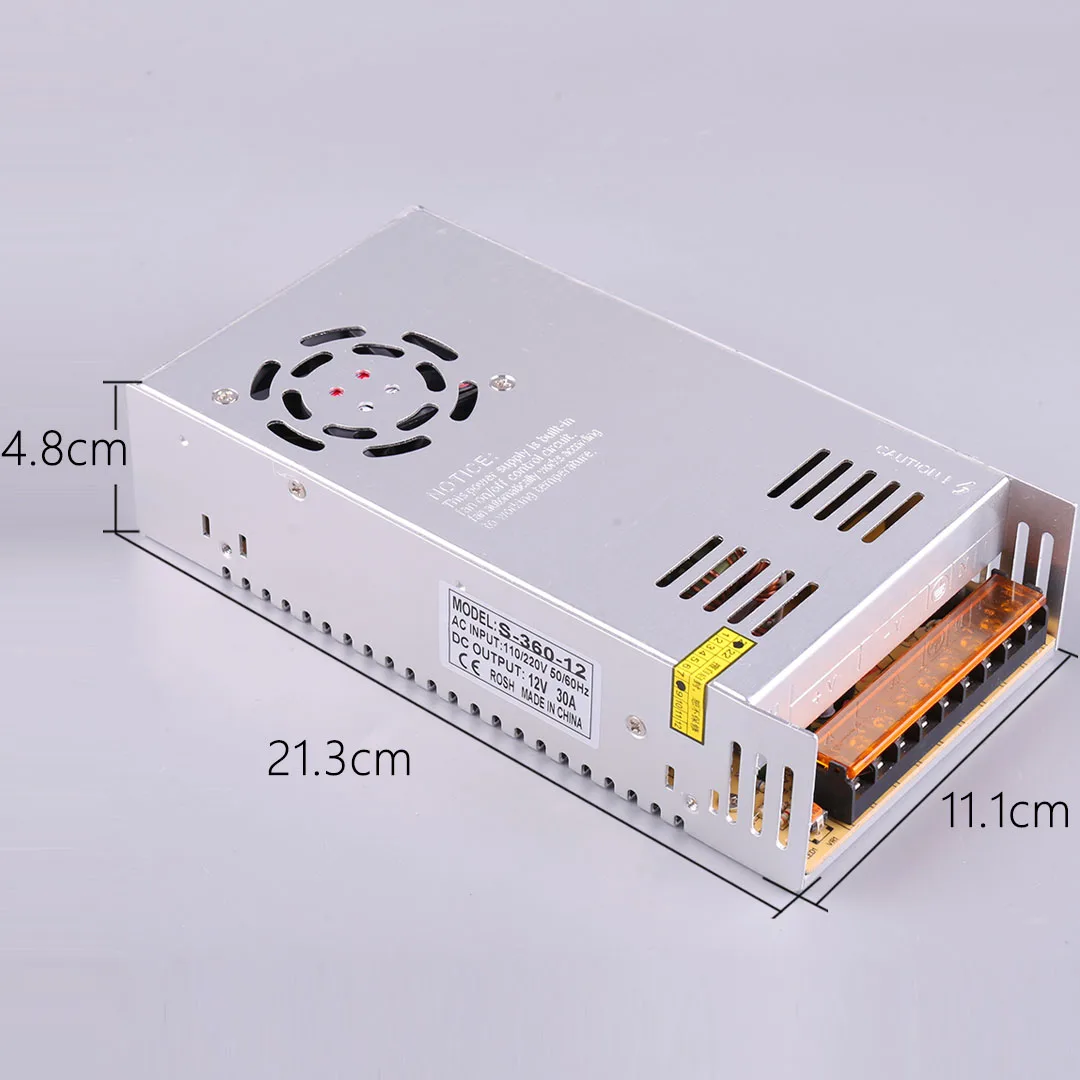

Outline ruler pair: 213*112*49mm

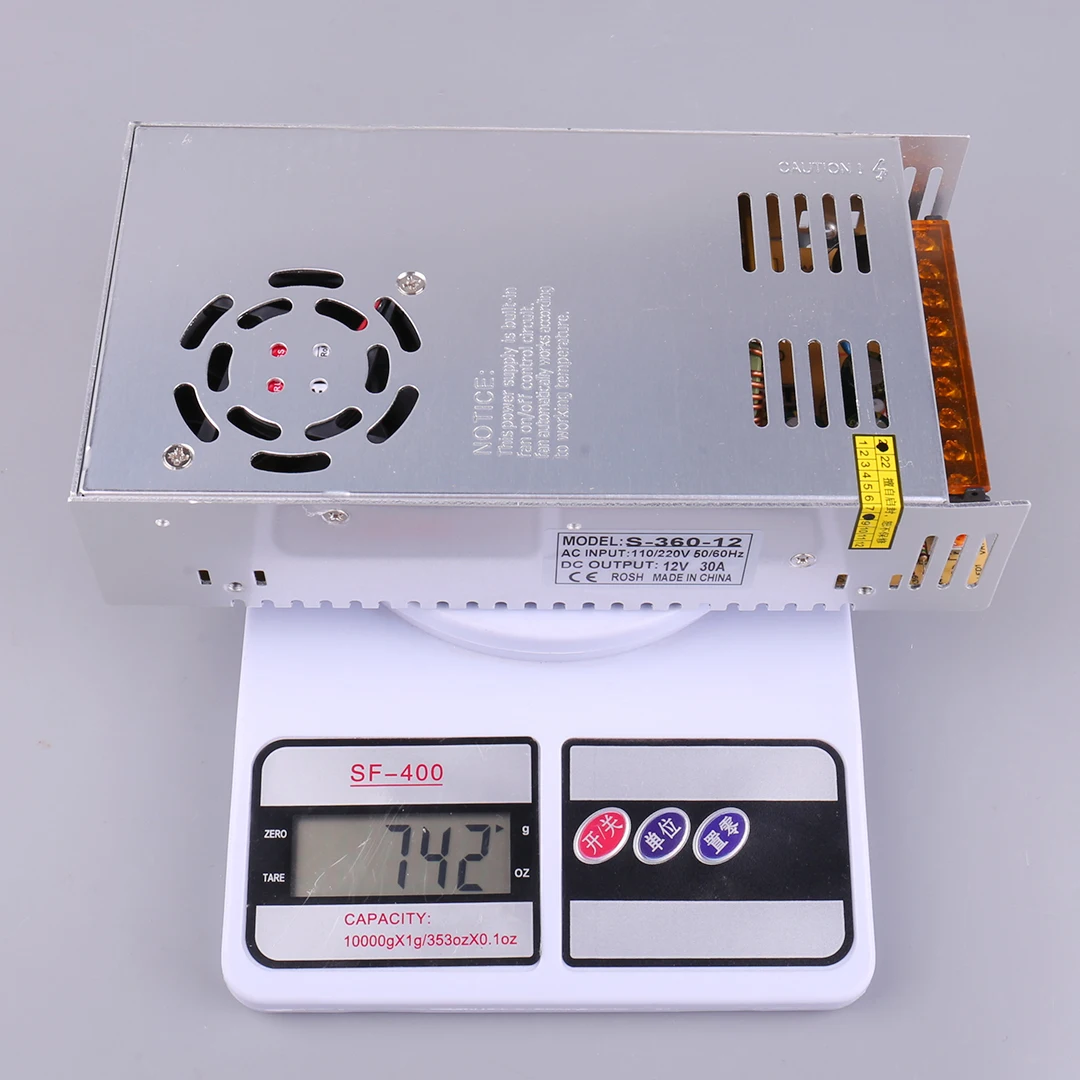

Weight: 746g

Safety standard: meet the requirements of ul1012

Note:

• 1. The above parameter test conditions are: 230VAC input, rated load, 25 ℃ 70% RH humidity.

• 2. Tolerance: including setting tolerance, line stability and load stability (Note 5).

• 3.Ripple test: 20MHz with A12 "twisted pair, interruption with 0.1uF 47uF capacitor short circuit.

• 4. Incoming voltage stability test: the lowest voltage to the highest voltage of the incoming line at full load.

• 5. Load stability test: load from 0% to 100%.

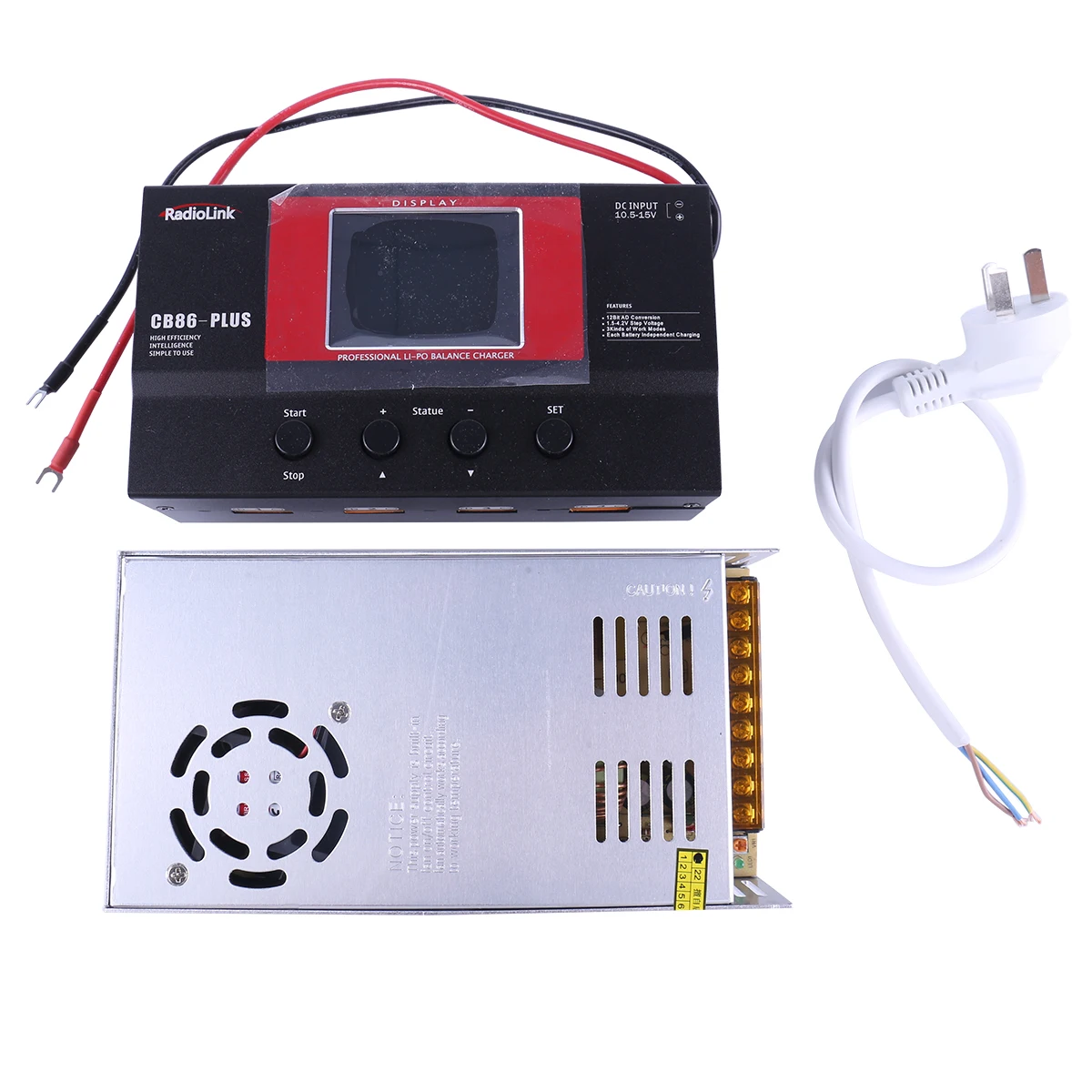

12v power supply 360w suitable for medium power chargers such as CB86, for example:

Ledi CB86PLUS Ledi CB86 charger recommended for use (three wire plug)

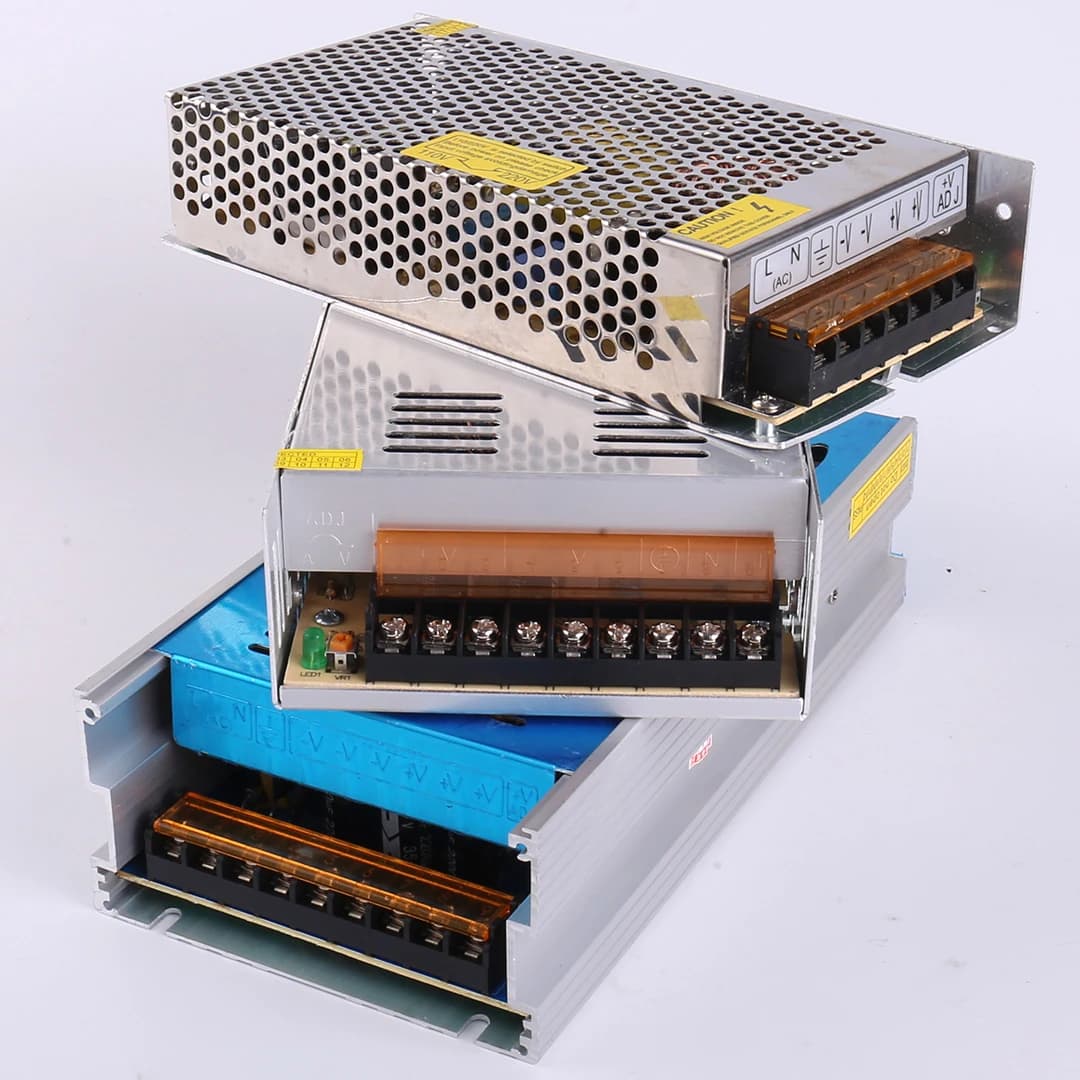

Product display：

Support 220V and 110V voltage switching (default 220V)

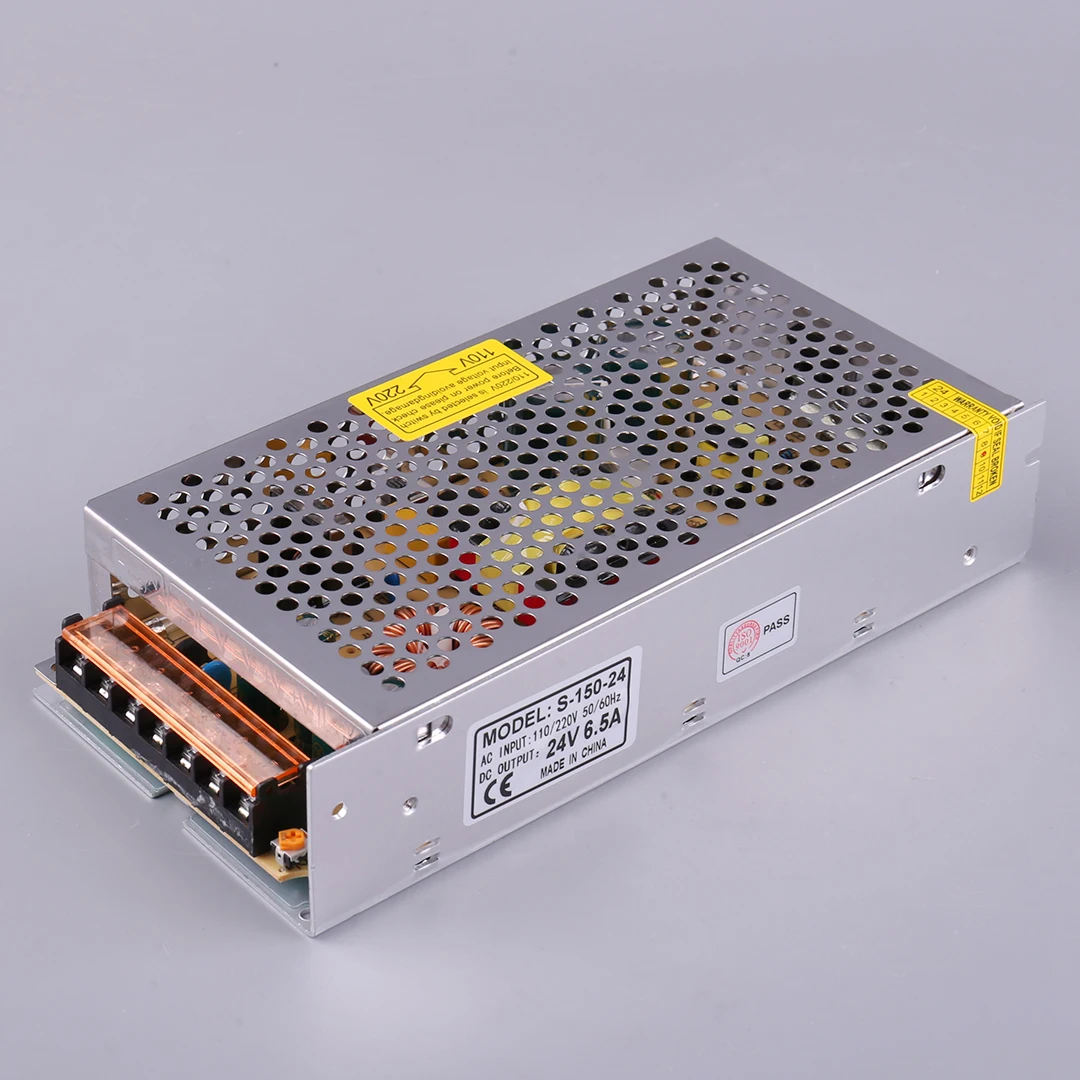

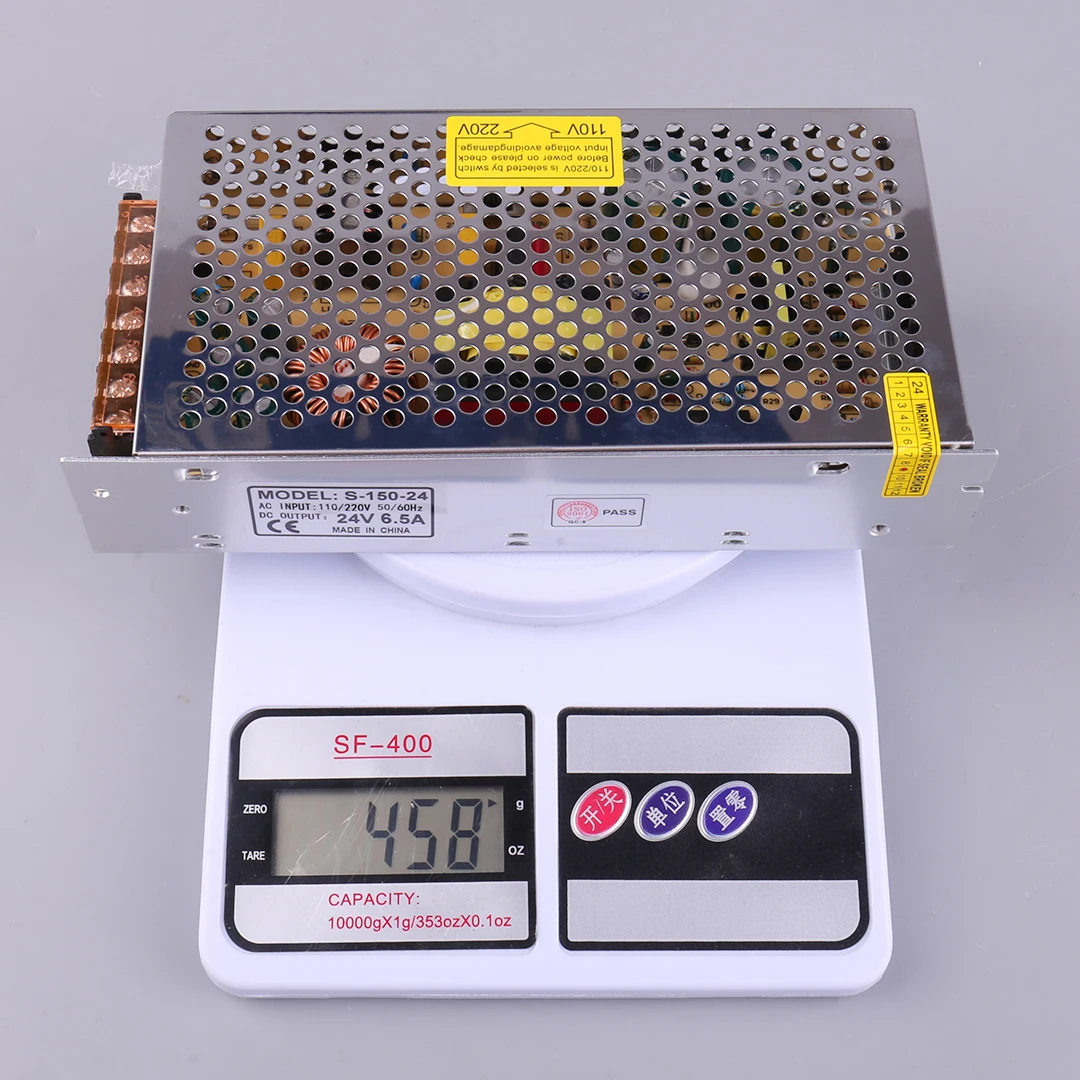

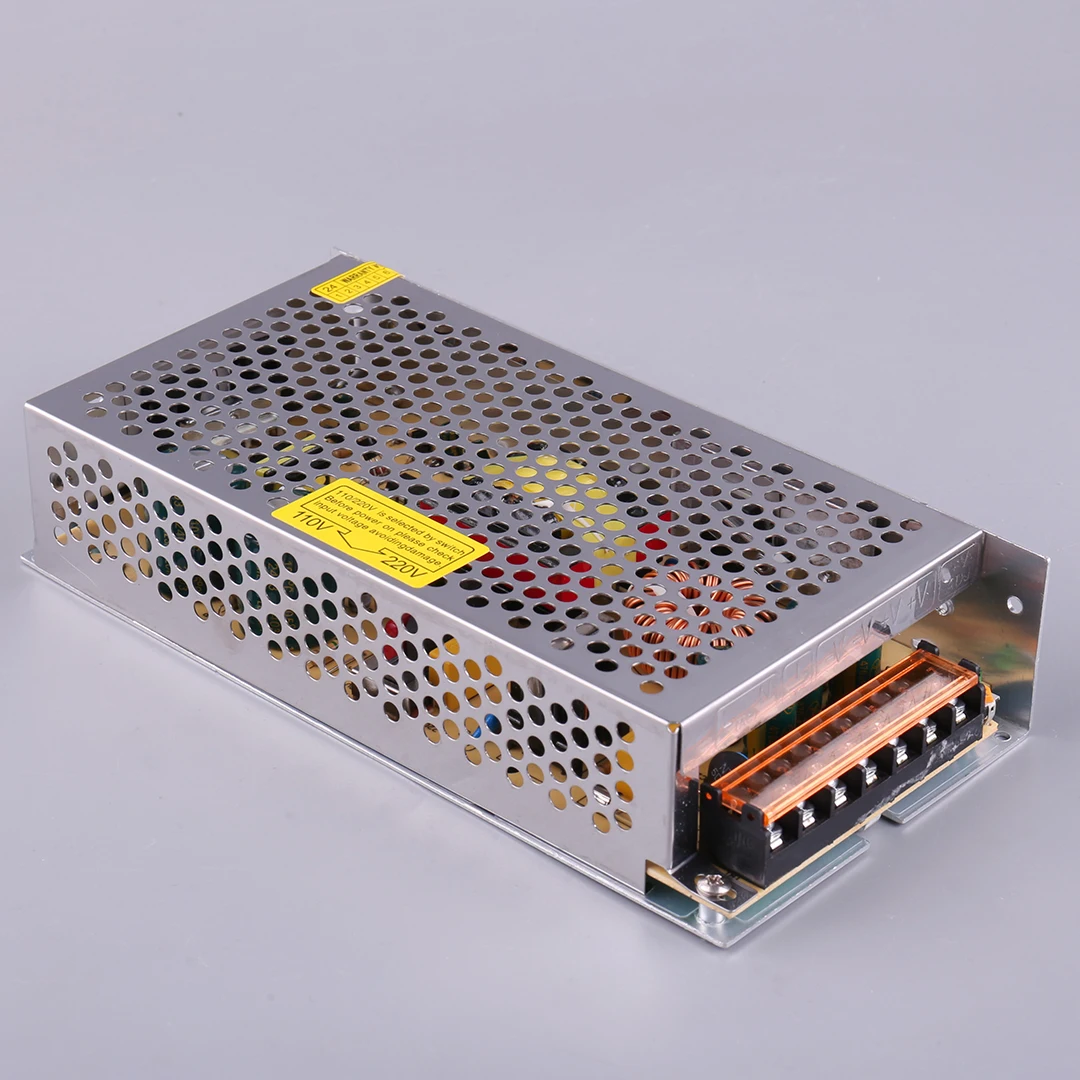

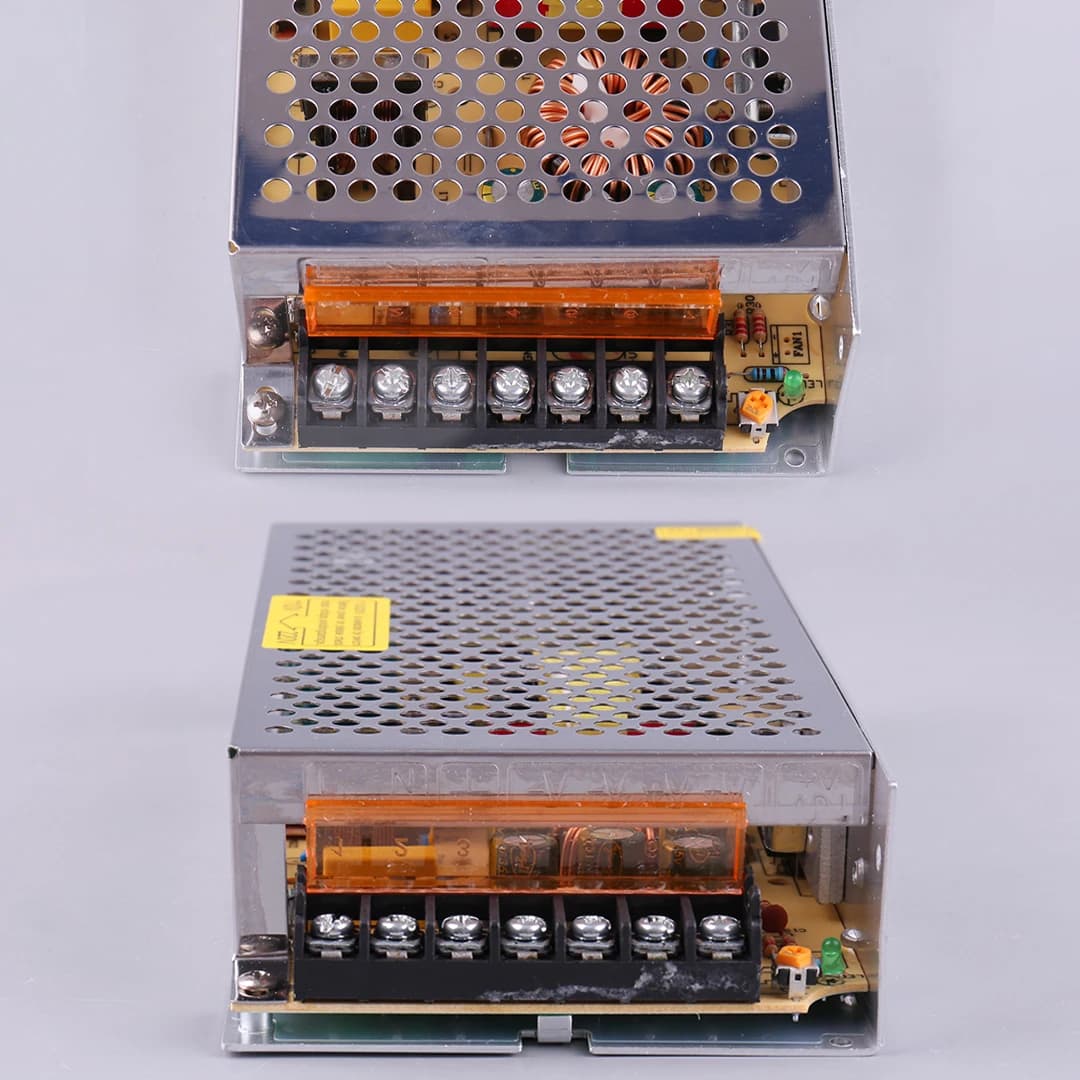

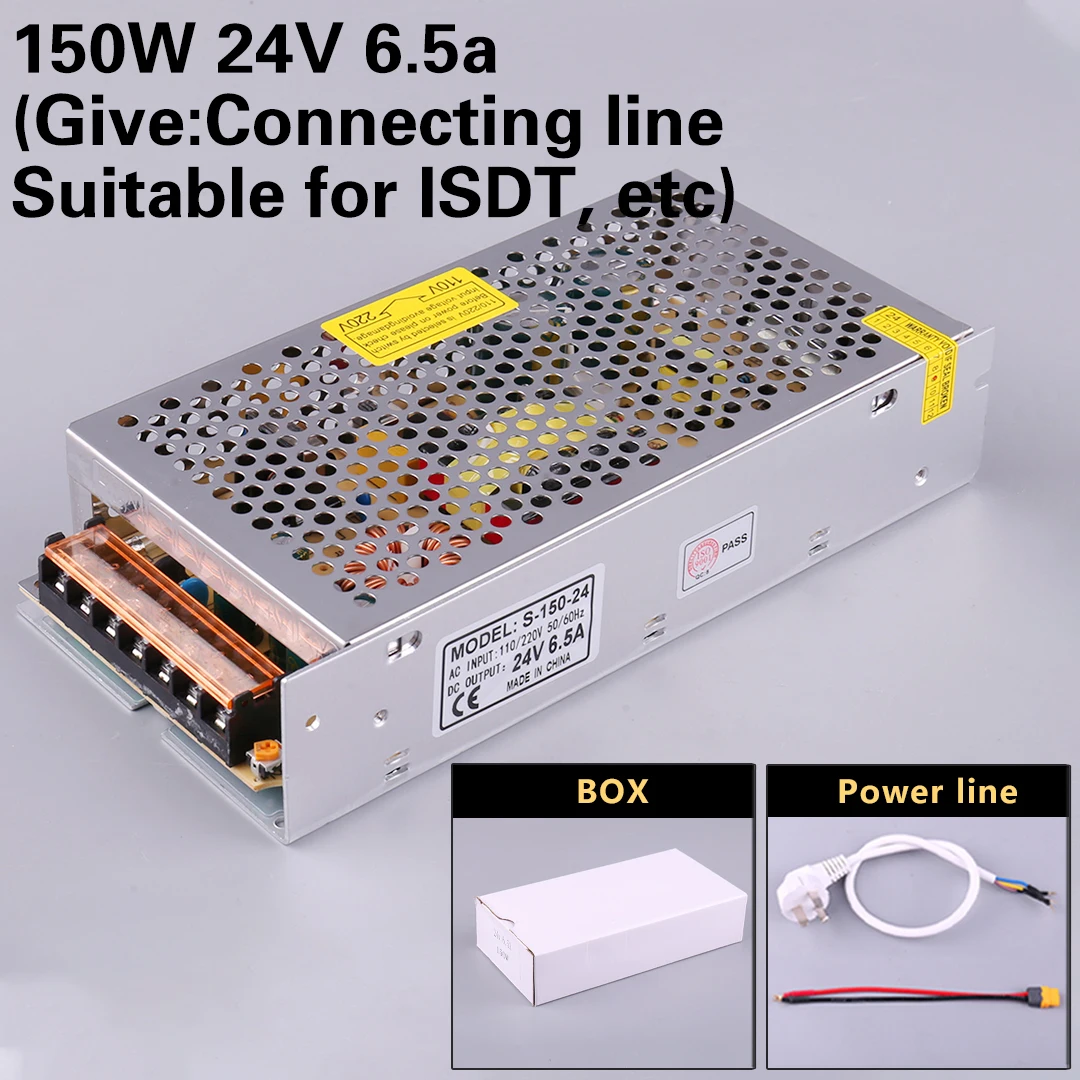

24V power supply 150W is suitable for small power chargers such as ISDT, such as ISDTQ6NANO/ToolkitRC M6 charger, etc

This product has a full power of 150W high-power switching power supply, with 220V/110V to 24V conversion. The materials used in the white box are very good! quality! The built-in cooling fan can drive a model airplane charger, car metal inflation pump, car transmitter, car audio system, subwoofer, monitoring equipment, etc. with a capacity of about 30A. It can drive any electrical appliances below 24V/6.5A/150W. For other power appliances, please consult us for suitability. The product does not include wiring

Product display: Supports switching between 220V and 110V voltage (default 220V)

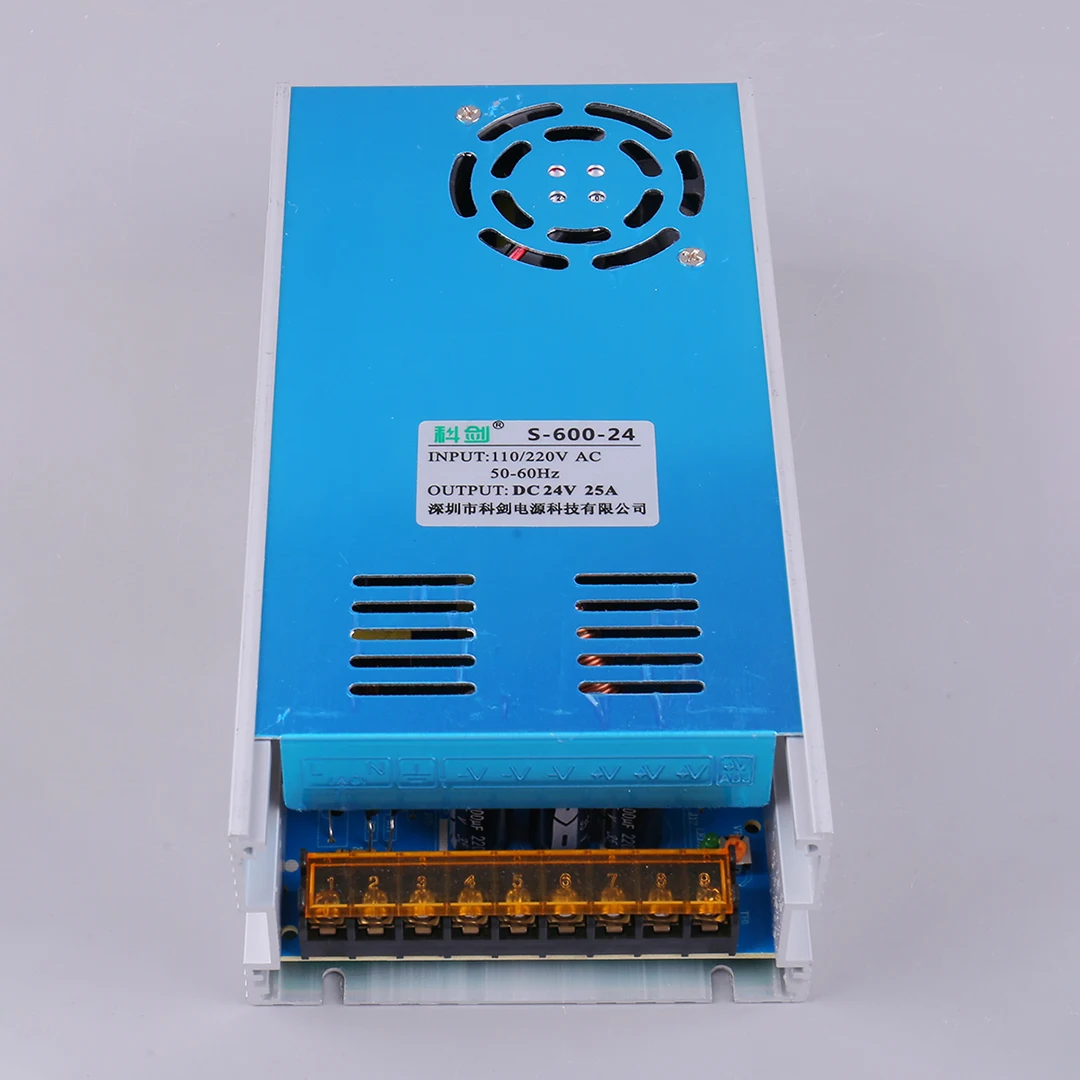

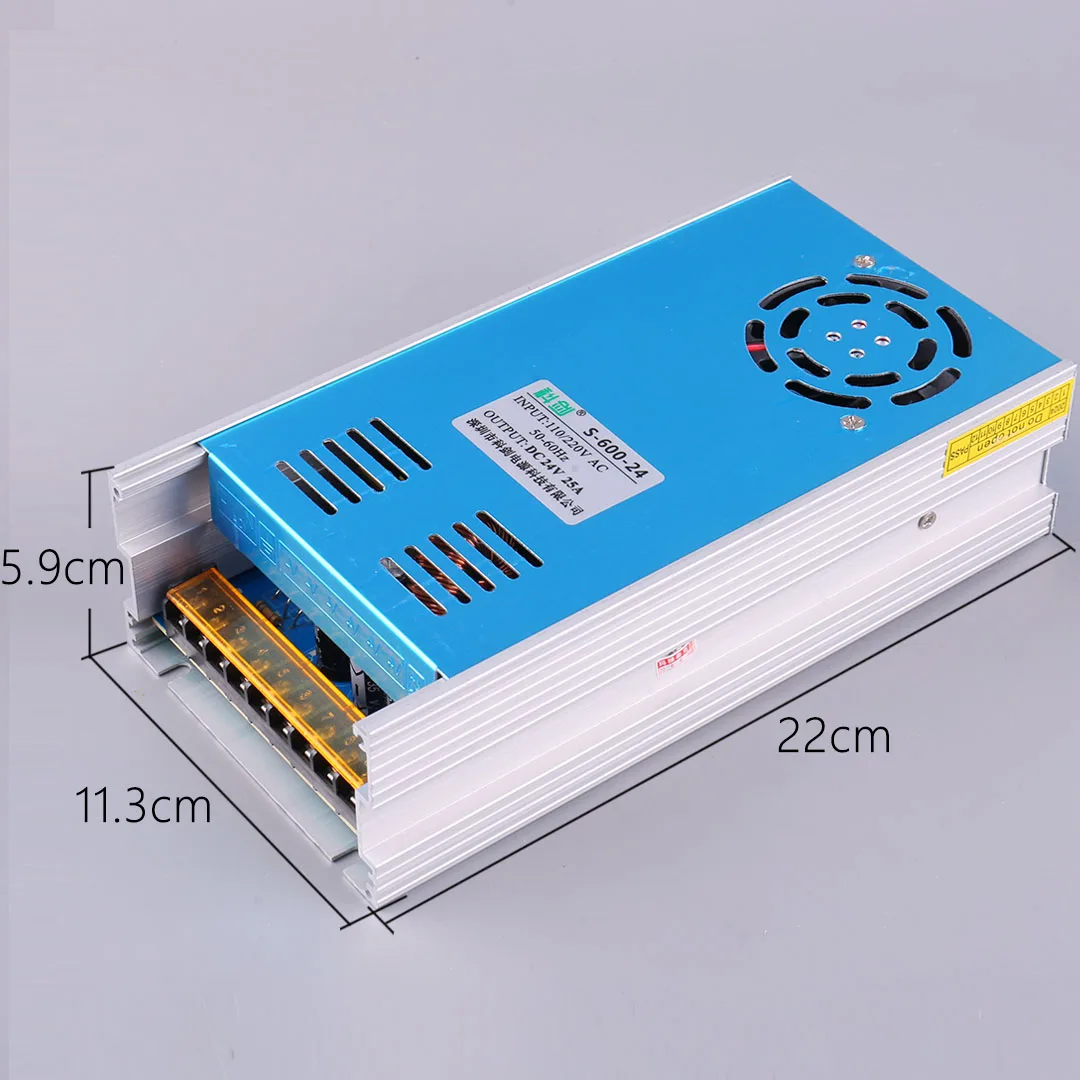

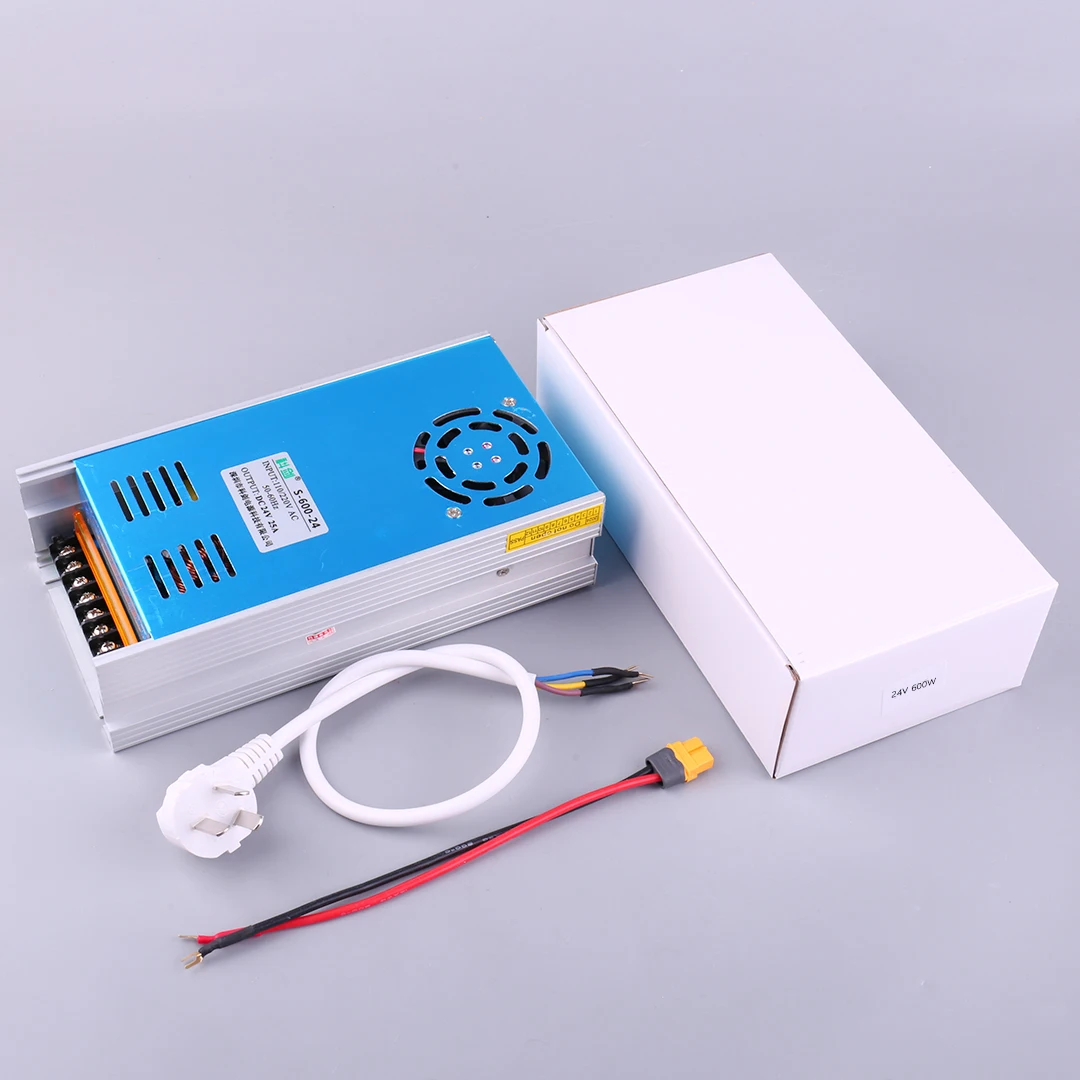

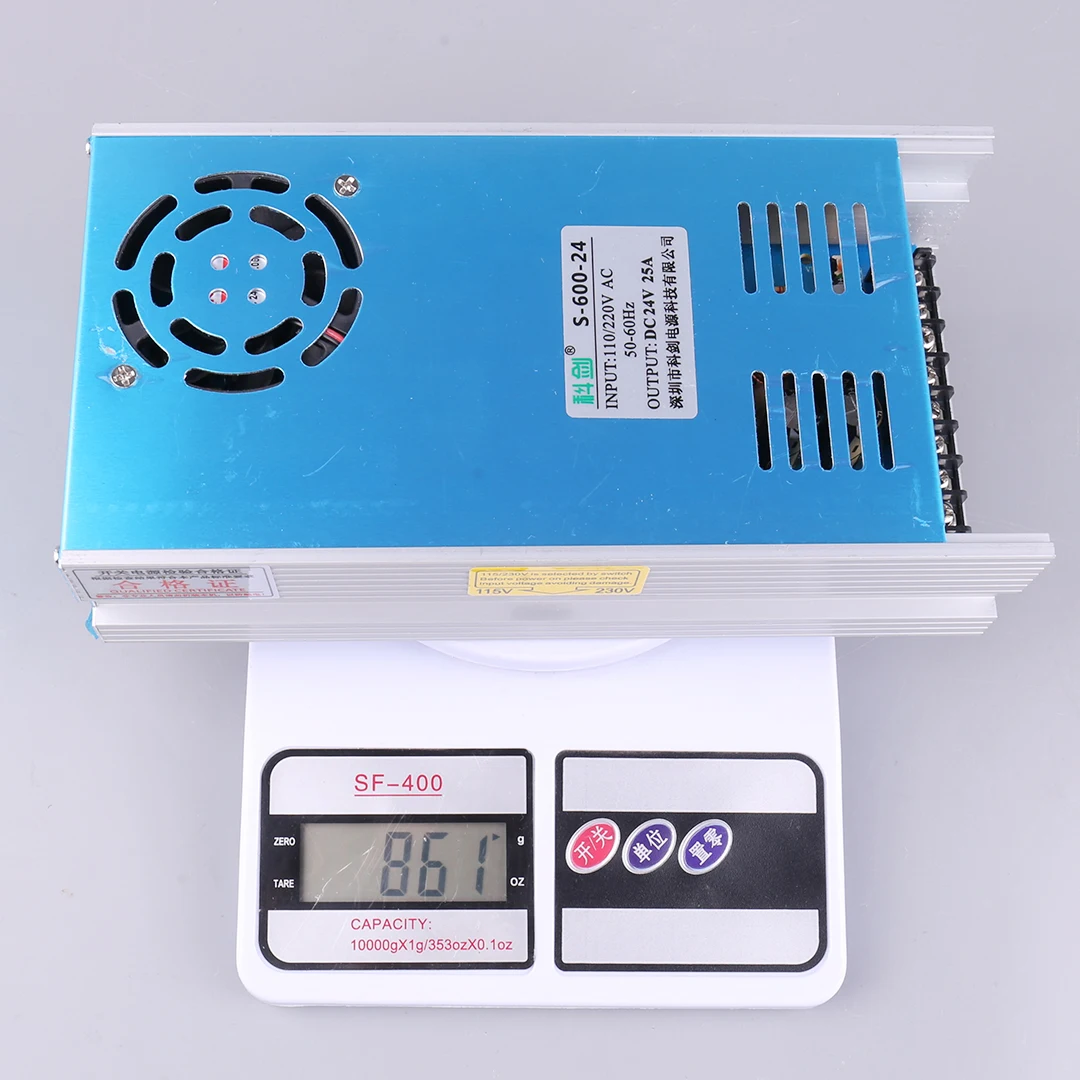

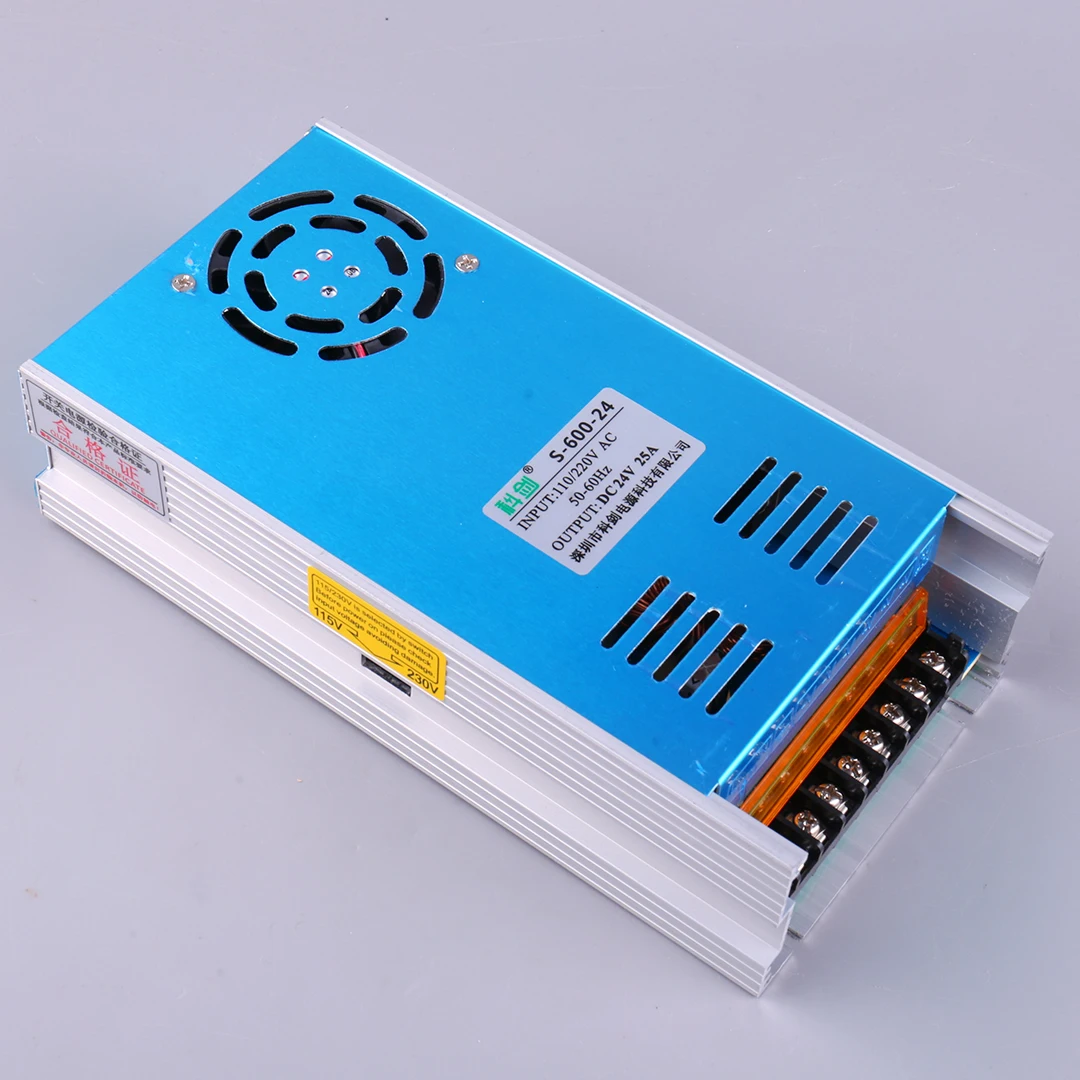

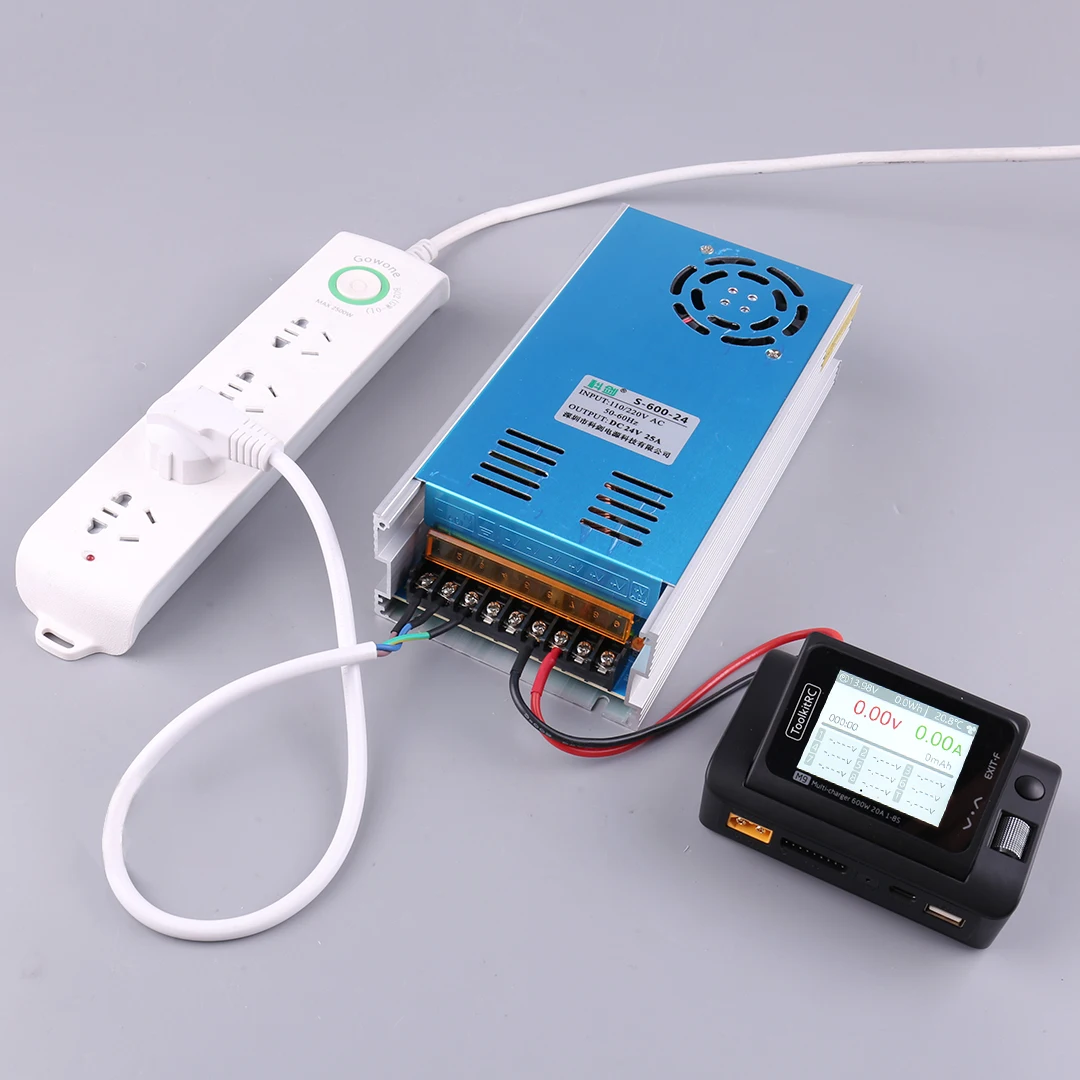

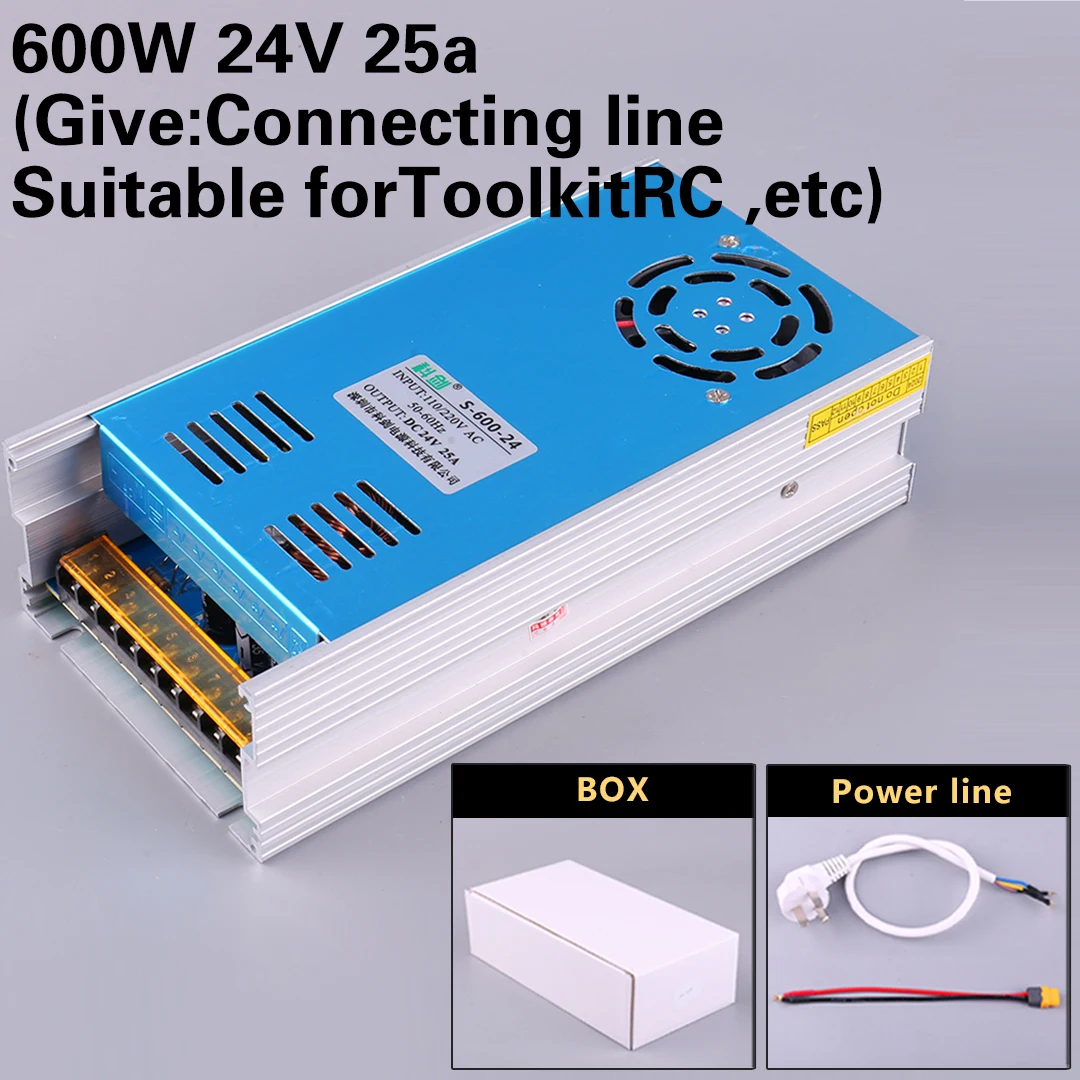

24V power supply 600w25A suitable for medium to high power chargers such as ToolkitRc, such as ToolkitRCM7/M9 M8S M8P IDST Q8 charger series

This product is a 600W 50A high-power switching power supply, capable of converting 220V/110V to 12V (adjustable voltage 10-14V, non adjustable current). It comes in a white box and uses very good materials! quality! The built-in cooling fan can drive a model airplane charger of about 50A, car metal inflation pump, car transmitter, car audio system, subwoofer, monitoring equipment, etc. Any electrical appliances below 24V/50A/600W can be driven. For other power appliances, please consult us if applicable. The product does not include wiring

Product display: Supports switching between 220V and 110V voltage (default 220V)
