Radiomaster Bandit 915mHZ ExpressLRS /Micro/Nano ExpressLRS RF Module BR1/BR3Receiver Bandit 915 MHz Moxon/T Atenna SMA

Bandit ExpressLRS 915MHz RF Module

Features

• Up to 1 Watt power output

• Packet rates up to 200Hz

• Optimized circuitry for ultra-low power consumption

• Built-in TCXO oscillator

• Low noise, high comfort

• High contrast OLED display

• Rugged gunmetal CNC housing

• Awesome RGB light effects

• High efficiency cooling system

• Wifi and Bluetooth support

• Built-in ExpressLRS backpack

• Built in accelerometer

• Directional nav key and customizable shortcut buttons

• Micro and Nano adapters included

• 915/868MHz Moxon Antenna and T Antenna included

• Futaba CRSF Cable included

• UART Cable included

Specifications

• Item: Bandit ExpressLRS RF Module

• Regulatory Domain: FCC915

• MCU: ESP32(main), ESP8285(aux, as ESP backpack)

• RF Chip: SEMTECH SX1276

• Refresh Rate Min/Max: 25Hz/200Hz

• RF Output Power: 1000mW/30dBm

• Module Bay Adapters: Micro standard 5pin socket & Nano standard 8pin socket

• Built-in RGB lights

• Built-in OLED screen

• G-sensor Support: Yes

• XT30 Power Supply Voltage: DC 6V ~ 16.8V

• Weight: 155 grams (with antenna）

• Dimension: 90*51*24mm

Rugged Construction for Enduring Excellence

The Bandit ExpressLRS is not just about performance; it's also built to endure. Its rugged CNC machined aluminum case not only exudes a sleek and modern aesthetic but also serves as a heat sink, efficiently dissipating heat and maintaining optimal operating temperatures under even the most strenuous conditions.

Versatile Antenna Options for Diverse Applications

The Bandit ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying and a RadioMaster Moxon antenna for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

The Ideal Solution for Demanding Applications

Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

How and when to use your Moxon Antenna or T Antenna

MOXON Antenna
The Moxon directional antenna is intended for long range and has a more narrow field of operation. It is important to keep the Moxon antenna pointed in the general direction of your aircraft.
Antenna polarization: vertical/horizontal polarization

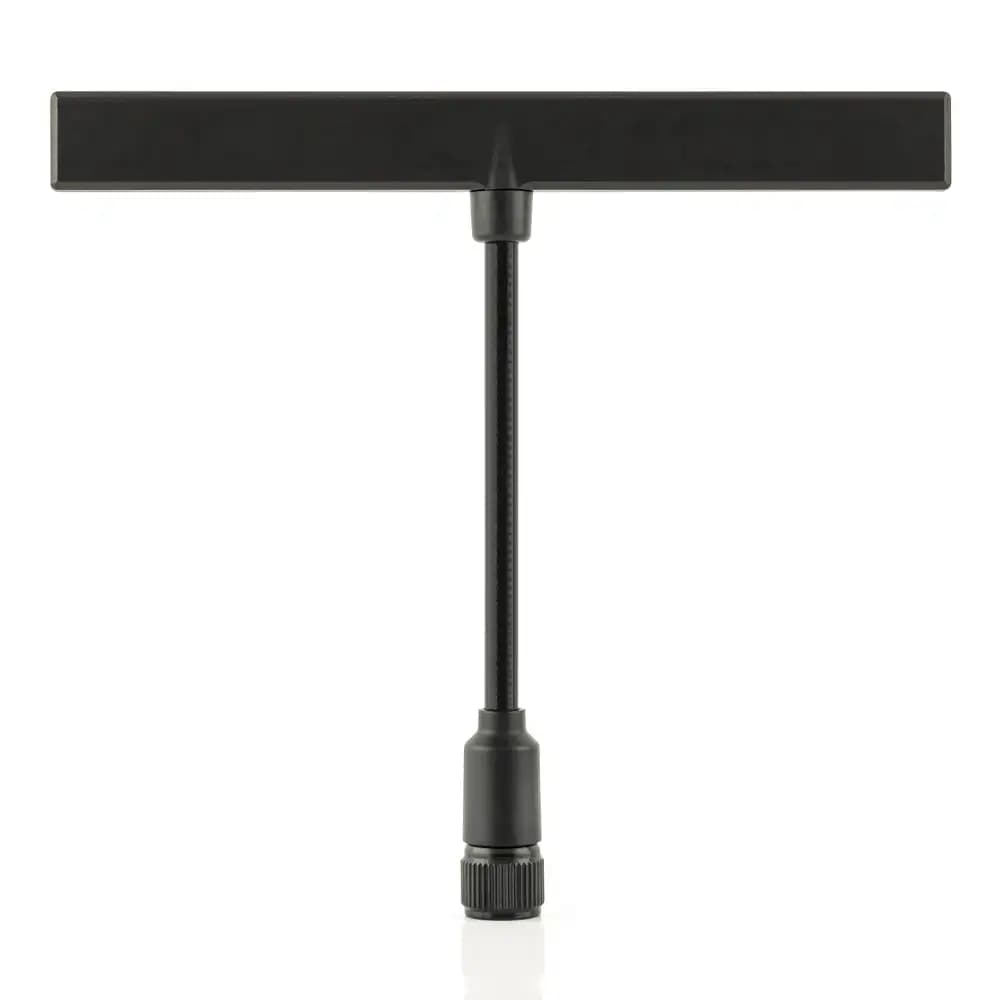

T Antenna
The T Antenna is an omnidirectional antenna. It is intended for short to medium range and is suitable for most conditions.
Antenna polarization: vertical/horizontal polarization

Package Includes

• 1 * Bandit ExpressLRS RF Module

• 1 * T Antenna

• 1 * Moxon Antenna

• 1 * Micro Adapter

• 1 * Nano Adapter

• 1 * Transparent Protective Cover

• 1 * UART Cable

• 1 * Futaba CRSF Cable

• 1 * 1.55mm Allen Key

• 6 * M2*6 Screws

• 1 * Manual

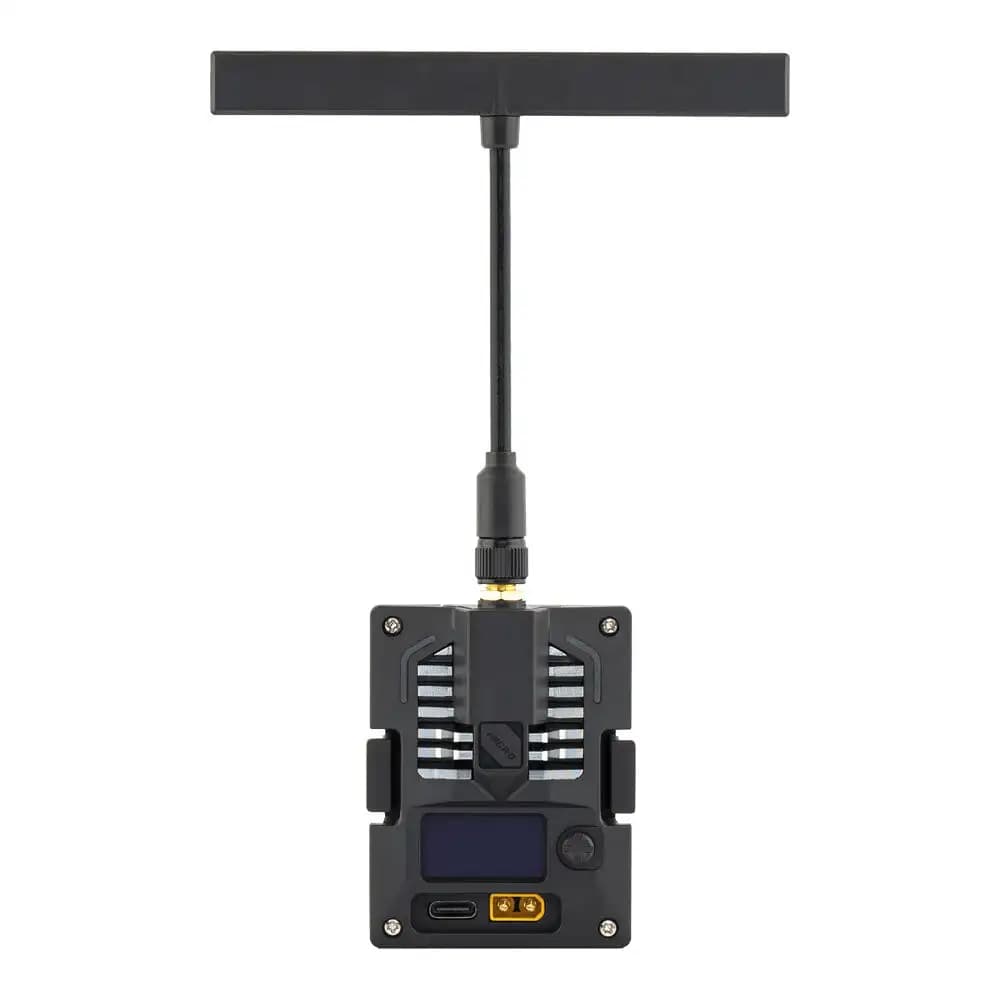

Bandit Micro ExpressLRS 915MHz RF Module

Features

• Up to 1 Watt power output

• Packet rates up to 200Hz

• Optimized circuitry for ultra-low power consumption

• Built-in TCXO oscillator

• Low noise, high comfort

• High contrast OLED display

• Innovative convection cooling design

• Wifi and Bluetooth support

• Built-in ExpressLRS backpack

• 5 Directional nav key

• 915/868MHz T Antenna included

• With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio

Specifications

• Item: Bandit Micro ExpressLRS RF Module

• Regulatory Domain: FCC915

• MCU: ESP32(main), ESP8285(aux, as ESP backpack)

• RF Chip: SEMTECH SX1276

• Refresh Rate Min/Max: 25Hz/200Hz

• RF Output Power: 1000mW/30dBm

• Micro standard 5pin connector

• Built-in OLED screen

• XT30 Power Supply Voltage: DC 6V ~ 16.8V

• Weight: 78.0grams (with T antenna)

• Dimension: 64.1*49.6*34.1mm

Keep Your Cool!

With its innovative convection cooling system and built-in turbo fan, the Bandit Micro ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Micro form factor is ready to go with our TX16S MKII, Boxer, TX12 MKII and other radios with a Micro Module bay.

Intuitive Control at Your Fingertips

The Bandit Micro ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.

Versatile Antenna Options for Diverse Applications

The Bandit Micro ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

But wait.. there's more!

The Bandit Micro has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Micro as a 1000mW Telemetry receiver for ultra long range flights.

The Ideal Solution for Demanding Applications

Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Micro ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

Package Includes

• 1 * Bandit Micro ExpressLRS RF Module

• 1 * 900Mhz T Antenna

• 1 * Manual

Bandit Nano ExpressLRS 915MHz RF Module

Features

• Up to 1 Watt power output

• Packet rates up to 200Hz

• Optimized circuitry for ultra-low power consumption

• Built-in TCXO oscillator

• Low noise, high comfort

• High contrast OLED display

• High efficiency cooling system

• Wifi and Bluetooth support

• Built-in ExpressLRS backpack

• 5 Directional nav key

• 915/868MHz T Antenna included

• With the Nano connector, support Zorro, Pocket and MT12 Radio

Specifications

• Item: Bandit Nano ExpressLRS RF Module

• Regulatory Domain: FCC915

• MCU: ESP32(main), ESP8285(aux, as ESP backpack)

• RF Chip: SEMTECH SX1276

• Refresh Rate Min/Max: 25Hz/200Hz

• RF Output Power: 1000mW/30dBm

• Nano standard 8 pin connector

• Built-in OLED screen

• XT30 Power Supply Voltage: DC 6V ~ 16.8V

• Weight: 62.5grams (with T antenna）

• Dimension: 68.5*41.0*27.0mm

Keep Your Cool!

With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our Zorro, Pocket, MT12 and other radios with a "Nano" Module bay.

Intuitive Control at Your Fingertips

The Bandit Nano ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.

Versatile Antenna Options for Diverse Applications

The Bandit Nano ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

But wait.. there's more!

The Bandit Nano has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Nano as a 1000mW Telemetry receiver for ultra long range flights.

The Ideal Solution for Demanding Applications

Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Nano ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

Package Includes

• 1 * Bandit Nano ExpressLRS RF Module

• 1 * 900Mhz T Antenna

• 1 * Manual

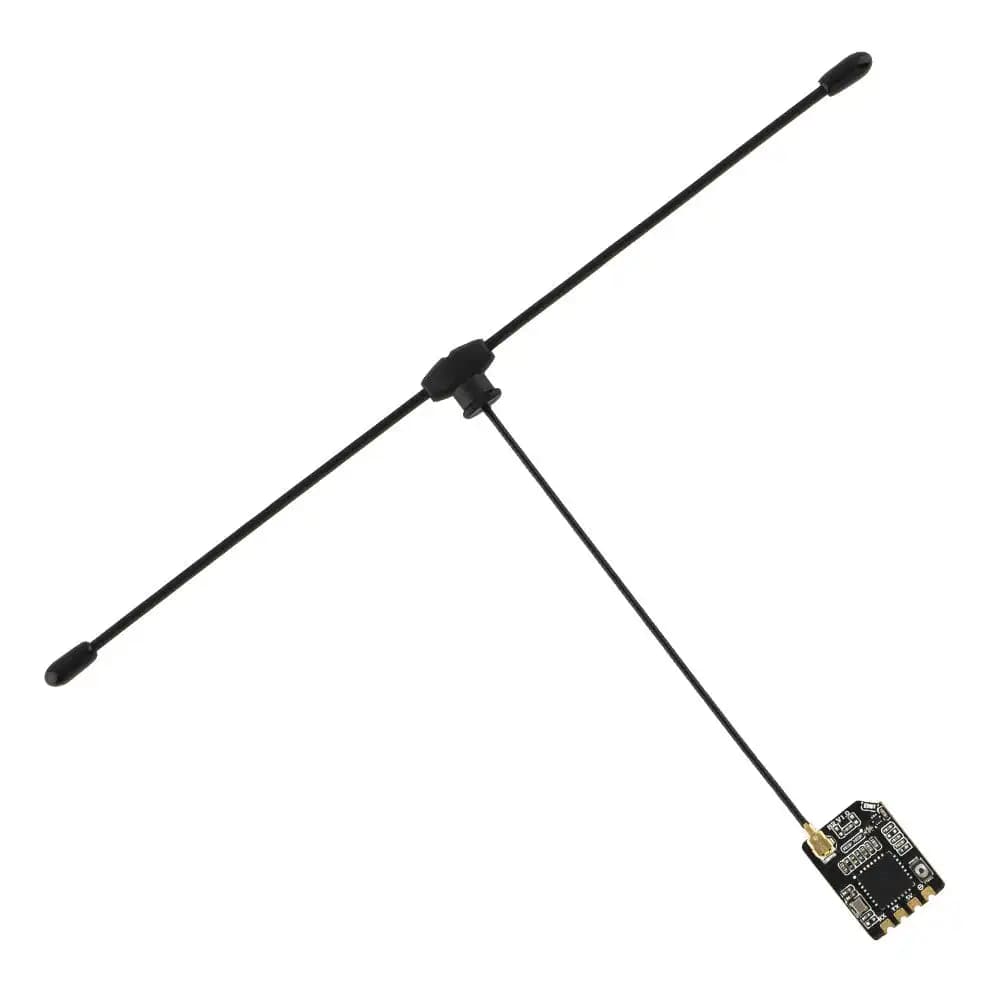

Bandit BR1 ExpressLRS 915MHz Receiver

Specifications

• Item: Bandit BR1 Expresslrs Receiver

• Regulatory Domain: FCC915

• MCU: ESP8285

• RF Chip: SEMTECH SX1276

• Telemetry RF Power: 50mw/17dbm

• Antenna: 915/868MHz T Antenna & Y Antenna

• Antenna Interface: IPEX1

• Bus Interface: CRSF

• Working Voltage: DC 5.0V

• Dimension: 18*13.8mm

• Weight: 1.7g (with Y antenna)/2.9g (with T antenna)

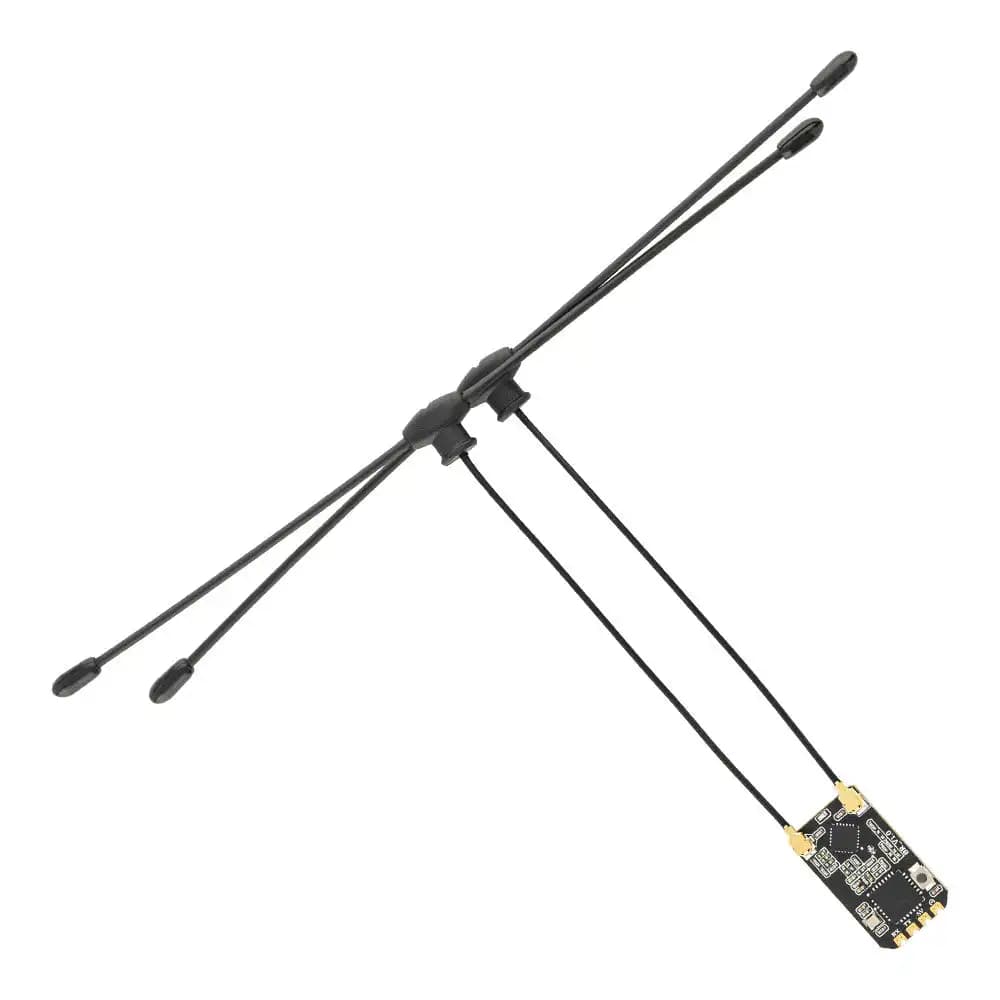

Bandit BR3 ExpressLRS 915MHz Receiver

Specifications

• Item: Bandit BR3 ExpressLRS Receiver

• Regulatory Domain: FCC915

• MCU: ESP8285

• RF Chip: SEMTECH SX1276

• Telemetry RF power: 100mW - 500mW LUA Adjustable

• Antenna: 915/868MHz T Antenna

• Antenna Interface: IPEX1

• Bus Interface: CRSF

• Working Voltage: DC 5.0V

• Dimension: 24*14.2mm

• Weight: 5.5g (with antennas)
