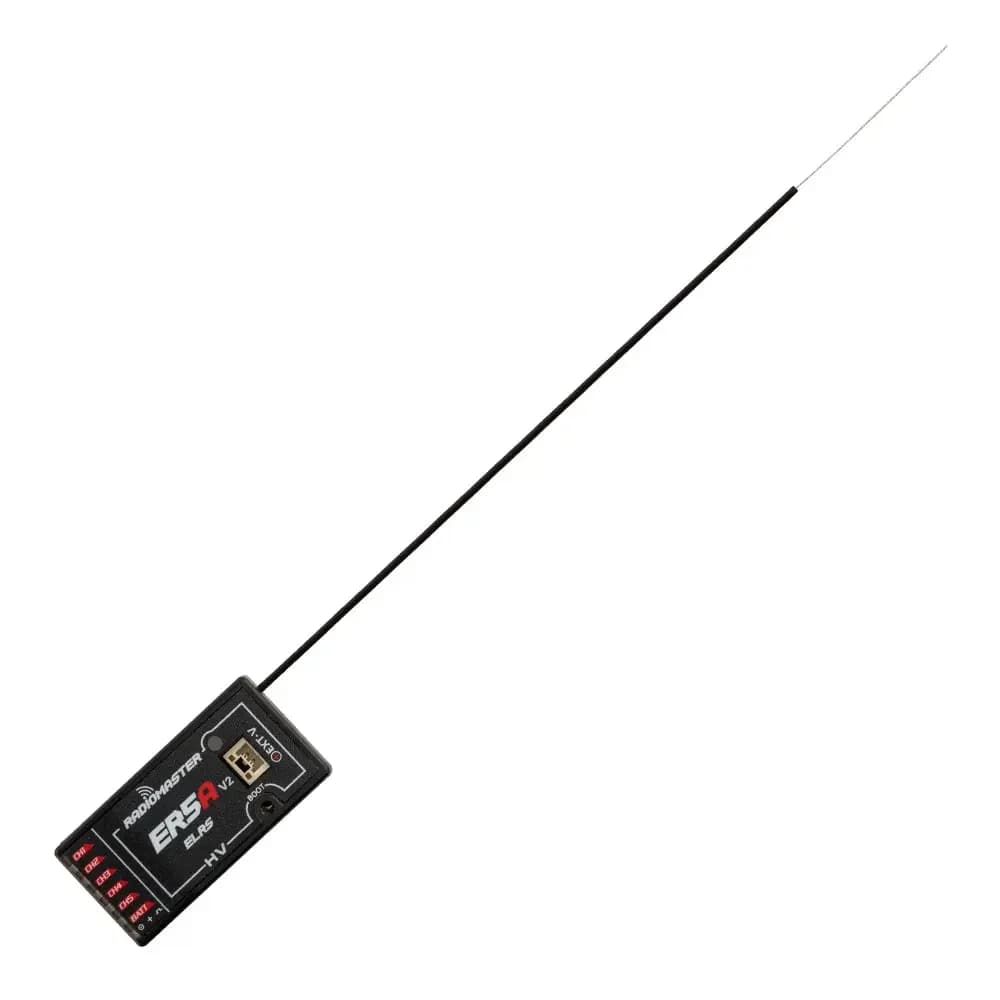

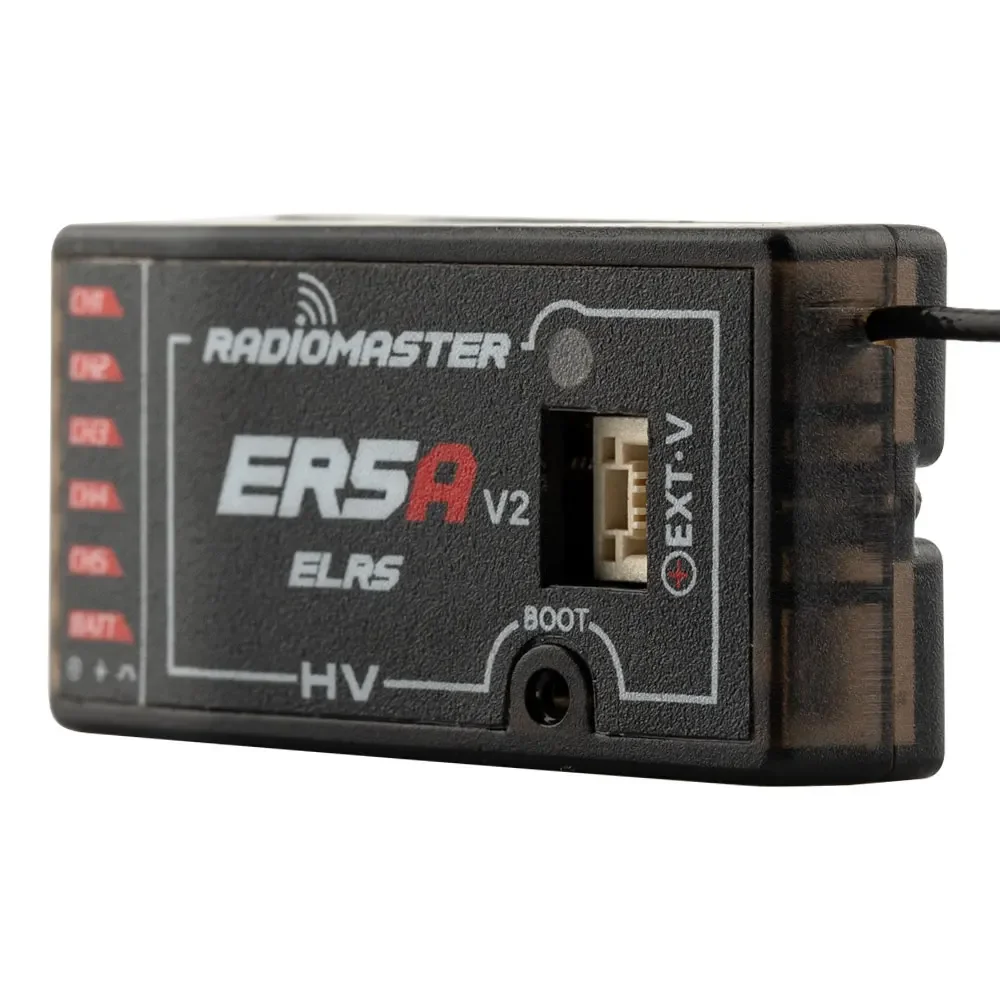

Radiomaster ER5A V2.0 5CH 2.4GH ExpressLRS External Antenna PWM Receiver For RC Car

ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability,
highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5A V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry
with the ability to automatically detect which voltage input to use. It is designed for aircraft applications.

Feature

• Based on the Revolutionary ExpressLRS System

• High performance, high reliability,flexible configuration, fast response speed and ultra-long range

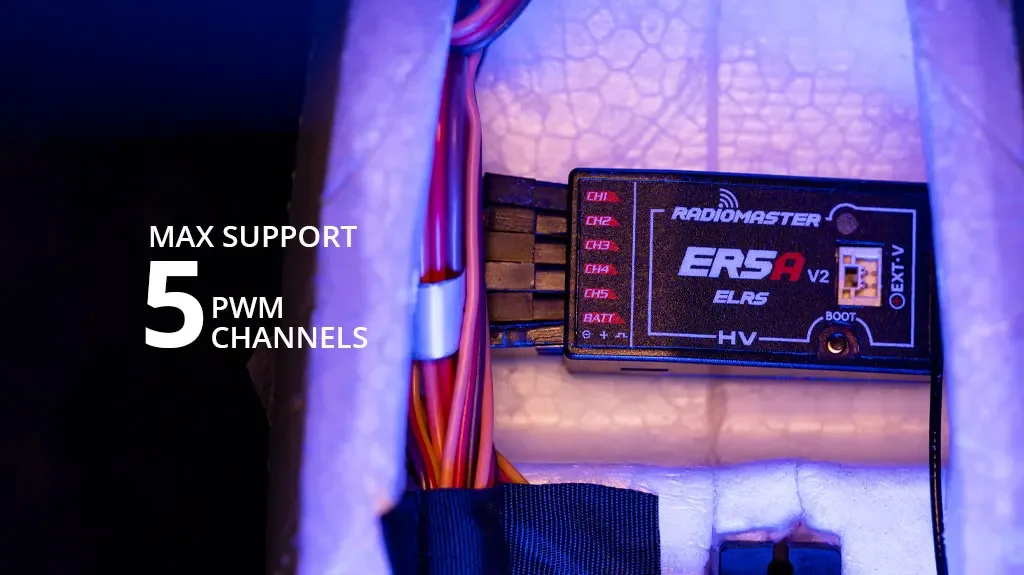

• Support 5 PWM Channels

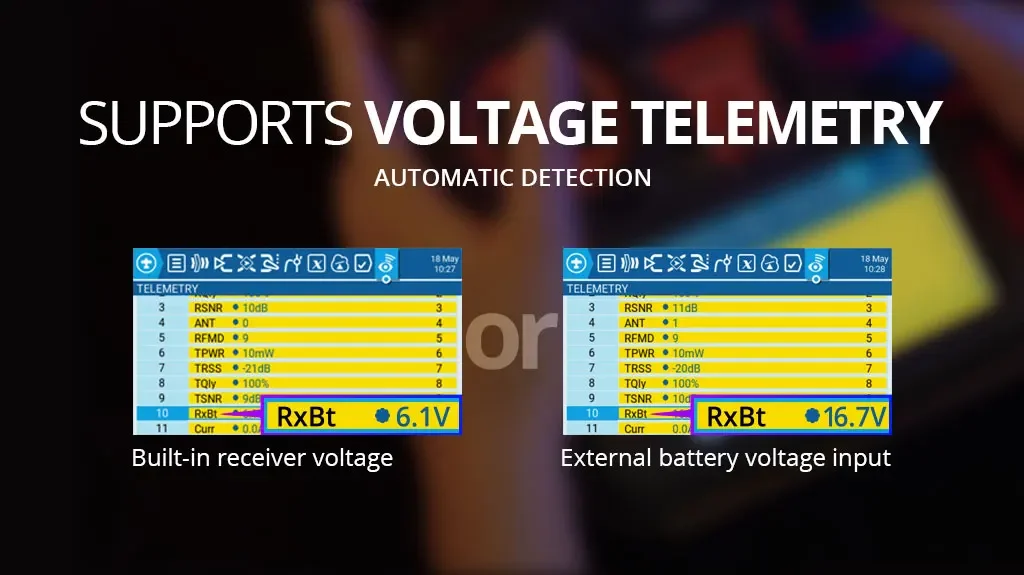

• Automatically detects voltage telemetry of external battery voltage or receiver battery /ESC BEC voltage

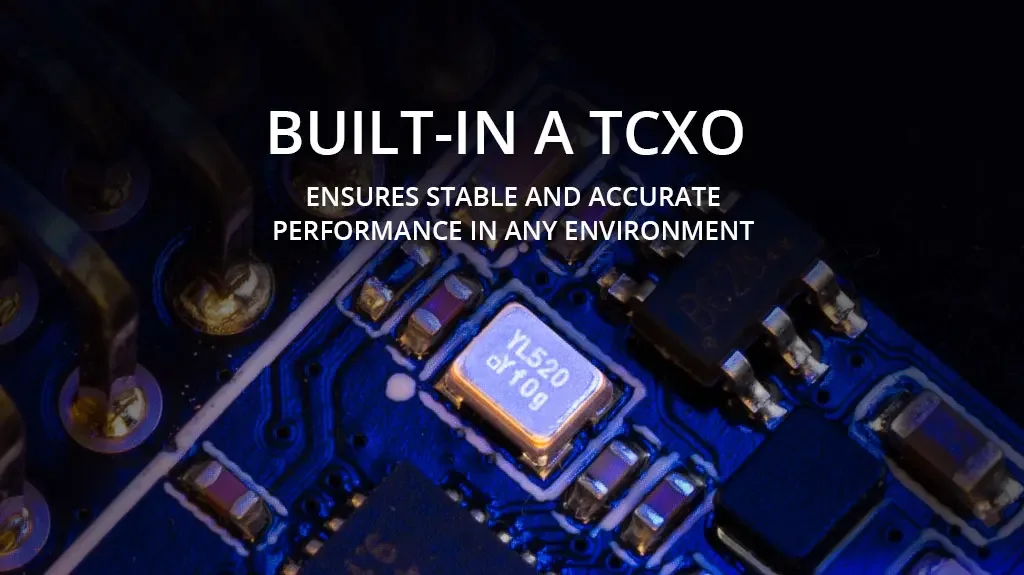

• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment

• Optimized ground up PCB design

• Supports Wi-Fi updates and WEBUI configuration

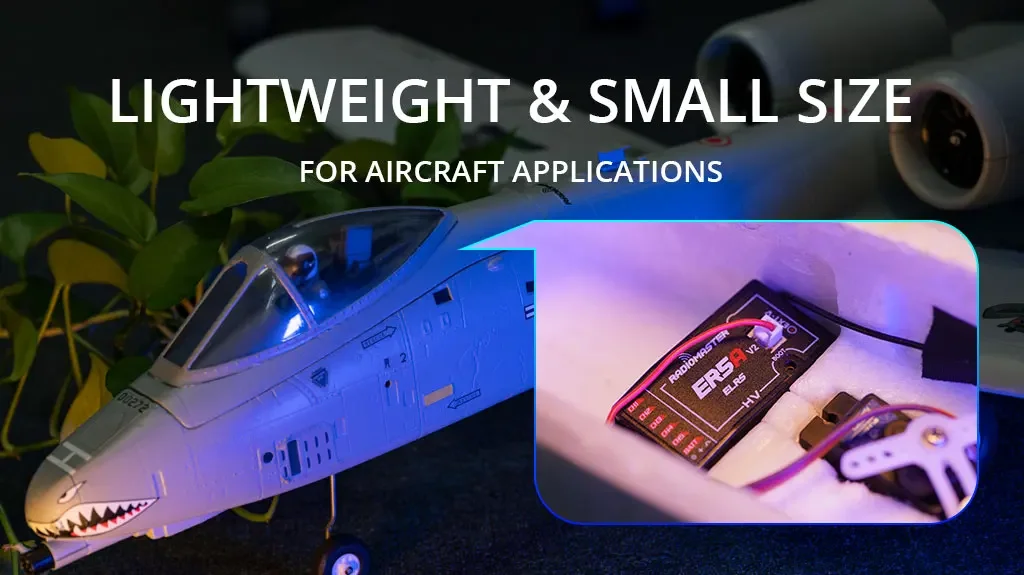

• Compact size, easy to install. Perfect foraircraft applications.

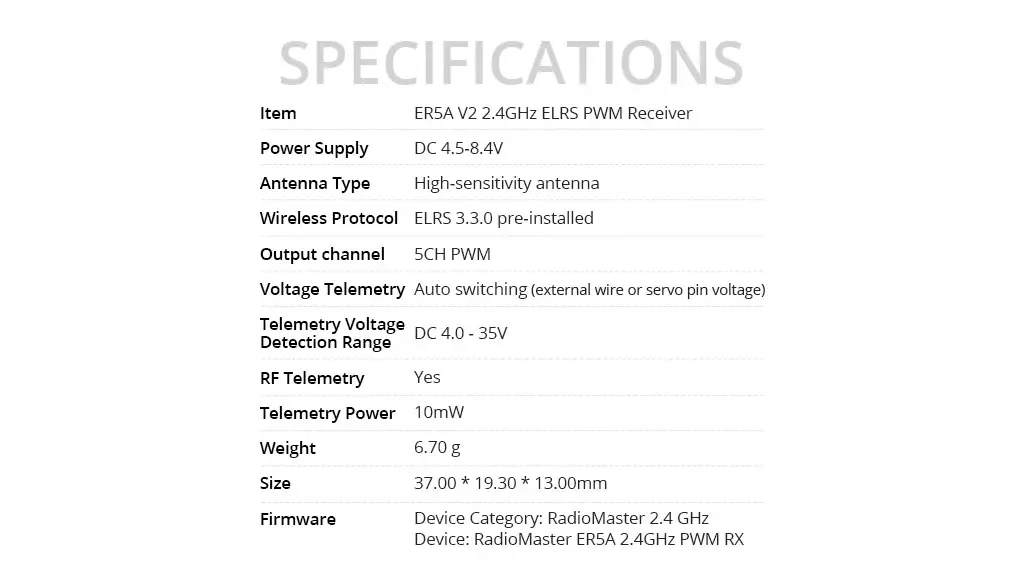

Specifications

• Item: ER5A V2 2.4GHz ELRS PWM Receiver

• Power supply: DC 4.5-8.4V

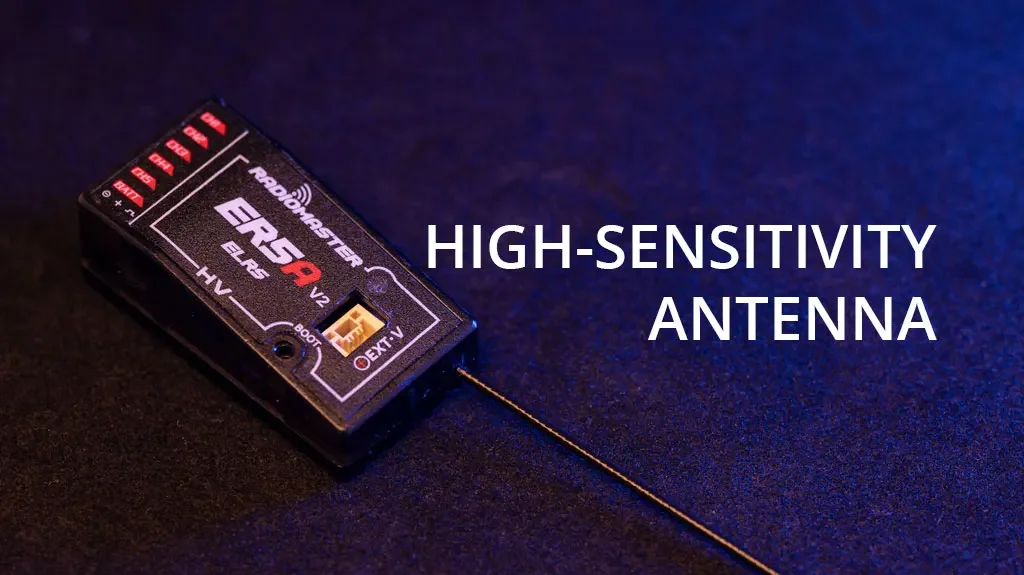

• Antenna type: High-sensitivity antenna

• Wireless Protocol: ELRS 3.3.0 pre-installed

• Channels: 5

• Telemetry Voltage Detection Range: DC 4.0 - 35V

• RF Telemetry: Yes

• Telemetry Power: 10mw

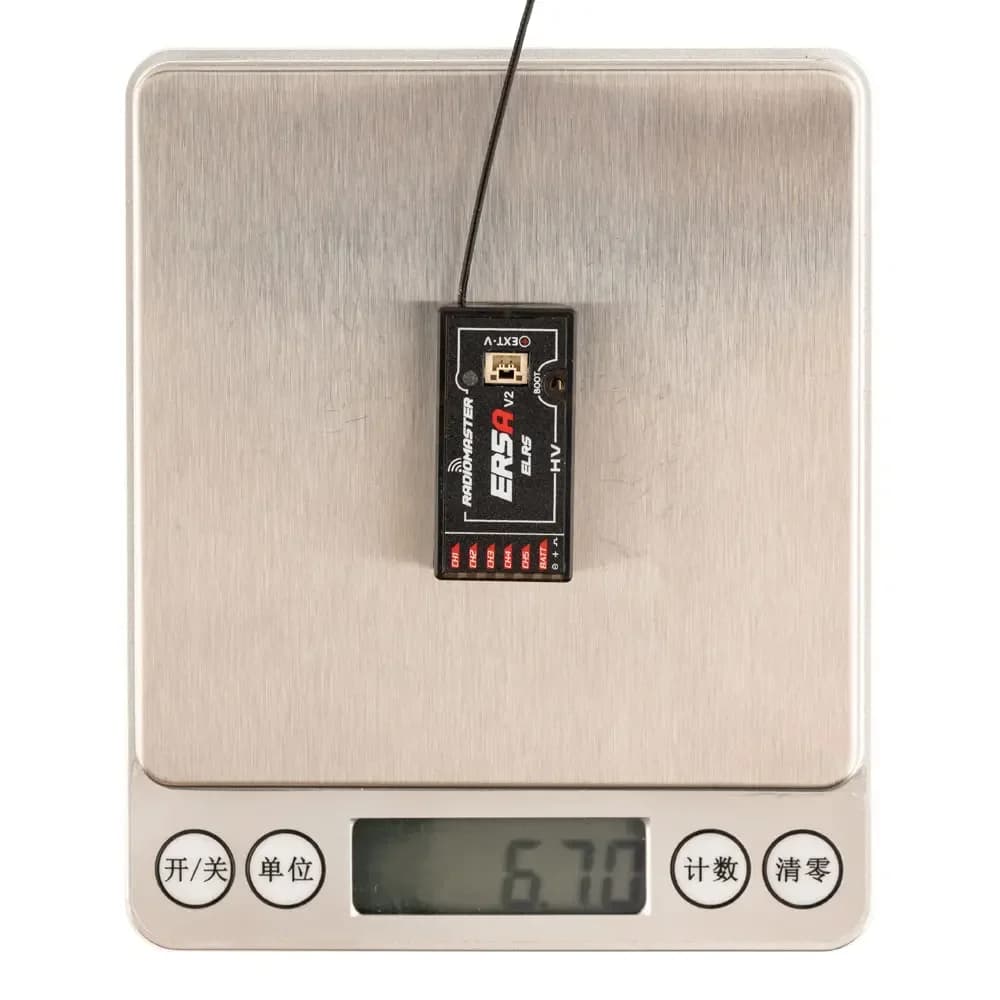

• Weight: 6.7 grams

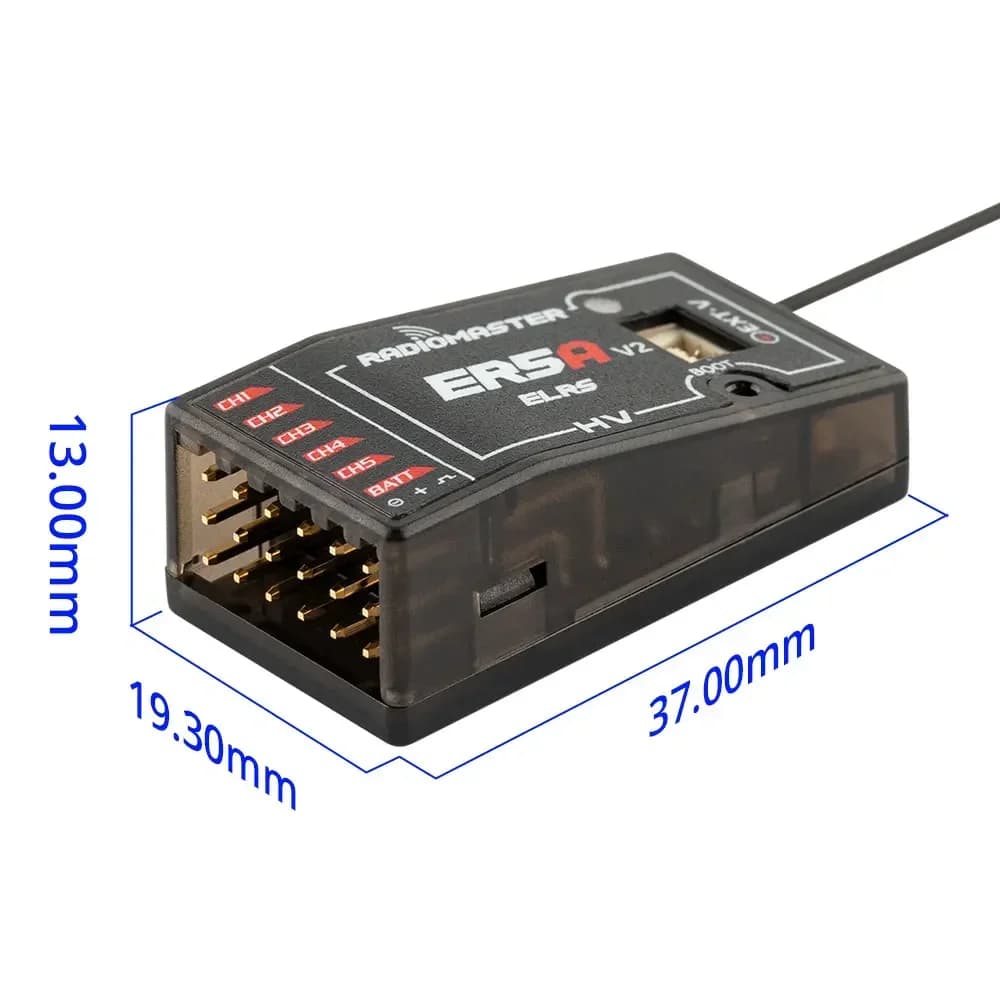

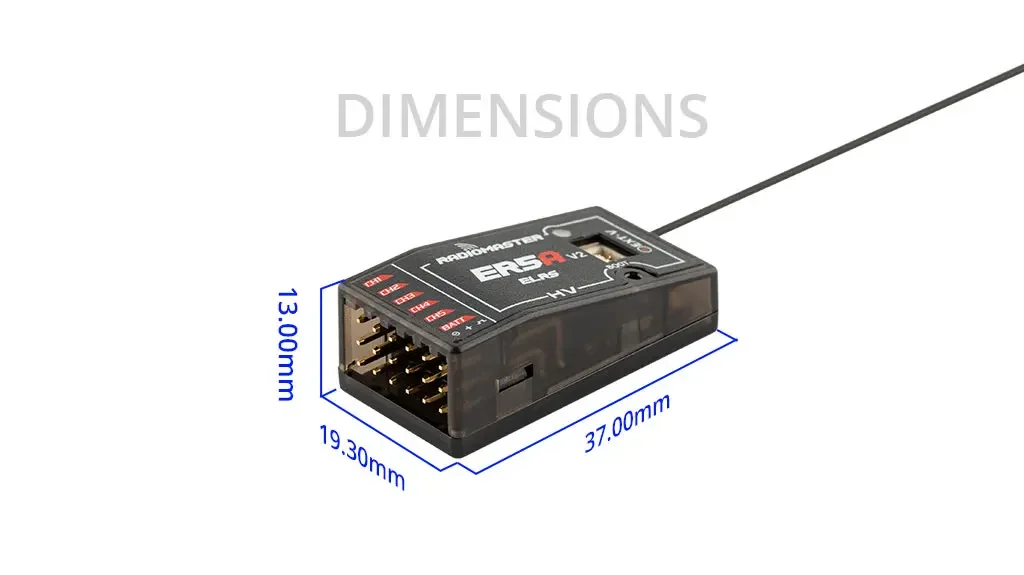

• Size: 37.0 * 19.3 * 13.0mm

Firmware:

• Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

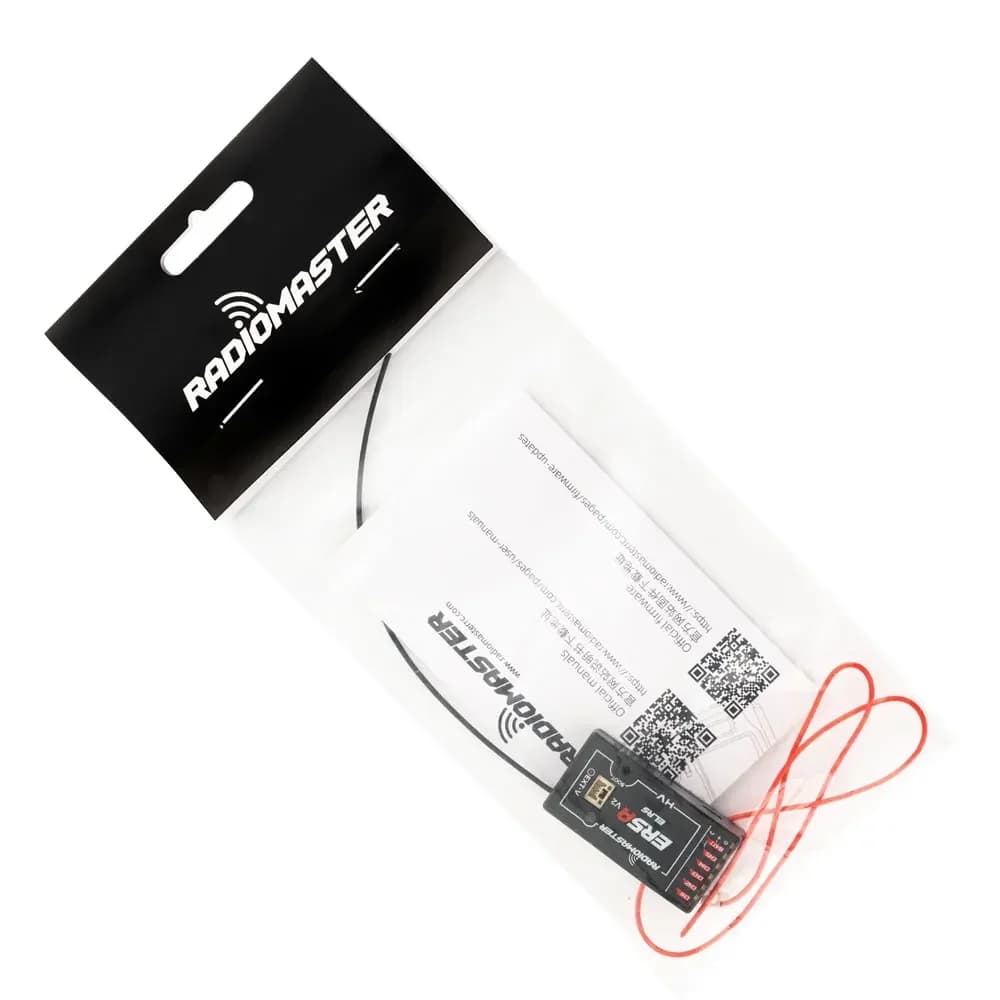

Package Including

• 1 * ER5A V2 2.4GHz ELRS PWM Receiver

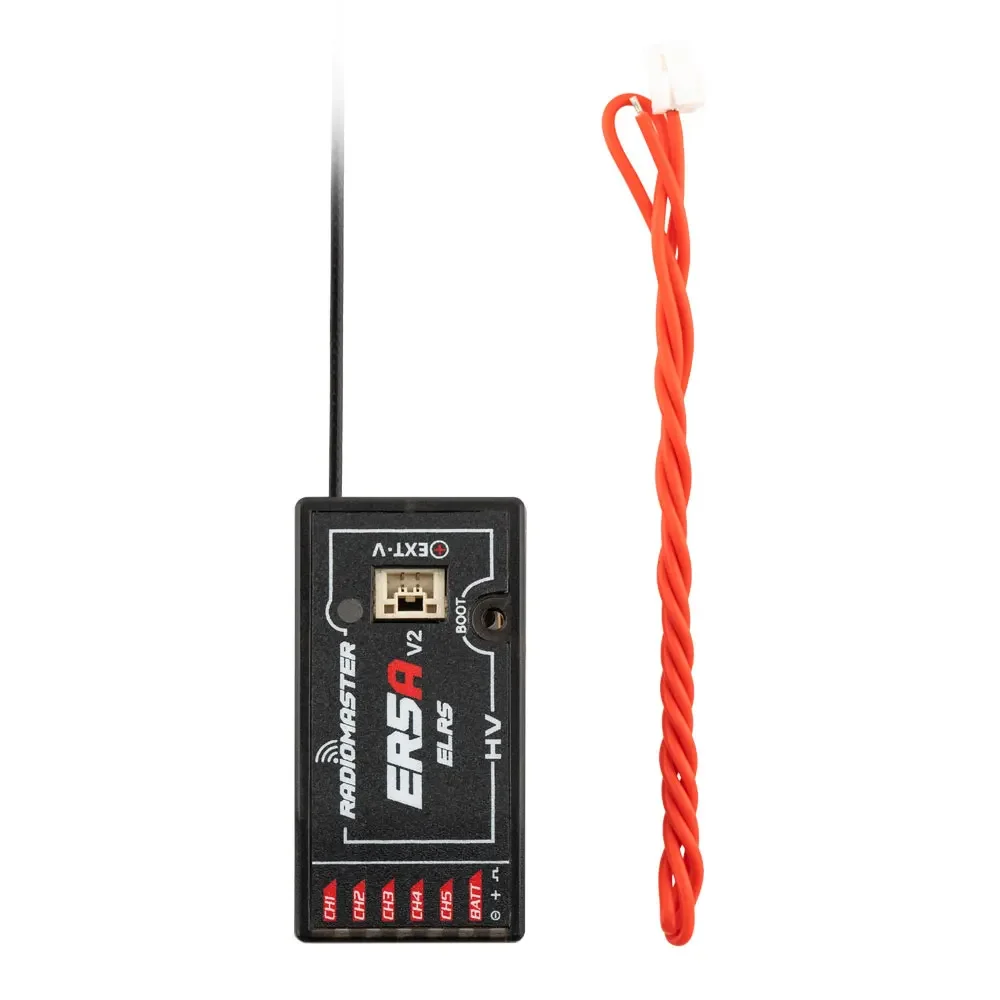

• 1 * Voltage telemetry wire

• 1 * User Card
