ToolkitRC ST8 8-Channel Servo Tester PWM, PPM, SBUS 4 Independent Interface Signal Test For RC Servo
1 orders (reference)
Description
ToolkitRC ST8 8-Channel Servo Tester PWM, PPM, SBUS 4 Independent Interface Signal Test For RC Servo High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: Y Is Batteries Included: No Model Number: ST8 For Vehicle Type: Cars
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | Y |
| Is Batteries Included | No |
| Model Number | ST8 |
| For Vehicle Type | Cars |
| Material | POLYESTER |
| Brand Name | ToolKitRc |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
Product Details
Product Features：
- ToolkitRC ST8 is a data analyzer which is capable to test the voltage, energy, current, speed and signal data of the servo.
- With 4-way independent programable signal, 8 channel signal output, the accuracy is accurating to 1us.

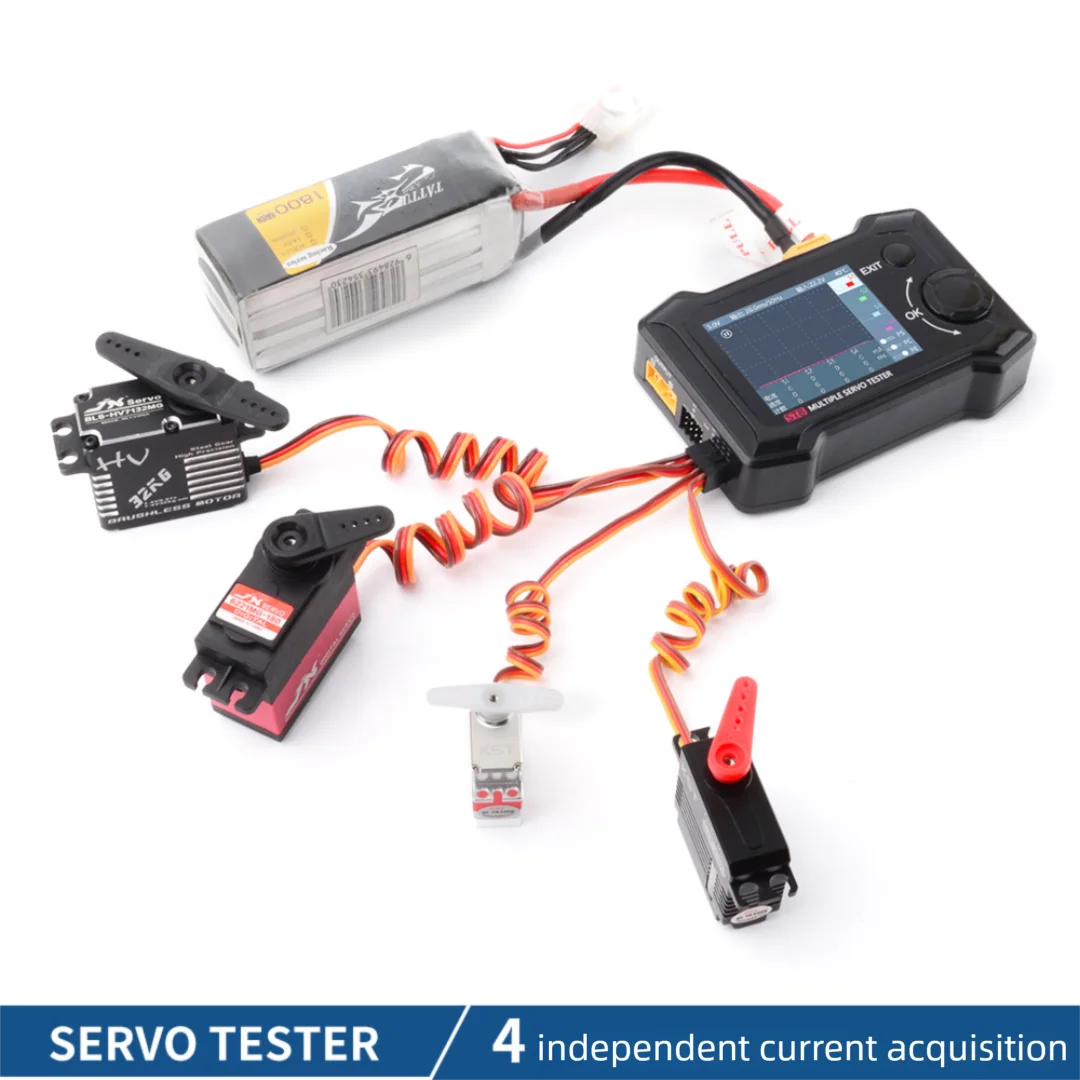

- 4-way independent current date collection, and diplayed by graph.

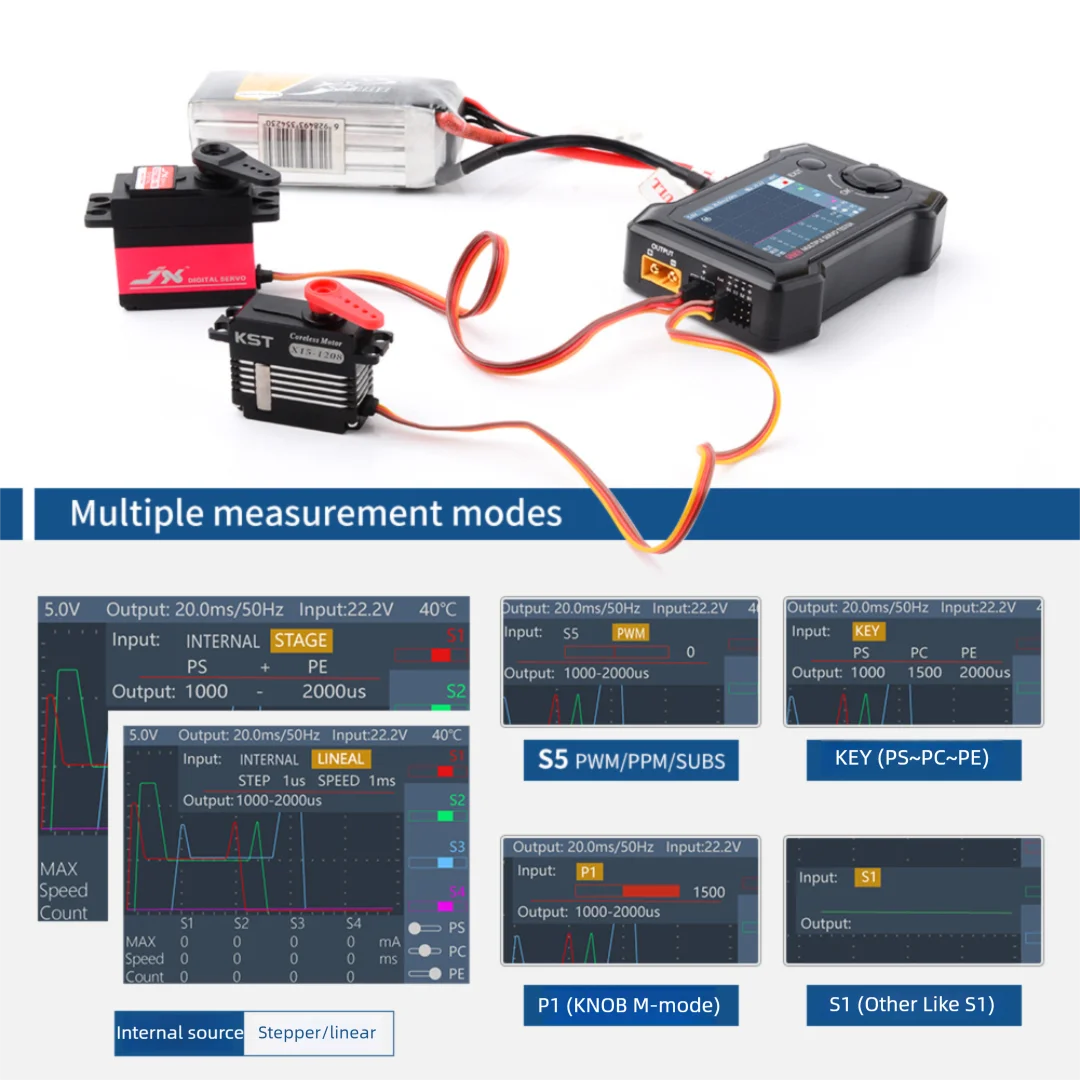

- Support to test multipul date, speed, liner data, steps,etc.

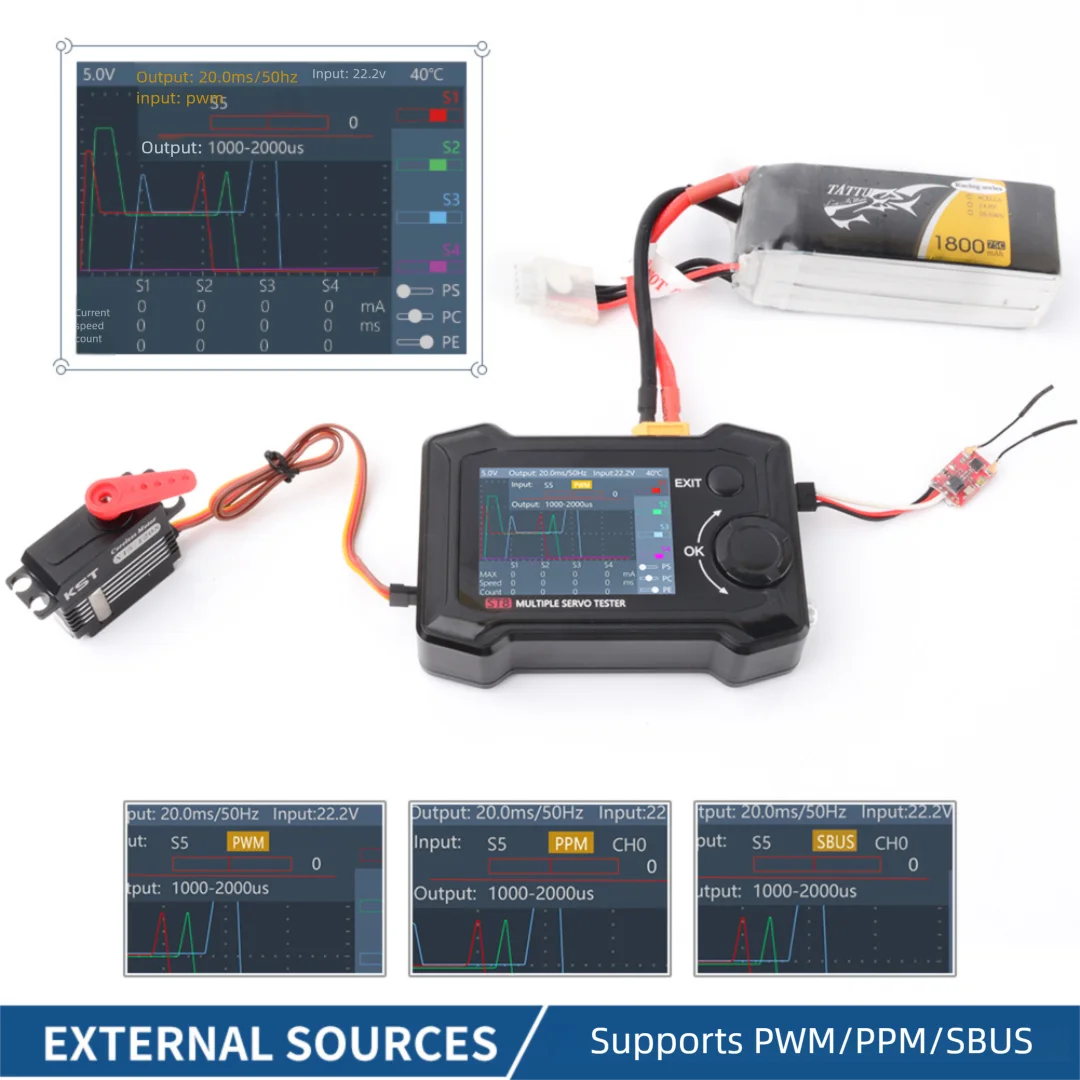

- Support multiple signal type, PWM/PPM/SBUS,the accuracy is accurating to 1us.
- Input Voltage is higher to 28V, also suitable to test HV servo.
- The max load is upto 100W.
- Multi-language system, can change the language by yourself.
- USB firmware update, easy to operate.
Specifications:
Brand: ToolkitRC
Item: ST8 Servo Tester;
Channel: 8CH Output;
Load(max): 100W;

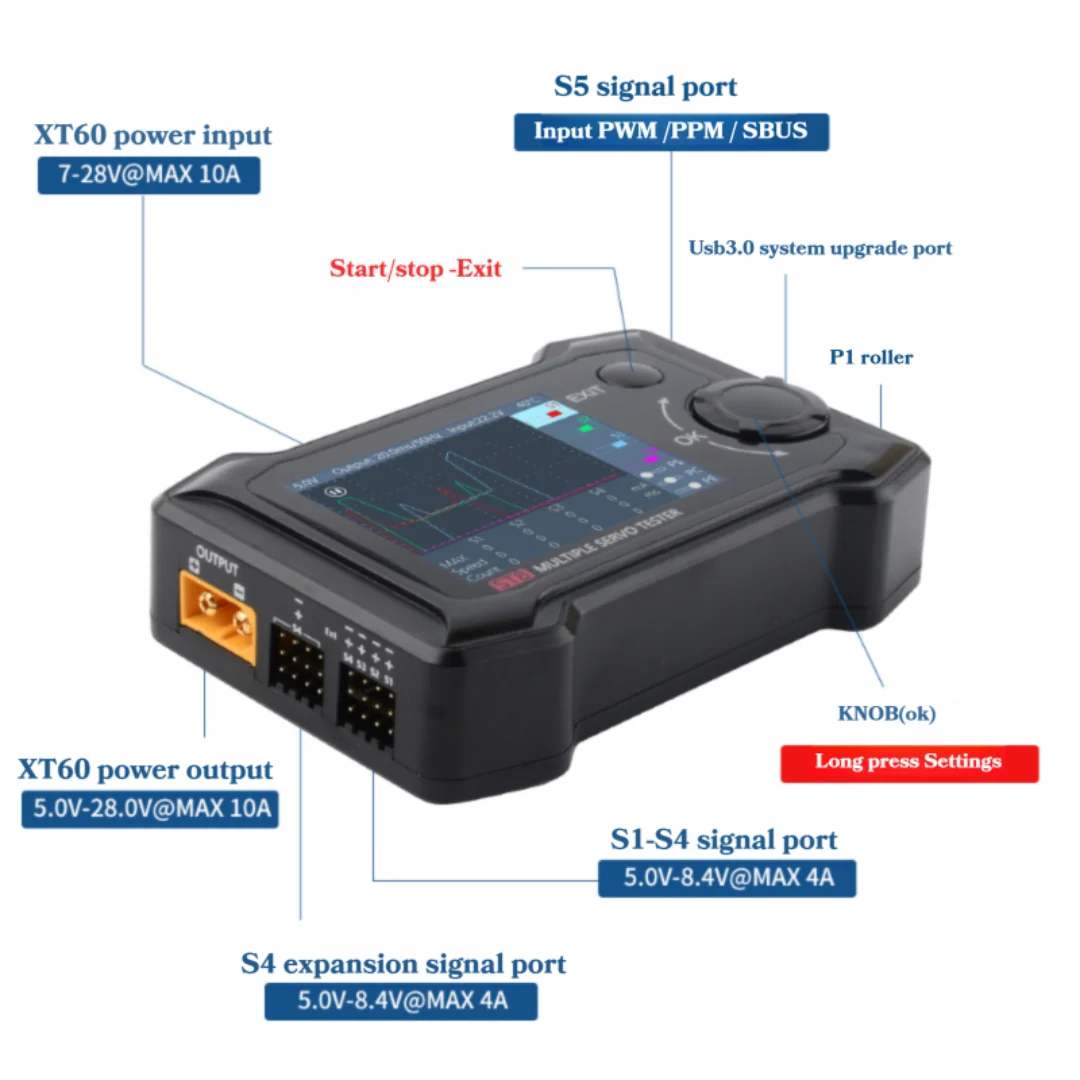

Input Voltage: 7.0-28.0V@MAX 10A;
Main Output Voltage: 5.0-28.0V@MAX 10A;
Signal Output Voltage:
5.0-8.4V@MAX 2A(S1-S4);
5.8-8.4V@MAX 4A(S1-S4);

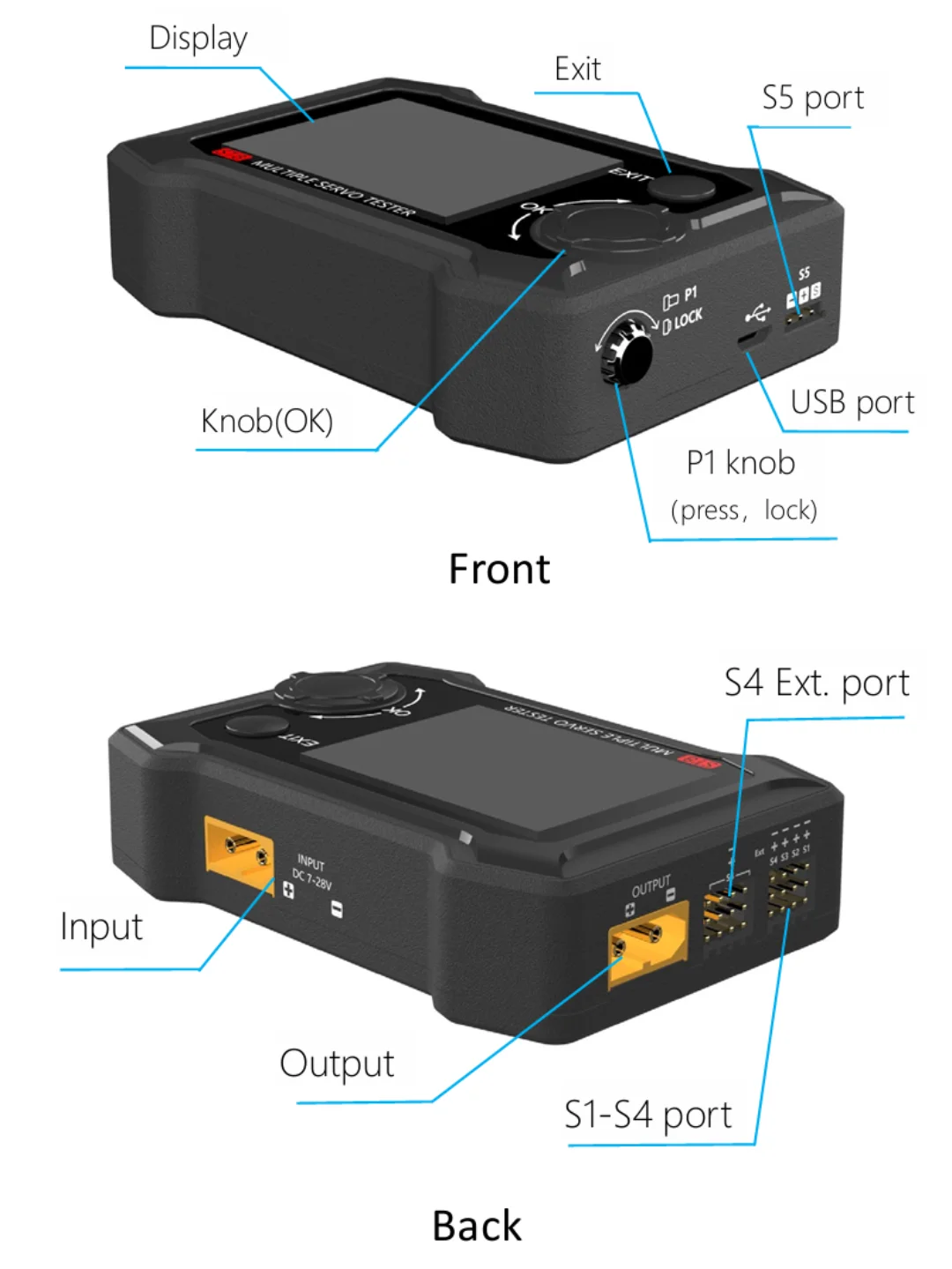

Output Signal:
100us-2900us @33-1000Hz @S1-S4;
PWM 500us-2500us @S5;
PPM 8CH @S5;
SBUS 16CH @S5;

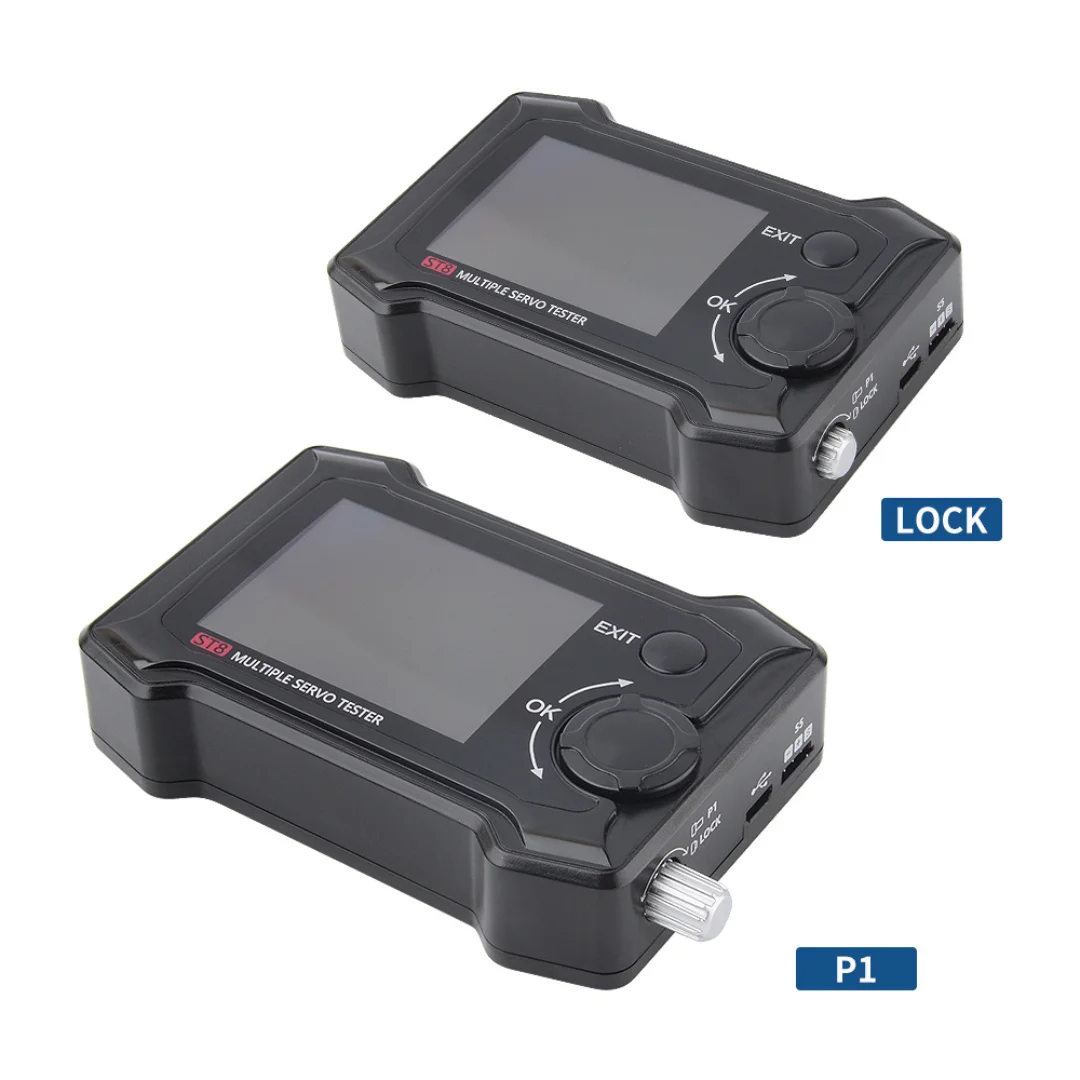

P1 Button: 1000-2000us @P1;
USB: Update@USB3.0;

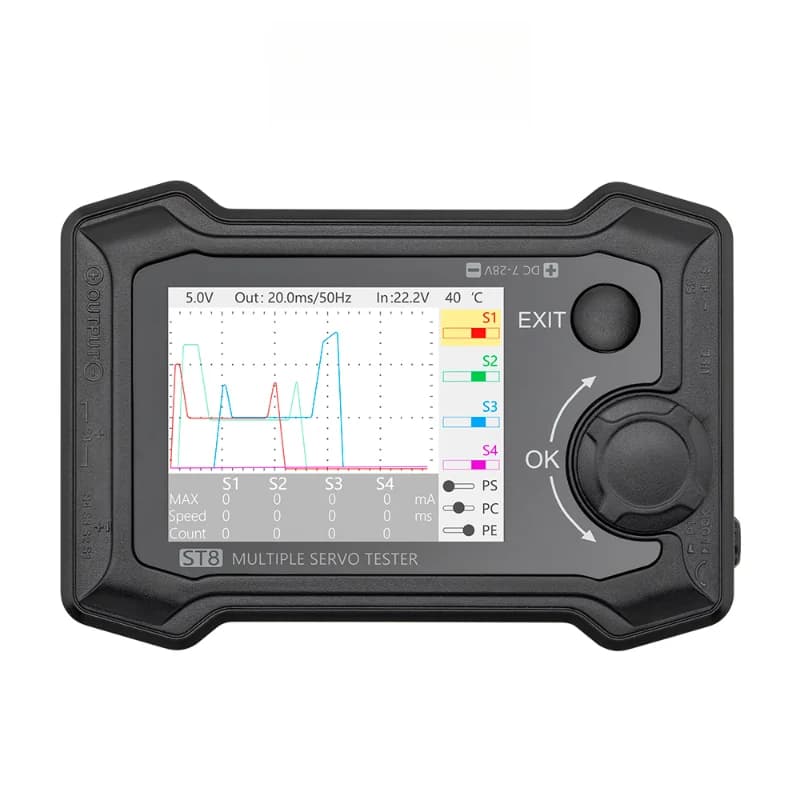

Display: 2.4" TFT RGB LCD Screen(320*240 resolution)
