VIFLY StoreSafe Smart Lipo Battery Discharger XT30 / XT60 with Heatsink for 2-6S Lipo Battery
165 orders (reference)
Description
VIFLY StoreSafe Smart Lipo Battery Discharger XT30 / XT60 with Heatsink for 2-6S Lipo Battery High-concerned chemical: None Is Electric: No Battery Wheelbase: Bottom Plate Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: VIFLY StoreSafe For Vehicle Type: Airplanes
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | VIFLY StoreSafe |
| For Vehicle Type | Airplanes |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
GET TO KNOW VIFLY StoreSafe

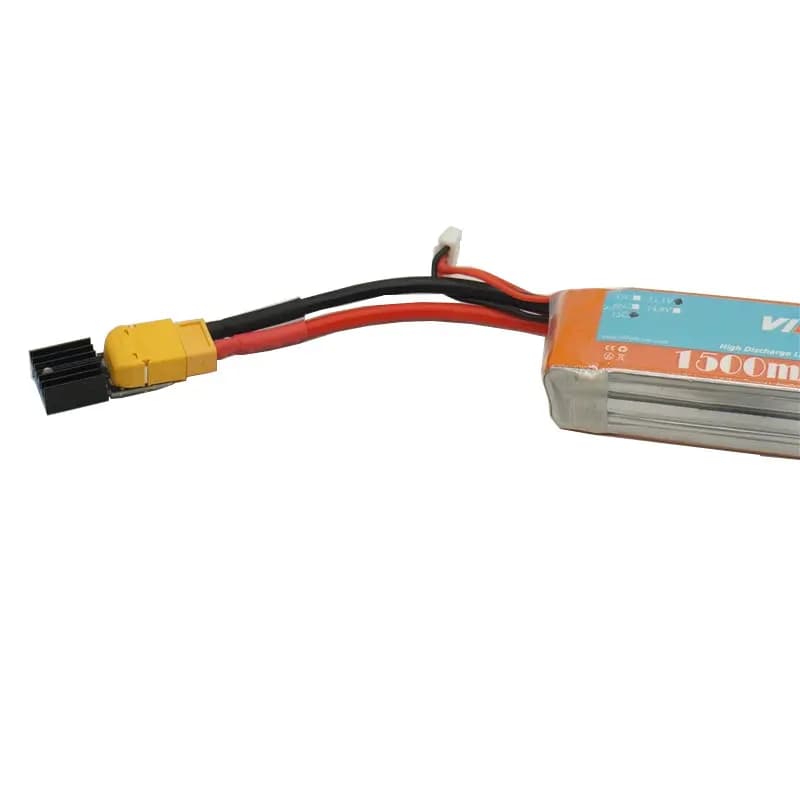

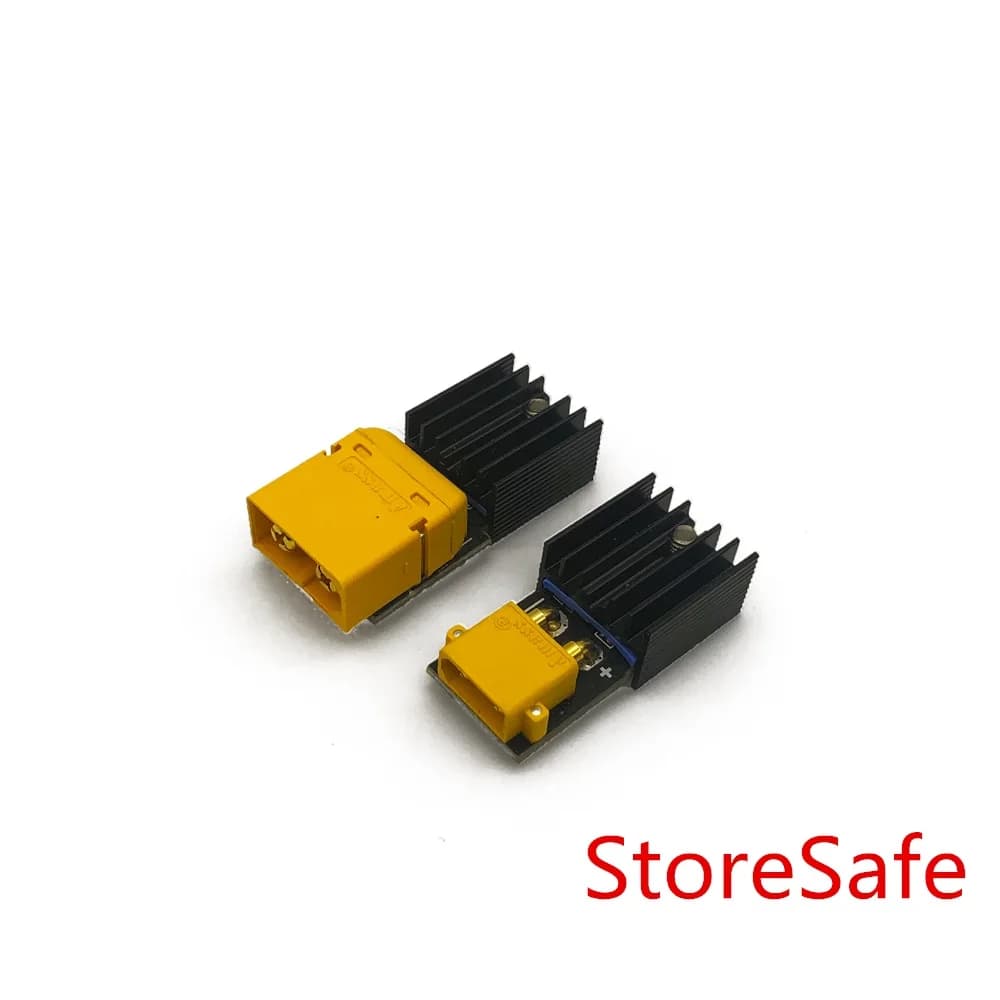

VIFLY StoreSafe is a smart lipo battery discharger that can intelligently discharge your battery to storage voltage.With built-in advanced algorithm and the temperature sensor, it can keep the highest discharge rate in an appropriate temperature range.The heatsink would effectively dissipate the heat to prevent the discharger from overheating

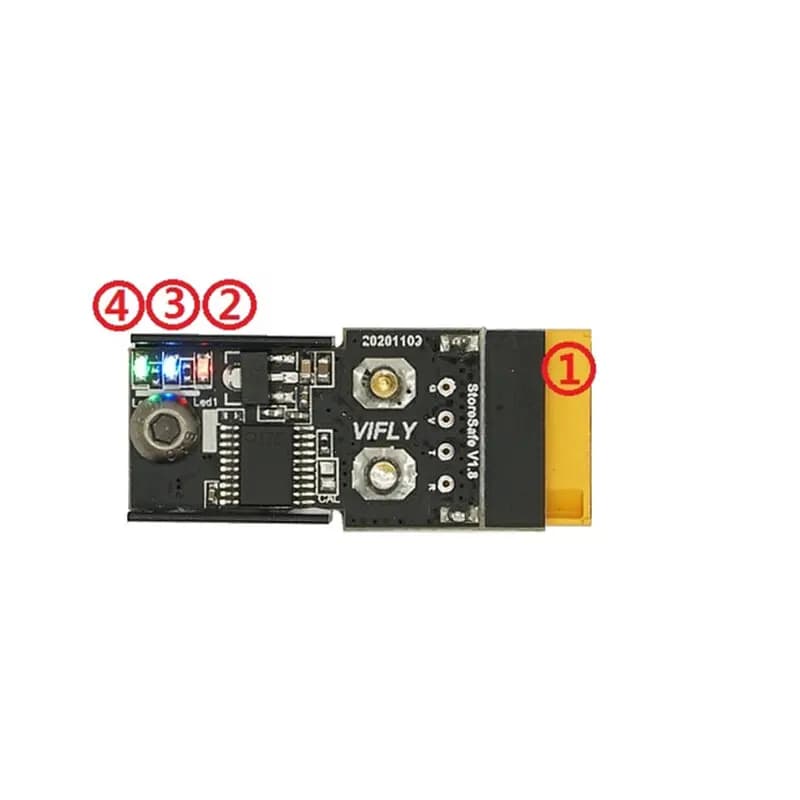

1. XT60/XT30 Input
2. Red LED
3. Blue LED
4. Green LED
StoreSafe would recognize the battery type automatically and indicate it with different LED lights.
LED Indication
Green LED | Blue LED | Red LED | Battery Type |
× | ● | × | 7.4V(2S) |
× | ● | ● | 11.1V(3S) |
● | × | × | 14.8V(4S) |
● | × | ● | 18.5V(5S) |
● | ● | × | 22.2V(6S) |
Note: When the LED status does not match the above table, please stop using StoreSafe immediately and contact us.
Operation
After plugging in the battery, the LED that indicates the status will flash for about 5 seconds and then enter the discharging state. If the LED status not indicates correctly, please disconnect the battery immediately.
The StoreSafe will stop discharging when your battery reaches storage voltage (3.85V±0.08V / cell) and then goes into an ultra-low leakage current (<10uA)
Specs
Working Voltage 7.9 - 26V(2S-6S)
Discharging Power 1W
Turn-off Current < 10uA
Storage Voltage 3.85V±0.08V / cell
Connector XT60 / XT30
Weight 8g(XT60) / 5g(XT30)
Size (L x W x H) 37 x 16 x 10 mm(XT60) / 32 x 15 x 10 mm(XT30)
