VIFLY Finder Mini Micro FPV Drone Buzzer Tracker 100DB
123 orders (reference)
Description
VIFLY Finder Mini Micro FPV Drone Buzzer Tracker 100DB High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: VIFLY MINI For Vehicle Type: Helicopters Tool Supplies: other
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | VIFLY MINI |
| For Vehicle Type | Helicopters |
| Tool Supplies | other |
| Four-wheel Drive Attributes | other |
| Remote Control Peripherals/Devices | other |
| Upgrade Parts/Accessories | other |
| RC Parts & Accs | other |
| Material | other |
| Origin | Mainland China |
| Recommend Age | 14+y |
Product Details
GET TO KNOW VIFLY Finder Mini

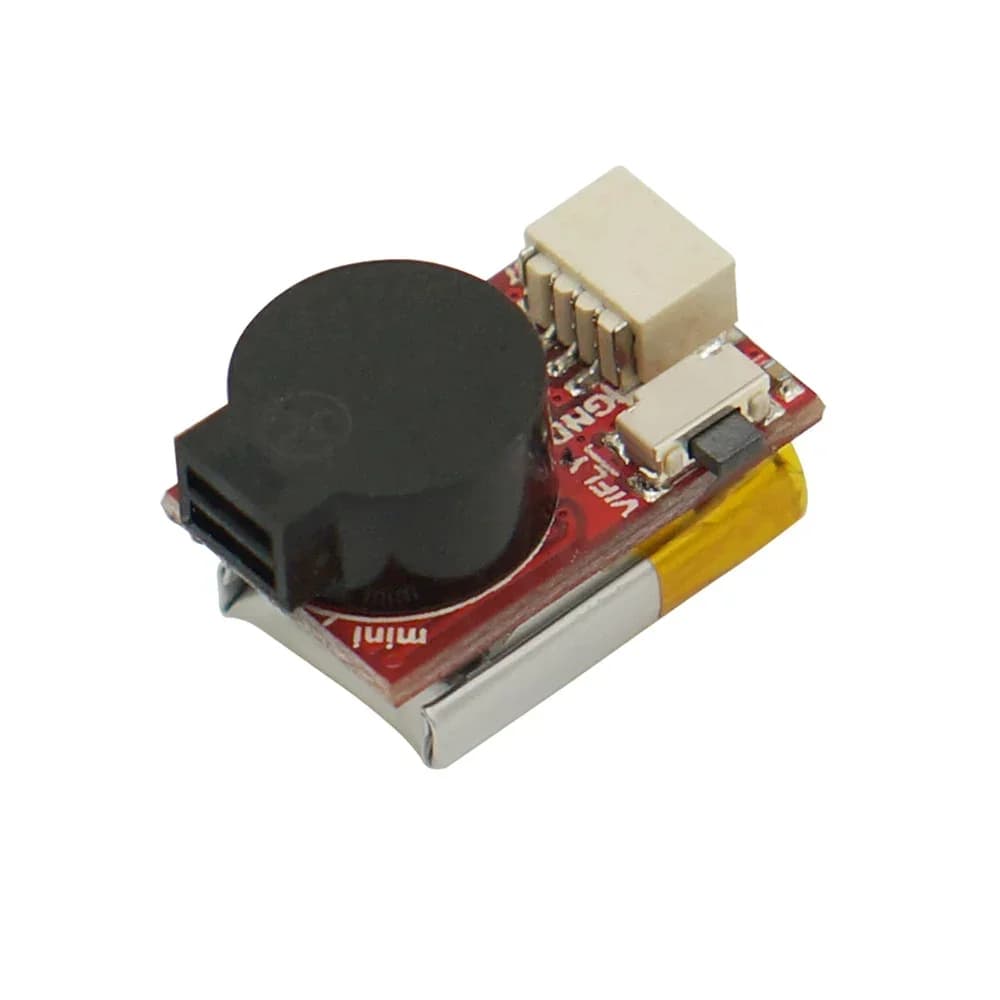

VIFLY Finder Mini is specially designed for compact build, tiny size and light weight. It installed the loudest beeper that can used in such a small size, the volume can be up to 100 dB. With VIFLY Finder Mini, you will never worry about losing your mini or micro quads again.

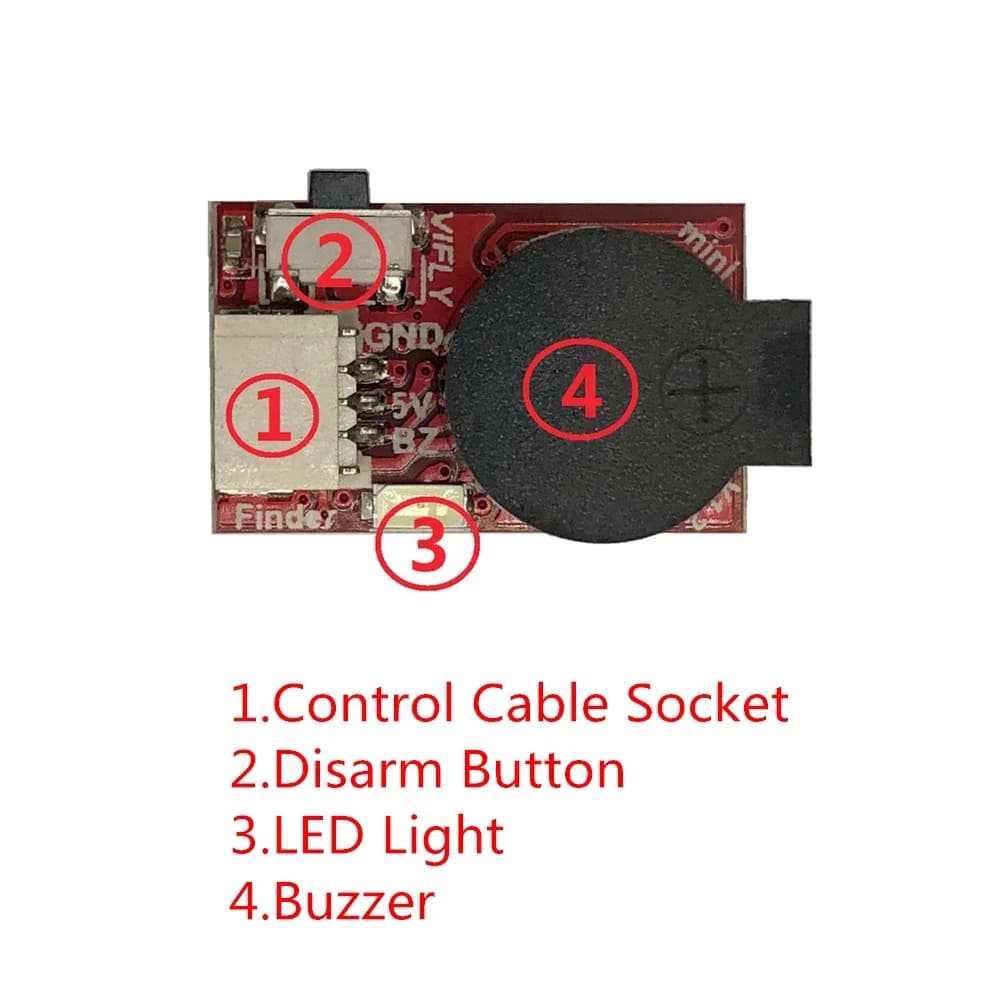

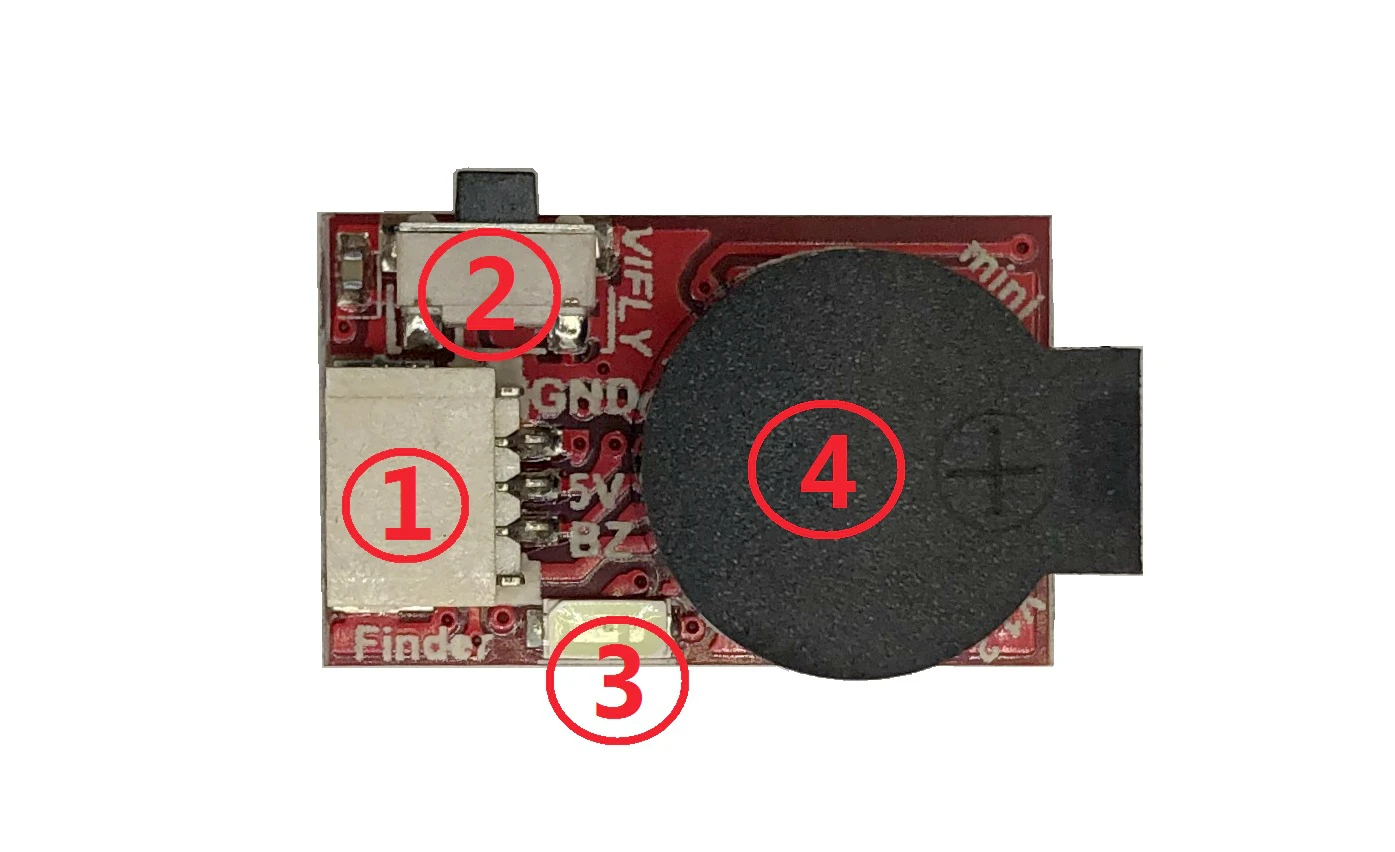

1.Control Cable Socket
2.Disarm Button
3.LED Light
4.Buzzer
Wiring Diagram
VIFLY Finder Mini supports racing drone flight controller, and airplane receiver.
Connect Flight Controller
Connect Receiver
Operation
How to Activate: VIFLY Finder Mini will be activated after main battery is connected.
How to Alarm Manually: While main battery is connected, VIFLY Finder Mini performs like a standard buzzer, but much louder. You can make it alarm by remote controller.
How to Alarm Automatically: VIFLY Finder Mini will alarm if main battery is disconnected or out of power, and flash bright blue light.
How to Disarm: If you want to end flying, please disarm VIFLY Finder Mini. It will beep 3 times when disarmed successfully.
Disarm with disarm button: Disconnect main battery, hold disarm button on VIFLY Finder Mini for 1 to 5 seconds then release.
Disarm with main battery: Disconnect main battery, then connect main battery for 3 to 6 seconds and disconnect it again.
How to Charge: When main battery is connected, VIFLY Finder Mini will be charged automatically.
Specs
Size (L x W x H) 19x11x12 mm
Weight 2.7 grams
Volume Up to 100 dB
Working Time Up to 7 hours
Charge Time 1.5 hours
Battery 40mAh LiPo
Input Voltage 4.5 - 7.4 V
Alarm Pattern
|
First 40 seconds
|
40s to 0.5hours
|
0.5hours to 1hours
|
After 1hours
|
|
Low volume
|
Max volume every 5s
|
Max volume every 10s
|
Max volume every 20s
|
REMINDER: Pls charge it every 3 months to avoid battery over discharged
