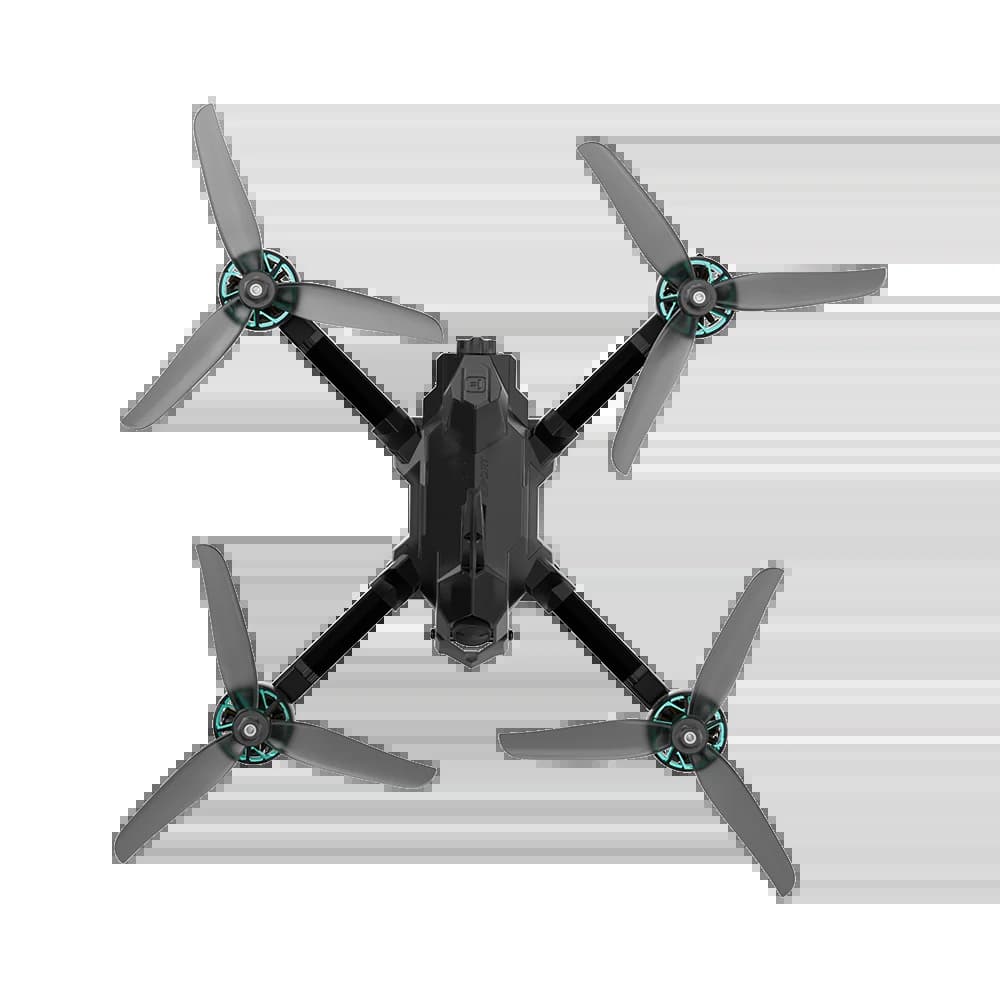

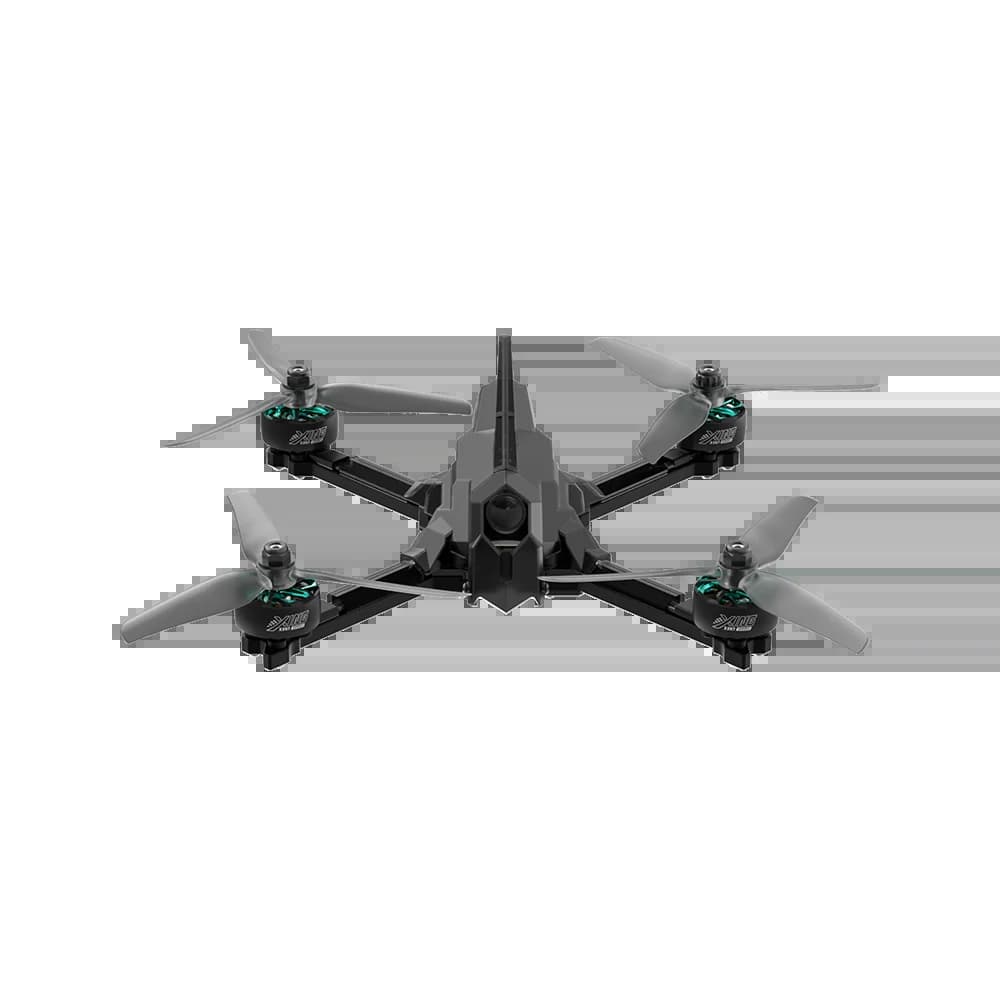

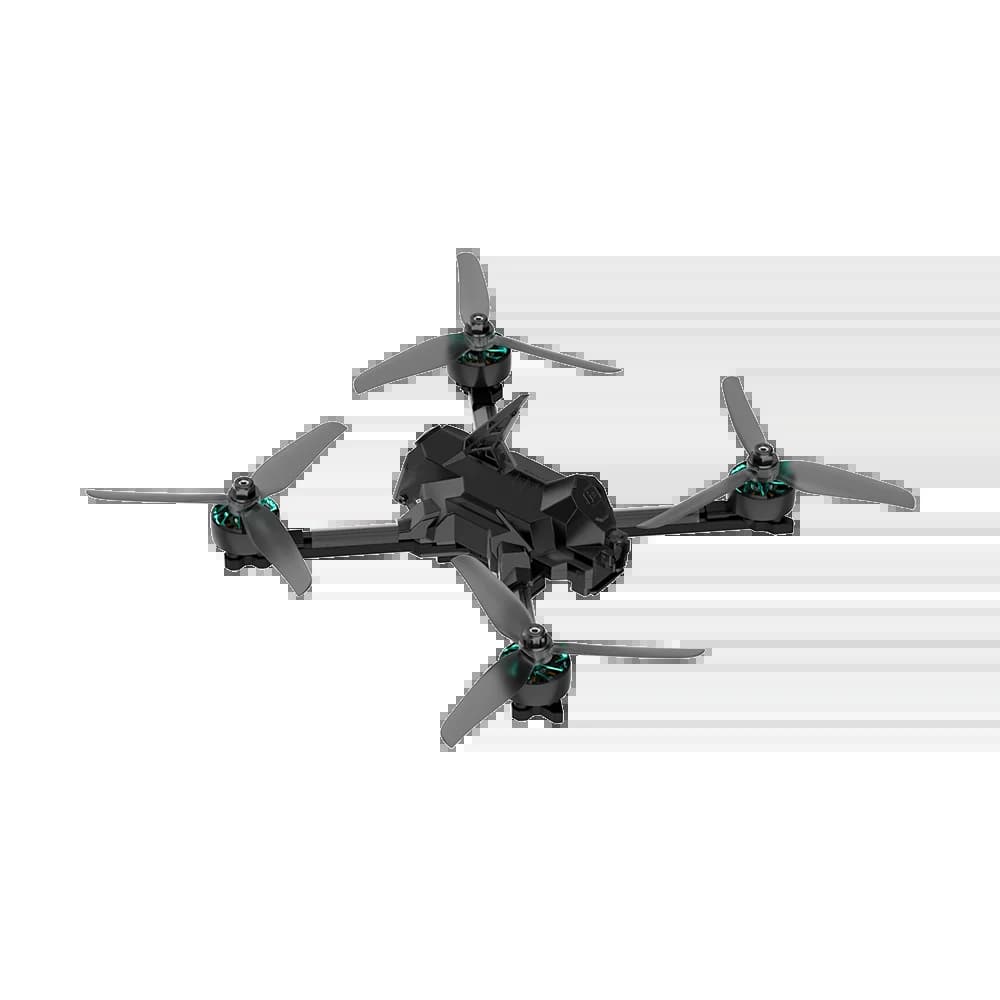

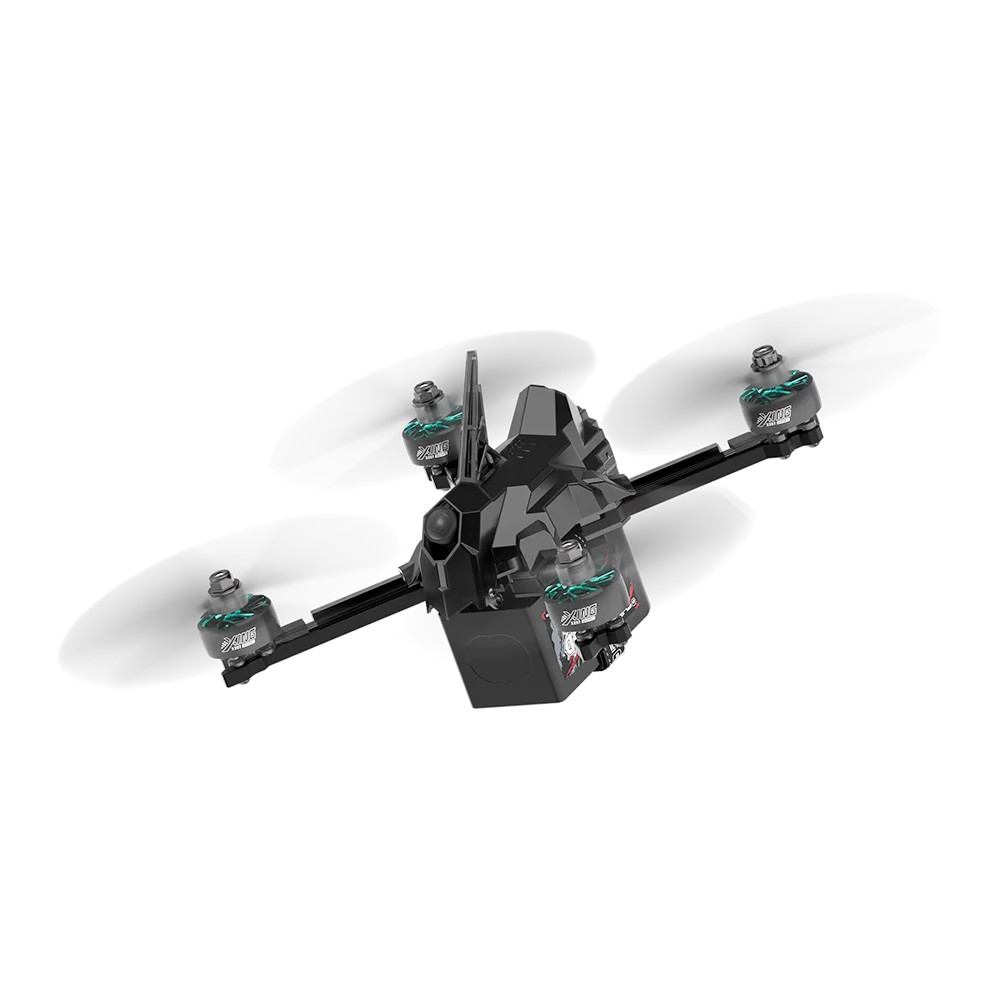

iFlight Mach R5 Sport Analog 6s FPV Race Canopy Drone BNF with BLITZ Mini F7 E55

Tip for buyers in the United States and Israel:

The shipping method "Seller's Shipping Method" requires approximately 9-16 days for transportation.

We have shipping experience, please rest assured to place orders. Thank you !

Description

The Mach R5 Sport aims to provide racing pilots a high-quality finished FPV drone while still allowing for DIY customization. By utilizing carbon plates and plastic components, the internal structure layout has been significantly improved. This not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability. The organized space layout guarantees that hardware components can be positioned logically, thus minimizing the risks of damage from crash impacts.

Changelog

June 7, 2024: Black canopy upgrade.

Note: BNF purchased after June 7, 2024, will be given an additional black Canopy.

June 25, 2024: 10th Anniversary Edition canopy update.

Note: BNF purchased after June 7, 2024, will be given an additional Canopy.

June 21, 2024: The Upper Plate (middle) is available in two versions, and will be shipped randomly.

Sept. 26, 2024: Sharkfin in 10th Anniversary Edition BNF is changed to TPU material.

April 10, 2025: FC and ESC have two versions, BLITZ and Borg, which will be shipped randomly.

Nov. 10, 2025: Motor will be changed from R5 2207 2050KV to R5 2207 2100KV.

Highlights

Lightweight and Compact

As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.

Innovative Quick-Release Aero Shell

The unique canopy is not only engineered with aerodynamics but also features quick-release buckle for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

Convenient User Experience

Secured battery plug to prevent the power cable from being hit by the propellers, and with a built-in antenna to keep everything well protected and enhance the overall appearance.

The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.

DIY customized space

Standard 20*20 mounting holes, compatible with HDZERO and other VTX.

Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.

The canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.

Specifications

Product Name: Mach R5 Sport 6S Analog

FC: BLITZ Mini F722 Flight Controller / Borg 5S RX FC

ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC / Borg 60R ESC

Video Transmission: BLITZ Force VTX 600mW

Frame: 210mm wheelbase

Motor: R5 2207 2100KV motors

Prop: Nazgul R5 V2 propellers

Weight: 300g(Canopy)/310g(Lite)

Takeoff Weight: Approx. 525g(Canopy) /535g (Lite) (With 6S 1400mAh battery)

Dimensions (L×W): 179*172*51 mm(Canopy) /179*172*37 mm (Lite)

Max Speed: 240km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 15.5 min (No Load with 6S 1550mAh Battery)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: N/A

Video Transmission

Product Name: BLITZ Force VTX 600mW

Output Power: PIT/25mW/200mW/400mW/600mW

Input Volts: 5V

Working Current: ≤pit @80mA，≤25mw@280mA，≤100mw@405mA，≤400mw@485mA，≤600mw@575mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 20×20/Φ3mm/25×25/Φ2mm

Weight: 4g (W/O antenna)

Dimensions: 29×29mm

Packing List

1 x Mach R5 6S Sport Analog BNF

1 x Battery strap

2 x R5 Prop(Pairs)

1 x Battery pad

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
