Flashhobby A2807 4S-6S Brushless Motor 1300KV/1500KV/1800KV for FPV Freestyle 7inch Long Range Drones DIY Parts
2 orders (reference)
Description
Flashhobby A2807 4S-6S Brushless Motor 1300KV/1500KV/1800KV for FPV Freestyle 7inch Long Range Drones DIY Parts High-concerned chemical: None Origin: Mainland China For Vehicle Type: Helicopters Material: Metal Quantity: 1 pcs Model Number: Flashhobby A2807 Remote Control Peripherals/Devices: Motor Technical parameters: value 2
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Origin | Mainland China |
| For Vehicle Type | Helicopters |
| Material | Metal |
| Quantity | 1 pcs |
| Model Number | Flashhobby A2807 |
| Remote Control Peripherals/Devices | Motor |
| Technical parameters | value 2 |
| Four-wheel Drive Attributes | Motors |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
| RC Parts & Accs | Motors |
Product Details
Features:
52H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
A2807KV 1300KV Motor Specification
Max pull：1996g
Volts：24V(6S)
Suggested ESC: 40A~60A
Maximum Power：895.7W
Suggested Prop: GF7043 inch prop
A2807KV 1500KV Motor Specification
Max pull：2199g
Volts：24V(6S)
Suggested ESC: 60A~70A
Maximum Power：1098.8W
Suggested Prop: GF7043 inch prop
A2807KV 1800KV Motor Specification
Max pull：1614g
Volts：16V(4S)
Suggested ESC: 50A~70A
Maximum Power：636.1W
Suggested Prop: GF7043 inch prop

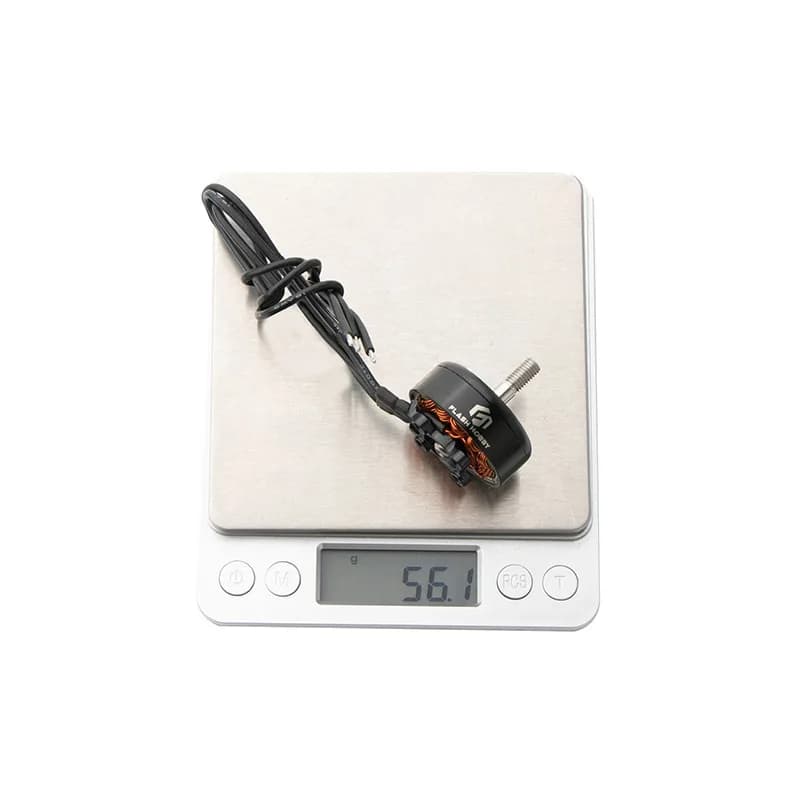

●Weight: 56.0g (including the cables)
●Motor Size: 33.6 x 20mm
●Shaft Diameter: 4.0mm
●Motor Mount: 19*19mm(M2*4)
●Configuration: 12N14P
●Motor Cable: 18#AWG 220mm
●KV Value: 1300KV, 1500KV and 1800KV or customed KV
●Recommend: 7" inch prop application
