iFlight iPower GM5208-12 GM5208-24 Brushless Gimbal Motor 12.6mm Shaft UAV pod

• The GM52 series motor by iPower Motors is the ultimate brushless gimbal motor for DSLR / CANON 5D MARKII, MARKIII Cameras.

• This motor is designed for large-scale multi-rotor platforms looking to lift Red Epic & DSLR sized gear – 4KG/cm Torque.

• The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

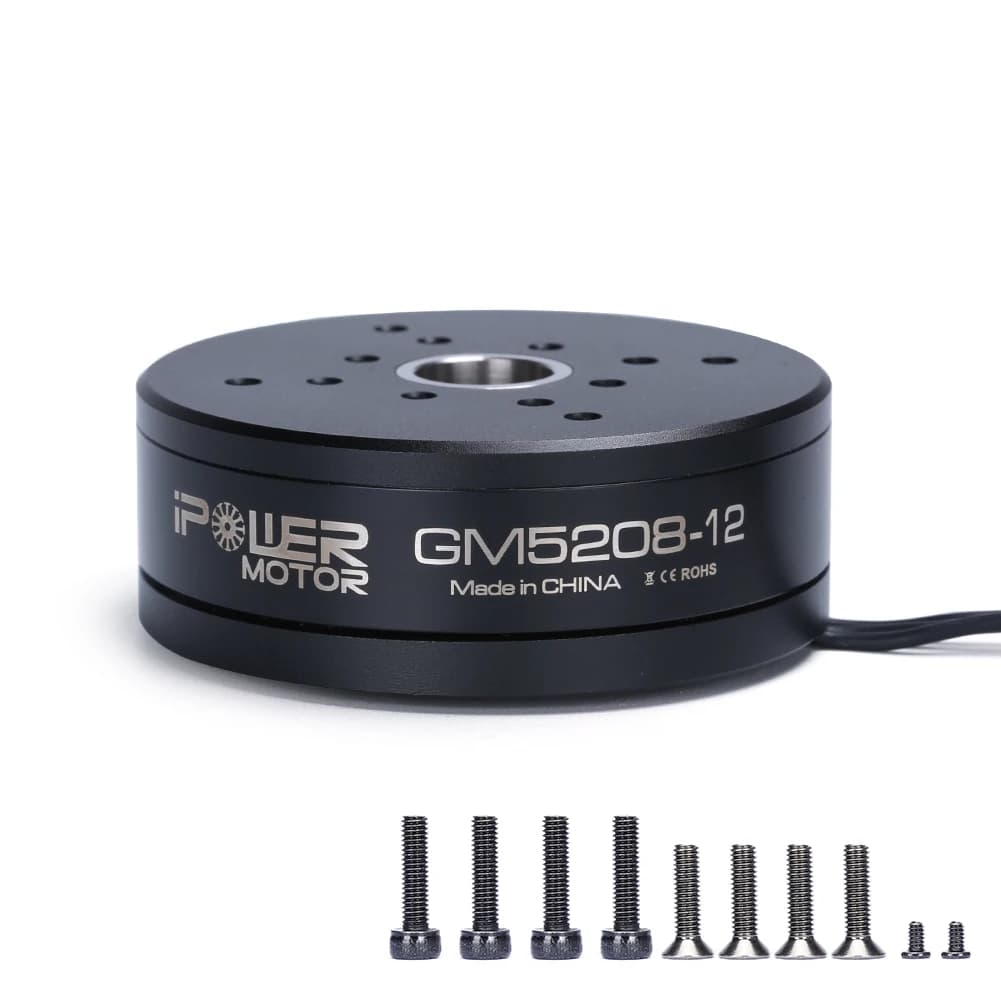

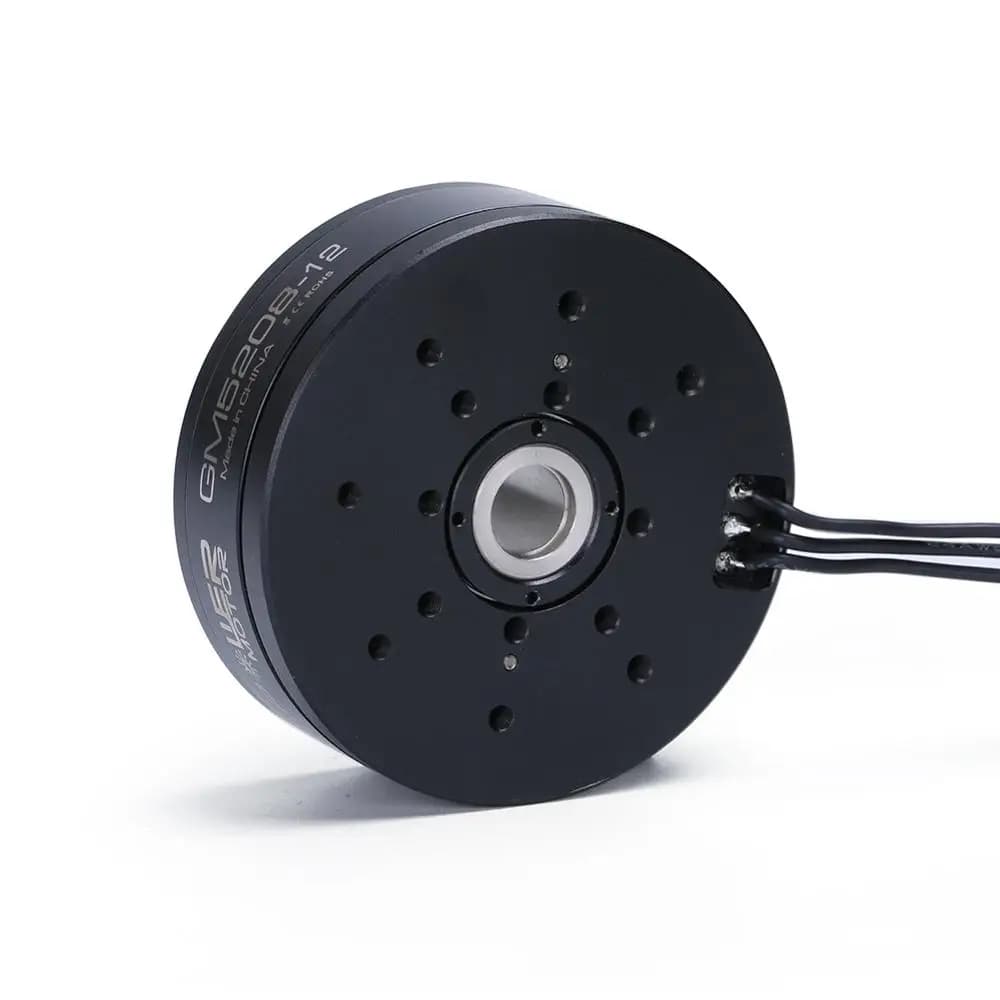

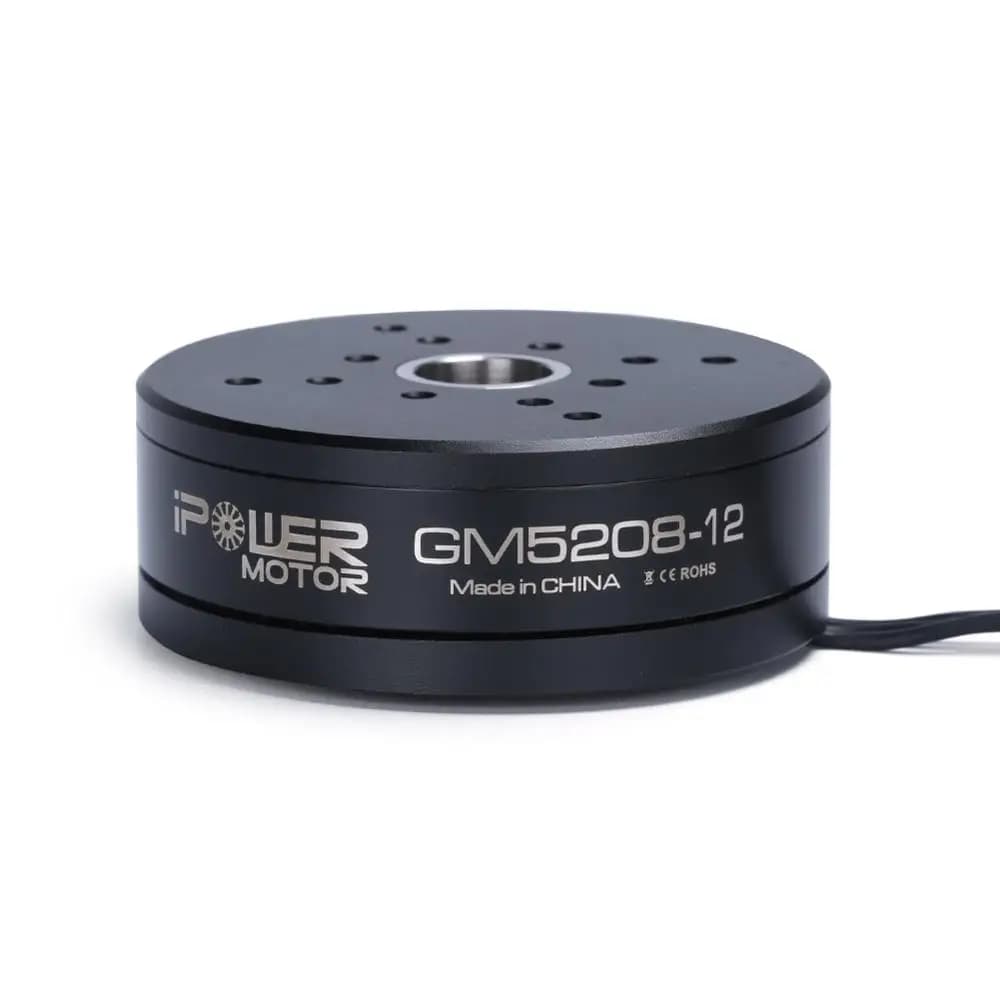

GM5208-12 Specification:

• Model: GM5208

• Motor Out Diameter: 63±0.05mm

• Motor Height: 22.7±0.2mm

• Hollow Shaft(OD): 15-0.008/-0.012 mm

• Hollow Shaft(ID): 12+0.05/0 mm

• Wire Length: 610±3mm

• Cable AWG: #24

• Motor Weight: 195±0.5g

• Wire plug: 2.5mm dupont connector

• No-load current: 20V

• No-load volts: 0.09±0.1 A

• No-load Rpm: 456~504 RPM

• Load current: 20V

• Load volts: 1A

• Load torque(g): 1800-2500

• Motor internal resistance: 15.2Ω±5%Resistance varies with temperature

• High voltage test: DC500V 10mA @1sec

• Rotor housing runout: ≤0.1mm

• Steering (axle extension): clockwise

• High-low temperature test:

• High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature

• Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature

• Maximum power: ≤40W

• Working current: 3-5S

• Working temperature: -20~60;10~90%RH

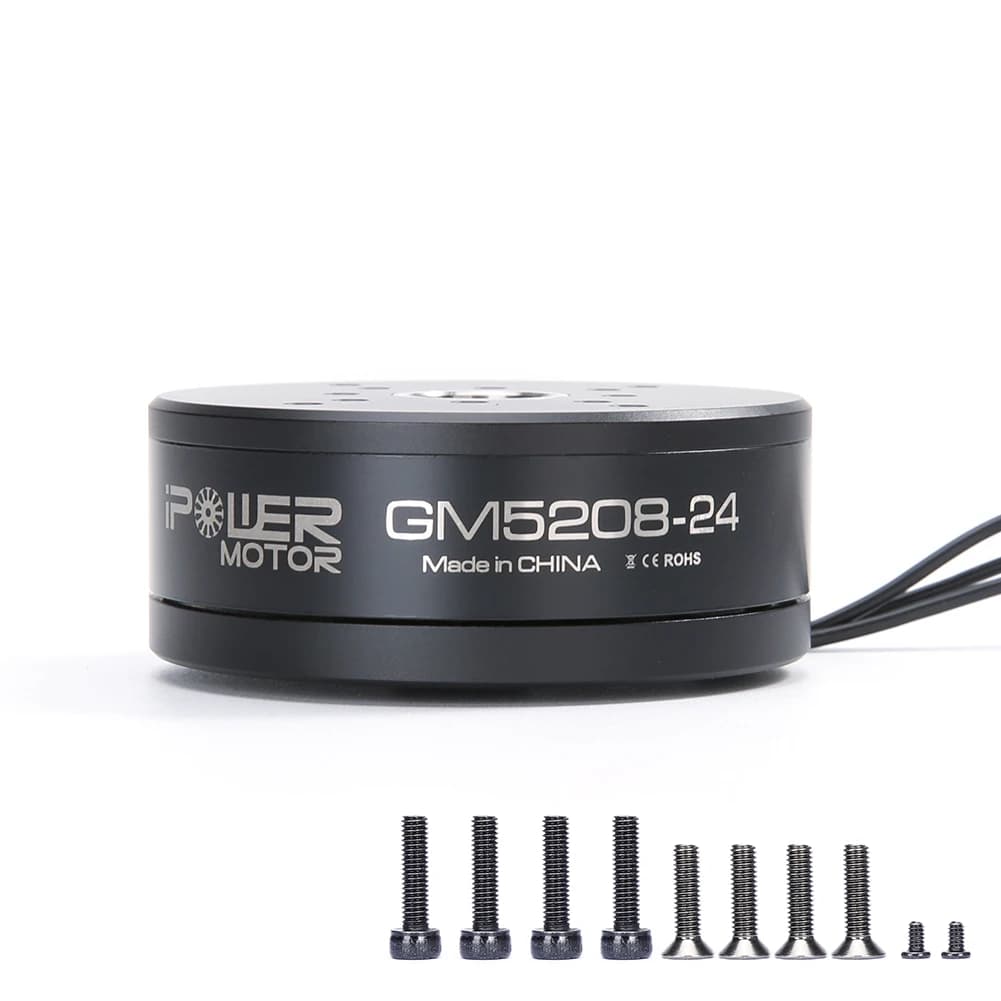

GM5208-24 Specification:

• Model: GM5208-24

• Motor Out Diameter: 59.5±0.05mm

• Motor Height: 31.2±0.2mm

• Hollow Shaft(OD): 15-0.008/-0.012 mm

• Hollow Shaft(ID): 12.6+0.05/0 mm

• Wire Length: 610±3mm

• Cable AWG: #24

• Motor Weight: 204±0.5g

• Wire plug: 2.5mm dupont connector

• No-load current: 20V

• No-load volts: 0.09±0.1 A

• No-load Rpm: 396~436 RPM

• Load current: 20V

• Load volts: 1A

• Load torque(g): 1800-2500

• Motor internal resistance: 13.7Ω±5%Resistance varies with temperature

• High voltage test: DC500V 10mA @1sec

• Rotor housing runout: ≤0.1mm

• Steering (axle extension): clockwise

• High-low temperature test:

• High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature

• Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature

• Maximum power: ≤40W

• Working current: 3-5S

• Working temperature: -20~60;10~90%RH

Package included:

GM5208-12 Gimbal Motor:

1XGM5208 gimbal motor



GM5208-24 Gimbal Motor:

1 x GM5208-24 gimbal motor

1 x Screw bag


GM5208-12 Gimbal Motor w/Encoder:

1 x iPower GM5208-12 Gimbal Motor

1 x AS5048A Encoder with aluminum case
