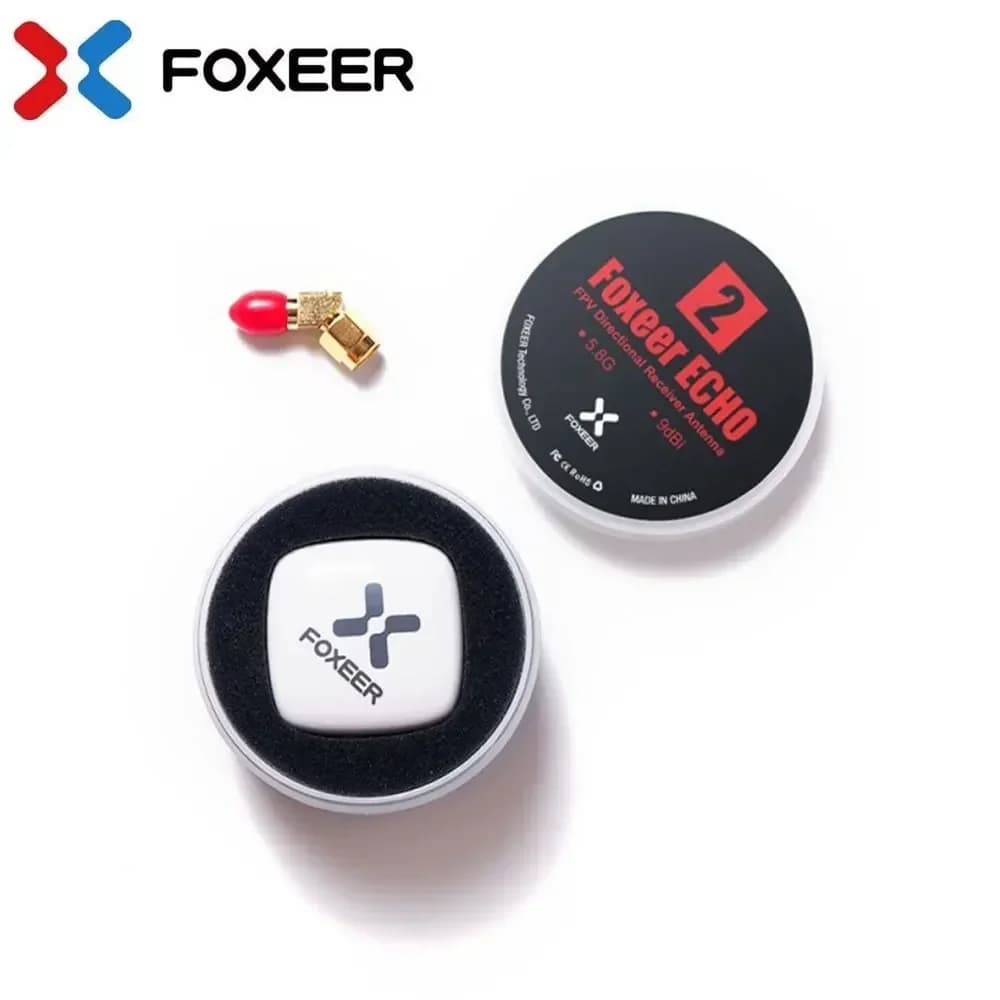

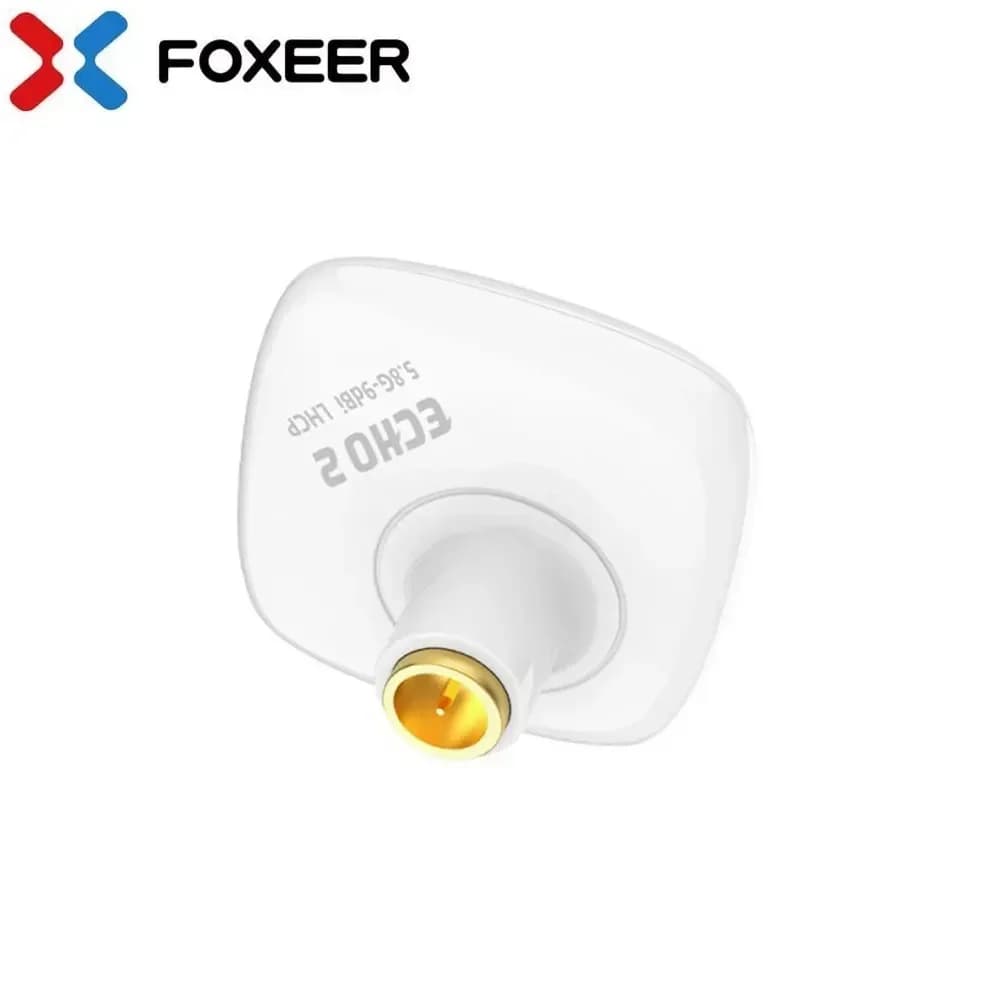

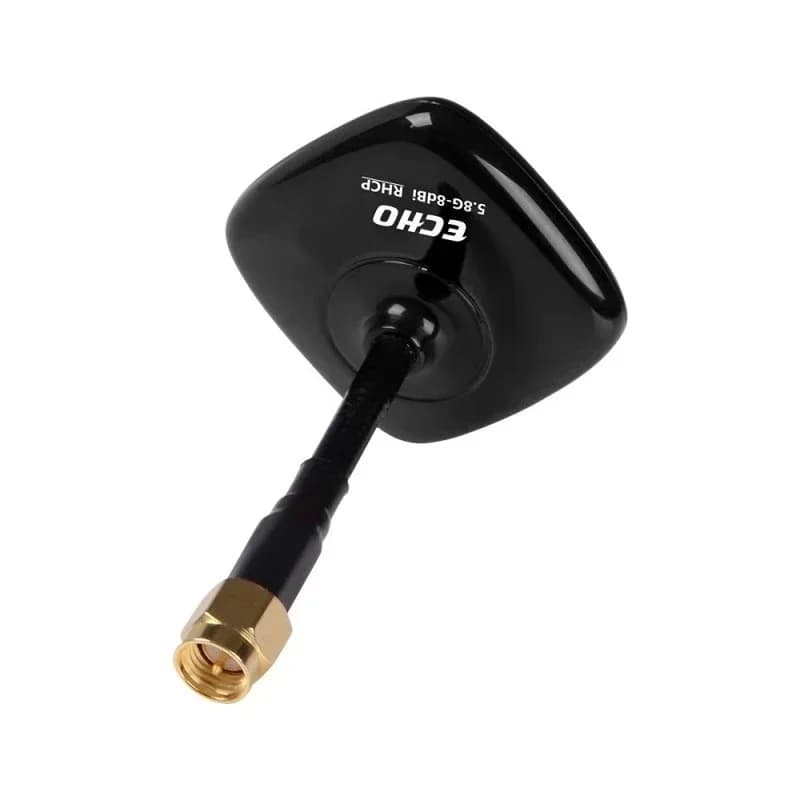

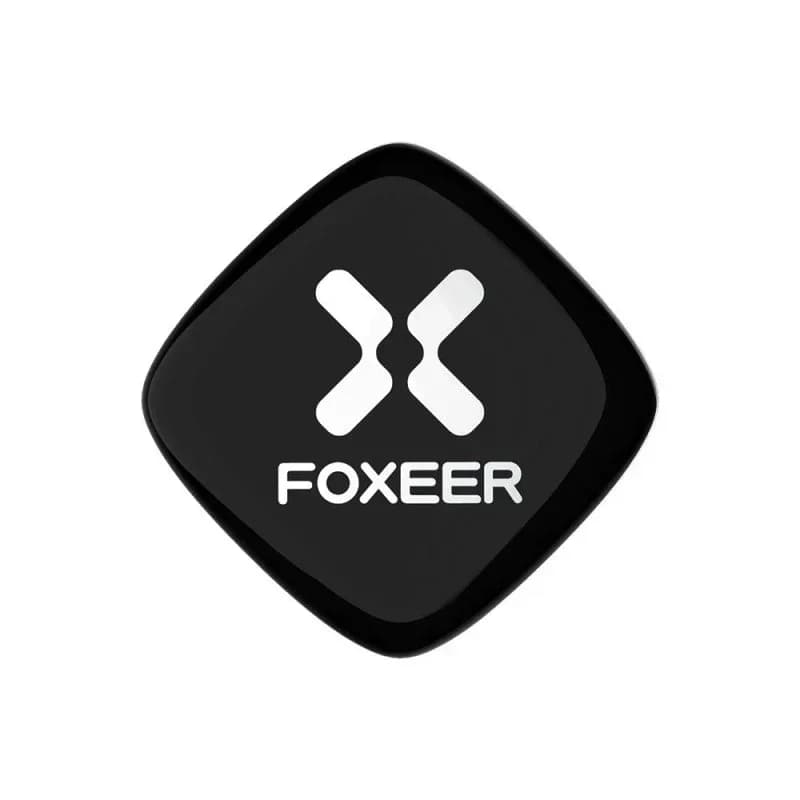

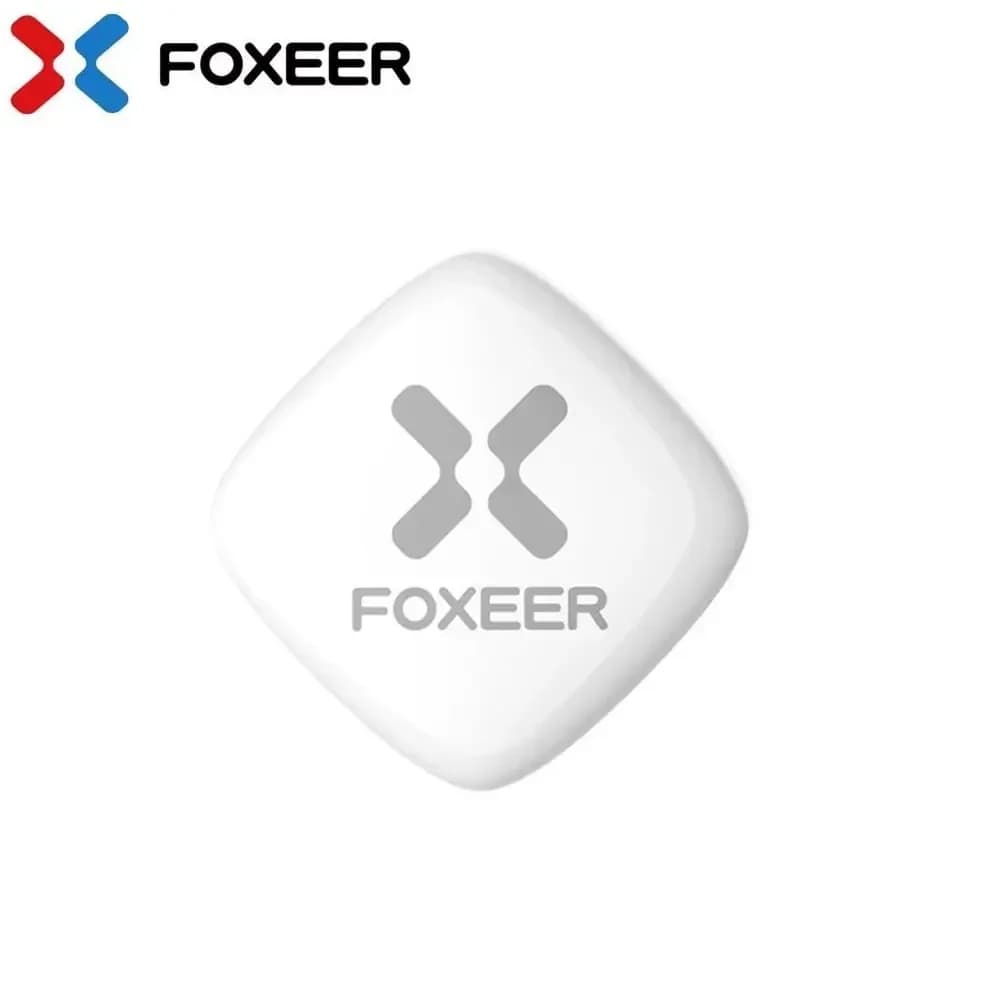

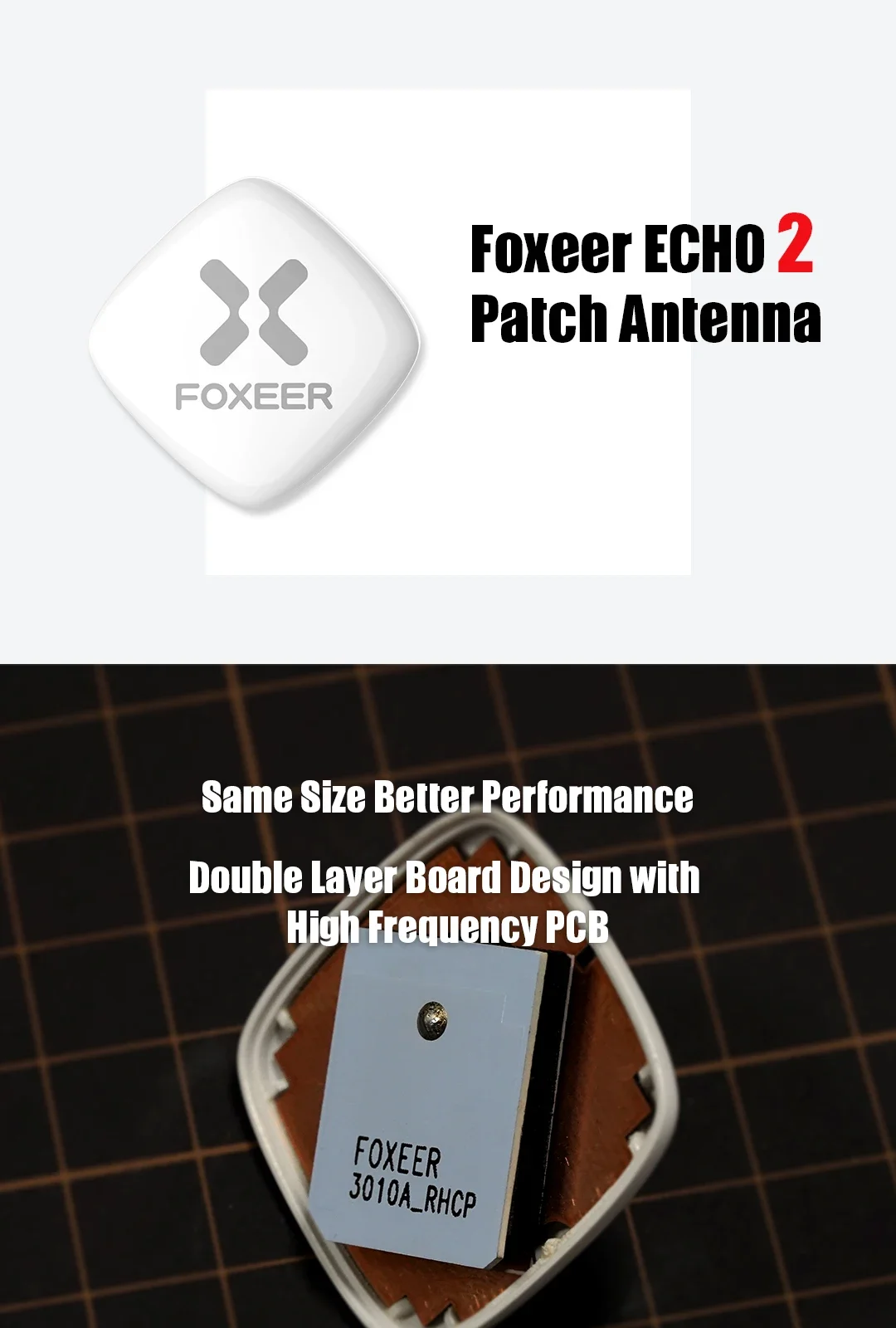

Foxeer Echo V2 2 5.8GHz 9dBi Patch Antenna LHCP RHCP for RC Airplane FPV Racing Freestyle Drones VTX VRX Goggles Monitor
Reference price:
US $18.54
1-10 pcs$17(-3%)
10-100 pcs$17(-7%)
100+ pcs$16(-12%)
54 orders (reference)
Description
Foxeer Echo V2 2 5.8GHz 9dBi Patch Antenna LHCP RHCP for RC Airplane FPV Racing Freestyle Drones VTX VRX Goggles Monitor High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Wheelbase: Screws Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 21.7mm x8x5mm
Select options
Variant
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 21.7mm x8x5mm |
| Technical parameters | KV1100 |
| Model Number | Foxeer Echo 2 5.8GHz 9dBi Patch Antenna |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | FPV Antenna |
| Upgrade Parts/Accessories | FPV Antenna |
| RC Parts & Accs | Antennas |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

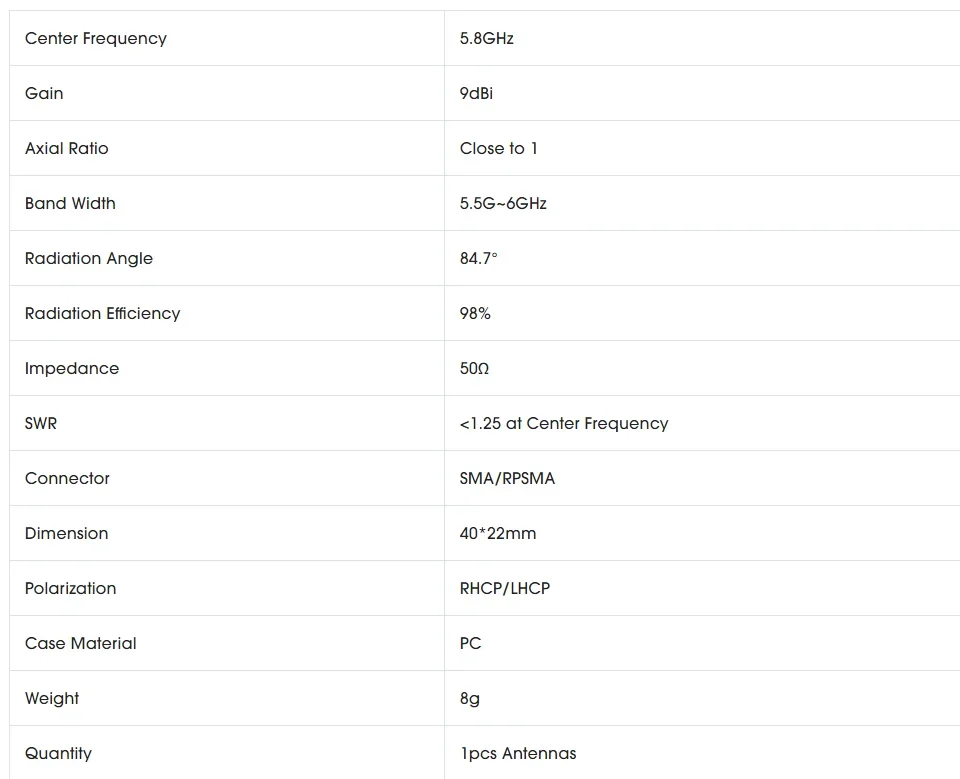

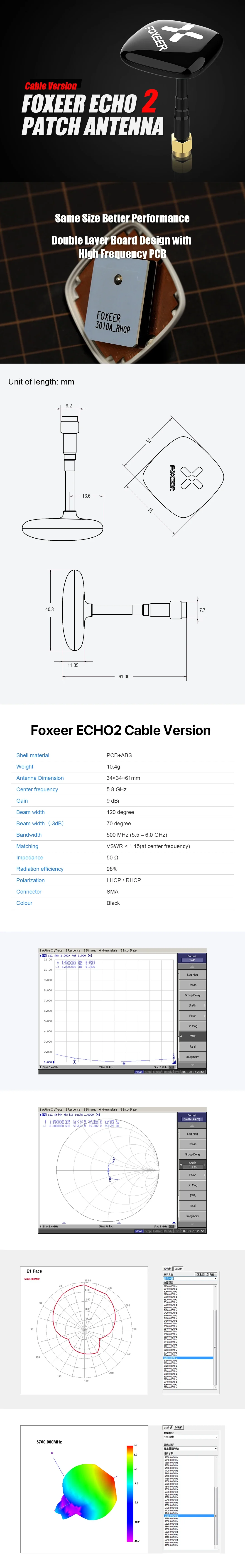

Specification:
Shell material: Imported PC+ABS
Weight: 8g

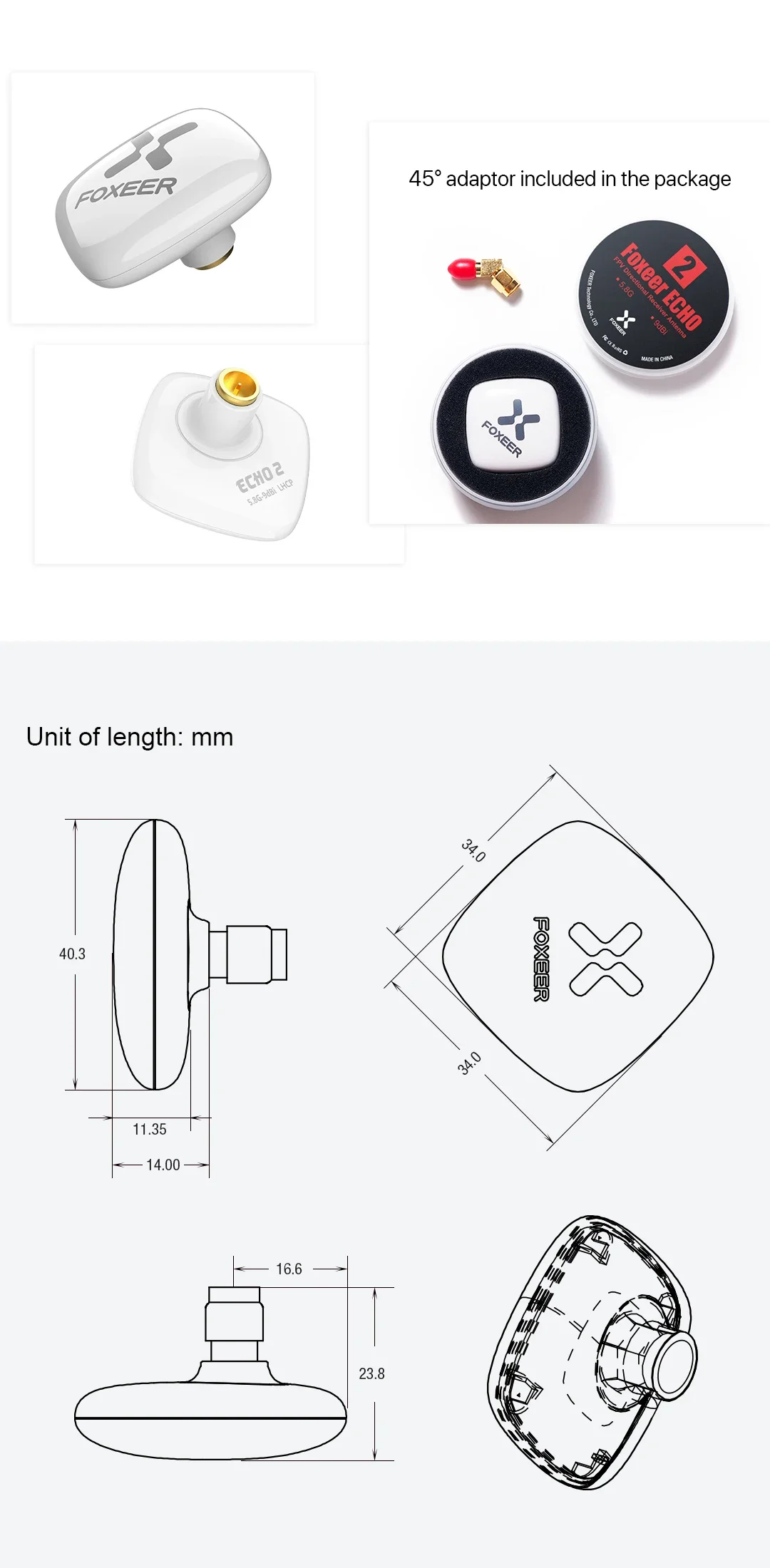

Antenna length: 21.7mm
Center frequency: 5.8 GHz
Gain : 8dBi

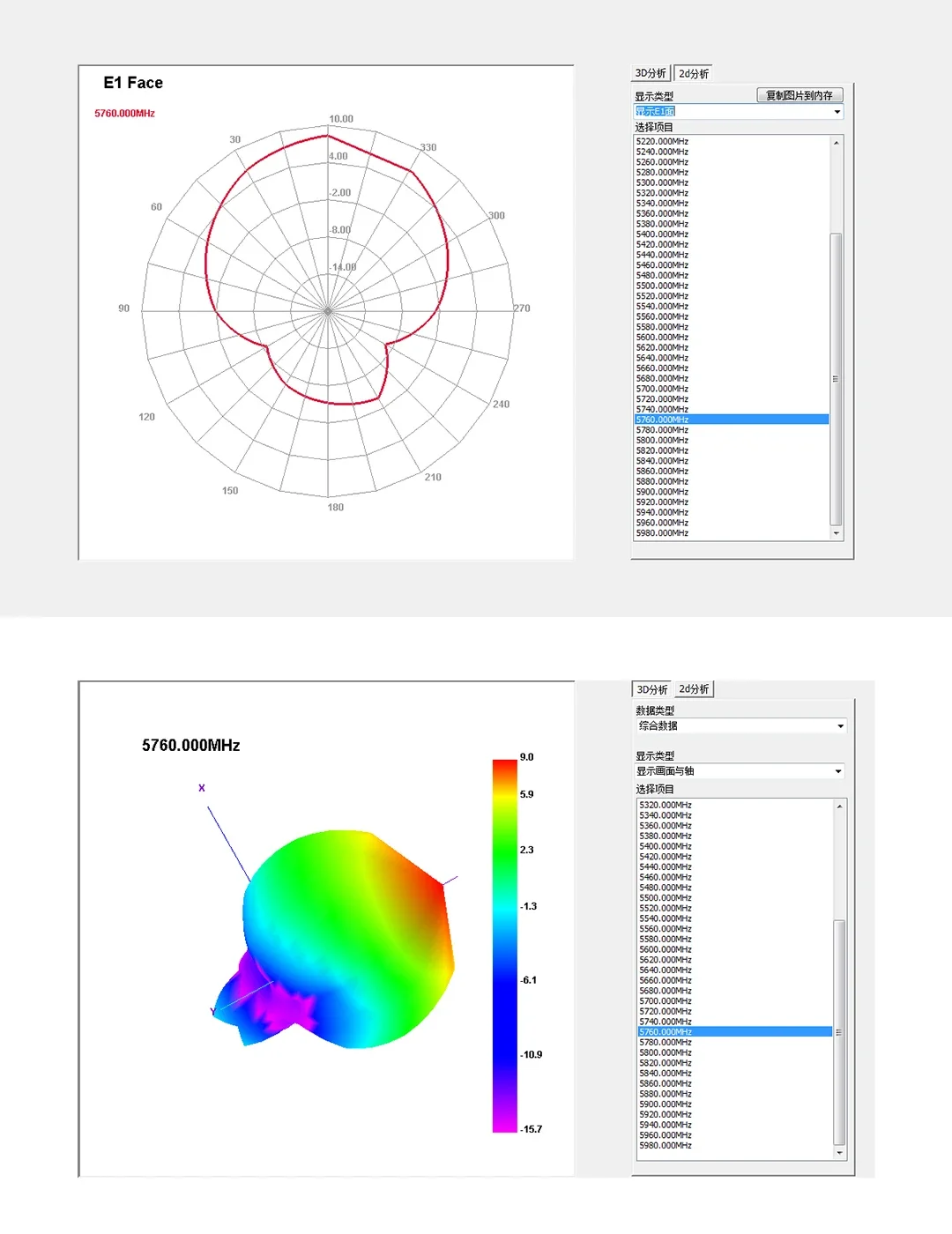

Radiation direction angle: 84.7 degree
Bandwidth: 500 MHz (5.5 – 6.0GHz)

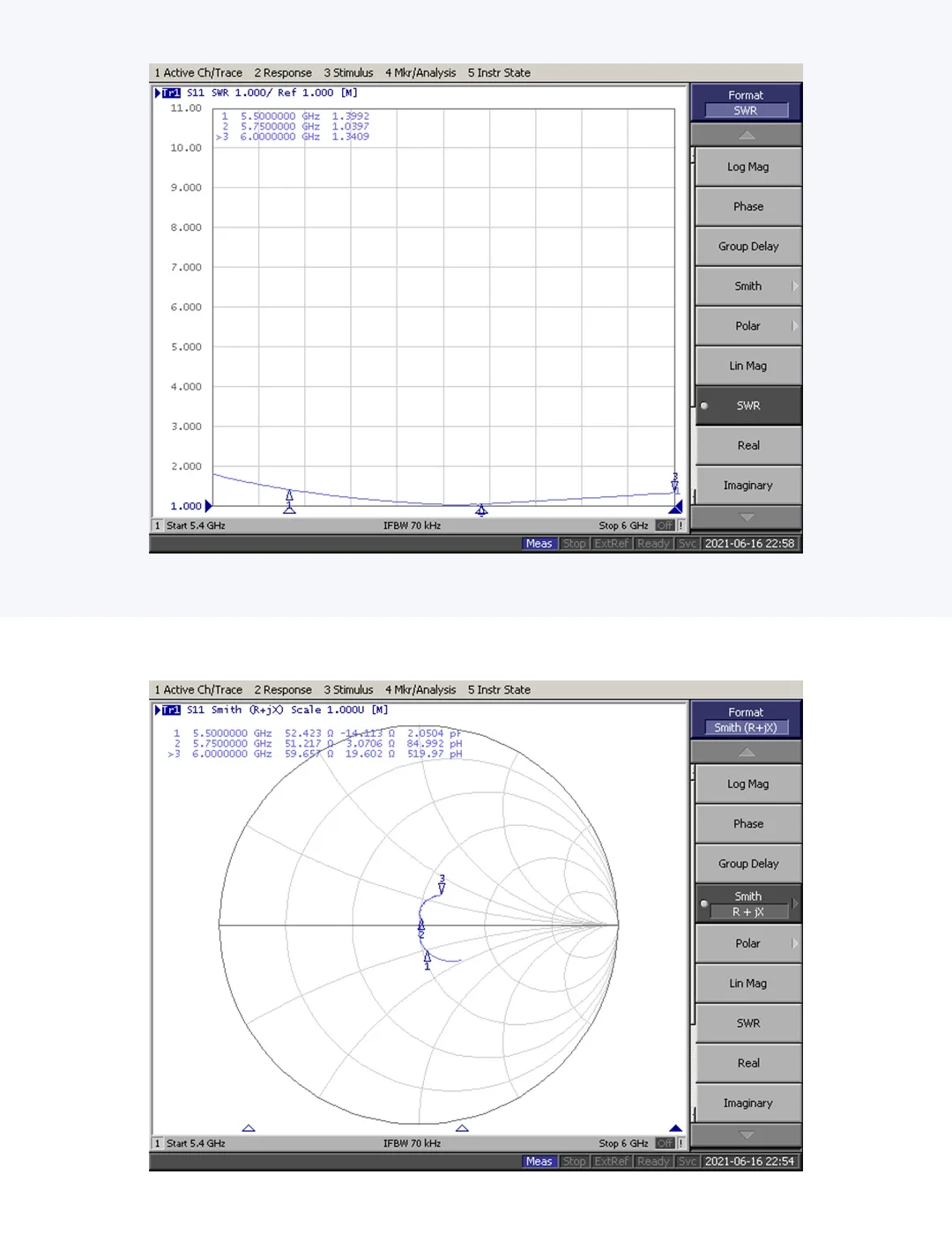

Matching: VSWR < 1.25 (at center frequency)
Impedance: 50Ω
Axial ratio: < 3
Center frequency: 5600~5950MHz
Radiation efficiency: 98%
Polarization: RHCP/LHCP
Connector:SMA
Color: White/Red
Packing list:
1pcs* Foxeer ECHO 2 5.8G 9dBi patch antenna
Shell material: Imported PC+ABS
Weight: 8g
Antenna length: 21.7mm
Center frequency: 5.8 GHz
Gain : 8dBi
Radiation direction angle: 84.7 degree
Bandwidth: 500 MHz (5.5 – 6.0GHz)
Matching: VSWR < 1.25 (at center frequency)
Impedance: 50Ω
Axial ratio: < 3
Center frequency: 5600~5950MHz
Radiation efficiency: 98%
Polarization: RHCP/LHCP
Connector:SMA
Color: White/Red
Packing list:
1pcs* Foxeer ECHO 2 5.8G 9dBi patch antenna
