HOTA T8 Smart Balance Charger 1-8S Lithium Battery FPV Drone 22A Current 650W RC

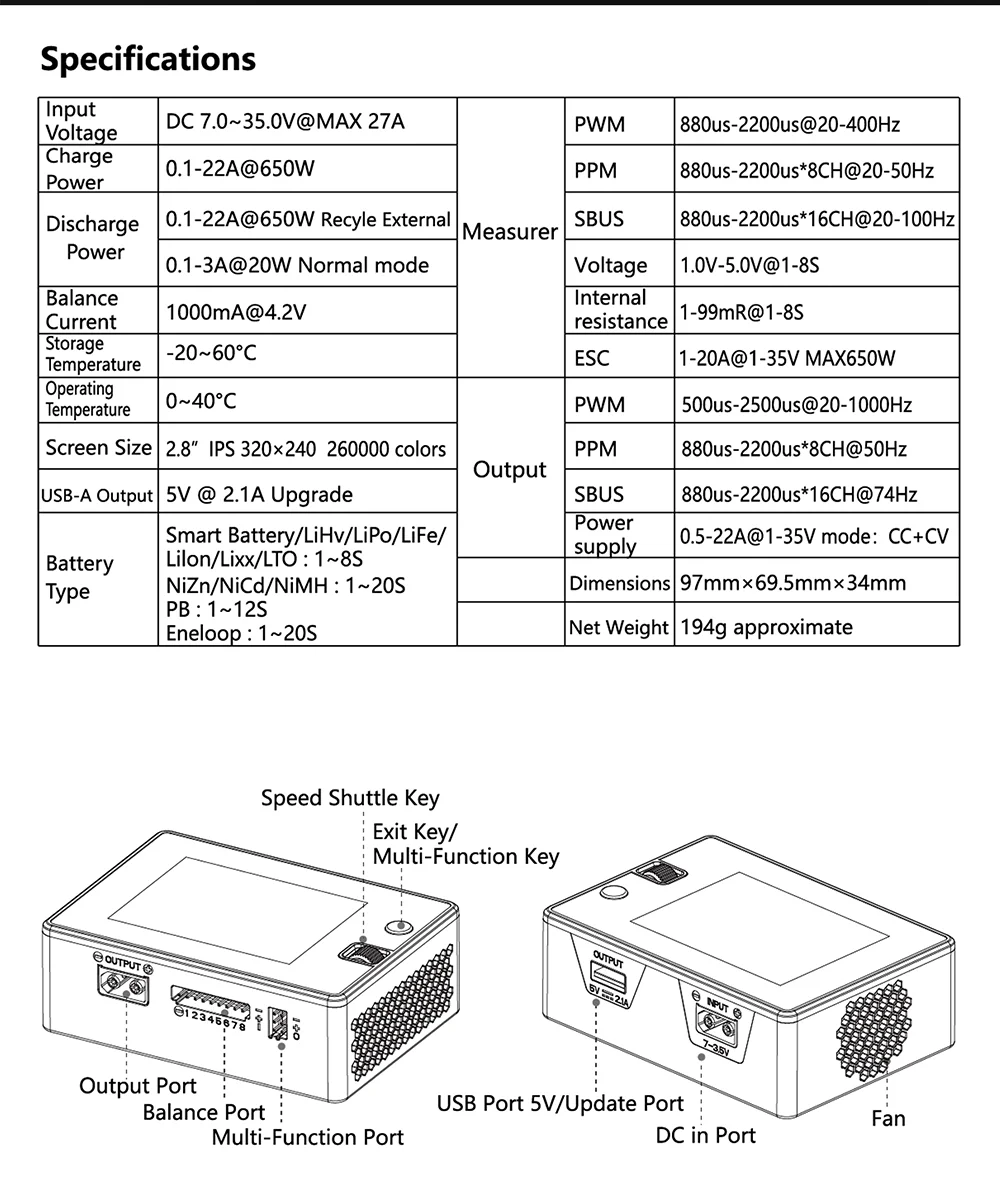

Specification:

Input Voltage	DC 7.0~35.0V@MAX 27A
Power Charge	0.1-22A@650W
Discharge Power	0.1-22A@650W Recyle External
	0.1-3A@20W Normal mode
Balance Current	1000mA@4.2V
Storage Temperature	-20~60°℃
Operating Temperature	0~40°℃
Screen Size	2.8" IPS 320×240 260000 colors
USB-A Output	5V @ 2.1A Upgrade
Battery Type	Smart Battery/LiHv/LiPo/LiFe/Lilon/Lixx/LTO : 1~8S
	NiZn/NiCd/NiMH:1~20S
	PB: 1~12S
	Eneloop : 1~20S
Measurer	PWM	880us-2200us@20-400Hz
	PPM	880us-2200us*8CH@20-50Hz
	SBUS	880us-2200us*16CH@20-100Hz
	Voltage	1.0V-5.0V@1-8S
	Internal resistance	1-99mR@1-8S
	ESC	1-20A@1-35V MAX650W
Output	PWM	500us-2500us@20-1000Hz
	PPM	880us-2200us*8CH@50Hz
	SBUS	880us-2200us*16CH@74Hz
	Power supply	0.5-22A@1-35V mode: CC+CV
	Dimensions	97mm×69.5mm×34mm
	Net Weight	194g approximate

Features:

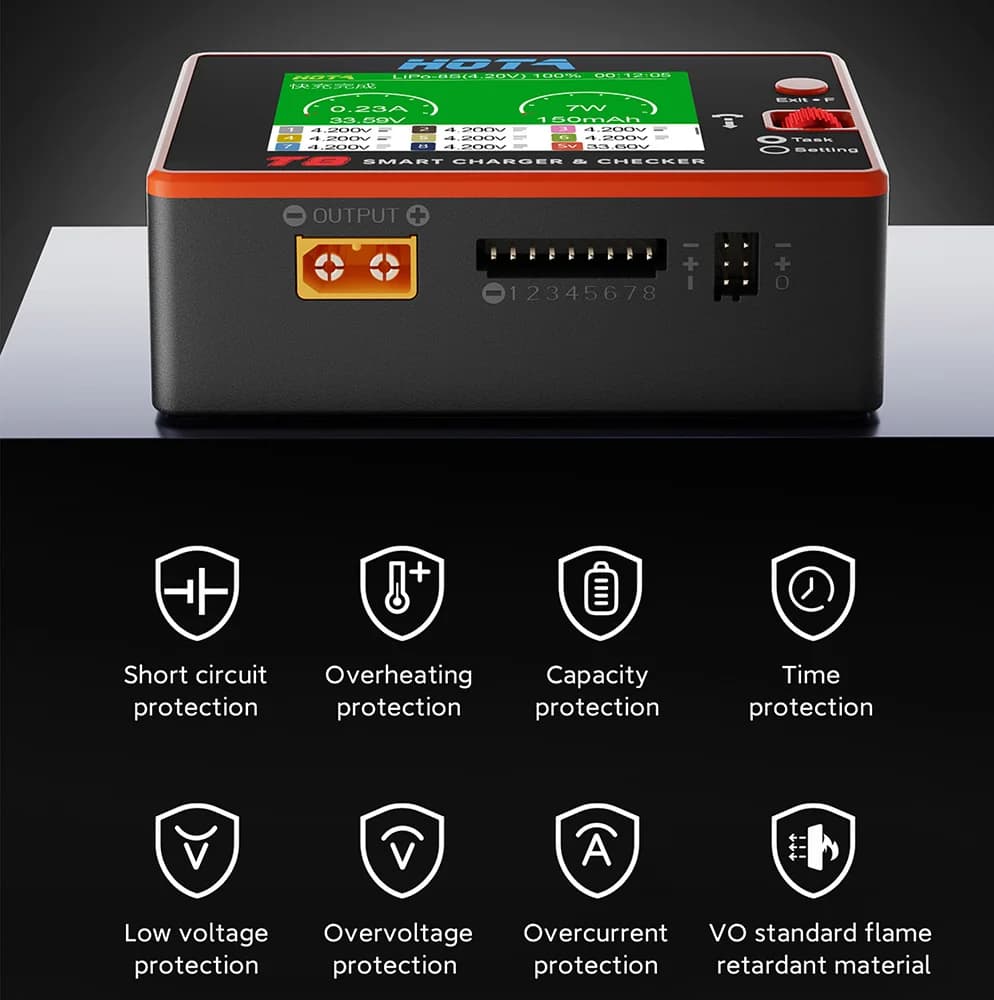

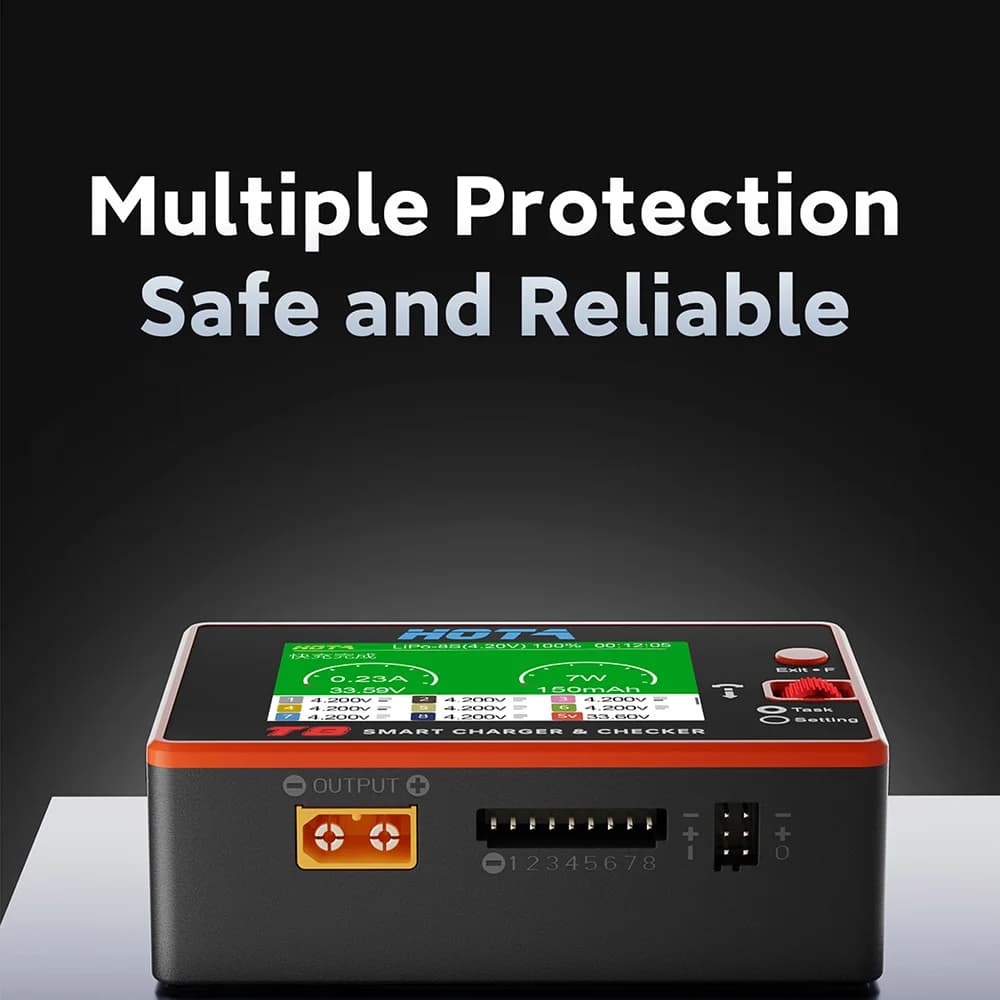

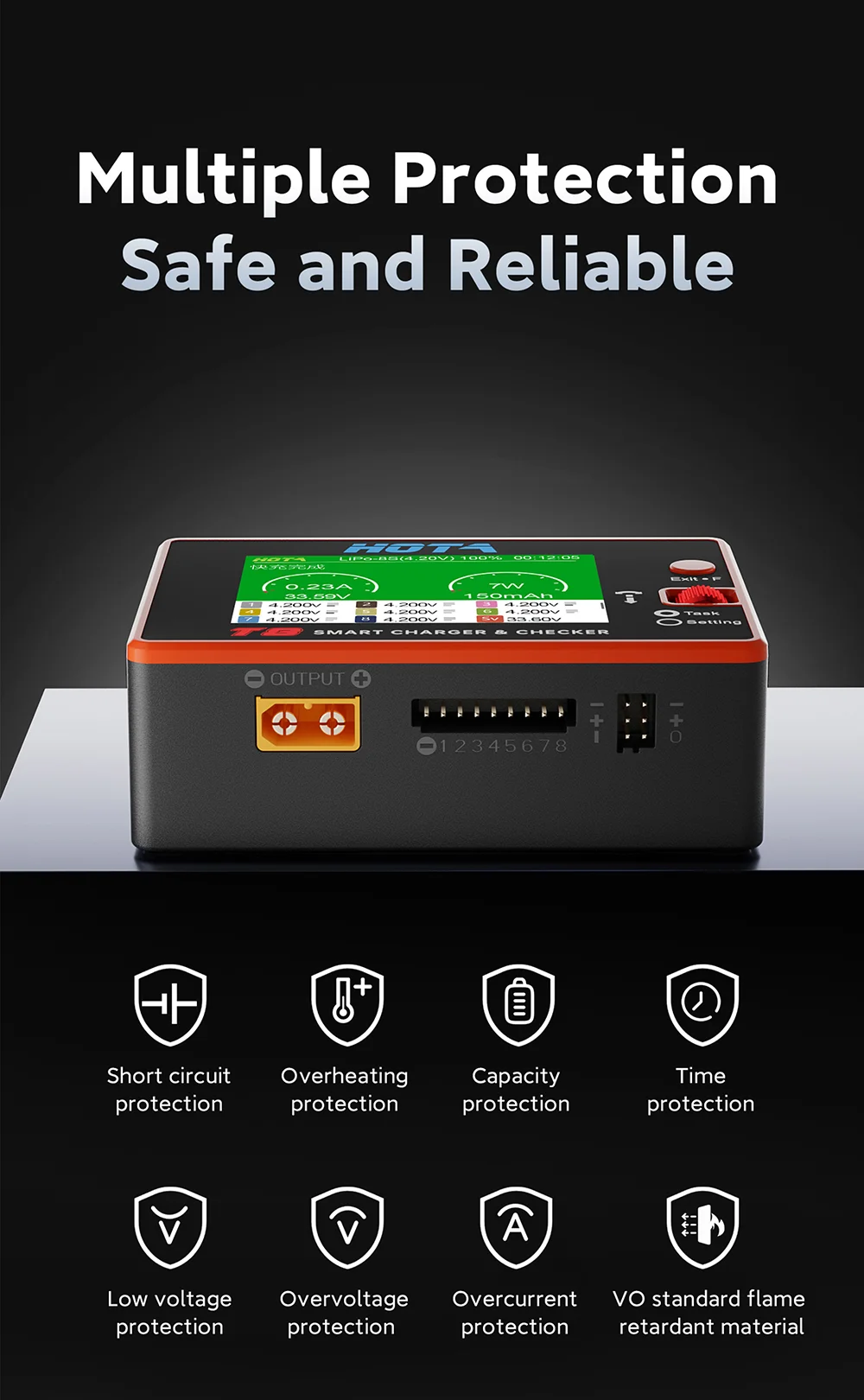

1. Smart charging: The HOTA T8 charger and checker is equipped with intelligent features to ensure safe and efficient charging of your batteries.

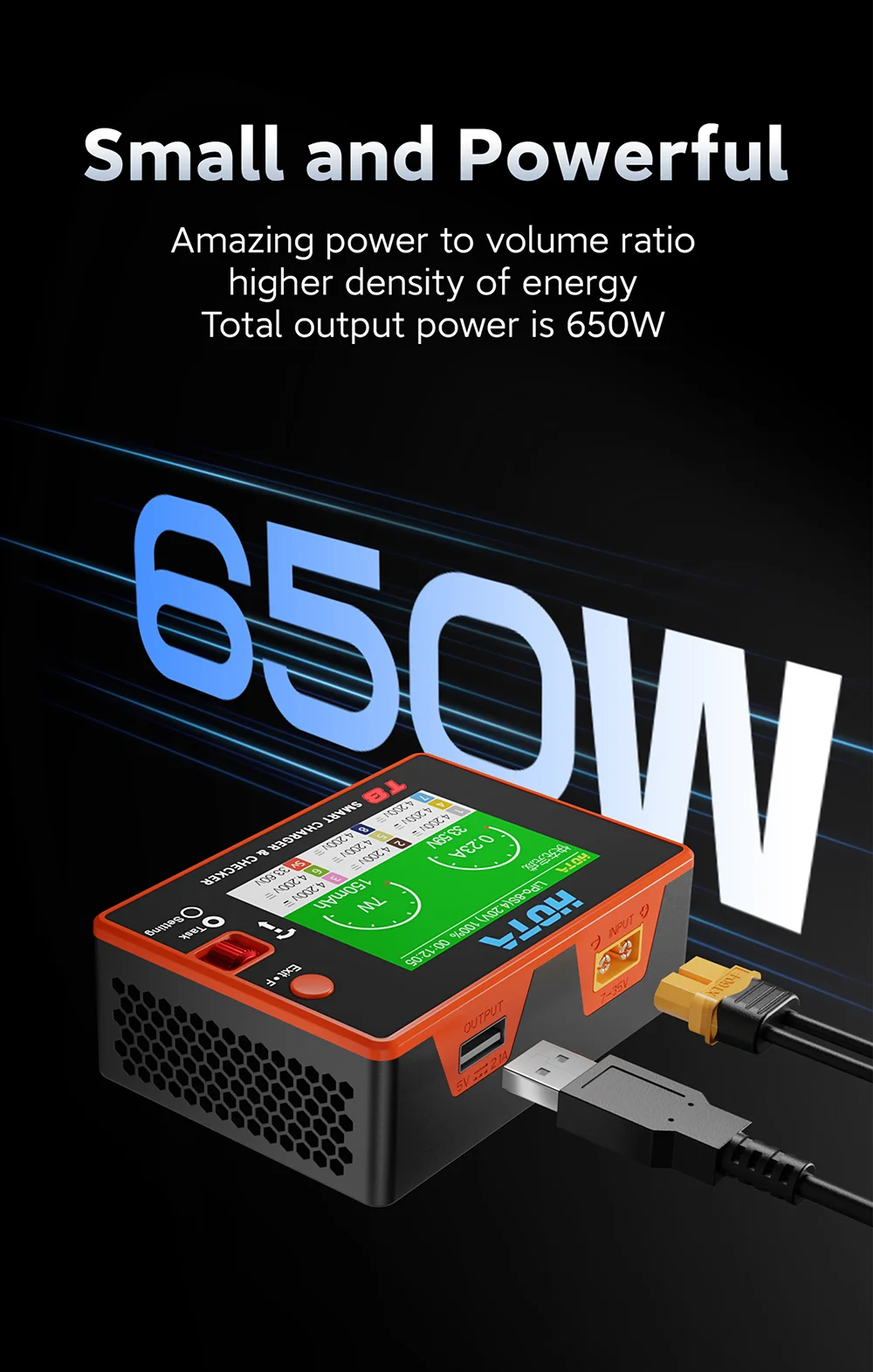

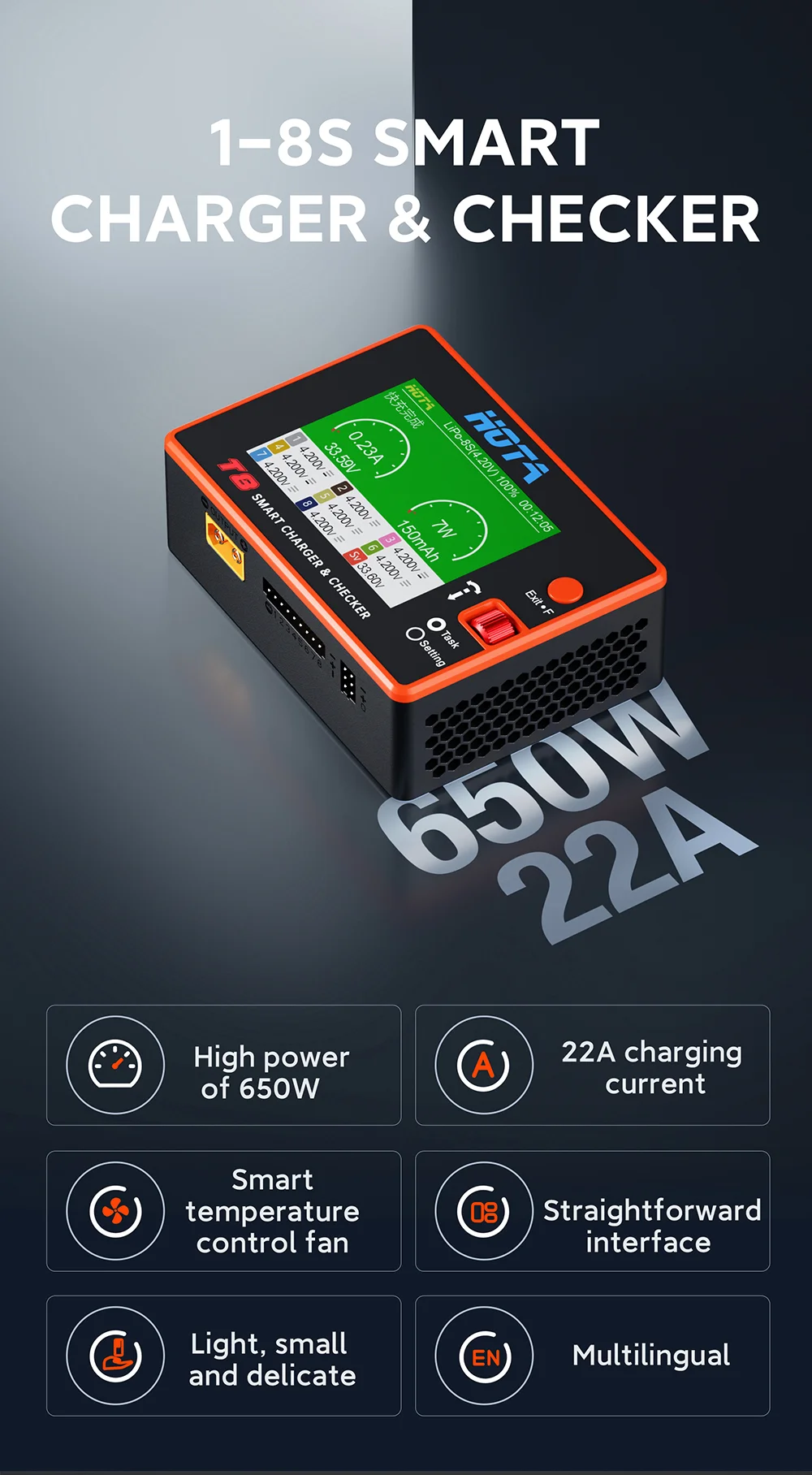

2. High power: With a maximum power output of 650W and a current of 22A, this charger can quickly charge your batteries.

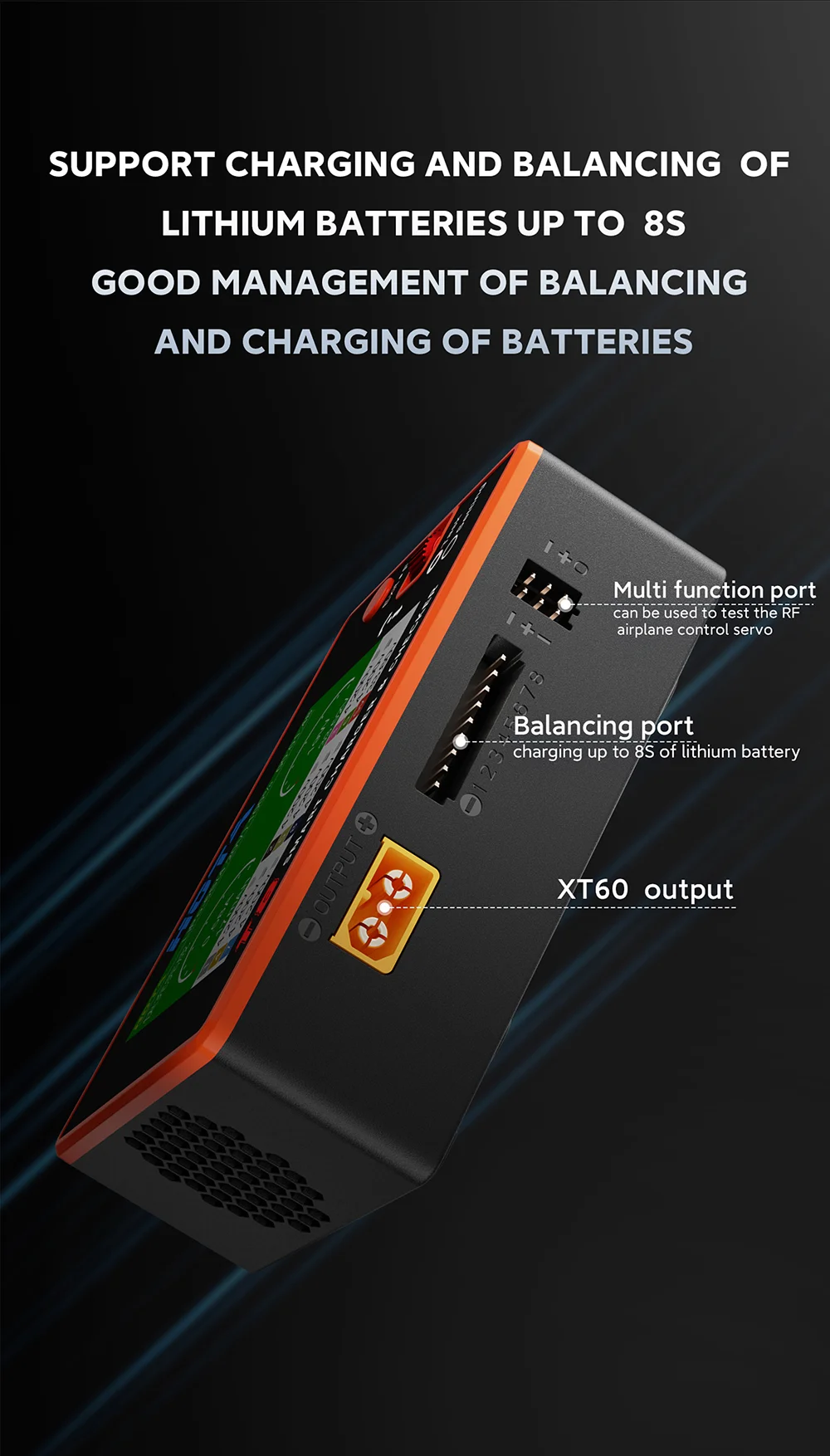

3. Versatile compatibility: The XT60 connector allows you to charge batteries with 1-8S cell configurations, making it suitable for a wide range of devices.

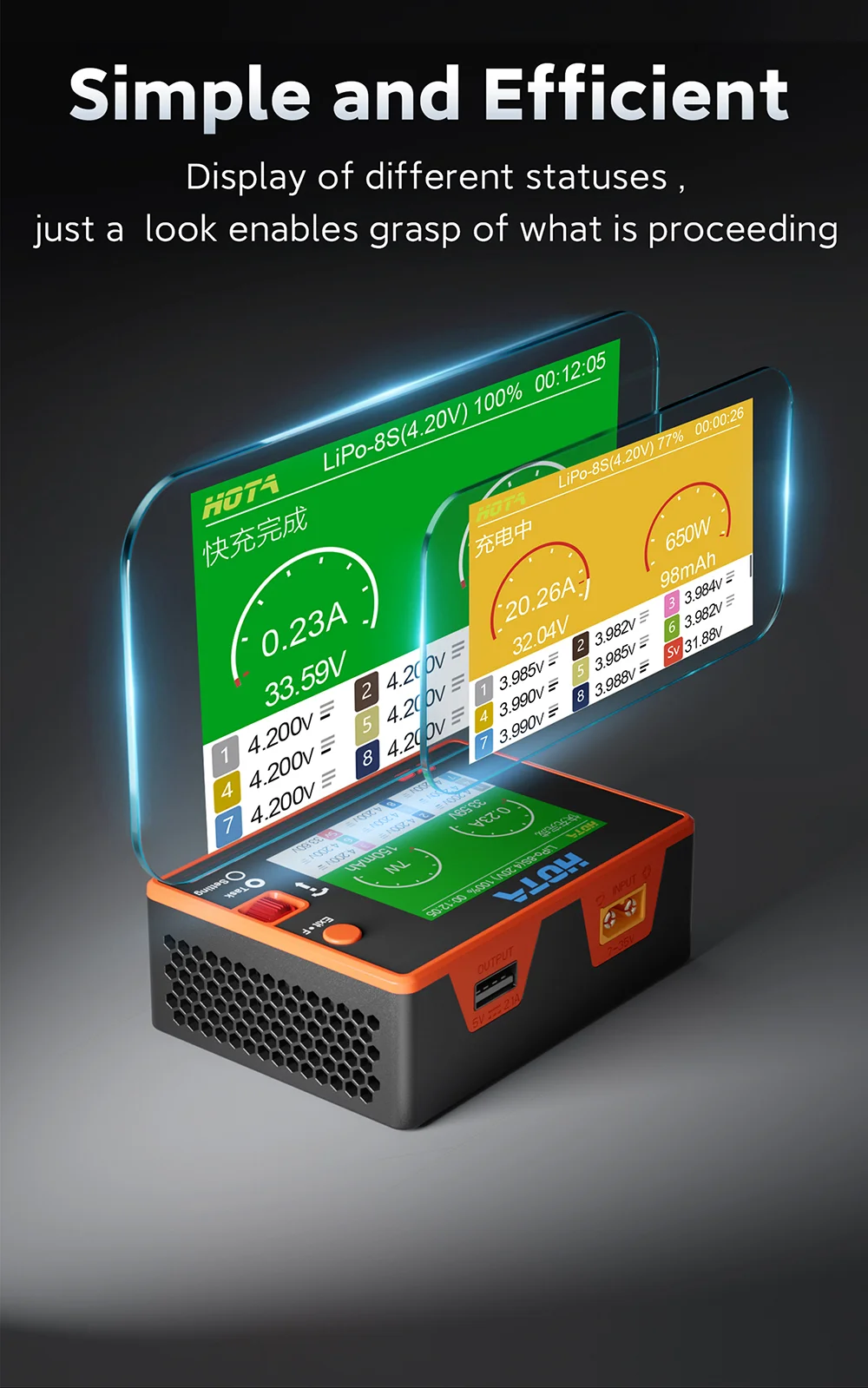

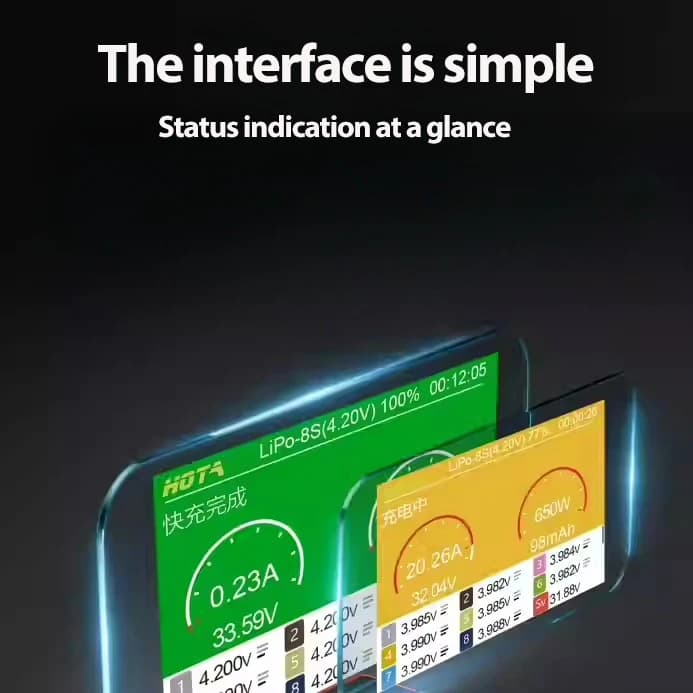

4. Easy to use: The user-friendly interface and intuitive controls make it easy for both beginners and experienced users.

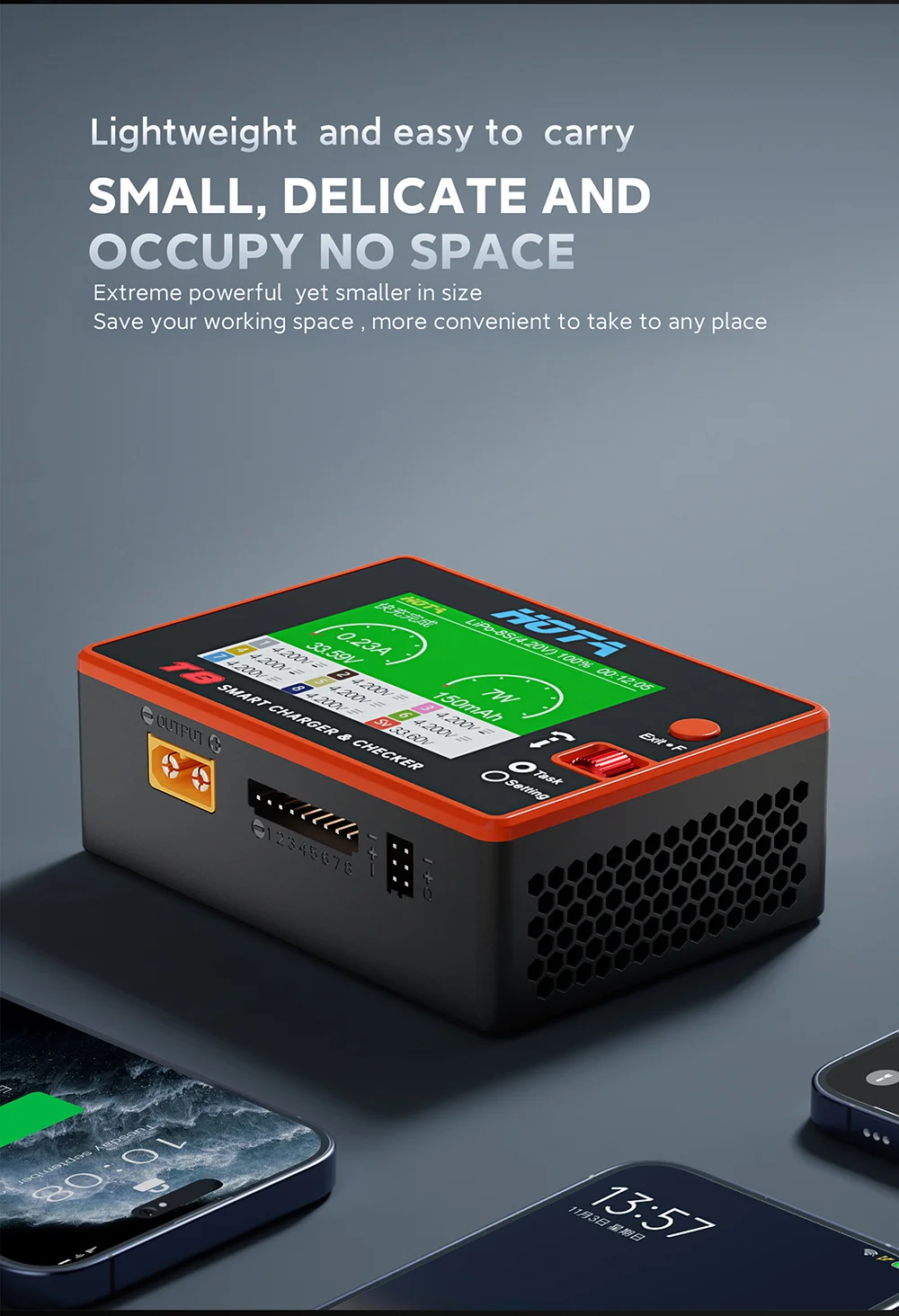

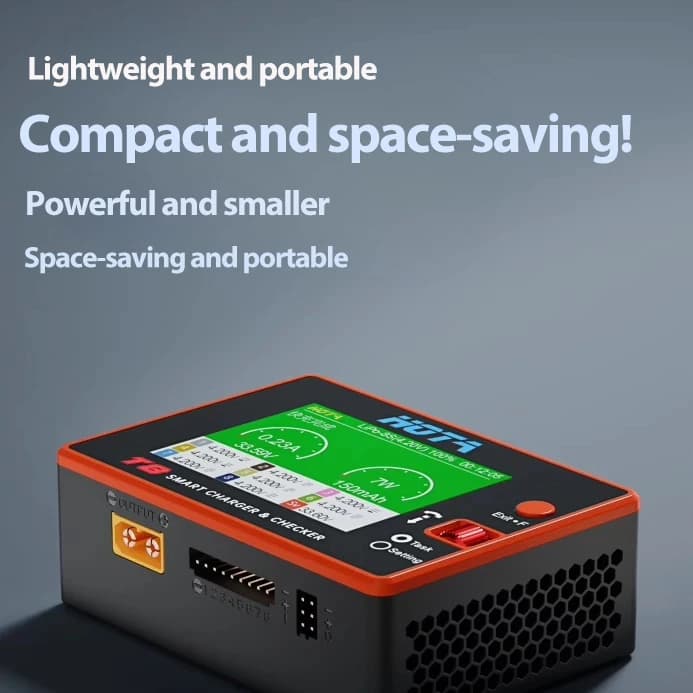

5. Compact design: The T8 charger and checker is compact and portable, allowing you to take it with you wherever you go.

Package included:

1 x HOTA T8 650W 22A XT60 1-8S Intelligent Charger Checker

1 x User Manual
